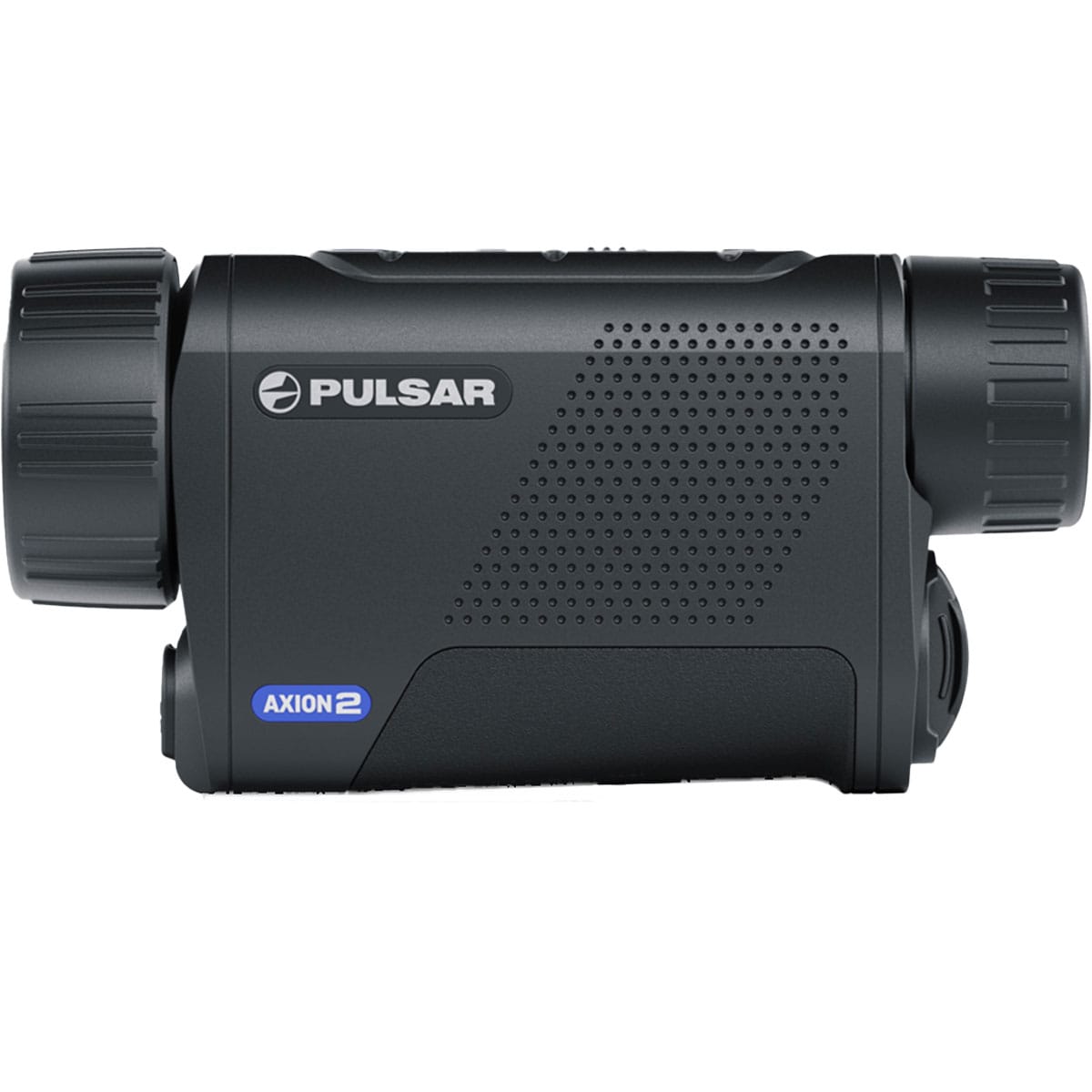

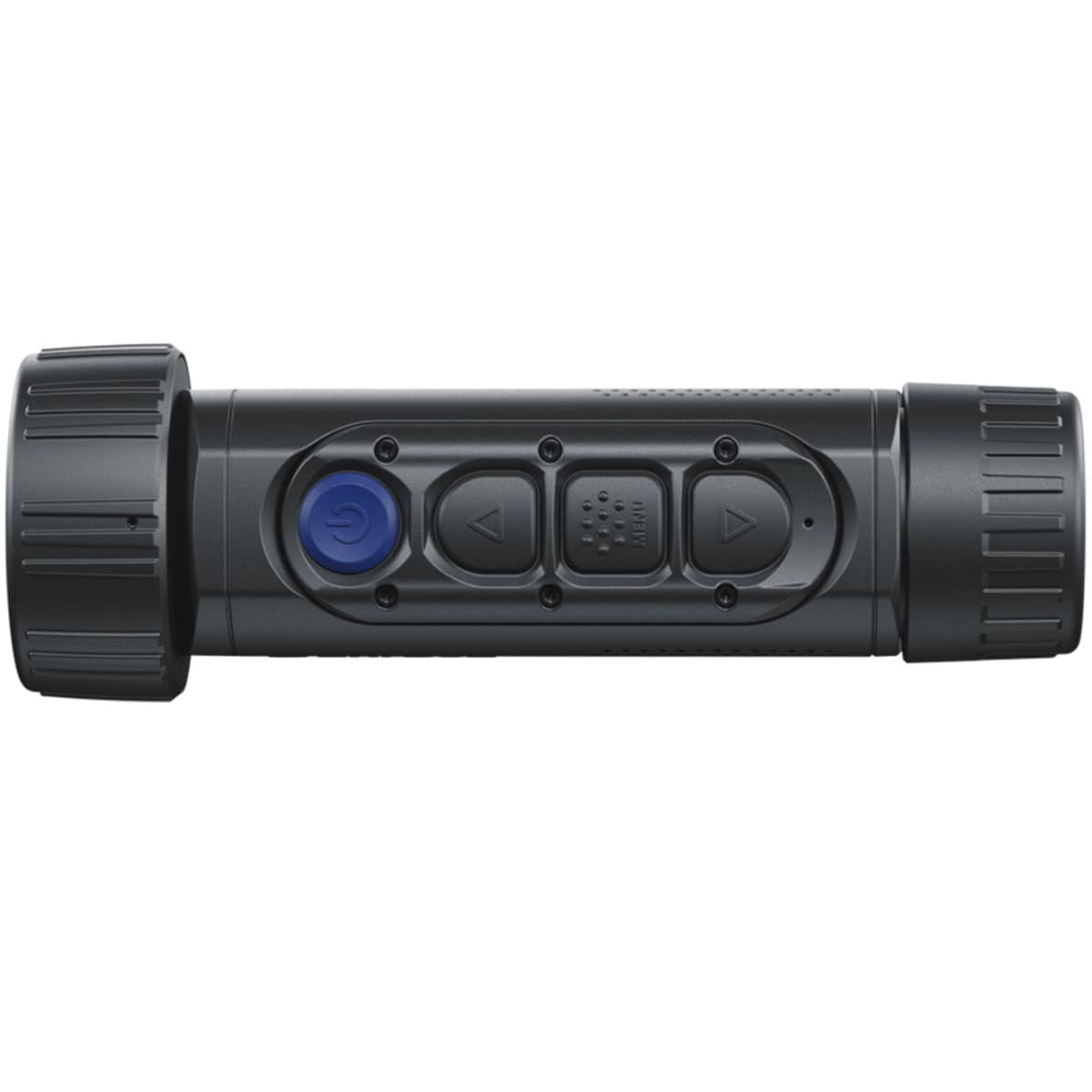

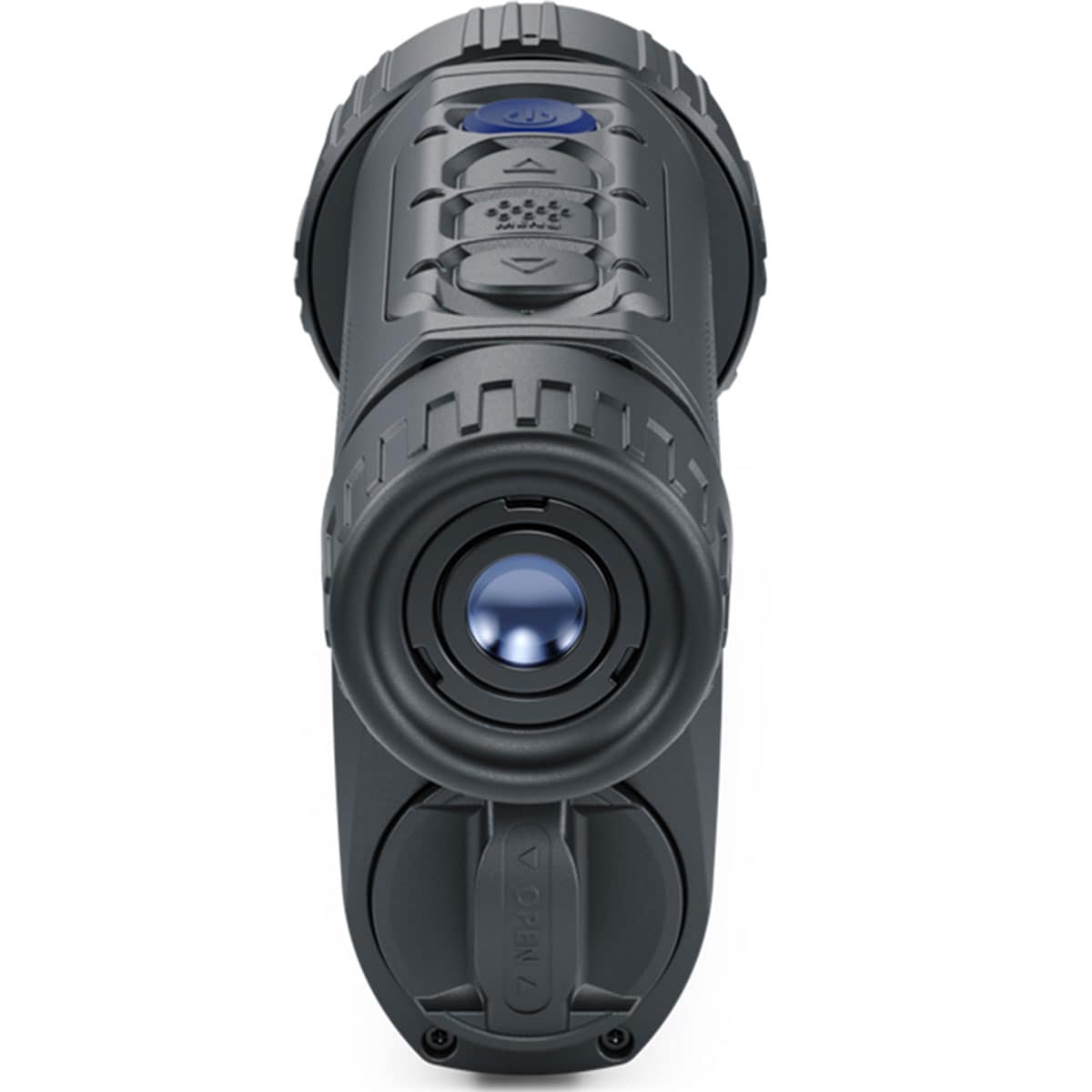

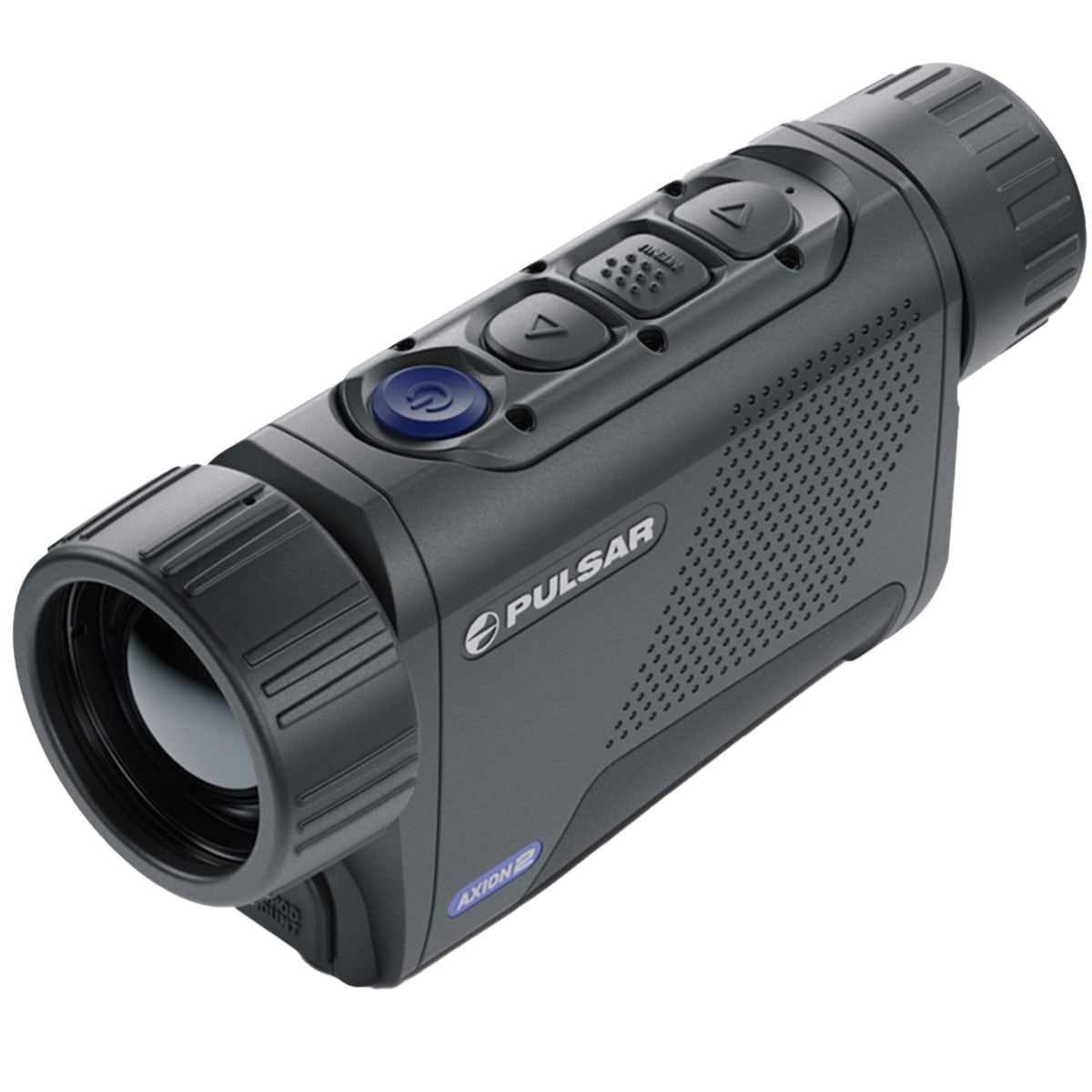

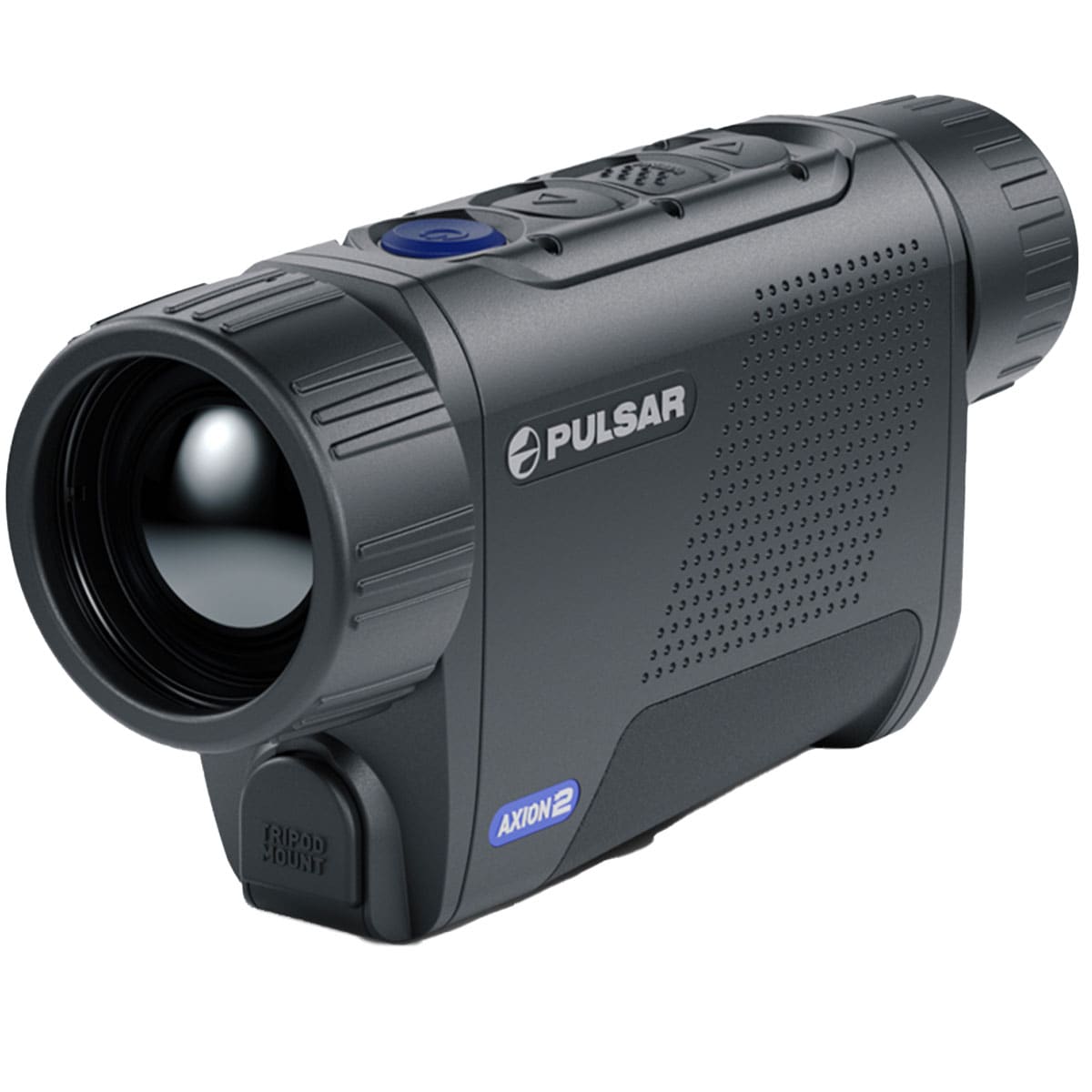

Pulsar Axion 2 XG35 Thermal Imager
- description
- technical data
- Reviews
- Goes well with
A handy thermal imaging monocular from Pulsar for easy observation both during the day and at night. The Axion 2 XG35 features a fixed optical magnification of 2.5x. For greater observation accuracy, the model also provides digital zoom in the range of 2-8x, which allows you to see objects up to 1,800 meters away. The thermal imager is equipped with a stadiametric rangefinder, which is based on the approximate height of the observed object and allows quick distance measurement.
The Axion 2 XG35 thermal imager is equipped with a sensor with a resolution of 640 × 480 pixels, with a pixel spacing of 12 µm. The sensitivity of the sensor allows it to capture temperature differences of less than 40 mK. The display used is made with AMOLED technology and features a resolution of 1024 × 768 pixels. The high-contrast display provides better color reproduction, energy savings, fast response and smooth images during observation even in freezing conditions.

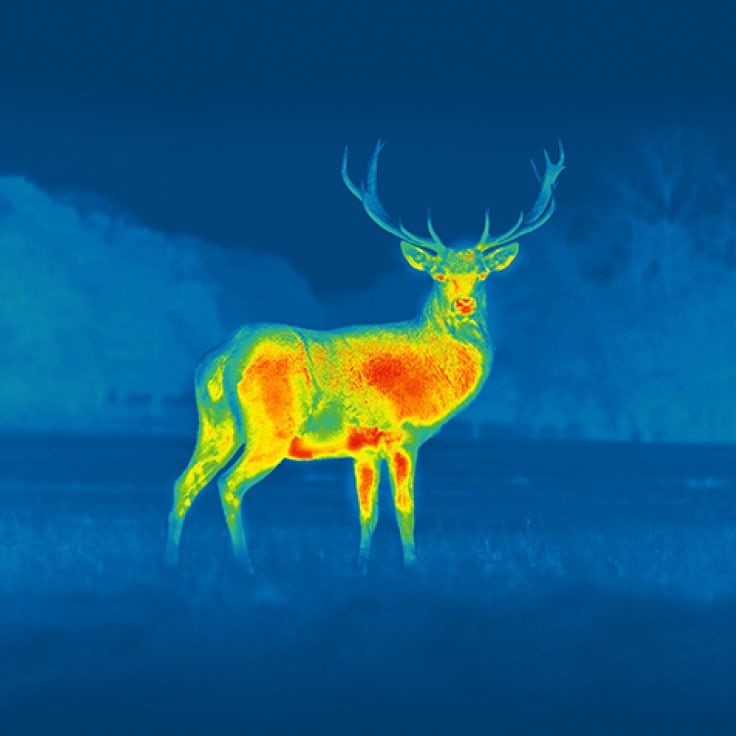

The thermal imaging monocular has eight image display modes for easy recognition and identification of objects under observation:
- White Hot - for object detection,
- Black Hot - for object detection,
- Red Hot - for object detection,
- RedMonochrome - for long night observations,
- Rainbow - for recognition and identification,
- Ultramarine - for recognition and identification,
- Violet - for long night observations,
- Sepia - for long night observations.
The model also uses a function to save photos or videos to the built-in 16GB internal memory. The files can also be transferred directly to a phone or tablet using Wi-Fi, on which the StreamVision 2 app has been installed. The integrated Wi-Fi module makes it possible to use, for example, a phone with the StreamVision 2 app as an external display or to remotely control the device. The Axion 2 XG35 is equipped with a diopter adjustment from -5 to +5 for improved user comfort.
The body of the thermal imager is made of magnesium alloy, which is resistant to mechanical damage and shock. Thanks to its compact design and the use of seals, the thermal imager's housing meets the IPX7 waterproof class, which provides protection from water at a depth of up to 1 m for 30 minutes. The operating temperature range in which the thermal imager can be used is from -25 to +40 degrees Celsius.
The thermal imager is powered by a replaceable APS5 lithium-ion battery with a capacity of 4900 mAh, which allows up to 7 hours of operation. The built-in USB Type C port also ensures that the device can be used with a plugged-in powerbank to extend the operating time. Display OFF power-saving mode allows the display to go blank without turning off the thermal imager.
The kit includes:
- thermal imager,
- USB charger 230 V,
- wrist strap,
- lens cover,
- carrying case,
- 1 x APS5 4900 mAh battery,
- USB cable with USB-C adapter,
- cloth,
- 2 x APS5 battery adapter,
- user manual in Polish.
Technical data
Sensor resolution: 640 x 480, 12 µm
NETD: <40 mK
Display resolution: 1024 x 768
Image refresh rate: 50 Hz
Thermal lens: 35 mm, F1.0
Angular field of view: 12,5 x 9,4
Field of view m/100 m: 21.9
Digital zoom: 2x to 8x
Optical zoom: 2.5x
Internal memory: 16 GB
Maximum range: 1800 m
Dimensions: 152 x 50 x 74 mm
Waterproof: IPX7
Start time: 5 s
Start time: Operating temperature: -25 to +40 deg C
Dioptric correction of eyepiece: -5 to +5
Power supply: rechargeable lithium-ion battery APS5 4900 mAh
Weight: 300 g
Manufacturer: Pulsar, Lithuania
MILITARY is a premium dealer of Pulsar.
Pulsar is a European brand specializing in thermal imaging technology and digital day/night optics, owned by the Yukon Group and based in Lithuania. Its origins date back to 1991, when a group of enthusiasts began building their first devices at home. Today, the company employs over 1200 people and operates in more than 70 countries. All production takes place in Europe, and the brand has gained recognition for its innovative solutions, such as Dual-Purpose systems, which allow the device to be used as both a monocular and a rifle scope. The modern nature of the offer is emphasized by the Stream Vision 2 application, which allows wireless connection of devices to a phone via Wi-Fi, offering remote control, image transfer, and software updates. In 2005, the Yukon Group was the first to introduce digital night vision devices to the civilian market, marking in a new stage in the development of applied optoelectronics. In 2012, the Quantum model was unveiled – the first mass-produced thermal imaging monocular for civilians, and in 2019, the compact Axion XM30, capable of detecting a human silhouette from a distance of 1350 meters in complete darkness.
| Optics ready | No |
|---|---|
| Thermal imager type | Monocular |
| Display modes | 8 |
| Reticle | No |
| Field of view | 12,5 x 9,4 |
| Vehicle detection | 1800 m |
| Waterproof class | IPX 7 |
| Maximum detection depth | 1800 m |
| Built-in memory | Yes |
| EAN | 4779022925207 |
| Manufacturer code | 77476 |
| Brand | Pulsar |
