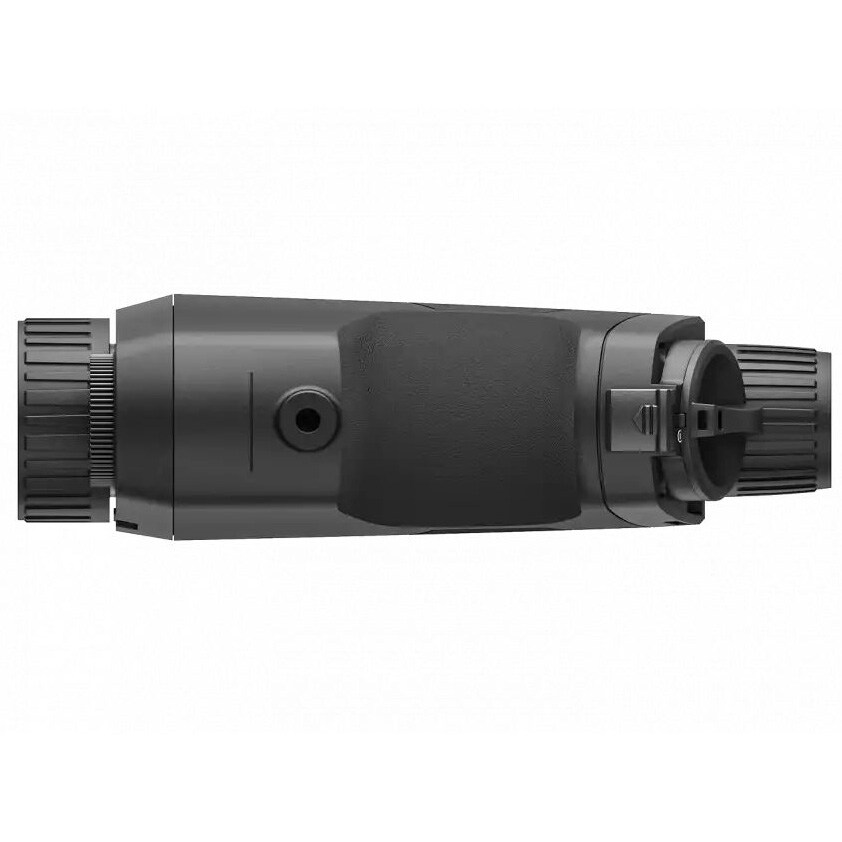

AGM Fuzion TM35-384 Thermal Imager with infrared illuminator - set

Thermal imaging monocular equipped with fixed optical magnification of 3.5x, variable digital magnification (1x, 2x, 4x, 8x), and a sensor with 12 µm sensitivity enabling observation of terrain at night at distances up to 1750 meters, even in difficult conditions.

High-quality lenses combined with a CMOS sensor provide clear images. Digital processing technology and an OLED display with a resolution of 1024 x 768 and refresh rate of 50 Hz guarantee smooth, high-quality images during observation. Six color palettes (Black Hot, White Hot, Red Hot, Fusion, Visible, Image Fusion) allow you to adjust the image to suit your needs and lighting conditions.

Pictures taken during observation and recorded videos are stored on the internal memory with a capacity of 16 GB. The USB-C connector allows for easy and fast data transfer and connection of an alternative power source (e.g., power adapter or powerbank). The thermal imager is equipped with a Wi-Fi module, which allows you to control, change settings, record photos and videos, and view, download and delete recorded content from your mobile device. To operate the thermal imager, the AGM Connect app for a mobile device is required, which can be downloaded from the App Store or Google Play. In addition, the TM35-384 is equipped with functions for flat-field correction, detail enhancement, target recognition, and spot tracking of the highest temperature.

.

The rugged design allows the device to be used in a temperature range of -20 to +55 degrees C. The IP67 waterproof class provides waterproof (immersion up to 1 meter for 30 minutes) and dustproof capabilities. The control buttons are arranged for easy and intuitive operation. The thermal imager is powered by a single 18650 battery, which allows for 5 hours of continuous operation. Rest mode is used to save battery power.

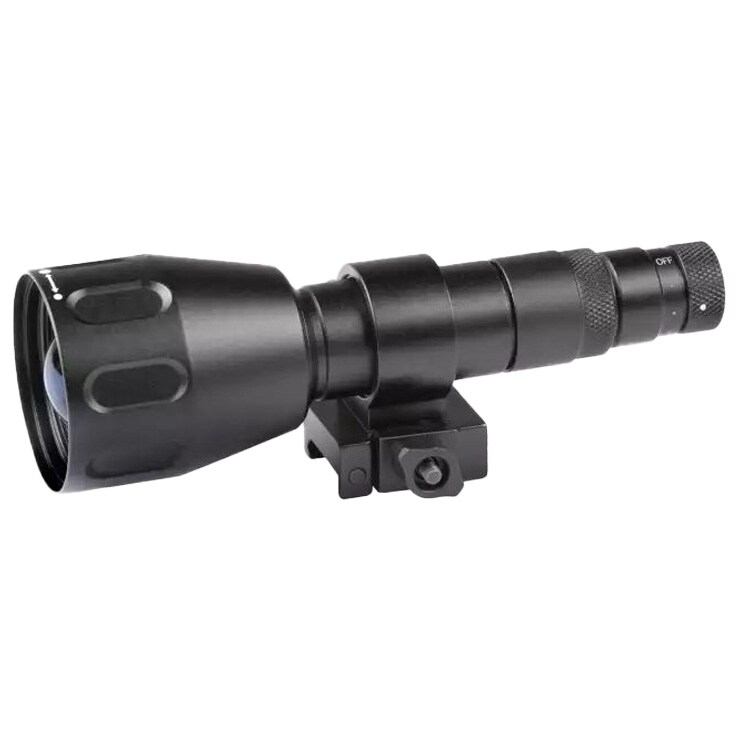

The kit comes with a Sioux 850 infrared illuminator with a wavelength of 850 nm for observation in the complete absence of light. The illuminator is powered by a single 18650 battery that provides up to 10 hours of operation. It features an adjustable illumination angle from 4 to 35 degrees and a Weaver rail mount. It can be used in a temperature range of -30 to +50 deg C.

.

The set includes:
- AGM Fuzion TM35-384 thermal imager,
. - Sioux 850 infrared illuminator,
. - USB-C 2.0 cable,
- power adapter,
- 2 x 18650 rechargeable battery,
- charger,
- lids,
- user manual.

Technical specifications of the illuminator
. Wavelength: 850 nm
Illumination angle adjustment: from 4 to 35 degrees
. IR optical power: 1000 mW
. Operating temperature: from -30 to +50 deg C
Power supply: 1 x 18650 rechargeable battery
Operating time: up to 10 h
Dimensions: 153 x 48 x 48 mm
Weight: 225 g
Manufacturer: AGM Global Vision, USA

.

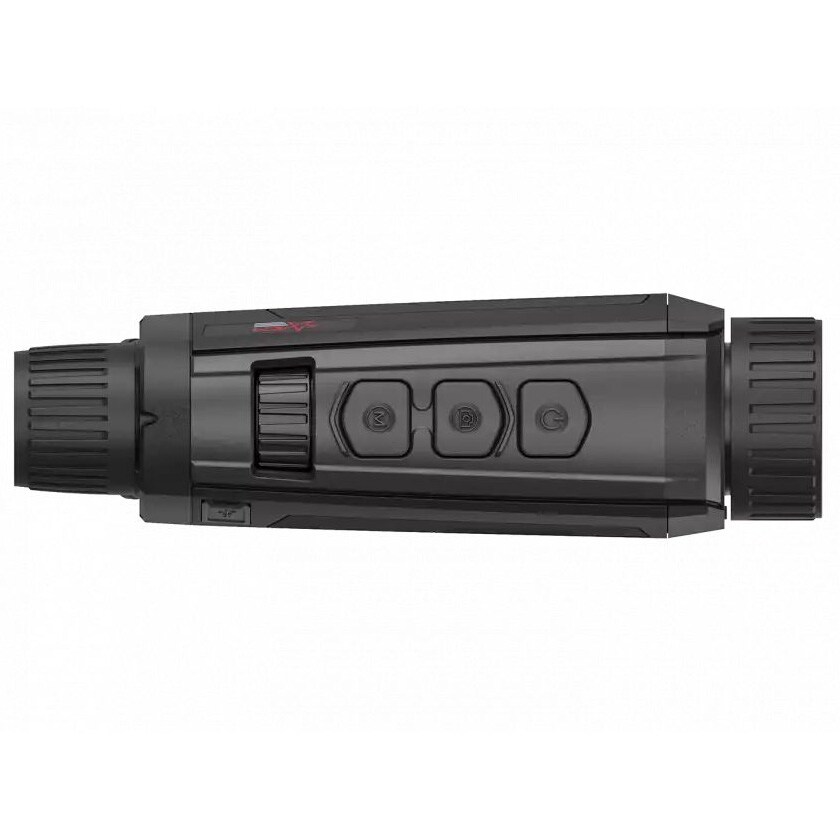

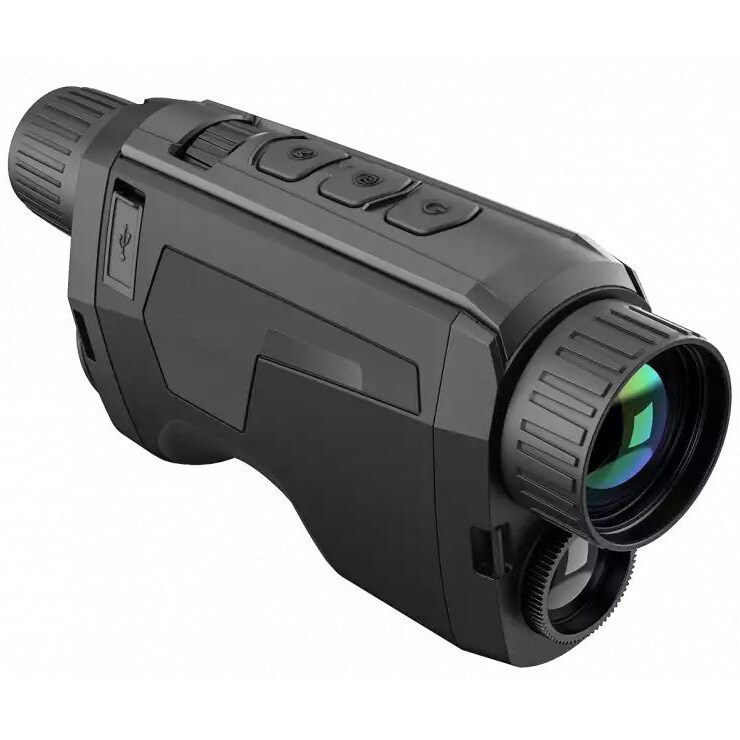

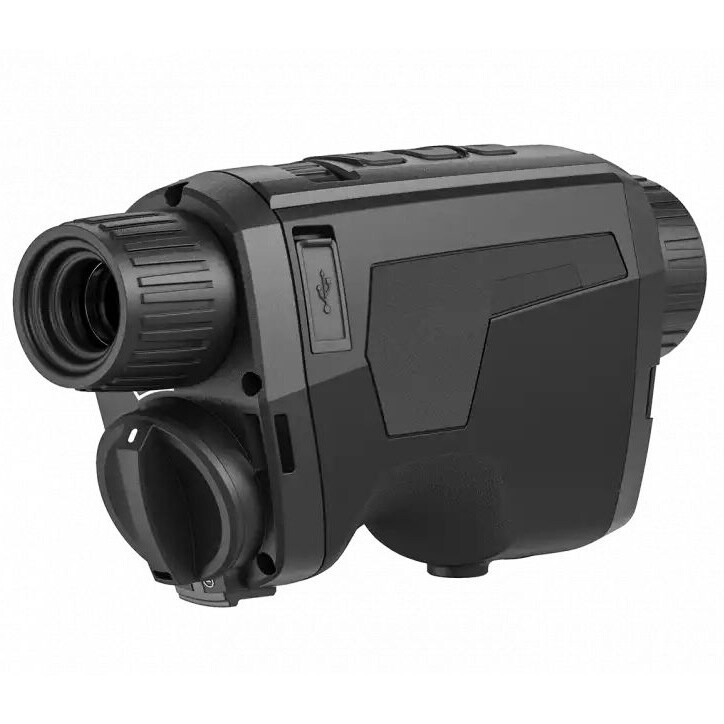

Technical specifications of the thermal imager
. Body material: plastic
Thermal sensitivity: 35 mK
. Optical magnification: 3.5x
Digital magnification: 1-8x
Diopter correction: -5 to +3
Lens diameter: 35 mm
Field of view: 7.5 × 5.7 st.
Sensor resolution: 384 x 288
Display diagonal: 0.39"
Display resolution: 1024 x 768
Refresh rate: 50 Hz
Memory: internal 16 GB
Temperature range: -20 to + 55 degrees C
Power supply: 1 x 18650 rechargeable battery
Dimensions: 168 x 87 x 51 mm
Weight: 480 g (without battery)
Manufacturer: AGM Global Vision, USA

.
