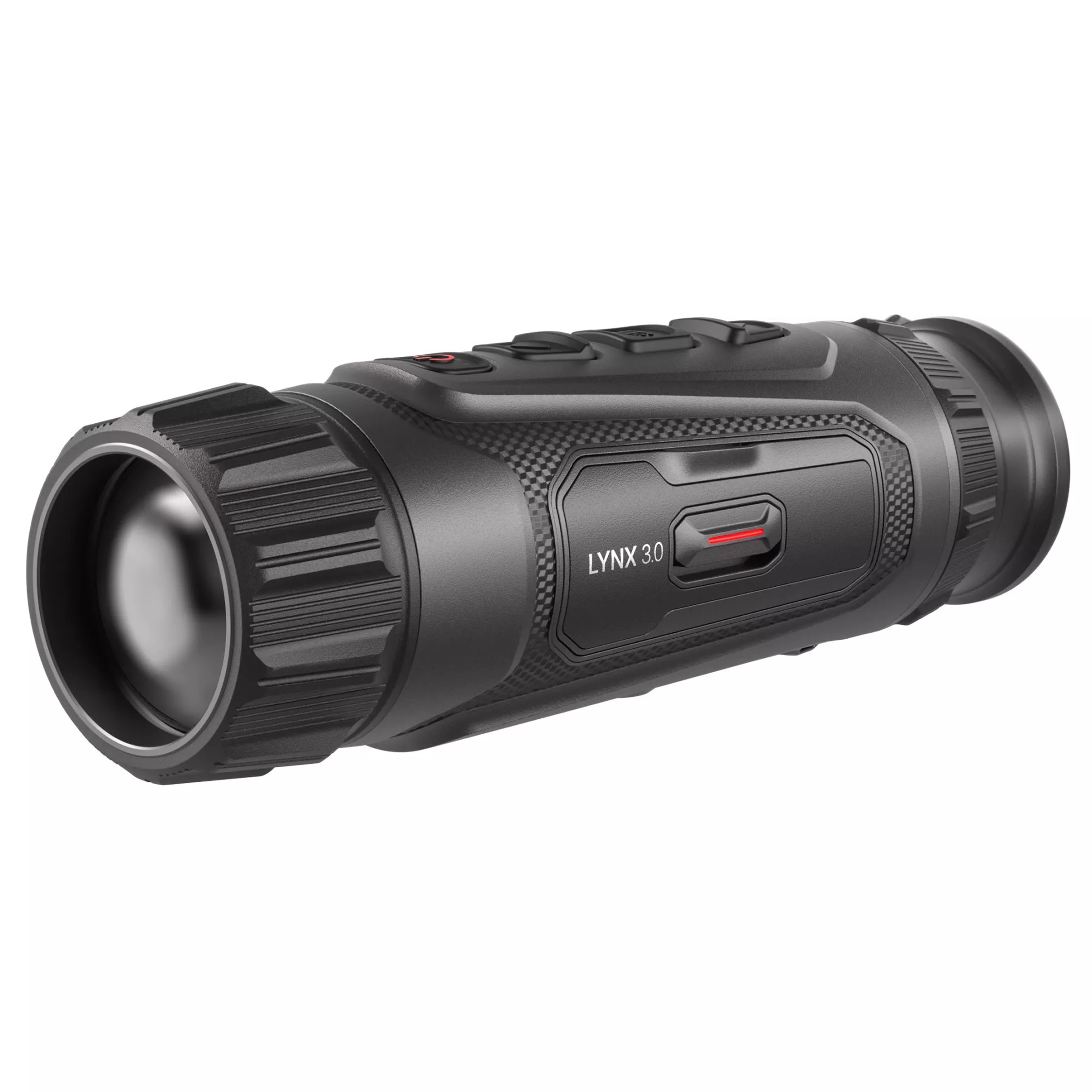

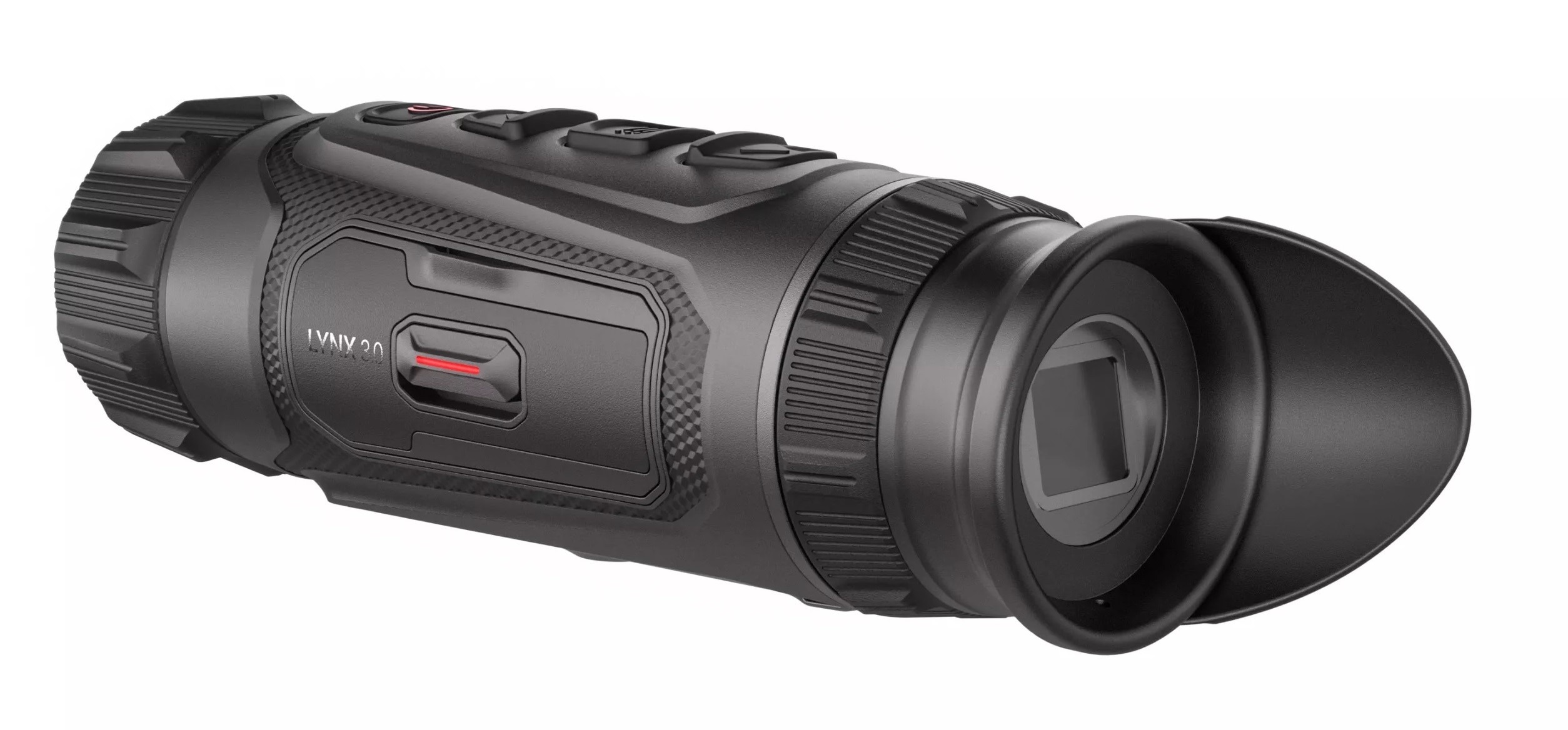

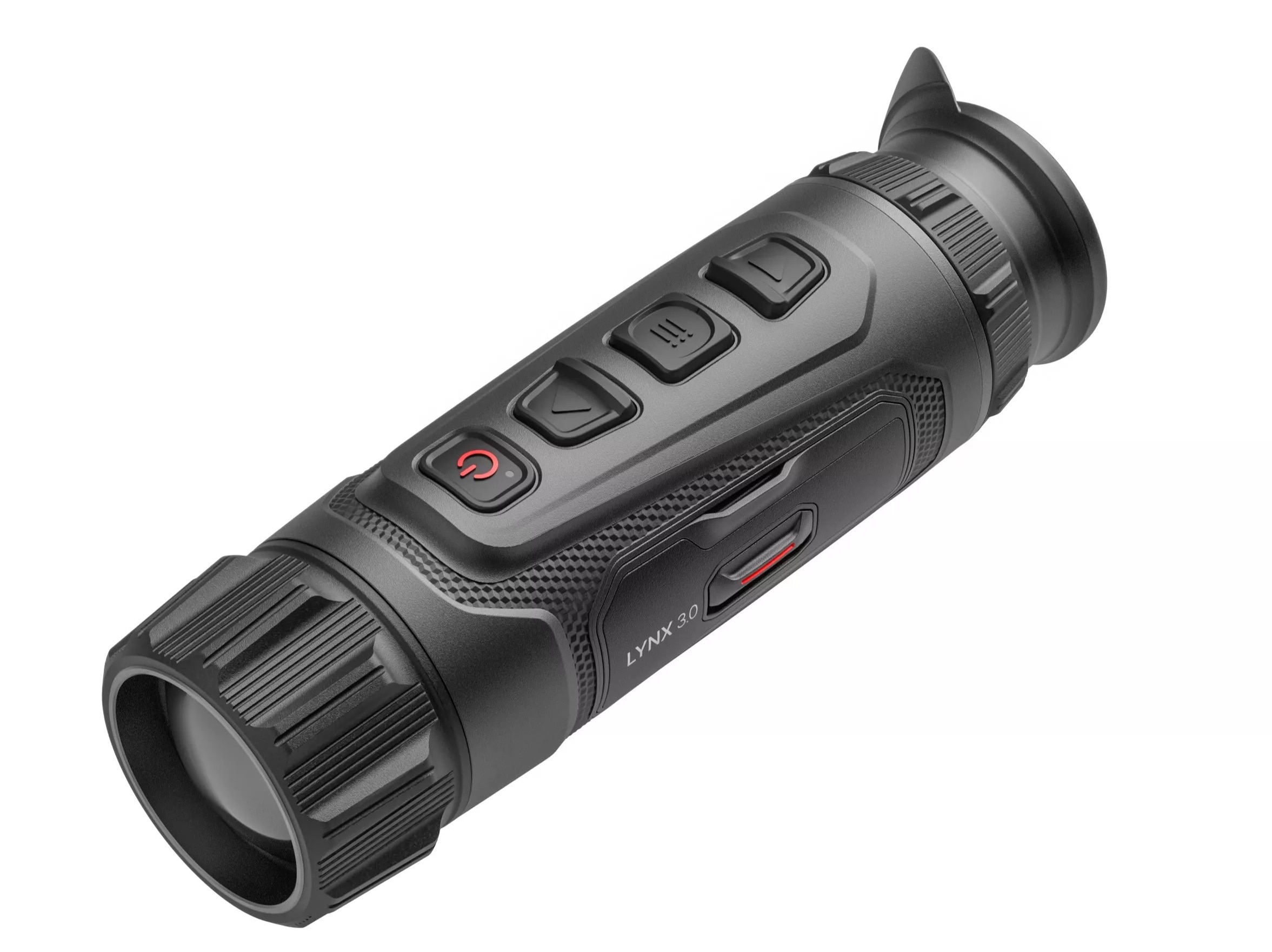

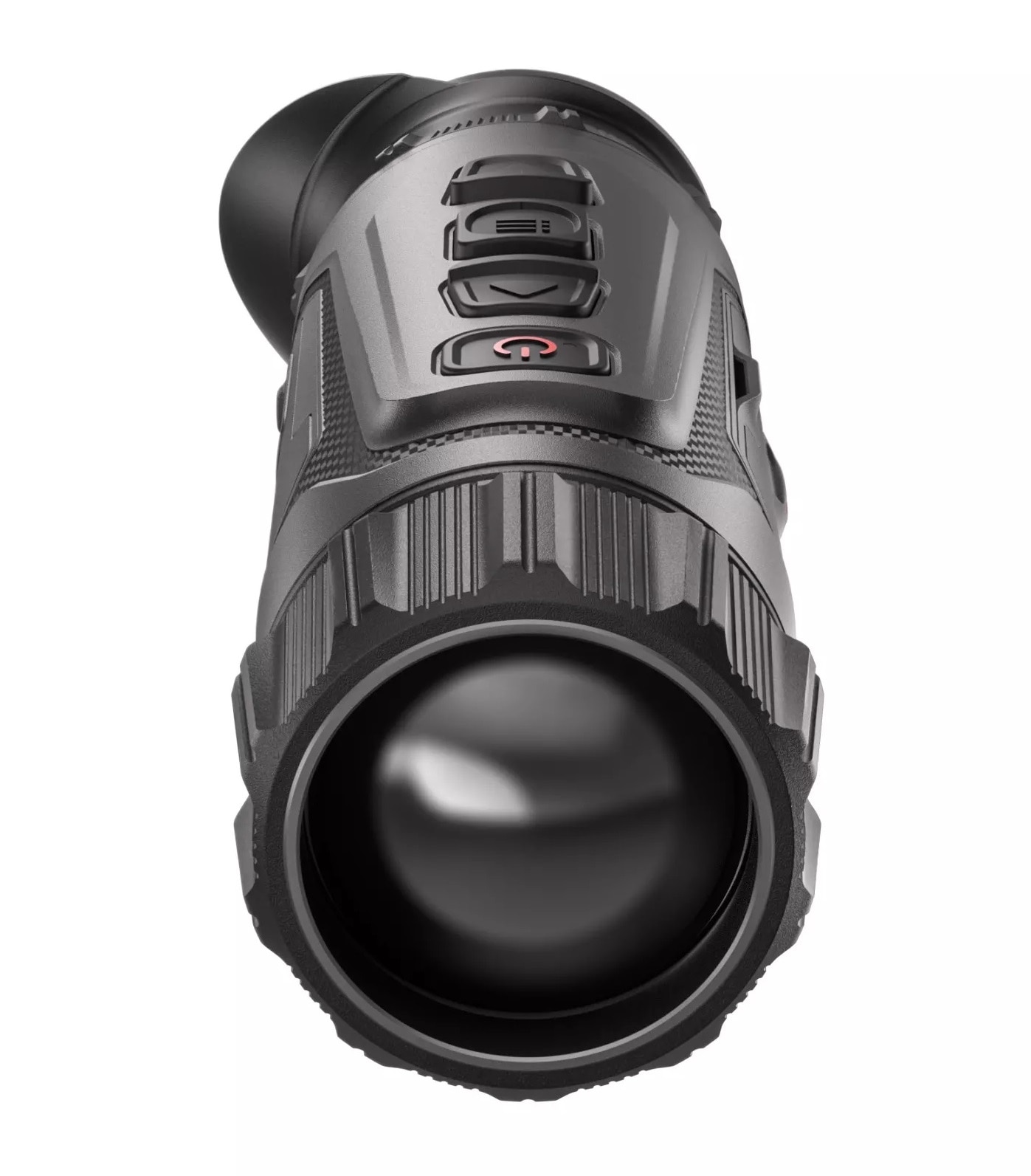

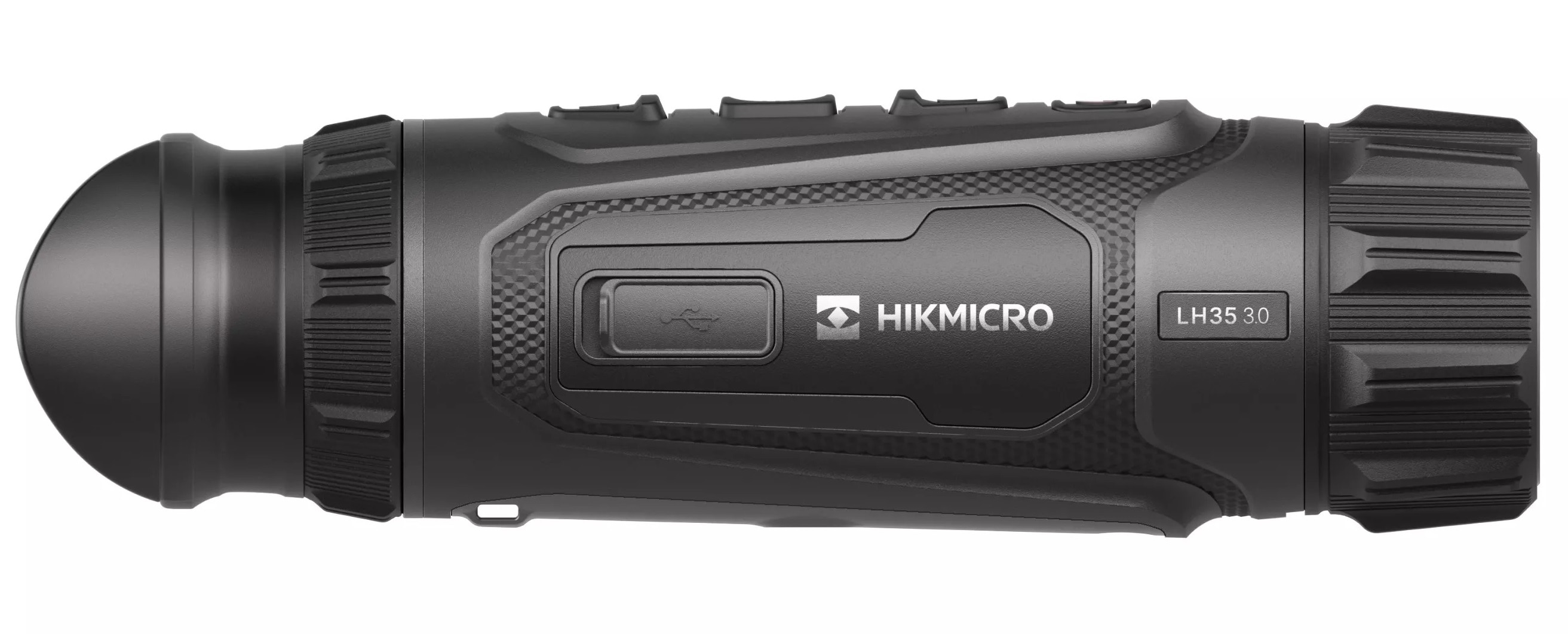

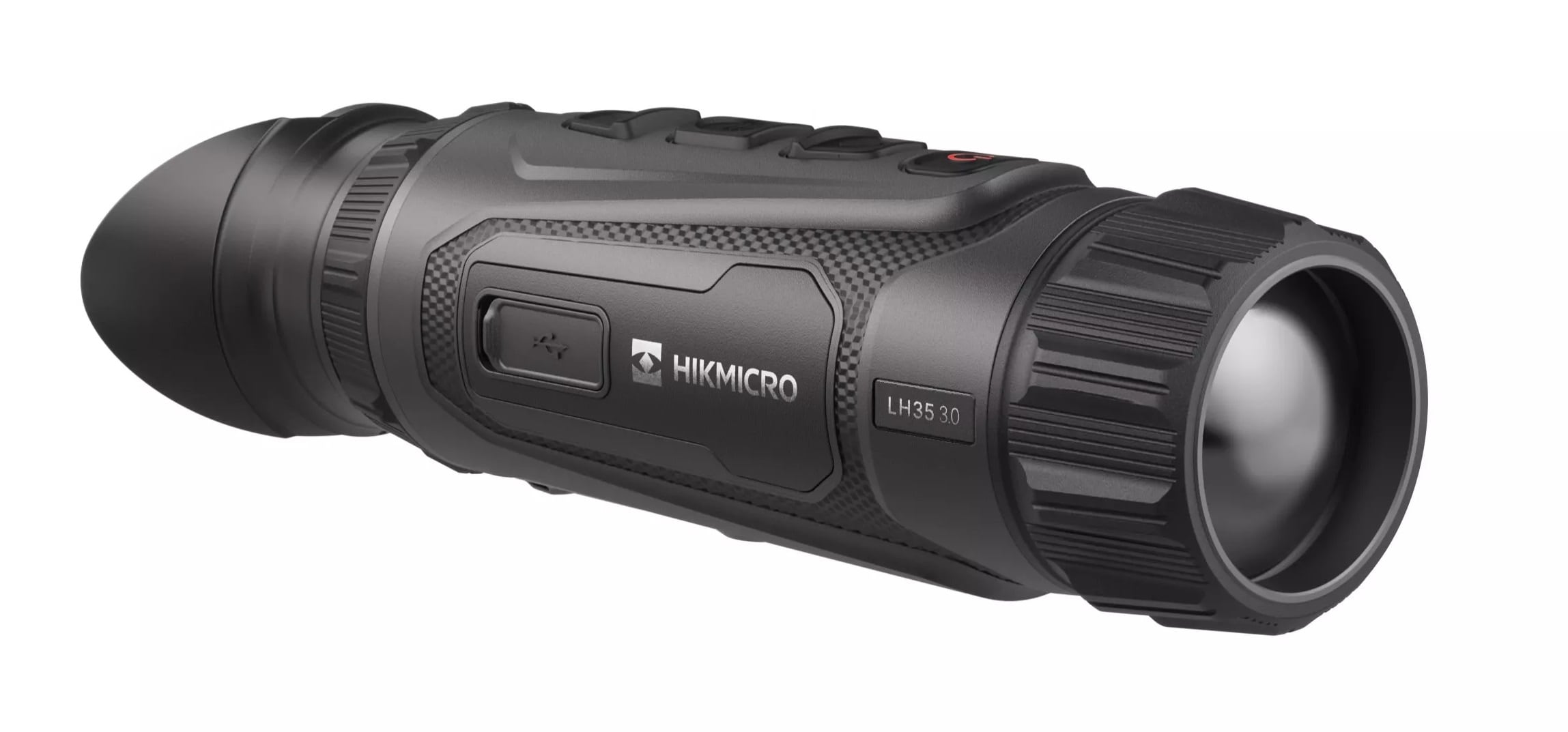

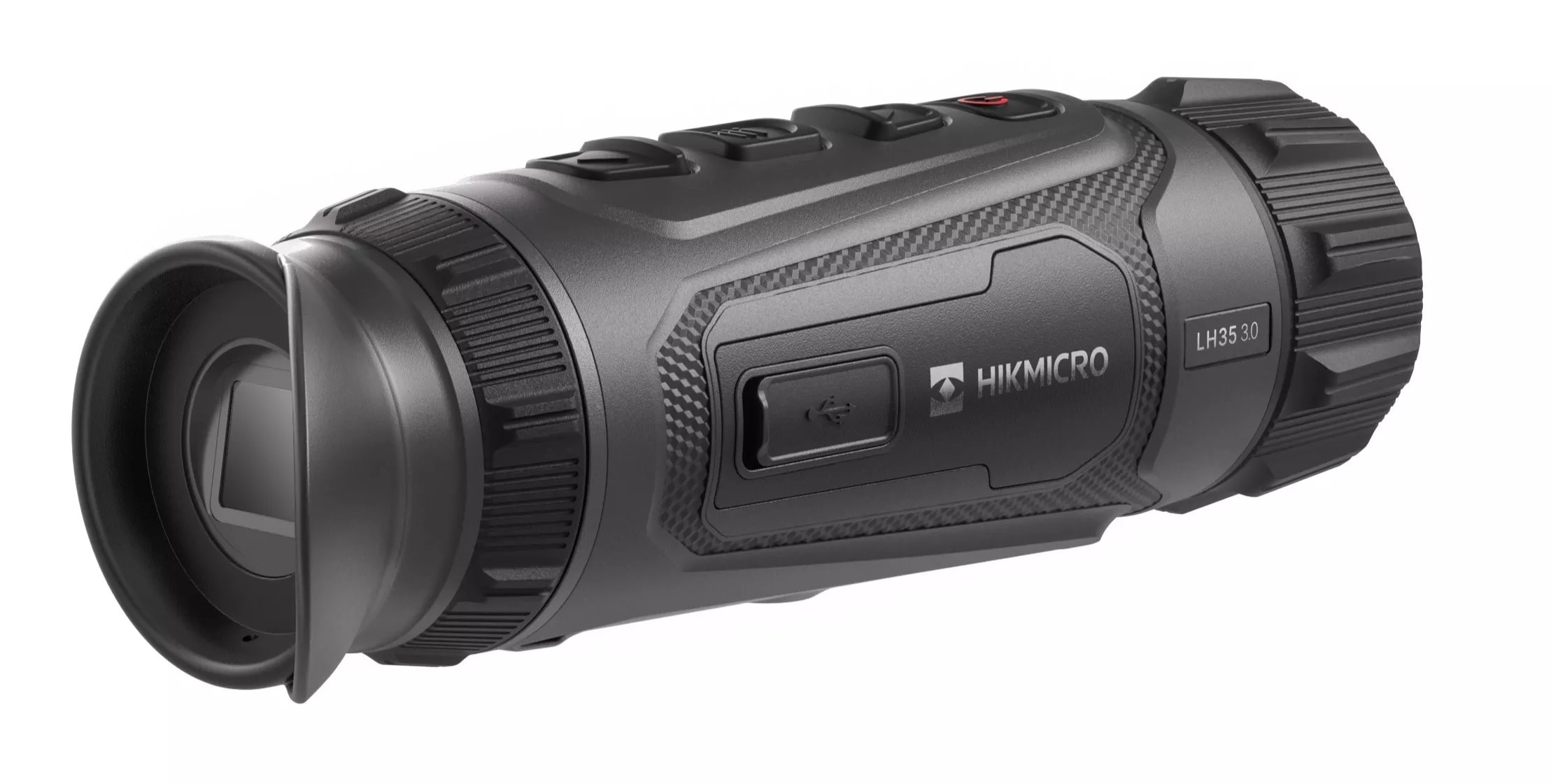

Hikvision Hikmicro Lynx LH35 3.0 Thermal Imager
Thermal imaging monocular equipped with a 35 mm diameter lens. It allows magnification ranging from 3.4x to 27.2x (8x) and provides a wide field of view of 13.1 x 8 m at 100 meters, making it suitable both for long-distance observations and identification of objects at medium distances.
Designed with users in mind who require a fast and precise observation tool. The model is based on the latest Hikmicro technologies, offering high image quality in a compact format.
Compact and durable construction with IP67 protection class
The body is made of material resistant to mechanical damage and shocks, and the sealed construction with gaskets means the casing meets the IP67 protection class, which protects against dust, dirt, and submersion in water up to 1 meter for 30 minutes.
The shortened design and light weight make it easy to carry - the thermal imager can be easily fitted in a pocket or small bag. Non-slip external surface and a thoughtful button layout ensure easy one-handed operation, even in gloves.
Sensitive VOx thermal sensor and AMOLED display
This model is equipped with a 35 mm diameter lens. The excellent quality of the VOx thermal sensor with a resolution of 384 x 288 px and a 12 µm pixel allows precise reproduction of details. Thermal sensitivity NETD <15 mK enables detection of even minimal temperature differences - even in dense vegetation, poor visibility, or bad weather.
The image is presented on an AMOLED screen with a resolution of 1920 x 1080 px. The display is designed to minimize eye fatigue during long observations, ensuring high comfort in use. Refresh rate of 50 Hz allows comfortable tracking of moving objects.
Advanced Hikmicro technologies
The device uses modern Hikmicro technologies, which optimize operational smoothness, improve image quality, and support observation in various terrain and lighting conditions:
- HSIS - Hikmicro Shutterless Image System - eliminates the need for traditional calibration, offering smooth observations without image "freezes." This maintains full focus on the target, regardless of conditions.
- Image Pro 3.0 - dynamic image processing system, automatically adjusting contrast and sharpness, improving detail visibility in changing conditions.
- Zoom Pro - algorithm optimizing digital magnification. It maintains detail and contrast at all zoom levels, enabling effective observation even at maximum magnification.
6 image display modes
The thermal imager offers 6 image display modes that facilitate recognition and identification of observed objects:
- White Hot - the higher the temperature, the brighter the color.
- Black Hot - the higher the temperature, the darker the color.
- Red Hot - similar to "White Hot" with red highlighting of the hottest elements.
- Fusion - image from highest to lowest temperature is colored from white, yellow, red, pink to purple.
- Red Monochrome - red monochrome palette providing comfort for prolonged observation without eye fatigue.
- Green Monochrome - green monochrome palette providing comfort for prolonged observation without eye fatigue.
Wi-Fi module and 64 GB internal memory
The model implements the function of saving photos or videos on the built-in internal memory with a capacity of 64 GB. Thanks to the Wi-Fi 2.4/5 GHz module, the thermal imager can be connected to the Hikmicro Sight app on a smartphone, which enables remote viewing, saving, and sharing of the image.
Battery-powered and quick startup time
The device is powered by a replaceable Li-ion 18650 battery, providing up to 4.5 hours of continuous operation. The built-in USB-C port offers convenient charging from a car charger, computer, or power bank.
The short startup time, of just 2 seconds, allows for almost immediate start of observation. The auto screen-off function automatically dims the screen, saving energy and extending operation time.
Set elements
- thermal imager
- 2x 18650 battery
- USB-C cable
- battery charger
- user manual
Main features
- Thermal sensor with a resolution of 384 x 288 px
- Magnification 3.4x-27.2x (8x)
- Lens diameter of 35 mm (f1.0)
- AMOLED screen with a resolution of 1920 x 1080 px
- Sensitivity NETD <15 mK
- Field of view 13.1 x 8 m at 100 m
- Detection range 1800 meters
- Refresh rate 50Hz
- Quick start - ready to work in 2 seconds
- Image Pro 3.0 and Zoom Pro algorithms
- Modern HSIS technology
- 6 color palettes
- Built-in 64 GB memory
- Shock-resistant casing
- IP67 protection class
- Battery-powered
- Auto screen-off function
- Wi-Fi 2.4/5 GHz connectivity
- Operating temperature from -30 to +45 deg. C.
MILITARY is a premium dealer of Hikmicro.
Hikmicro belongs to the dynamically developing Hikvision group and specializes in thermal imaging technologies and optoelectronics. The brand's product range includes thermal imaging cameras, monoculars, and diagnostic devices used in industry, property protection, rescue operations, and nature observation, among other areas. Hikmicro solutions are used in over 100 countries around the world. Thanks to advanced technologies such as DDE, 3D DNR, and AGC, they provide high image quality even in adverse weather conditions and low light. The brand draws on Hikvision's technological resources while developing its own product lines for both professional and civilian users. Hikmicro's image analysis system, which uses artificial intelligence algorithms, enables faster object detection and more precise detail recognition. Thanks to its innovative approach, the company has quickly gained a strong position in the thermal imaging technology market.
| Optics ready | No |
|---|---|
| Thermal imager type | Monocular |
| Display modes | 6 |
| Reticle | No |
| Field of view | 13,1 x 8 m/ 100 m |
| Sensor resolution | 384 x 288 px |
| Transport cover | No |
| Main color | Black |
| Dimensions | 169,6 x 53,6 x 49,5 mm |
| Additional accessories included | Yes |
| Screen resolution | 1920 x 1080 px |
| Objective lens diameter (mm) | 35 |
| Weight | 355 g |
| Accumulator/battery type | 1x Li-Ion 18650 |
| Power type | Interchangable accumulator |
| Waterproof class | IP 67 |
| Maximum detection depth | 1800 m |
| Built-in memory | Yes |
| EAN | 6974004648725 |
| Manufacturer code | 19293 |
| Brand | Hikvision |
| EAN |
