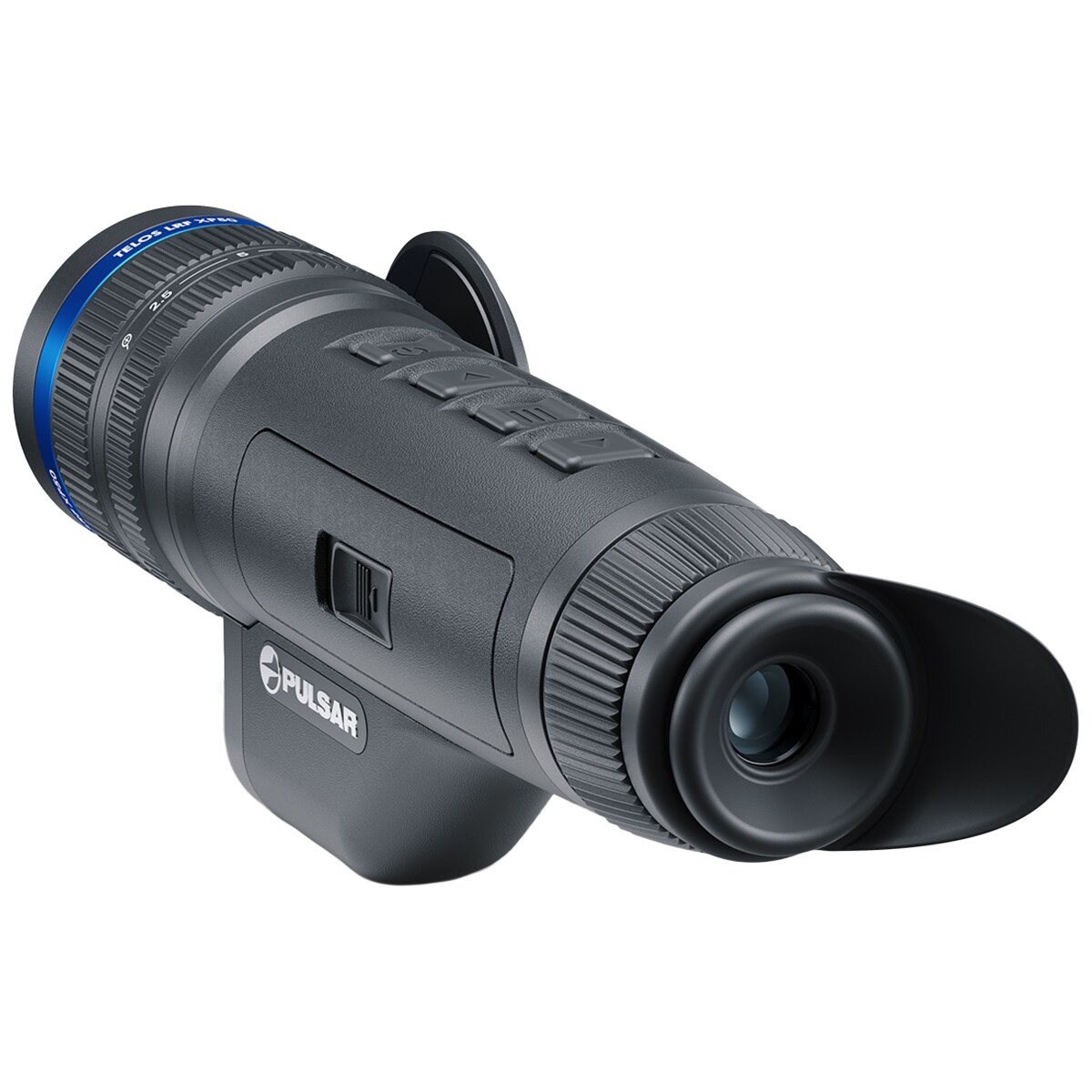

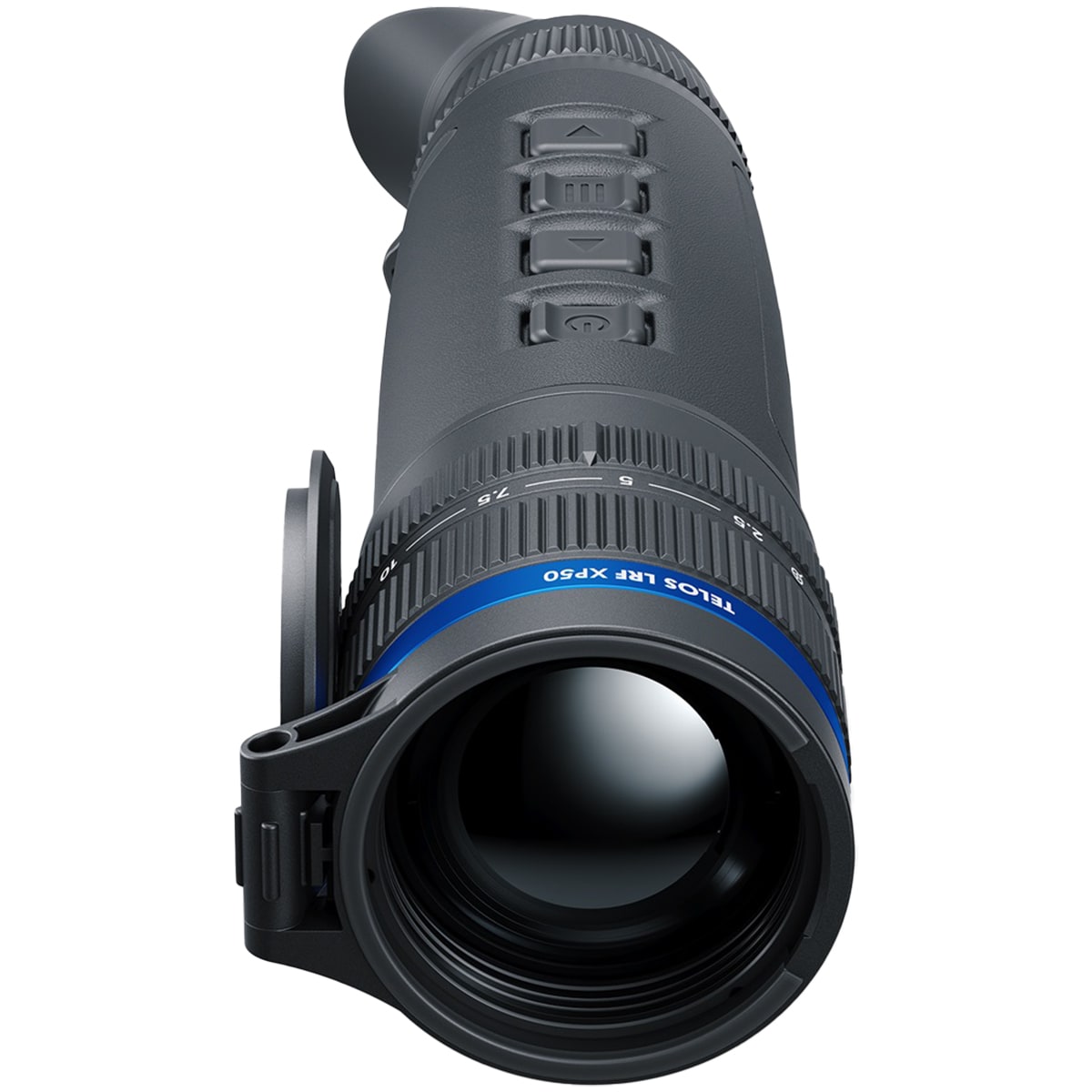

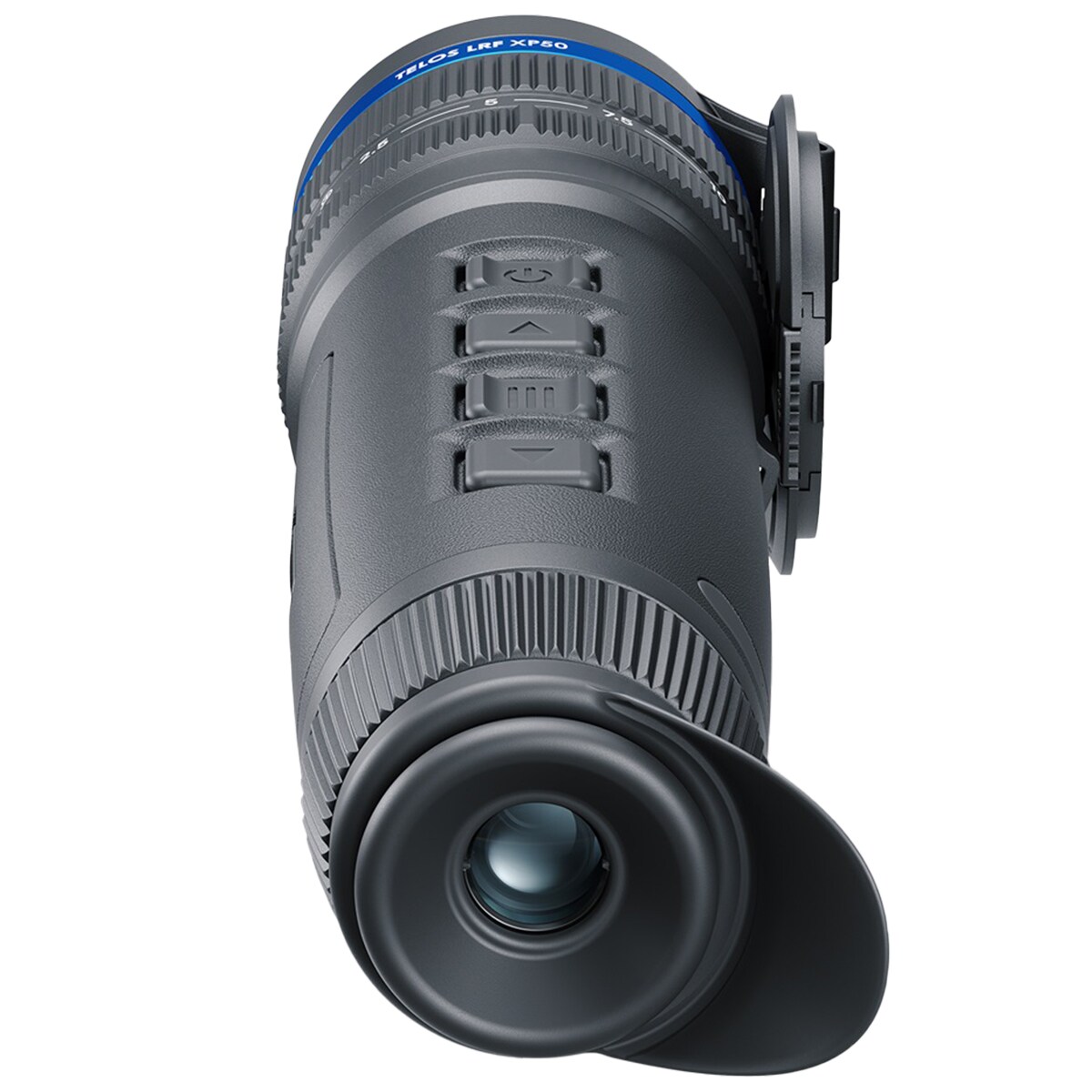

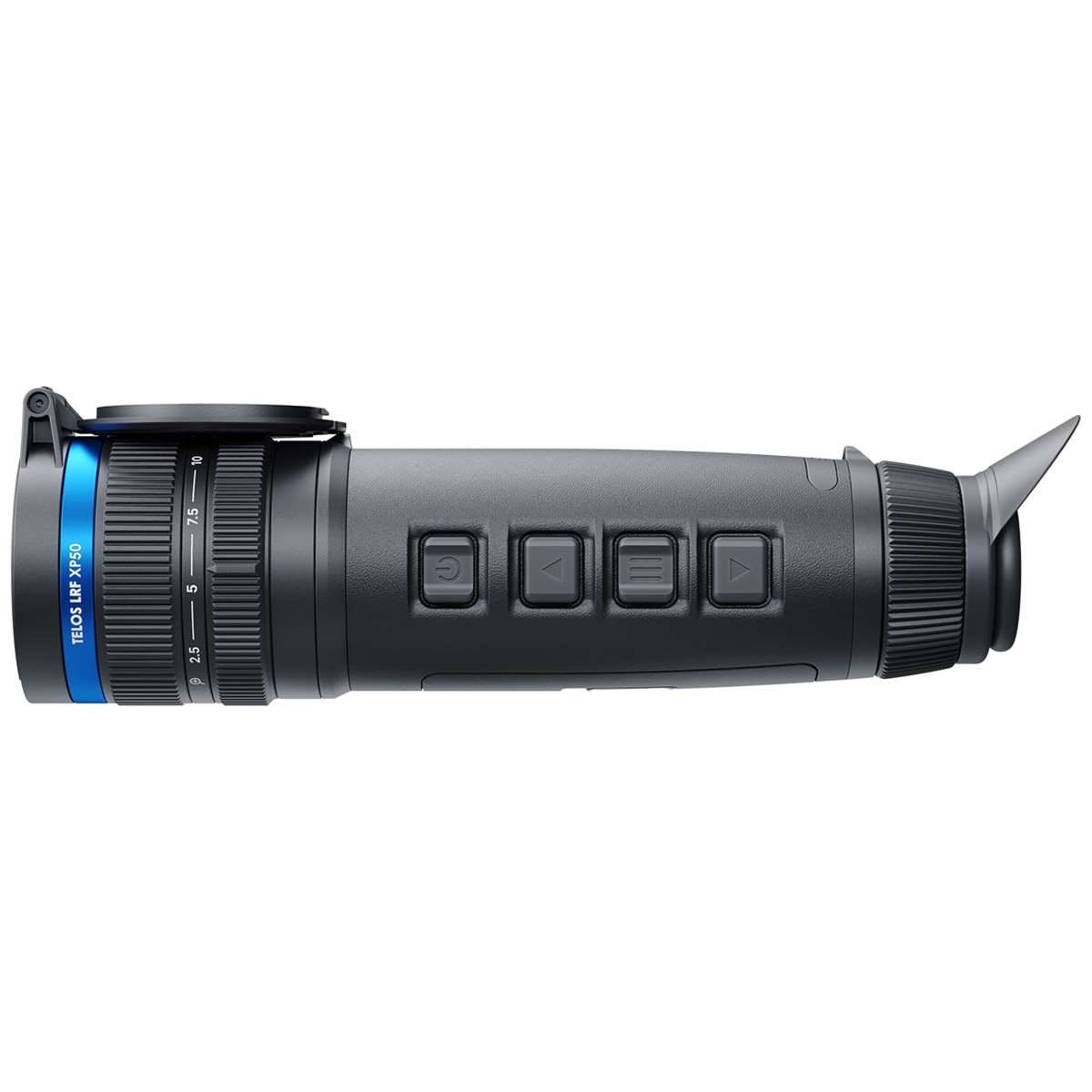

Pulsar Telos LRF XP50 Thermal Imager
- description
- technical data
- Reviews
- Goes well with
A compact thermal imaging monocular for easy observation both during the day and at night. It is equipped with a knob for 2x and 4x digital zoom. It provides magnification from 2.5x to 10x and allows you to see objects up to 1800 meters away. A precise laser rangefinder allows for quick and effective measurement of distances to targets up to 1000 meters, with an accuracy of 1 meter.
Thanks to its design, the device is suitable for later modifications, such as sensor, lens, electronics, and battery upgrades, or even the addition of an extra channel to turn it into a multispectral monocular.
The Telos LRF XP50 model is equipped with a sensor with a resolution of 640 x 480 pixels, with a pixel pitch of 17 µm. The sensitivity of the sensor allows temperature differences below 18 mK to be detected, while the entire system achieves a NETD sensitivity of <15 mK. The high-contrast display with a resolution of 1024 x 768 pixels is made using AMOLED HD technology and provides better color reproduction, energy savings, fast response, and smooth images during observation, even in cold conditions. Picture in Picture mode allows you to enlarge the central part of the image in a specially displayed window that takes up only 10% of the total display area.
Three-step sensitivity gain ensures excellent detection and recognition quality in various observation conditions, while the image enhancement function reduces digital distortion. For improved user comfort, the thermal imager is equipped with diopter adjustment from -5 to +5.
The device offers nine display modes to assist in the detection, recognition, and identification of objects:
- White Hot / Black Hot / Red Hot - for detecting objects,
- RedMonochrome / Violet / Sepia/ Green - for long-term nighttime observation,
- Rainbow / Ultramarine - for recognition and identification.
The model features a function for saving photos or videos to the built-in 64 GB internal memory. Files can be transferred directly to a phone or tablet (via Wi-Fi) on which the StreamVision 2 app is installed. It allows you to view images, control the thermal imager's functions, save recordings to the cloud, and update the device.
The body of the thermal imager is made of a material resistant to mechanical damage and shocks. Thanks to its compact design and the use of seals, the housing meets the IPX7 waterproof rating, which ensures protection against water at a depth of up to 1 m for 30 minutes. The device can operate in temperatures ranging from -25 to +50 degrees Celsius.
The presented model is powered by a replaceable LPS 7i battery, which provides up to 8 hours of operation. The built-in USB-C port allows you to charge the device from a car charger, computer or power bank. The Display OFF function automatically dims the screen, saving energy and making it easier to remain unnoticed in the dark.
The set includes:
- thermal imager,
- USB/230V charger,
- optics cleaning material,
- neck strap,
- lens cover,
- carrying case,
- USB-C cable with USB-A adapter,
- LPS 7i battery,
- warranty card with hologram,
- user manual.
Technical data
Color: Black
Minimum magnification: 2.5x
Maximum magnification: 10x
Digital zoom: 2x / 4x
Observation range: 1800 m
Minimum focus distance: 3 m
Rangefinder range: 1000 m
Linear field of view at 100 m: 21.8 x 16.3 m
Angular field of view: 12.4 x 9.3 deg.
Operating temperature: -25 to +50 deg. Celsius
Diopter adjustment: +5 / -5
Sensor: 640 x 480 pixels
Pixel size: 17 µm
Refresh rate: 50 Hz
Thermal sensitivity: <18 mK
NETD: <15 mK
Display: AMOLED HD; 1024 x 768 pixels
Image color: 8 color palettes
Lens parameters: 50 mm F / 1.0
Waterproof rating: IPХ7
External power supply: USB-C; 5V
Internal memory: 64 GB
Operating time: 8 h
Dimensions: 238 x 72 x 90 mm
Weight: 720 g
Manufacturer: Pulsar, Lithuania
MILITARY is a premium dealer of Pulsar.
Pulsar is a European brand specializing in thermal imaging technology and digital day/night optics, owned by the Yukon Group and based in Lithuania. Its origins date back to 1991, when a group of enthusiasts began building their first devices at home. Today, the company employs over 1200 people and operates in more than 70 countries. All production takes place in Europe, and the brand has gained recognition for its innovative solutions, such as Dual-Purpose systems, which allow the device to be used as both a monocular and a rifle scope. The modern nature of the offer is emphasized by the Stream Vision 2 application, which allows wireless connection of devices to a phone via Wi-Fi, offering remote control, image transfer, and software updates. In 2005, the Yukon Group was the first to introduce digital night vision devices to the civilian market, marking in a new stage in the development of applied optoelectronics. In 2012, the Quantum model was unveiled – the first mass-produced thermal imaging monocular for civilians, and in 2019, the compact Axion XM30, capable of detecting a human silhouette from a distance of 1350 meters in complete darkness.
| Optics ready | Yes |
|---|---|
| Thermal imager type | Monocular |
| Display modes | 9 |
| Reticle | No |
| Field of view | 21,8 x 16,3 m/ 100 m |
| Sensor resolution | 640 x 480 pix |
| Screen resolution | 1024 x 768 pix |
| Vehicle detection | 1800 m |
| Human detection | 1800 m |
| Waterproof class | IPX 7 |
| Main color | Black |
| Power type | Replaceable battery + power bank |
| Accumulator/battery type | 1x Li-Ion LPS 7i |
| Transport cover | Yes |
| Weight | 720 g |
| Objective lens diameter (mm) | 50 |
| Dimensions | 238 x 72 x 90 mm |
| Additional accessories included | Yes |
| Battery type | LPS 7i battery |
| Maximum detection depth | 1800 m |
| Built-in memory | Yes |
| EAN | 4779022925856 |
| Manufacturer code | 77492 |
| Brand | Pulsar |
