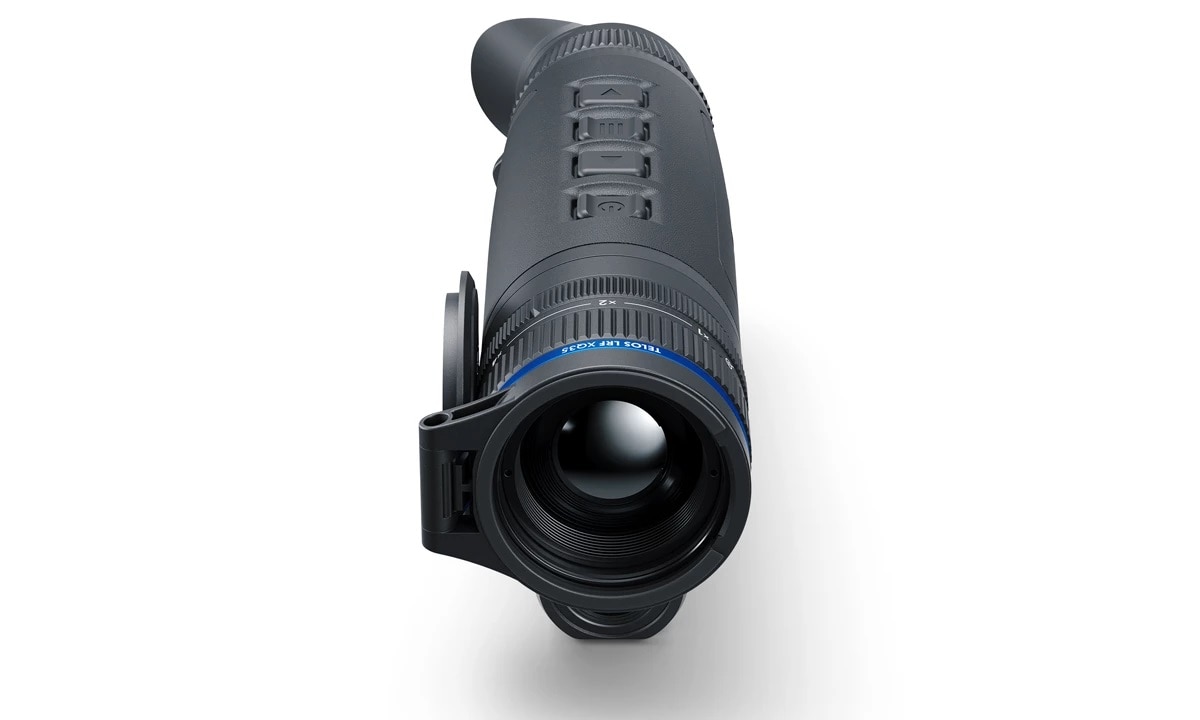

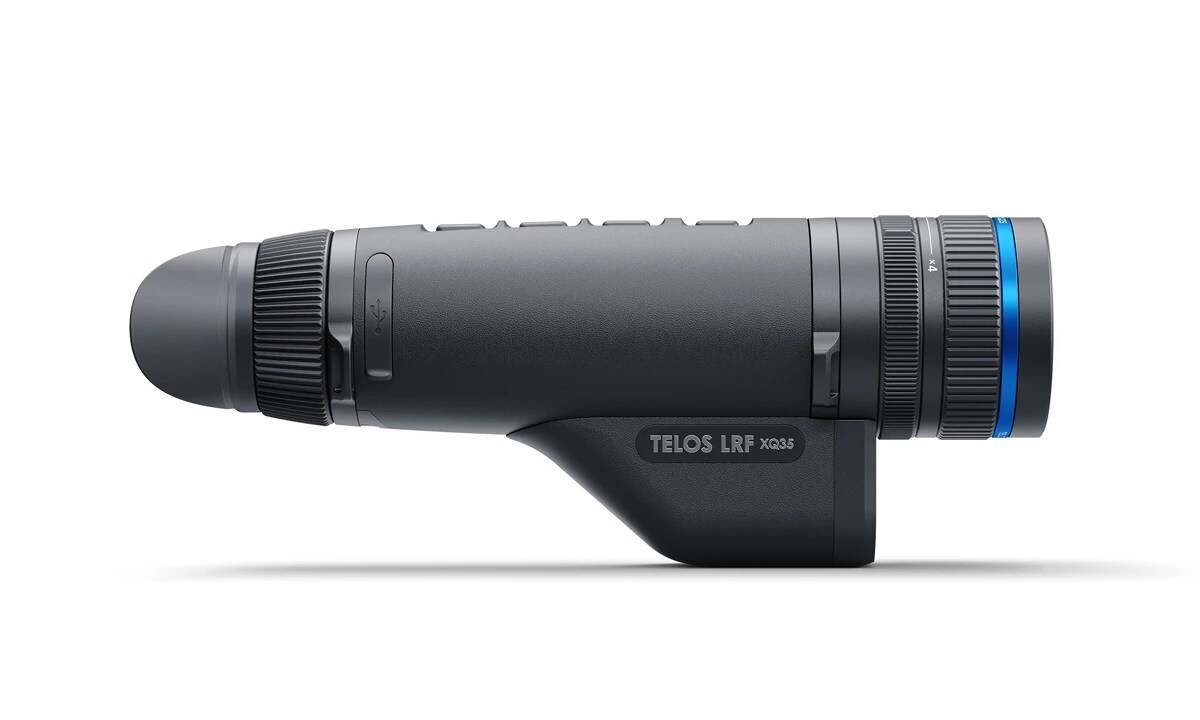

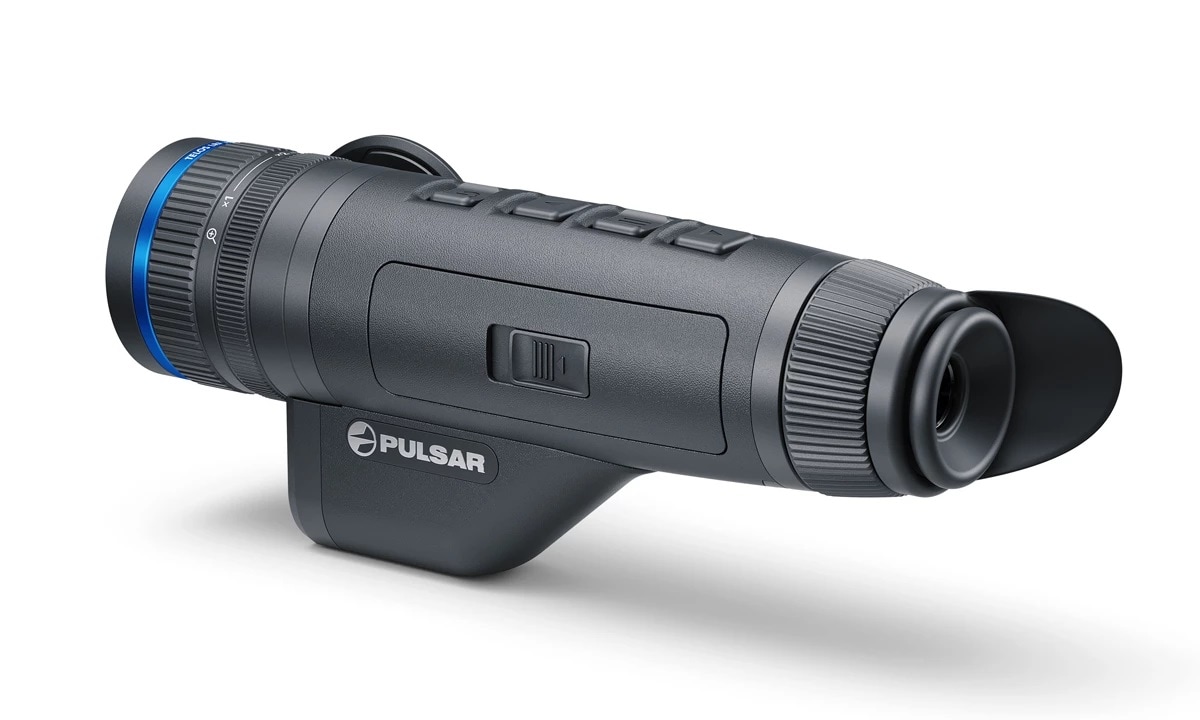

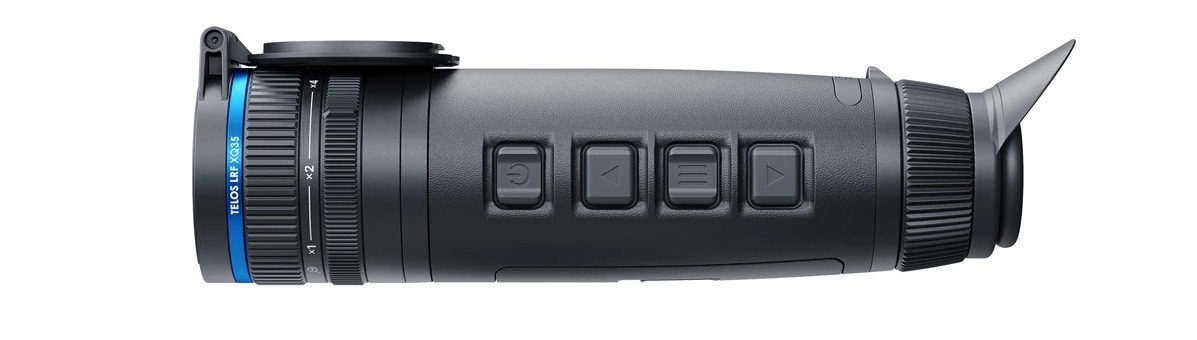

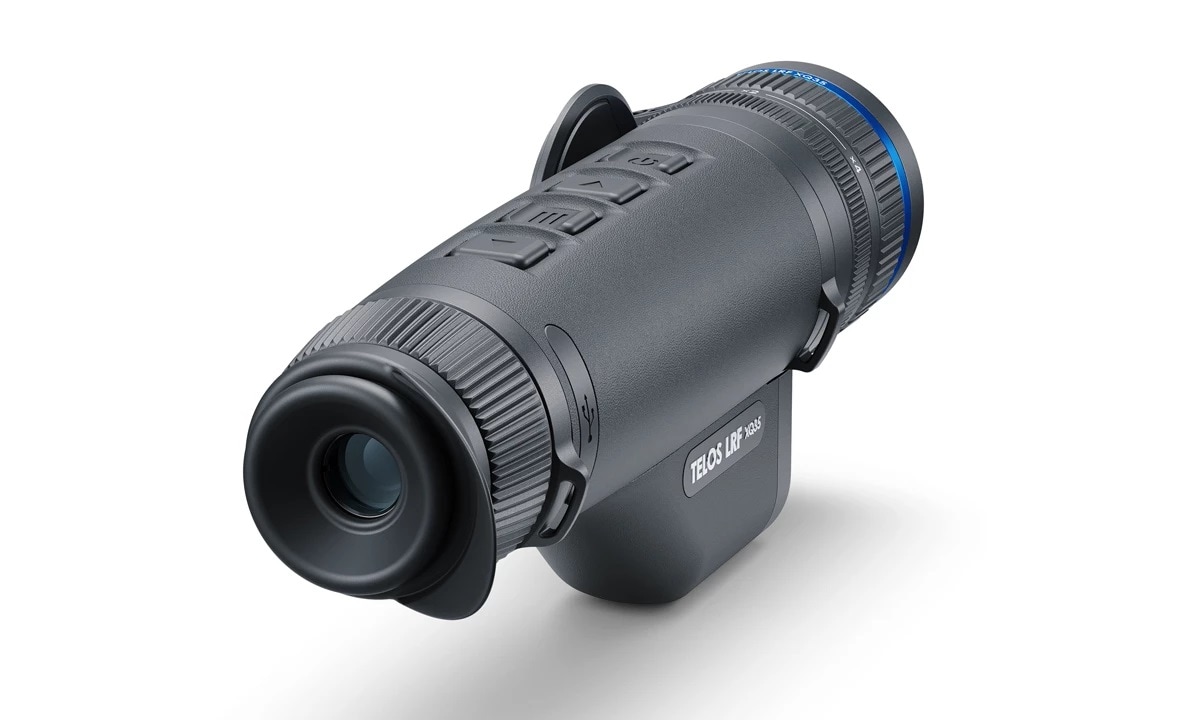

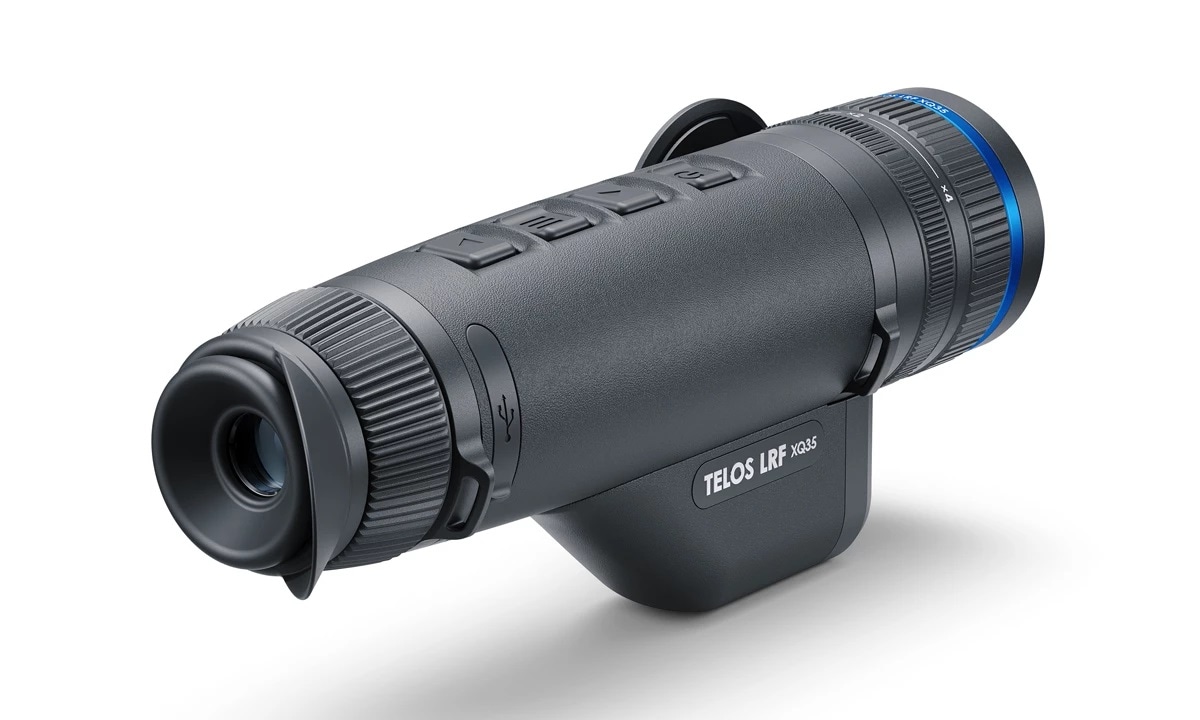

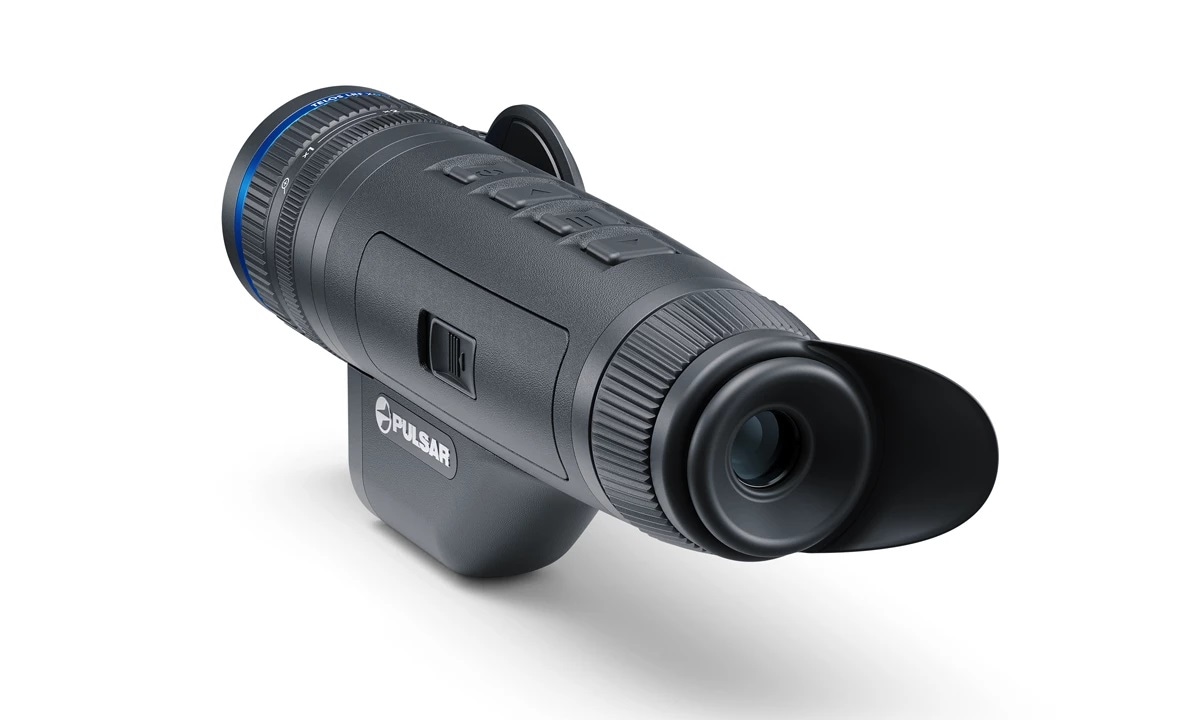

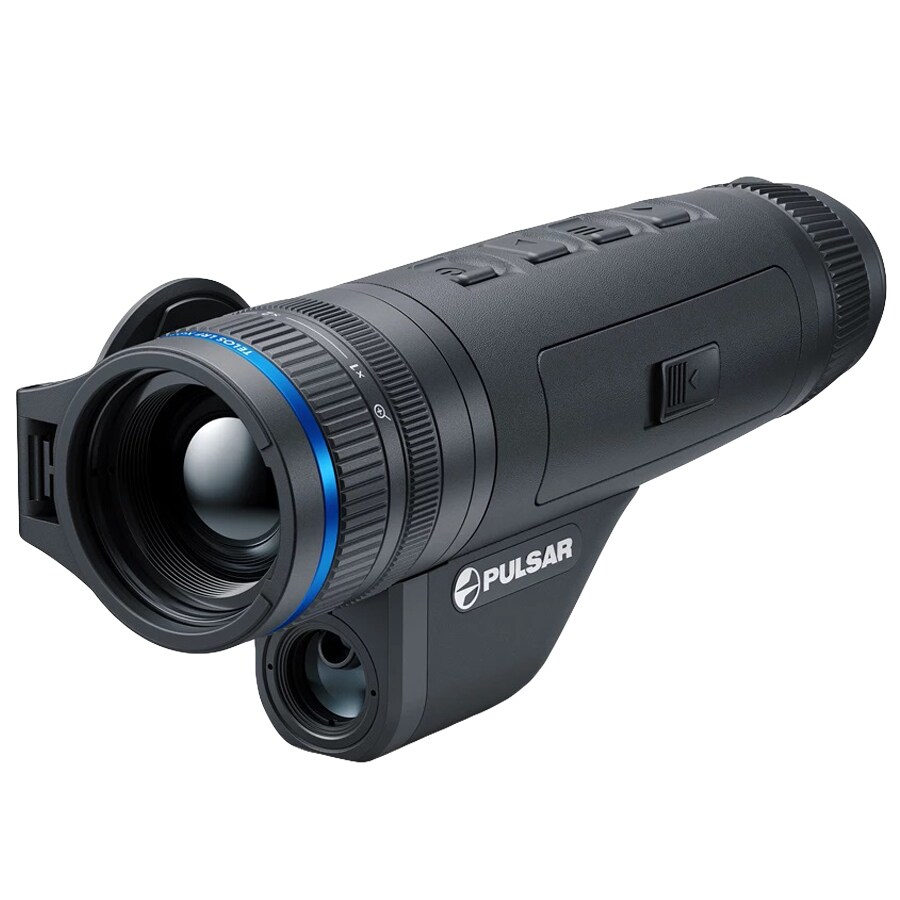

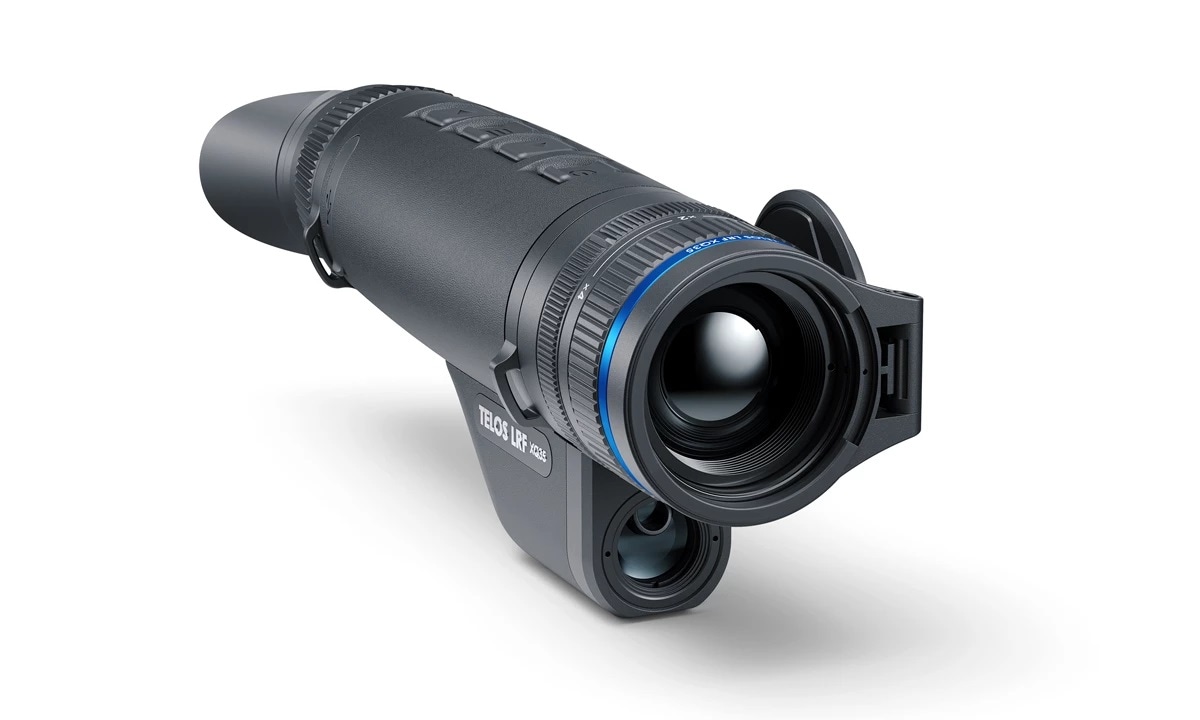

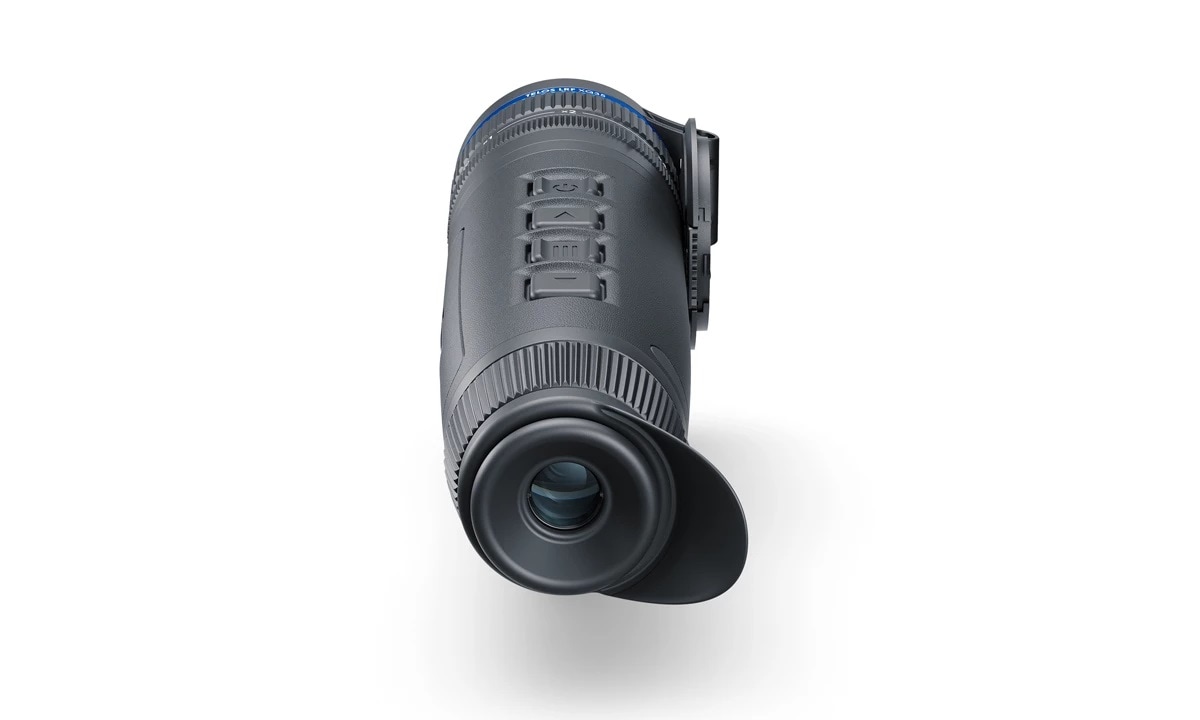

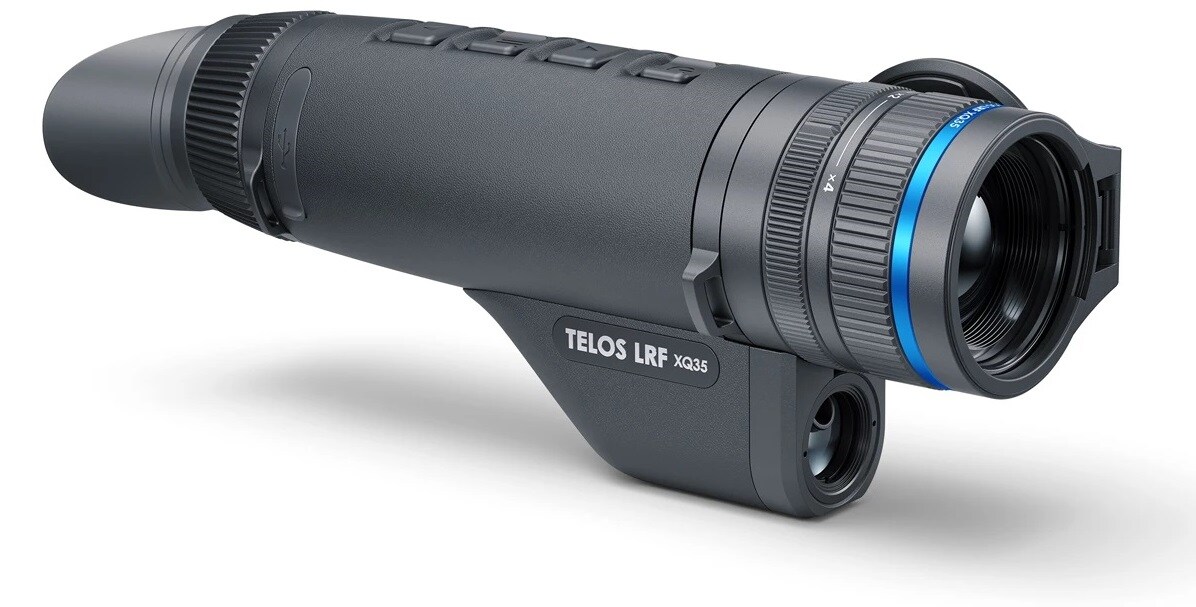

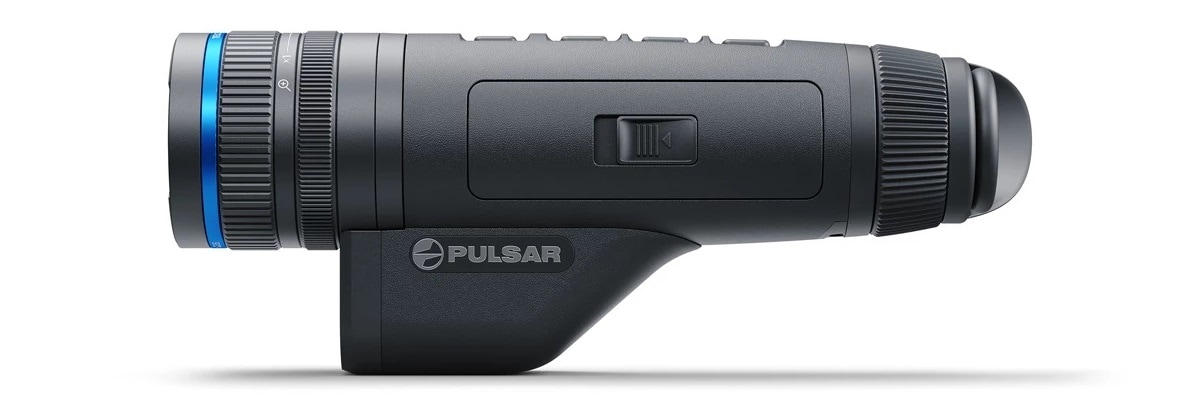

Pulsar Telos LRF XQ35 Thermal Imaging Monocular

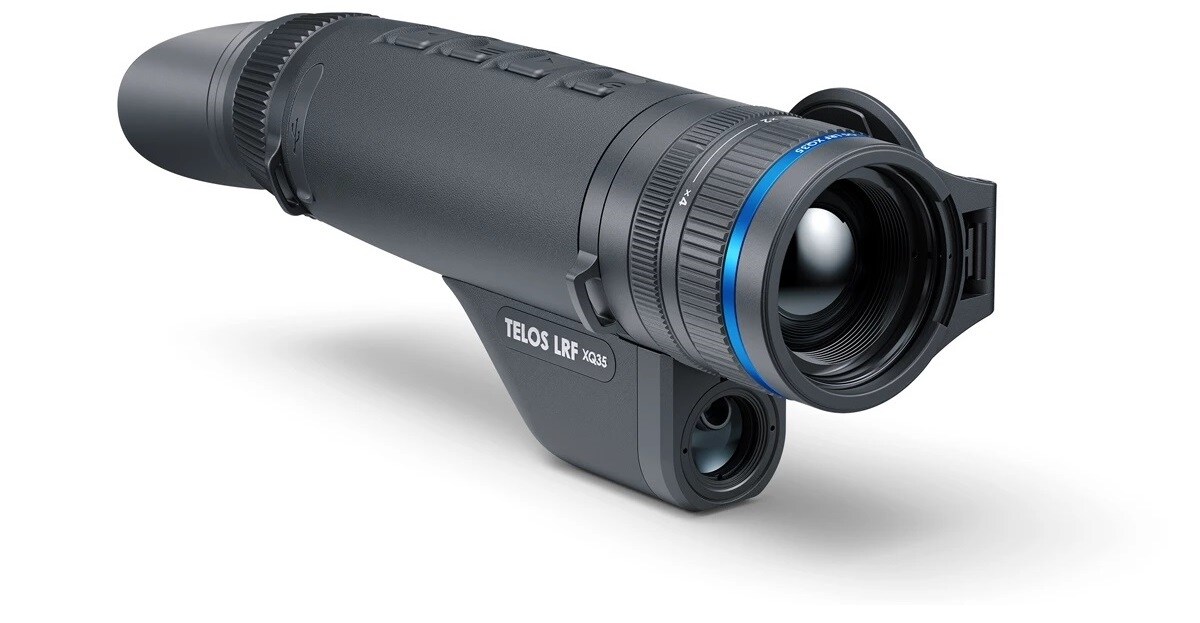

A thermal imaging monocular created for both day and night observation. It features optical magnification from 3x to 12x and digital magnification up to 4x, allowing detection of objects up to 1300 meters away. The integrated laser rangefinder allows you to accurately estimate the distance to the target at a distance of up to 1000 meters.
Durable design, IPX7 standard and modularity
The monocular's body is made of durable material resistant to mechanical damage. The compact design and gaskets ensure IPX7 waterproof rating, which protects against dust, dust and immersion in water up to 1 meter deep for 30 minutes. Rubberized, noiseless buttons increase the discretion of use, and the device operates in a wide temperature range from -25 to +50 degrees C. Thanks to its modular design, it is possible to expand with new components, such as the sensor, lens and electronics.
vox sensor, amoled hd display and 8 color palettes
The monocular uses a VOx sensor with a resolution of 384 x 288 pixels and a pixel spacing of 17 µm. The sensor has the sensitivity to detect differences in temperature of less than 25 mK. The frost-proof AMOLED HD display with a resolution of 1024 x 768 pixels provides high contrast, deep blacks and energy efficiency.
The device offers 8 versions of image color palettes, such as:
- White Hot, Black Hot, Red Hot - for object detection,
- Red Monochrome, Violet, Sepia - ideal for long-term night observation,
- Rainbow, Ultramarine - for easy identification and recognition.
Three-stage sensitivity enhancement significantly improves the quality of observation in difficult conditions such as fog, precipitation or high humidity.
Picture in picture mode, smoothing filter, display off function
The Picture in Picture mode allows the central part of the image to be magnified in a special window occupying just 10% of the display, facilitating precise observations. An applied smoothing filter reduces digital distortion while maintaining high image sensitivity, and a refresh rate of 50 Hz guarantees smoothness when observing objects in motion. The Display OFF function allows you to quickly turn the display off and on without having to turn off the device, saving energy and providing discretion in the dark.
64gb internal memory and app connectivity
The model uses a built-in internal memory of 64 GB, for storing photos and videos. Data can be transferred to mobile devices via a USB-C port or wirelessly via Wi-Fi. The monocular works with the StreamVision 2 app, which allows you to view images on a smartphone or tablet, manage settings, save data to the cloud, and update software to expand the device's features.
battery power and usb-c port
Powering the monocular is a removable 6400 mAh LPS7i rechargeable battery. A USB-C port allows the device to be charged from a powerbank, car charger or computer, increasing its versatility in the field.
Set elements
- Pulsar Telos LRF XQ35 thermal imaging monocular
- LPS7i battery pack
- USB/230V charger
- USB-C cable with USB-A adapter
- material for cleaning optics
- neck strap
- lens cap
- cover
- warranty card with hologram
- instruction manual
Main features
- built-in laser rangefinder
- expandable
- sensor <25 mK
- frosted AMOLED HD display
- convenient zoom knob
- 8 color palettes
- rubberized buttons
- IPX7 standard
- built-in Wi-Fi module
- change of sensitivity gain level
- wide operating temperature range
- possibility of connecting with an application
Application and activity examples
Uniformed services: With its built-in laser rangefinder, the thermal imager enables fast and precise target tracking, making it an excellent tool for uniformed services. It is ideal for monitoring vast areas and detecting potential threats in conditions of limited visibility.
Outdoors: The thermal imager enables quiet, night-time observation of wild animals in their natural habitat without disturbing their behavior. Thanks to its rugged construction and IPX7 waterproof rating, the device works flawlessly even in harsh weather conditions.
Technical data
Color: Black
Digital zoom: 4x
Optical zoom: 3-12x
Observation range: 1300 m
Rangefinder range: 1000 m
Linear field of view at 100 m: 18.7 m
Angular field of view: 10.7 deg.
Operating temperature: -25 to +50 deg C.
Sensor: 384 x 288 pix
Refresh rate: 50 Hz
Thermal sensitivity: <25 mK
Display: AMOLED HD; 1024 x 768 pix
Image color: 8 color palettes
Lens parameters: 35 mm F / 1.0
Diopter adjustment: +5/-5
Waterproof class: IPX7
External power supply: USB-C
Internal memory: 64 GB
Operation time: up to 8.5 h
Dimensions: 224 х 66 х 87 mm
Weight: 630 g
Manufacturer: Pulsar, Lithuania
MILITARY is a premium dealer of Pulsar.
Pulsar is a European brand specializing in thermal imaging technology and digital day/night optics, owned by the Yukon Group and based in Lithuania. Its origins date back to 1991, when a group of enthusiasts began building their first devices at home. Today, the company employs over 1200 people and operates in more than 70 countries. All production takes place in Europe, and the brand has gained recognition for its innovative solutions, such as Dual-Purpose systems, which allow the device to be used as both a monocular and a rifle scope. The modern nature of the offer is emphasized by the Stream Vision 2 application, which allows wireless connection of devices to a phone via Wi-Fi, offering remote control, image transfer, and software updates. In 2005, the Yukon Group was the first to introduce digital night vision devices to the civilian market, marking in a new stage in the development of applied optoelectronics. In 2012, the Quantum model was unveiled – the first mass-produced thermal imaging monocular for civilians, and in 2019, the compact Axion XM30, capable of detecting a human silhouette from a distance of 1350 meters in complete darkness.
| Optics ready | Yes |
|---|---|
| Thermal imager type | Monocular |
| Display modes | 8 |
| Field of view | 18,7 m/ 100 m |
| Sensor resolution | 384 x 288 pix |
| Screen resolution | 1024 x 768 pix |
| Waterproof class | IPX 7 |
| Power type | Interchangable accumulator |
| Accumulator/battery type | Li-Ion LPS 7i |
| Transport cover | Yes |
| Weight | 630 g |
| Dimensions | 224 х 66 х 87 mm |
| Additional accessories included | Yes |
| Battery type | 1x LPS7i rechargeable battery |
| Maximum detection depth | 1300 m |
| Built-in memory | Yes |
| EAN | 4779022926013 |
| Manufacturer code | 77512 |
