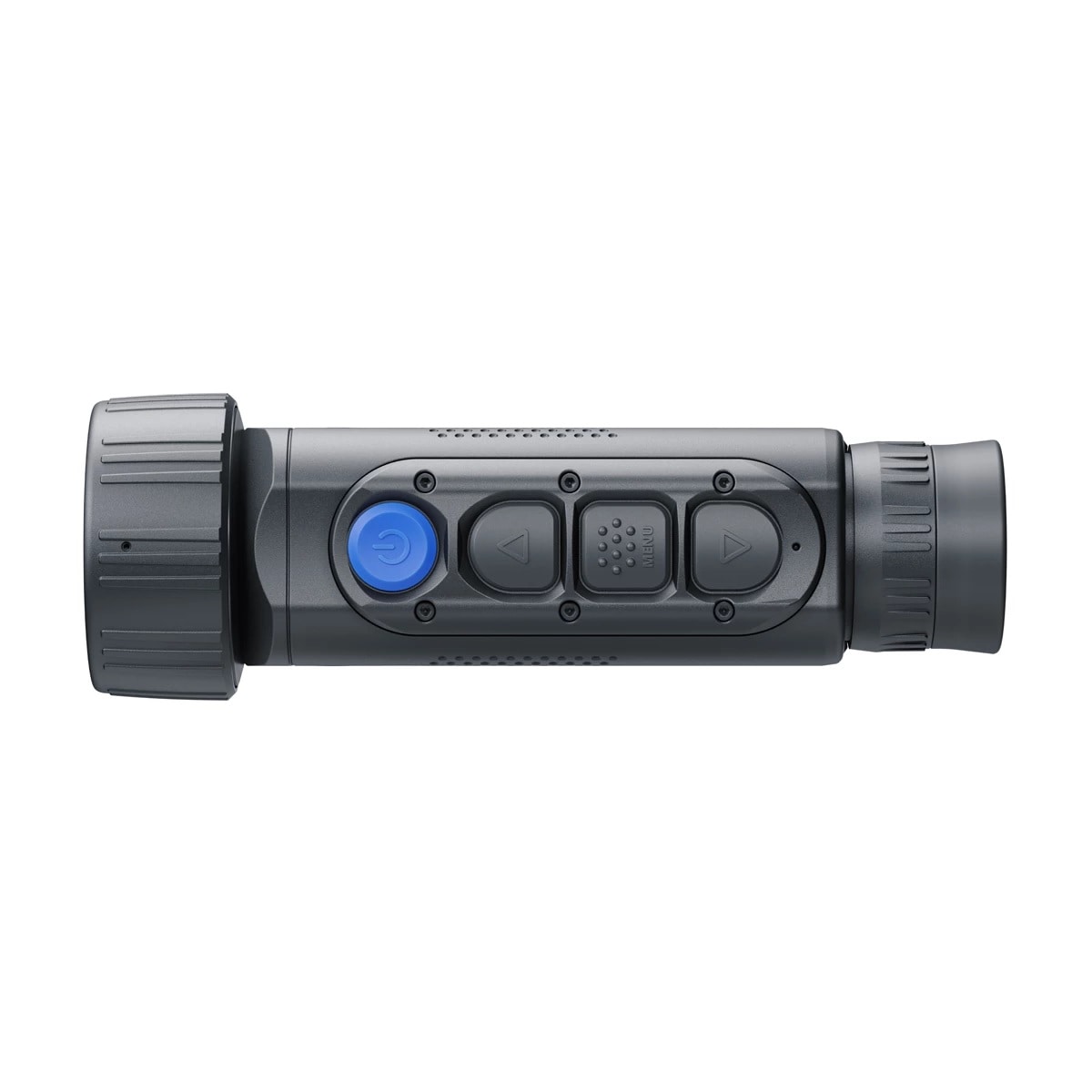

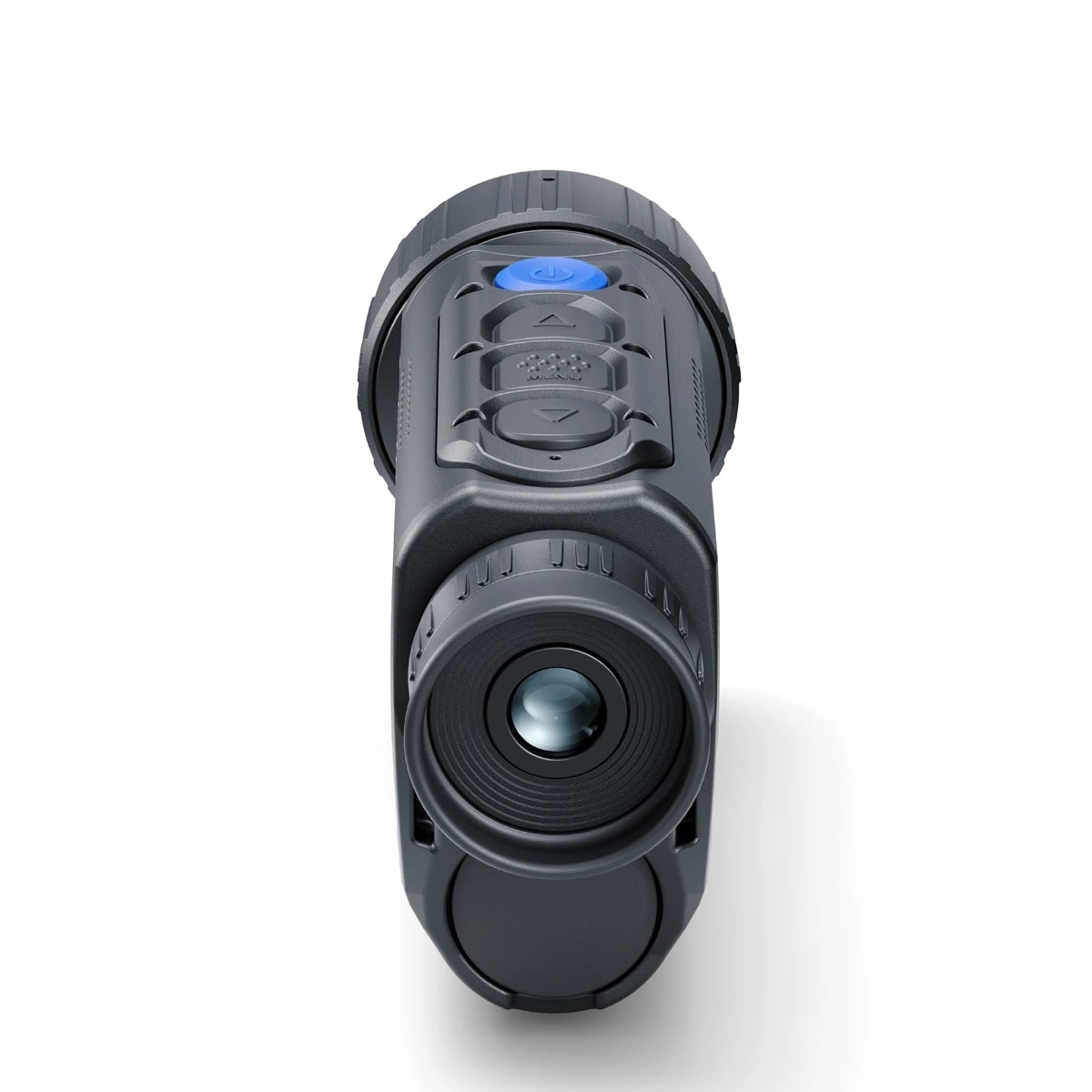

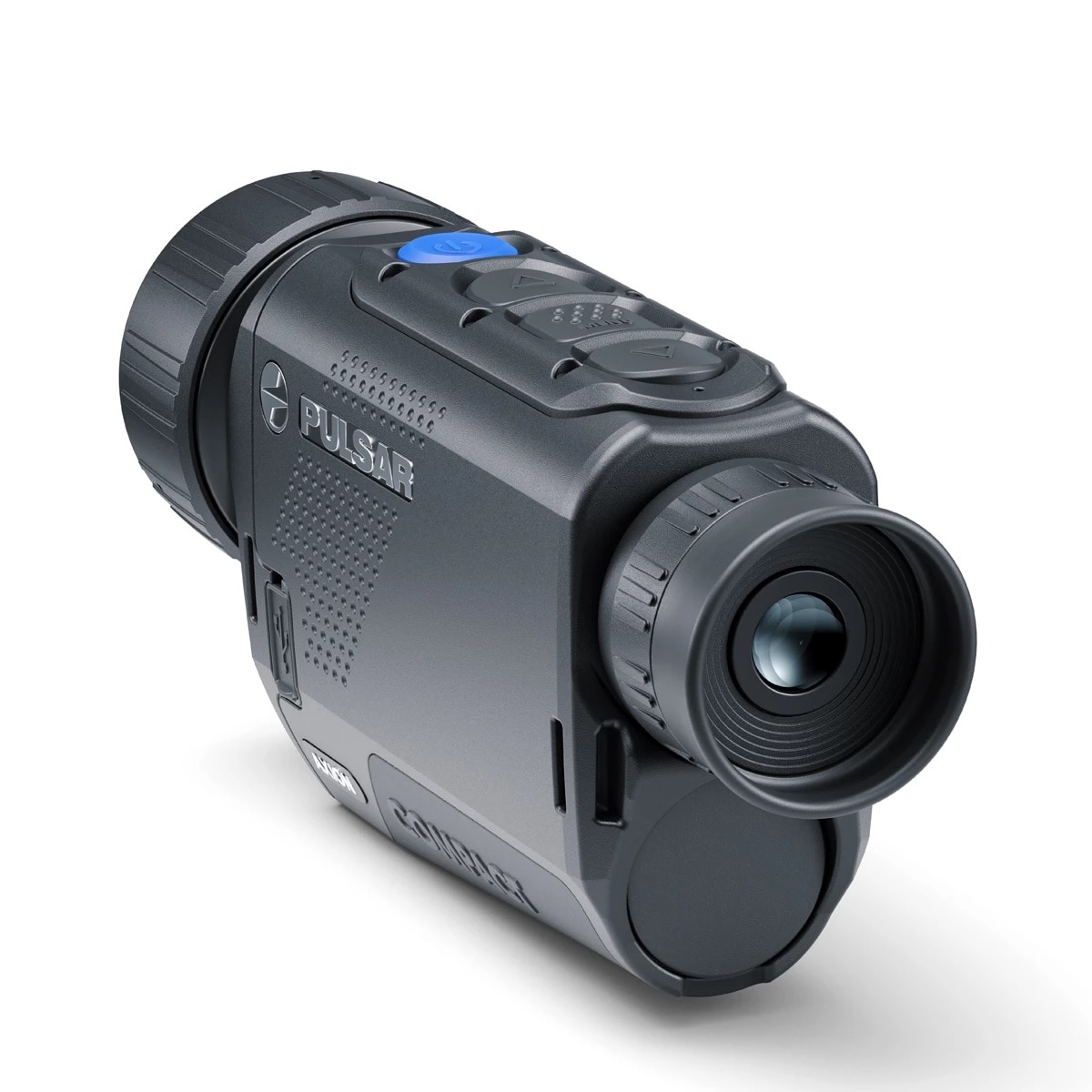

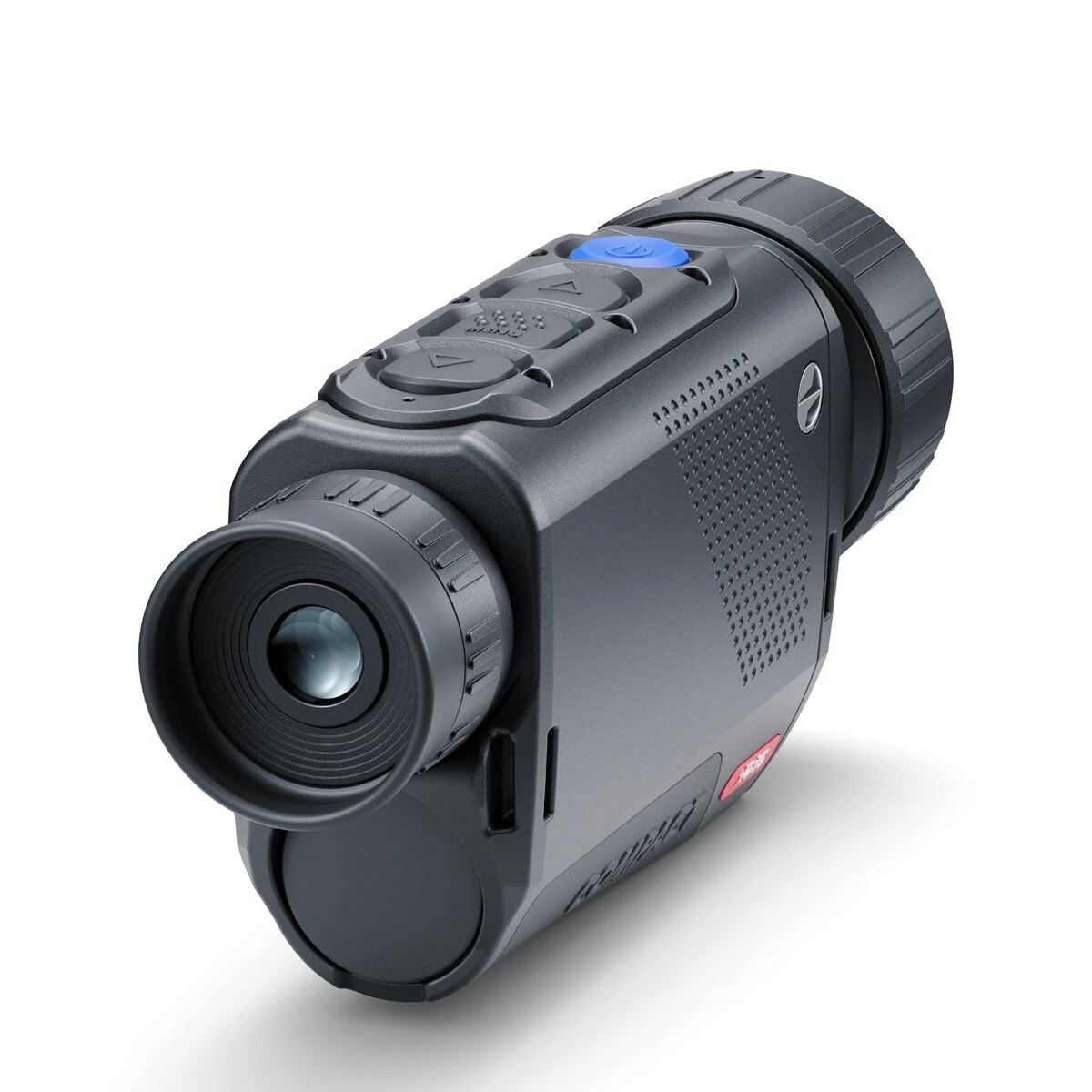

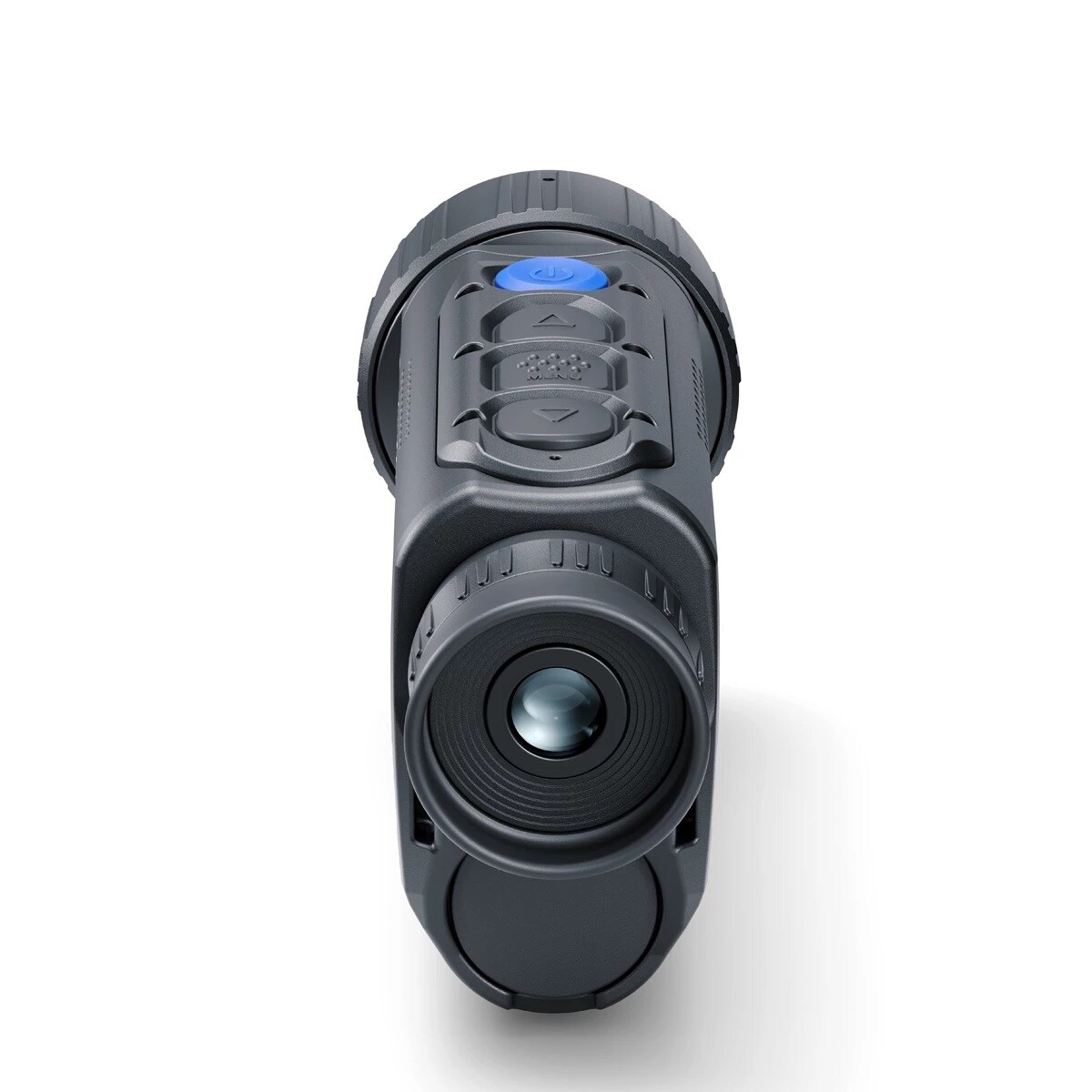

Pulsar Axion Compact XG35 Thermal Imager
The Compact Series Thermal Monocular, will prove useful for both day and night observation. The Axion XG35 offers an 8x digital zoom, allowing magnification from 2.5x to 20x, making it possible to see objects up to 1750 meters away. In addition, the device is equipped with a stadiameter, which allows you to quickly determine the distance to your target.
Rugged construction, IPX7 standard
The thermal imager's housing is made of magnesium alloy, which provides high resistance to mechanical damage and shock. Thanks to its compact design and the seals used, it meets the IPX7 waterproof standard, which means protection against immersion in water up to 1m deep for 30 minutes. The device operates in a temperature range of -25 to +40 degrees C, making it reliable in various weather conditions.
Amoled display, 8x digital zoom
The Axion XG35 features a sensor with a resolution of 640 x 480 pixels, made with 12 µm technology, which ensures a long detection range and high image quality. With a sensitivity of less than 40 mK, the device captures minimal temperature differences. The image is displayed on a frost-proof AMOLED display with the same resolution. AMOLED technology provided better color reproduction, energy efficiency, fast response time and smooth operation, even at low temperatures. The 50 Hz refresh rate allows comfortable tracking of objects in motion.
8 image display modes
The device offers eight image display modes, which support identification and observation in various conditions:
- White Hot, Black Hot, Red Hot - for effective object detection
- Red Monochrome, Violet, Sepia - dedicated to long-term night observation
- Rainbow, Ultramarine - facilitate recognition and identification
Stadiametric rangefinder
The built-in stadiametric rangefinder makes it easy to determine the approximate distance to a target of known dimensions, which comes in handy during a variety of field observations.
Wi-Fi module, 64 GB internal memory
The device is equipped with the function of saving photos and videos, which can be stored on the built-in memory of 64 GB. Files can be transferred to a computer via a USB cable or to a smartphone or tablet via Wi-Fi. The StreamVision 2 app allows you to use your smartphone as an external screen, control the device and save data to the cloud.
Battery power supply
A replaceable 3200 mAh APS 3 lithium-ion battery is responsible for power, providing up to 7 hours of use on a single charge. Support for a fast charging system and the ability to power through a USB-C port enhance the device's functionality. The Display OFF power-saving mode allows the display to go blank without turning off the thermal imager.
Set elements
- Pulsar Axion Compact XG35 thermal imager
- user manual in Polish
- USB/230V charger
- material for cleaning optics
- hand strap
- lens cap
- cover
- USB cable
- APS 3 rechargeable battery
Main features
- durable construction
- compact size
- IPX7 waterproof standard
- digital zoom 8x
- stadiametric rangefinder
- AMOLED display
- 8 image display modes
- Wi-Fi module
- 64 GB internal memory
- removable battery
Technical data
Sensor resolution: 640 x 480 px, 12 µm
NETD: <40 mK
Display resolution: 640 x 480 px
Image refresh rate: 50 Hz
Angular field of view: 14.6 deg.
Field of view m/100 m: 21.9 x 13.7 m
Digital zoom: 8x
Internal memory: 64 GB
Maximum range: 1750 m
Water resistance: IPX7
Operating temperature: -25 to +40 deg C
Dioptric correction of eyepiece: -5 to +4
Tripod mount: 1/4”
Power supply: rechargeable battery APS 3
Battery capacity: 3200 mAh
Dimensions: 167 x 49 x 73 mm
Weight: 410 g
Manufacturer: Pulsar, Lithuania
MILITARY is a premium dealer of Pulsar.
Pulsar is a European brand specializing in thermal imaging technology and digital day/night optics, owned by the Yukon Group and based in Lithuania. Its origins date back to 1991, when a group of enthusiasts began building their first devices at home. Today, the company employs over 1200 people and operates in more than 70 countries. All production takes place in Europe, and the brand has gained recognition for its innovative solutions, such as Dual-Purpose systems, which allow the device to be used as both a monocular and a rifle scope. The modern nature of the offer is emphasized by the Stream Vision 2 application, which allows wireless connection of devices to a phone via Wi-Fi, offering remote control, image transfer, and software updates. In 2005, the Yukon Group was the first to introduce digital night vision devices to the civilian market, marking in a new stage in the development of applied optoelectronics. In 2012, the Quantum model was unveiled – the first mass-produced thermal imaging monocular for civilians, and in 2019, the compact Axion XM30, capable of detecting a human silhouette from a distance of 1350 meters in complete darkness.
| Thermal imager type | Monocular |
|---|---|
| Display modes | 8 |
| Field of view | 21.9 x 13.7 m/ 100 m |
| Sensor resolution | 640×480 |
| Screen resolution | 640x480 |
| Waterproof class | IPX 7 |
| Power type | Interchangable accumulator |
| Accumulator/battery type | Li-Ion APS 3 |
| Transport cover | Yes |
| Weight | 410 g |
| Dimensions | 167 x 49 x 73 mm |
| Additional accessories included | Yes |
| Battery type | Interchangable accumulator |
| Maximum detection depth | 1750 m |
| Built-in memory | Yes |
| EAN | 4779022926112 |
| Manufacturer code | 77509 |
| Brand | Pulsar |
