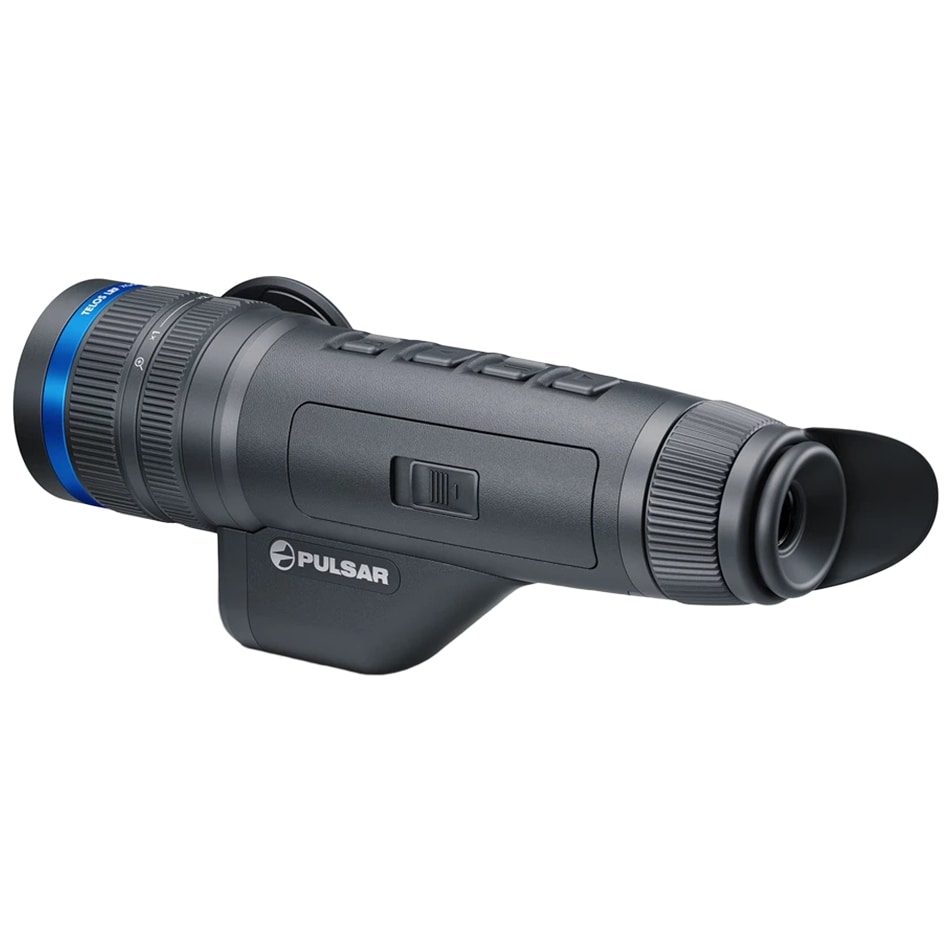

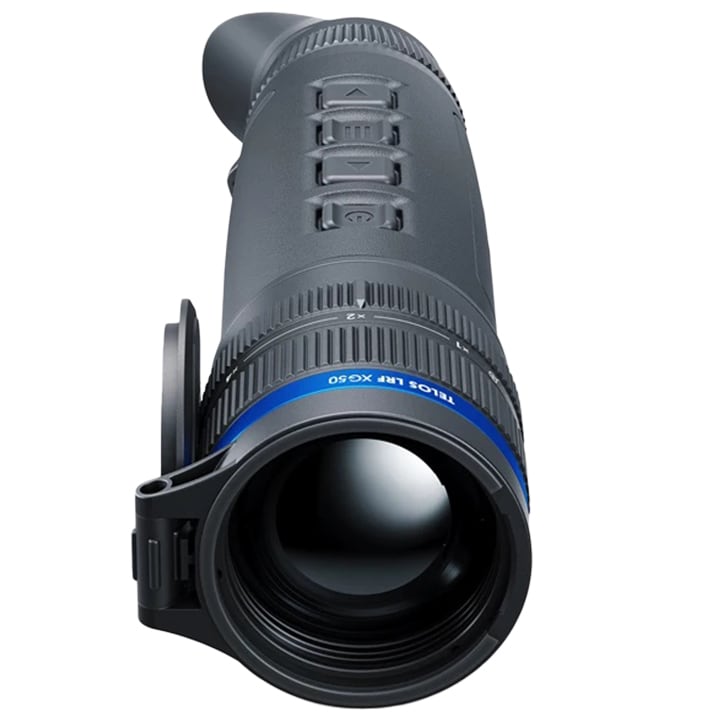

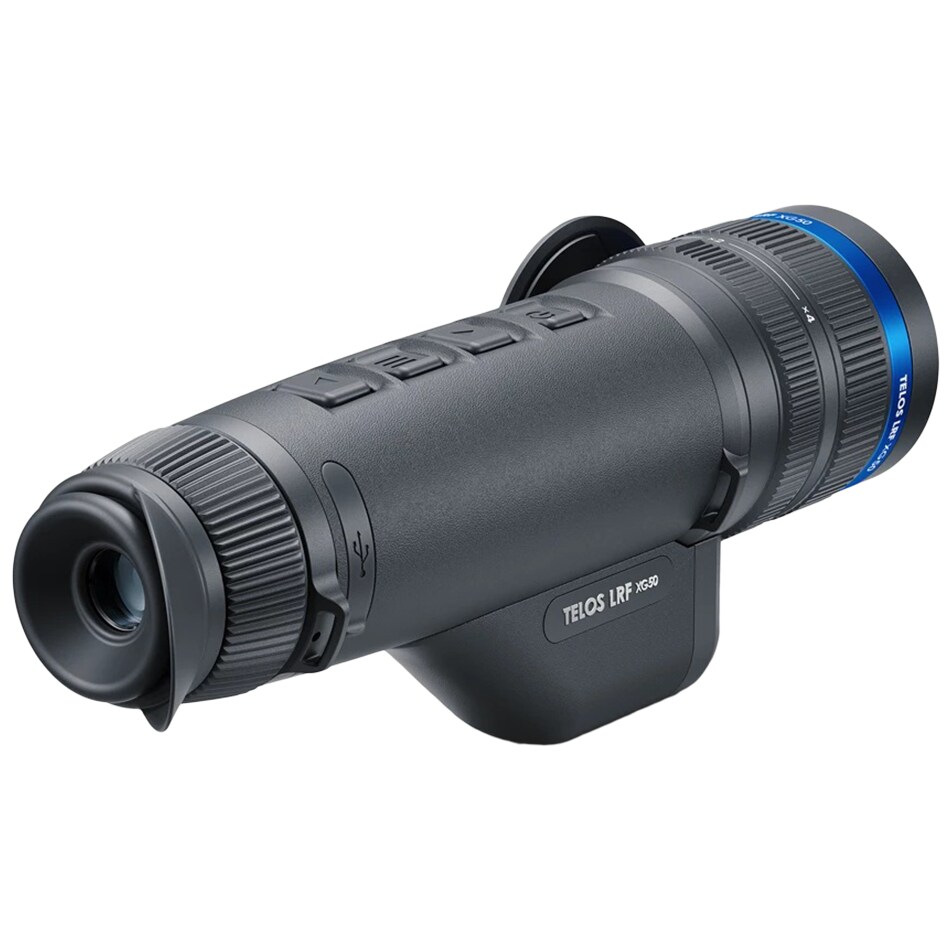

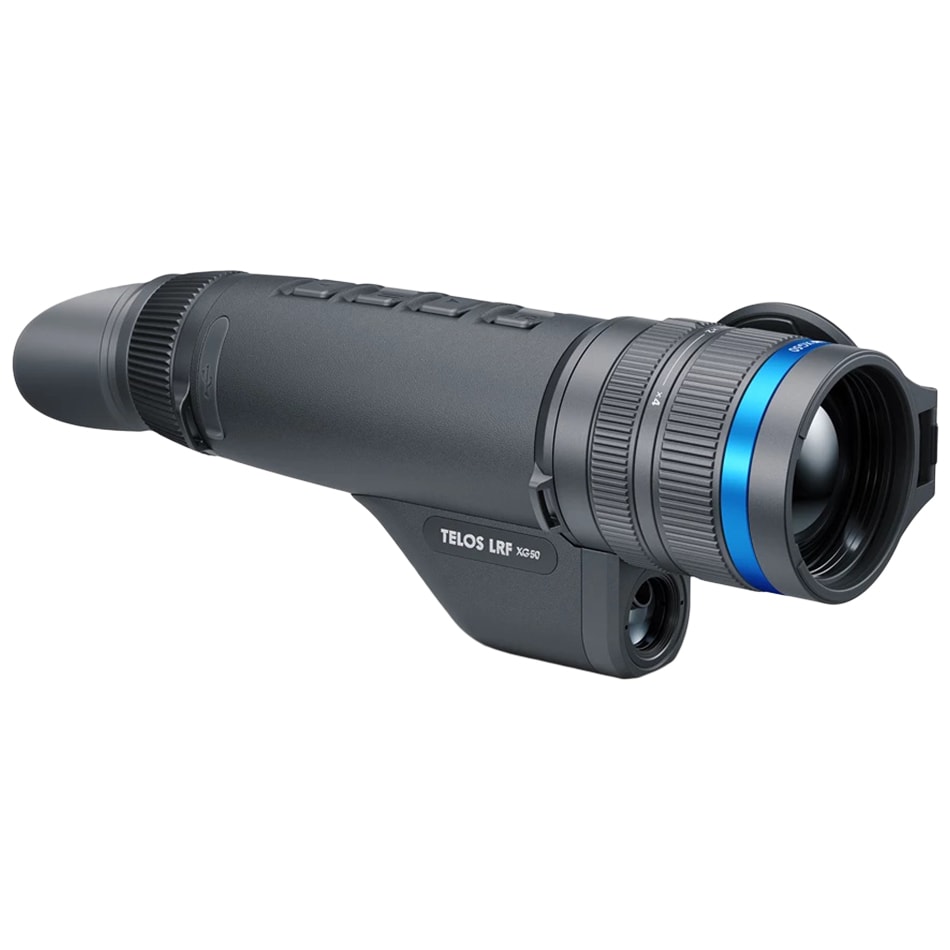

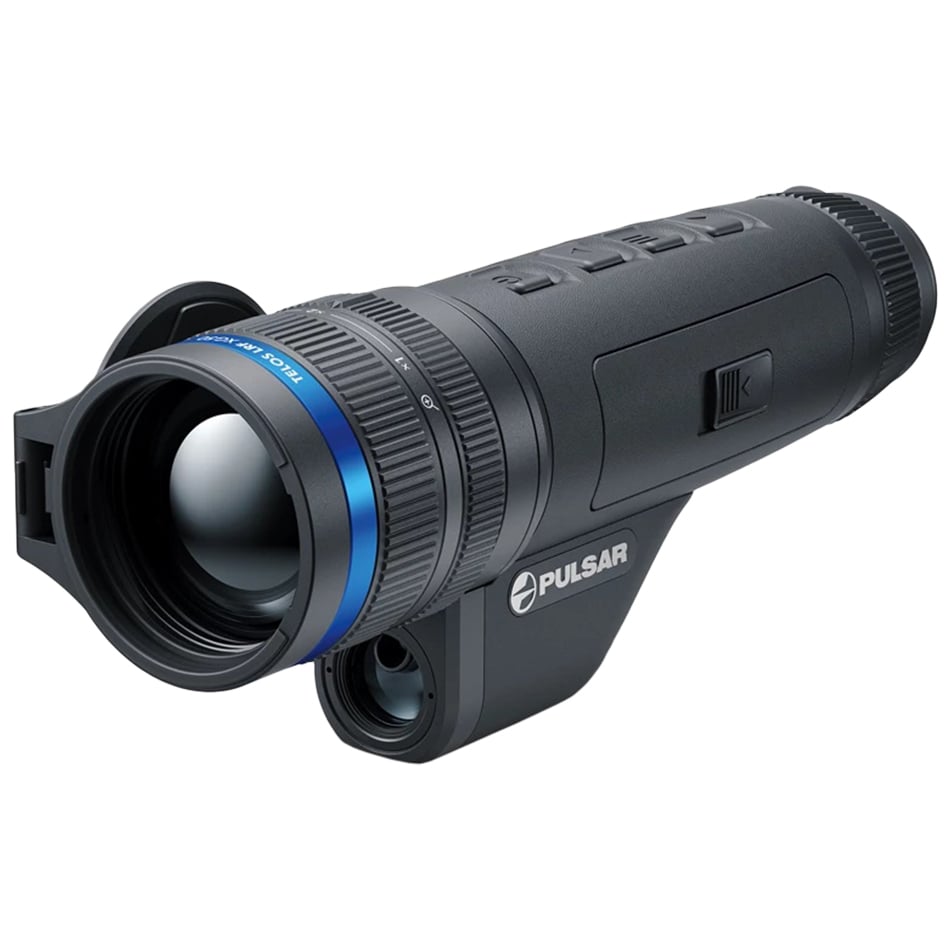

Pulsar Telos LRF XG50 Thermal Imager
A handheld thermal imaging monocular with a 50mm objective diameter for easy observation both during the day and at night. The Telos LRF XG50 features 3.5x to 14x optical magnification and 4x digital zoom, allowing observation of objects up to 2300 meters away. A built-in laser rangefinder enables precise distance measurement. The rugged and sealed design provides IPX7 water resistance.
Rugged construction, IPX7 standard
The body of the thermal imager is made of plastic that is resistant to mechanical damage and shock. With its compact design and the use of seals, the thermal imager's housing meets the IPX7 waterproof class, which provides protection from water at a depth of up to 1 m for 30 minutes. The operating temperature range in which the thermal imager can be used is from -25 to +50 degrees.
Amoled HD display with a resolution of 1024 x 768 pixels
The Telos LRF XG50 thermal imager is equipped with a sensor with a resolution of 640 x 480 pixels (12 µm). The sensitivity of the sensor allows to capture differences in temperature below 40mK. An AMOLED HD display with a resolution of 1024 x 768 pixels was used. The high-contrast display provides better color reproduction, power saving, fast response and smooth images during observation even in freezing conditions. The 50 Hz refresh rate allows comfortable observation of moving objects. The thermal imager is equipped with 3.5-14x magnification and 4x digital zoom.
Smoothing filter, Picture in Picture mode, laser rangefinder
The smoothing filter function allows you to reduce digital distortion while maintaining a high level of sensitivity. Picture in Picture mode allows you to enlarge the central part of the image in a specially displayed window. The additional window occupies only 10% of the total display area. To improve user comfort, the thermal imager is equipped with diopter adjustment from -5 to +5.
The LRF XG50 is equipped with a built-in laser rangefinder, which allows precise determination of the distance to the target at a distance of up to 1000 meters with an accuracy of 1 meter.
8 modes of image display
The thermal imaging monocular has eight image display modes for easy recognition and identification of objects under observation:
- White Hot - for object detection
- Black Hot - for object detection
- Hot Red - for object detection
- RedMonochrome - for long night observations
- Rainbow - for recognition and identification
- Ultramarine - for recognition and identification
- Violet - for long night observations
- Sepia - for long night observations
Wi-Fi module, 64 GB internal memory
The model features the function of saving photos or videos to the built-in 64GB internal memory. Saved files can be transferred to a computer using a USB cable or directly to a phone or tablet using the integrated Wi-Fi module, which allows you to use, for example a phone with the StreamVision 2 app as an external display or to remotely control the device.
Rechargeable power supply
The thermal imager is powered by a rechargeable LPS 7i lithium-ion battery with a capacity of 6400 mAh, which allows up to 8 hours of operation. In addition, a fast-charging system is used, as well as the ability to be powered via a USB-C cable. The Display OFF power saving mode allows the display to go blank without turning off the thermal imager.
Kit components
- Pulsar Telos LRF XG50 thermal imager
- USB/230V charger
- Optical cleaning cloth
- Neck strap
- Lens cap
- Cover
- USB-C - USB-C cable with USB-A adapter
- LPS 7i rechargeable battery
- User manual in Polish
Main features
- Durable design
- IPX7 waterproof standard
- Magnification 3.5-14x
- Digital zoom 4x
- Laser rangefinder
- Amoled HD display
- Smoothing filter
- Picture in Picture mode
- 8 picture display modes
- Wi-Fi module
- 64 GB internal memory
- Rechargeable battery
Technical data
Sensor resolution: 640 x 480 px, 12 µm
NETD: <40 mK
Display resolution: 1024 x 768 px
Image refresh rate: 50 Hz
Angular field of view: 8.8 deg.
Field of view m/100 m: 15.4 m
Magnification: 3,5-14x
Digital zoom: 1-4x
Internal memory: 64 GB
Maximum range: 2300 m
Dimensions: 238 x 72 x 62 mm
Waterproof: IPX7
Operating temperature: -25 to +50 deg C
Dioptric correction of eyepiece: -5 to +5
Tripod mount: 1/4”
Power supply: rechargeable LPS 7i battery
Battery capacity: 6400 mAh
Weight: 720 g
Manufacturer: Pulsar, Lithuania
MILITARY is a premium dealer of Pulsar.
Pulsar is a European brand specializing in thermal imaging technology and digital day/night optics, owned by the Yukon Group and based in Lithuania. Its origins date back to 1991, when a group of enthusiasts began building their first devices at home. Today, the company employs over 1200 people and operates in more than 70 countries. All production takes place in Europe, and the brand has gained recognition for its innovative solutions, such as Dual-Purpose systems, which allow the device to be used as both a monocular and a rifle scope. The modern nature of the offer is emphasized by the Stream Vision 2 application, which allows wireless connection of devices to a phone via Wi-Fi, offering remote control, image transfer, and software updates. In 2005, the Yukon Group was the first to introduce digital night vision devices to the civilian market, marking in a new stage in the development of applied optoelectronics. In 2012, the Quantum model was unveiled – the first mass-produced thermal imaging monocular for civilians, and in 2019, the compact Axion XM30, capable of detecting a human silhouette from a distance of 1350 meters in complete darkness.
| Thermal imager type | Monocular |
|---|---|
| Display modes | 8 |
| Field of view | 15,4 m/ 100 m |
| Sensor resolution | 640 x 480 |
| Screen resolution | 1024 x 768 |
| Waterproof class | IPX 7 |
| Power type | Interchangable accumulator |
| Accumulator/battery type | Li-Ion LPS 7i |
| Transport cover | Yes |
| Weight | 720 g |
| Objective lens diameter (mm) | 50 |
| Dimensions | 238 x 72 x 62 mm |
| Additional accessories included | Yes |
| Battery type | Interchangable accumulator |
| Maximum detection depth | 2300 m |
| Built-in memory | Yes |
| EAN | 4779022926037 |
| Manufacturer code | 77514 |
| Brand | Pulsar |
