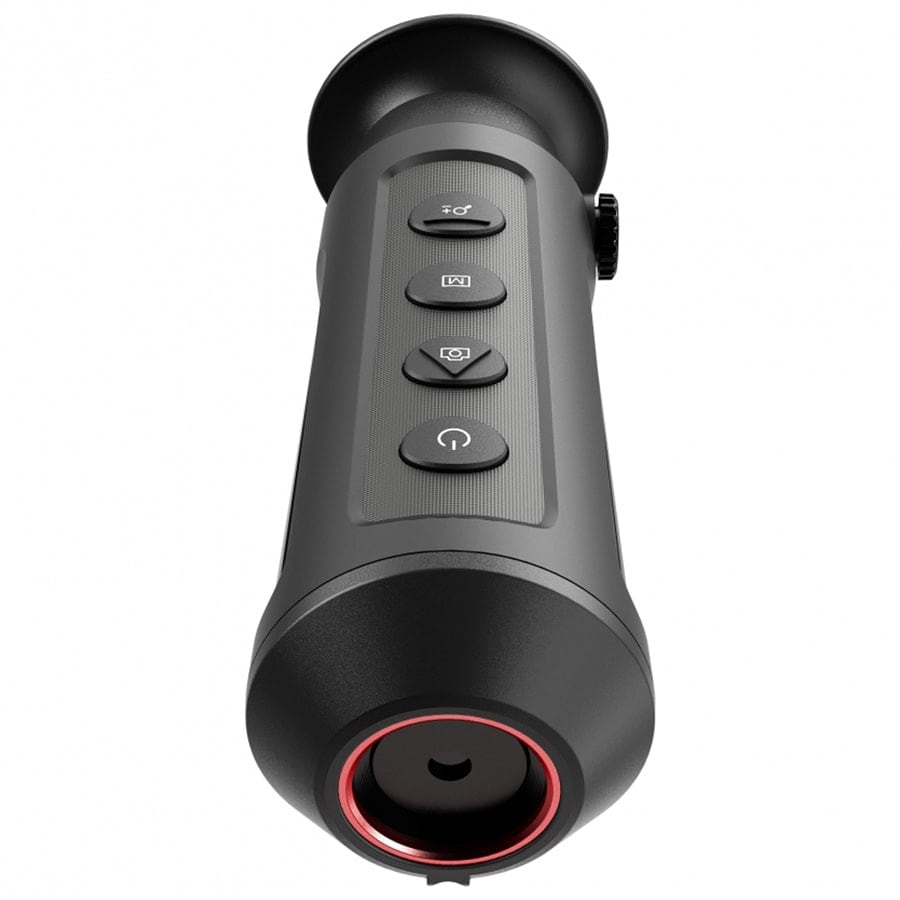

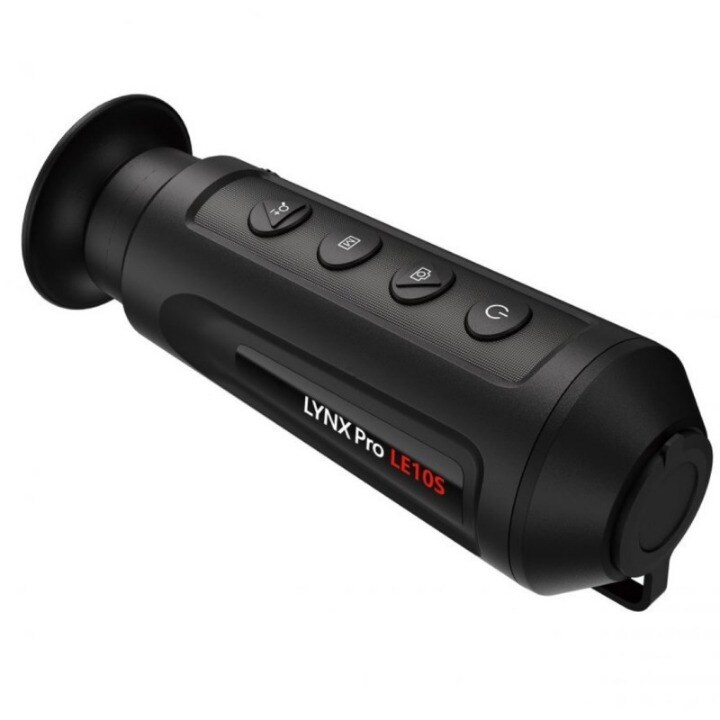

Hikvision Hikmicro Lynx Pro LE10S Thermal Imager

Compact thermal imager equipped with a fixed optical magnification of 1.5x and an additional digital zoom of 2-8x for greater observation accuracy. The static rangefinder allows quick measurement of the distance to the observed target, calculates the distance based on the data entered, marking the estimated size with a line of apex and base.

The measurement distance depends on the size of the object to which the distance is measured:
- human recognition: 101 m,
- human detection: 404 m,
- vehicle recognition: 310 m.

Thanks to its large aperture lens, the monocular provides a clear image of the target, even in total darkness. A color display with a resolution of 800 x 600 pixels displays the image at 50 Hz. For thermal imaging, it features digital detail enhancement (DDE), digital noise reduction (3D DNR) and automatic gain control (AGC).

The thermal imager offers four image display modes:
- White hot - warm in light color, the higher the temperature, the lighter the tonality,
- Black hot - warm in dark color, the higher the temperature, the darker the tonality,
- Iron red - image as in "black hot" with red highlighting of the warmest elements,
- Fusion - from high temperature to low temperature, the image is colored from white, yellow, red, pink to purple.

The model also uses a function to save photos or videos, the recorded files save to the built-in 8GB internal memory. Files can also be transferred directly to a phone using Wi-Fi, on which the T-Vision app (available for Android and iOS) has been installed. The integrated Wi-Fi module makes it possible to use, for example, a phone with the T-Vision app as an external display.

The compact body of the thermal imager is made of polymer that is resistant to mechanical damage and shock. Thanks to its compact design and the use of seals, the Lynx Pro LE10S meets the IP67 waterproof rating, providing protection from dust and water at depths of up to 1 m for 30 minutes.

The camera uses low-power consumption technology, allowing the thermal imager to operate continuously for up to 8 hours. The built-in power saving mode automatically extinguishes the display after a certain period of time, which is restarted by clicking any button on the control panel.

It can also work when connected to an external power supply. In order to do this, simply connect the camera to a powerbank via a USB Type-C cable, for example.

The kit includes:
- thermal imager,
- cover,
- USB cable,
- wrist strap,
- cloth.

Technical data
Color: Black
Lens: 10 mm f/1.0
Sensor resolution: 256 x 192, 12 μm
Screen resolution: 800 x 600 OLED
Image refresh rate: 50 Hz
Digital zoom: 2-8x
Optical zoom: 1.5x
Maximum range: approximately 1000 m
Dimensions: 160 x 61 x 57 mm
Waterproof: IP67
Operating temperature: from -30 deg C to 55 deg C
Dioptric correction of eyepiece: yes
Weight: 260 g
Manufacturer: Hikvision, PRC
