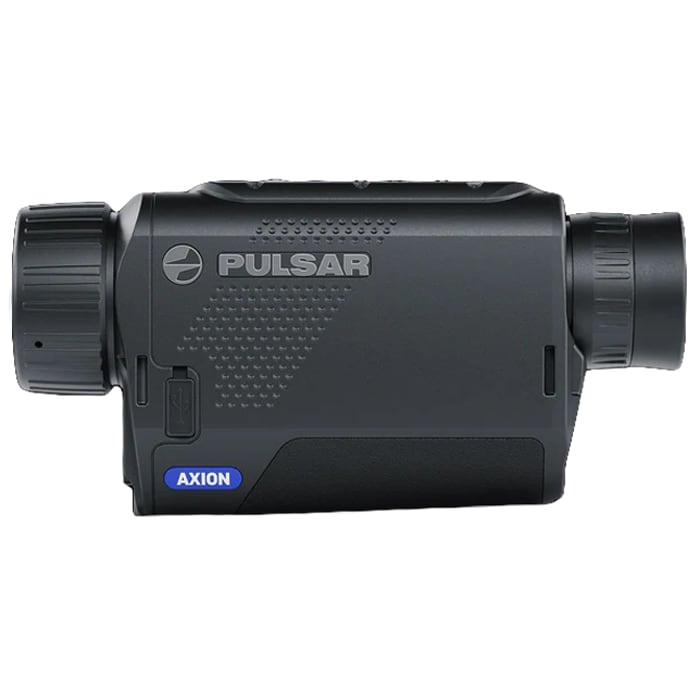

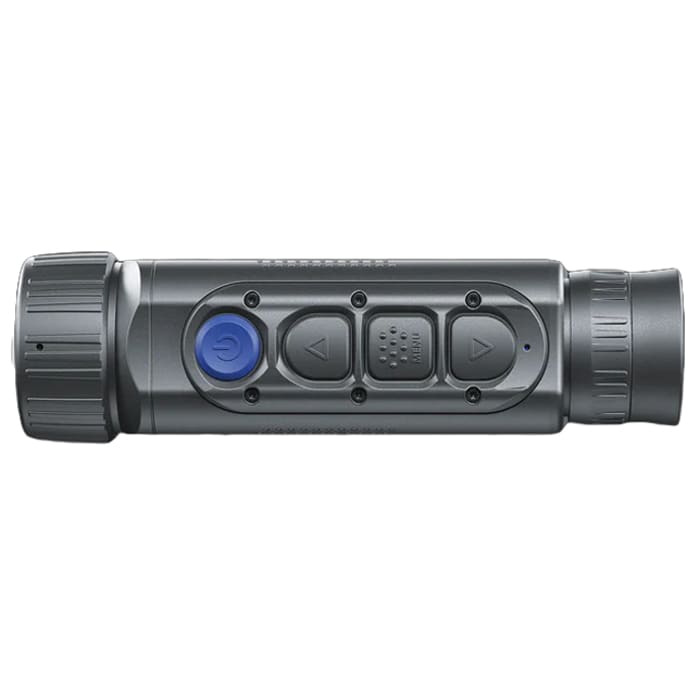

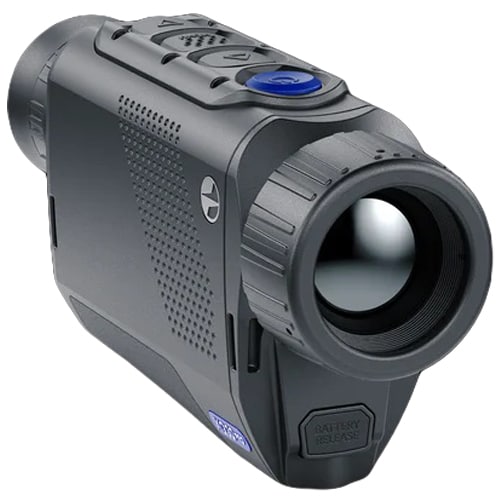

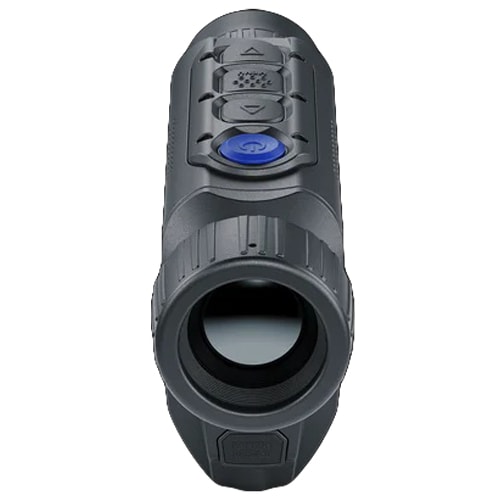

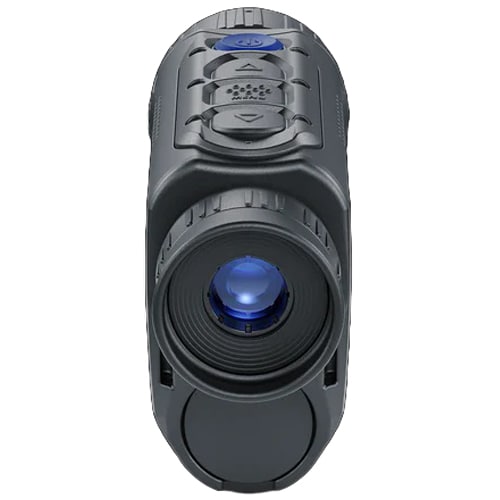

Pulsar Axion Compact XQ30 PRO Thermal Imaging Monocular
Compact line of thermal imaging monoculars designed for both day and night observation. The Axion XQ30 PRO features 4x digital magnification, which provides a zoom range of 2x to 8x, allowing detection of objects up to 1050 meters away. It features an AMOLED display with a resolution of 640 x 400 pixels, as well as a stadiameter rangefinder that allows for precise distance estimation.
Robust construction and waterproofing
The housing, made of durable magnesium alloy, provides resistance to shock and mechanical damage. Thanks to its compact design and seals, it meets the IPX7 waterproof standard, which means protection from water at a depth of up to 1m for 30 minutes. The device can be used in a wide temperature range, from -25°C to +40°C.
Advanced display and sensitive sensor
The monocular is equipped with XQ sensors, which use 17 μm technology and offer a resolution of 384 x 288 pixels. Thanks to the sensor's high sensitivity (NETD of less than 25 mK), it is possible to accurately capture temperature differences. The image is presented on a frost-resistant AMOLED display with a resolution of 640 x 400 pixels, which features excellent contrast, energy efficiency and smooth response. Image refresh rate of 50 Hz allows comfortable tracking of objects in motion. Digital zoom ranging from 2x to 8x allows detailed observation at a distance of up to 1050 meters.
8 image display modes
The device provides eight image display modes for easy recognition and identification of observed objects:
- White Hot / Black Hot / Red Hot - for object detection
- RedMonochrome / Violet / Sepia - for long night observations
- Rainbow / Ultramarine - for recognition and identification
Stadiameter rangefinder
The built-in stadiametric rangefinder makes it quick and easy to determine the approximate distance to objects of known dimensions, increasing the device's functionality in the field.
Wi-Fi module, 16 GB internal memory
The device has the ability to store photos and videos on the internal memory with a capacity of 16 GB. Data transfer to a computer is done via a USB cable , while the integrated Wi-Fi module allows to transfer files directly to a smartphone or tablet. With the StreamVision 2 app, it is possible to use a mobile device as an external display or to remotely control the thermal imager.
Battery power supply
The device is powered by a replaceable 3200 mAh APS 3 lithium-ion battery, which provides up to 7.5 hours of continuous use. In addition, it offers a fast-charging function and the ability to be powered via USB-C. The Display OFF mode allows you to blank the screen without turning off the device, which significantly saves energy.
Set elements
- Pulsar Axion Compact XQ30 PRO thermal imaging monocular
- user manual in Polish
- USB/230V charger
- material for cleaning optics
- hand strap
- lens cap
- cover
- USB cable
- APS 3 rechargeable battery
Main features
- durable design
- compact size
- IPX7 waterproof standard
- 4x digital zoom
- stadiametric rangefinder
- Amoled display
- 8 image display modes
- Wi-Fi module
- 16 GB internal memory
- removable battery
Technical data
Sensor resolution: 384 x 288 px, 17 µm
NETD: <25 mK
Display resolution: 640 x 400 px
Image refresh rate: 50 Hz
Angular field of view: 13.3 deg.
Field of view m/100 m: 23.3 m
Digital zoom: 4x
Internal memory: 16 GB
Maximum range: 1050 m
Water resistance: IPX7
Operating temperature: -25 to +40 deg C
Dioptric correction of eyepiece: -5 to +5
Tripod mount: 1/4”
Power supply: rechargeable battery APS 3
Battery capacity: 3200 mAh
Dimensions: 144 x 40 x 69 mm
Weight: 250 g
Manufacturer: Pulsar, Lithuania
MILITARY is a premium dealer of Pulsar.
Pulsar is a European brand specializing in thermal imaging technology and digital day/night optics, owned by the Yukon Group and based in Lithuania. Its origins date back to 1991, when a group of enthusiasts began building their first devices at home. Today, the company employs over 1200 people and operates in more than 70 countries. All production takes place in Europe, and the brand has gained recognition for its innovative solutions, such as Dual-Purpose systems, which allow the device to be used as both a monocular and a rifle scope. The modern nature of the offer is emphasized by the Stream Vision 2 application, which allows wireless connection of devices to a phone via Wi-Fi, offering remote control, image transfer, and software updates. In 2005, the Yukon Group was the first to introduce digital night vision devices to the civilian market, marking in a new stage in the development of applied optoelectronics. In 2012, the Quantum model was unveiled – the first mass-produced thermal imaging monocular for civilians, and in 2019, the compact Axion XM30, capable of detecting a human silhouette from a distance of 1350 meters in complete darkness.
| Thermal imager type | Monocular |
|---|---|
| Display modes | 8 |
| Field of view | 23,3 m/ 100 m |
| Sensor resolution | 384 x 288 px |
| Transport cover | Yes |
| Dimensions | 144 x 40 x 69 mm |
| Additional accessories included | Yes |
| Screen resolution | 640 x 400 px |
| Weight | 250 g |
| Accumulator/battery type | Li-Ion APS 3 |
| Power type | Interchangable accumulator |
| Waterproof class | IPX 7 |
| Maximum detection depth | 1050 m |
| Built-in memory | Yes |
| EAN | 4779022926068 |
| Manufacturer code | 77506 |
| Brand | Pulsar |
