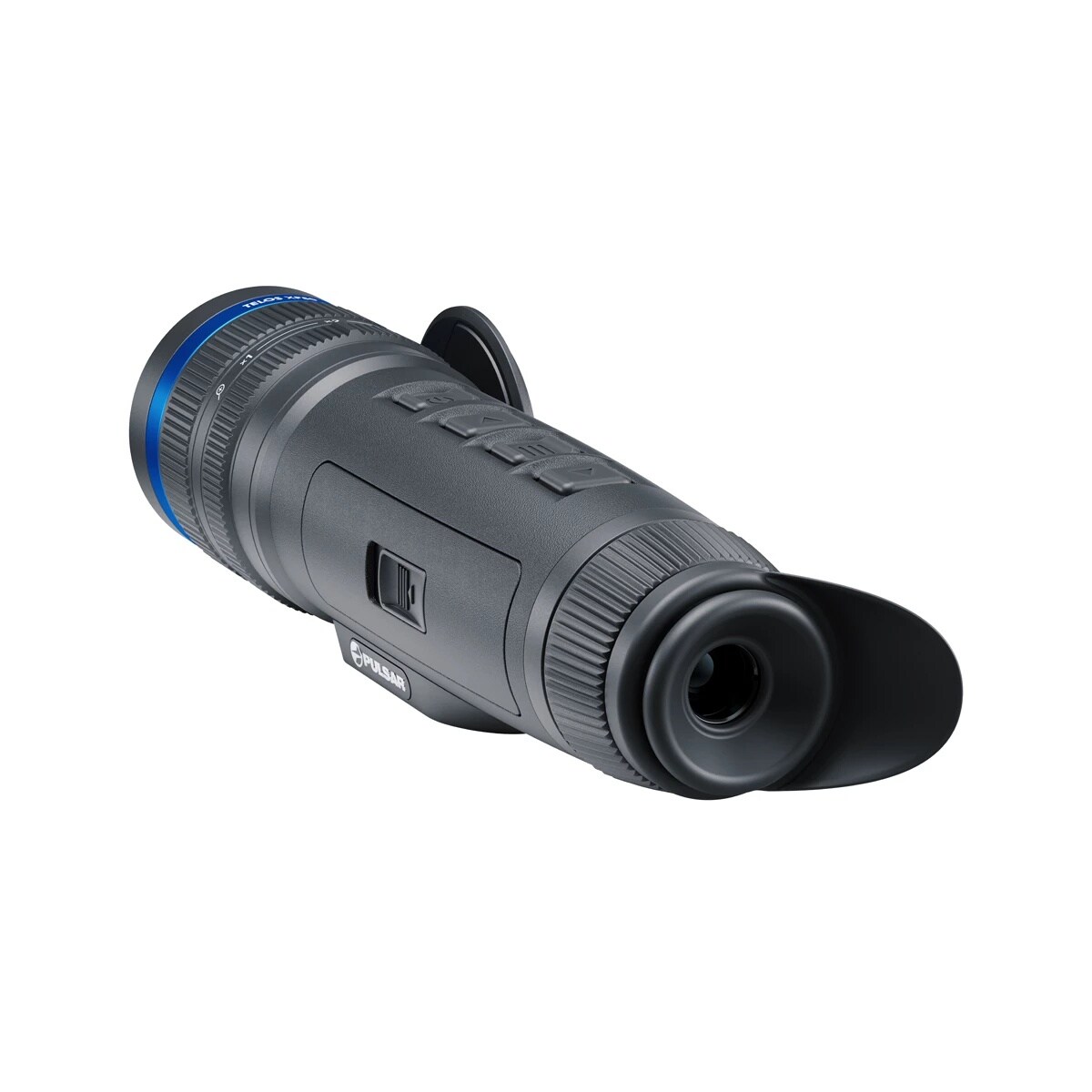

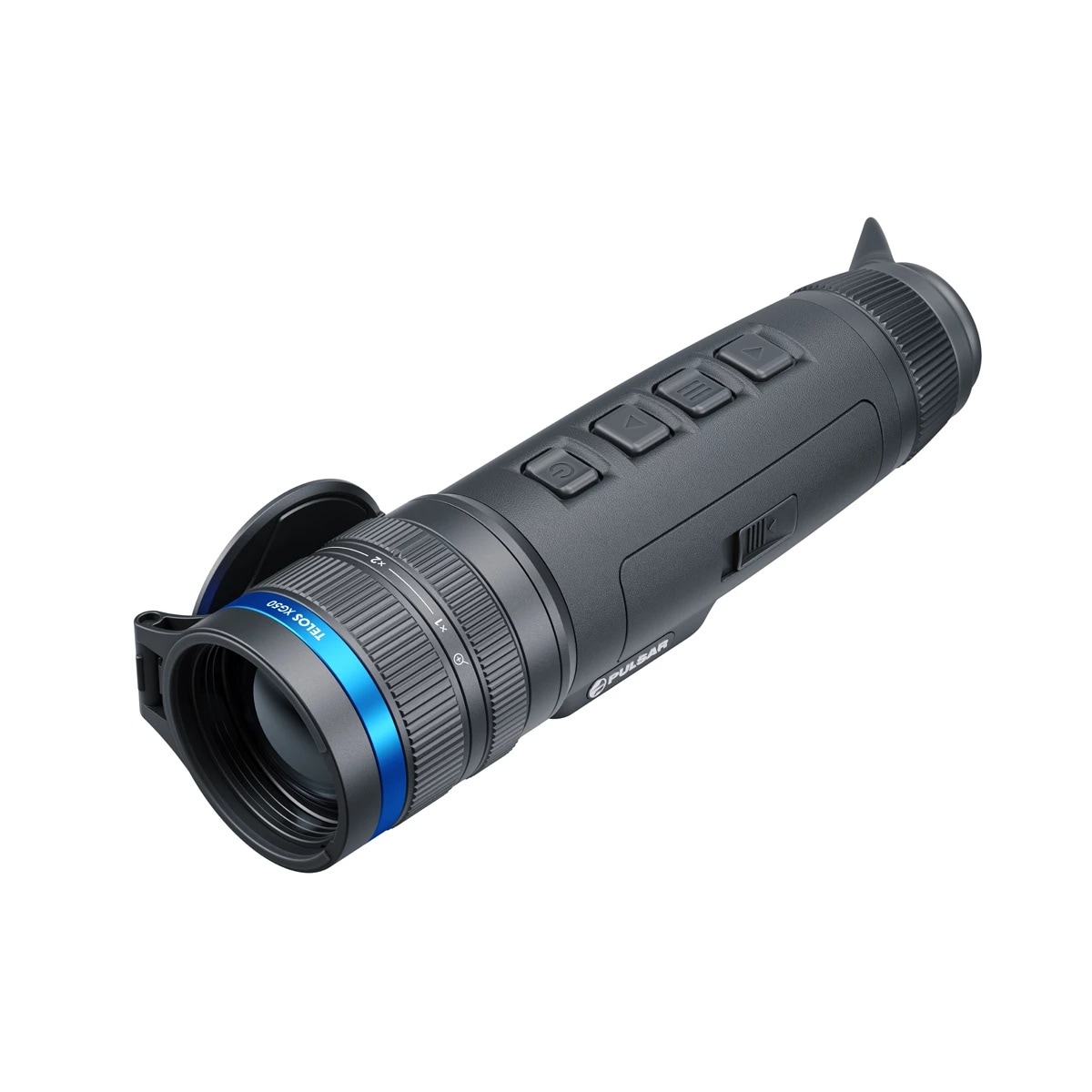

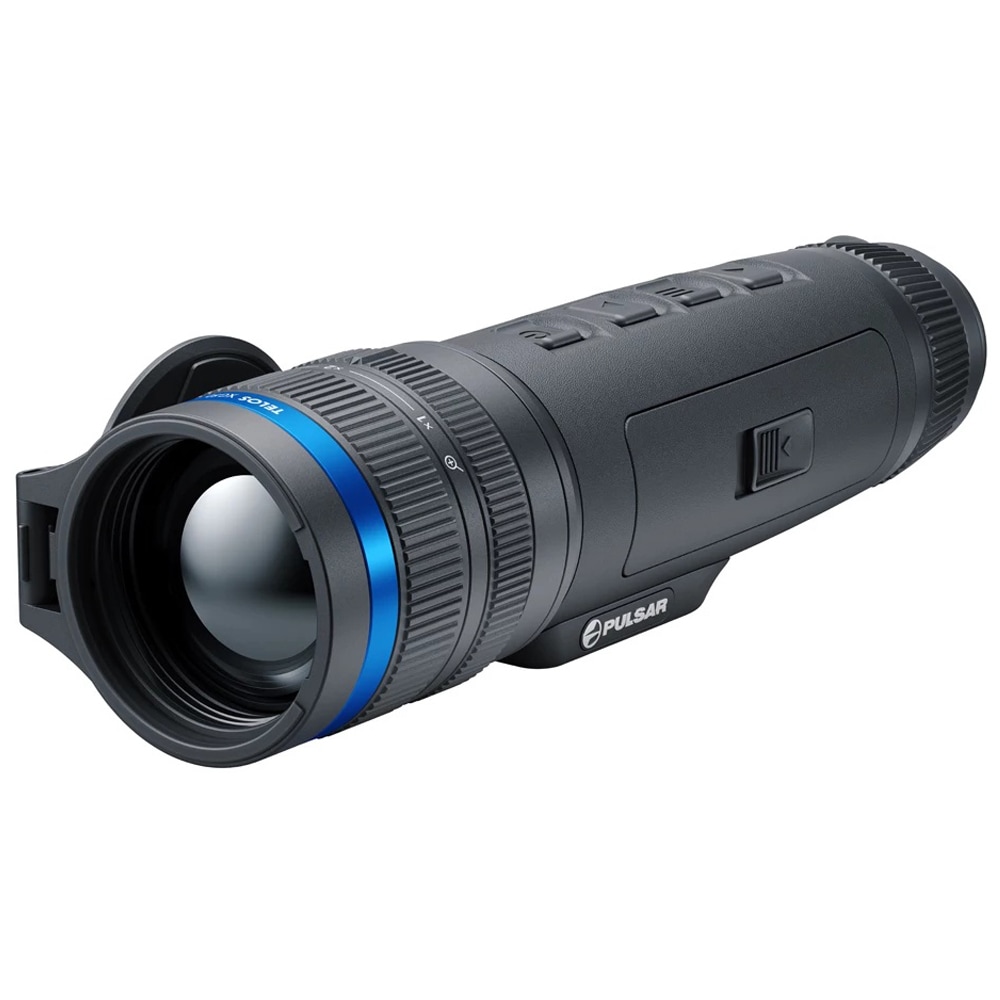

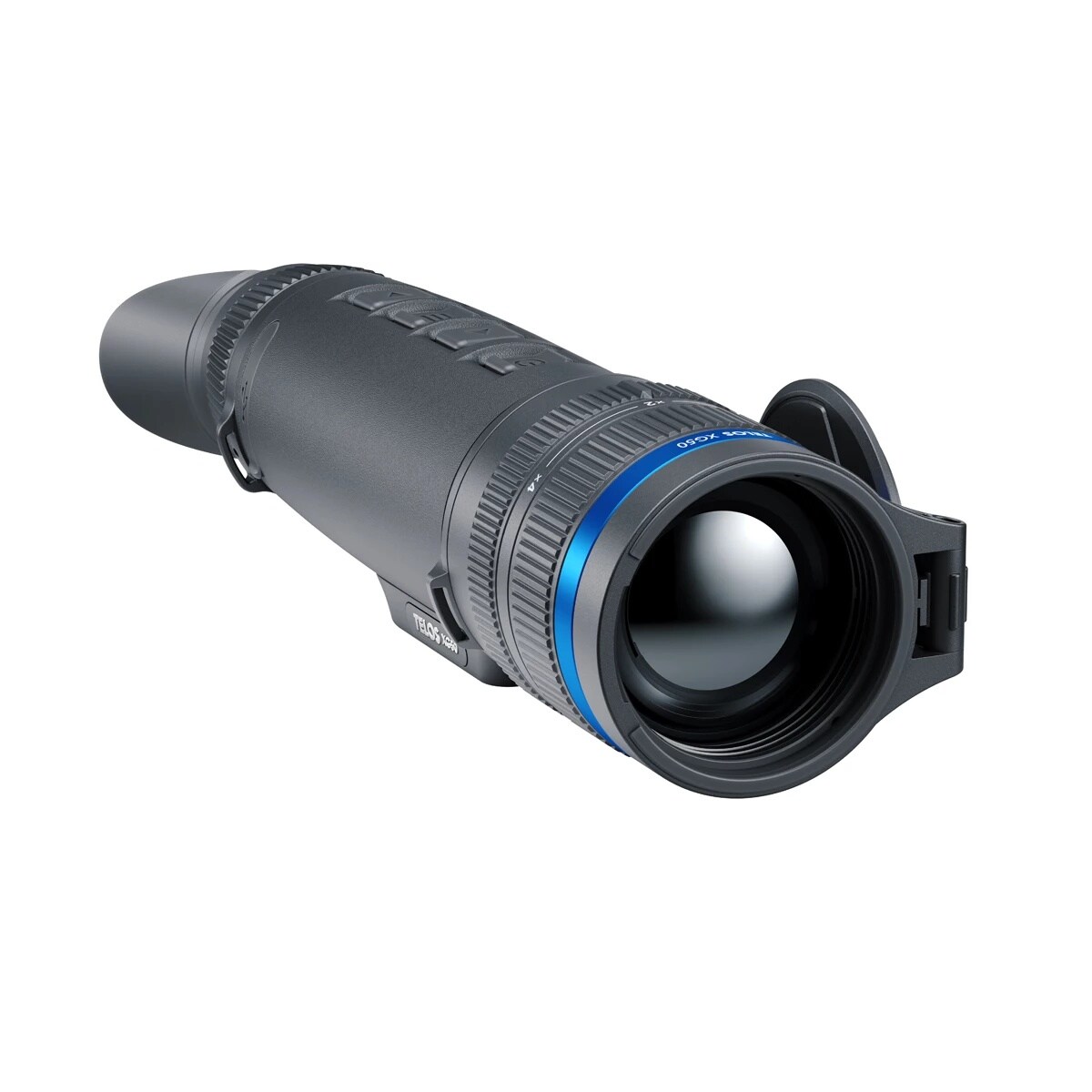

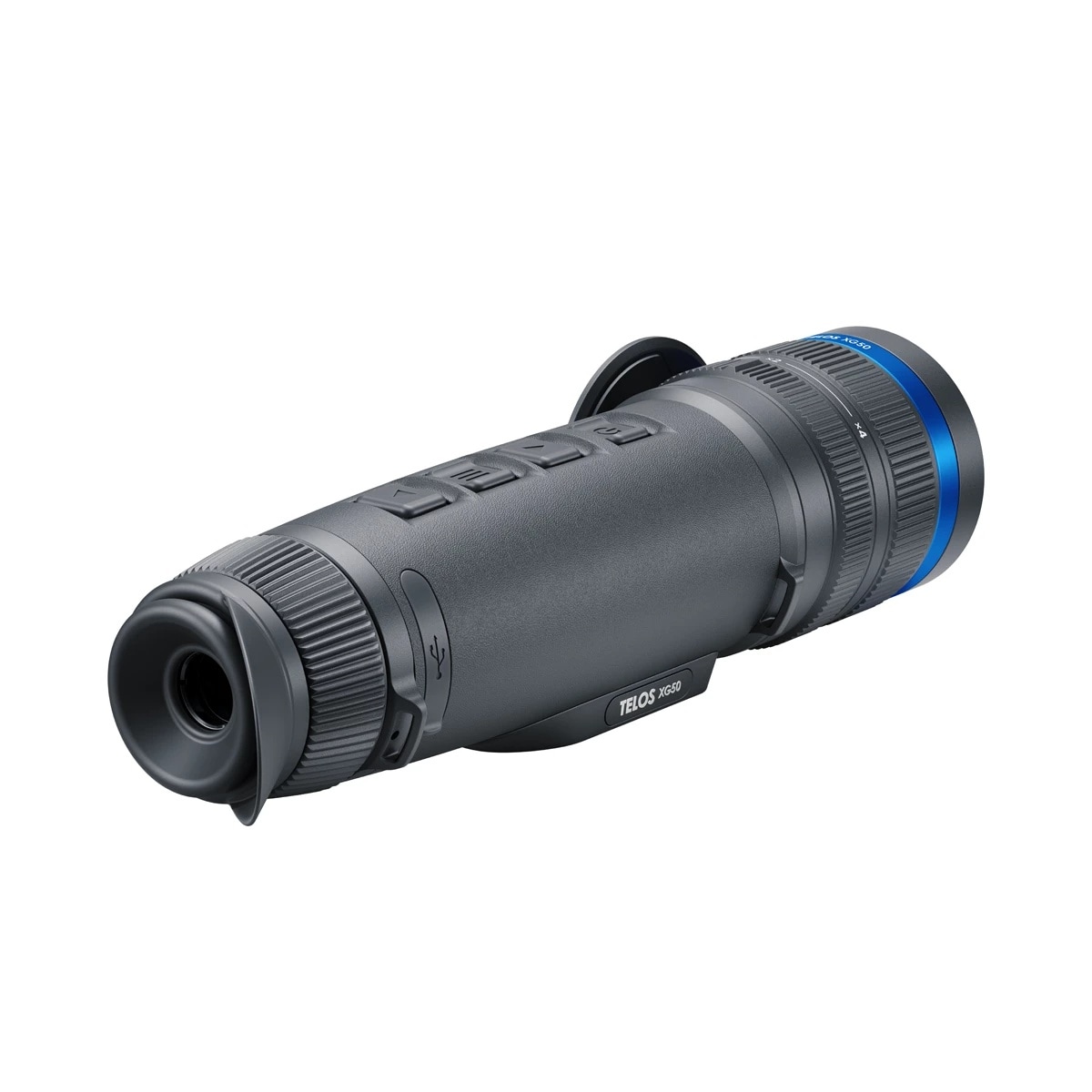

Pulsar Telos XG50 Thermal Monocular
A handheld thermal imaging monocular with a 50mm objective lens, providing efficient observation in both day and night conditions. The Telos XG50 offers optical magnification of 3,5x-14x and 4x digital zoom, allowing you to see objects as far away as 2300 meters. The rugged and sealed design meets IPX7 standards, guaranteeing high water resistance.
Durable design, IPX7 standard
The housing made of durable plastic is resistant to mechanical damage and shock. Thanks to its compact design and seals, the monocular meets the IPX7 waterproof rating, which means protection against immersion in water up to 1 meter deep for 30 minutes. The device is suitable for operation in a wide temperature range from -25°C to +50°C.
Amoled HD display
The device is equipped with a sensor with a resolution of 640 x 480 pixels (12 µm), which detects temperature differences of less than 40 mK. The image is presented on an AMOLED HD display with a resolution of 1024 x 768 pixels, providing excellent image quality, power saving and smooth operation even in freezing conditions. A refresh rate of 50 Hz allows comfortable tracking of moving objects. Magnification is adjustable from 3.5x-14x, and an additional 4x digital zoom enhances the device's capabilities.
Smoothing filter, Picture in Picture mode, stadiameter rangefinder
A built-in smoothing filter function reduces digital distortion without sacrificing image sensitivity. Picture in Picture mode allows the magnified image to be displayed in an additional window, occupying only 10% of the screen area. A diopter adjustment of -5 to +5 increases user comfort. The monocular is also equipped with a stadiametric rangefinder, allowing for quick estimation of the distance to an object of known dimensions.
8 image display modes
The thermal imaging monocular has eight image display modes for easy recognition and identification of objects under observation:
- White Hot - for object detection
- Black Hot - for object detection
- Hot Red - for object detection
- RedMonochrome - for long night observations
- Rainbow - for recognition and identification
- Ultramarine - for recognition and identification
- Violet - for long night observations
- Sepia - for long night observations
Wi-Fi module, 64 GB internal memory
The monocular has 64 GB of internal memory, for storing photos and videos. Saved files can be transferred to a computer via a USB cable or to mobile devices thanks to built-in Wi-Fi. The StreamVision 2 app allows you to use your smartphone as an external screen or remote control device.
Battery power supply
Power is provided by a 6400 mAh LPS 7i lithium-ion battery, allowing up to 8 hours of use. In addition, the device supports fast charging and USB-C power. The Display OFF function allows the display to go blank without turning off the device, which saves power.
Set elements
- Pulsar Telos XG50 Thermal Monocular
- user manual in Polish
- USB/230V charger
- material for cleaning optics
- neck strap
- lens cap
- cover
- USB-C - USB-C cable with USB-A adapter
- LPS 7i battery pack
Main features
- durable design
- IPX7 waterproof standard
- magnification 3.5-14x
- digital zoom 4x
- stadiametric rangefinder
- Amoled HD display
- smoothing filter
- Picture in Picture mode
- 8 picture modes
- Wi-Fi module
- 64 GB internal memory
- removable battery
Technical data
Sensor resolution: 640 x 480 px, 17 µm
NETD: <40 mK
Display resolution: 1024 x 768 px
Image refresh rate: 50 Hz
Angular field of view: 8.8 deg.
Field of view m/100 m: 15.4 m
Magnification: 3,5-14x
Digital zoom: 1-4x
Internal memory: 64 GB
Maximum range: 2300 m
Dimensions: 238 x 72 x 62 mm
Waterproof: IPX7
Operating temperature: -25 to +50 deg C
Dioptric correction of eyepiece: -5 to +5
Tripod mount: 1/4”
Power supply: rechargeable LPS 7i battery
Battery capacity: 6400 mAh
Weight: 660 g
Manufacturer: Pulsar, Lithuania
MILITARY is a premium dealer of Pulsar.
Pulsar is a European brand specializing in thermal imaging technology and digital day/night optics, owned by the Yukon Group and based in Lithuania. Its origins date back to 1991, when a group of enthusiasts began building their first devices at home. Today, the company employs over 1200 people and operates in more than 70 countries. All production takes place in Europe, and the brand has gained recognition for its innovative solutions, such as Dual-Purpose systems, which allow the device to be used as both a monocular and a rifle scope. The modern nature of the offer is emphasized by the Stream Vision 2 application, which allows wireless connection of devices to a phone via Wi-Fi, offering remote control, image transfer, and software updates. In 2005, the Yukon Group was the first to introduce digital night vision devices to the civilian market, marking in a new stage in the development of applied optoelectronics. In 2012, the Quantum model was unveiled – the first mass-produced thermal imaging monocular for civilians, and in 2019, the compact Axion XM30, capable of detecting a human silhouette from a distance of 1350 meters in complete darkness.
| Thermal imager type | Monocular |
|---|---|
| Display modes | 8 |
| Field of view | 15,4 m/ 100 m |
| Sensor resolution | 640 x 480 |
| Screen resolution | 1024 x 768 |
| Waterproof class | IPX 7 |
| Power type | Interchangable accumulator |
| Accumulator/battery type | Li-Ion LPS 7i |
| Transport cover | Yes |
| Weight | 660 g |
| Objective lens diameter (mm) | 50 |
| Dimensions | 238 x 72 x 62 mm |
| Additional accessories included | Yes |
| Battery type | Rechargeable battery |
| Maximum detection depth | 2300 m |
| Built-in memory | Yes |
| EAN | 4779022926020 |
| Manufacturer code | 77513 |
| Brand | Pulsar |
| EAN |
