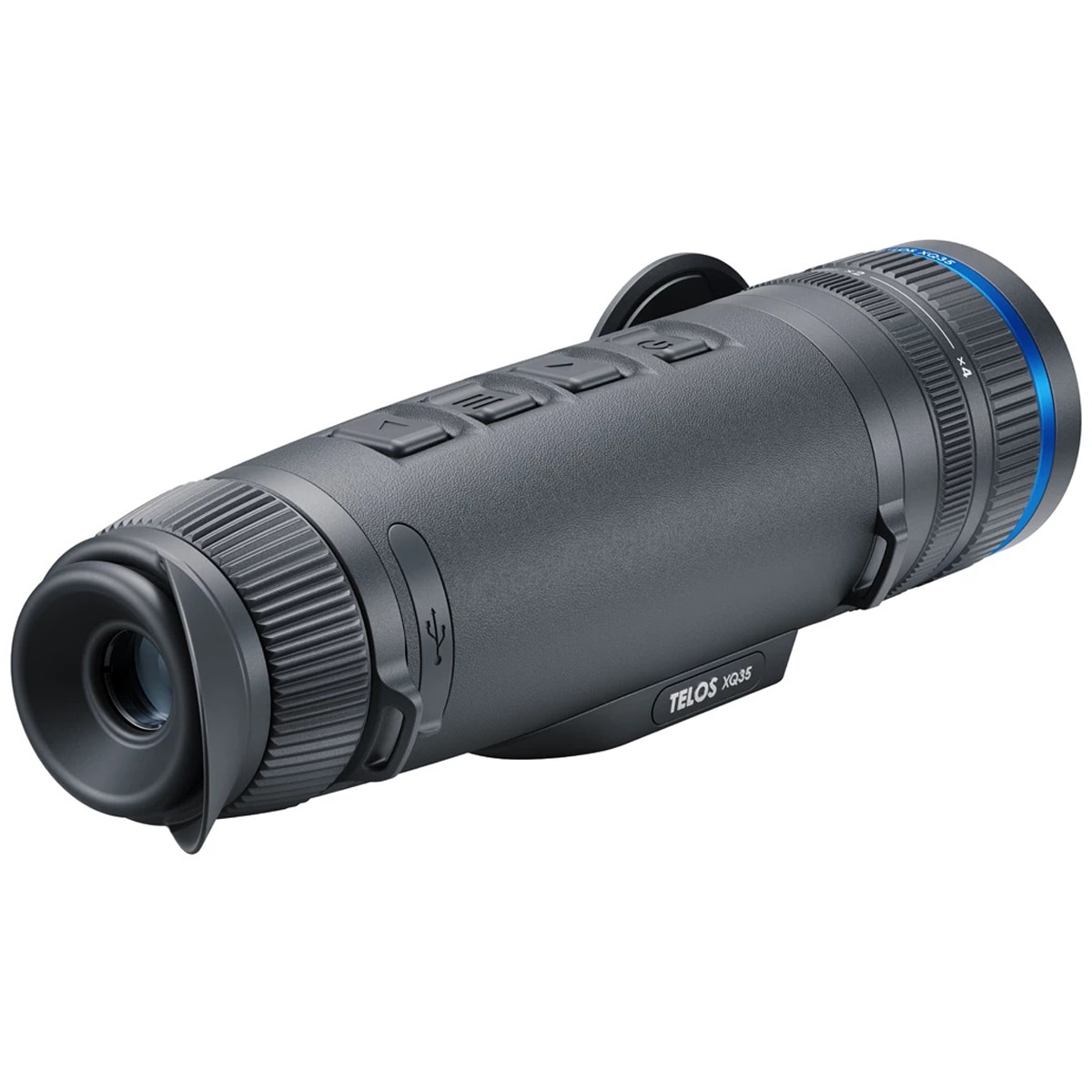

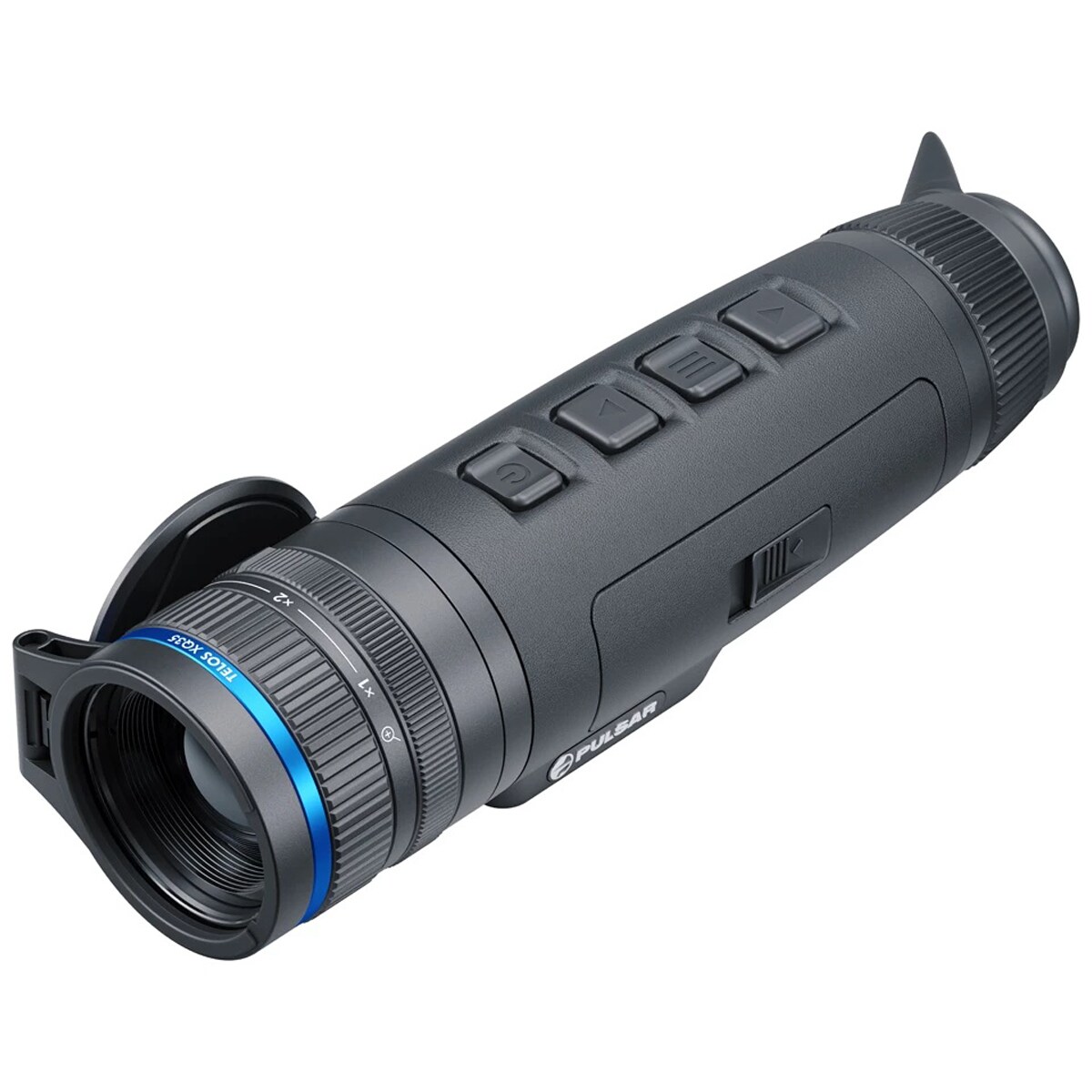

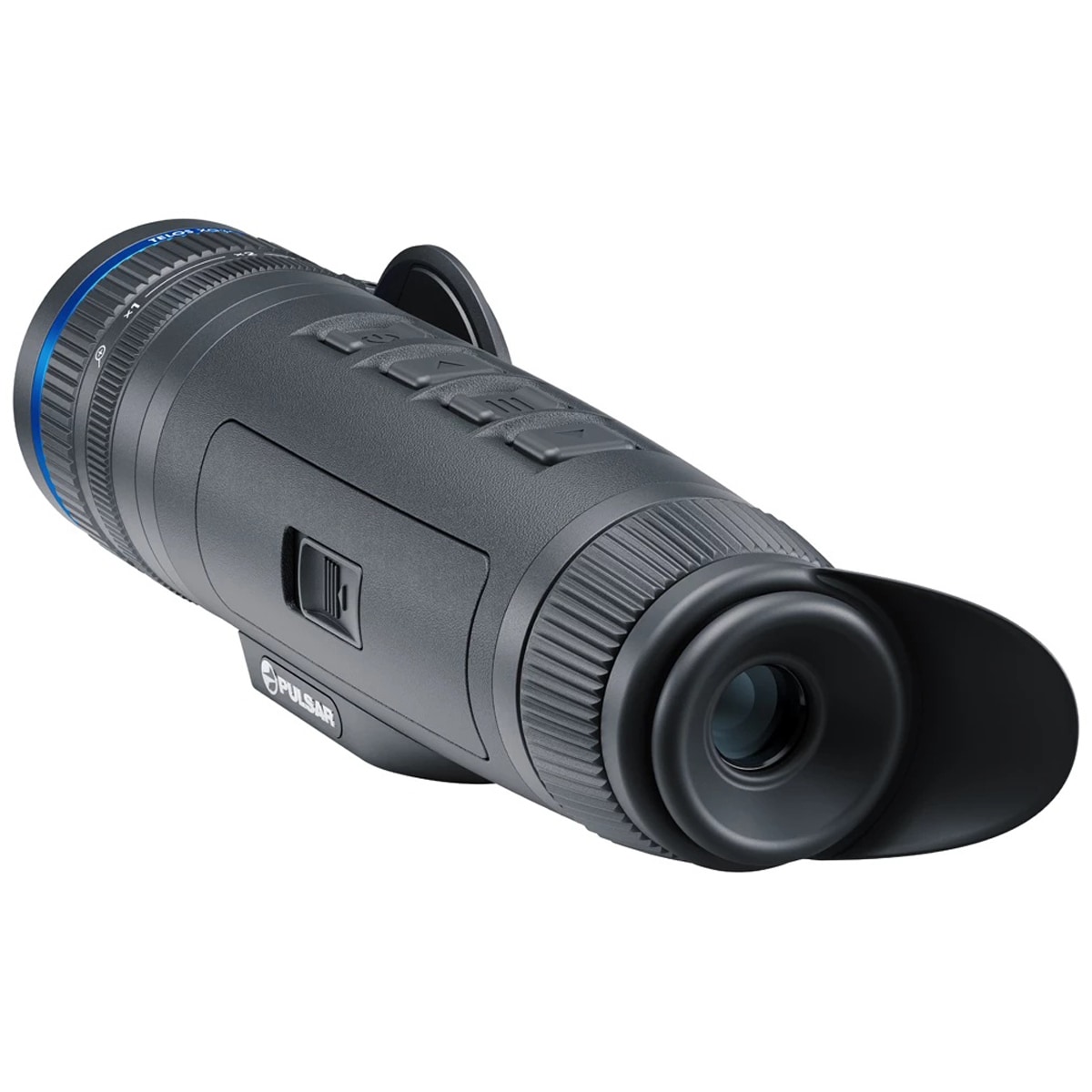

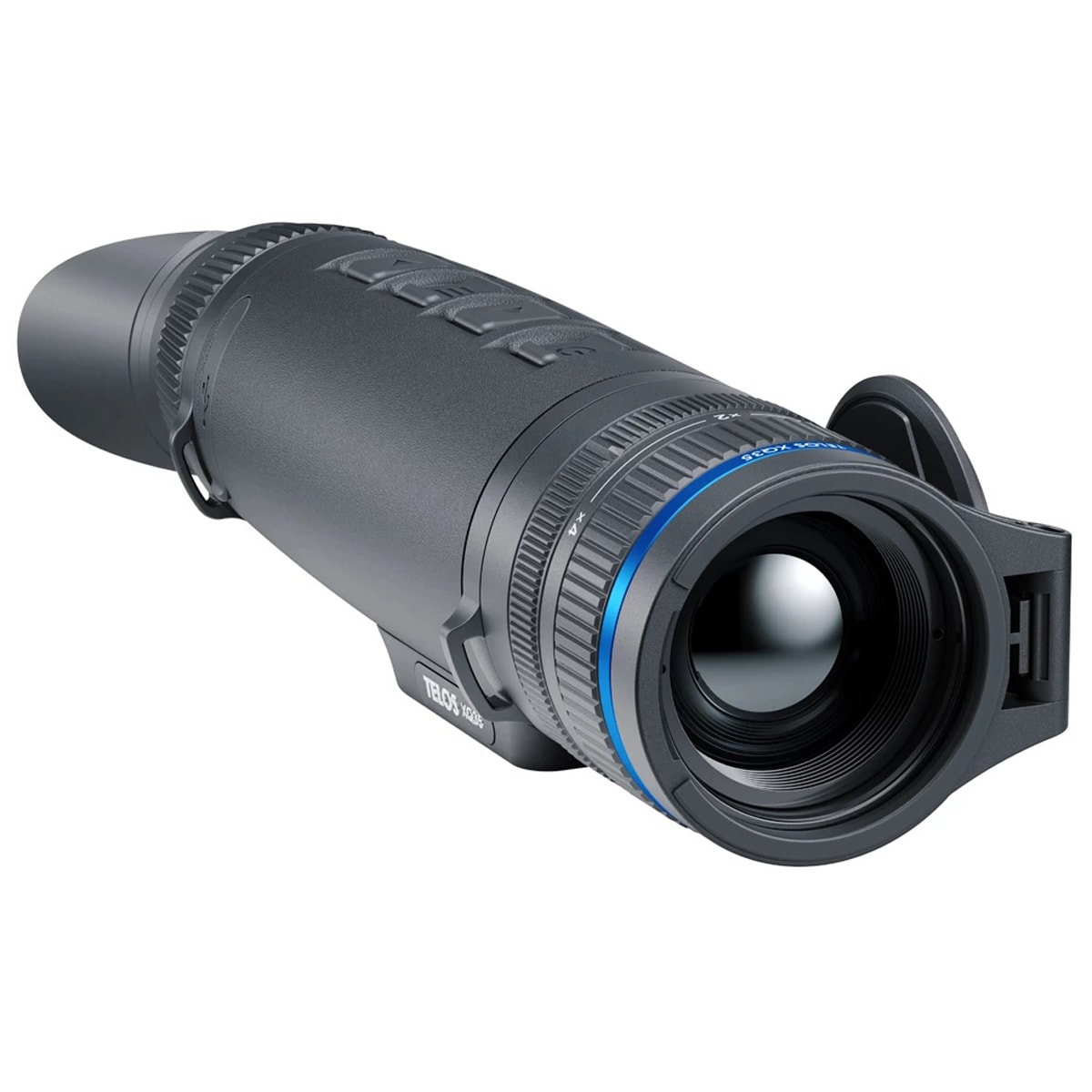

Pulsar Telos XQ35 Thermal Imager
A thermal imaging monocular with a 50mm objective lens , enabling observation in all conditions - both day and night. The Telos XQ35 offers optical magnification in the range of 3x-12x and 4x digital zoom, which allows you to see objects at a distance of up to 1,300 meters. The rugged, waterproof design meets the IPX7 standard.
Rugged construction, IPX7 standard
The housing is made of durable magnesium alloy, which provides resistance to mechanical damage and shock. The compact design and the use of gaskets guarantee water resistance in accordance with the IPX7 standard, which allows protection from immersion in water up to 1 m deep for 30 minutes. The thermal imager can operate in a temperature range of -25°C to +50°C.
Amoled HD display
The Telos XP50 is equipped with a sensor with a resolution of 384 x 288 pixels (17 µm), with a sensitivity capable of detecting temperature differences of less than 25 mK. The AMOLED HD display used, with a resolution of 1024 x 768 pixels, offers high image quality, better color reproduction, energy efficiency and smooth operation even at low temperatures. The refresh rate of 50 Hz ensures comfortable observation of objects in motion. The device offers optical zoom from 3x to 12x and 4x digital zoom.
Smoothing filter, Picture in Picture mode
The smoothing filter function minimizes digital distortion while maintaining high sensor sensitivity. The Picture in Picture mode allows an enlarged image of the central part of the screen to be displayed in an additional window that occupies only 10% of the display area. For greater comfort, the user can adjust the focus by adjusting the diopter from -5 to +5.
8 image display modes
The thermal imaging monocular has eight image display modes for easy recognition and identification of objects under observation:
- White Hot - for object detection
- Black Hot - for object detection
- Hot Red - for object detection
- RedMonochrome - for long night observations
- Rainbow - for recognition and identification
- Ultramarine - for recognition and identification
- Violet - for long night observations
- Sepia - for long night observations
Wi-Fi module, 64 GB internal memory
The 64GB built-in memory allows you to store photos and videos, which can be transferred to a computer via a USB cable or wirelessly via the Wi-Fi module. The Wi-Fi function allows the StreamVision 2 app to be used, allowing a smartphone or tablet to act as an external display or remote control.
Battery-powered
The monocular is powered by a replaceable lithium-ion battery LPS 7i, providing up to 8 hours of operation. In addition, the device supports fast charging and power via USB-C cable. The Display OFF function allows you to turn off the display without having to turn off the entire device, which promotes energy conservation.
Kit components
- Pulsar Telos XQ35 thermal imager
- 230V USB charger
- Neck strap
- Lens cover
- Case
- 1x LPS 7i rechargeable battery
- USB-C cable with USB-A adapter
- Cloth
- User manual in Polish
Main features
- Durable design
- IPX7 waterproof standard
- Magnification 3-12x
- Digital zoom 4x
- Amoled HD display
- Smoothing filter
- Picture in Picture mode
- 8 picture modes
- Wi-Fi module
- 64 GB internal memory
- Removable battery
Technical data
Sensor resolution: 384x288 px, 17 µm
NETD: <25 mK
Display resolution: 1024x768 px
Image refresh rate: 50 Hz
Angular field of view: 10.7 deg.
Field of view m/100 m: 18.7 m
Digital zoom: 3-12x
Internal memory: 64 GB
Maximum range: 1300 m
Dimensions: 224 х 66 х 59 mm
Water resistance: IPX7
Operating temperature: -25 to +50 deg C
Dioptric correction of eyepiece: -5 to +5
Tripod mount: 1/4”
Power supply: rechargeable LPS 7i battery
Battery capacity: 6400 mAh
Weight: 570 g
Manufacturer: Pulsar, Lithuania
MILITARY is a premium dealer of Pulsar.
Pulsar is a European brand specializing in thermal imaging technology and digital day/night optics, owned by the Yukon Group and based in Lithuania. Its origins date back to 1991, when a group of enthusiasts began building their first devices at home. Today, the company employs over 1200 people and operates in more than 70 countries. All production takes place in Europe, and the brand has gained recognition for its innovative solutions, such as Dual-Purpose systems, which allow the device to be used as both a monocular and a rifle scope. The modern nature of the offer is emphasized by the Stream Vision 2 application, which allows wireless connection of devices to a phone via Wi-Fi, offering remote control, image transfer, and software updates. In 2005, the Yukon Group was the first to introduce digital night vision devices to the civilian market, marking in a new stage in the development of applied optoelectronics. In 2012, the Quantum model was unveiled – the first mass-produced thermal imaging monocular for civilians, and in 2019, the compact Axion XM30, capable of detecting a human silhouette from a distance of 1350 meters in complete darkness.
| Thermal imager type | Monocular |
|---|---|
| Display modes | 8 |
| Field of view | 18,7 m/ 100 m |
| Sensor resolution | 384 x 288 px |
| Transport cover | Yes |
| Dimensions | 224 х 66 х 59 mm |
| Additional accessories included | Yes |
| Screen resolution | 1024 x 768 px |
| Objective lens diameter (mm) | 50 |
| Weight | 570 g |
| Accumulator/battery type | Li-Ion LPS 7i |
| Power type | Interchangable accumulator |
| Waterproof class | IPX 7 |
| Maximum detection depth | 1300 m |
| Built-in memory | Yes |
| EAN | 4779022926006 |
| Manufacturer code | 77511 |
| Brand | Pulsar |
