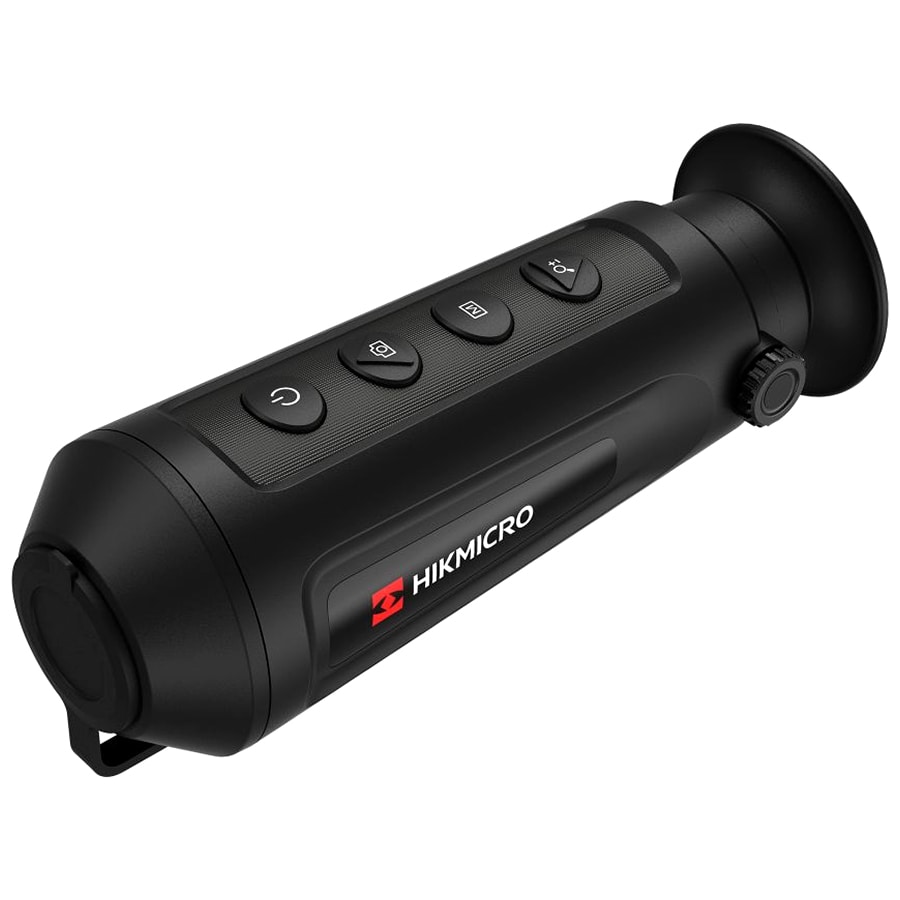

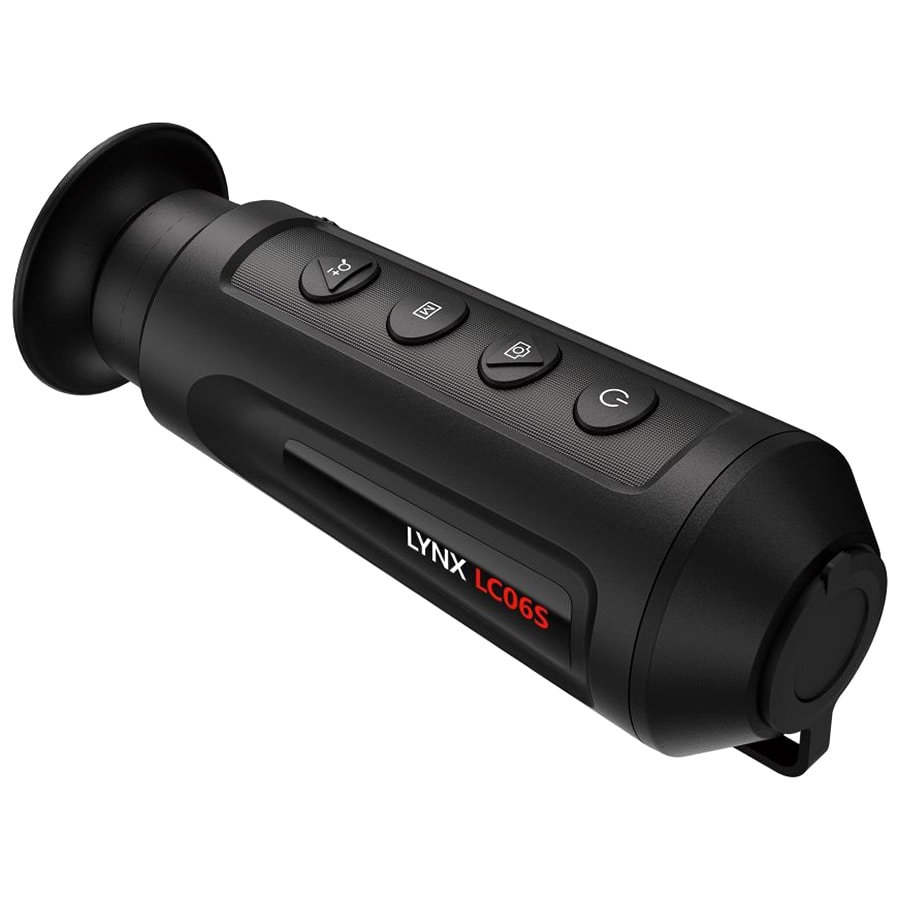

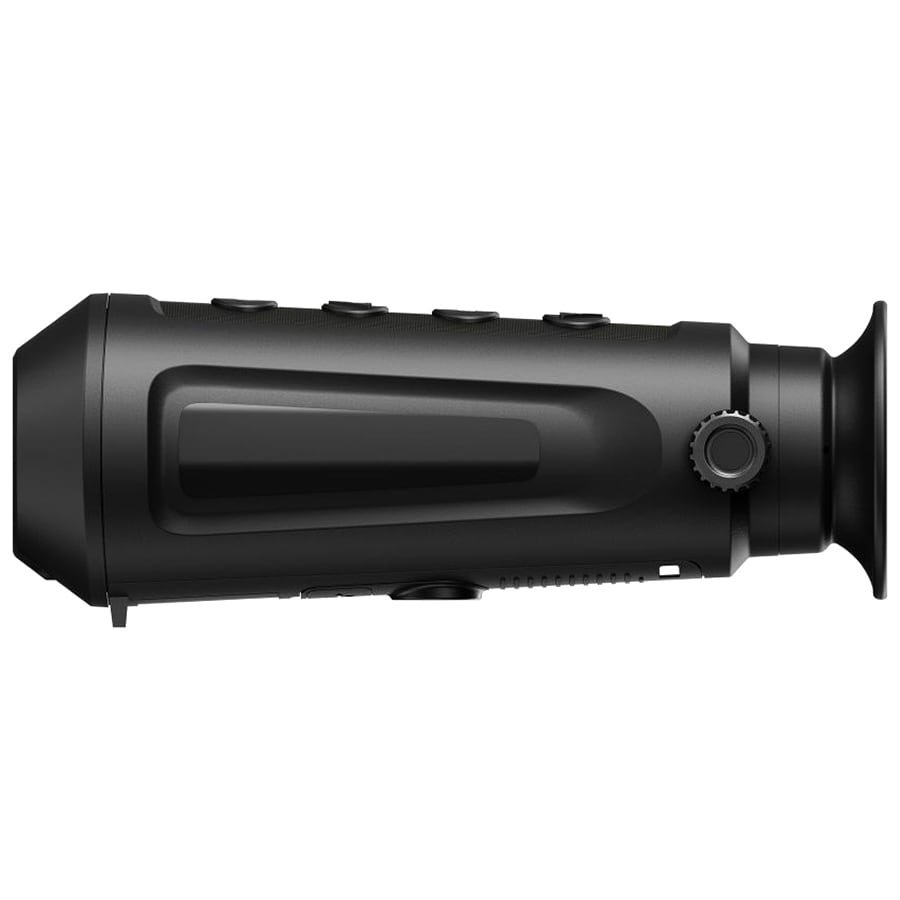

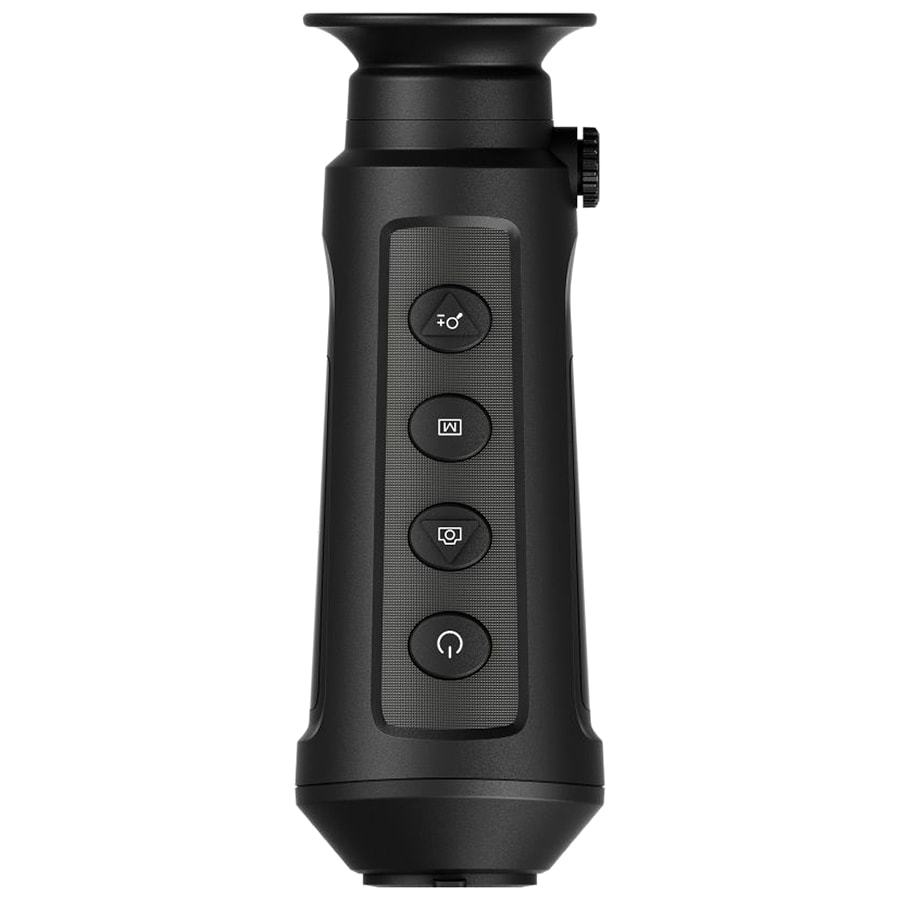

Hikvision Hikmicro Lynx LC06S Thermal Imager

A compact thermal imaging monocular with a 6.2mm objective lens for easy observation both during the day and at night. It is equipped with a 1x optical zoom and 4x digital zoom, which allows you to see objects up to 250 meters away. A precise static rangefinder allows you to easily and quickly estimate the distance to the observed target.

The Lynx LC06S features a VOx NEDT sensor with a resolution of 160 x 120 pixels, with a pixel spacing of just 12 µm. The sensor's sensitivity allows it to capture temperature differences of less than 35 mK.The 800 x 600 pixel display is made with OLED technology and provides energy savings as well as extremely high contrast and the ability to achieve excellent blacks.

The device allows you to use four image display modes to help you recognize and identify the objects you are observing:
- White hot - the higher the temperature, the lighter the tonality,
- Black hot - the higher the temperature, the darker the tonality,
- Red hot - image as in "Black hot" with red highlighting of the warmest elements,
- Fusion - from high temperature to low temperature, the image is colored from white, yellow, red, pink to purple.

In addition, three thermal imaging technologies are available to the user :
- DDE (Digital Detail Enhancement) - digital detail enhancement, smooths the image while emphasizing details,
- 3D DNR (3D Digital Noise Reduction) - digital noise reduction, effectively removes noise and affects image quality,
- AGC (Automatic Gain Control) - automatic gain control, improves the contrast of the displayed scene.

Apower-saving function puts the thermal imager into a "sleep" state after a prolonged state of inactivity. The device can be activated in a short time by pressing any button.

The body of the thermal imager is made of shock- and mechanical-resistant material, and thanks to its compact design and the use of seals, the housing meets the IP67 protection class, which provides protection against dust, dust and immersion in water up to 1 meter deep for 30 minutes. Rubberized buttons designed to operate the model operate silently. The device can operate in a temperature range of -20 to +55 degrees Celsius.

The model is powered by a built-in rechargeable battery that provides up to 6 or 8 hours of use (depending on whether Wi-Fi Hot-Spot is enabled). The built-in USB-C port allows convenient charging of the device from a car charger, computer or powerbank.

The set includes:
- Lynx LC06S thermal imager,
- charging cable,
- case,
- wrist strap,
- cleaning material,
- user manual.

Specifications
Color: Black
Digital zoom: 4x
Optical zoom: 1x
Observation range: 250 m
Linear field of view at 100 m: 32.9 m
Angular field of view: 24.7 deg.
Operating temperature: from -20 to +55 deg C.
Sensor: 160 x 120 pix
Refresh rate: 50 Hz
Thermal sensitivity: <35 mK
Display: OLED; 800 x 600 pix
Image color: 4 color palettes
Lens parameters: 6.2 mm F / 1.0
Waterproof class: IP67
External power supply: USB-C
Internal memory: 8 GB
Operation time: 6 - 8 h
Dimensions: 158.3 x 61 x 57 mm
Weight: 250 g
Manufacturer: Hikvision, PRC
