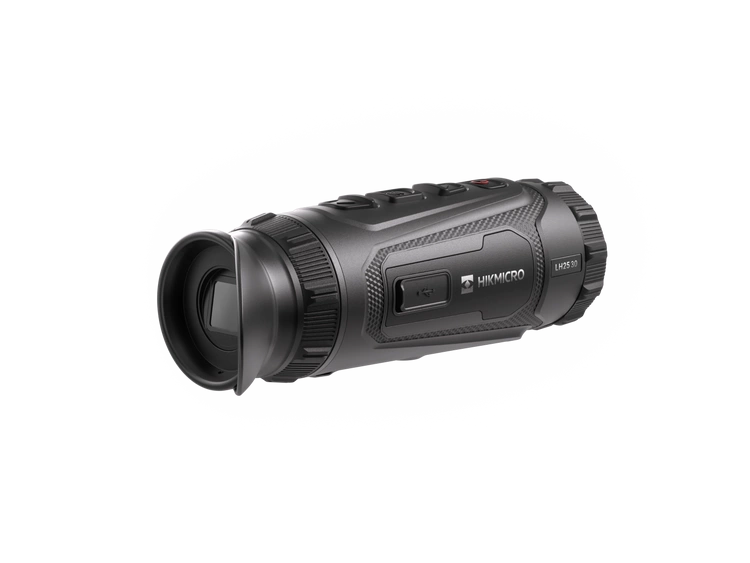

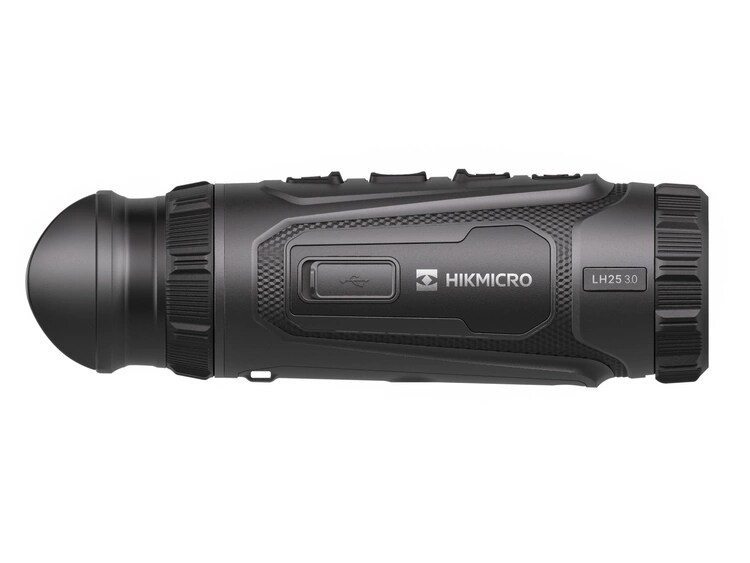

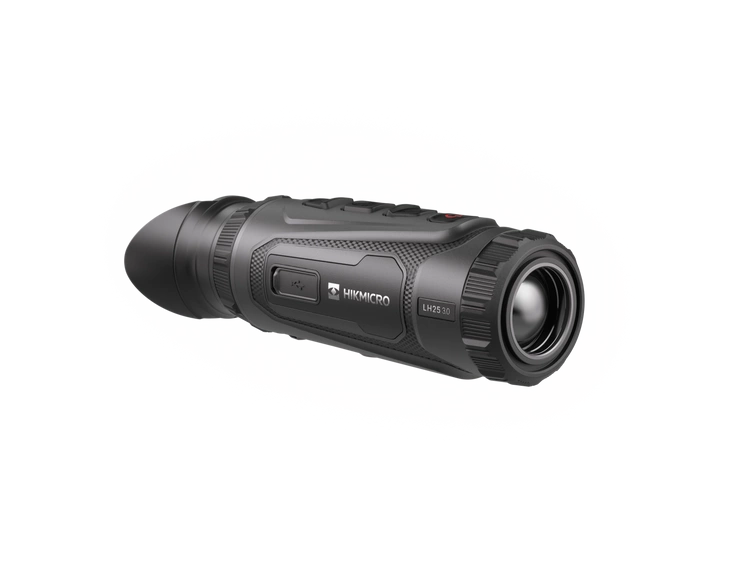

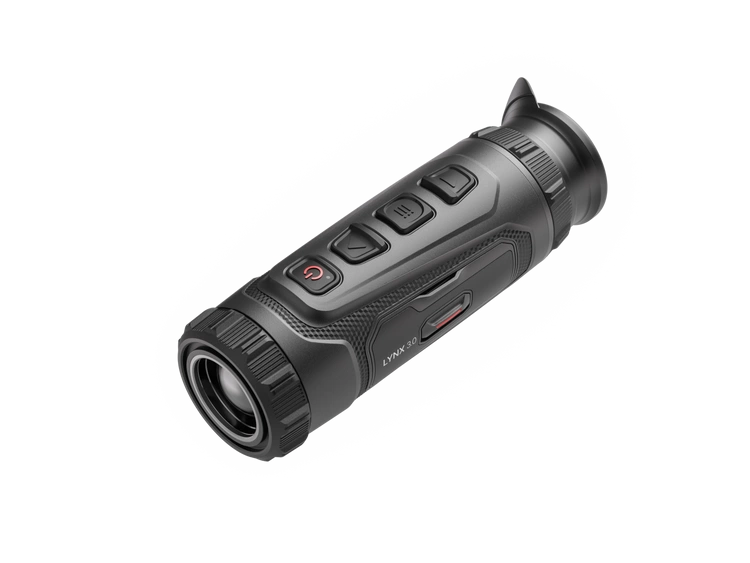

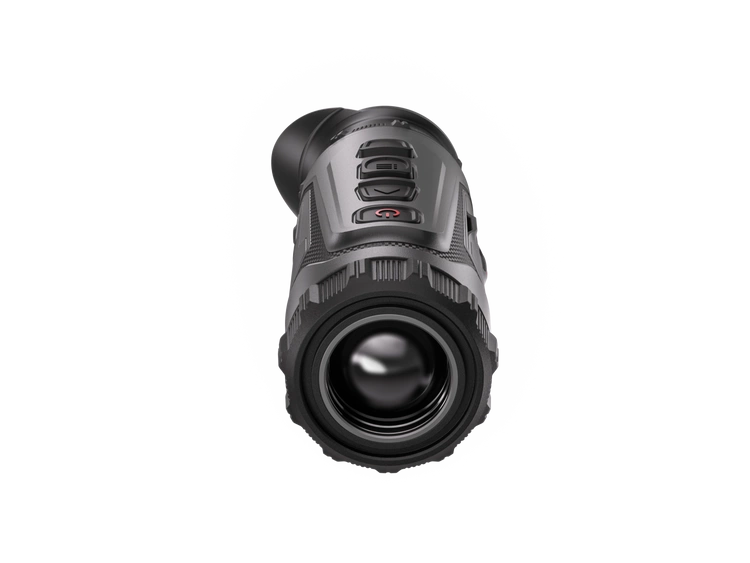

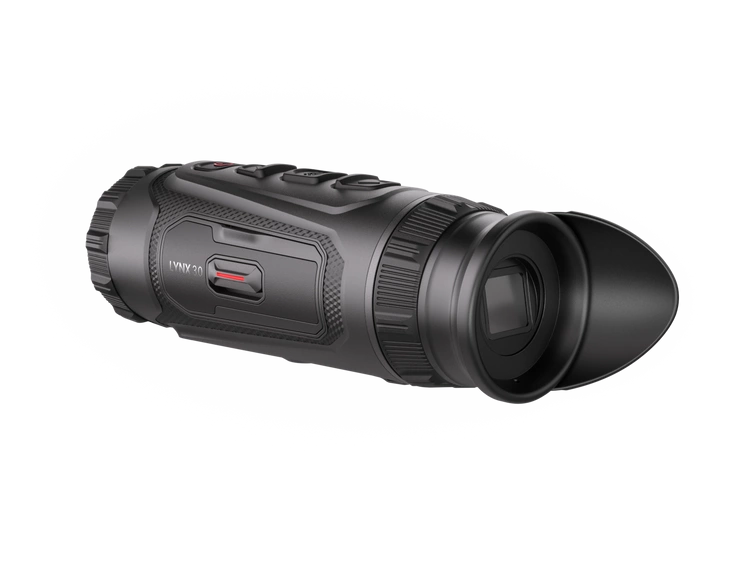

Hikvision Hikmicro Lynx Pro LH25 3.0 Thermal Imager
A pocket-sized thermal imaging monocular with a 25 mm diameter lens, allowing observation in all conditions. The device offers a choice of six image display modes, facilitating the recognition and identification of observed objects. It features a 1920 x 1080 px AMOLED display and a 384 x 288 px thermal sensor. Powered by a replaceable battery. Excellent for nature observation, environmental monitoring, outdoor activities, and professional applications.
Durable construction, IP67 rating
The thermal imager's body is made of material resistant to mechanical damage and shocks. The compact design and use of seals ensure that the housing meets the IP67 rating, protecting against dust, dirt, and immersion in water up to 1 meter deep for 30 minutes. The rubberized buttons are perfectly fitted and operate silently. The device can operate in temperatures from -30 to +45 degrees Celsius.
thermal sensor, AMOLED display, adjustable zoom
A modern thermal sensor, manufactured with 12 μm technology and a resolution of 384 × 288 px, provides clear and detailed images with high sensitivity to temperature differences. The 1920 × 1080 pixel AMOLED display is designed to minimize eye fatigue during long-term observations, enhancing user comfort. A 50 Hz refresh rate allows for convenient tracking of moving objects.
The device features Image Pro 3.0 and Zoom Pro algorithms, which enhance image sharpness, contrast, and detail, allowing for magnification from 2.5× to 20×. This enables observation of both nearby and distant objects. The maximum observation range is up to 1200 meters.
6 image display modes
The thermal imager offers six image display modes, aiding in the recognition and identification of observed objects:
- White hot - higher temperatures appear in brighter tones
- Black hot - higher temperatures result in darker tones
- Red hot - similar to "white hot," highlighting the hottest elements in red
- Fusion - color image ranging from white, to yellow, red, pink, and purple, depending on the temperature
- Red Monochrome - a single-color red palette, allowing prolonged observation without eye fatigue
- Green Monochrome - a single-color green palette, enabling extended use without eye fatigue
HSIS technology
The Lynx LH25 3.0 model utilizes HSIS (HIKMICRO Shutterless Image System) technology, eliminating the need for traditional calibration. This allows for continuous and smooth observation without image interruptions, enabling the user to fully concentrate on the target, regardless of conditions.
Wi-Fi module, 64 GB internal memory
The thermal imager allows for recording photos and videos directly in the built-in internal memory with a capacity of 64 GB. Files can be transferred to a computer via a USB cable or to mobile devices through a Wi-Fi module, allowing for the use of applications such as HIKMICRO Sight. HIKMICRO Sight.
Battery powered
The device is powered by a replaceable and rechargeable Li-Ion 18650 battery, providing up to 5 hours of operation. The built-in USB-C port facilitates convenient charging via either a car charger, a computer, or a power bank.
Set elements
- Hikvision Hikmicro Lynx Pro LH25 3.0 thermal imager
- user manual
- USB-C cable
- battery charger
- 2x 18650 battery
Main features
- thermal sensor with a resolution of 384 × 288 px
- AMOLED display 1920 x 1080 px
- 25 mm lens providing optimal field of view
- maximum detection range of approximately 1200 m
- compact and lightweight monocular design
- built-in 64 GB memory for photos and videos
- replaceable battery
- 6 different thermal image display modes
- durable housing adapted for fieldwork
- IP67 rating
MILITARY is a premium dealer of Hikmicro.
Hikmicro belongs to the dynamically developing Hikvision group and specializes in thermal imaging technologies and optoelectronics. The brand's product range includes thermal imaging cameras, monoculars, and diagnostic devices used in industry, property protection, rescue operations, and nature observation, among other areas. Hikmicro solutions are used in over 100 countries around the world. Thanks to advanced technologies such as DDE, 3D DNR, and AGC, they provide high image quality even in adverse weather conditions and low light. The brand draws on Hikvision's technological resources while developing its own product lines for both professional and civilian users. Hikmicro's image analysis system, which uses artificial intelligence algorithms, enables faster object detection and more precise detail recognition. Thanks to its innovative approach, the company has quickly gained a strong position in the thermal imaging technology market.
| Optics ready | No |
|---|---|
| Thermal imager type | Monocular |
| Display modes | 6 |
| Reticle | No |
| Field of view | 18.4 x 11.2 m/ 100 m |
| Sensor resolution | 384 x 288 px |
| Transport cover | No |
| Main color | Black |
| Dimensions | 158.4 x 53.6 x 49.5 mm |
| Additional accessories included | Yes |
| Screen resolution | 1920 x 1080 px |
| Objective lens diameter (mm) | 25 |
| Weight | 328.5 g |
| Accumulator/battery type | 1x Li-Ion 18650 |
| Power type | Interchangable accumulator |
| Waterproof class | IP 67 |
| Maximum detection depth | 1200 m |
| Built-in memory | Yes |
| EAN | TYMELE124 |
| Manufacturer code | 19291 |
| Brand | Hikvision |
