Hikvision Hikmicro Lynx Pro LH19 3.0 Thermal Imager

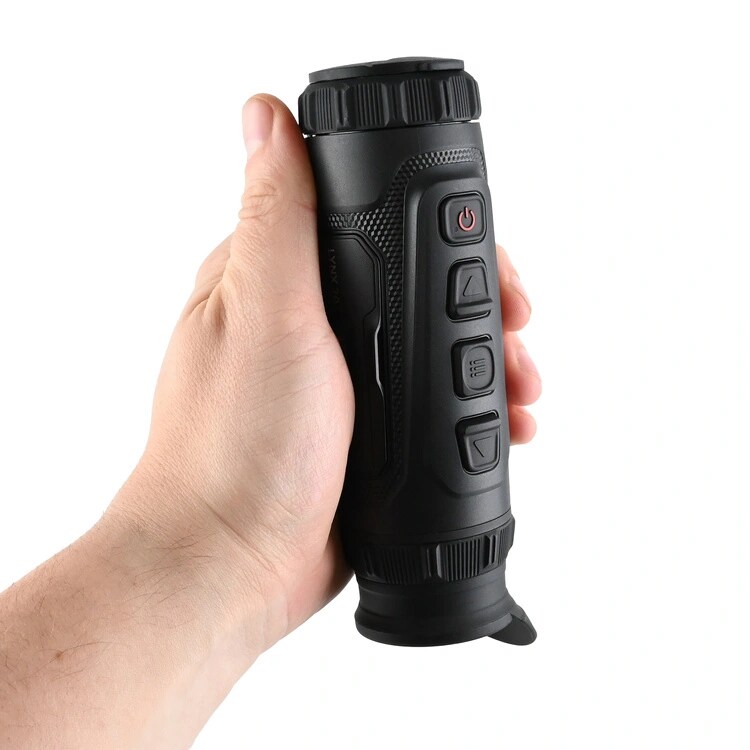

Compact thermal imaging monocular with a 19 mm diameter lens, allowing for observation in all conditions. The device provides six image display modes that facilitate the recognition and identification of objects. The model is equipped with an AMOLED display with a resolution of 1920 x 1080 px and a thermal sensor with a resolution of 384 x 288 px. Power is provided by a removable battery. It is perfect for nature observation, environmental monitoring, outdoor activities, and professional applications.

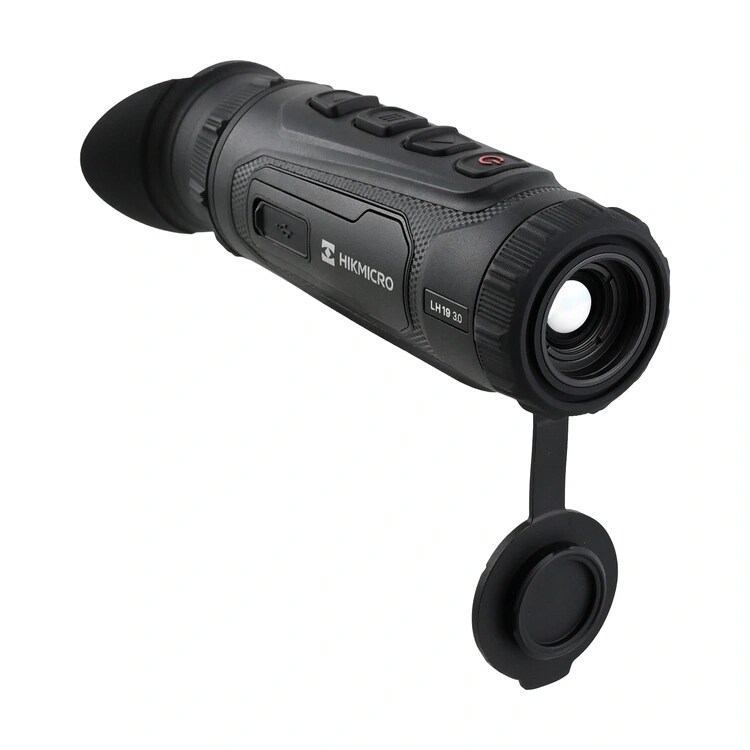

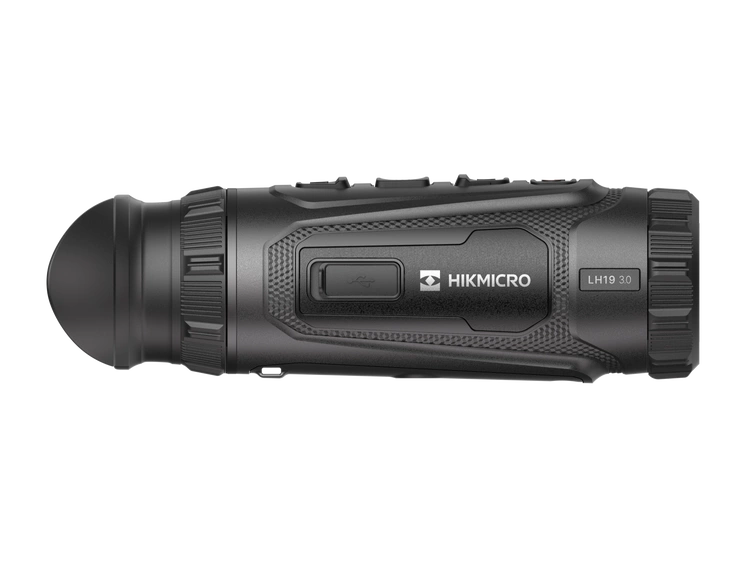

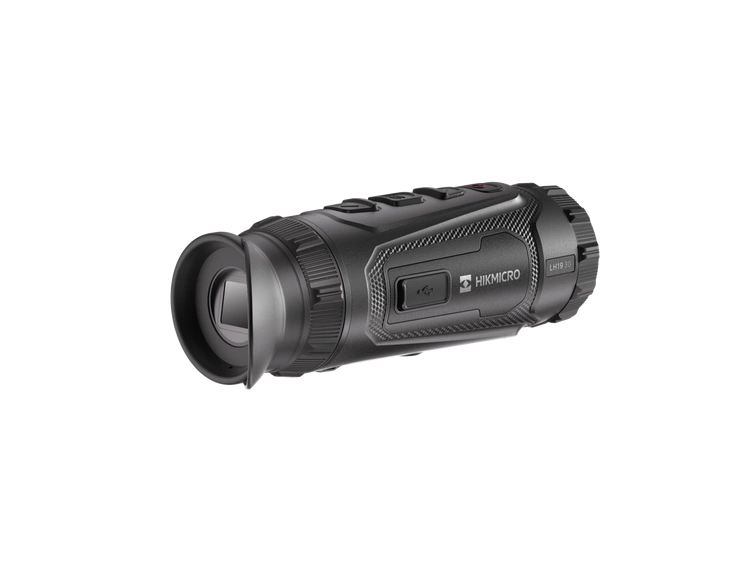

The body of the thermal imager is made of material resistant to mechanical damage and shock. Thanks to its compact design and the use of seals, the housing meets the IP67 rating, ensuring protection against dust, dirt, and immersion in water up to 1 meter for 30 minutes. Rubberized buttons provide quiet operation of the model. The device operates in a temperature range from -30 to +45 degrees Celsius.

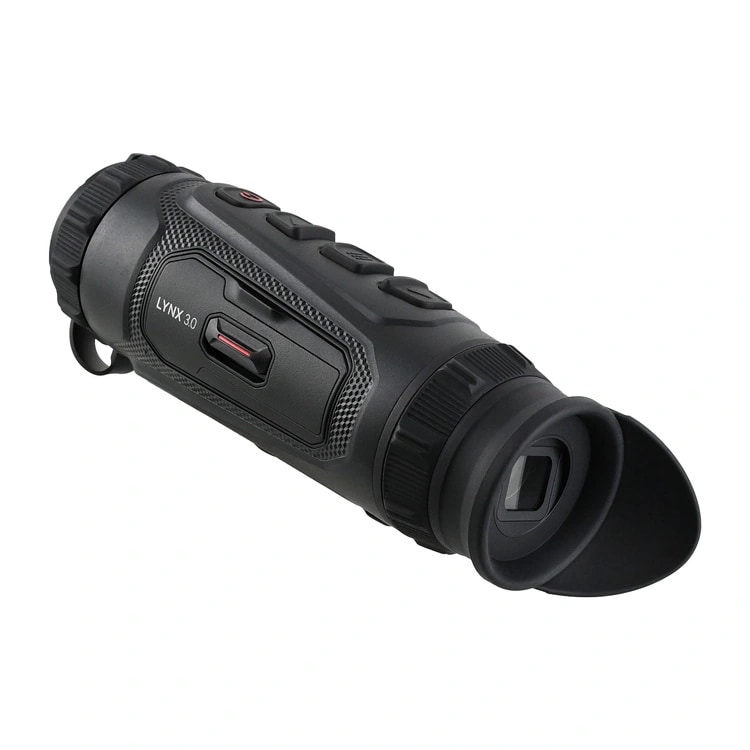

The core of the device is a modern thermal sensor with a resolution of 384 × 288 px made using 12 μm technology, providing a clear, detailed image and high sensitivity to temperature differences. The image is presented on an AMOLED display with a resolution of 1920 × 1080 pixels. The screen is designed to minimize eye fatigue during long-term observation, providing high comfort of use. Thanks to the refresh rate of 50 Hz, it is possible to freely observe moving objects.

The thermal imager uses Image Pro 3.0 and Zoom Pro algorithms, which improve the sharpness, contrast, and detail of the image and provide magnification from 1.9× to 15.2×. They allow for observing objects both up close and at distant ranges. The maximum observation range is up to 900 meters.

The device has six image display modes, supporting the recognition and identification of observed objects:

• White hot - increasing temperature means a brighter shade
• Black hot - increasing temperature means a darker shade
• Red hot - image as in “white hot” with a red accent on the hottest elements
• Fusion - from higher to lower temperature, the image is in colors from white through yellow, red, pink to purple
• Red Monochrome - a red monochrome palette, allowing for long-term observation without eye fatigue
• Green Monochrome - a green monochrome palette, allowing for long-term observation without eye fatigue

The Lynx LH19 3.0 model implemented HSIS (HIKMICRO Shutterless Image System) technology, which eliminates the need for traditional calibration, ensuring uninterrupted and smooth observation without image "freezes." This allows the user to focus on the target, regardless of conditions.

This model allows for saving photos or videos thanks to the built-in internal memory with a capacity of 64 GB. Saved files can be transferred to a computer via a USB cable or directly to a phone or tablet using the Wi-Fi module, enabling, for example, the use of a phone with the HIKMICRO Sight application.

The device is powered by a removable and rechargeable Li-Ion 18650 battery, which enables up to 5 hours of operation. The built-in USB-C port ensures convenient charging from a car charger, computer, or power bank.

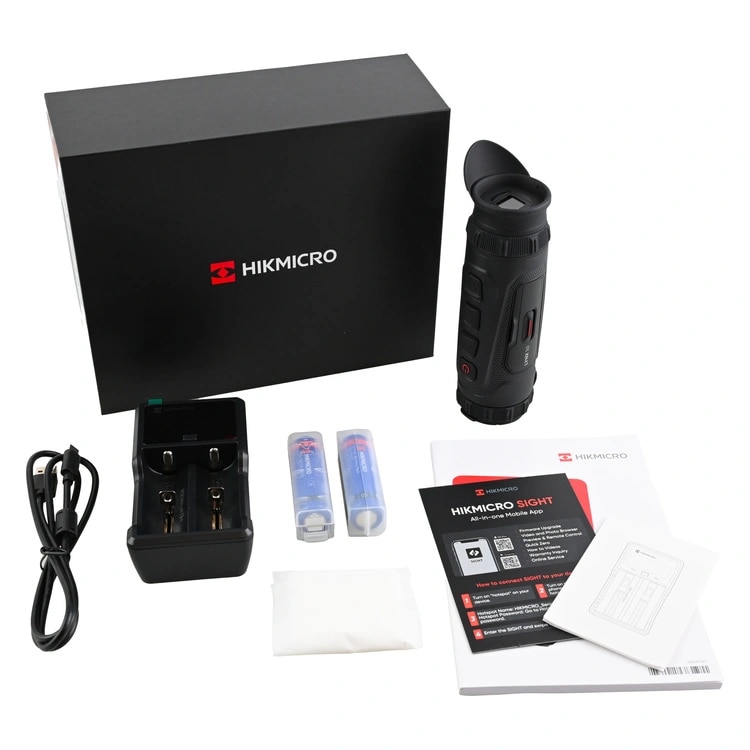

• Hikvision Hikmicro Lynx Pro LH19 3.0 thermal imager
• user manual
• USB-C cable
• battery charger
• 2x 18650 battery

• thermal sensor with a resolution of 384 × 288 px
• AMOLED display 1920 x 1080 px

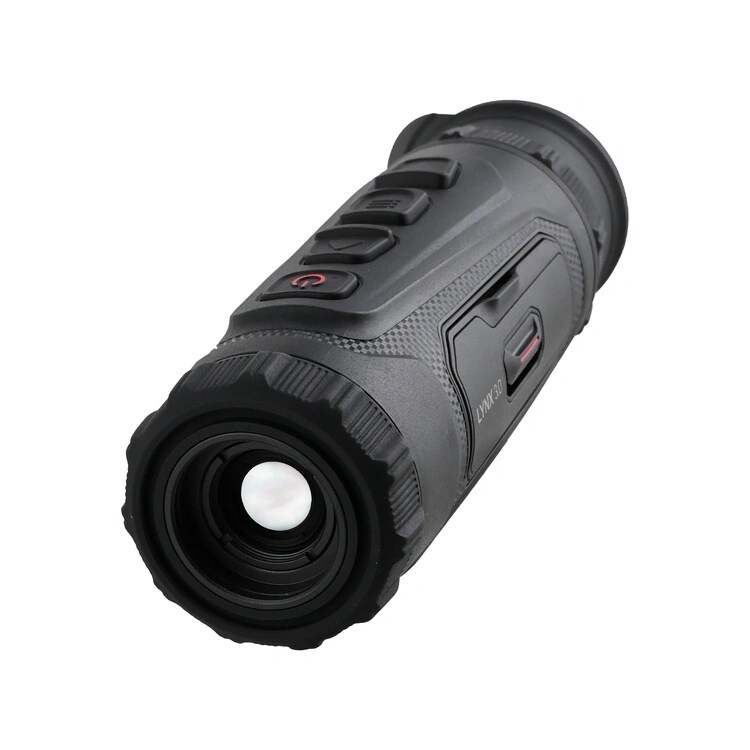

• 19 mm lens providing a wide field of view
• maximum detection range up to approximately 900 m

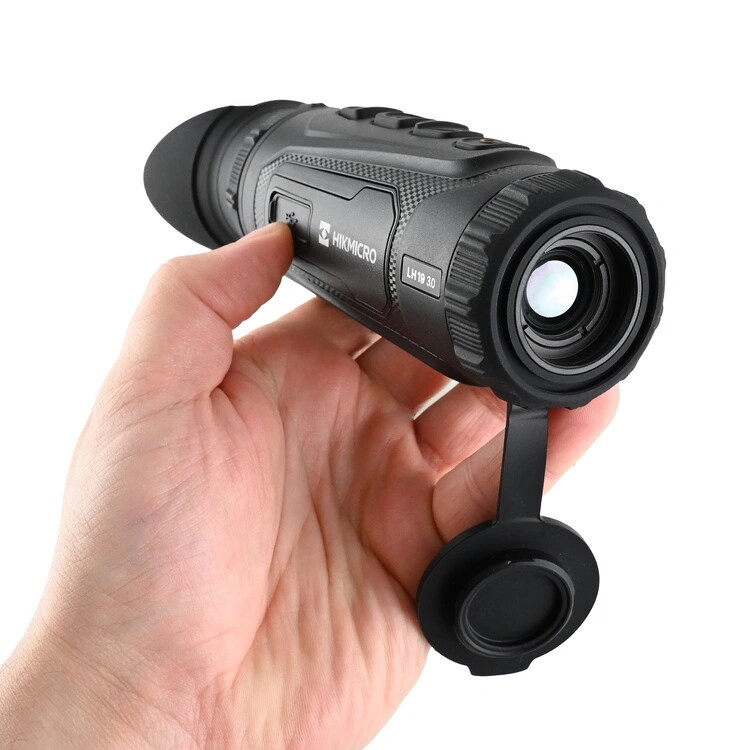

• compact and lightweight monocular design
• built-in 64 GB memory for photos and videos
• removable battery
• 6 different thermal image display modes
• durable housing designed for fieldwork
• IP67 rating
