The antenna is small and a bit delicate, the magnet isn't very strong, but it improves reception in a portable radio.
Nagoya UT108UHF/VHF Mobile Antenna
Shipping: Immediately
£8.80
- description
- technical data
- Reviews
- Goes well with
£8.80

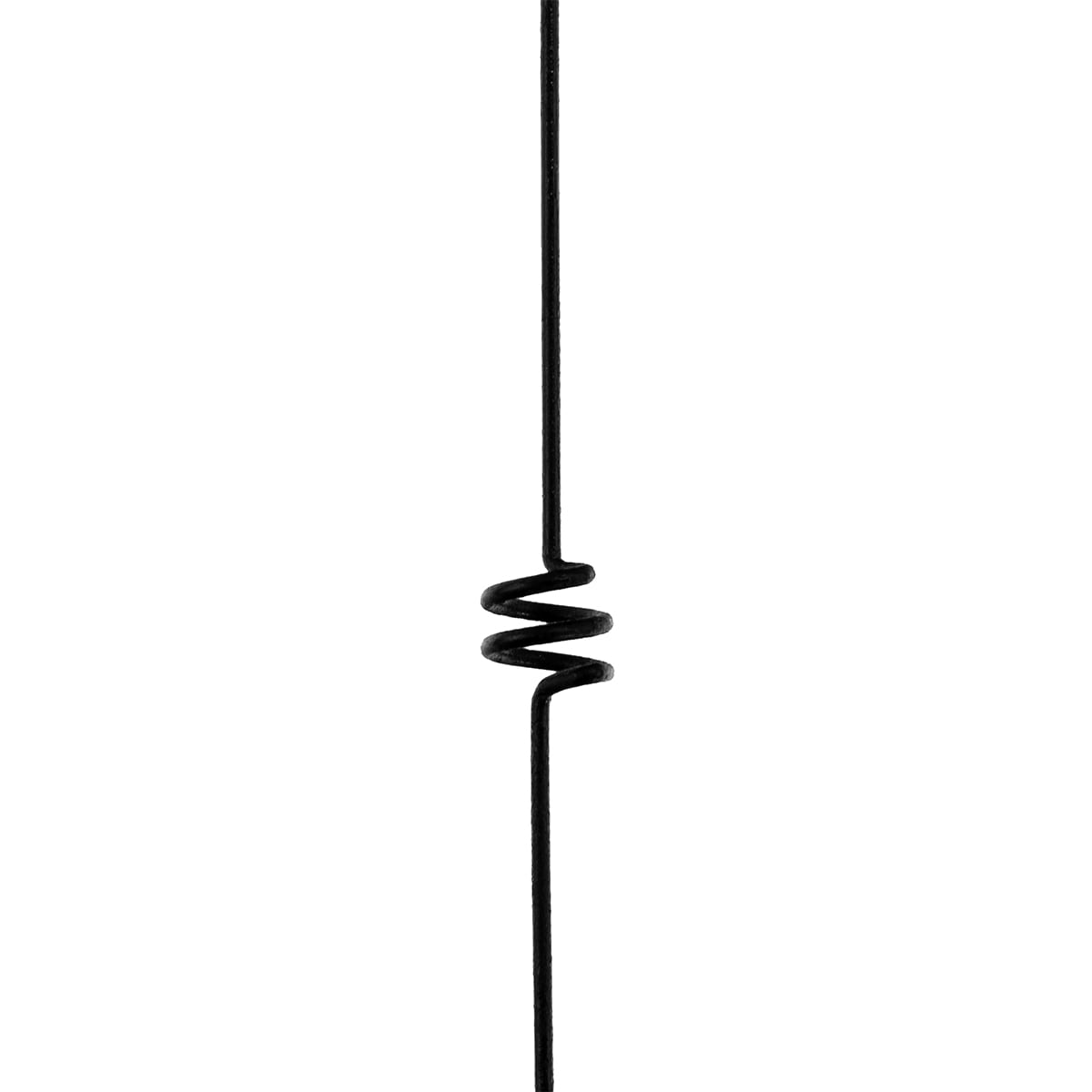

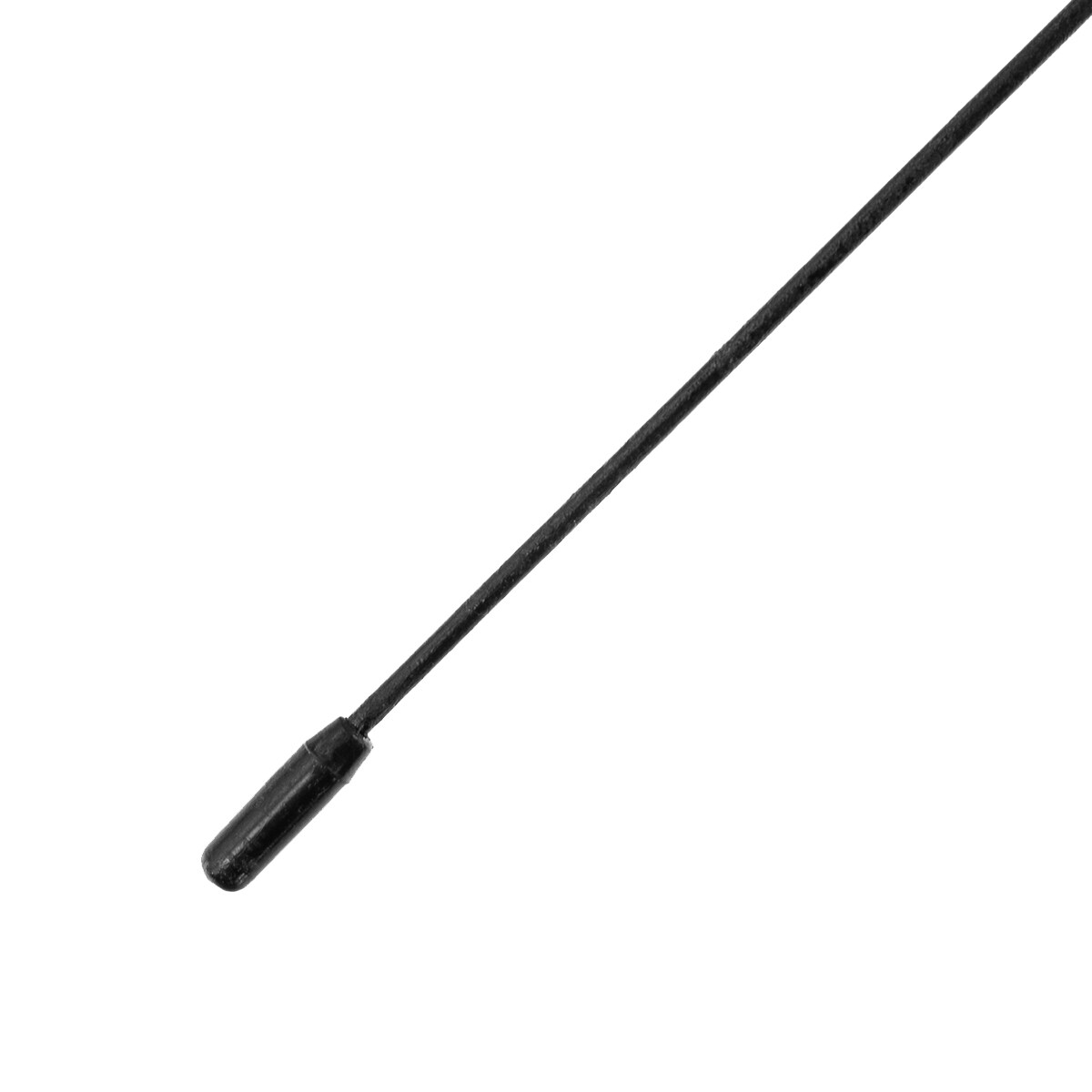

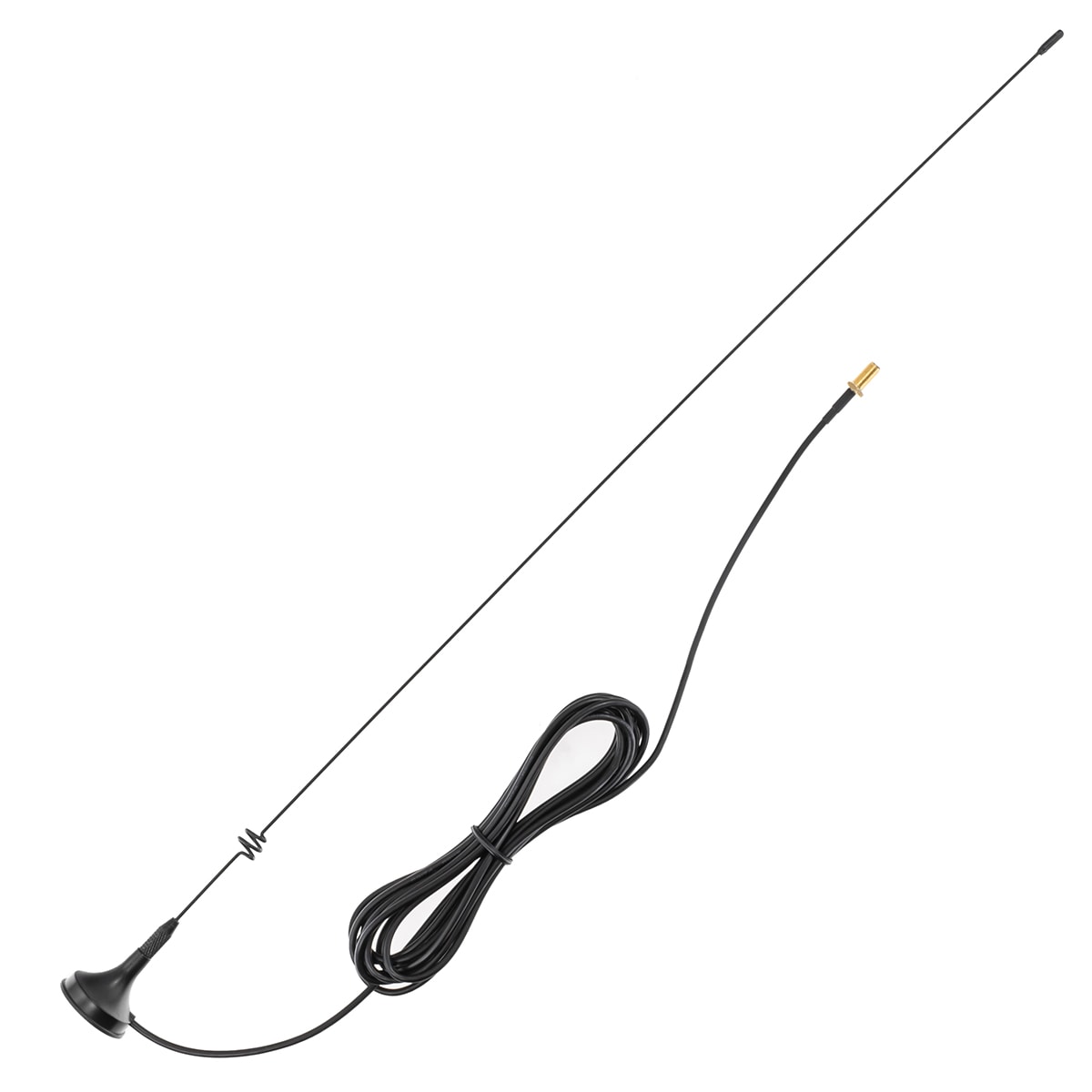

Mobile outdoor antenna for Baofeng and similar radios. The antenna, thanks to its base with a strong magnet, can be mounted on the roof of the car, as well as at home, for example, on a metal window sill.
The antenna operates in the 2m/70cm bands, so it can be used for both scanners (wideband receivers) and radios operating in the PMR range (446 MHz).
The antenna fits the following models of radios and similar radios:
- Baofeng UV-5R HT,
- Baofeng UV-82 HT,
- Baofeng UV-5R / UV-5RK,
- Baofeng UV-82,
- Baofeng DM-5R Plus,
- Baofeng DM-5R,
- Baofeng UV-5RA,
- Baofeng UV-6R,
- Baofeng UV-8HX,
- Baofeng UV-B5 / UV-B6,
- Baofeng UV-3R Plus (not compatible with the regular UV-3R),
- Baofeng C3,
- Wouxun KG-UV1D,
- Wouxun KG-UV2D,
- Wouxun KG-UV3D,
- Wouxun KG-UV6D and similar.
Technical data
Colour: Black
Antenna length: 48 cm
Base cable length: 3 m
Base diameter: 30 mm
Operating band: 2 m and 70 cm (144/430MHz)
Maximum power: 10W
Gain: 3dB for 430MHz
Connector type: SMA-F (female)
Weight: 60g
Manufacturer: Nagoya
| EAN | 2007696512808 |
|---|---|
| Brand | Nagoya |
| EAN |
Reviews with photos
Number of reviews: 12
-
-
It works very well with Bao and is definitely better than the factory antenna.
-
In reality, the original antenna from the Baofeng uv-82 received better, although maybe the weather also has an effect. Overall, it’s okay.
-
It works excellently for me, maybe it's down to compatibility with the equipment, as it works flawlessly on the uw82 8w.
-
I definitely recommend it! It significantly improves the quality.
-
With Bao, it works average.
-
A product worth recommending.
-
It doesn't impress, but for that price it's hard to expect more. It's just a pity the magnet is weak and the antenna is so small.
-
The receiver power has increased significantly. The antenna is a bit smaller than I expected, and it’s hard to set it stably on a surface without using the magnet.
-
It works correctly, although not much better than the original. It will be good when you want to transmit from a car or inside a building. Thanks to it, you don't, for example, have to go out in the rain.
-
The quality of the antenna is average; it's basically just a piece of wire without any shielding. The antenna is a bit different than the one shown in the photo. It does its job and significantly increases the range.
-
You can say it works, but there's nothing to get excited about. Buy it and see for yourself.
