The antenna is small and a bit delicate, the magnet is not very strong, but it improves reception on the portable radio.

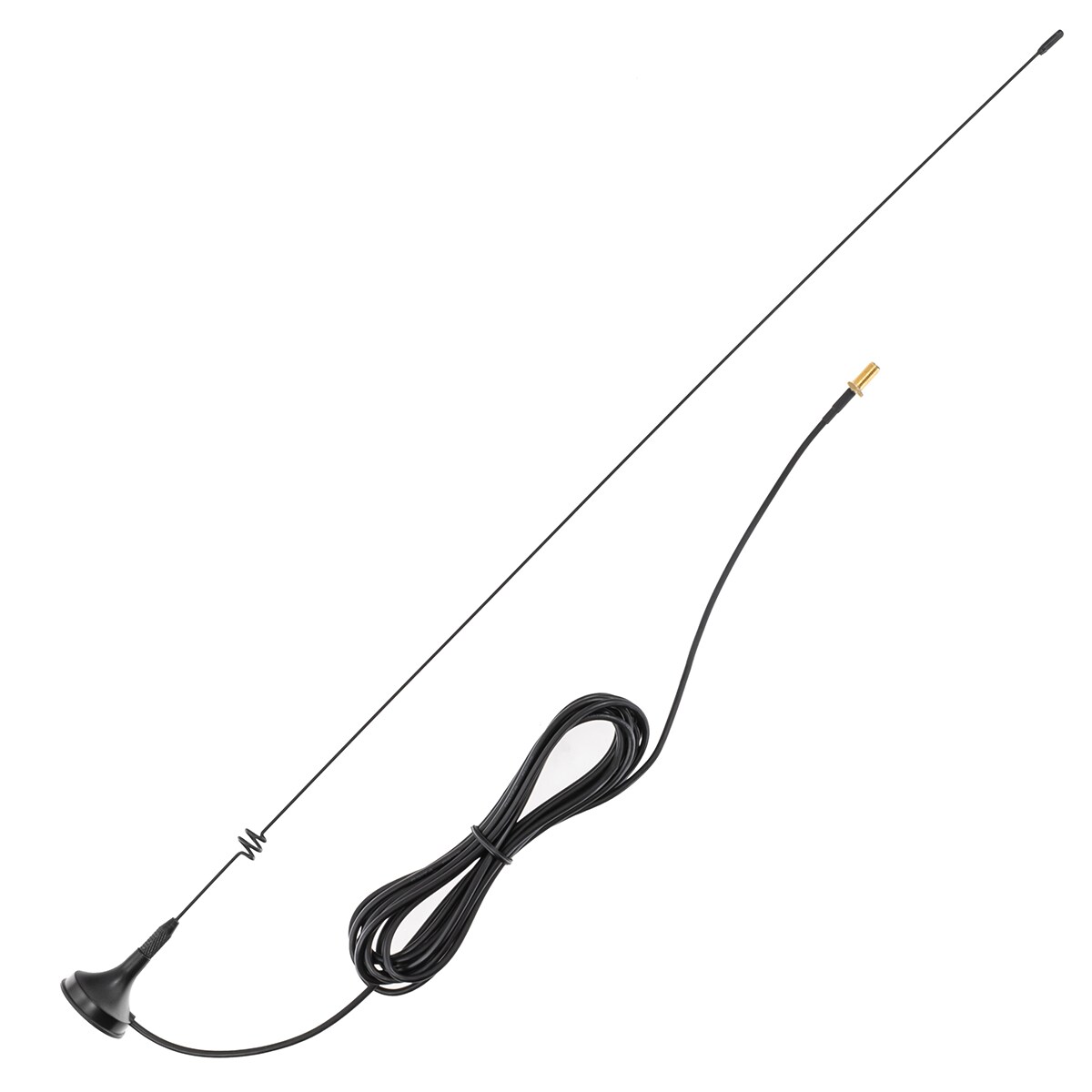

Nagoya UT108UHF/VHF Mobile Antenna
Shipping: Immediately
€10.08
- description
- technical data
- Reviews
- Goes well with
€10.08
Portable outdoor antenna designed for Baofeng radios and similar models. Equipped with a sturdy magnetic base, it can be affixed to a car roof or indoors, such as on a metal windowsill.
This antenna supports the 2m/70cm frequency bands, making it suitable for scanners (wideband receivers) and radios that function within the PMR range (446 MHz).
Compatible with the following radio models and similar ones:
- Baofeng UV-5R HT,
- Baofeng UV-82 HT,
- Baofeng UV-5R / UV-5RK,
- Baofeng UV-82,
- Baofeng DM-5R Plus,
- Baofeng DM-5R,
- Baofeng UV-5RA,
- Baofeng UV-6R,
- Baofeng UV-8HX,
- Baofeng UV-B5 / UV-B6,
- Baofeng UV-3R Plus (not compatible with the regular UV-3R),
- Baofeng C3,
- Wouxun KG-UV1D,
- Wouxun KG-UV2D,
- Wouxun KG-UV3D,
- Wouxun KG-UV6D, among others.
Technical data
Colour: Black
Antenna length: 48 cm
Base cable length: 3 m
Base diameter: 30 mm
Operating band: 2 m and 70 cm (144/430MHz)
Maximum power: 10W
Gain: 3dB for 430MHz
Connector type: SMA-F (female)
Weight: 60g
Manufacturer: Nagoya
| EAN | 2007696512808 |
|---|---|
| Brand | Nagoya |
| EAN |
Reviews with photos
Number of reviews: 12
-
-
It works very well with Bao and is definitely better than the factory antenna.
-
In reality, the original antenna from the Baofeng uv-82 received better, although the weather may also have an effect. Overall, it's okay.
-
For me it works great, maybe it's a matter of compatibility with the device, because on the uw82 8w it works flawlessly.
-
I definitely recommend it! It significantly improves quality.
-
It performs averagely with Bao.
-
A product worth recommending.
-
Not impressive, but for this price, it's hard to expect more. It's just a pity the magnet is weak and the antenna is so small.
-
The receiver power increased significantly. The antenna is a bit smaller than I expected and it's hard to set it steadily on a surface without using the magnet.
-
It works properly, although not much better than the original one. It will do the job if you want to transmit from a car or inside a building. Thanks to this, you don't have to go out, for example, in the rain.
-
The antenna's build quality is average, it's basically a piece of wire without any cover. The antenna differs a bit from the one shown in the photo. It does its job and significantly increases the range.
-
You could say it works, but it's nothing to be excited about. Buy and see for yourself.
No reviews
-
Confirmed purchase
