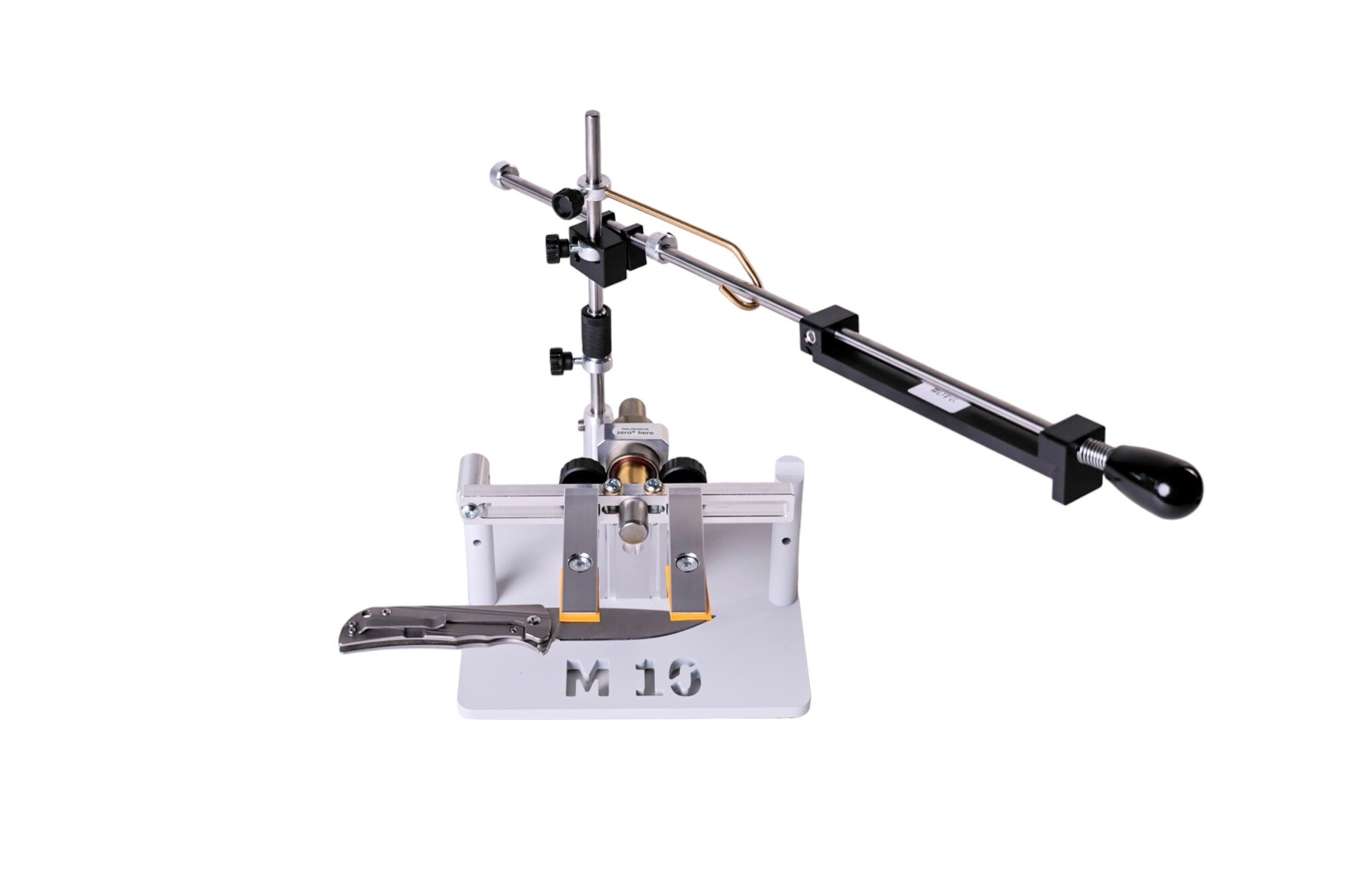

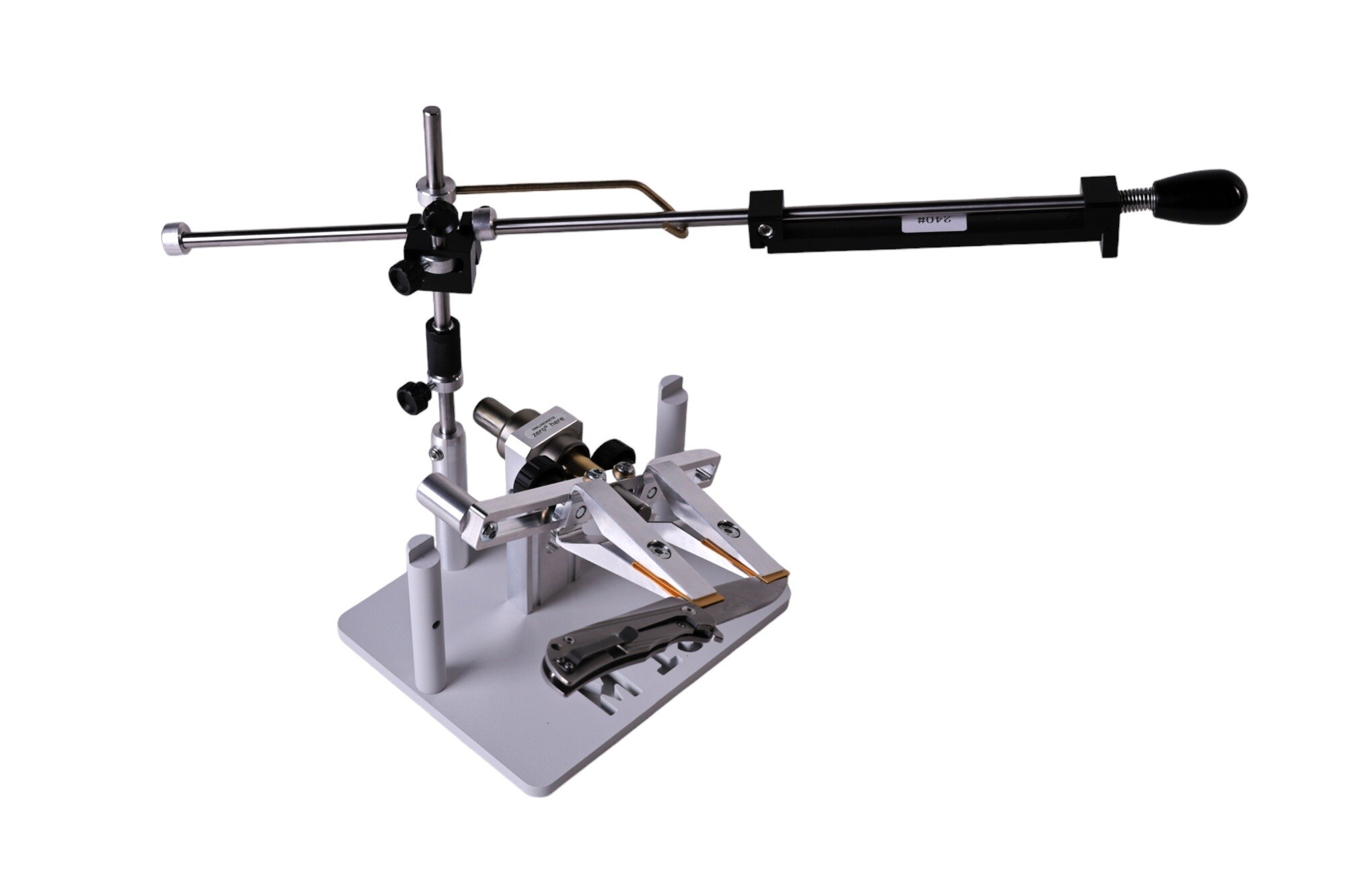

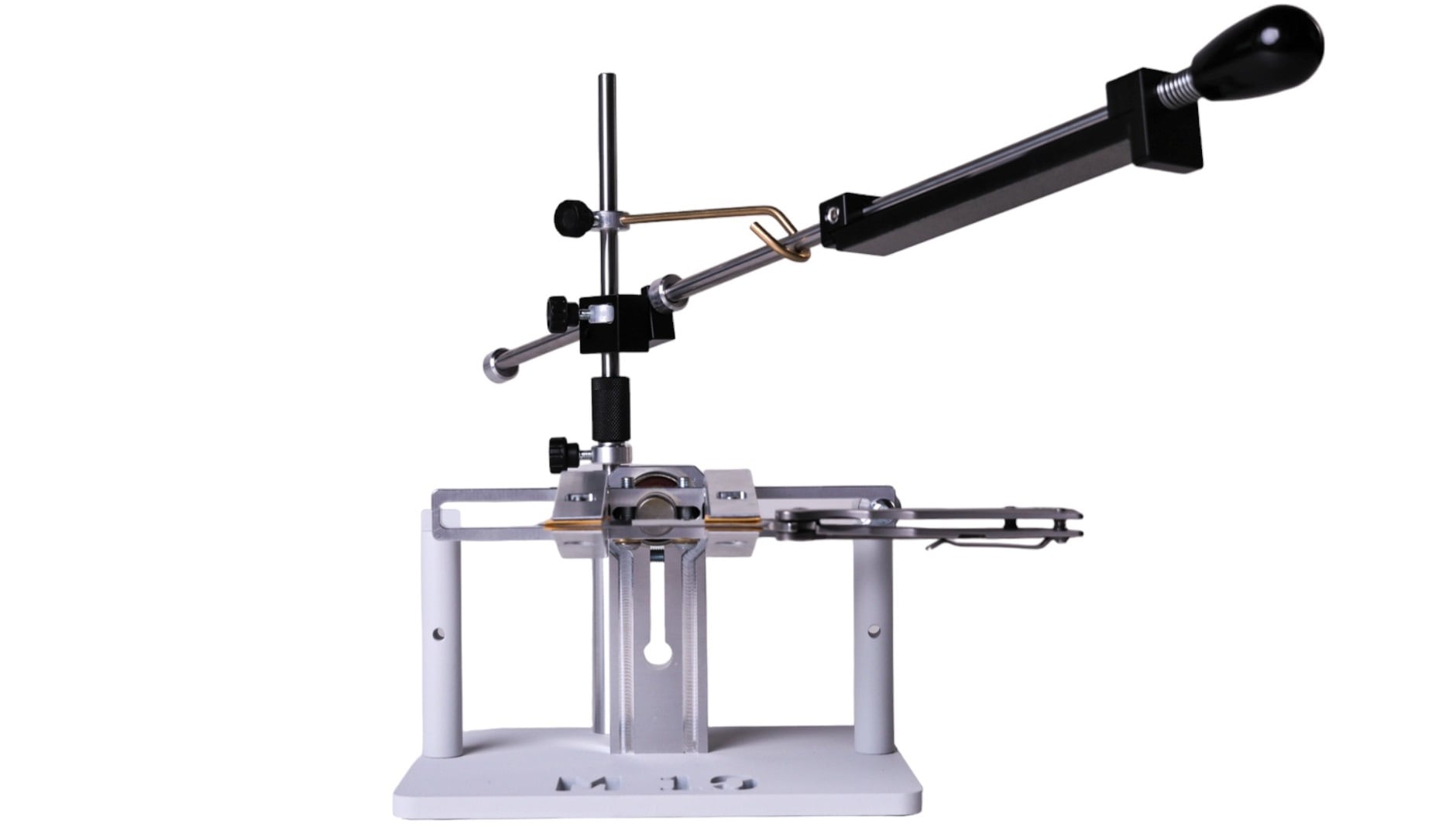

Kazak Model 10 sharpening system

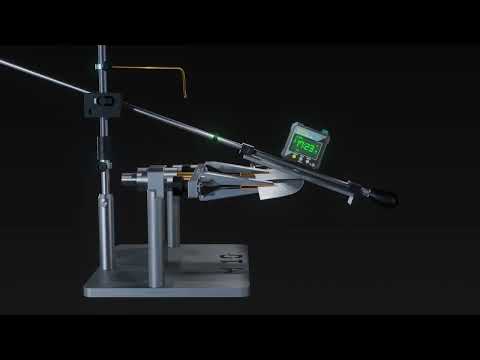

A device created for sharpening knives of various shapes and sizes. Allows you to accurately and stably fix the knife in the clamps, while allowing you to rotate it without removing it. The sharpening process is fast, safe and does not require special skills from the user. The set includes, among other things, an electronic protractor and 5 diamond sharpening stones of different gradation levels.

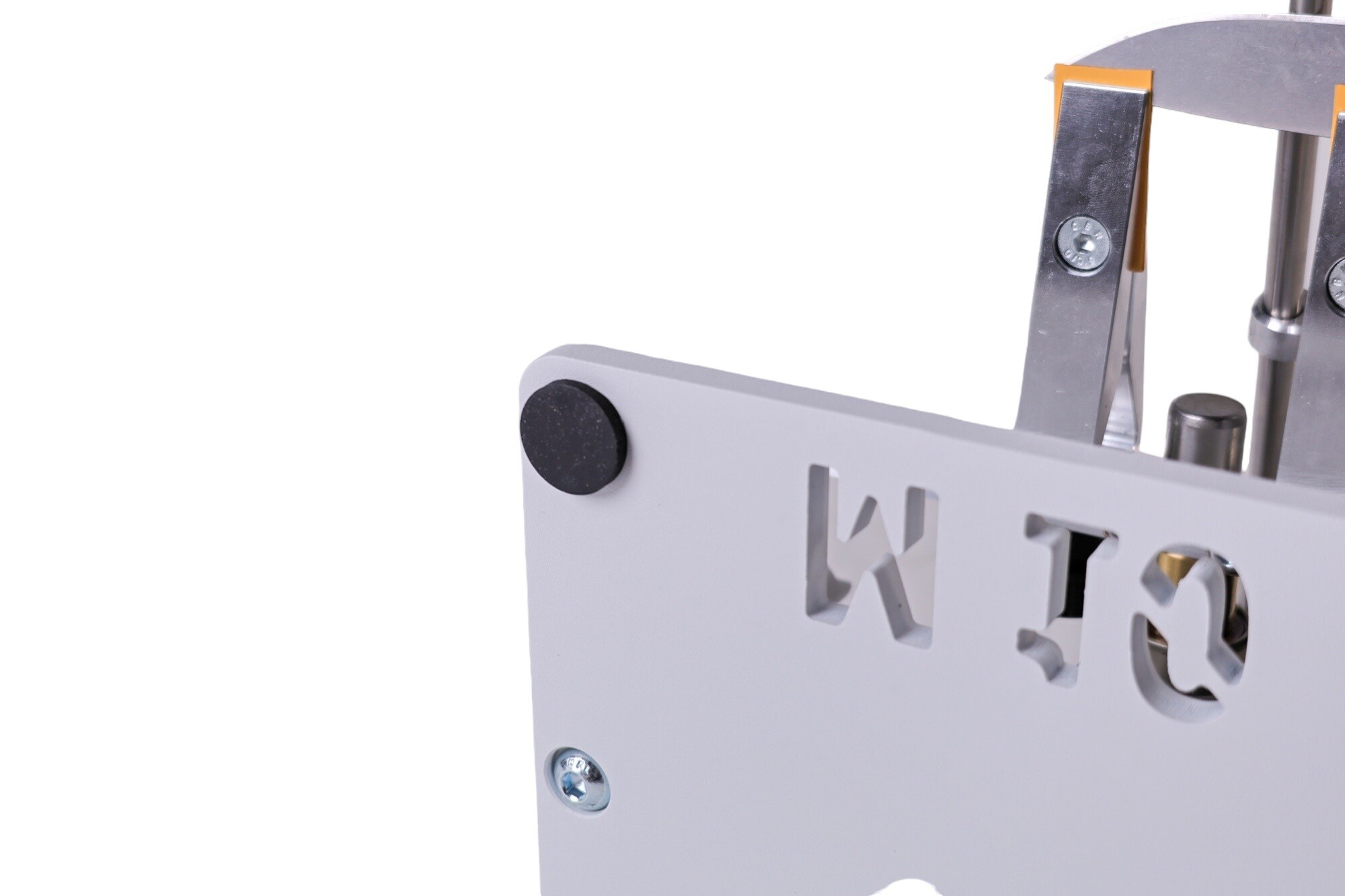

The base was made of steel and supplemented with rubber inserts, which provide stability during operation. The whole is covered with a durable powder paint. The guide with a diameter of 8 mm and a surface roughness of 0.4 Ra is produced from alloy steel, resistant to damage. The clamps were created from durable 7075 aluminum, further strengthened by heat treatment.

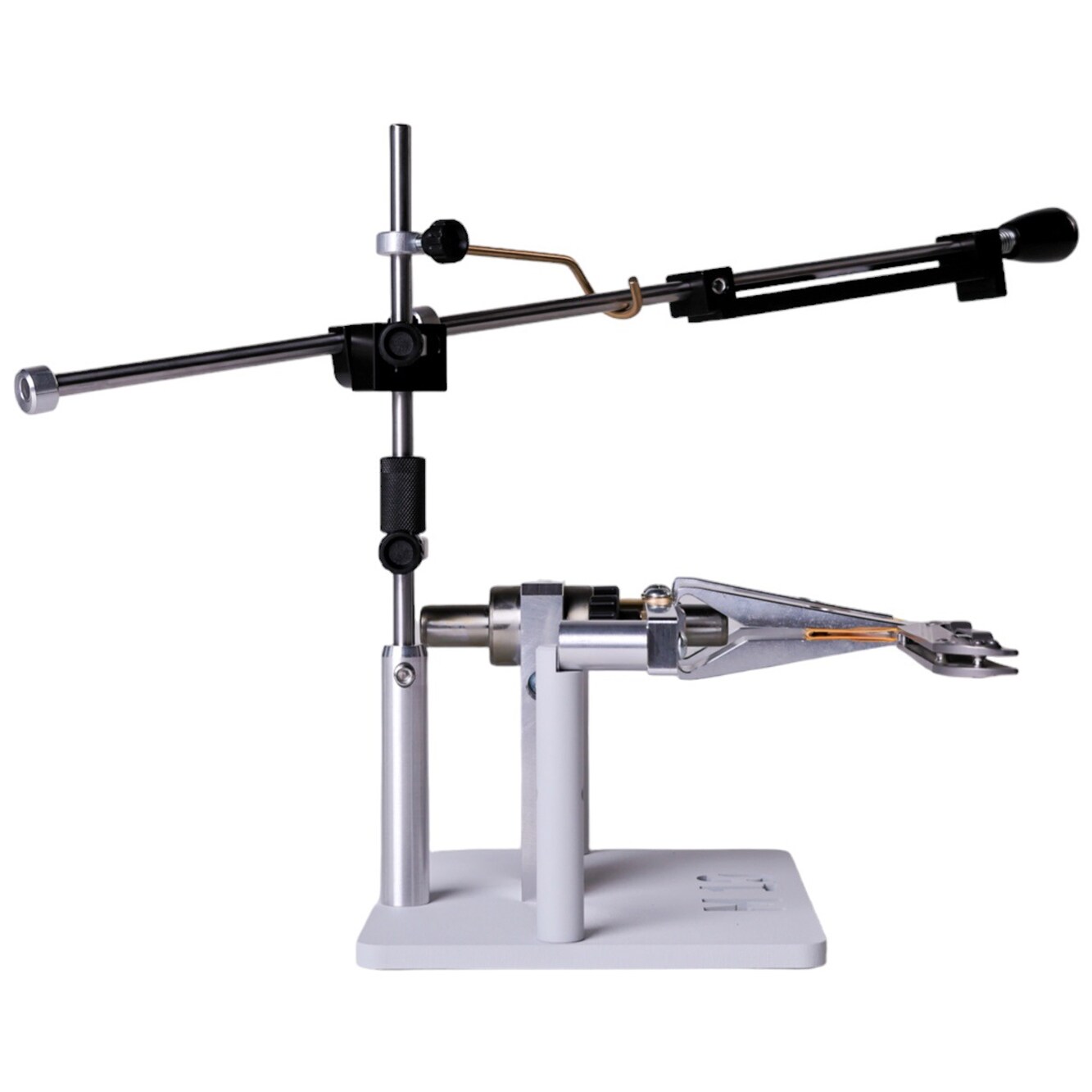

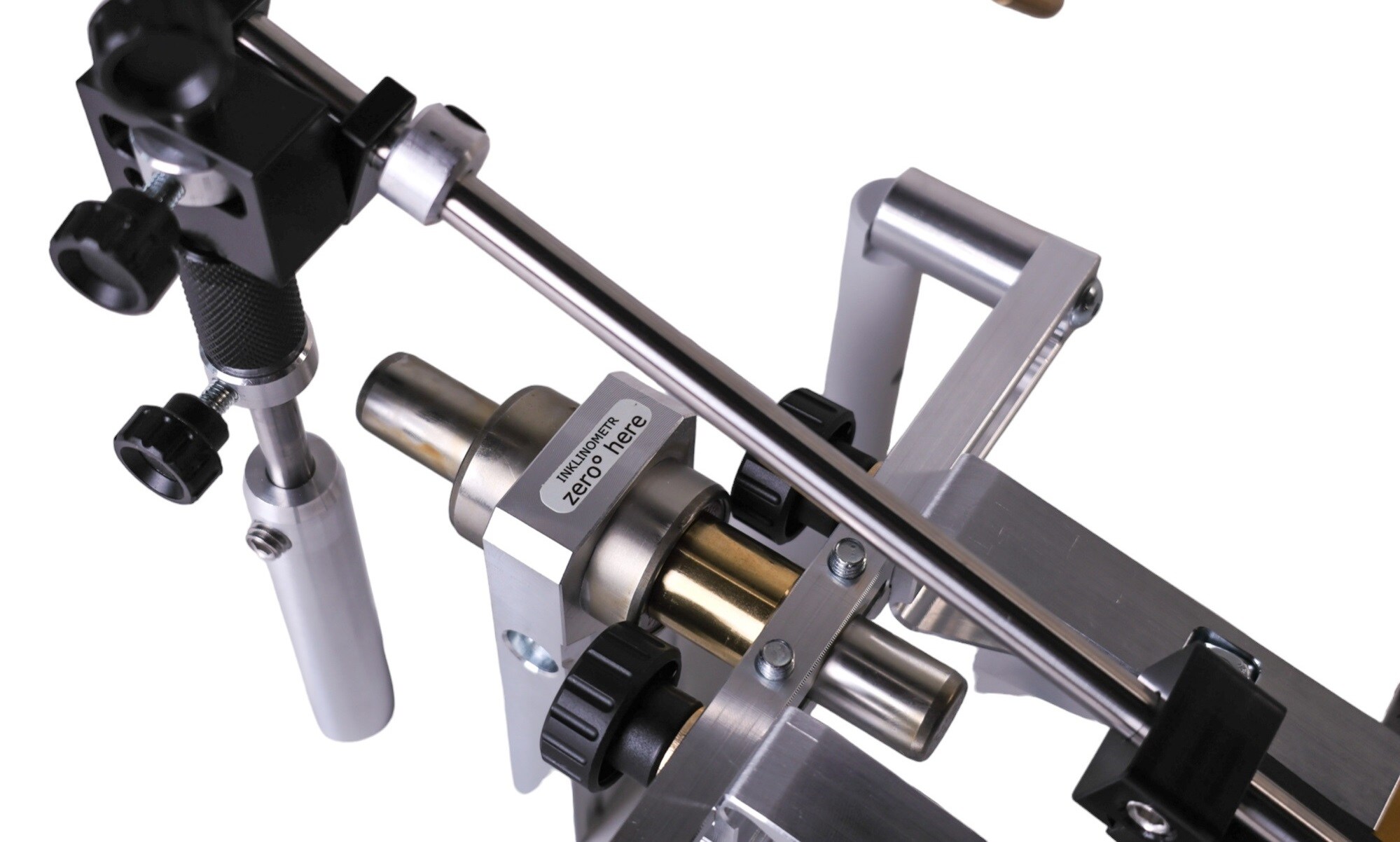

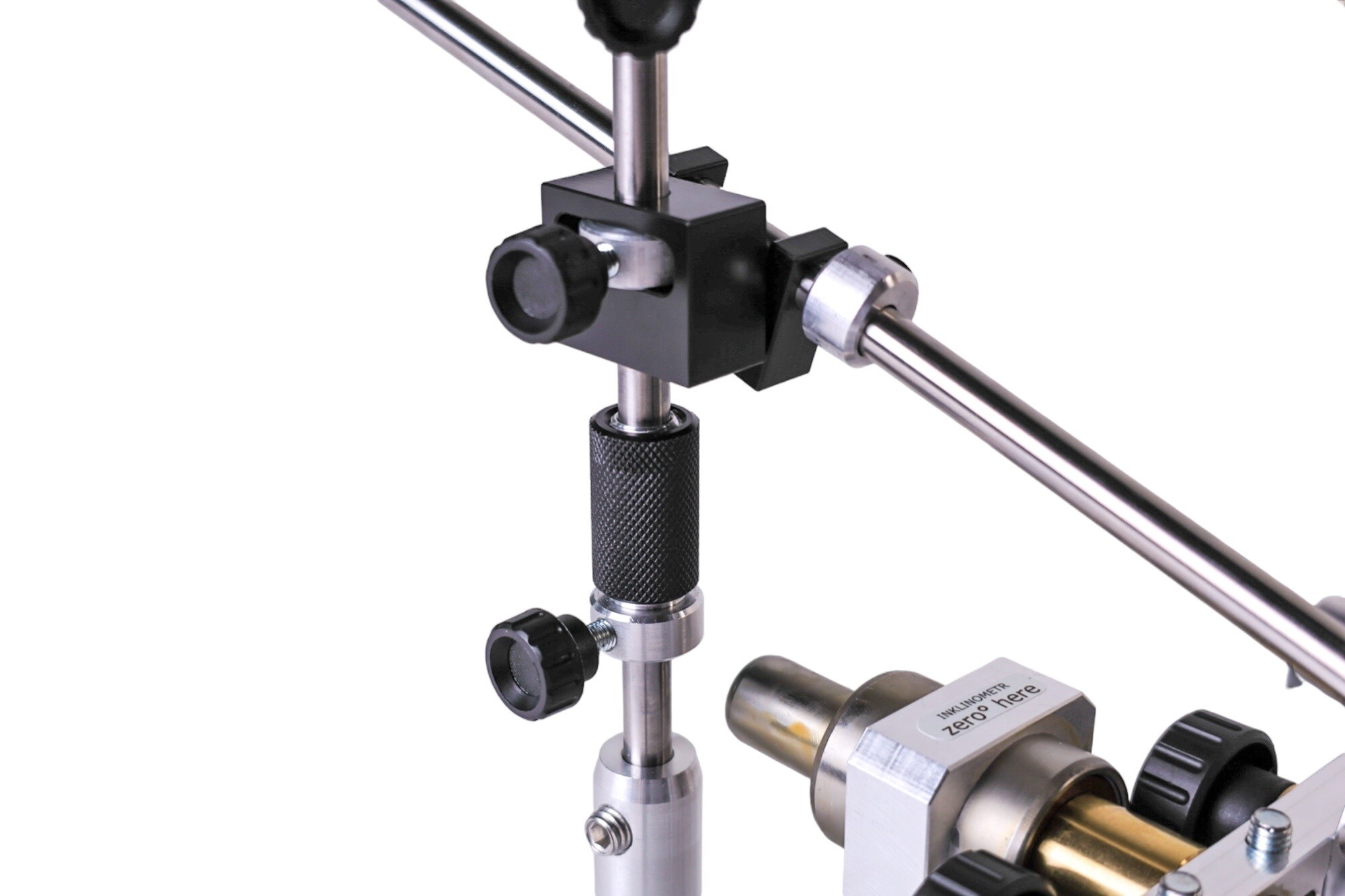

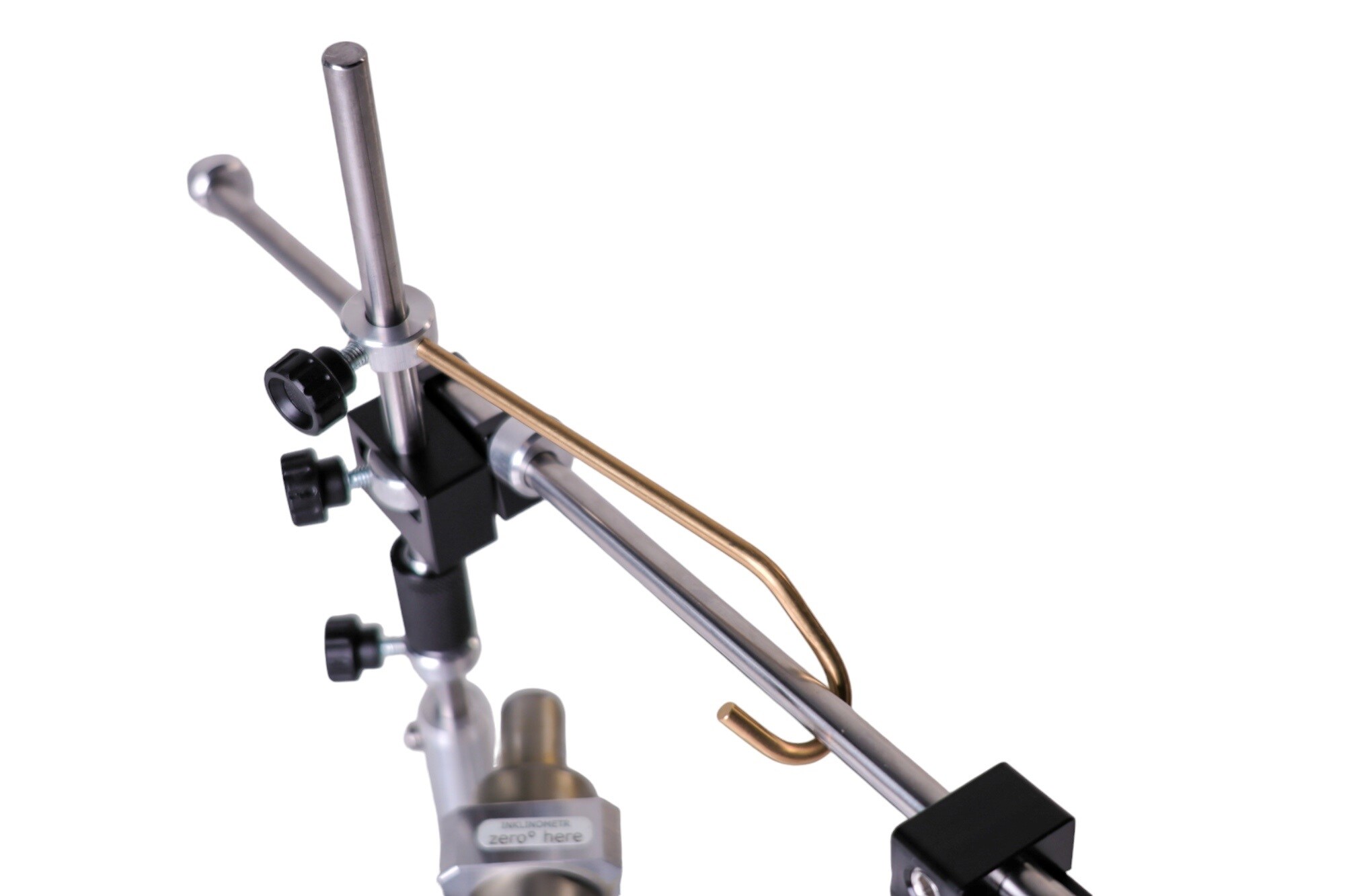

The sharpening angle can be freely adjusted by raising or lowering the hinge assembly on the vertical post. The swivel mechanism is based on a double-row ball bearing with a built-in axle. In addition, this model is equipped with a built-in hook and a removable frame - just unscrew two screws to check the cutting edge of the knife without removing it from the clamps.

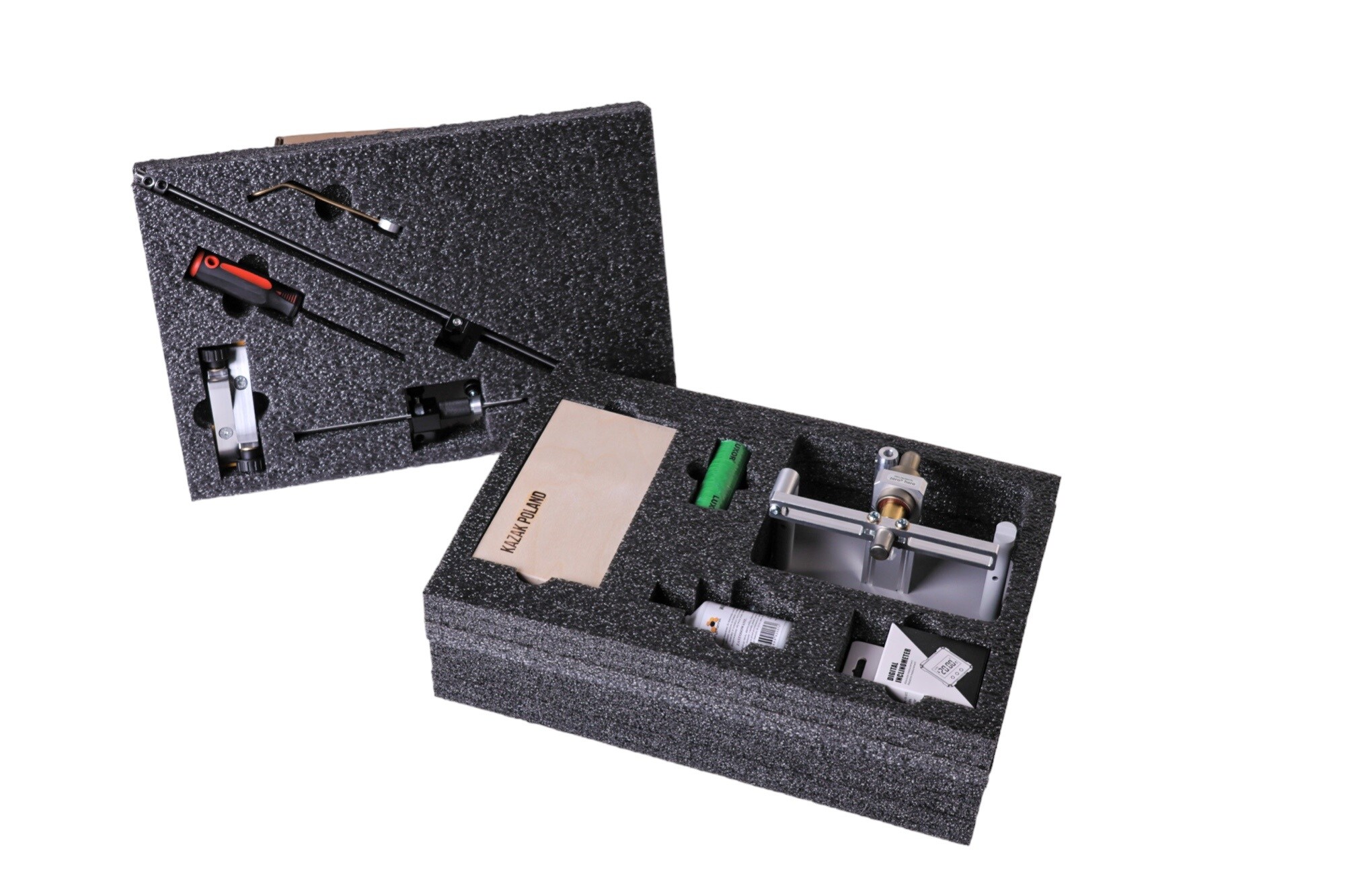

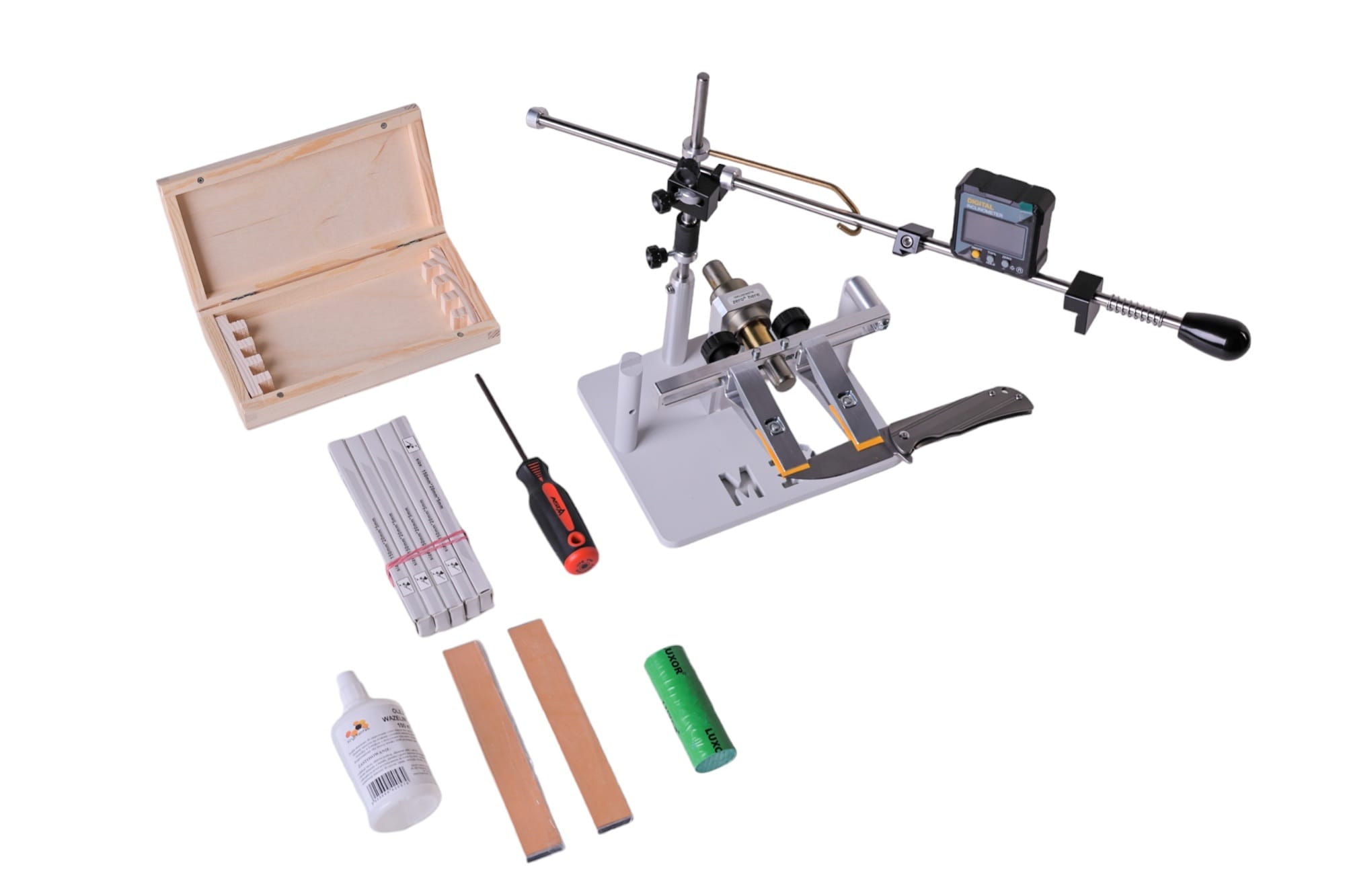

• Kazak M10 sharpener
• electronic protractor
• set of diamond stones (5 pieces)
• oil
• wooden box for storing stones
• board with leather for polishing (2 pieces)
• Luxor polishing paste
• allen wrench

• damage-resistant construction
• steel guide
• strong clamps
• rubber elements on the base
• sharpening angle adjustment
• double-row ball bearing
• diamond sharpening stones and accessories included

Color: White
Material: steel, aluminum, plastic
Maximum length of sharpened knife blade: 250 mm
Maximum thickness of the sharpened knife: 6 mm
Sharpening angle (one side): 11 - 35 deg.
Base length: 200 mm
Depth of the base: 160 mm
Length of guide with handle: 510 mm
Height of device: 300 mm
Weight: 3250 g
Manufacturer: Kazak, Poland
