Armytek Elf C2 Max WR USB-C PCB Warm Headlamp and Angle Light 2325 Lumens

The black head torch and angled torch is fitted with an LED, which emits two types of light – warm white and red. Designed as an EDC accessory, this model is ideal for everyday use as well as outdoor activities. Its lightweight and compact design means it can be comfortably carried attached to your belt, backpack, in the included holster, or worn on your head as a head torch.

The set includes a rechargeable battery with an integrated PCB protection circuit. Digital brightness stabilisation ensures a steady light beam even as the battery drains, eliminating flicker. With the inclusion of two types of light, the torch is suitable for a wide range of applications – from everyday area lighting to night-time use while maintaining your eyes’ adaptation to darkness.

The body is made from aerospace-grade aluminium with a matte anodised finish, shaped for a secure grip and easy operation even when wearing gloves. The model meets the IP68 waterproof rating – protection against submersion in water at a depth of up to 10 metres for 5 hours; resistant to drops from heights of up to 10 metres.

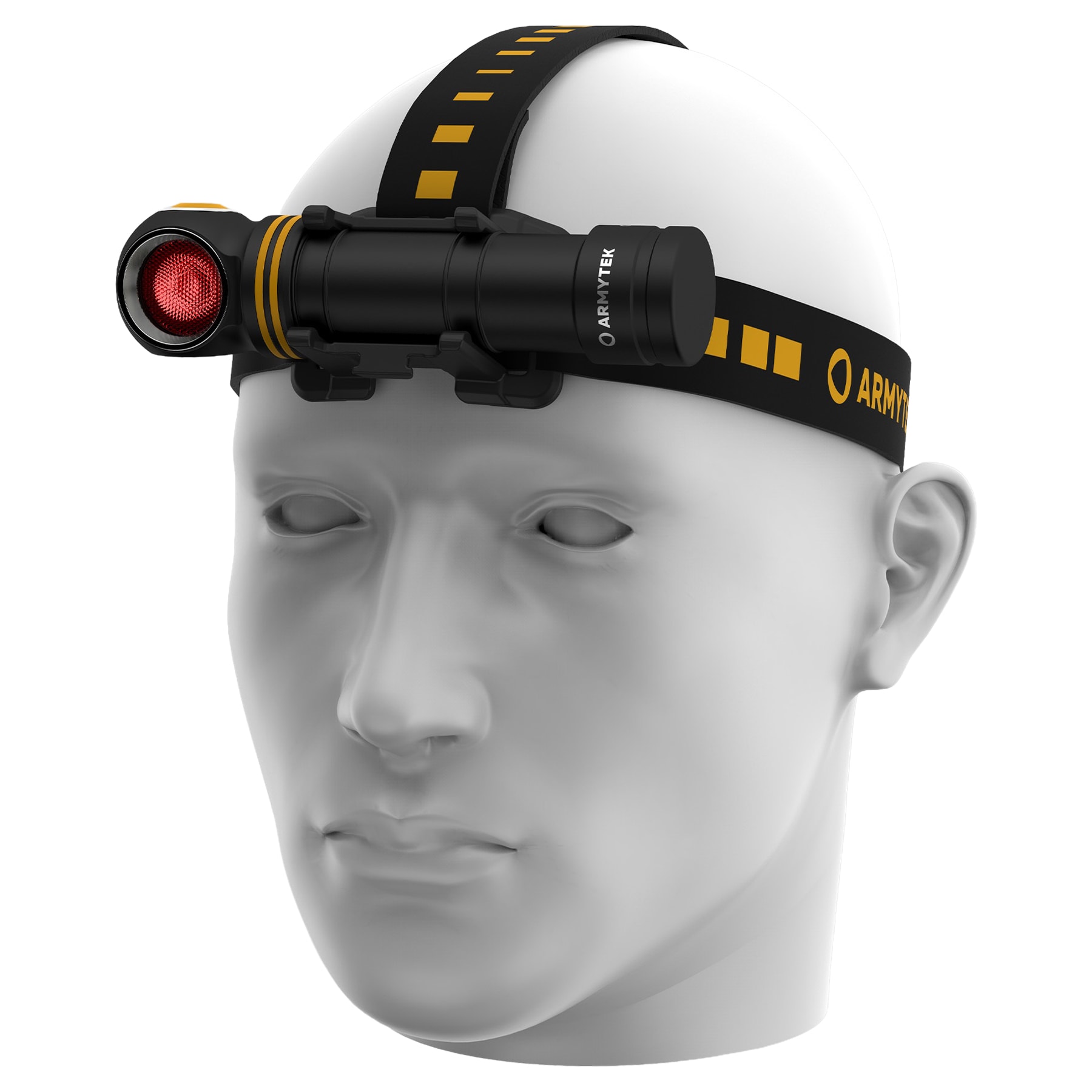

The included headband allows you to use the torch as a head torch. The mounting system enables quick one-handed fitting and removal, without needing any tools. Once mounted, the torch can be rotated through an angle of up to 180 degrees.

A flexible, removable clip enables secure attachment to a belt, backpack or kit. The housing base features a powerful magnet, letting you attach the device to metal surfaces. The model can also be carried in the supplied holster. Compatible with both AHM-04 helmet mounts and the ABM-01 bike mount.

The unit features an optical system with an LED and TIR lens, providing warm white and red light. The wide beam angle for white light is from 110 to 150 degrees, efficiently illuminating large areas at short distances.

White light – beam angle from 110 to 150 degrees:

• Turbo – 2325 lm / 3 h / 110 m (930 lm after 1 min)
• Main3 – 930 lm / 3 h 50 min
• Main2 – 344 lm / 9 h 10 min
• Main1 – 102 lm / 31 h
• Firefly – 1.2 lm / 20 days
• Strobe – 2325 lm / 10 Hz / 5 h 30 min (930 lm after 3 min)
• Beacon – 930 lm / 1 Hz / 14 h 35 min

Red light:

• Main3 – 200 lm / 5 h 5 min / 42 m
• Main2 – 100 lm / 8 h 45 min
• Main1 – 45 lm / 20 h 30 min
• Firefly – 2 lm / 10 days
• Beacon – 200 lm / 1 Hz / 15 h 20 min

The mode memory function ensures the torch starts in the same setting as last used, making operation simpler and removing the need to reset modes every time.

Modes are changed using an ergonomic button – fast, intuitive, one-handed operation. The design also allows instant access to chosen functions, such as maximum power mode or signalling.

The device features an active temperature control system, which constantly monitors operating conditions and automatically adjusts settings. If the temperature exceeds approx. +58deg. C, brightness is automatically reduced to prevent overheating of components.

Reliable protection for LEDs and battery against overload prolongs life and allows stable operation. The head is engineered for efficient heat dissipation, enabling safe use even in high-brightness modes.

Compatible with Li-Ion 21700 and 18650 cells, offering flexibility in your choice of power source. The set includes an adapter for 18650 batteries, meaning you can change configuration based on your power supply. The power system prioritises safety – PCB protection guards against short circuits, even with the charging port open.

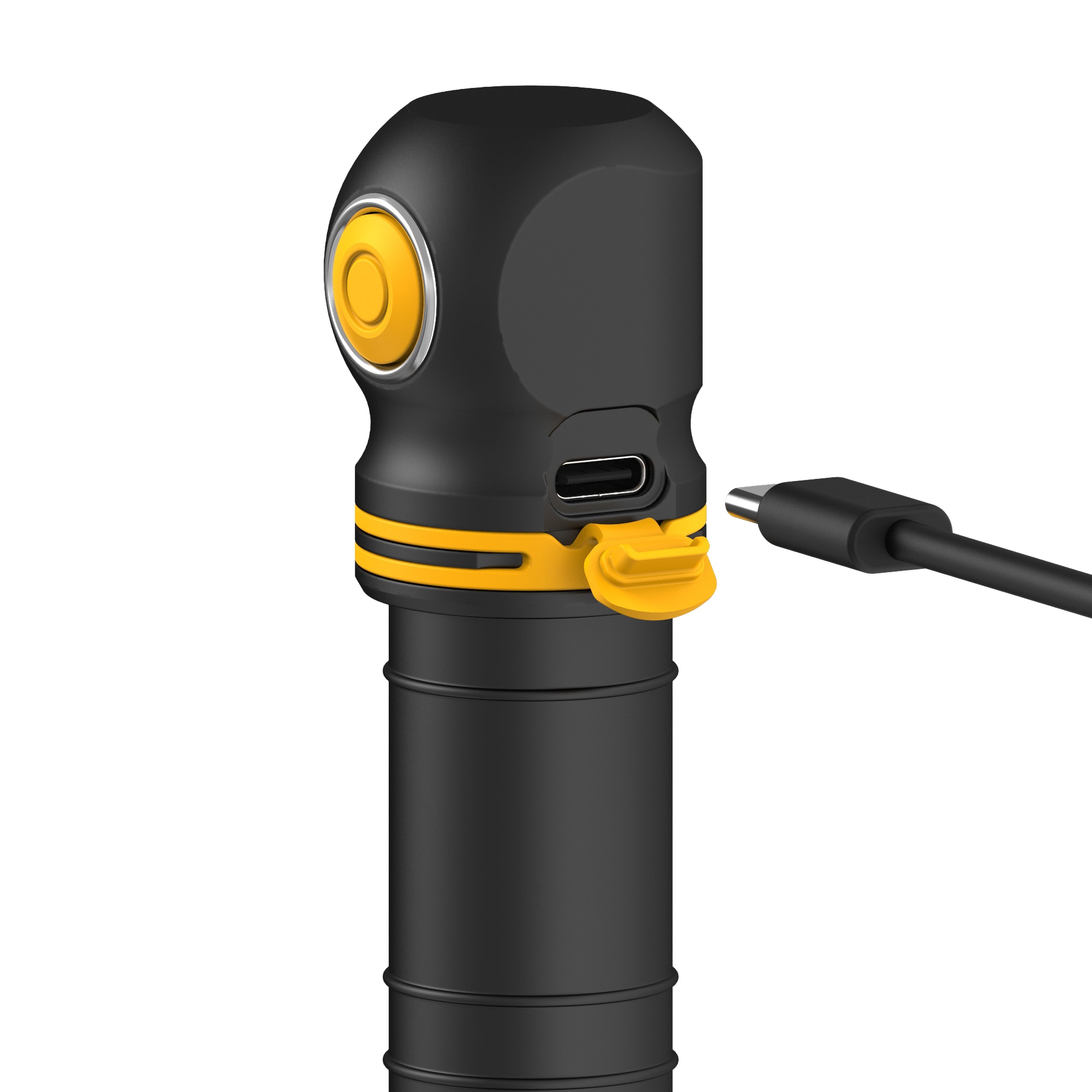

The USB-C port enables quick charging from standard sources such as mains chargers, car adapters or powerbanks. Fully charging a 5000 mAh battery takes around 2 hours and 35 minutes, ensuring rapid readiness for use.

The built-in charging indicator system is integrated into the button, showing the device’s current operating status.

• Red light – charging in progress
• Green light – battery charged
• Flashing red light – not charging (e.g. voltage too low, faulty cable or poor contact)

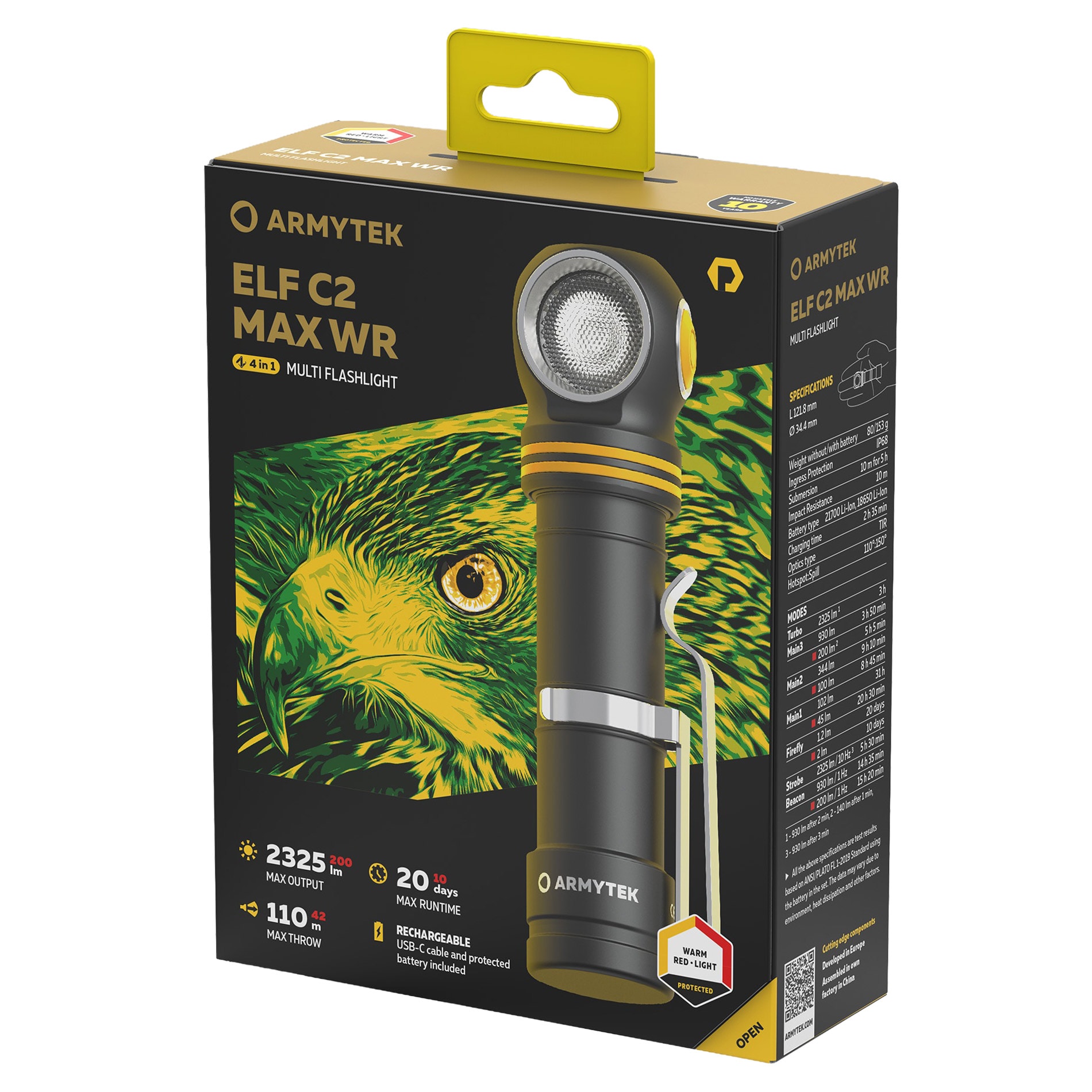

• Torch
• Li-Ion 5000 mAh battery
• USB-C cable
• 18650 battery adapter
• Headband
• Steel clip
• Nylon holster
• 2x O-ring
• User manual

• Head and angled torch with warm white and red light
• LED and TIR optics provide a wide beam angle
• Maximum output of 2325 lm and range up to 110 m
• Last mode memory function
• Digital brightness stabilisation
• Active temperature control
• Aerospace aluminium body with anodised finish
• IP68 rating (submersible to 10 m / 5 h)
• Drop-resistant up to 10 m
• Removable clip for attaching to equipment
• Built-in magnet in the base
• Power supply: Li-Ion 21700 / 18650 batteries
• PCB-protected battery
• USB-C charging
• Charging indicator on the button
• Compact design, easy one-handed operation
• Accessories included
