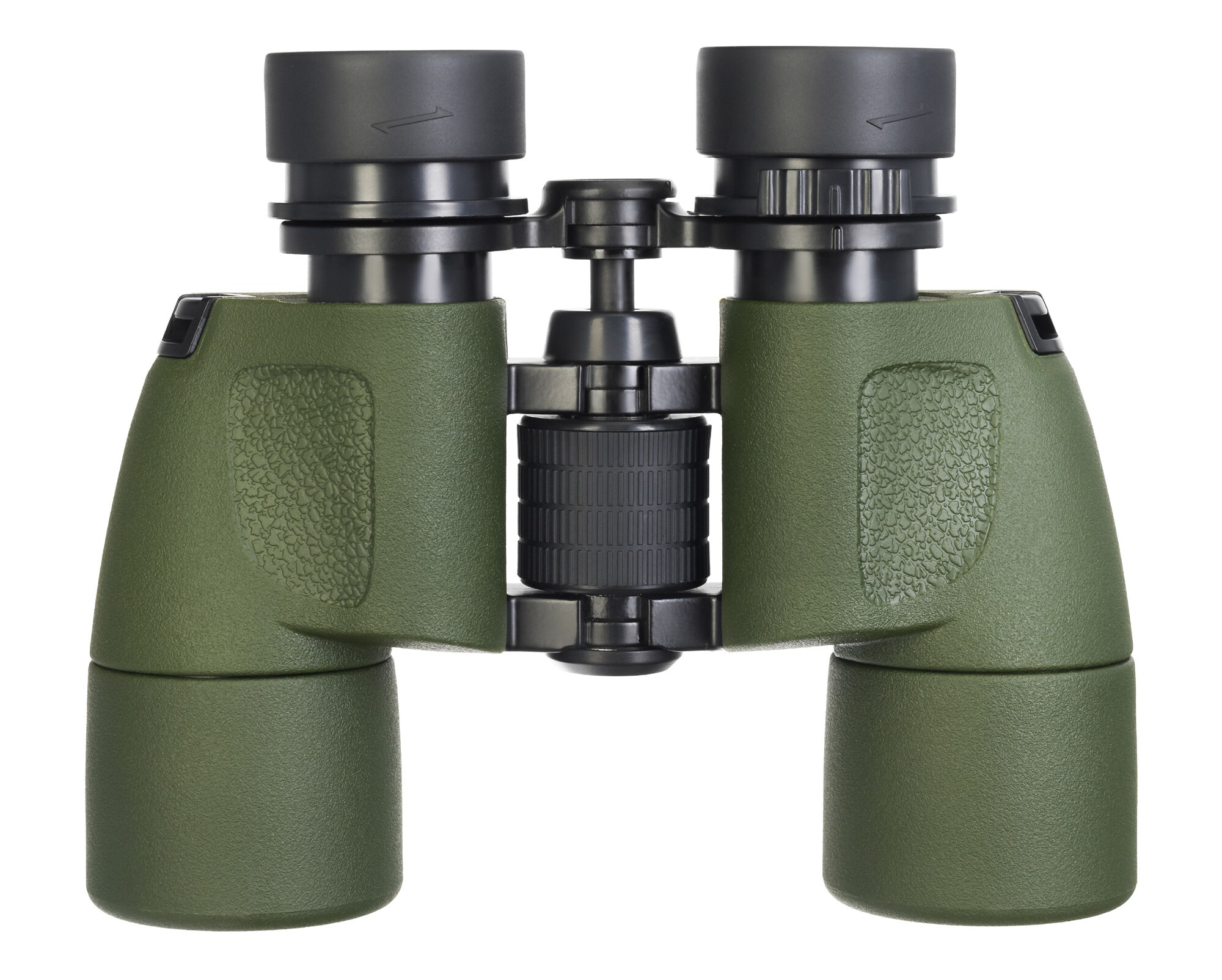

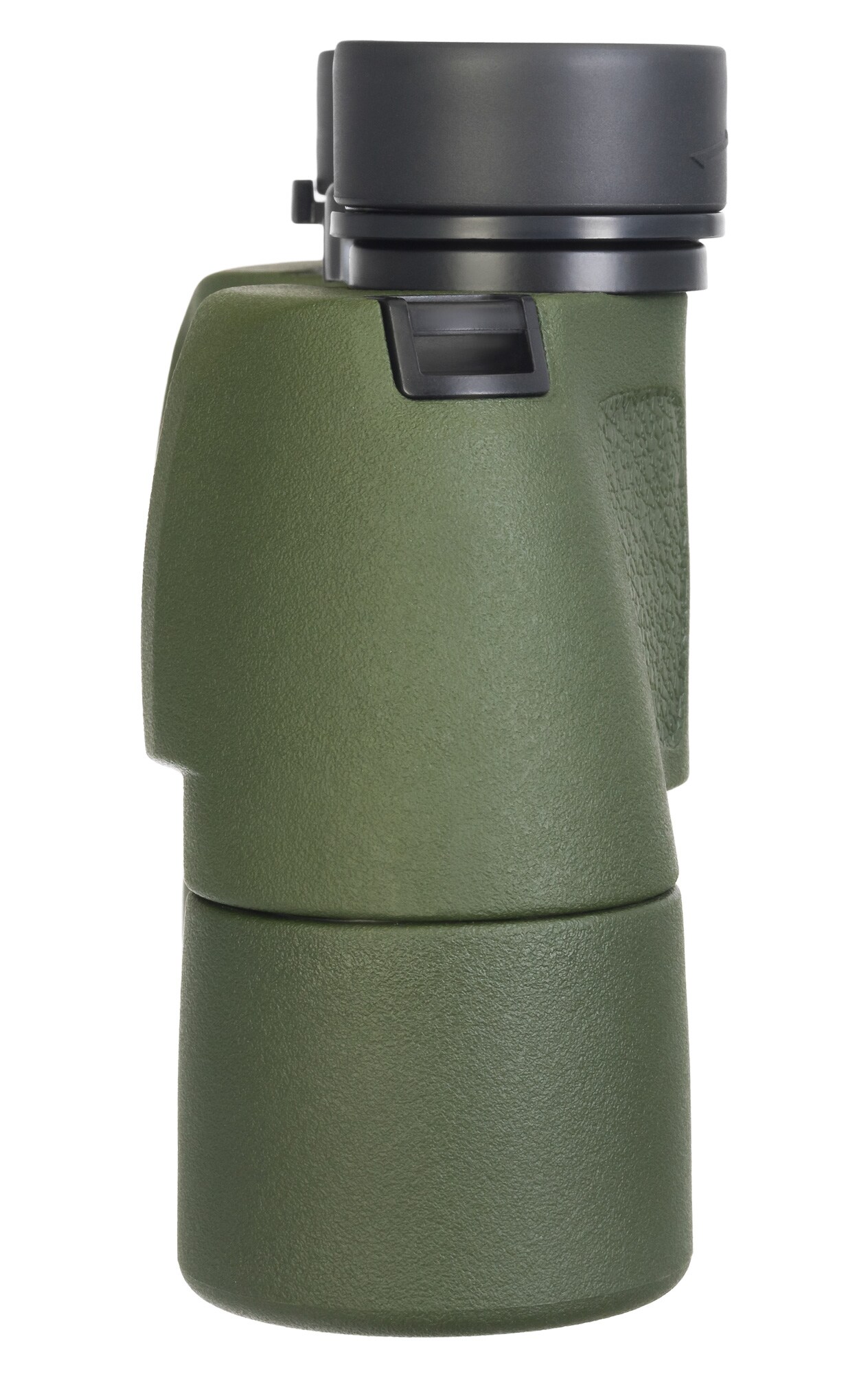

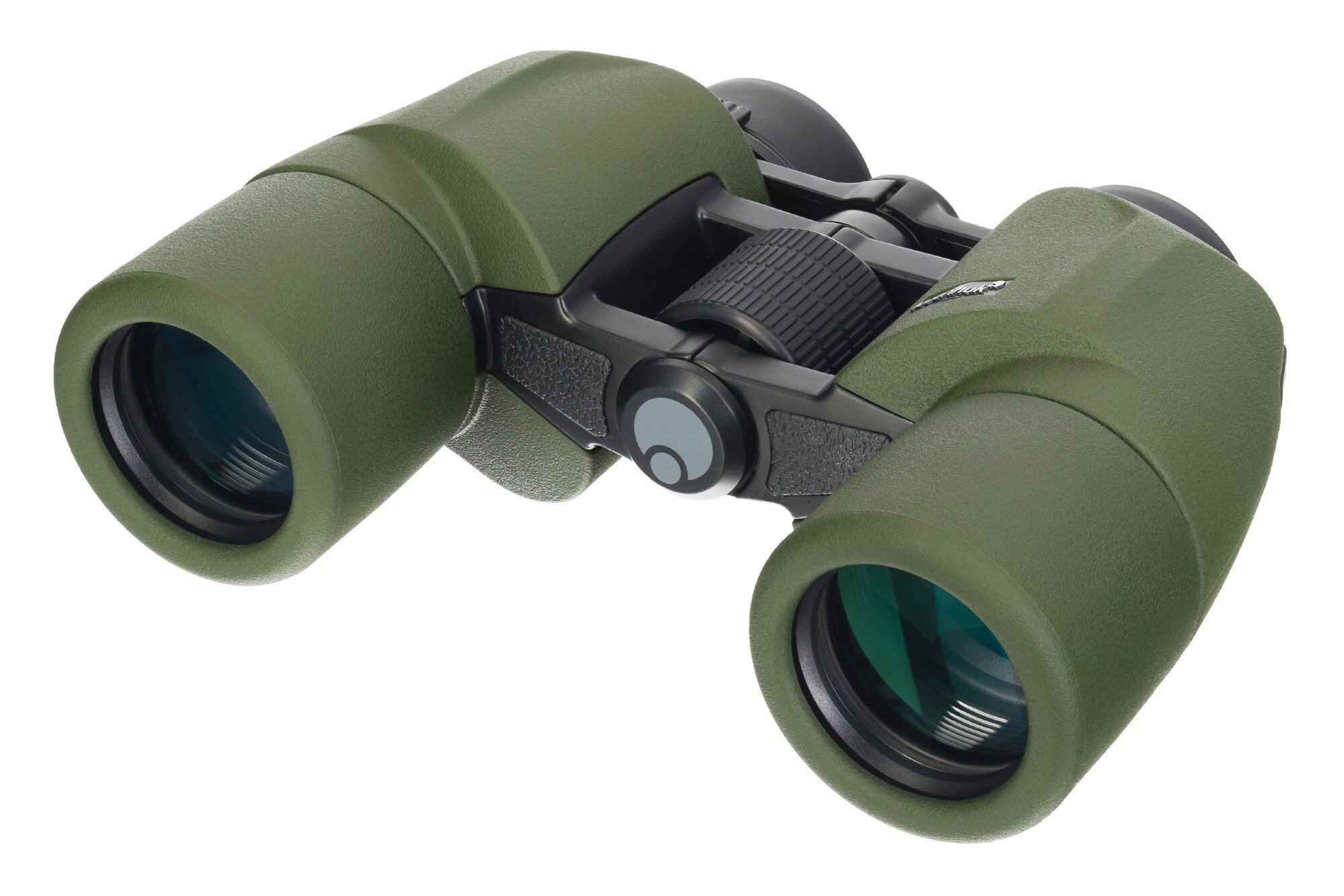

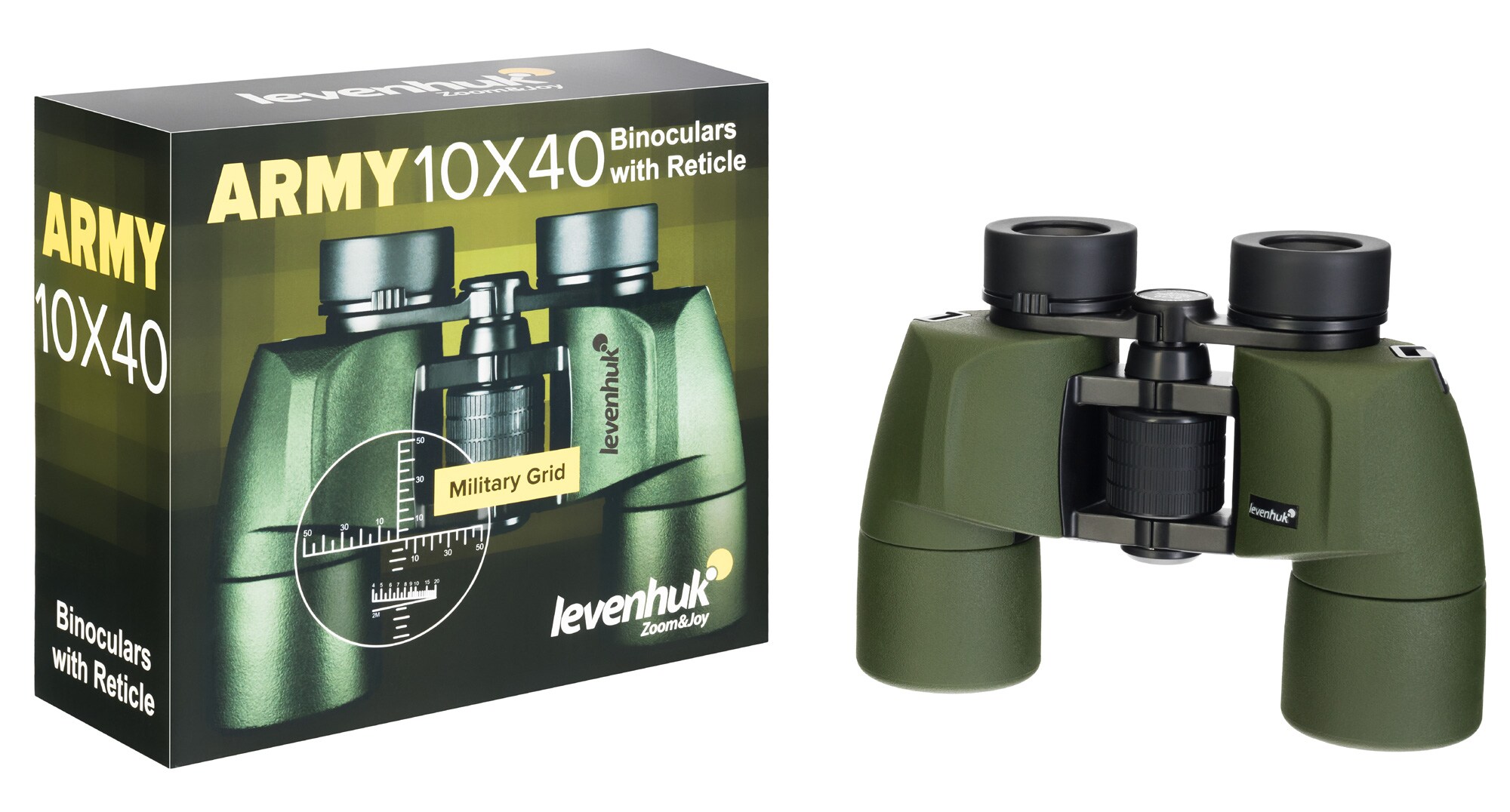

Levenhuk Army 10x40 Binoculars with reticle
Binoculars with a 40 mm diameter fixed 10x magnification. One of the lenses has a reticle and rangefinder, which allows you to determine the distance to the target, its height and measure horizontal and vertical angles.
Porro optical system, Bak-4 glass with anti-reflective coating
The system of Porro prisms used in the construction ensures a wide field of view and high-quality stereoscopic image. The prisms are made of durable BaK-4 glass, which ensures brightness and clarity of the image. In addition, a multi-layer anti-reflective coating minimises light reflections, improving the quality of vision.
Robust aluminium body, rubberised coating
The body of the binoculars is made of lightweight and durable aluminium. The non-slip rubber coating ensures a secure grip, even in difficult weather conditions. The tubes are filled with dry nitrogen and sealed with O-rings to prevent the lenses from fogging up from the inside.

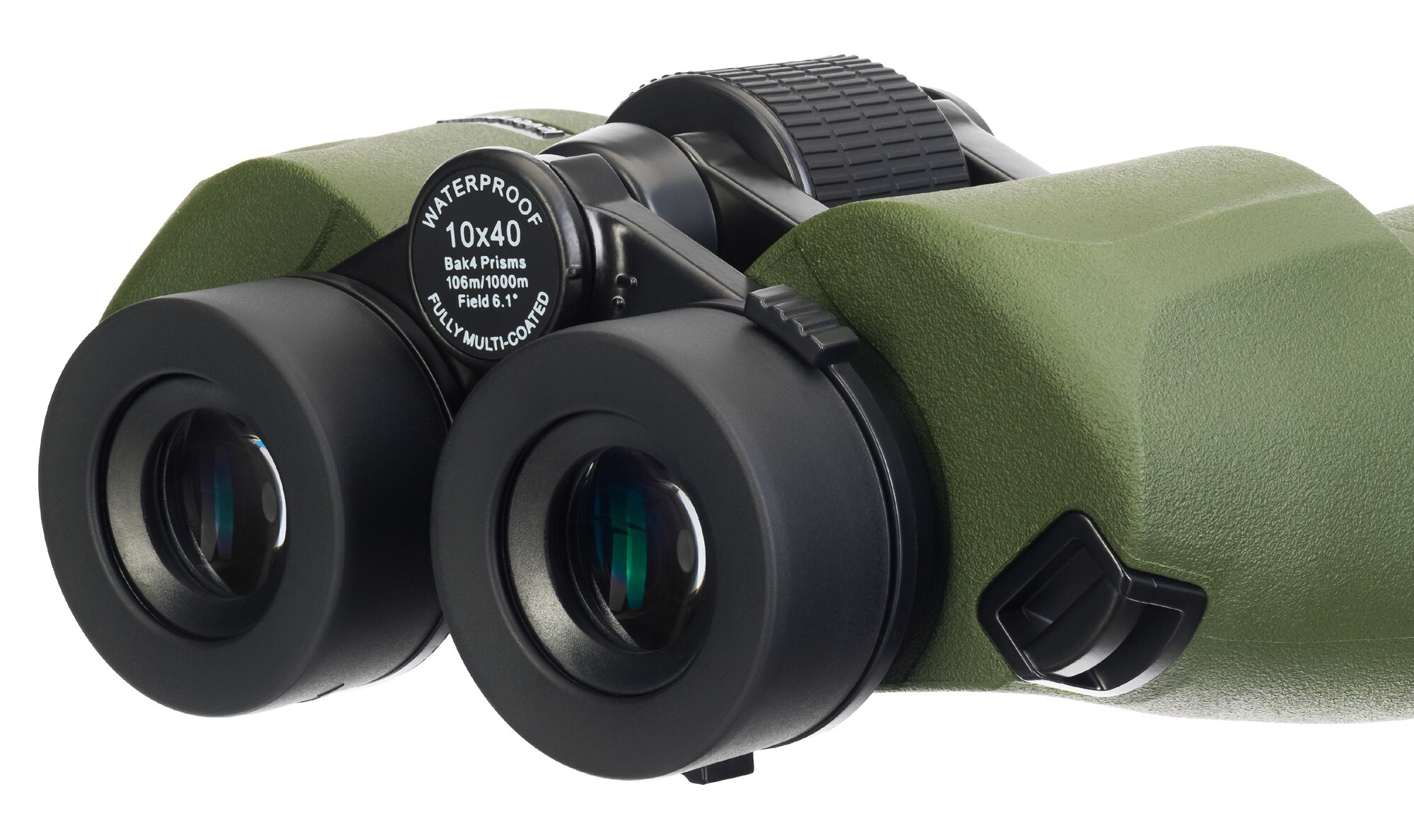

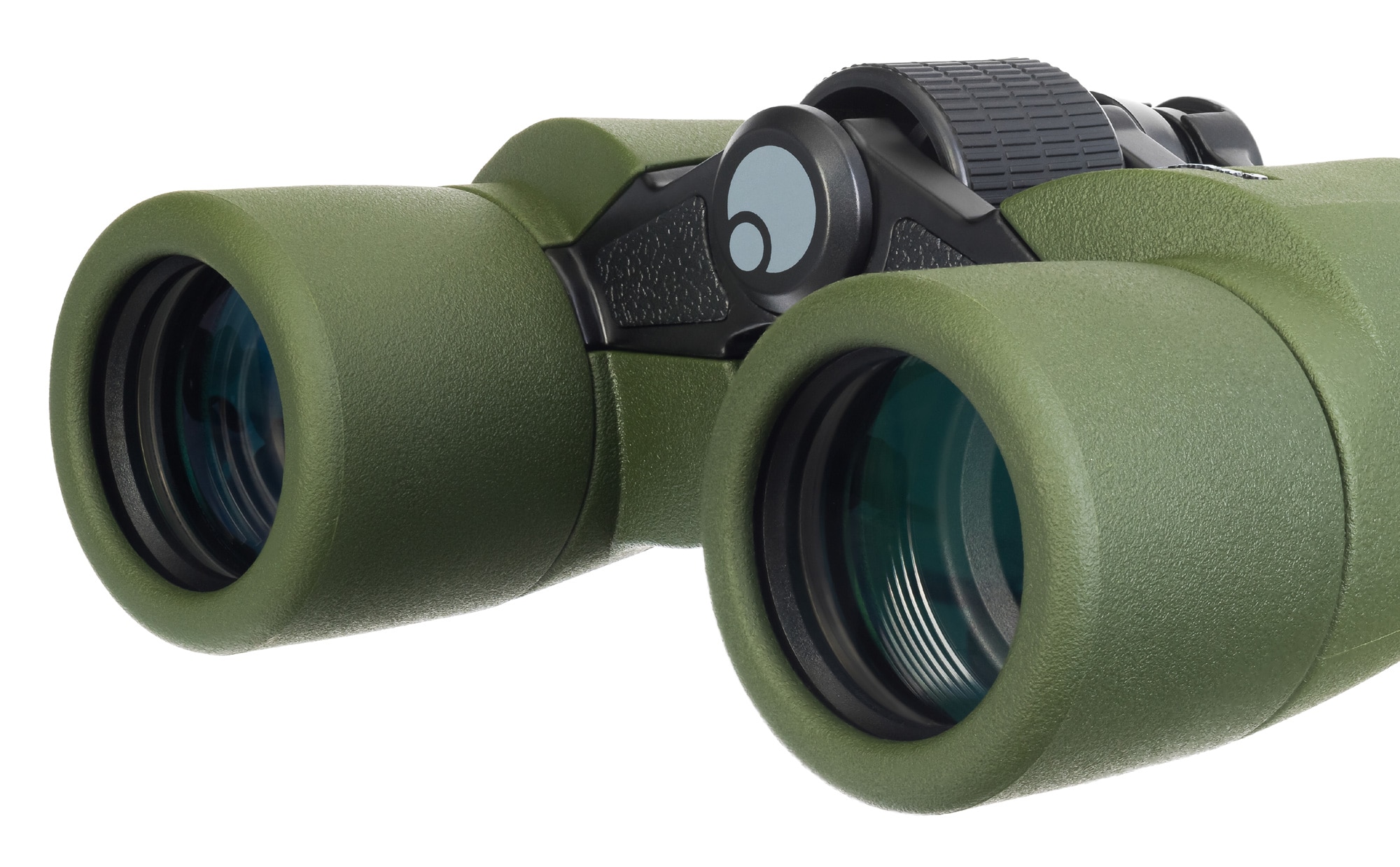

Adjustable spacing between the lenses, dioptre correction
The focus can be adjusted using the central wheel. Additionally, dioptre correction in the range of ±4 allows the image to be adjusted to the user's individual needs. The possibility of adjusting the spacing between the lenses from 56 to 73 mm allows for a comfortable fit.

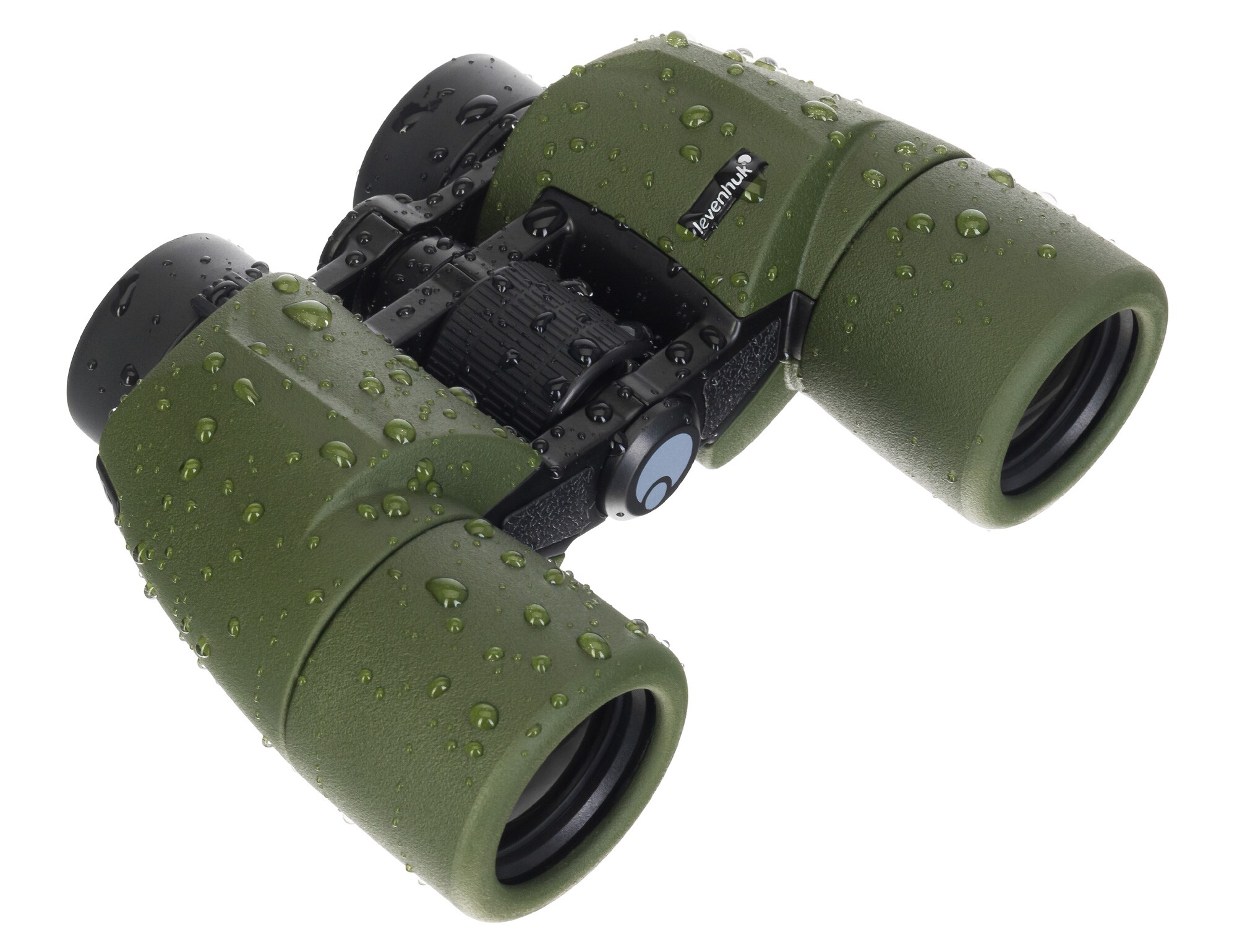

IP67 protection class, tripod mountable
The binoculars meet IP67 protection class requirements, which means they are completely dustproof and can be submerged in water to a depth of one metre for up to 30 minutes. The standard 1/4" thread on the housing allows for tripod mounting.

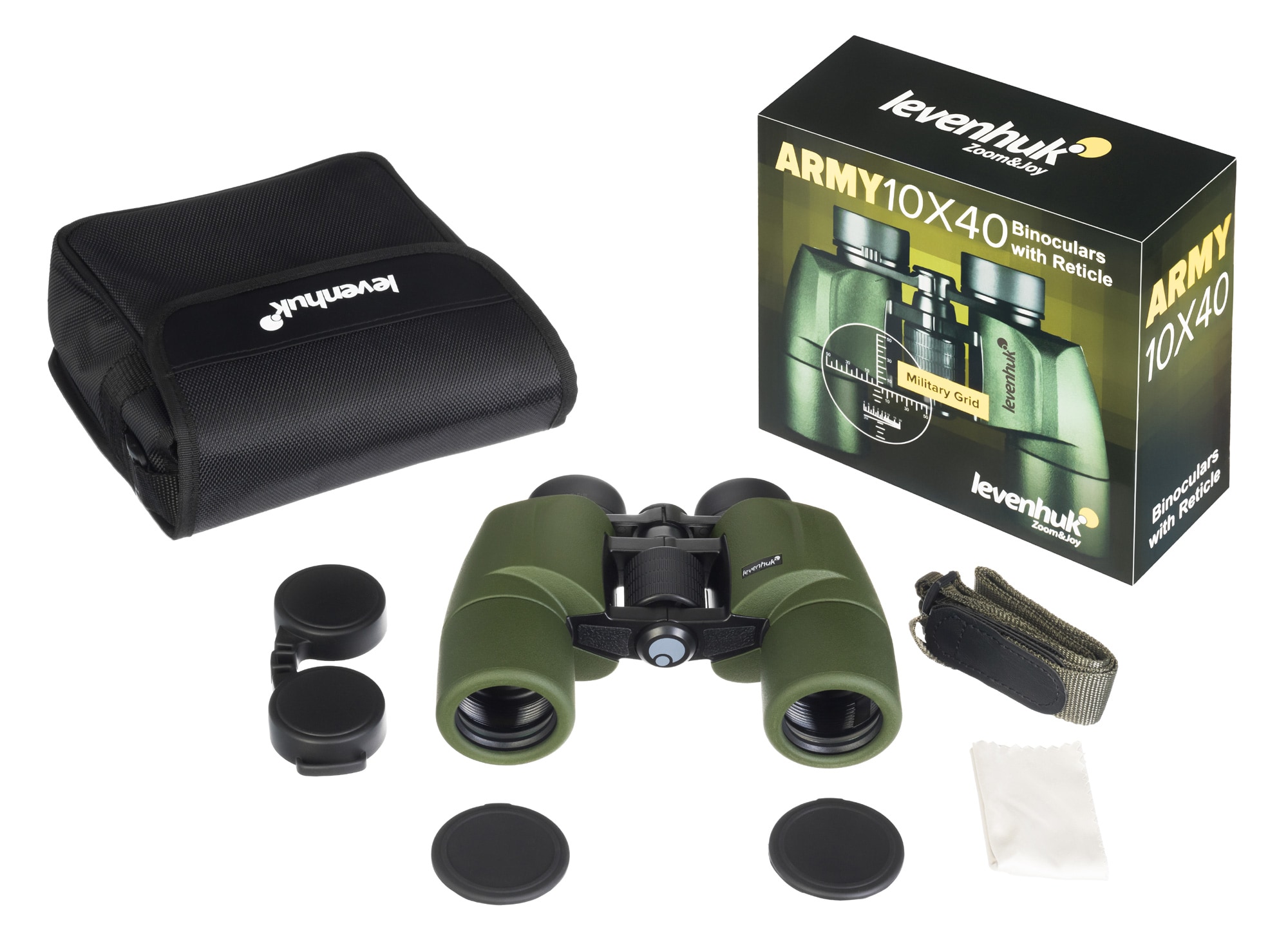

Set elements
- binoculars
- strap

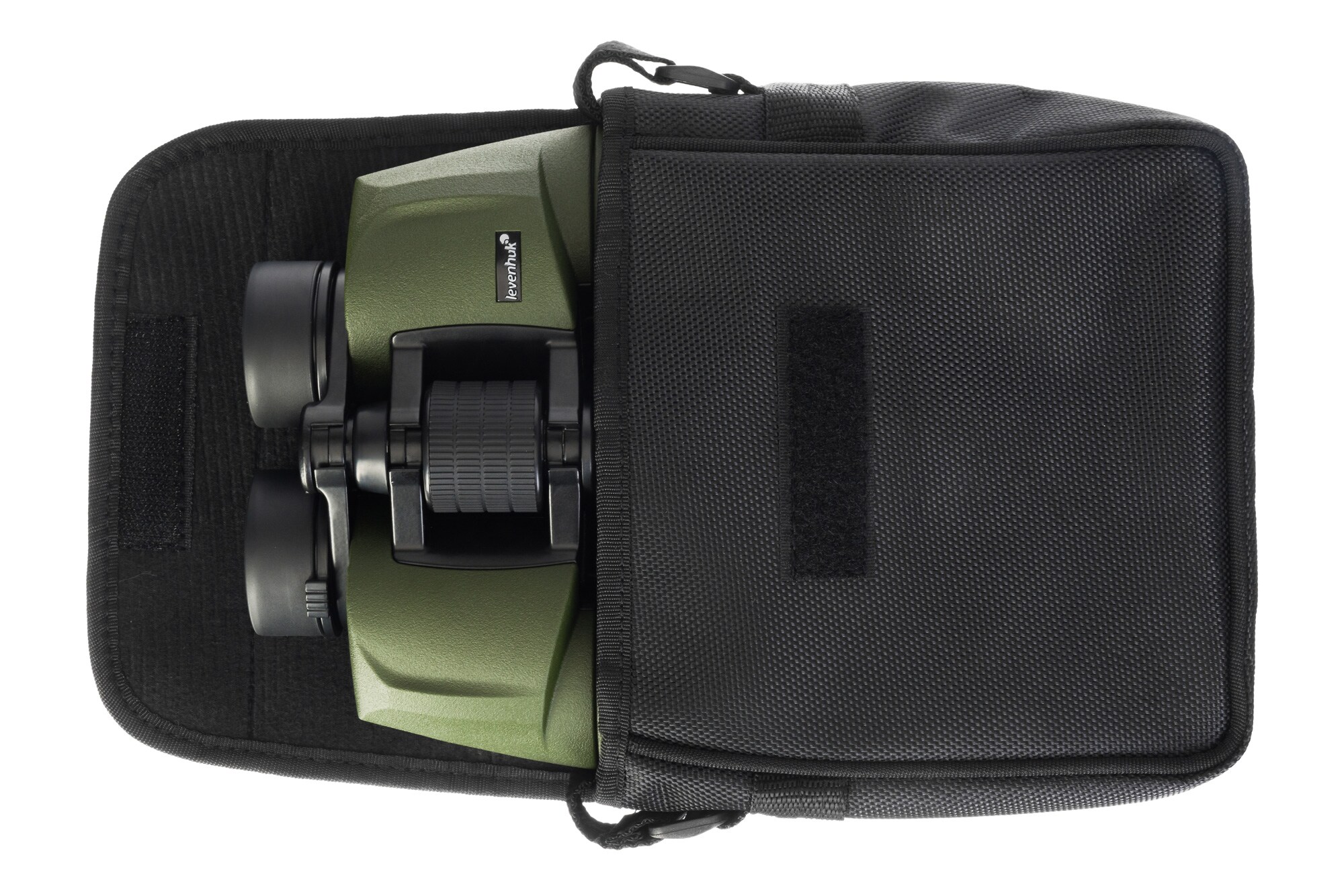

- case
- protective eyepiece and lens covers
- cleaning cloth
- user manual and warranty card
Main features
- 10x magnification
- reticle
- rangefinder scale
- Porro prism
- dry nitrogen filling
- dioptre correction
- adjustable eyepiece spacing
- BaK-4 glass with anti-reflective coating
- aluminium body
- IP67 protection class
- tripod thread
| Magnification (x) | 10 |
|---|---|
| Objective lens diameter (mm) | 40 |
| Minimal focus | 4 m |
| Eye distance | 18 mm |
| Optical glass | BAK-4 |
| Binoculars use | General-purpose |
| Field of view (m /100 m) | 110 m/ 1000 m |
| Exit pupil | 4 mm |
| Adjustable diopter | Yes |
| Cover / case / bag included in set | Cover |
| System | Porro |
| Anti-reflection coating | Multi-layer coating |
| Binoculars water resistance | Yes |
| EAN | 5905555000268 |
| Manufacturer code | 81932 |
| Brand | Levenhuk |
