All right, the sound is of good quality and the FM radio does its job. I received the new model “2102223M” produced in 2021, which may be relevant to some users. The product arrived without an antenna, but after a phone call, the company quickly sent the missing part to a parcel locker at their own expense.
Baofeng UV-5R 5W HTQ USB-C Radiotelephone 3800 mAh
Shipping: Immediately
£31.11
£47.37
-34%
You save
£16.26
- description
- technical data
- Reviews
- Goes well with
£47.37
£31.11
Baofeng UV-5R 5W HTQ USB-C Radiotelephone 3800 mAh

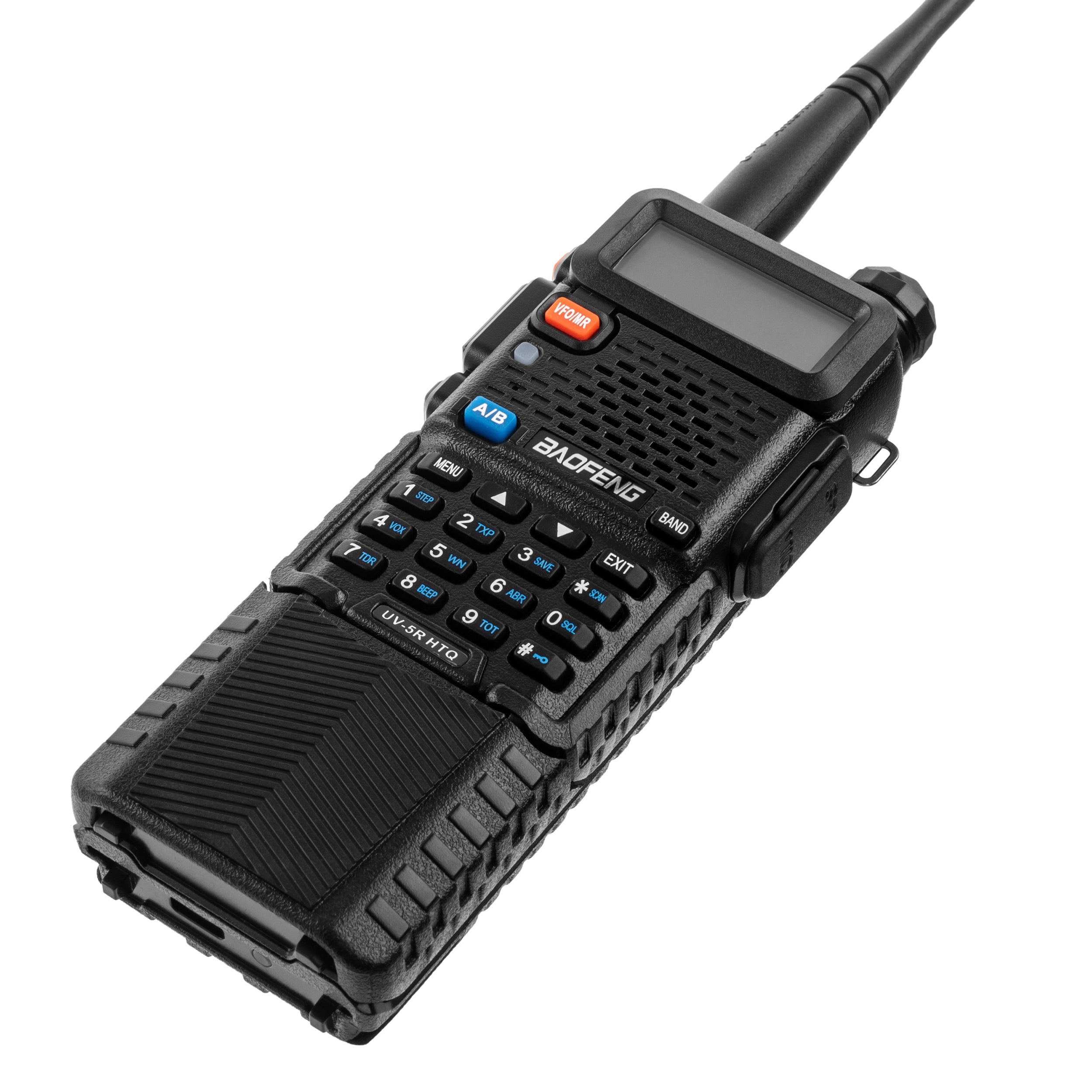

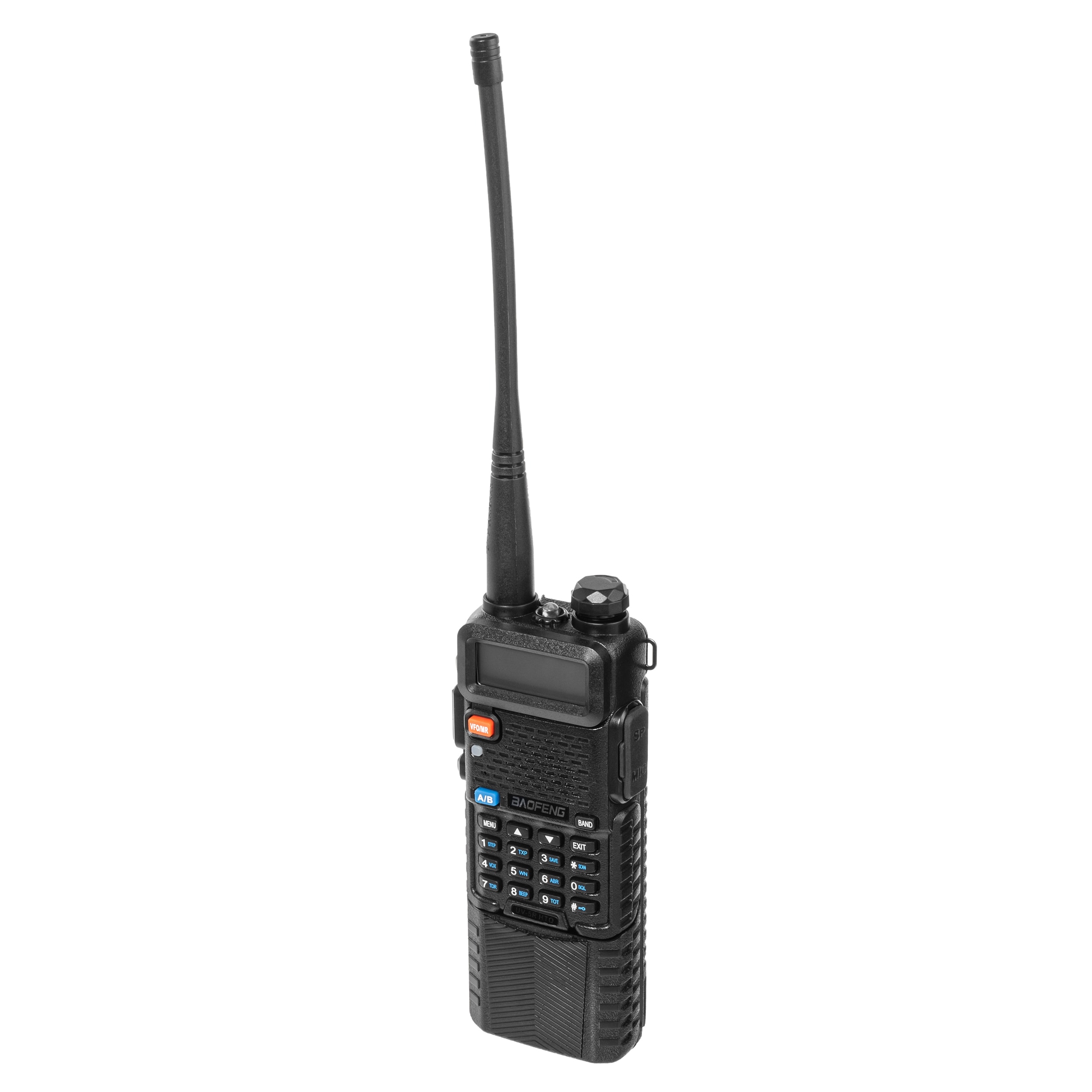

Baofeng UV-5R HTQ is a handheld Duobander (dual-band) radio with a maximum power of 5 W. It is equipped with a DMTF keypad, dual LCD display, torch and FM radio. Power is supplied by a 3800 mAh lithium-ion battery with a USB-C socket for convenient charging.
Dual Watch function, backlit LCD screen
The radiotelephone supports the Dual Watch function, allowing you to listen to two channels simultaneously. This allows you to transmit and listen on the main frequency and listen to the auxiliary frequency at the same time. The HTQ version features improved modulation and increased interference resistance compared to previous models. The backlit LCD display shows not only alphanumeric characters, but also icons indicating the status of functions. The radio is equipped with a 41-position menu, a torch and an FM radio, increasing its functionality in various situations.
The UV-5R HTQ model can be programmed directly from the keypad or via a computer using a USB cable. The software allows you to group contacts and identify them. The VOX function enables voice-activated transmission, eliminating the need to press the PTT button.
Durable casing, Li-Ion battery
The compact design makes the device comfortable to hold, and the ergonomic key layout allows for one-handed operation. The durable casing ensures resistance to harsh weather conditions and mechanical damage.
CTCSS and DCS tones
The radio supports CTCSS (Continuous Tone-Coded Squelch System) and DCS (Digital Code Squelch) systems, which filter out unwanted signals, minimising interference. Thanks to these systems, the user only receives transmissions containing the appropriate tone or code, which significantly improves communication quality, especially in environments with a high density of users.

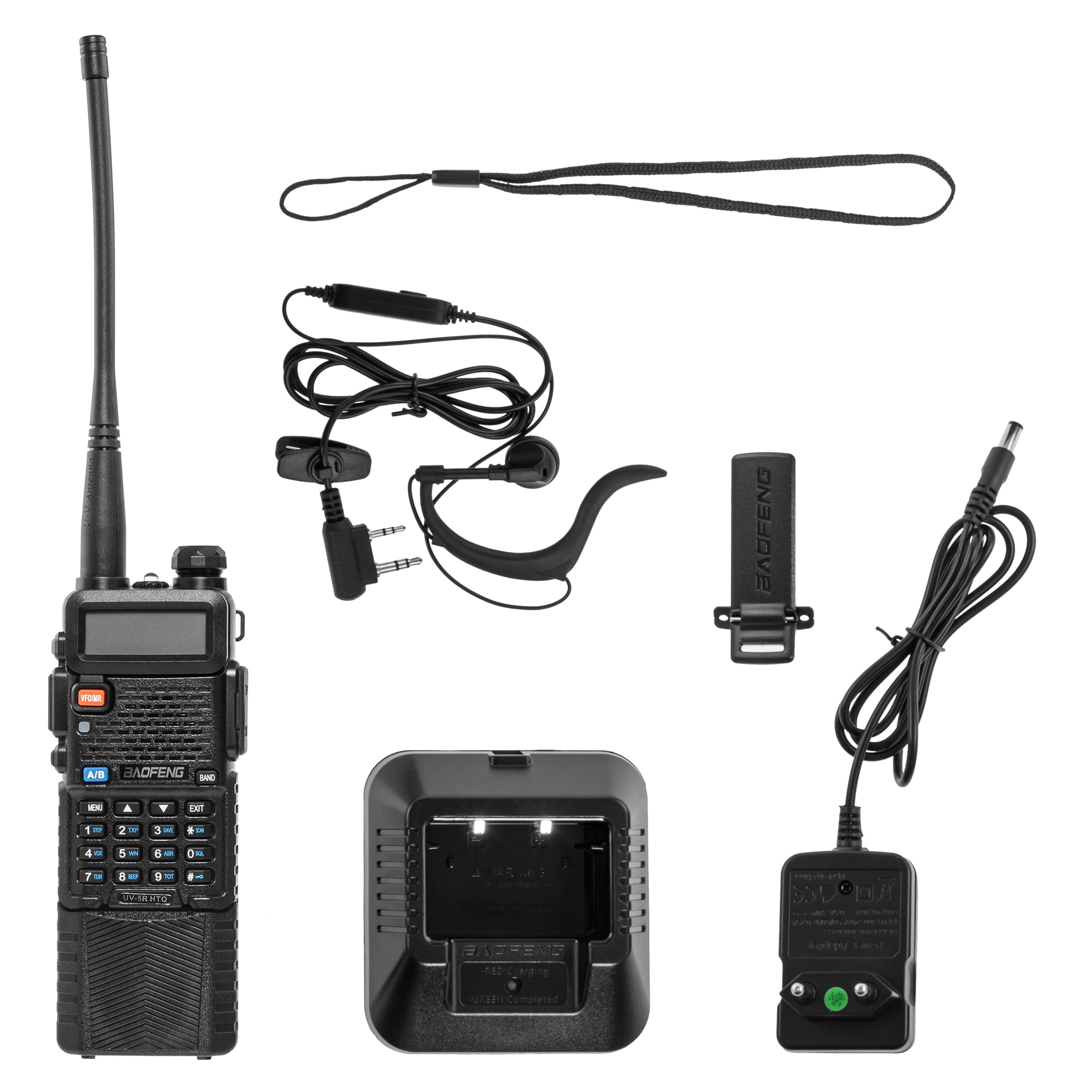

Set elements
- radio telephone
- antenna
- 3800 mAh battery with USB-C socket
- charger
- power supply
- microphone-earpiece
- belt clip
- wrist strap
Main features
- CTCSS and DCS operation
- maximum transmission power up to 5 W
- frequency 144-146 MHz
- FM radio 76-108 MHz
- 3800 mAh battery
- dual frequency monitoring (Dual Watch function)
- voice-activated transmission (VOX function)
- 5 / 6.25 / 10 / 12.5 / 25 kHz step
- large and easy-to-read display
- built-in torch
- battery with USB-C socket
- can be programmed from the keypad or a computer
Technical data
Frequency range:
- 144-146 MHz / 430-440 MHz (Tx/Rx)
Maximum transmission power: 5 W
Number of channels: 128
Power supply: 7.4V 3800 mAh battery
Manufacturer: Baofeng, PRC
| Maximum transmitting power | 5 W |
|---|---|
| VHF frequency range | 144-146 MHz |
| UHF frequency range | 430-440 MHz |
| Number of channels | 128 |
| Antenna | Unscrewable |
| Channel programming option | Yes |
| Channel scanning | No |
| PTT button | Yes |
| Dual Watch | Yes |
| VOX function | Yes |
| CTCSS/DCS (tone coding) | Yes |
| Flashlight | Yes |
| Power type | Interchangable accumulator |
| Display | LCD |
| Keyboard | Yes |
| PTT headset included in the set | Yes |
| FM radio | Yes |
| Body material | Synthetic |
| Accumulator/battery type | 1 x Li-Ion |
| Additional accessories included | Yes |
| Charging port | USB-C |
| Charger in the set | Mains charger |
| EAN | 5905805890786 |
| Manufacturer code | 0 |
| Brand | BaoFeng |
| EAN |
Reviews with photos
Number of reviews: 1
No reviews
-
Confirmed purchase
