Baofeng UV-5R 5W HTQ USB-C Radiotelephone 3800 mAh
Baofeng UV-5R HTQ is a handheld Duobander (dual-band) radio with a maximum power of 5 W. It is equipped with a DMTF keypad, dual LCD display, flashlight, and FM radio. Power is provided by a 3800 mAh lithium-ion battery with a USB-C port for convenient charging.
Dual Watch function, backlit LCD screen
The radio supports the Dual Watch function, allowing you to listen to two channels simultaneously. This allows you to transmit and listen on the main frequency while simultaneously listening to the auxiliary frequency. The HTQ version features improved modulation and increased interference resistance compared to previous models. The backlit LCD display shows not only alphanumeric characters, but also icons indicating the status of functions. The radio is equipped with a 41-item menu, a flashlight, and an FM radio, increasing its functionality in various situations.
The UV-5R HTQ model can be programmed directly from the keypad or via a computer using a USB cable. The software allows you to group contacts and identify them. The VOX function allows you to activate transmission by voice, eliminating the need to press the PTT button.
Durable housing, Li-Ion battery
With a compact design, the device is easy to hold, and its ergonomic key arrangement facilitates one-handed use. The sturdy casing provides protection against tough weather conditions and mechanical damage.
CTCSS and DCS tones
The radio supports CTCSS (Continuous Tone-Coded Squelch System) and DCS (Digital Code Squelch) systems, which filter out unwanted signals, minimizing interference. Thanks to these systems, the user only receives transmissions containing the appropriate tone or code, which significantly improves communication quality, especially in environments with a high density of users.

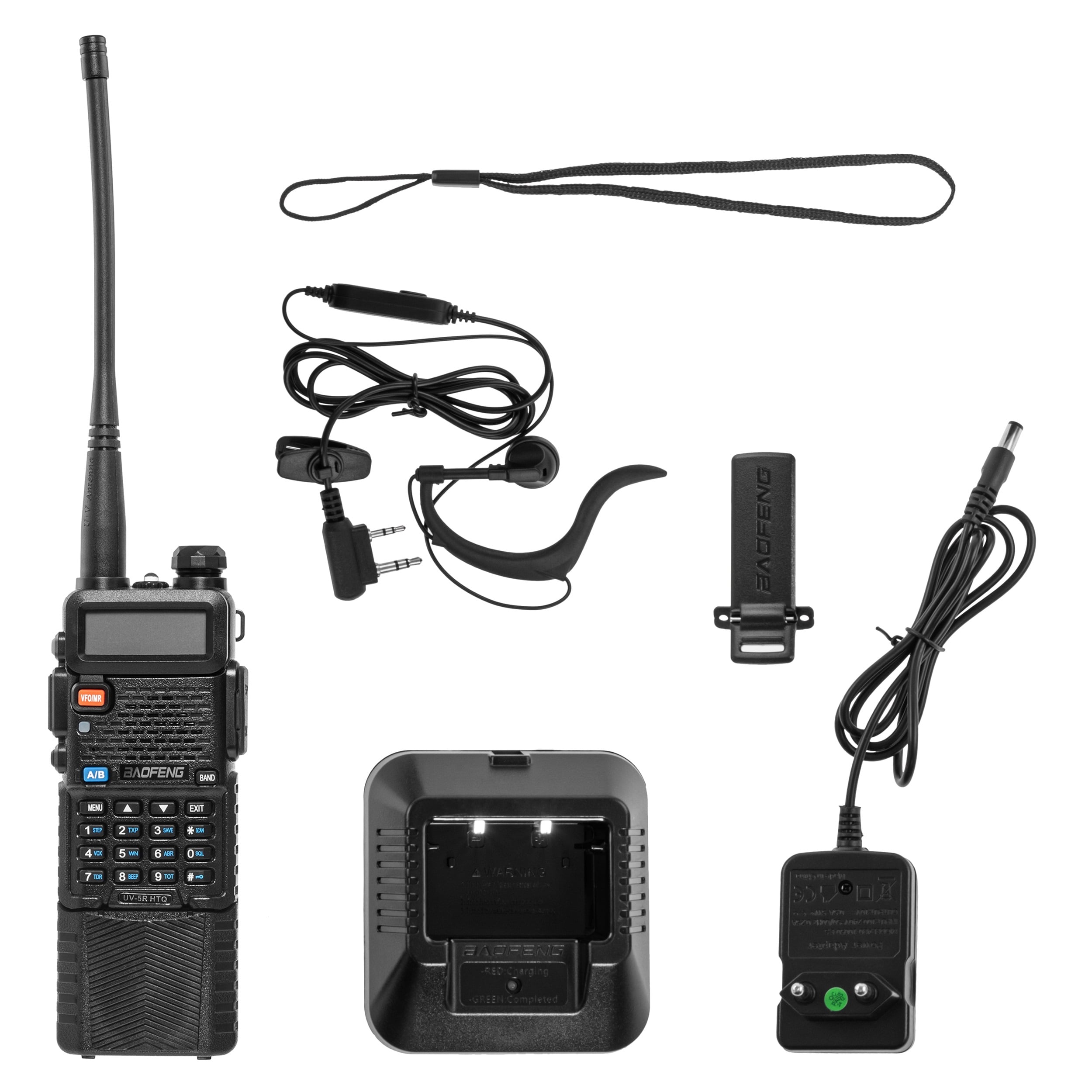

Set elements
- radio telephone
- antenna
- 3800 mAh battery with USB-C port
- charger
- power adapter
- microphone-earpiece
- belt clip
- wrist strap
Main features
- CTCSS and DCS operation
- maximum transmission power up to 5 W
- frequency 144-146 MHz
- FM radio 76-108 MHz
- 3800 mAh battery
- dual frequency monitoring (Dual Watch function)
- voice-activated transmission (VOX function)
- 5 / 6.25 / 10 / 12.5 / 25 kHz step
- large and easy-to-read display
- built-in flashlight
- battery with USB-C port
- can be programmed from the keypad or a computer
Technical data
Frequency range:
- 144-146 MHz / 430-440 MHz (Tx/Rx)
Maximum transmission power: 5 W
Number of channels: 128
Power supply: 7.4V 3800 mAh battery
Manufacturer: Baofeng, PRC
| Maximum transmitting power | 5 W |
|---|---|
| VHF frequency range | 144-146 MHz |
| UHF frequency range | 430-440 MHz |
| Number of channels | 128 |
| Antenna | Unscrewable |
| Channel programming option | Yes |
| Channel scanning | No |
| PTT button | Yes |
| Dual Watch | Yes |
| VOX function | Yes |
| CTCSS/DCS (tone coding) | Yes |
| Flashlight | Yes |
| Power type | Interchangable accumulator |
| Display | LCD |
| Keyboard | Yes |
| PTT headset included in the set | Yes |
| FM radio | Yes |
| Body material | Synthetic |
| Accumulator/battery type | 1 x Li-Ion |
| Additional accessories included | Yes |
| Charging port | USB-C |
| Charger in the set | Mains charger |
| EAN | 5905805890786 |
| Manufacturer code | 0 |
| Brand | BaoFeng |
| EAN |
