Sky-Watcher BK 1206 AZ3 telescope
- description
- technical data
- Reviews
- Goes well with

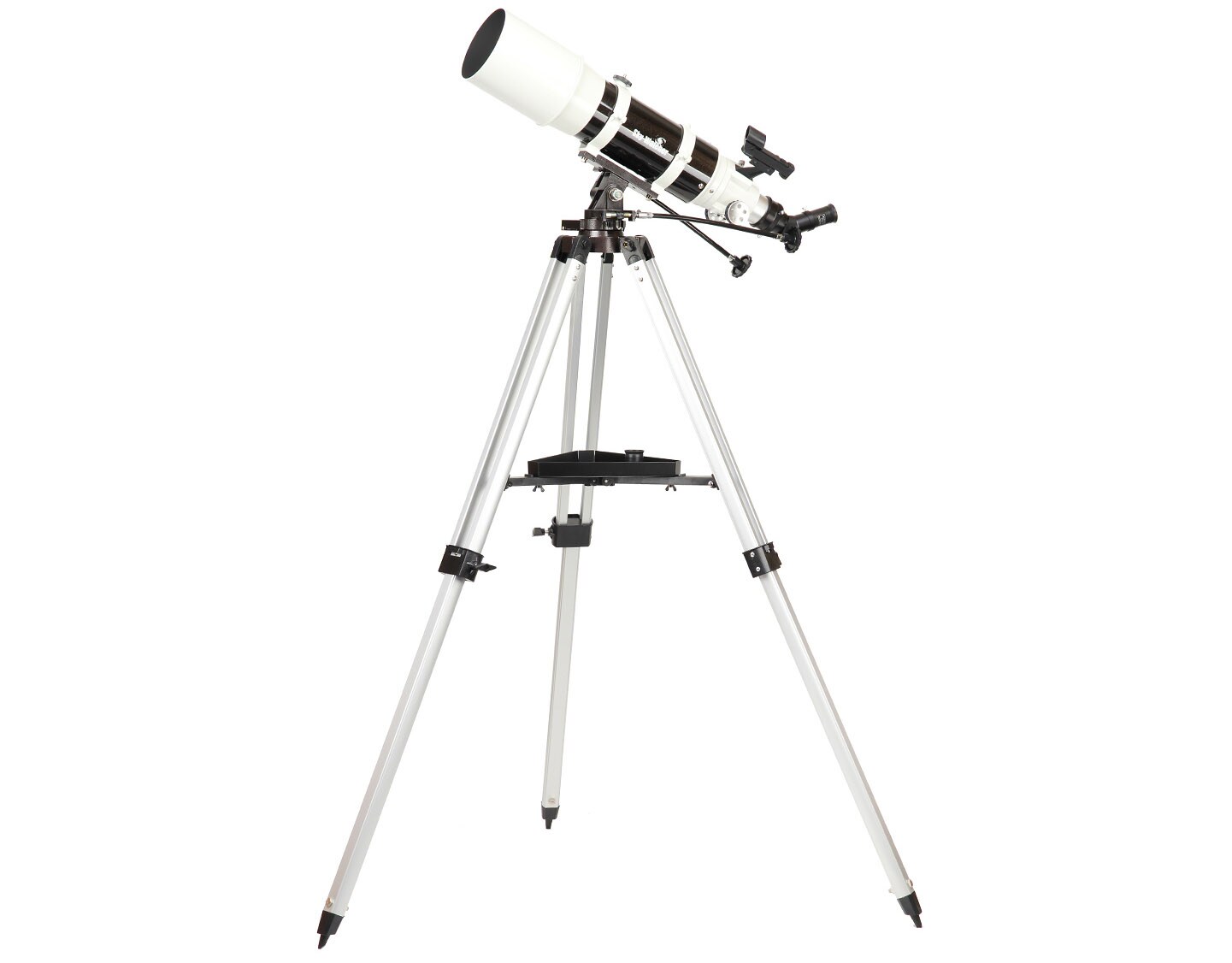

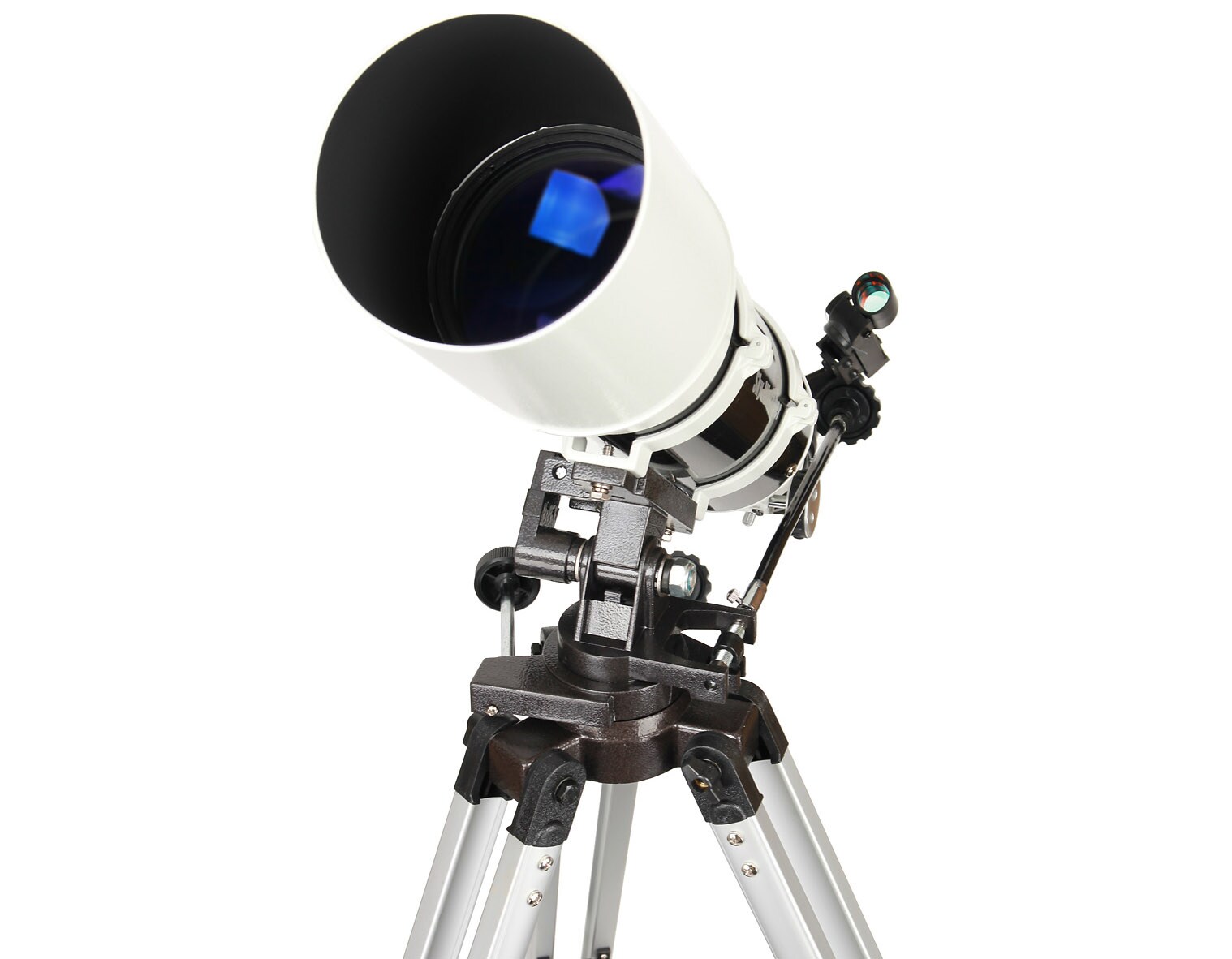

Lenticular telescope with a diameter of 120 mm and a focal length of 600 mm. It is a short-focus achromatic refractor.
It is equipped with a 2" rack and pinion eyepiece focuser. There is a standard Sky-Watcher finder mount on the body of the focuser. The telescope allows observing planets and works well when searching for nebular objects. In addition, it is also possible to use it as a spotting scope.

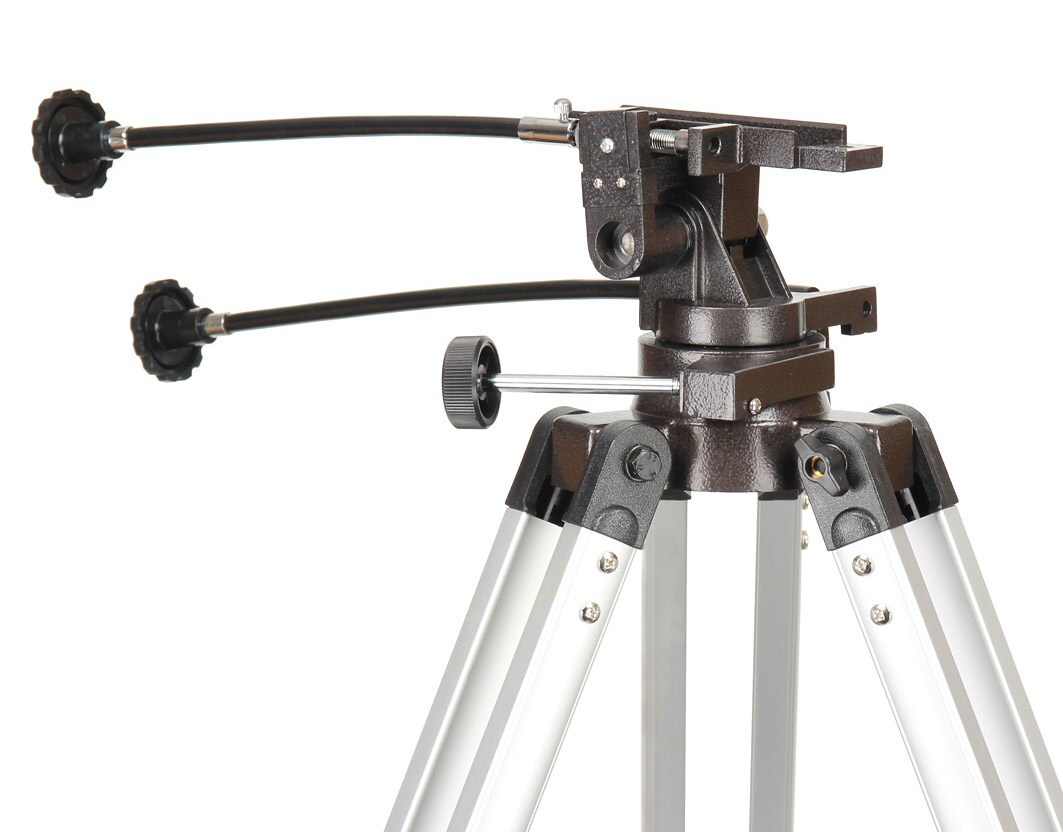

The tube has been suspended on an AZ3 azimuthal mount, whose low weight makes it easy to carry the whole set. Micro-movements allow gentle movement in both axes of the mount. Mounting clamps are included, while it is possible to suspend a camera if you remove them and additionally provide a 1/4" adapter.
Included with the telescope

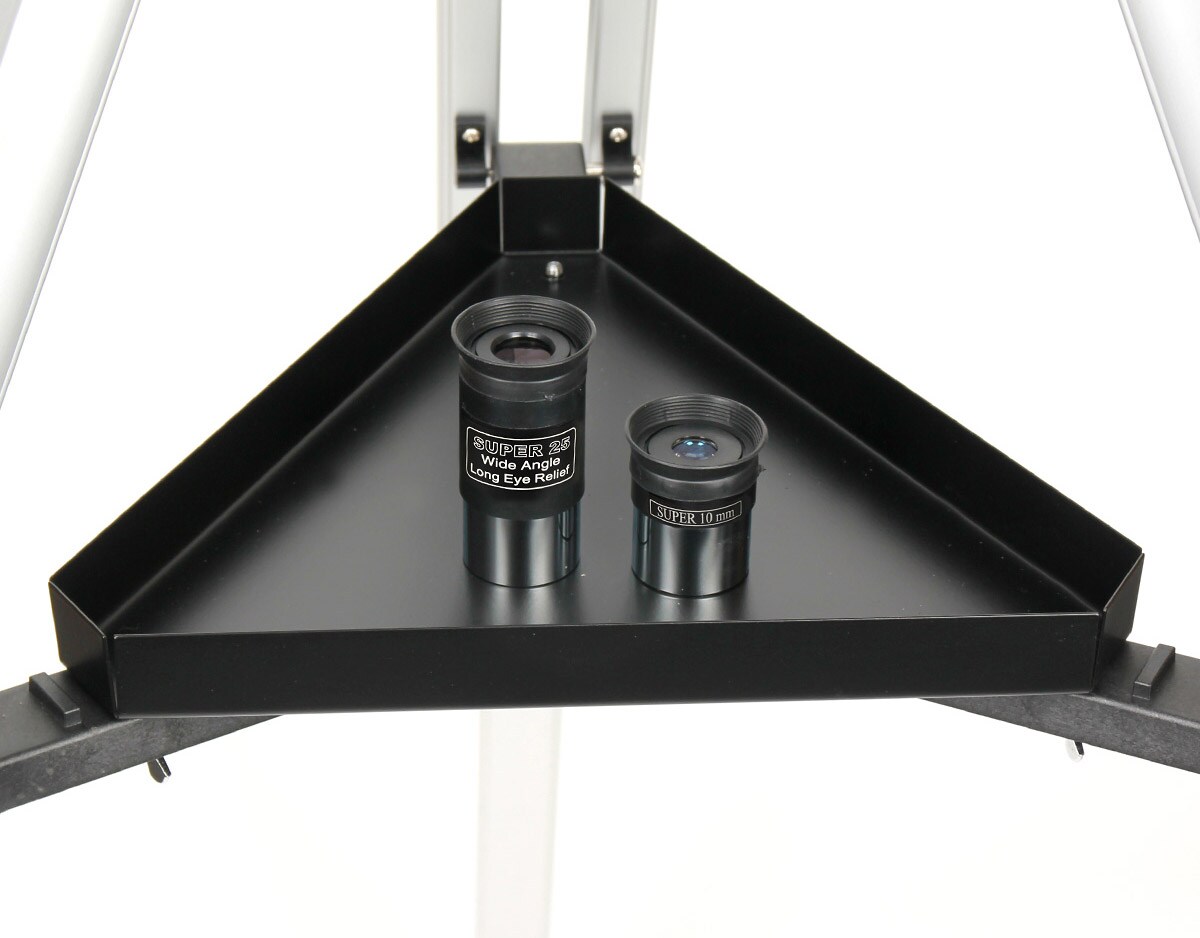

Eyepieces: 1,25" - Super 25, Super 10
Finder: Star Pointer
Angle cap: 1.25" 45°
Technical data
Lens diameter: 120 mm
Optical system of the telescope: refractor
Focal length of the lens: 600 mm
Focal length: 5
Focal length of eyepiece 1: 25 mm
Focal length of eyepiece 2: 10 mm
Finder: red dot (StarPointer)
Mount type: azimuthal
Tripod: aluminum LT1
Highest usable magnification: 240
Smallest useful magnification: 17
Stellar range: 12.7 mag
Resolution (Dawes): 0.97 angular seconds
Collective capacity (compared to the unaided eye): 294
Tube length: 640 mm
Telescope control: micromotion knobs
Magnification with eyepiece 1: 24
Magnification with eyepiece 2: 60
Eyepiece focuser: rack and pinion
Extractor diameter: 2" with 1.25 reduction
Weight of the tube: 3.25 kg
Total weight: 9.2 kg
Manufacturer: Sky-Watcher (Synta), Taiwan
MILITARY is a premium dealer of Sky Watcher.
Sky-Watcher is a brand established in 1999 on the initiative of the Taiwanese company Synta Technology Corporation, currently recognized as the world's largest manufacturer of amateur astronomical equipment. The range includes telescopes suitable for various levels of expertise, from simple models for beginners to advanced solutions such as ED refractors, Esprit series astrographs, and Maksutov designs. Dobsonian telescopes are also highly regarded, including flagship models with mirrors up to 16 inches in diameter, as well as precision EQ8 equatorial mounts, which are popular with astrophotography enthusiasts. Since 2008, the company has been developing unique Flex Tube Dobsonian telescopes with a telescopically extendable tube, which have become one of the most recognizable elements of Sky-Watcher's offer in the world of amateur astronomy.
| Weight | 9,2 kg |
|---|---|
| Objective lens diameter (mm) | 120 |
| Telescope type | Refractor |
| Focal length | 600 mm |
| Lens speed (f/x) | f/5 |
| Maximum magnification | 240x |
| Practical magnification range | 17-240 x |
| Telescope mount | AZ Azimuth |
| Finderscope in the set | Yes, RedDot |
| Limiting magnitude (magnitudo) | 12,7 mag |
| Replacement glasses in the set | Yes |
| Tripod material | Aluminium |
| Tube length | 640 mm |
| EAN | 5901691600096 |
| Manufacturer code | SW-2109 |
| Brand | Sky Watcher |
| EAN |
