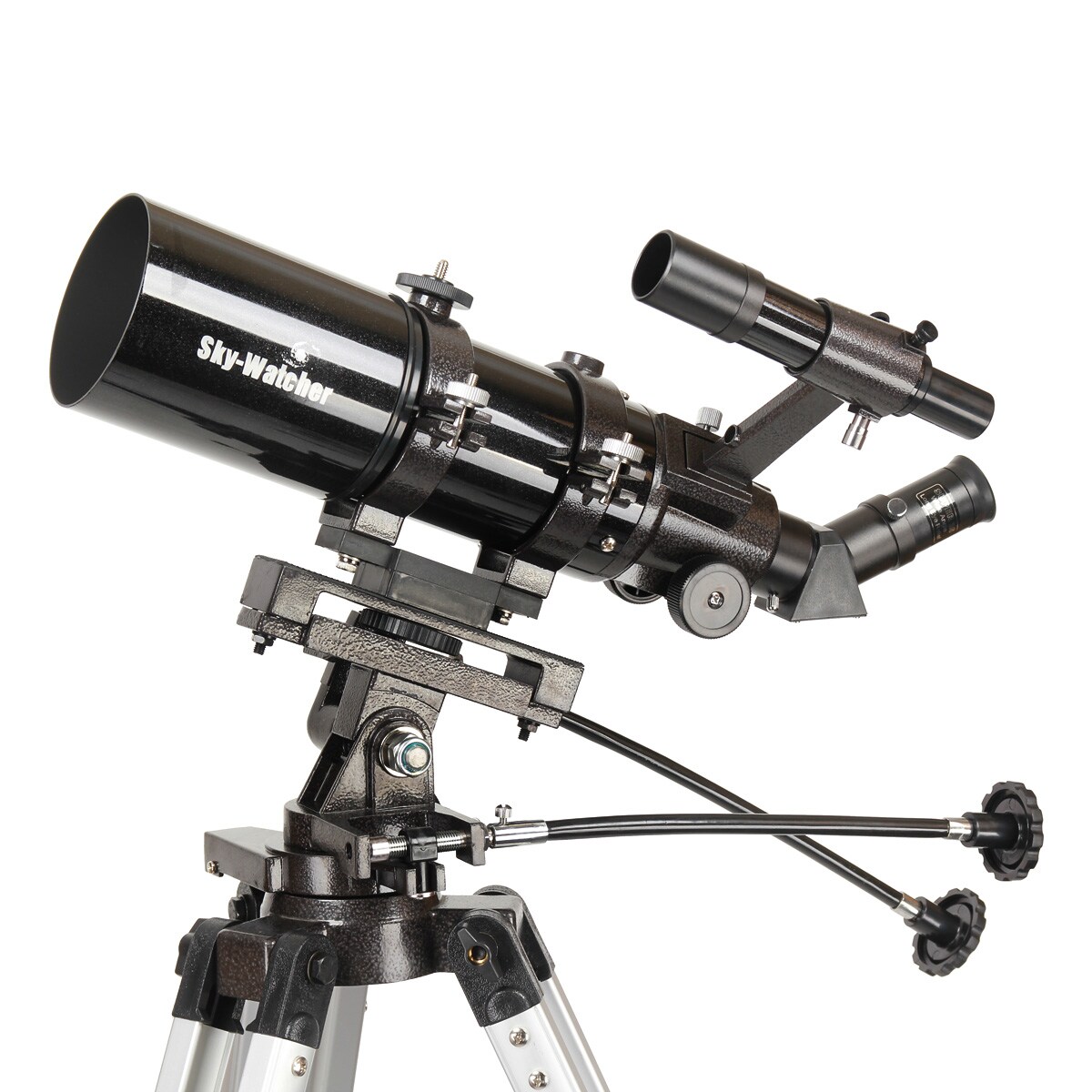

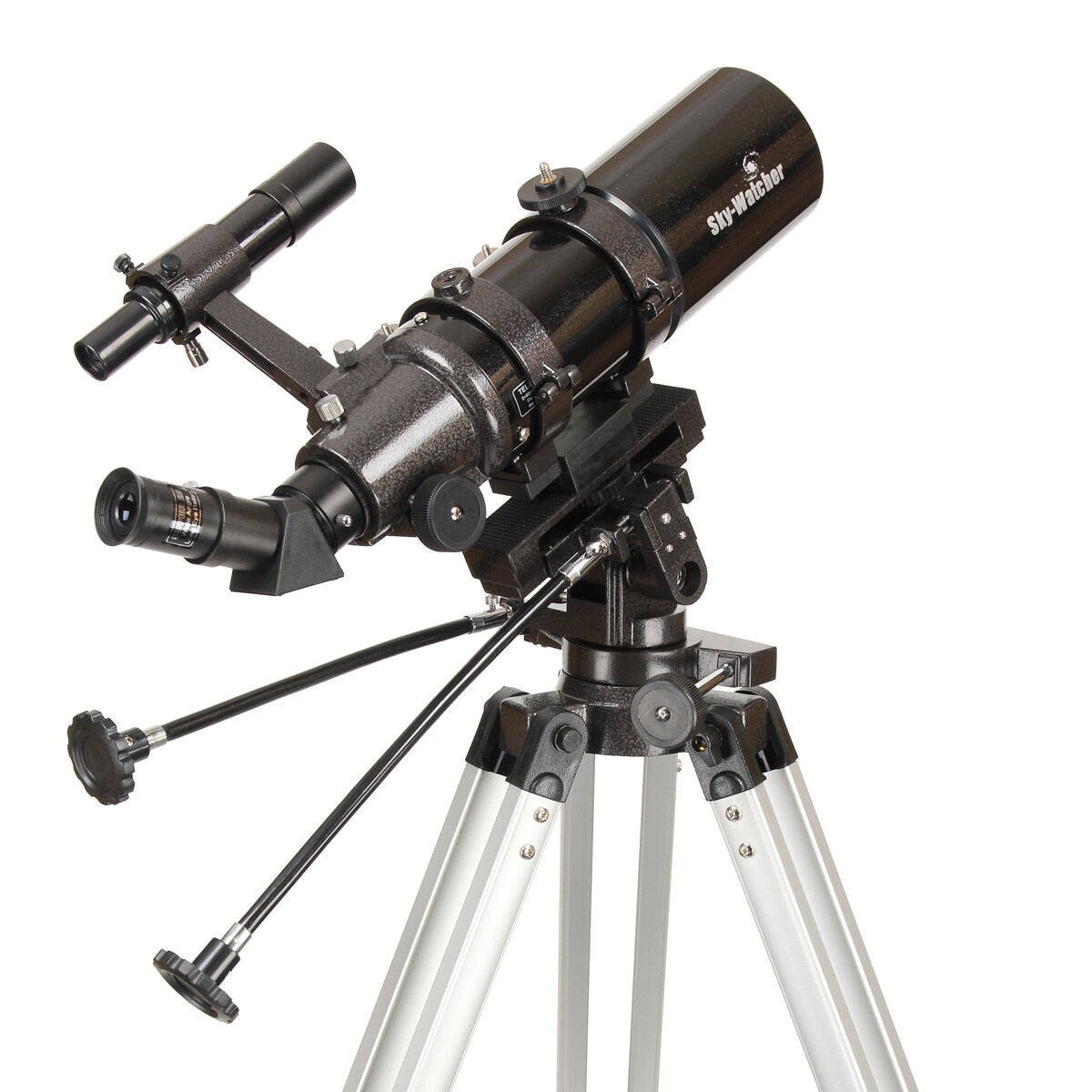

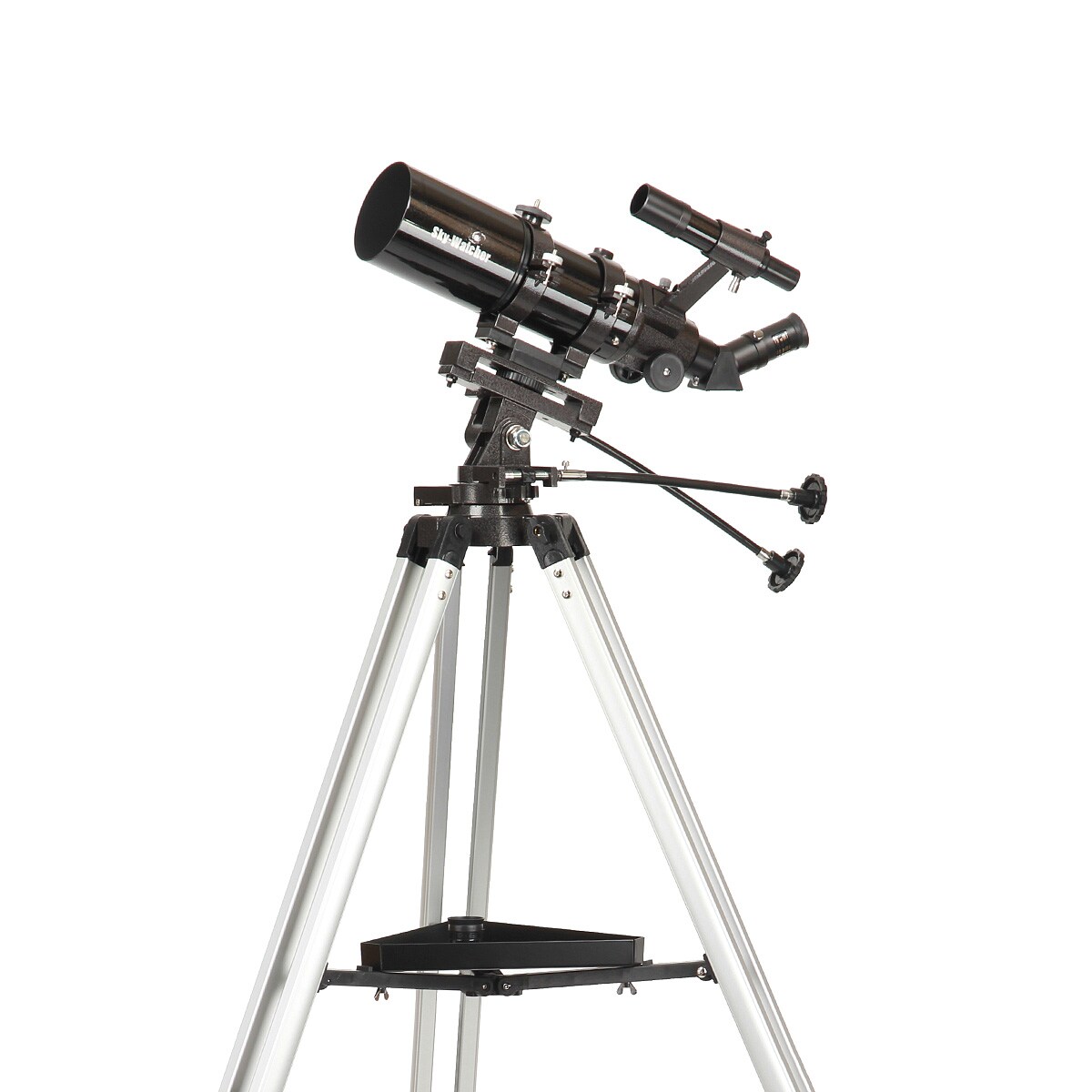

Sky-Watcher BK 804 AZ3 80/400 telescope
- description
- technical data
- Reviews
- Goes well with
Lightweight and small gabbsp;astronomical telescope with diameter of 80mm and short focal length of 400mm. The juxtaposition of these two parameters results in a telescope of rather unusual proportions, short, with a very large focal length of F/5 yet lightweight, causing no problems when suspended on an AZ3 mount.
Optical System

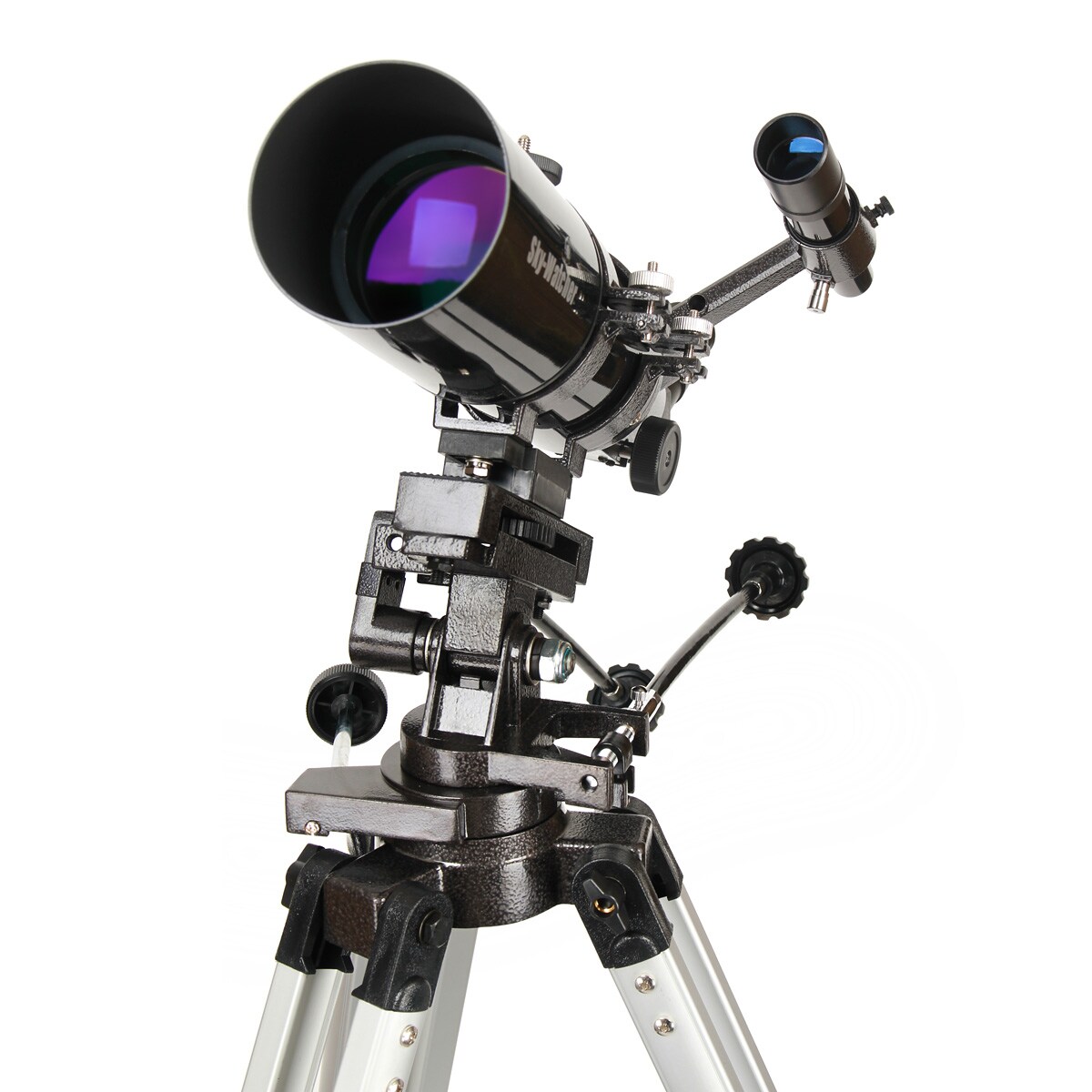

The 804AZ3 telescope is a lens telescope, a refractor, equipped with a two-element lens (achromatic doublet). It is a telescope with quite unprecedented optical performance. Focal length of 400mm with a diameter of 80mm gives luminosity of f/5. Such a telescope allows you to obtain the full spectrum of magnifications using available 1.25" eyepieces.
Mounting
The telescope uses an AZ3 azimuthal mount. It is a fairly large yet lightweight design that allows the telescope to be rotated vertically and horizontally which is very convenient for landscape observations. The light weight of the mount makes it easy to carry the whole set. In both axes the mount has micro-movements allowing you to gently move the telescope's field of view.
This mount comes complete with telescope mounting clamps, after removing them and purchasing an optional 1/4" adapter it is possible to suspend an ordinary camera or a landscape telescope.
Eyepiece Extractor

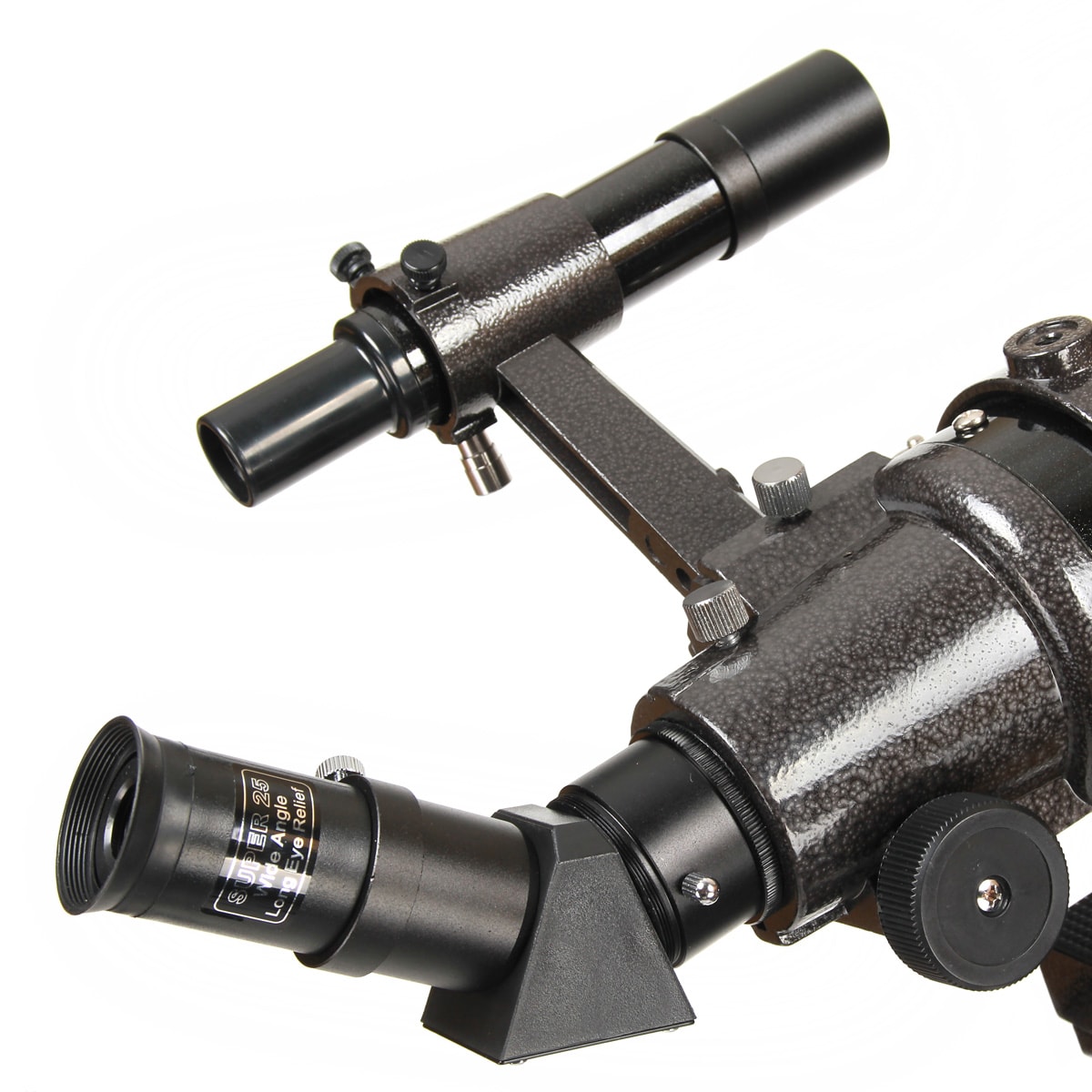

The telescope is equipped with a standard 1.25" eyepiece extractor. It is a rack-and-pinion (so-called Rack&Pinion) extractor. This extractor is terminated by a mount with an angle cap mounting screw. A 45" prismatic angle cap in standard 1.25" is included. The telescope gives an earthly, non-reversed image. This focuser is compatible with the Sky-Watcher focuser drive.
Technical specifications:
Optical system: achromatic refractor
Mirror diameter: 80 mm
Focal length: 400 mm
Light intensity: f/5
Range: 12.2 mag
Eyepiece focuser: 1.25"
Mount: AZ3 azimuthal
Weight of optical tube: 1.5 kg
Manufacturer: Sky Watcher, Taiwan
MILITARY is a premium dealer of Sky Watcher.
Sky-Watcher is a brand established in 1999 on the initiative of the Taiwanese company Synta Technology Corporation, currently recognized as the world's largest manufacturer of amateur astronomical equipment. The range includes telescopes suitable for various levels of expertise, from simple models for beginners to advanced solutions such as ED refractors, Esprit series astrographs, and Maksutov designs. Dobsonian telescopes are also highly regarded, including flagship models with mirrors up to 16 inches in diameter, as well as precision EQ8 equatorial mounts, which are popular with astrophotography enthusiasts. Since 2008, the company has been developing unique Flex Tube Dobsonian telescopes with a telescopically extendable tube, which have become one of the most recognizable elements of Sky-Watcher's offer in the world of amateur astronomy.
| Objective lens diameter (mm) | 80 |
|---|---|
| Telescope type | Refractor |
| Focal length | 400 mm |
| Lens speed (f/x) | f/5 |
| Telescope mount | AZ Azimuth |
| Limiting magnitude (magnitudo) | 12,2 mag |
| EAN | 5901691600072 |
| Manufacturer code | SW-2105 |
| Brand | Sky Watcher |
| EAN |
