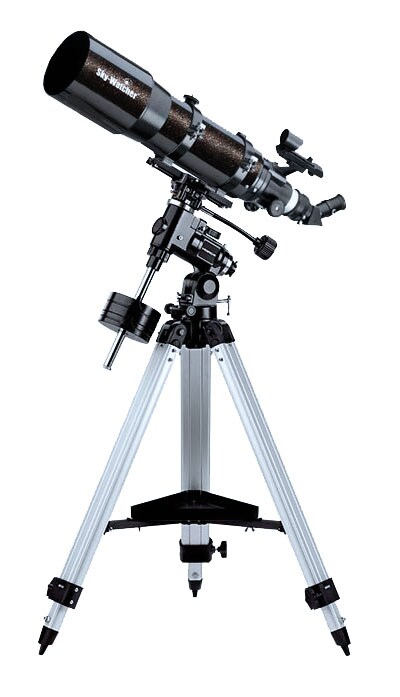

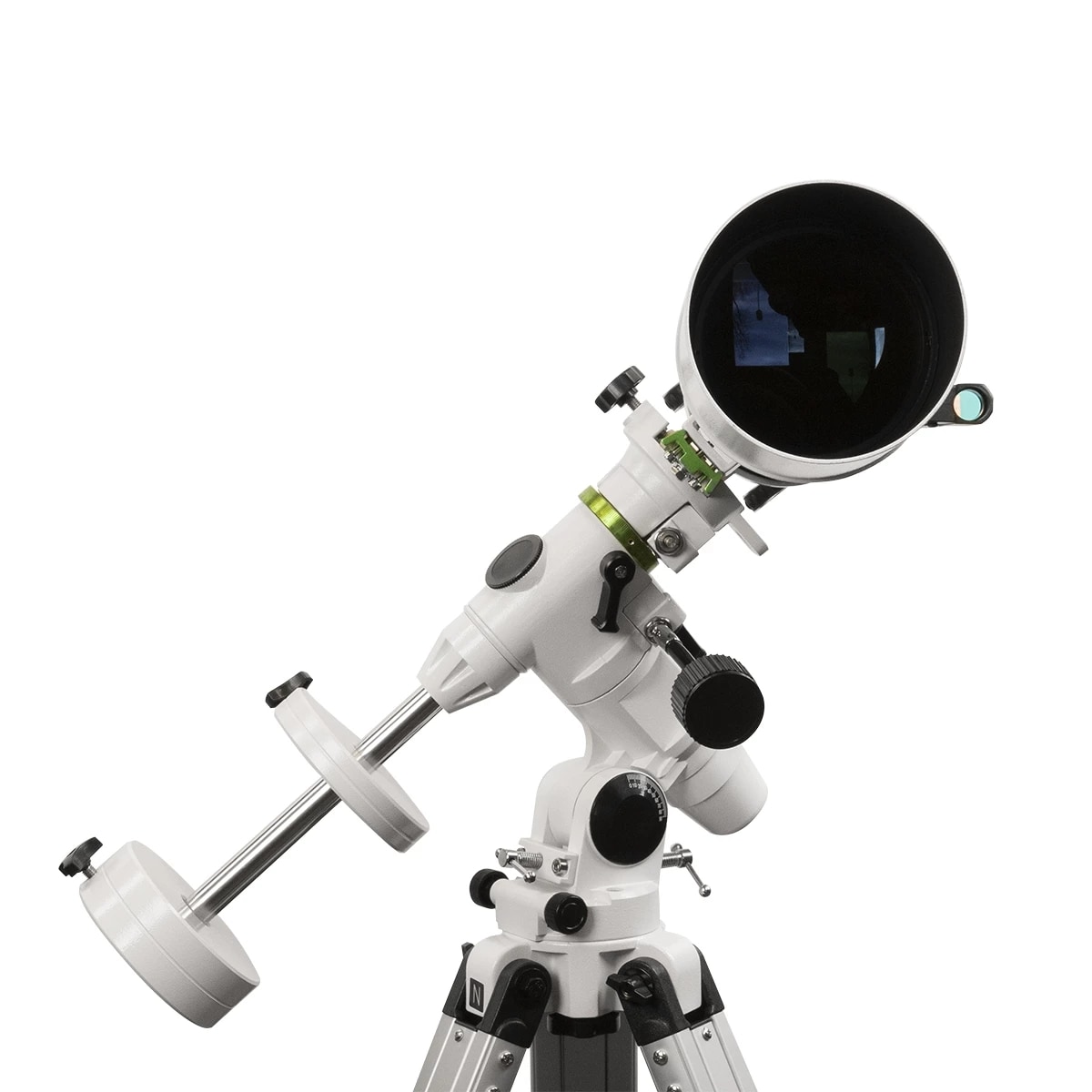

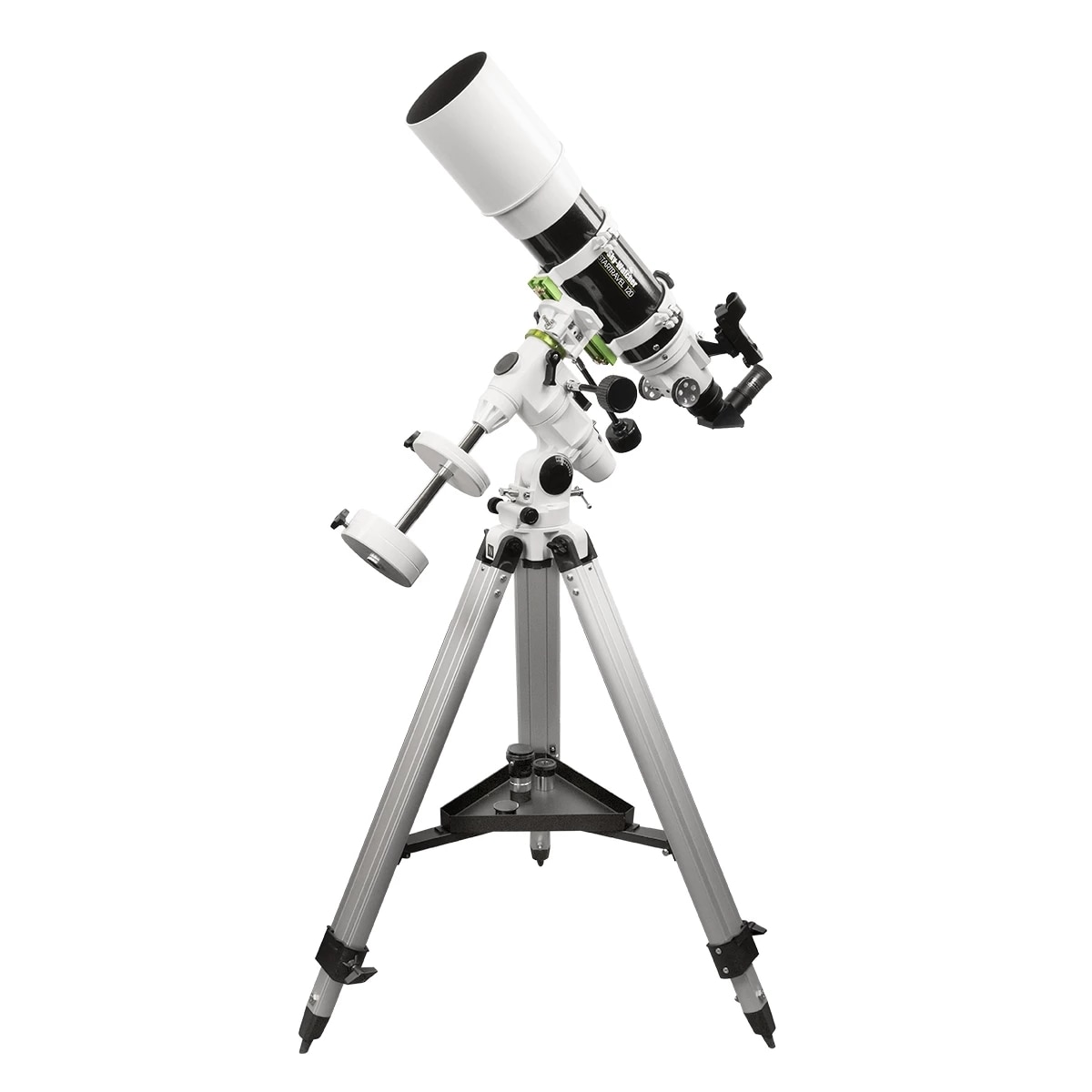

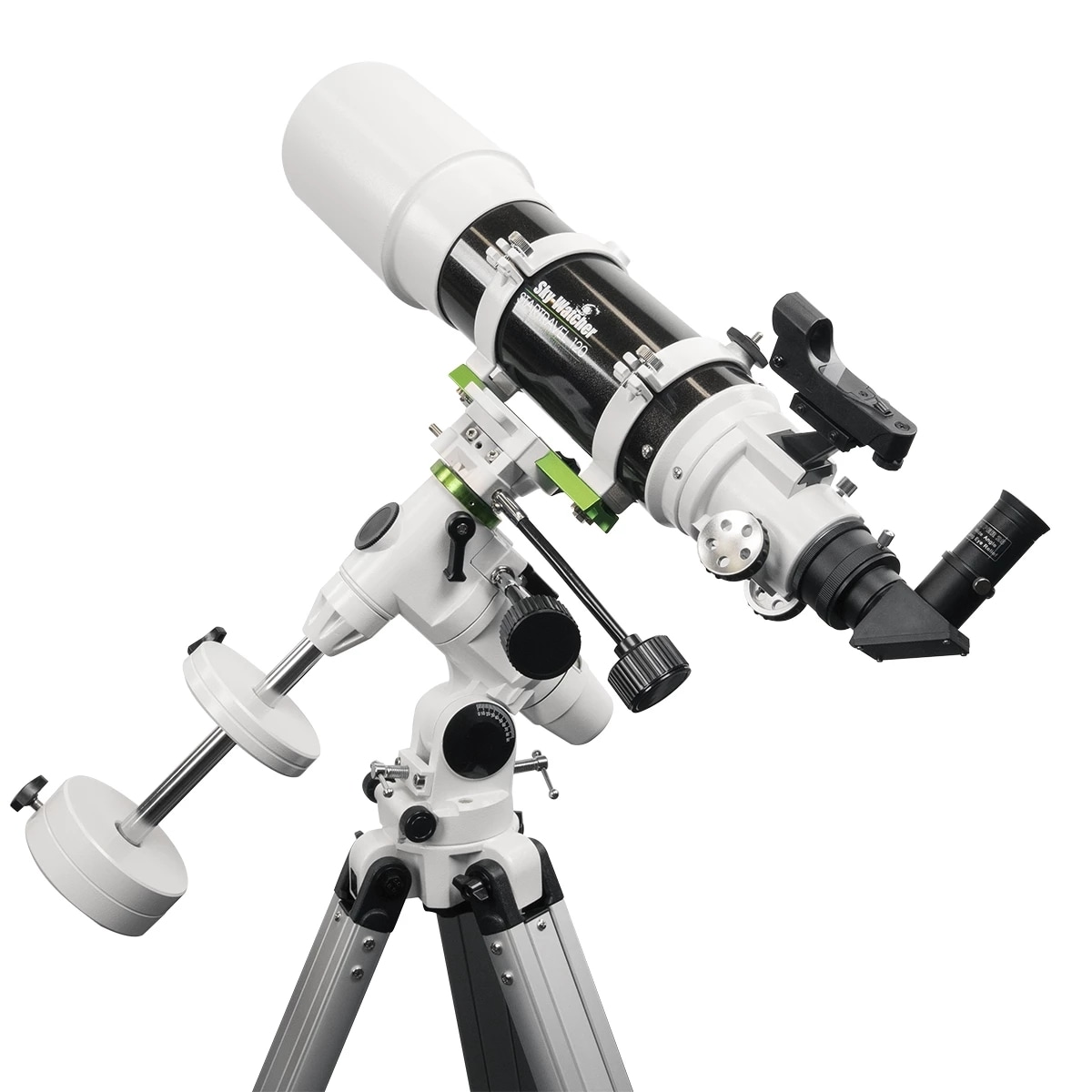

Sky-Watcher (Synta) BK1206EQ3-2 Telescope
- description
- technical data
- Reviews
- Goes well with
A short focal length lenticular telescope suspended on an EQ3-2 parallactic mount.
This telescope has a fairly large aperture, relatively small dimensions and is suitable for first attempts with astrophotography as long as it is equipped with a suitable drive. Due to its large aperture, moderate focal length, it is a piece of equipment suitable for simple astrophotography with relatively short exposure times.
Optical system
The telescope is built in a lensing system as a short-focus refractor with a large aperture. The two-element Fraunhofer objective lens has a diameter of 120 mm and a focal length of 600 mm. Anti-reflection coatings have been applied to the optical surfaces to guarantee good transmission and contrast . The set includes a 90-degree mirror angle cap and Kellner eyepieces - 10 mm and 25 mm.
Mounting
The telescope's tube is mounted on a stable EQ3-2 parallactic mount. This is a relatively massive structure, sufficient to photograph the sky with telescopes up to 150mm in diameter, but at the same time light enough to consider such equipment quite mobile. The mount is equipped with precise micromotions, moreover, it is possible to connect quite advanced drives such as SynScan GoTo (so-called Upgrade Kit EQ3-2). The EQ3-2 mount allows you to attach telescopes equipped with a Vixen standard Dovetail mount rail.
Extractor
Rack&Pinion type eyepiece focuser (rack & pinion focuser). This focuser is terminated by a mounting ring with screws for clamping 2-inch accessories. There is a standard Sky-Watcher finder mount on the body of the focuser, and the focuser is compatible with Sky-Watcher focuser drives.
Technical specifications
Optical system: refractor
Lens diameter: 120 mm
Focal length: 600 mm
Focal length: f/5
Range: 13.1 mag
Ocular focuser: 2" with 1.25" reduction
Tripod: aluminum LT1
Mount: parallactic EQ3-2
Tripod height: 71-123 cm
Weight: 16.5 kg
Manufacturer: Sky Watcher (Synta), Taiwan
MILITARY is a premium dealer of Sky Watcher.
Sky-Watcher is a brand established in 1999 on the initiative of the Taiwanese company Synta Technology Corporation, currently recognized as the world's largest manufacturer of amateur astronomical equipment. The range includes telescopes suitable for various levels of expertise, from simple models for beginners to advanced solutions such as ED refractors, Esprit series astrographs, and Maksutov designs. Dobsonian telescopes are also highly regarded, including flagship models with mirrors up to 16 inches in diameter, as well as precision EQ8 equatorial mounts, which are popular with astrophotography enthusiasts. Since 2008, the company has been developing unique Flex Tube Dobsonian telescopes with a telescopically extendable tube, which have become one of the most recognizable elements of Sky-Watcher's offer in the world of amateur astronomy.
| Weight | 16,5 kg |
|---|---|
| Objective lens diameter (mm) | 120 |
| Telescope type | Refractor |
| Focal length | 600 mm |
| Lens speed (f/x) | f/5 |
| Maximum magnification | 240x |
| Telescope mount | Parallactic EQ |
| Finderscope in the set | Yes, optical |
| Limiting magnitude (magnitudo) | 13,1 mag |
| Replacement glasses in the set | Yes |
| Tripod material | Aluminium |
| Tube length | 640 mm |
| EAN | 5901691622074 |
| Manufacturer code | SW-2207 |
| Brand | Sky Watcher |
