Sky-Watcher BK 909 EQ2 90/900 Telescope
- description
- technical data
- Reviews
- Goes well with

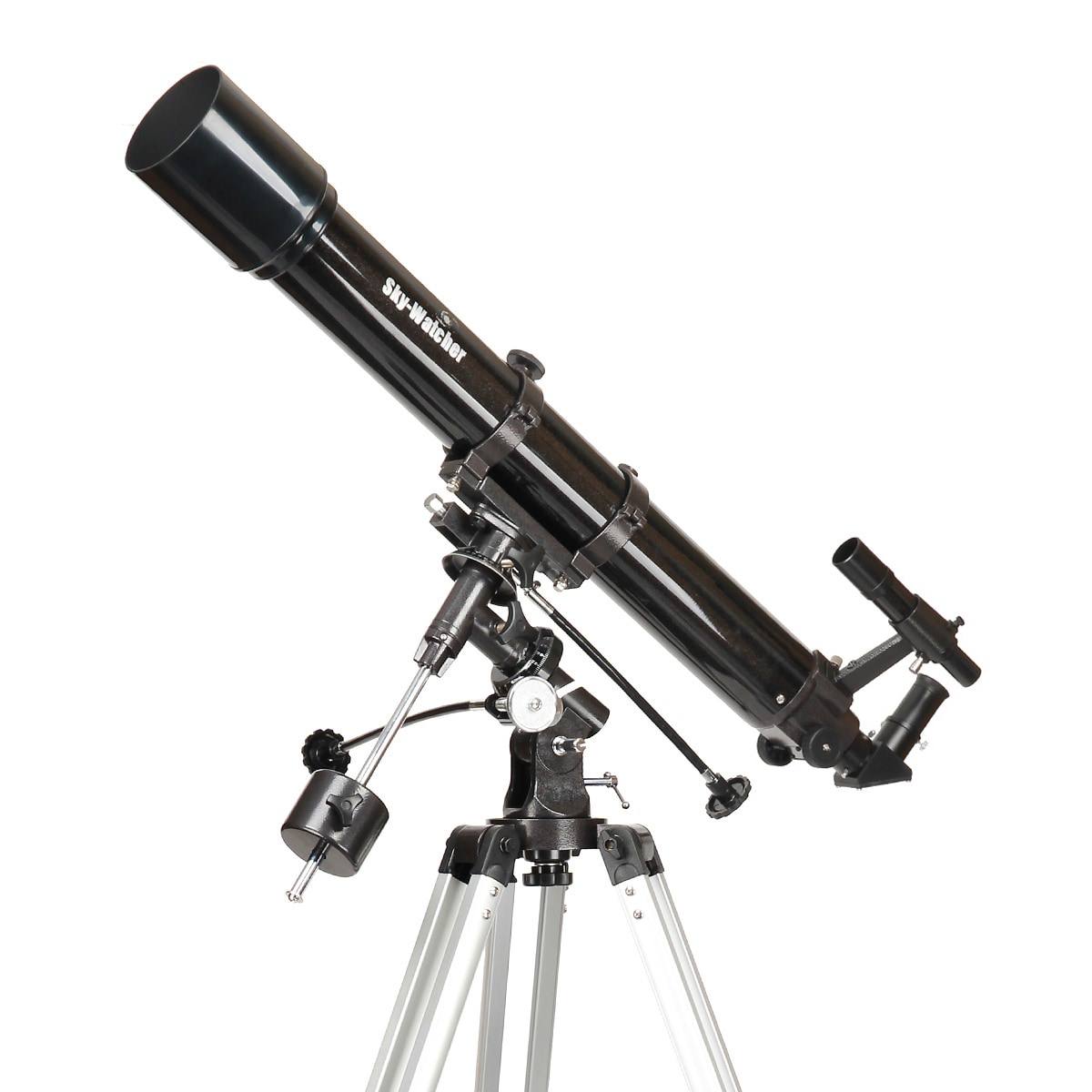

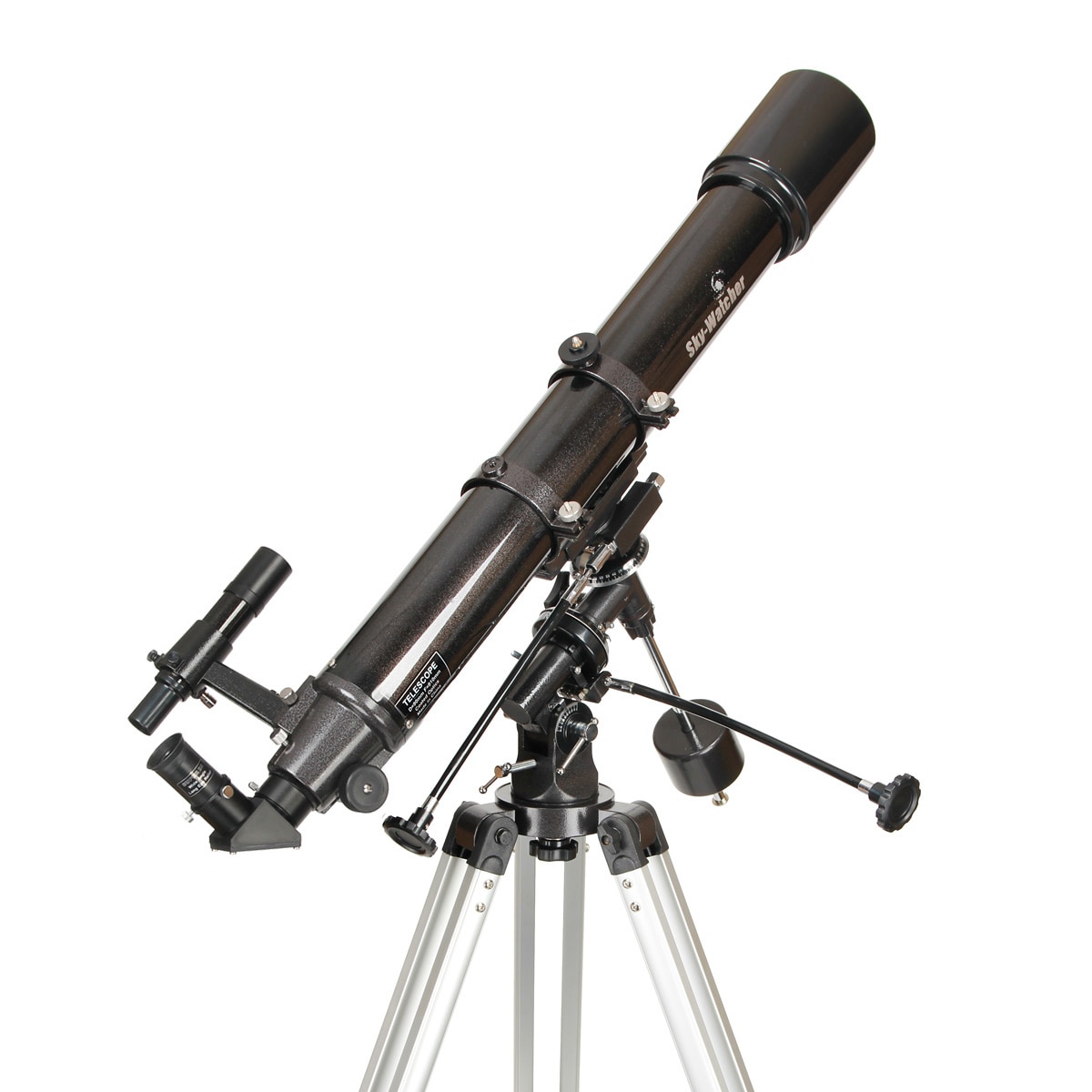

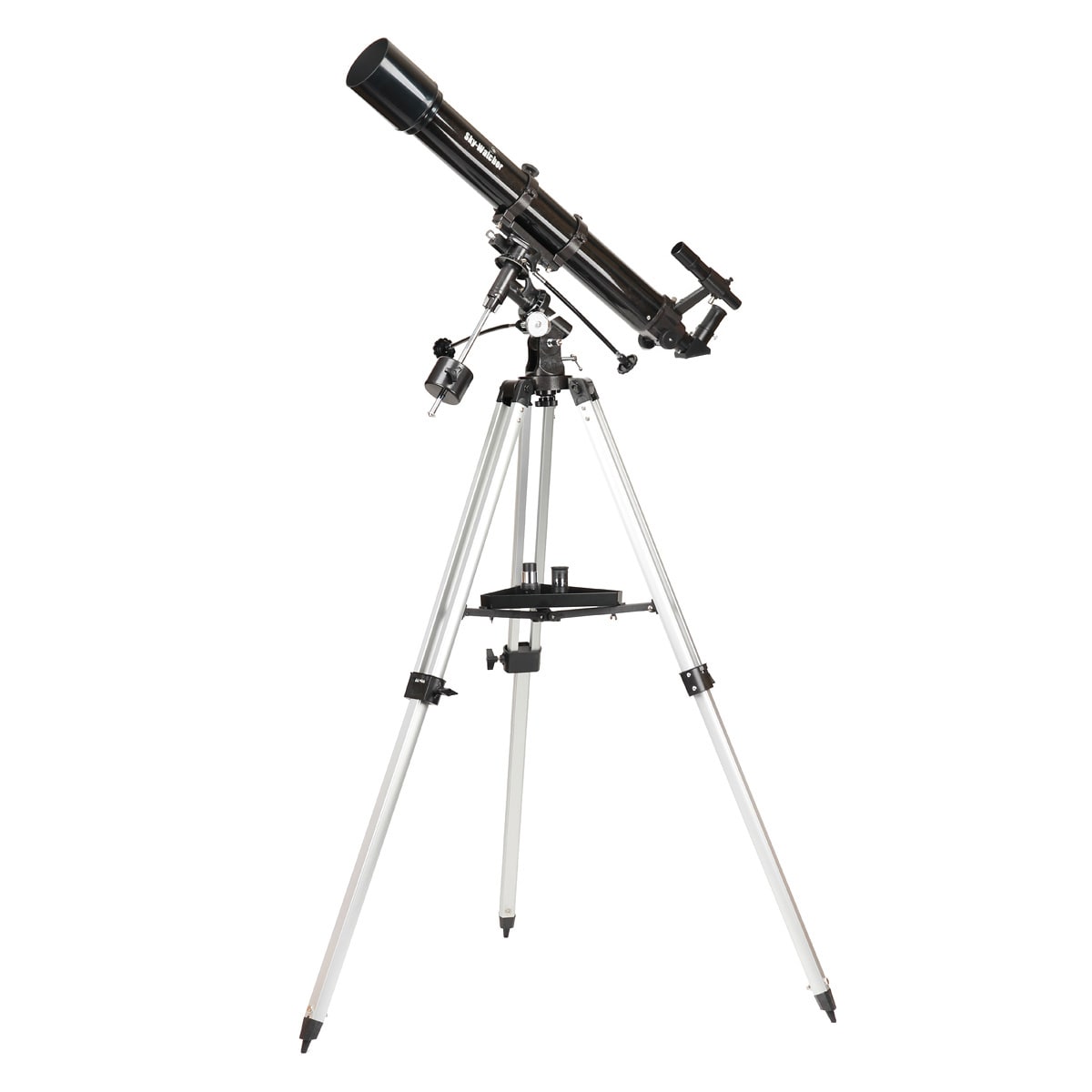

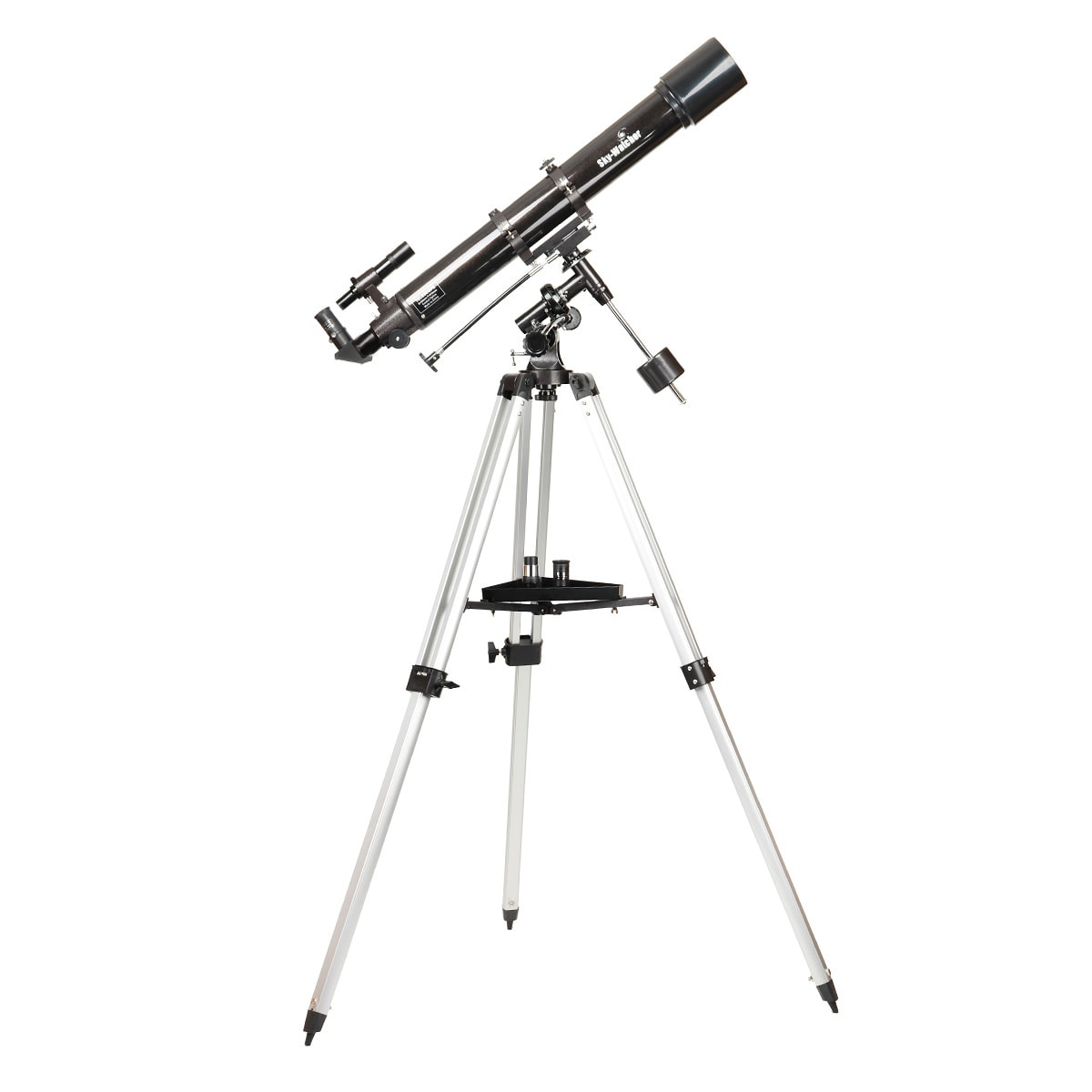

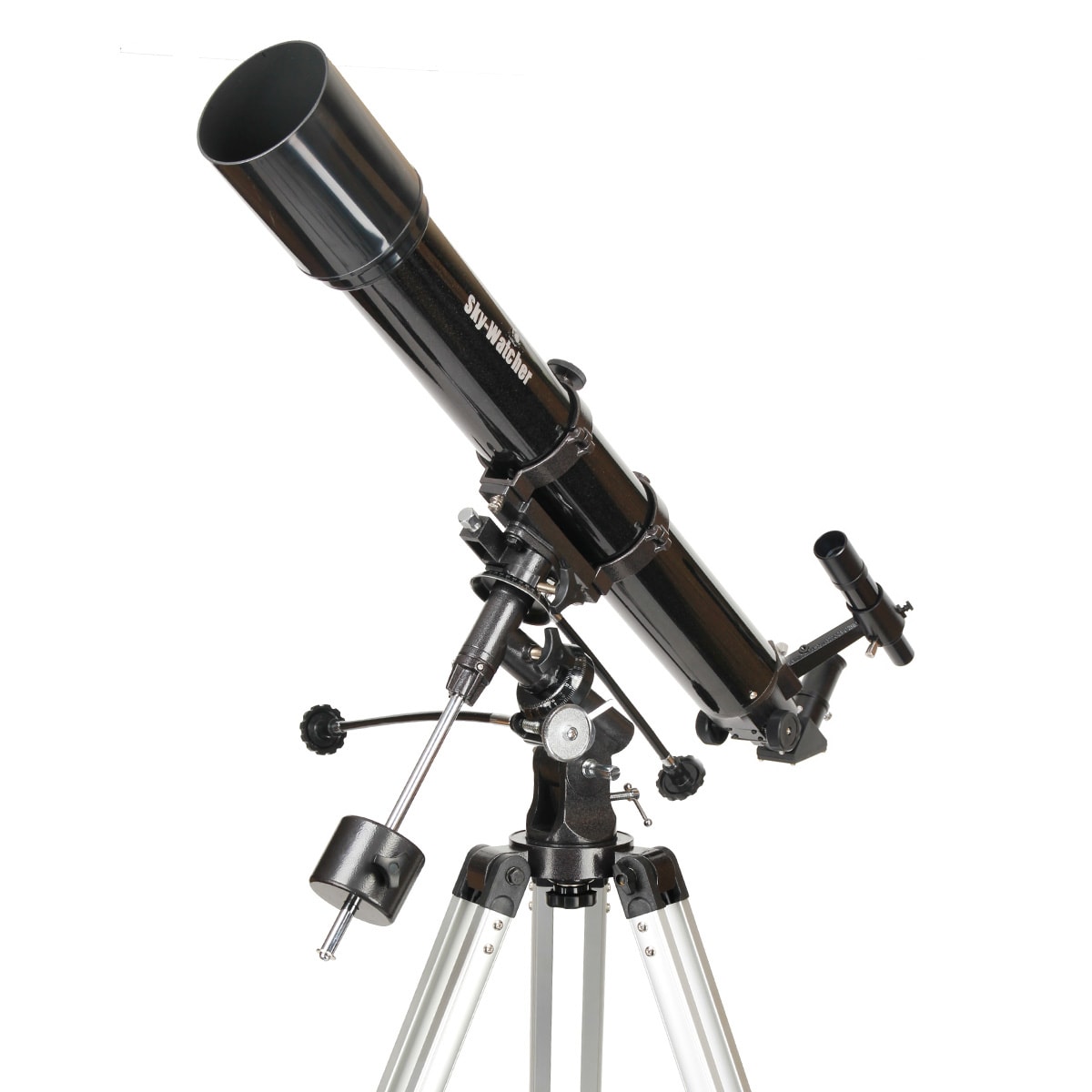

BK909EQ2 is a 90-millimeter achromatic refractor with an f/10 light intensity and a focal length of 900mm. Equipped with a good quality 6x30 finder. The tube is suspended on an EQ2 parallactic mount, this mount allows convenient manual tracking of objects (it is also possible to mount an optional electric drive)
Optical system
The BK909EQ2 telescope is a classic achromatic refractor. It is equipped with an olens objective lens with a diameter of 90mm and a focal length of 900mm. The objective lens' light intensity is equal to f/10. On the eyepiece focuser side, the optical axis includes a 90-degree mirror angle cap, 2 Kellner system eyepieces with focal lengths of 10mm and 25mm, and a Barlow lens.
Mounting
The telescope is suspended on a EQ2 parallactic mount. The axes of the mount are tilted in such a way that one of the axes is directed to the celestial pole, near the Pole Star. When properly set up, objects in the sky move in the field of view in such a way that they can be tracked in one axis, without having to make adjustments in the other plane. Two types of drives can be connected to the mount, allowing the celestial sphere to be tracked.

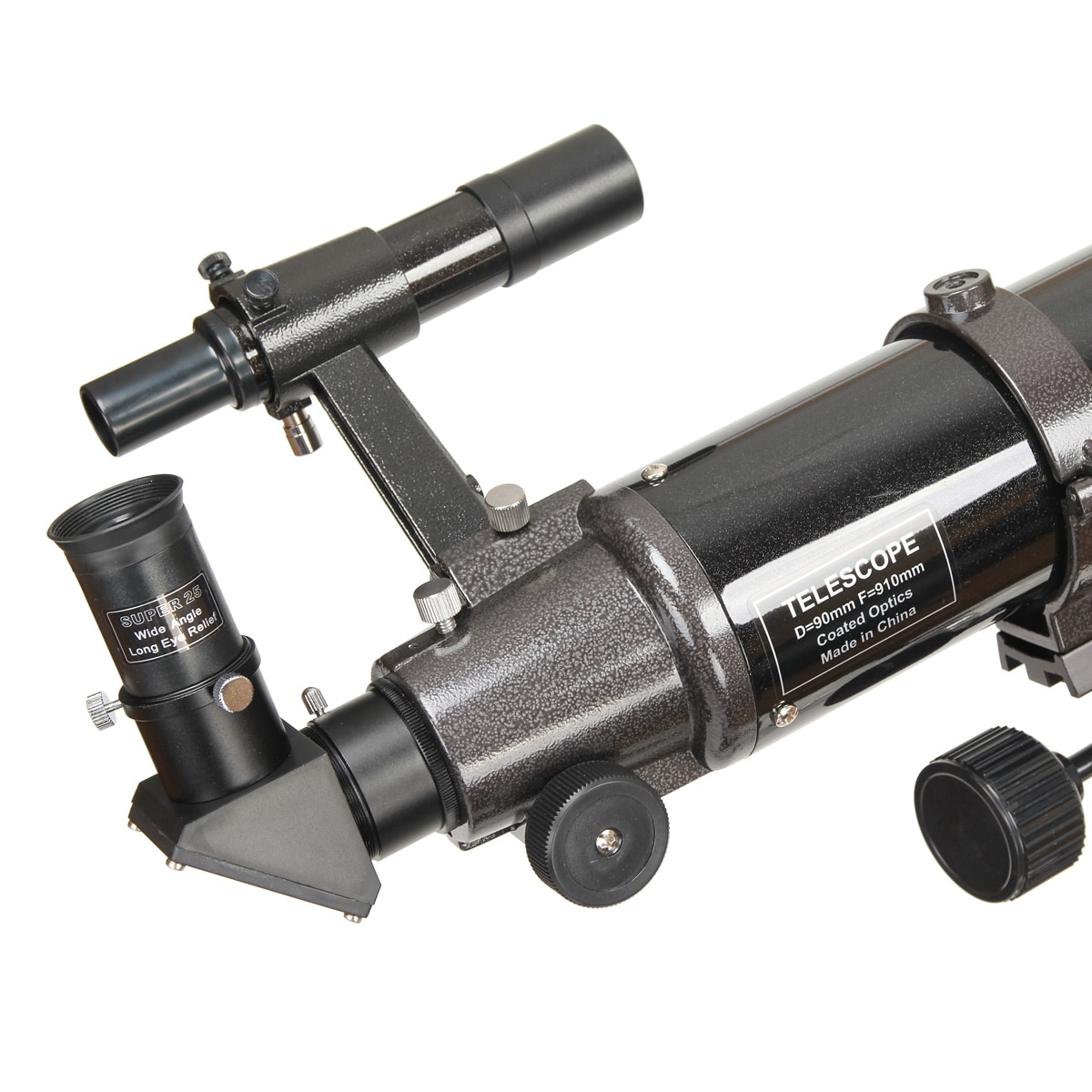

Objective focuser
The telescope is equipped with a standard 1.25" eyepiece extractor. It is a rack-and-pinion (so-called Rack&Pinion) focuser. This extractor is terminated by a mount with an angle cap mounting screw. A 90-degree mirror angle cap in 1.25" standard is included in the set. This focuser is compatible with the Sky-Watcher focuser drive.
Technical data
Optical system: refractor
Lens diameter: 90 mm
Focal length: 900 mm
Light intensity: f/10
Range: 12.5 mag
Eyepiece focuser: 1.25"
Mount: parallactic EQ2
Tripod: LT1 aluminum
Optical tube dimensions: 9x91 cm
Tripod height: 71-123 cm
Net weight: 11.7 kg
Manufacturer: Sky Watcher, PRC
MILITARY is a premium dealer of Sky Watcher.
Sky-Watcher is a brand established in 1999 on the initiative of the Taiwanese company Synta Technology Corporation, currently recognized as the world's largest manufacturer of amateur astronomical equipment. The range includes telescopes suitable for various levels of expertise, from simple models for beginners to advanced solutions such as ED refractors, Esprit series astrographs, and Maksutov designs. Dobsonian telescopes are also highly regarded, including flagship models with mirrors up to 16 inches in diameter, as well as precision EQ8 equatorial mounts, which are popular with astrophotography enthusiasts. Since 2008, the company has been developing unique Flex Tube Dobsonian telescopes with a telescopically extendable tube, which have become one of the most recognizable elements of Sky-Watcher's offer in the world of amateur astronomy.
| Objective lens diameter (mm) | 90 |
|---|---|
| Telescope type | Refractor |
| Focal length | 900 mm |
| Lens speed (f/x) | f/10 |
| Telescope mount | Parallactic EQ |
| Limiting magnitude (magnitudo) | 12,5 mag |
| Tripod material | Aluminium |
| EAN | 5901691600041 |
| Manufacturer code | SW-2204 |
| Brand | Sky Watcher |
