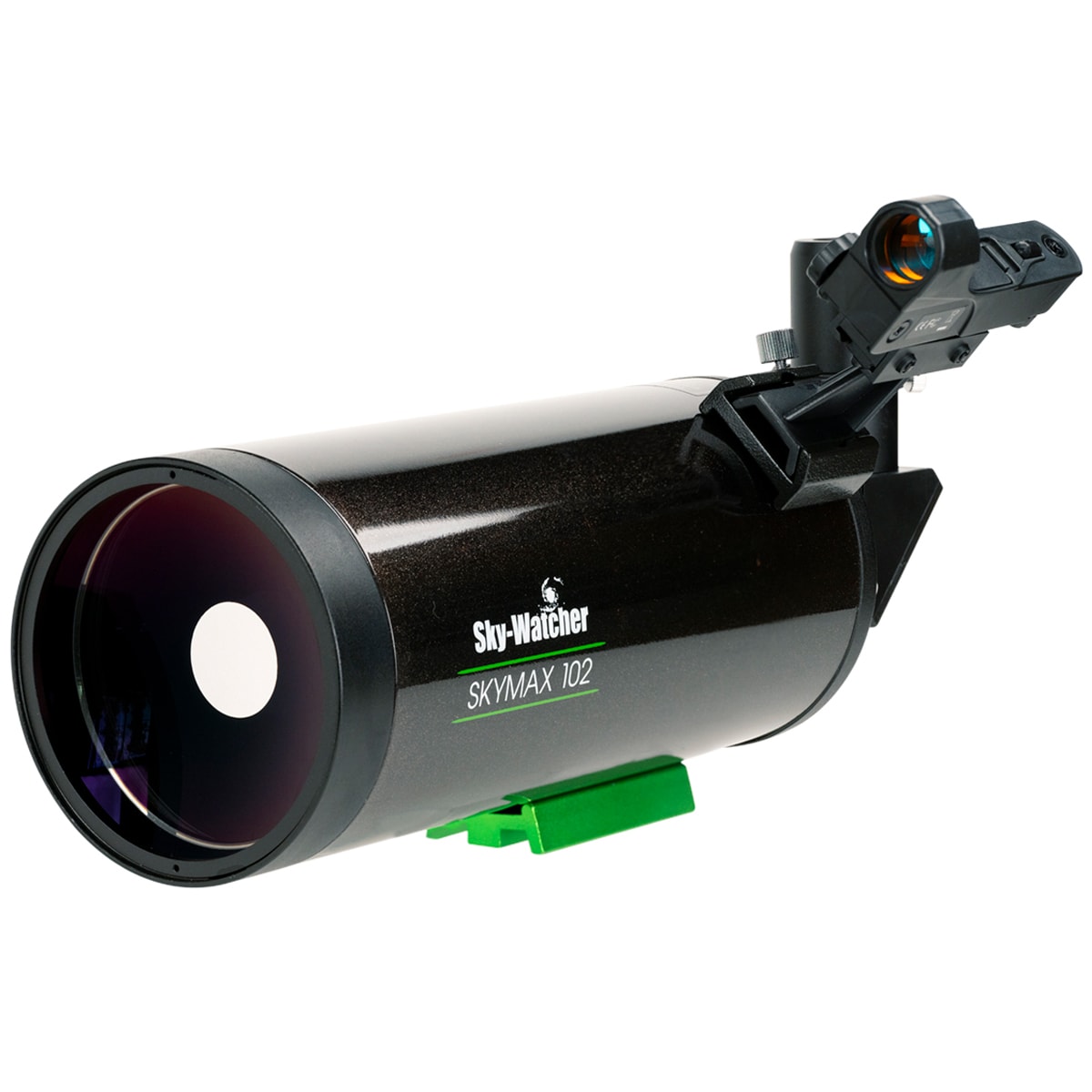

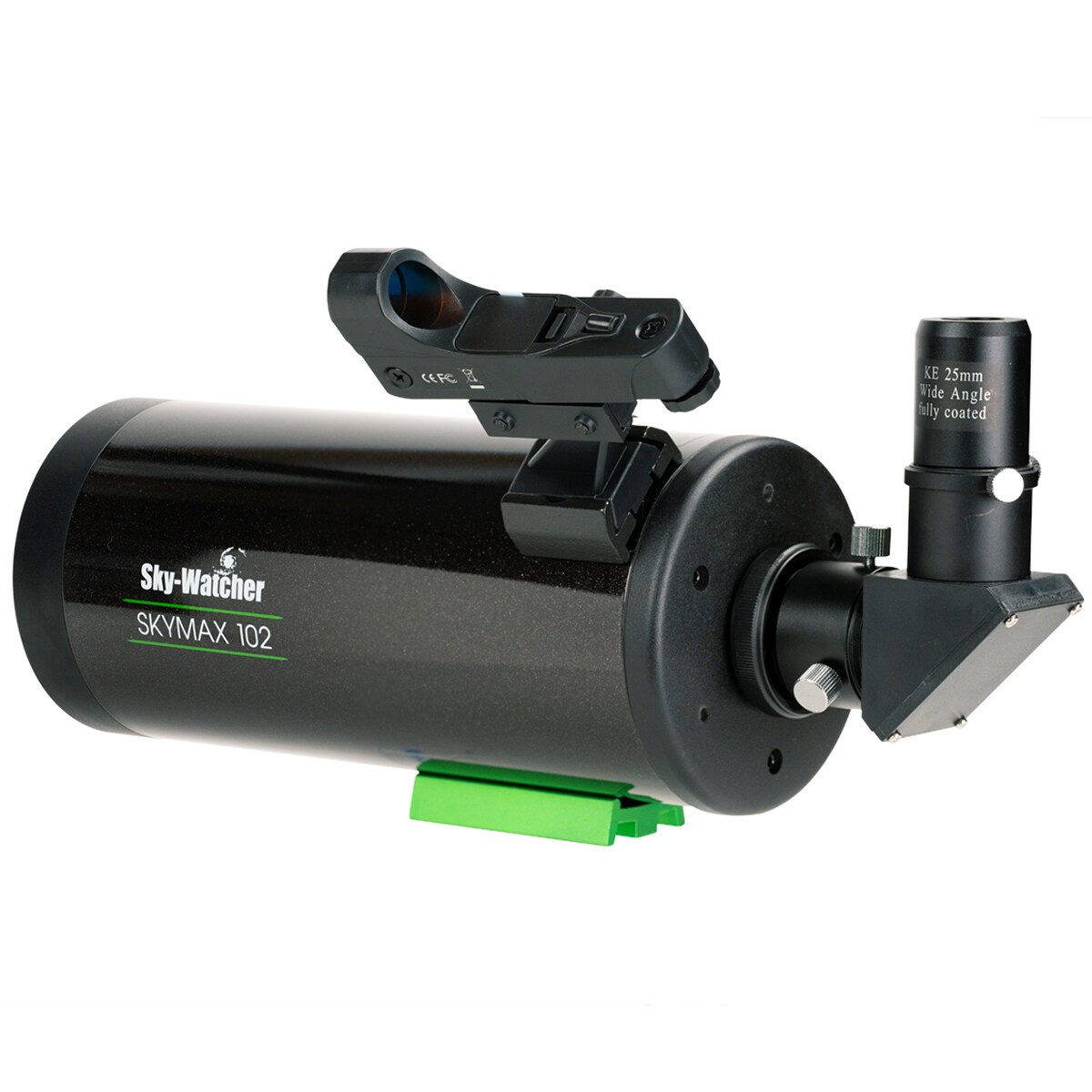

Sky-Watcher Telescope BK MAK 102 OTA optical tube
- description
- technical data
- Reviews
- Goes well with
Constructed with a Maksutov optical system, this telescope offers outstanding image clarity and eliminates chromatic aberration. It features a spherical meniscus corrector (Kron glass), a primary mirror, and a secondary mirror positioned internally on the meniscus.
The tube measures 120 mm in diameter, with a focal length of 1300 mm, and an eyepiece focuser diameter of 1.25 inches. The telescope's maximum magnification is 153x.
While the telescope does not include a mount, the tube can be attached to a photographic tripod using an integrated connector. Given the substantial focal length, the manufacturer advises using astronomical mounts of at least AZ4 (azimuthal) or EQ3-2 (parallactic) class.

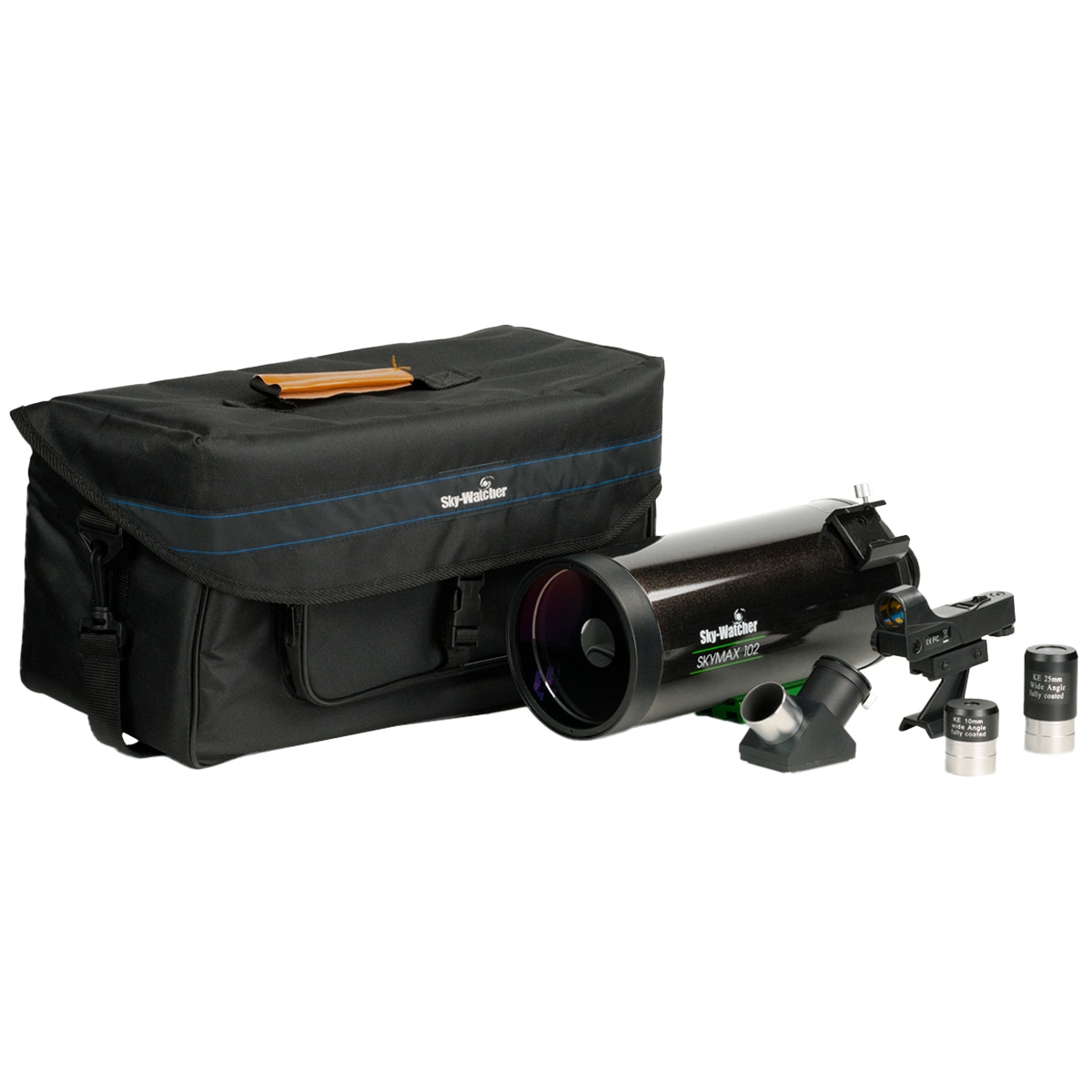

The package contains:
- angle socket (mirror): 1.25" 90 deg,
- eyepieces: 1.25" - Super 25, Super 10,
- carrying case,
- finder: Star Pointer.
Technical data
Optical system of the telescope: Maksutov-Cassegrain
Mount type: unmounted
Aperture: 102 mm
Focal length: 1300 mm
Focal Length: 12,7
Stellar Range: 13.5 magnitude
Collective capacity (compared to the unaided eye): 212 x
Maximum useful magnification: 153 x
Weight of the tube: 1.9 kg
Tube length: 280 mm
Tube diameter: 120 mm
Eyepiece focal lengths/magnification: 25 mm/52x, 10 mm/130 x
Eyepiece focuser type: SCT/MAK
Eyepiece focuser diameter: 1.25 inches
Angle cap: Mirror 90 deg.
Finder Scope: StarPointer
Central obstruction: 32.5 mm
Maximum resolving power: 1.37 inches
Manufacturer: Sky-Watcher, Taiwan
MILITARY is a premium dealer of Sky Watcher.
Sky-Watcher is a brand established in 1999 on the initiative of the Taiwanese company Synta Technology Corporation, currently recognized as the world's largest manufacturer of amateur astronomical equipment. The range includes telescopes suitable for various levels of expertise, from simple models for beginners to advanced solutions such as ED refractors, Esprit series astrographs, and Maksutov designs. Dobsonian telescopes are also highly regarded, including flagship models with mirrors up to 16 inches in diameter, as well as precision EQ8 equatorial mounts, which are popular with astrophotography enthusiasts. Since 2008, the company has been developing unique Flex Tube Dobsonian telescopes with a telescopically extendable tube, which have become one of the most recognizable elements of Sky-Watcher's offer in the world of amateur astronomy.
| Objective lens diameter (mm) | 102 |
|---|---|
| Telescope type | Maksutow-Cassegrain |
| Focal length | 1300 mm |
| Lens speed (f/x) | f/12,7 |
| Maximum magnification | 153x |
| Finderscope in the set | Yes, RedDot |
| Limiting magnitude (magnitudo) | 13,5 mag |
| Replacement glasses in the set | Yes |
| Tube length | 280 mm |
| EAN | 5901691604735 |
| Manufacturer code | SW-3002 |
| Brand | Sky Watcher |
