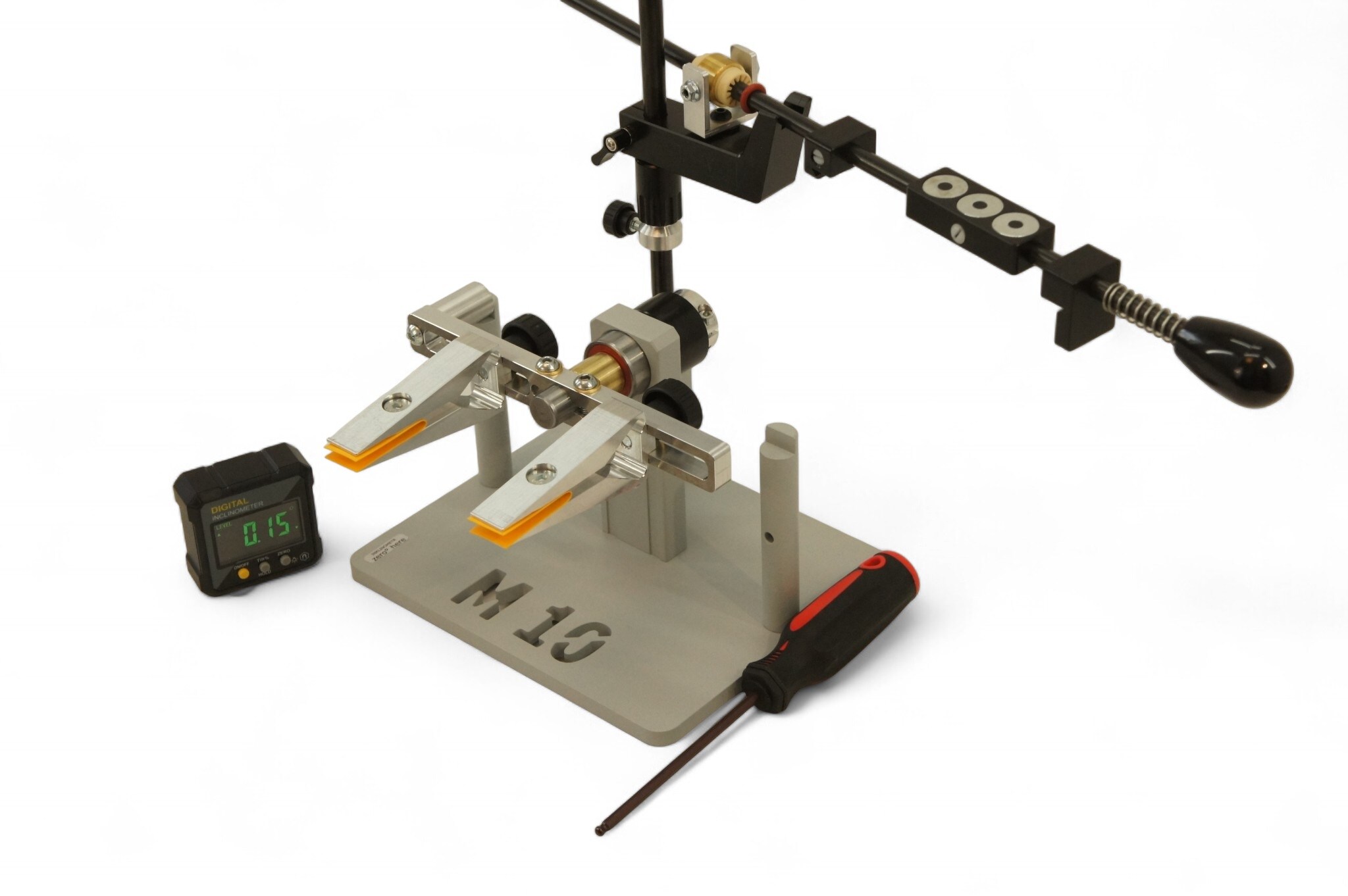

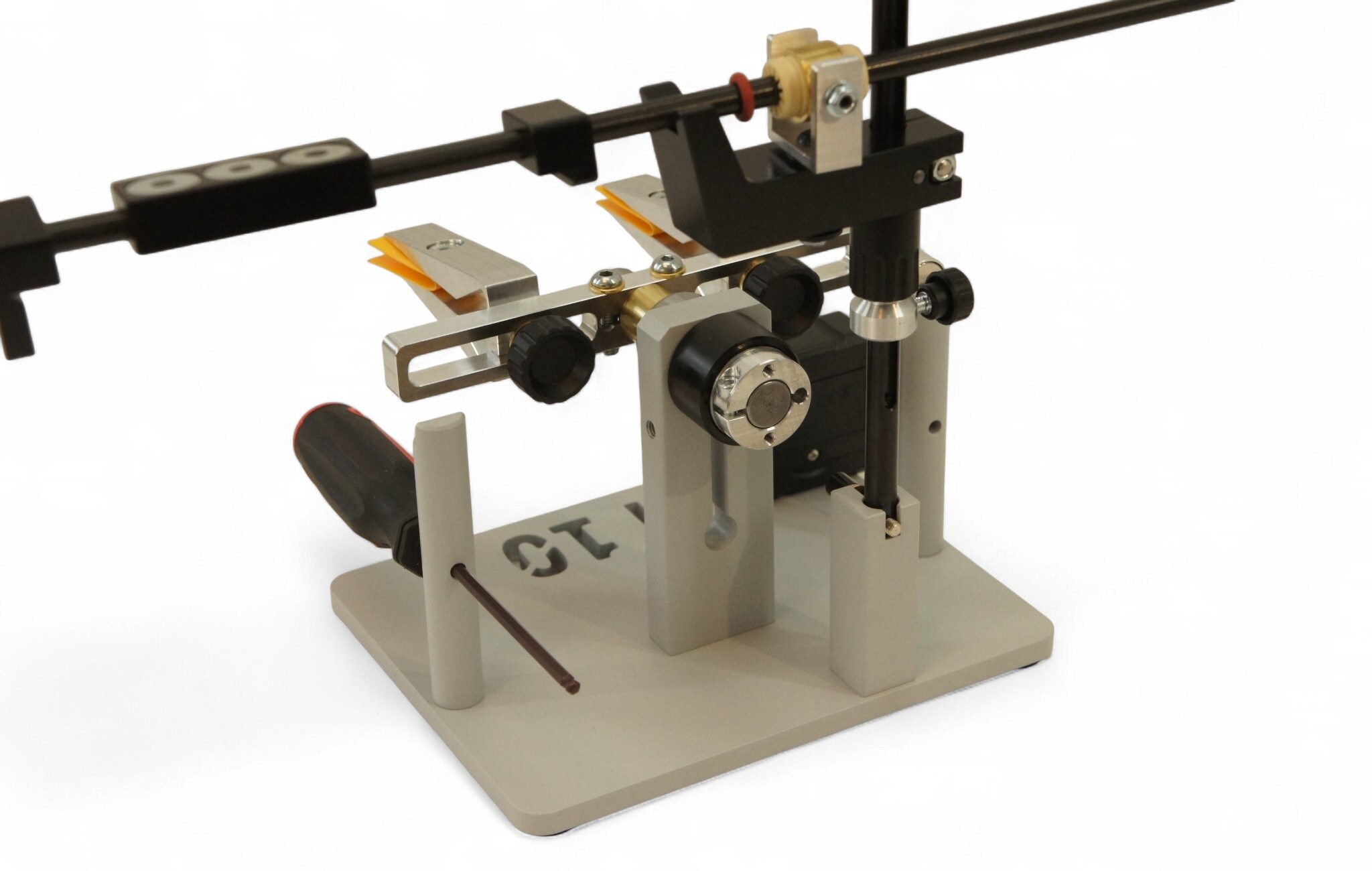

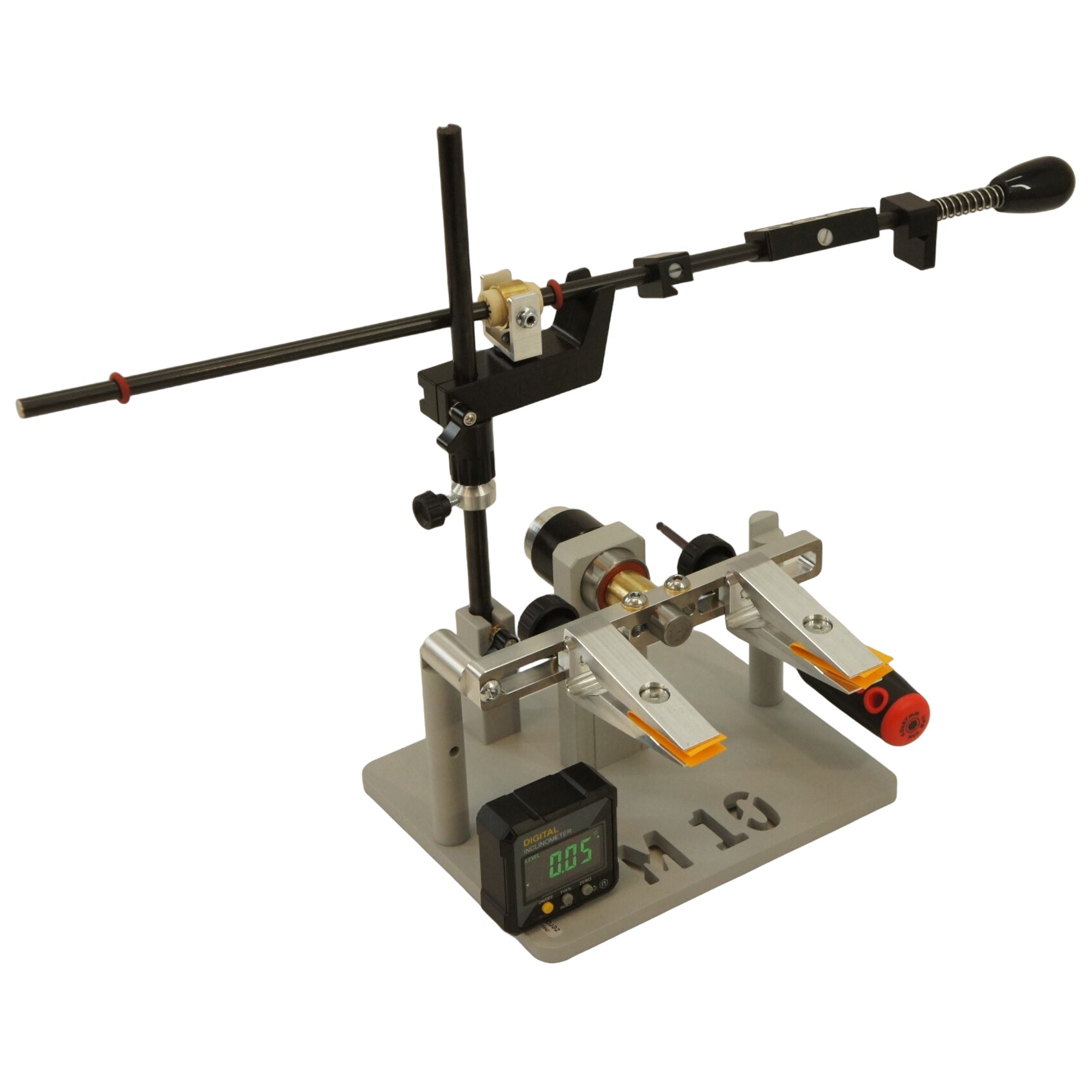

Kazak M10V2 Sharpening System - Gray

The device is used for sharpening knives of various shapes and sizes, being a new version of the Kazak M10 model. The design ensures stable blade attachment and easy rotation without the need to remove from clamps. This solution streamlines operations, ensuring safety as well as maintaining high precision and a consistent sharpening angle.

Kazak M10V2 model was designed with both beginner users and more experienced individuals involved in knife sharpening in mind. The carefully refined design guarantees control during operation and facilitates achieving a uniform cutting edge without the need for specialized skills.

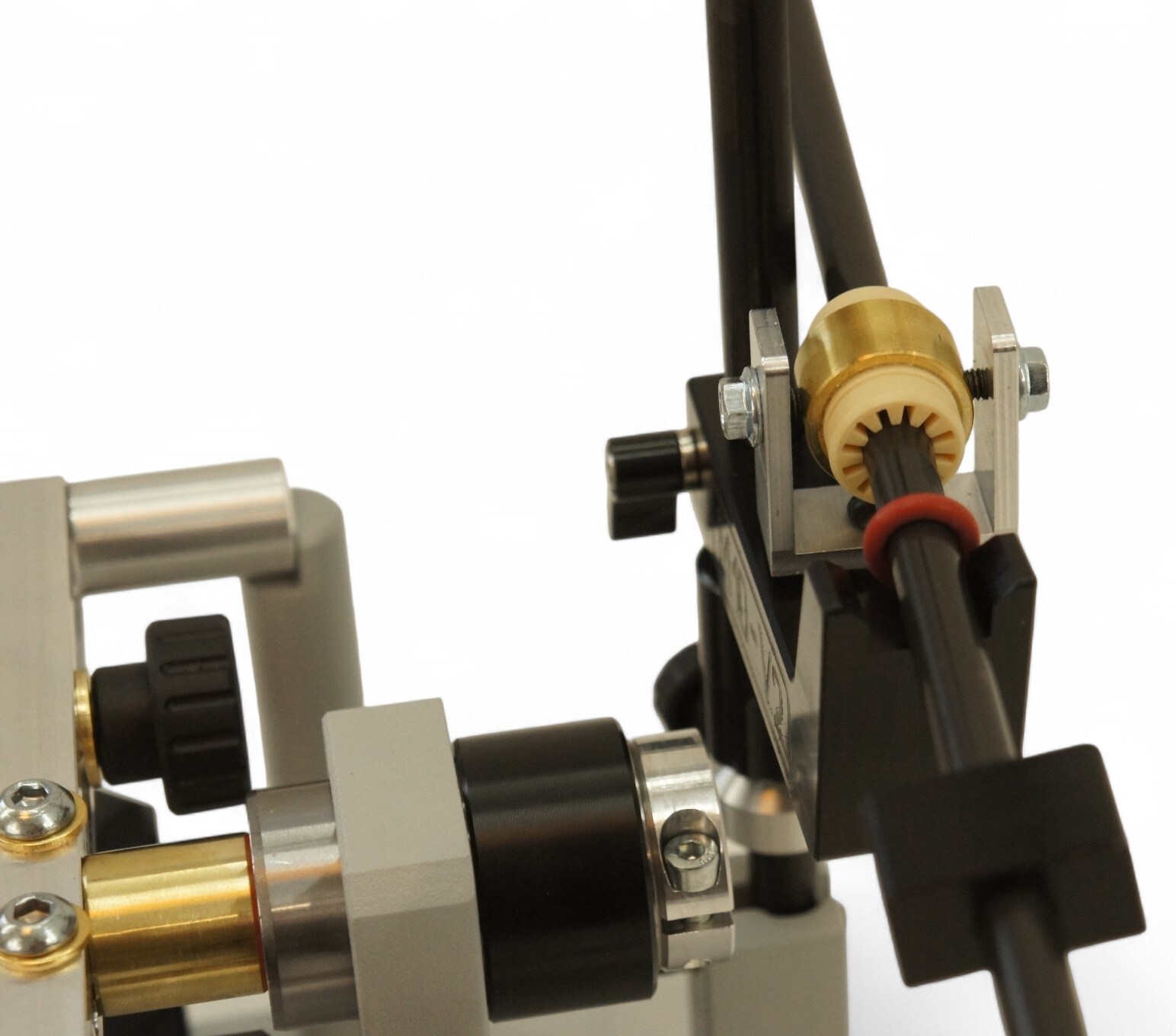

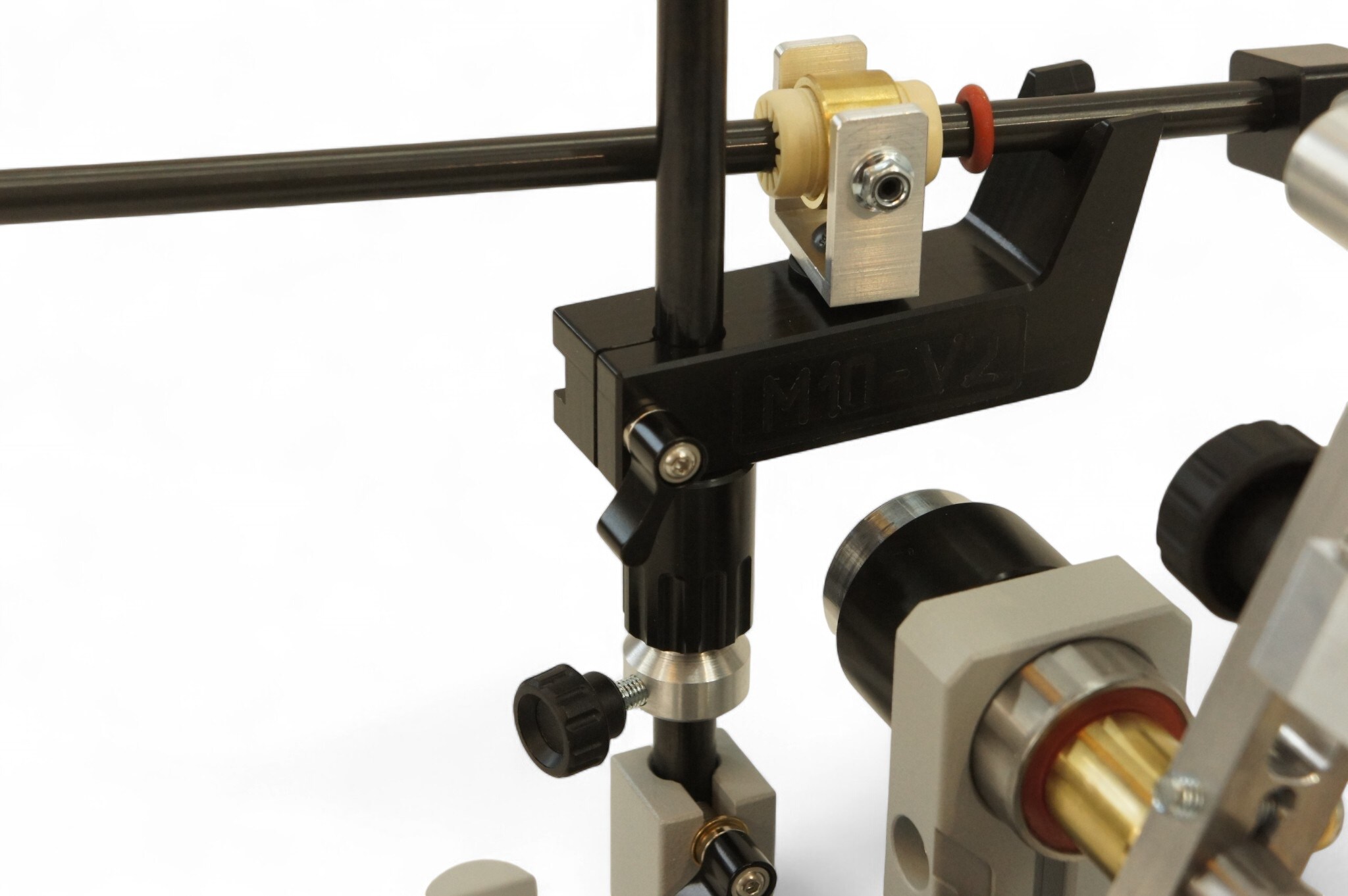

M10V2 version includes a series of changes improving ergonomics, stability, and work culture. An improved mounting system for the carriage on the vertical mast has been utilized, which affects better stability of guidance and more precise maintenance of the sharpening angle. The new type of hinge is based on durable components from IGUS, making the mechanism operate more smoothly and stand out with high operational durability.

The diameter of the vertical mast increased to 10 mm improves the rigidity of the entire structure. The integrated guide storage system near the carriage increases ergonomics and facilitates workstation organization. The use of an aluminum guide instead of a steel one allowed for a reduction in the weight of the moving element, which improves the smoothness of movement and comfort of sharpening.

The base of the system is made of damage-resistant and corrosion-resistant 8 mm thick steel, coated with a durable gray powder coating. Rubber inserts at the bottom limit the movement of the device during operation and improve stability on the table. The 10 mm diameter vertical mast increases the structure's resistance to vibrations and bending during sharpening.

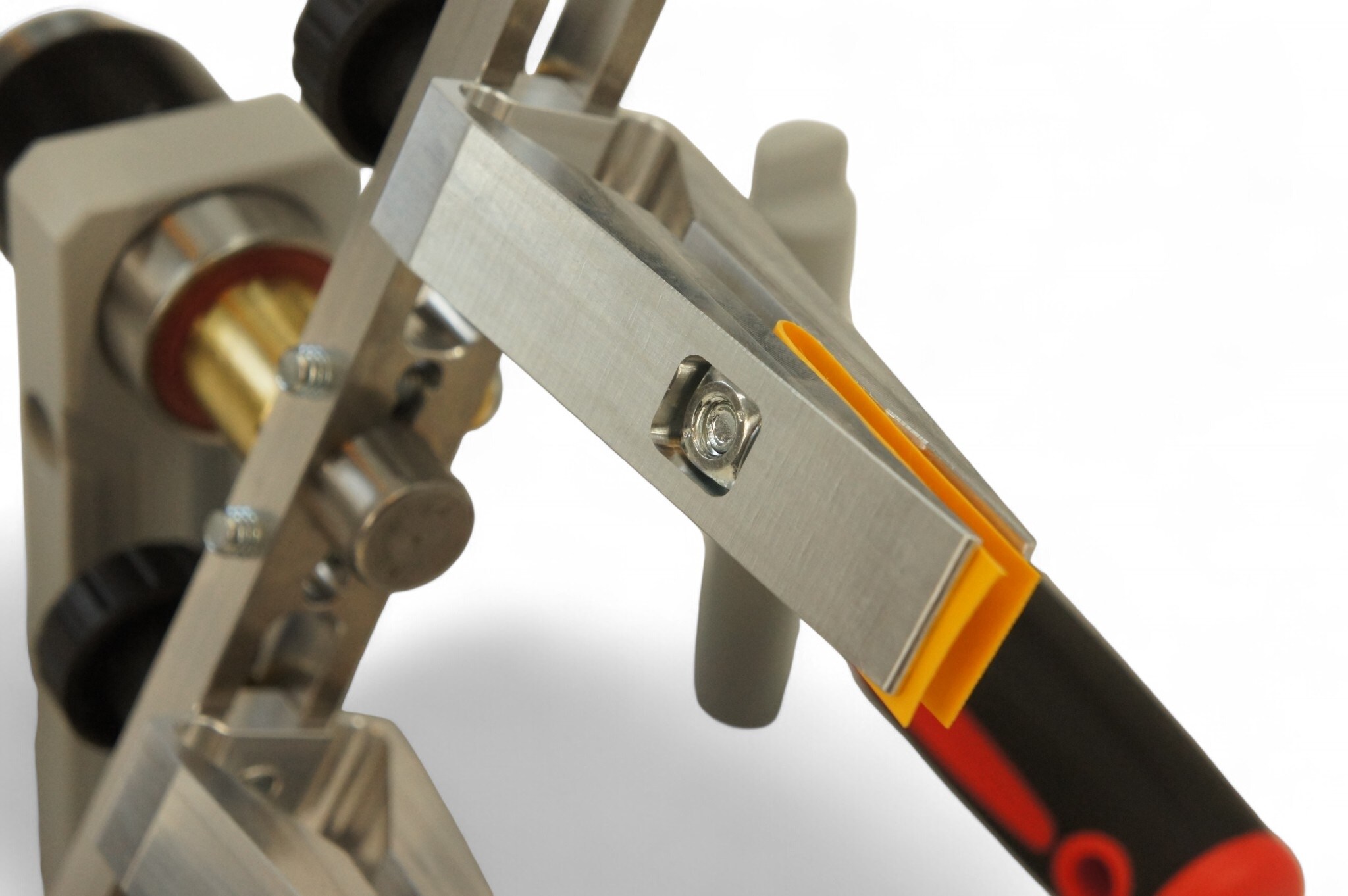

The clamps are milled from solid 7075 aircraft-grade aluminum, valued for its high mechanical resistance and lightweight. The special construction of the clamps ensures that the elastic deformation zone is within a vertical plane. This provides high flexibility when free and very good rigidity after tightening the blade.

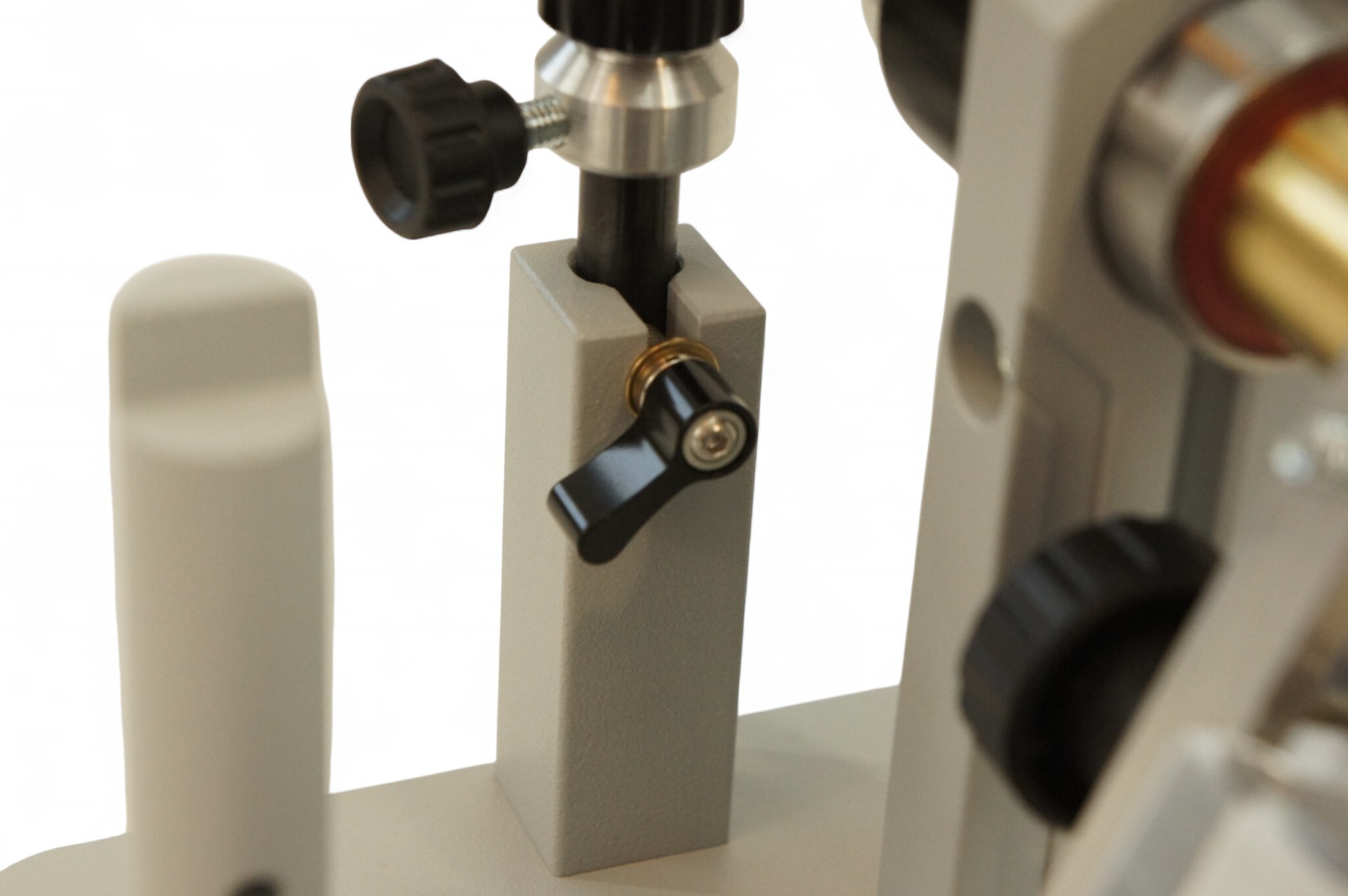

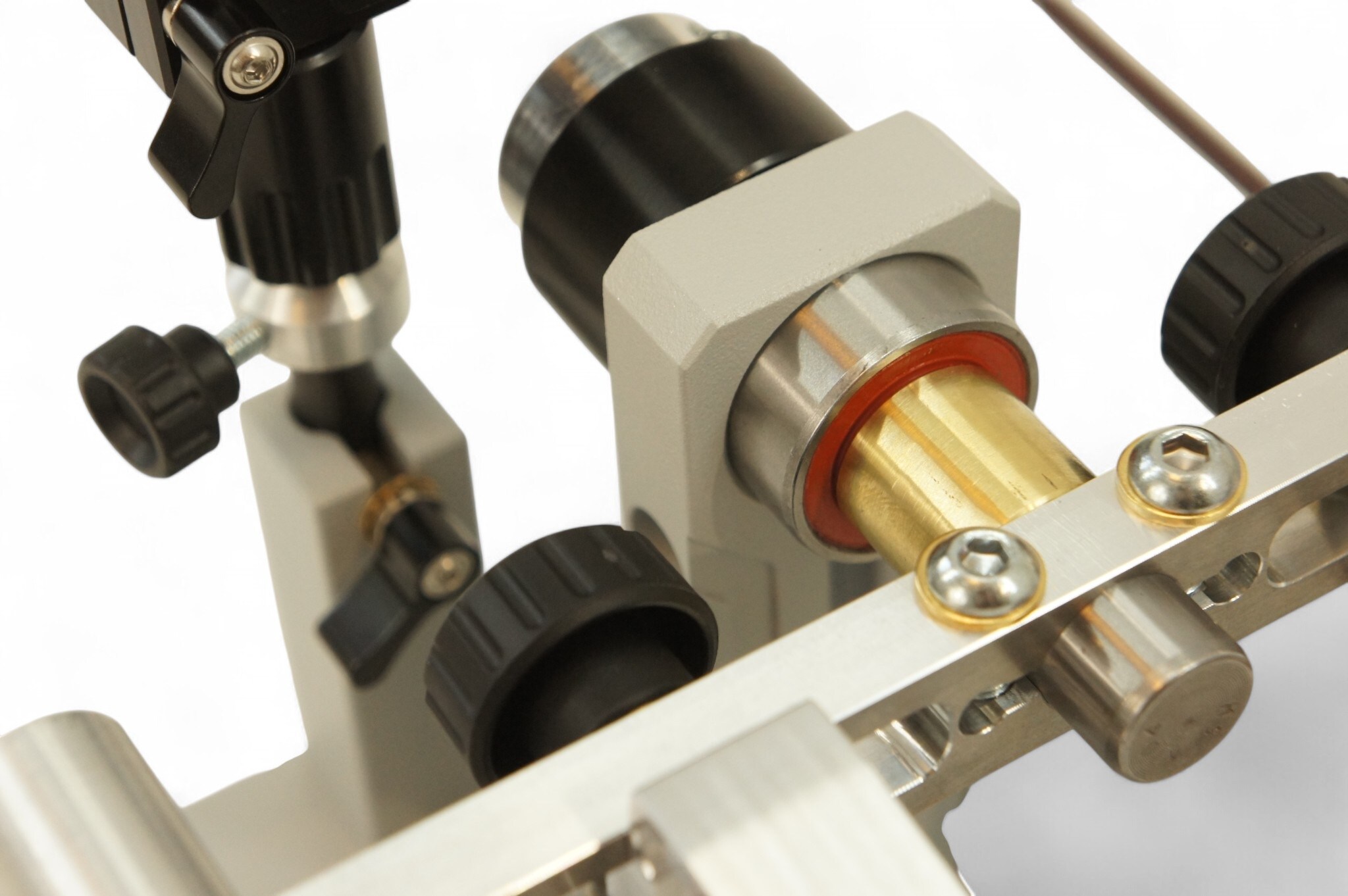

The system allows intuitive adjustment of the sharpening angle along the vertical column, which allows adjusting the work parameters to the nature of the blade and the desired effect. The rotational mechanism based on a double-row ball bearing ensures smooth knife rotation without the need to remove from clamps, which facilitates maintaining symmetric sharpening of both cutting edge sides.

The device is equipped with a removable frame that provides easier control of the cutting edge during operation, which speeds up the detection of any irregularities and the assessment of progress in sharpening. The new sliding node is characterized by increased smoothness of operation and durability up to 10,000 sharpening cycles. The high quality of the components additionally impacts the work culture and mechanical resistance to prolonged use.

The equipment's design has been developed with high stability during operation in mind. The use of durable materials and more precise mechanical elements translates into smooth system operation. Compact dimensions facilitate storage after use, as well as provide convenience in transport and workstation organization.

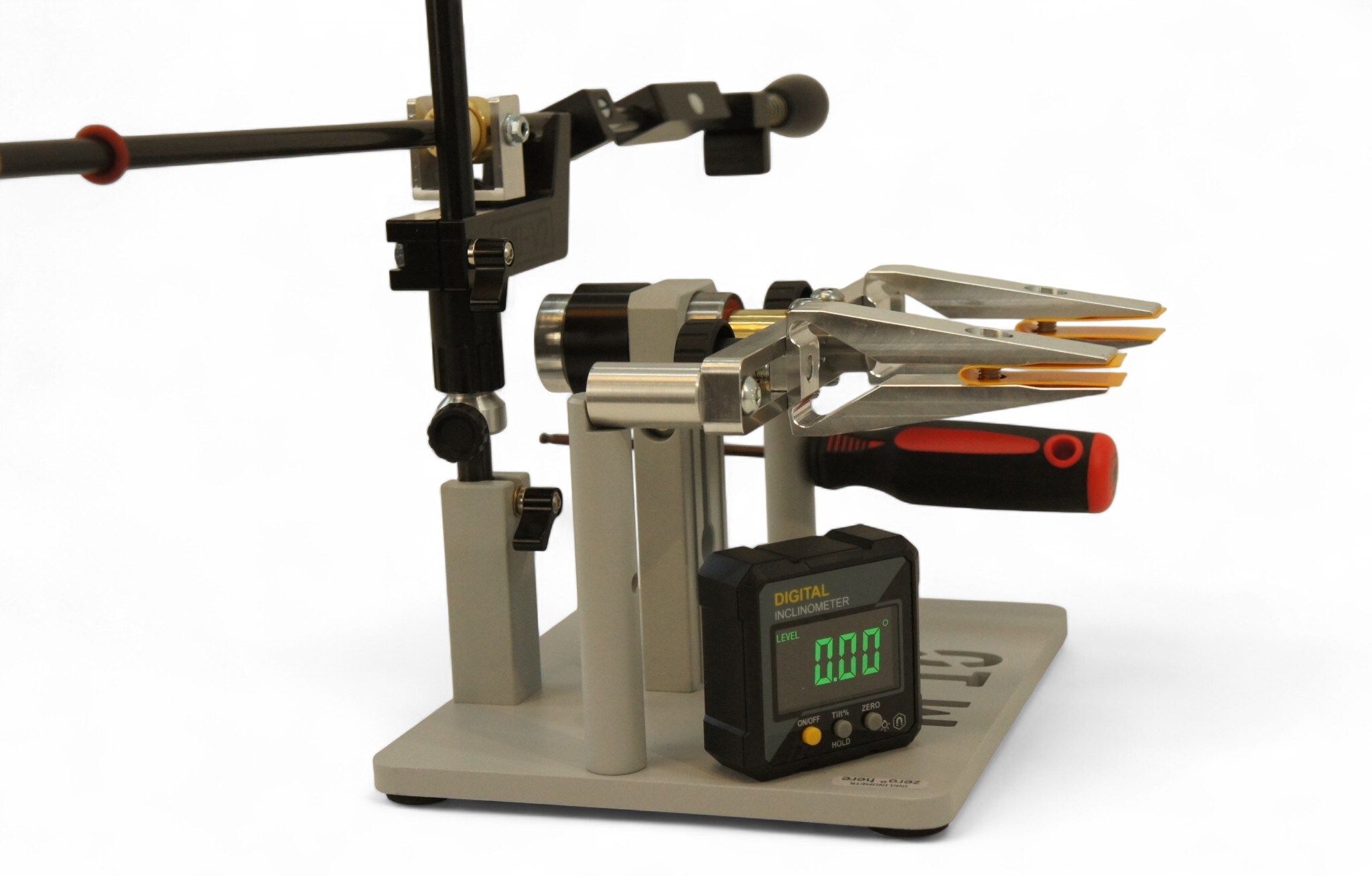

The set includes an electronic protractor allowing precise monitoring of the set sharpening angle, which enables more accurate adjustment of work parameters to the type of blade and ensures high repeatability during sharpening different types of knives.

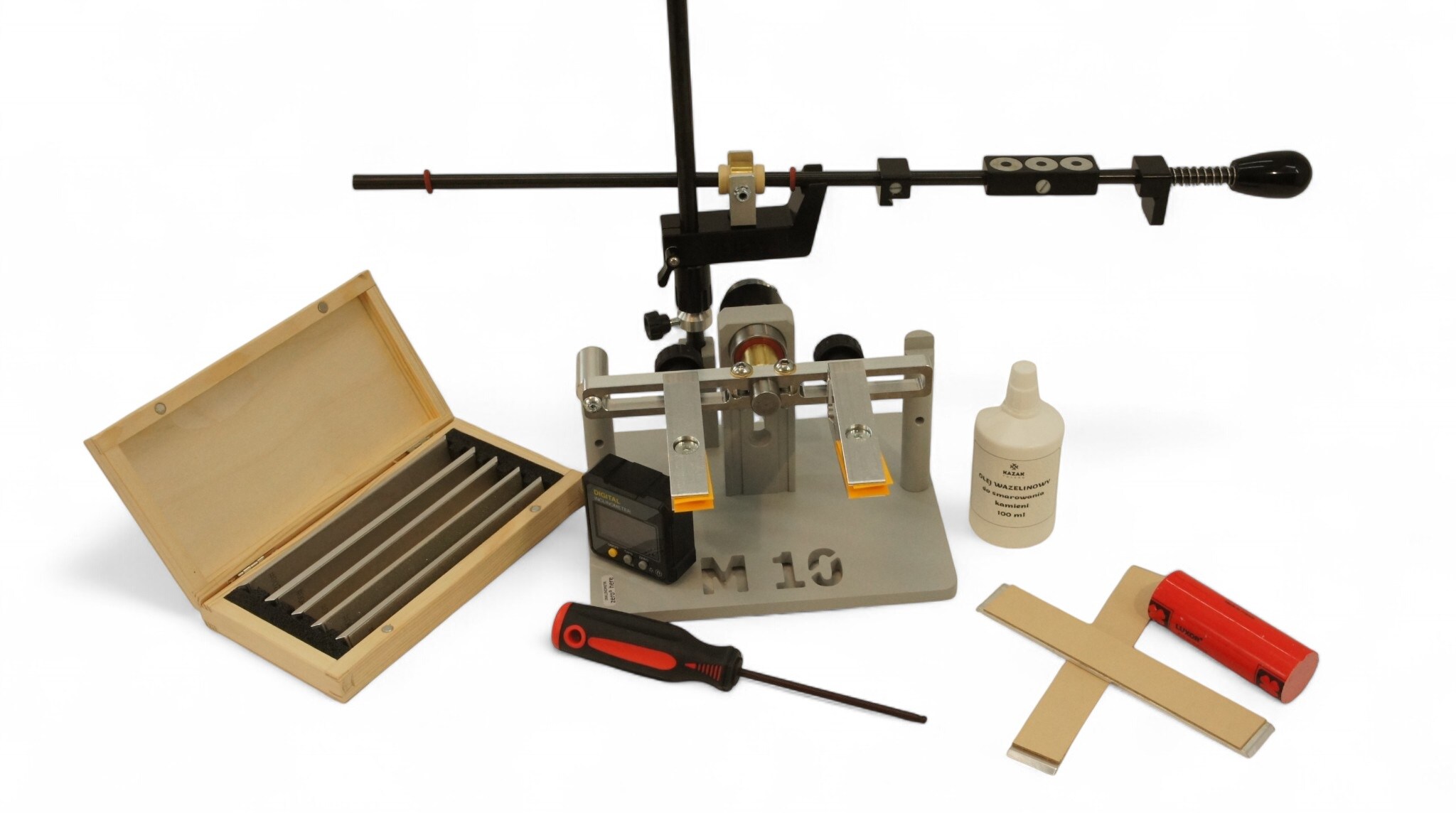

• Kazak M10V2 sharpening system
• electronic angle gauge
• 5 diamond sharpening stones
• storage box for stones
• leather strops (2 pcs.)
• polishing paste and oil
• Allen key

• sharpening system for knives of various shapes and sizes
• ability to precisely set sharpening parameters
• stable blade attachment in precise clamps
• high precision and repeatable sharpening angle
• smooth angle adjustment
• improved sharpening carriage guidance system
• new hinge with IGUS components
• increased smoothness and operating culture of the mechanism
• durability of the sliding node up to 10,000 cycles
• aluminum guide with reduced weight
• integrated guide storage system
• 10 mm diameter vertical mast
• 8 mm thick steel base
• anti-slip rubber elements improving stability
• rotational mechanism based on ball bearing
• symmetric sharpening of both cutting edge sides
• removable frame for sharpening progress control
• electronic protractor in the standard set
• sharpening angle (one side) for a knife width of 25 mm: 11-35 deg.
• base length: 200 mm
• base depth: 160 mm
• guide length with handle: 510 mm
• device height: 300 mm
• maximum sharpened knife blade length: 250 mm
• maximum sharpened knife thickness: 6 mm
• weight: 3250 g
