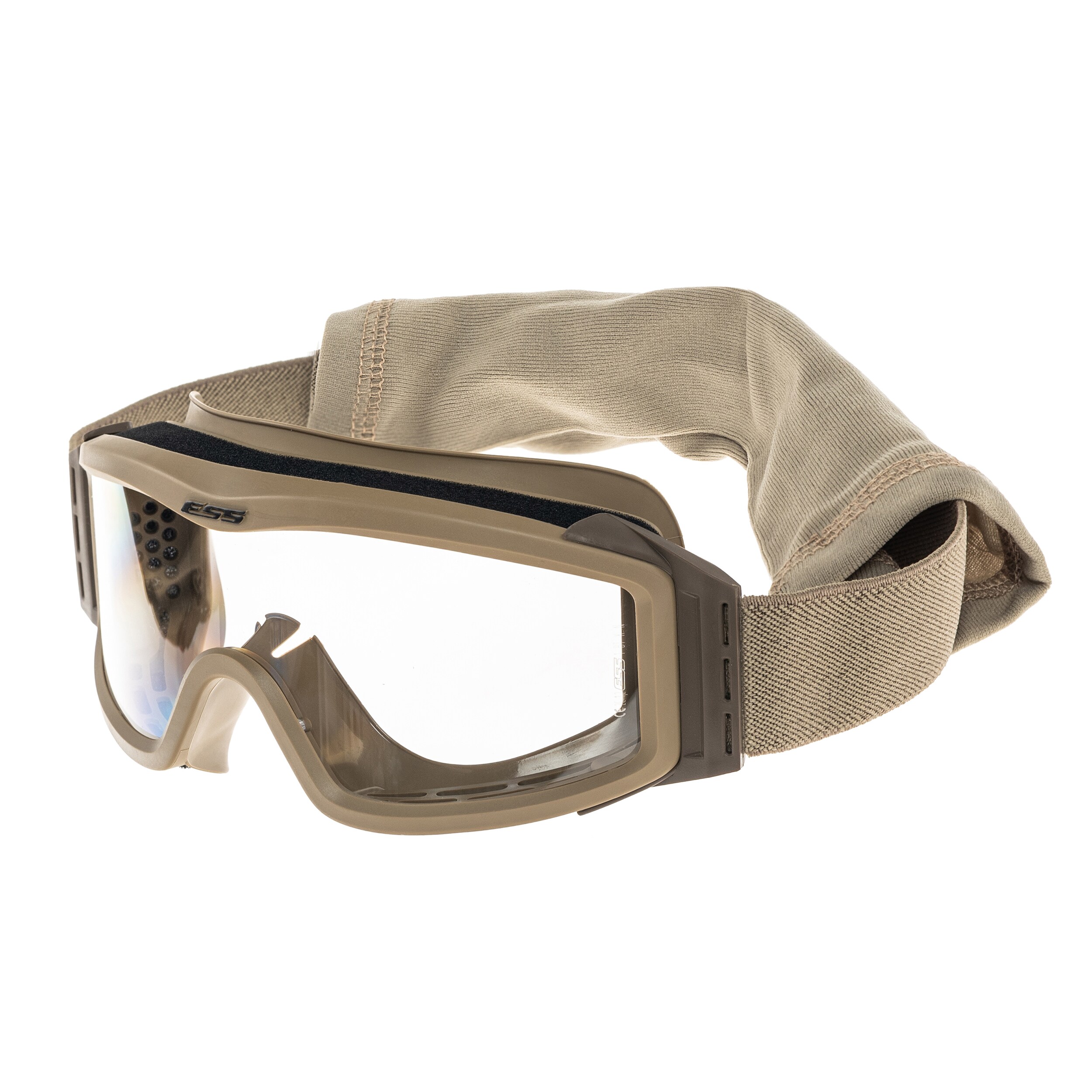

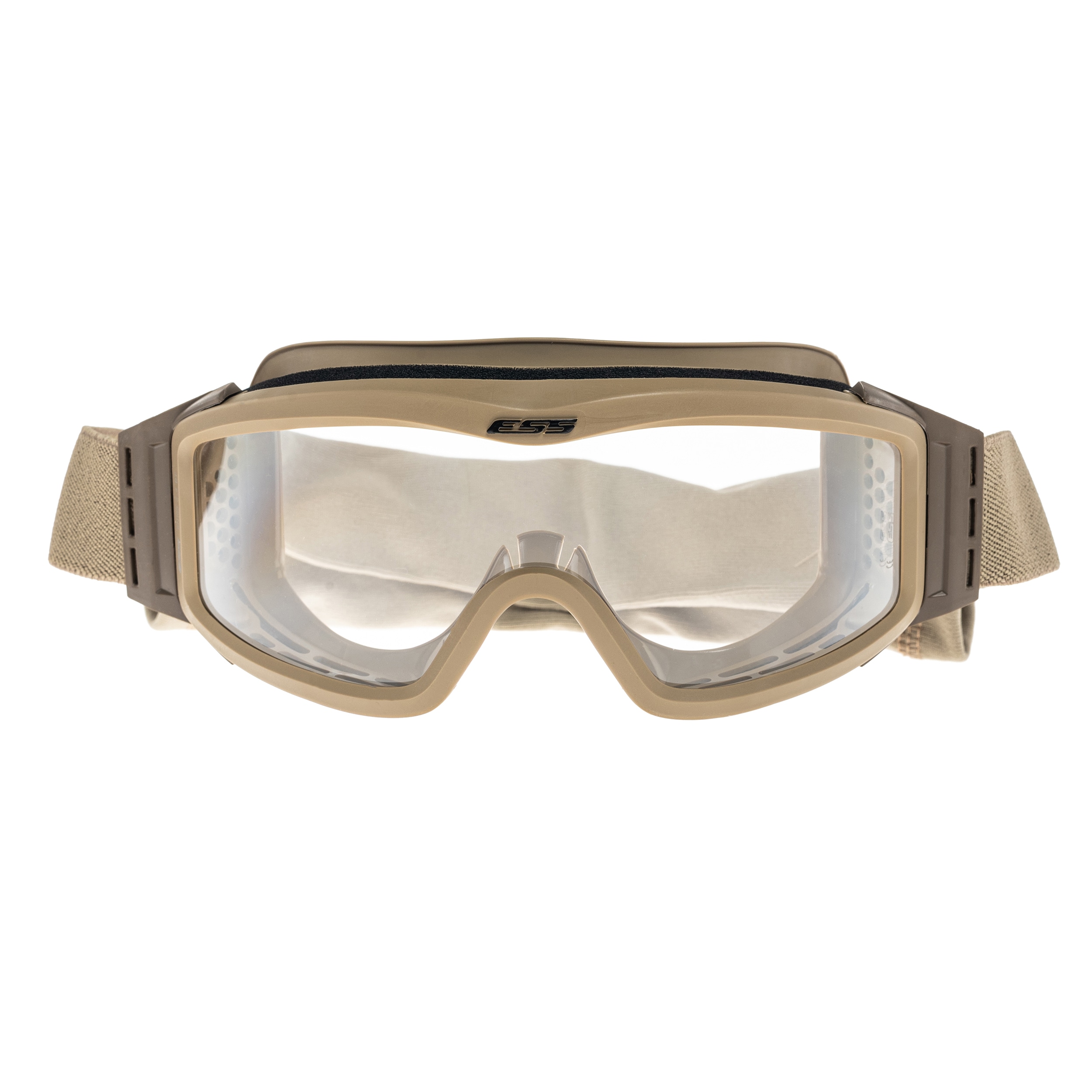

ESS Profile NVG Terrain Tan Tactical Goggles

Advanced goggle model designed by ESS in collaboration with operators from elite units of U.S. Special Operations Command (USSOCOM). Due to its high quality and reliability, they are widely used by the U.S. Army, U.S. Marine Corps, U.S. Air Force and NATO armed forces. The Profile NVG model is on the official U.S. Army Approved Protective Eyewear List (APEL), which confirms its compliance with military standards.

The goggle’s design provides effective ballistic protection, exceeding the requirements of U.S. MIL SPEC MIL-DTL-43511D (Clause 3.5.10), ANSI Z87.1-2010, U.S. Federal OSHA and CE EN 166 BTKN 34.

The visor is made of polycarbonate with a thickness of 2.8 mm and is highly impact and deformation resistant. The UV filter blocks 100% of UVA and UVB radiation, providing protection against the harmful effects of light. The ClearZone FlowCoat coating reduces the vulnerability of the visor to scratches and fogging, which improves comfort of use in difficult conditions.

The flexible frame adjusts to the shape of the face, ensuring a stable fit. The ventilated system with dust filter reduces the penetration of dust and moisture into the goggles. The inside of the frame is covered with antibacterial OpFoam padding, which increases wearing comfort even during prolonged use.

The Outrigger Strap mounting system allows the goggles to be securely attached to different helmet models, and the adjustable strap allows for precise adjustment to the head circumference.

Wide field of vision and low-profile design ensure compatibility with night vision and head protection systems. The modular design allows for quick replacement of visors, frames and straps, adapting the goggles to different operating conditions. It is also possible to use U-RX and P-2 prescription inserts.

The set includes a SpeedSleeve, which protects the goggles from dirt and reduces light reflections.

Filters:
100% UVA/UVB

Standards:
- ANSI Z87.1-2010 (American civil standard)
- MIL SPEC MIL-DTL-43511D (Clause 3.5.10) (US army standard)
- CE EN 166 BTKN 34 (European standard, CE quality mark)
- US Federal OSHA
- NATO stock number NSN: 4240-01-573-1926

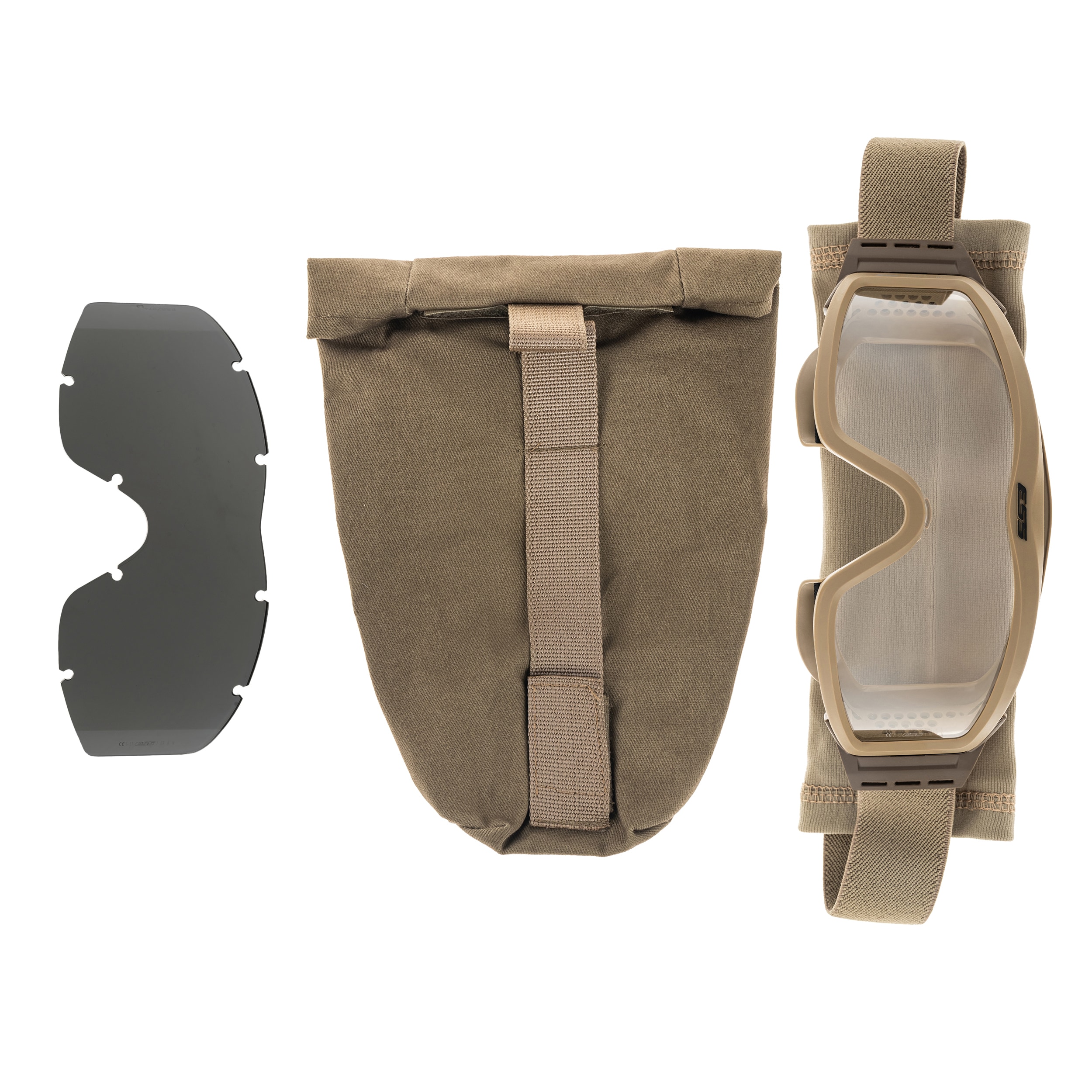

The set includes:
- Frame with strap
- Clear visor (attached)

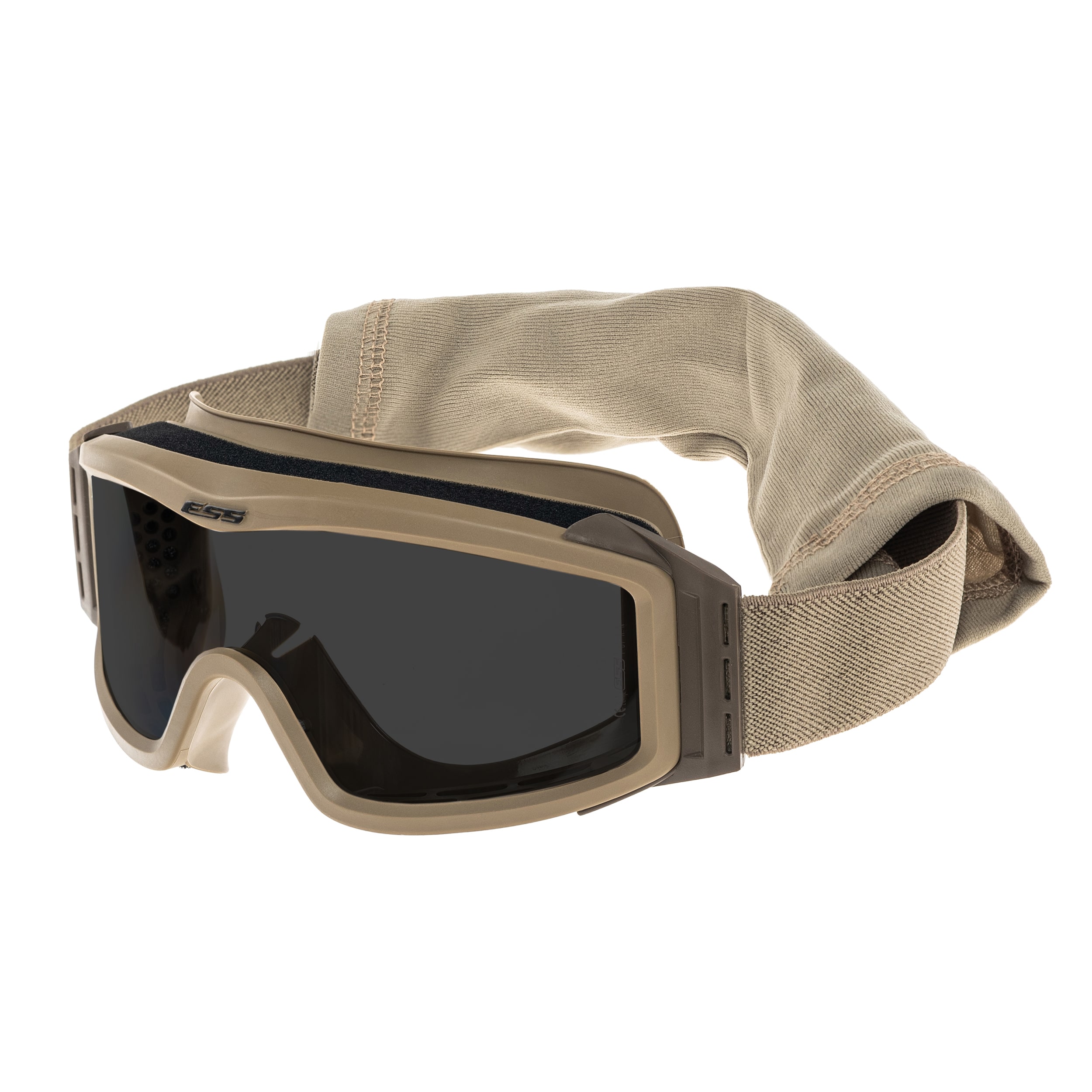

- Smoke Gray tinted visor
- SpeedSleeve
- Flannel visor cover
- Black nylon cover with Velcro, which can be attached to the belt and equipment

Technical data
Visor material: polycarbonate
Visor thickness: 2.8 mm
Visor color:
- Clear, visible light transmission: 89%
- Tinted, visible light transmission: 15%
Frame color: Terrain Tan (Tan 499)
Strap color: Terrain Tan (Tan 499)
SpeedSleeve color: Universal Camouflage Pattern

Visor dimensions:
- Length: 161 mm
- Width at widest point: 70.2 mm
- Width at narrowest point: 37.9 mm
- Width at the ends of the visor: 38.4 mm

Frame dimensions:
- Length: 173 mm
- Width at the widest point: 80.5 mm
- Width at the narrowest point: 53.1 mm
- Thickness: 23 - 30 mm

Strap width: 34 mm
Maximum length of unstretched strap: 520 mm
Weight of complete goggles: 120g
Weight of single visor: 34g -
Weight of frame: 40g
Weight of strap: 31g
Weight of SpeedSleeve: 15g
Manufacturer: ESS (Eye Safety Systems), USA
