Pulsar Merger LRF XT50 Thermal Imaging Binoculars
or sign up for availability notification
- description
- technical data
- Reviews
- Goes well with

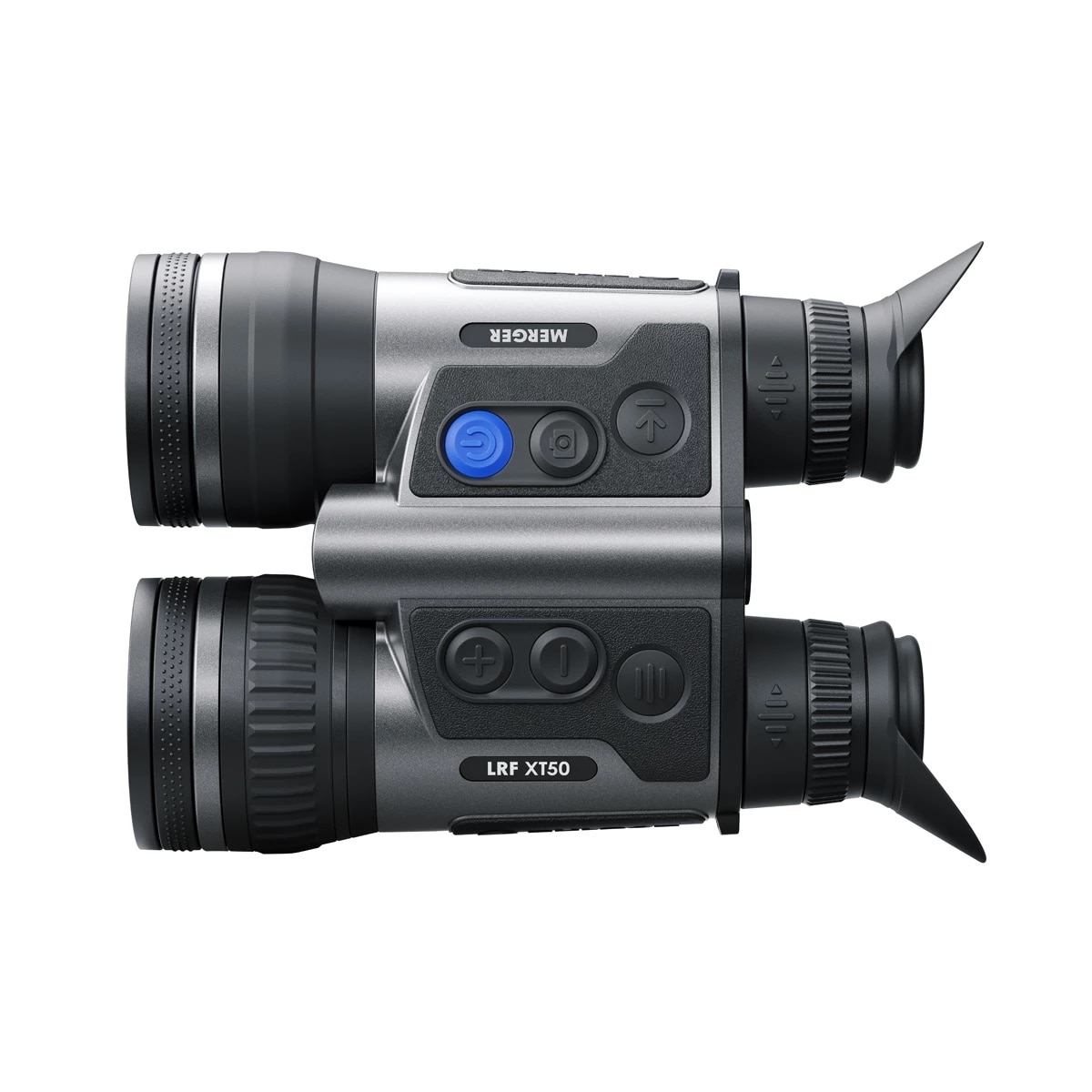

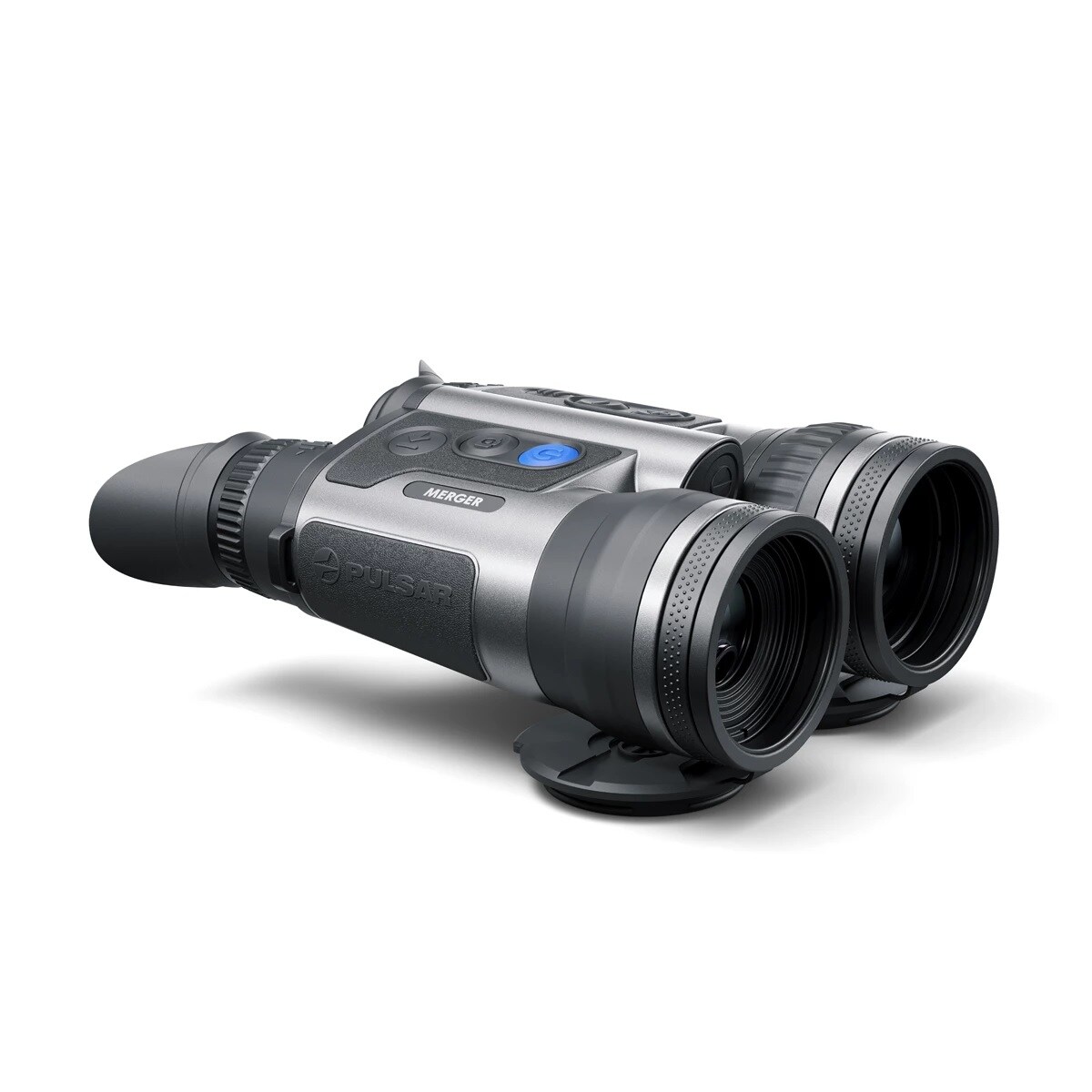

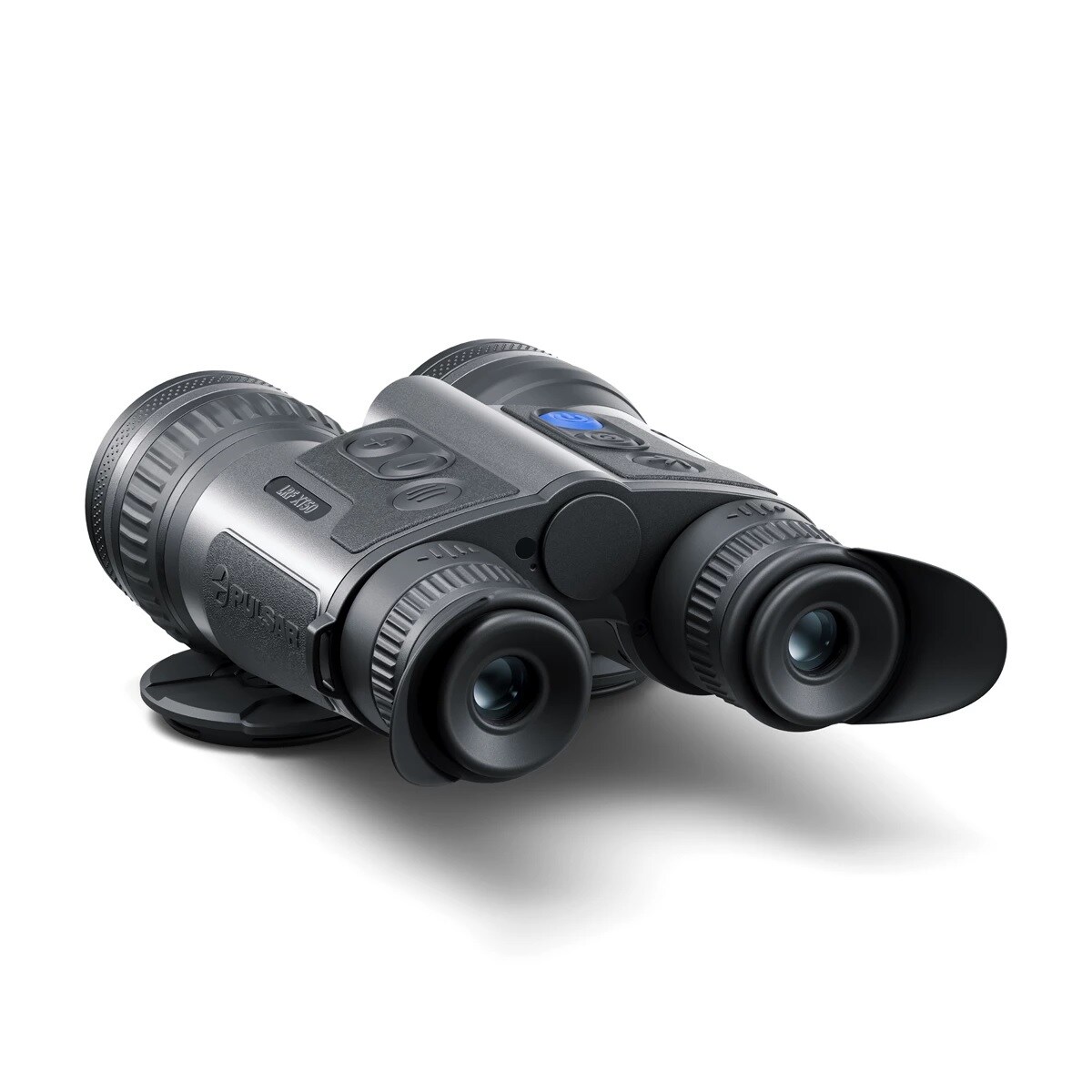

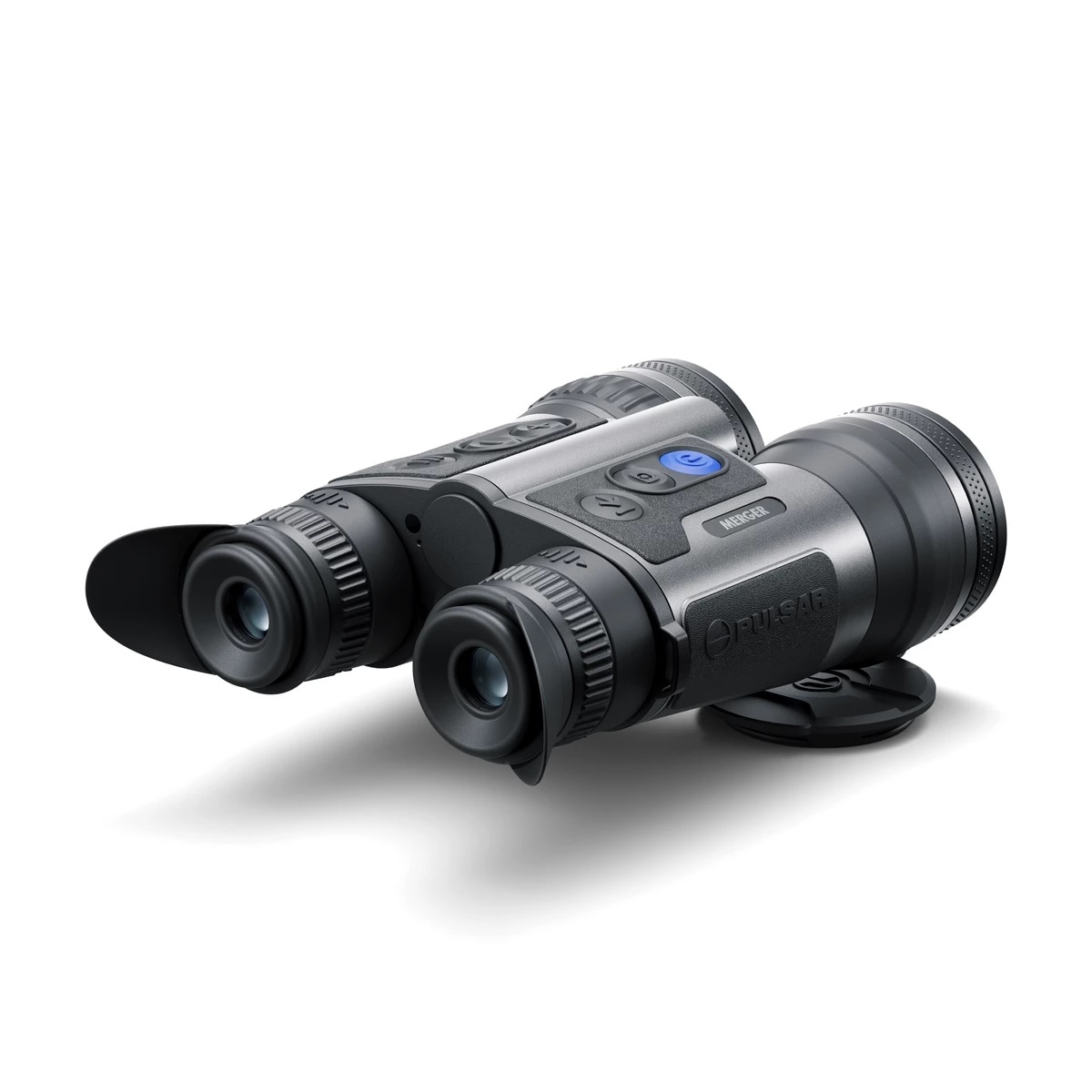

Pulsar Merger LRF XT50 Thermal Imaging Binoculars
Advanced thermal imaging binoculars capable of detecting objects at a distance of up to 2300 meters. Equipped with an integrated laser rangefinder with a range of up to 1500 m. This model features a fixed optical magnification of 2x and digital zoom ranging from 2x to 16x.
Amoled display, thermal sensor
The built-in HD thermal sensor with a resolution of 1280x1024 and a pixel pitch of 12 µm ensures high detection precision. High sensitivity allows for recording temperature differences below 40 mK.
A high-quality 50 mm lens provides a bright and detailed image both day and night. The display remains smooth even at maximum digital magnification. The thermal optics with an F/1.0 aperture effectively utilize all available thermal signals, ensuring excellent image quality when combined with a sensitive sensor.
The image is displayed on an AMOLED display with a resolution of 1280 x 960 pixels, which is characterized by vivid colors and wide viewing angles and offers three display modes: circular, rounded and rectangular.
8 image display modes
The device offers eight color modes to facilitate identification and observation:
- White Hot / Black Hot / Red Hot – optimized for object detection
- Red Monochrome / Violet / Sepia – dedicated for prolonged night observations
- Rainbow / Ultramarine – designed for detail identification
Wi-Fi module, 64 GB internal memory
The binoculars allow video recording and photo capture, stored in the built-in 64 GB memory. A USB-C port enables fast data transfer. The Wi-Fi module allows connection to a mobile device and control via the StreamVision 2 app, offering remote image viewing and function management.
IPX7 standard
The construction meets the IPX7 standard, ensuring full waterproofing – the device can withstand submersion up to 1 meter for an hour. Additionally, the binoculars are completely dustproof, ensuring reliability in harsh field conditions.
Battery power supply
Power is provided by a built-in 4000 mAh battery and a replaceable APS3 3200 mAh battery. Together, they allow up to 8 hours of continuous operation. The power-saving function automatically dims the display when the device is moved away from the eyes.
Set elements
- Merger LRF XT50 thermal imaging binoculars
- APS3 battery - 2 pcs.
- user manual
- USB cable
- USB/230V charger
- optics cleaning cloth
- neck strap
- lens cap
- warranty card
- APS battery docking station
- cover
- 1/4” tripod adapter
Main features
- solid and durable construction
- IPX7 waterproof rating
- AMOLED display
- 8 image modes
- built-in Wi-Fi module
- 64 GB internal memory
- battery-powered operation
Technical data
Thermal sensor resolution: HD 1280x1024, 12 μm
NETD: <40 mK
Display resolution: 1280 x 960
Image refresh rate: 50 Hz
Lens: 50 mm F/1.0
Linear field of view at 100 m: 30.7 х 24 m
Angular field of view: 17.5 х 14 deg.
Digital zoom: 2.5x to 20x
Optical zoom: 2x
Maximum range: 2300 m
Maximum range of rangefinder: 1500 m
Internal memory: 64 GB
Dimensions: 197 x 140 x 72 mm
Water resistance: IPX7
Operating temperature: -25 to +50 deg. C
Power supply: built-in 4000 mAh battery, replaceable APS3 3200 mAh battery
Operating time: 6 h
Weight: 905 g
Manufacturer: Pulsar, Lithuania
MILITARY is a premium dealer of Pulsar.
Pulsar is a European brand specializing in thermal imaging technology and digital day-night optics, owned by the Yukon Group and headquartered in Lithuania. Its origins date back to 1991, when a group of enthusiasts began building the first devices in home conditions. The company currently employs more than 1200 people and operates in markets across more than 70 countries. All production takes place in Europe, and the brand has gained recognition thanks to innovative solutions such as Dual-Purpose systems, enabling the device to be used both as a monocular and as a scope. The modern nature of the product range is highlighted by the Stream Vision 2 app, which enables wireless connection of devices to a phone via Wi-Fi, offering remote control, image transmission, and software updates. In 2005, Yukon Group was the first to introduce digital night vision devices to the civilian market, starting a new stage in the development of consumer optoelectronics. In 2012, the Quantum model was introduced – the first mass-produced thermal imaging monocular for civilians, and in 2019 the compact Axion XM30, capable of detecting a human silhouette from a distance of 1350 meters in complete darkness.
| Thermal imager type | Binoculars |
|---|---|
| Display modes | 8 |
| Field of view | 30.7 х 24 m/ 100 m |
| Sensor resolution | 1280 x 1024 px |
| Transport cover | Yes |
| Dimensions | 197 x 140 x 72 mm |
| Additional accessories included | Yes |
| Screen resolution | 1280 x 960 px |
| Objective lens diameter (mm) | 50 |
| Weight | 905 g |
| Accumulator/battery type | Li-Ion APS 3 |
| Power type | Interchangable accumulator |
| Waterproof class | IPX 7 |
| Maximum detection depth | 2300 m |
| Built-in memory | Yes |
| EAN | 4779022926105 |
| Manufacturer code | 77486 |
| Brand | Pulsar |
