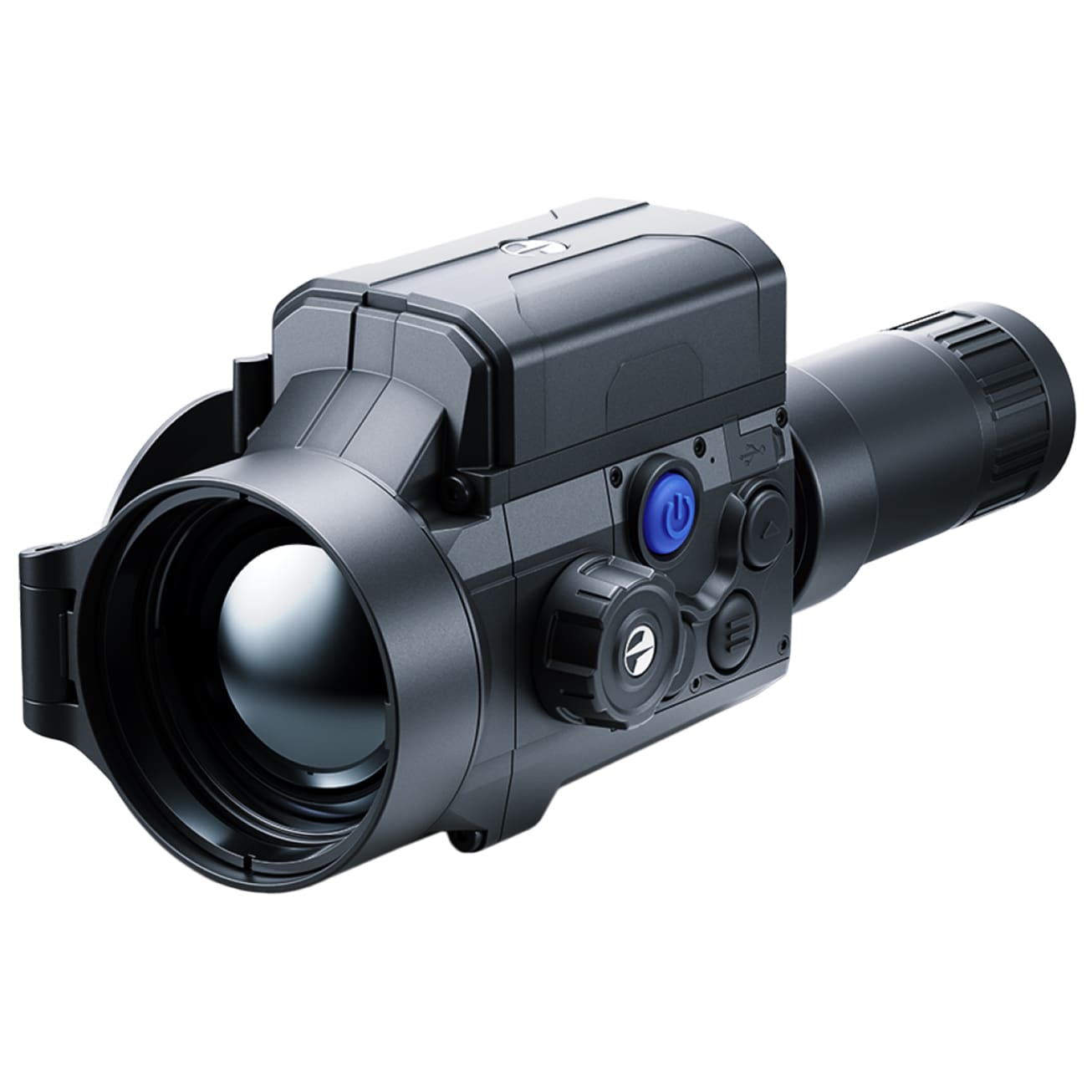

Pulsar Krypton 2 XG50 Thermal Imaging Cap
- description
- technical data
- Reviews
- Goes well with
A thermal imaging cap designed to work with rifle scopes at magnifications from 2x to 6x. It is mounted on the scope's lens with an adapter (not included). The cap is designed to make its mounting on a day scope simple, fast and repeatable. For precise positioning of the cap relative to the scope's aiming point, an auxiliary crosshair has been added to the cap's menu.

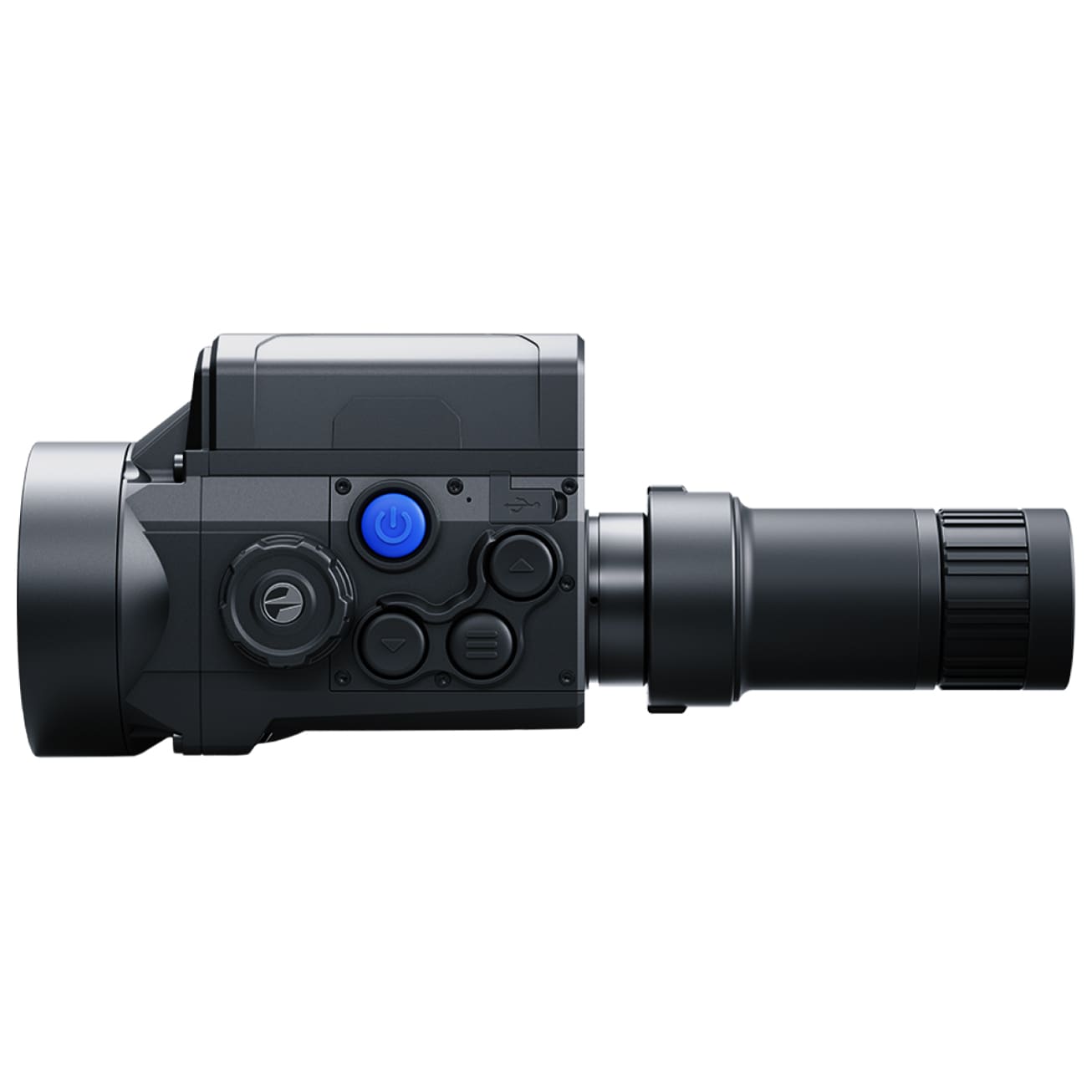

The Krypton 2 XG50 is additionally equipped with a 3x20B observation monocular mounted to the rear of the thermal imaging cap. Once the monocular is attached, the unit becomes a thermal imager with 3x magnification.
The cap's housing is made of magnesium alloy, which makes it excellent at dissipating heat from electronic circuits, and also guarantees high mechanical resistance (6000 J). Thanks to its high durability, the device can be used even with large calibers like 375H&H or 9.3x64. The cap's housing meets the IPX7 waterproof standard (which allows the device to be submerged at a depth of 1 meter for 30 minutes). The device can operate in a wide temperature range from -25 to +50 deg. C.
The cap uses an AMOLED HD display with a resolution of 1920x1080 pixels and a 640x480 sensor with a pixel size of 12 µm, which features high thermal contrast and NETD sensitivity of <40 mK. A German-made lens with a focal length of 50 mm and an F1.0 focal length allows detection of a target at a distance of up to 2,300 meters. With the Display OFF function, you can turn the display on and off without turning the unit off, saving battery power and making it easier to stay hidden.
The cap image can be customized with a palette of eight color variations:
- White Hot - for object detection,
- Black Hot - for object detection,
- Hot Red - for object detection,
- RedMonochrome - for long night observations,
- Rainbow - for recognition and identification,
- Ultramarine - for recognition and identification,
- Violet - for long night observations,
- Sepia - for long night observations.
The cap has a built-in video/photo recorder with 16GB of memory and a Wi-Fi module for connecting to a mobile device. With the StreamVision 2 app, the thermal imager can be remotely observed.
The device is powered by a 6400 mAh IPS7-type battery that allows for 11 hours of continuous use. For charging, there is a cable with a USB-C adapter, which can simultaneously be used to connect to a computer.
The set includes:
- user manual in Polish,
- USB cable,
- USB/230V charger,
- optics cleaning material,
- neck strap,
- remote control,
- lens cap,
- IPS7 battery,
- carrying case,
- warranty card with hologram,
- IPS battery cover,
- IPS battery docking station,
- eyepiece cover,
- battery socket cover,
- 3x20b observation monocular.
Technical data
Recommended magnification range: 2-6x
Lens diameter: 50 mm
Linear field of view at 100 m: 15.4 x 11.5 m
Shock resistance: 6000 J
Operating temperature: -25 - +50 deg.
Diopter adjustment: from the scope
Observation range: 2300 m
Sensor type: uncooled
Sensor resolution: 640 x 480 pixels
Pixel size: 12 µm
Refresh rate: 50 Hz
Thermal sensitivity: <40 mK
Start-up time: 3 s
Display: AMOLED HD
Display resolution: 1920x1080 pixels
Lens parameters: 50 mm F/1.0
Data interface: USB-C
Minimum sharp viewing distance: 5 m
Operating time: 11 h
Internal memory: 16 GB
External power supply: 5 V
Video / photo recording format: mp4/jpeg
Wi-Fi module: 2.4 /5 GHz IEEE 802.11 b/g/n/ac (WPA)
Network operating range: 15 m
Dimensions: 131 x 78 x 84 mm
Weight: 570 g
Manufacturer: Pulsar, Lithuania
MILITARY is a premium dealer of Pulsar.
Pulsar is a European brand specializing in thermal imaging technology and digital day/night optics, owned by the Yukon Group and based in Lithuania. Its origins date back to 1991, when a group of enthusiasts began building their first devices at home. Today, the company employs over 1200 people and operates in more than 70 countries. All production takes place in Europe, and the brand has gained recognition for its innovative solutions, such as Dual-Purpose systems, which allow the device to be used as both a monocular and a rifle scope. The modern nature of the offer is emphasized by the Stream Vision 2 application, which allows wireless connection of devices to a phone via Wi-Fi, offering remote control, image transfer, and software updates. In 2005, the Yukon Group was the first to introduce digital night vision devices to the civilian market, marking in a new stage in the development of applied optoelectronics. In 2012, the Quantum model was unveiled – the first mass-produced thermal imaging monocular for civilians, and in 2019, the compact Axion XM30, capable of detecting a human silhouette from a distance of 1350 meters in complete darkness.
| Optics ready | Yes |
|---|---|
| Thermal imager type | Attachment |
| Display modes | Yes |
| Reticle | No |
| Field of view | 15,4 x 11,5 |
| Sensor resolution | 640x480 |
| Screen resolution | 1920x1080 |
| Vehicle detection | 2300 m |
| Human detection | 2300 m |
| Waterproof class | IPX 7 |
| Power type | Interchangable accumulator |
| Accumulator/battery type | 1x Li-Ion IPS-7 |
| Transport cover | Yes |
| Weight | 570 g |
| Objective lens diameter (mm) | 50 |
| Dimensions | 131 x 78 x 84 mm |
| Additional accessories included | Yes |
| Battery type | 6400 mAh |
| Maximum detection depth | 2300 m |
| Built-in memory | Yes |
| EAN | 4779022925061 |
| Manufacturer code | 77379 |
| Brand | Pulsar |
