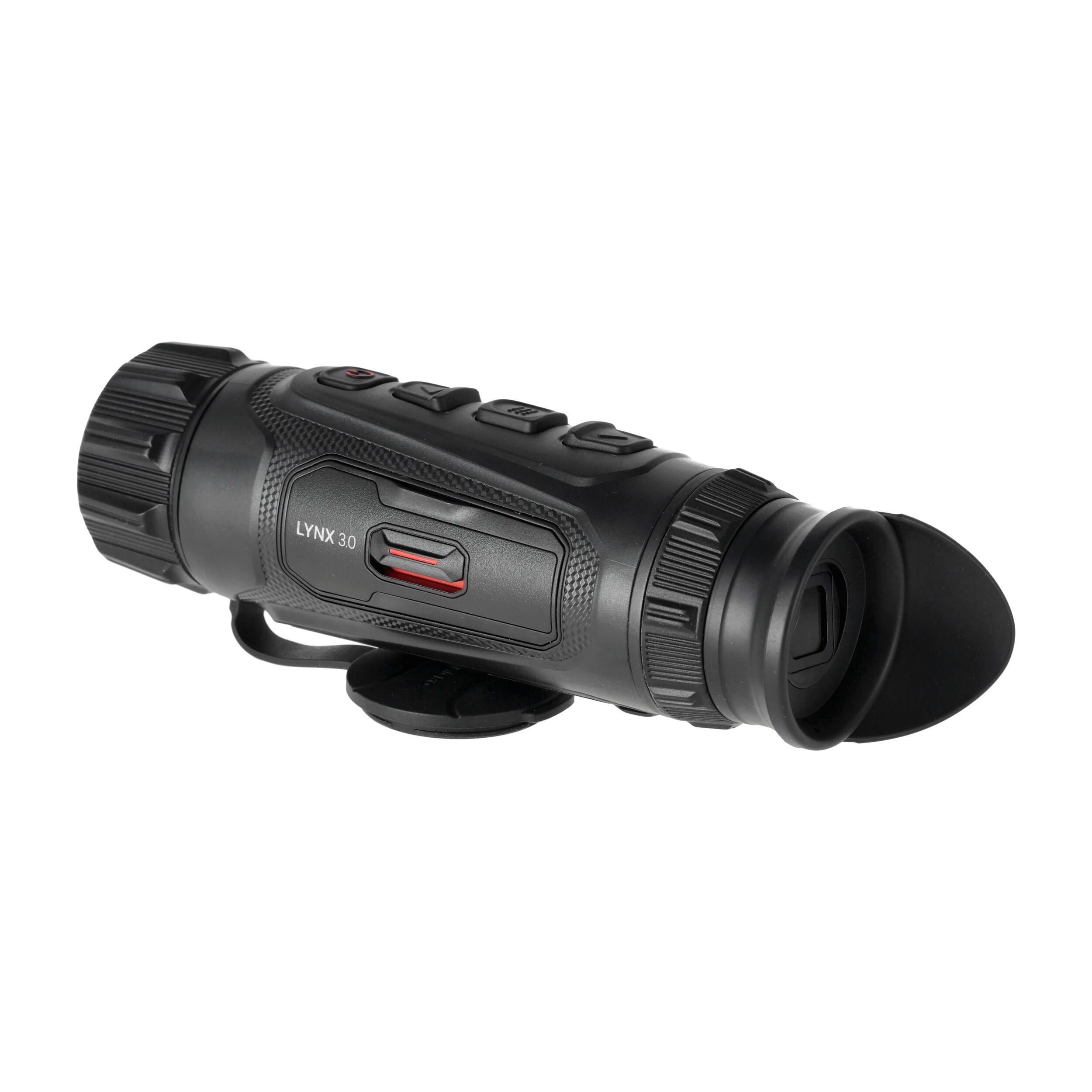

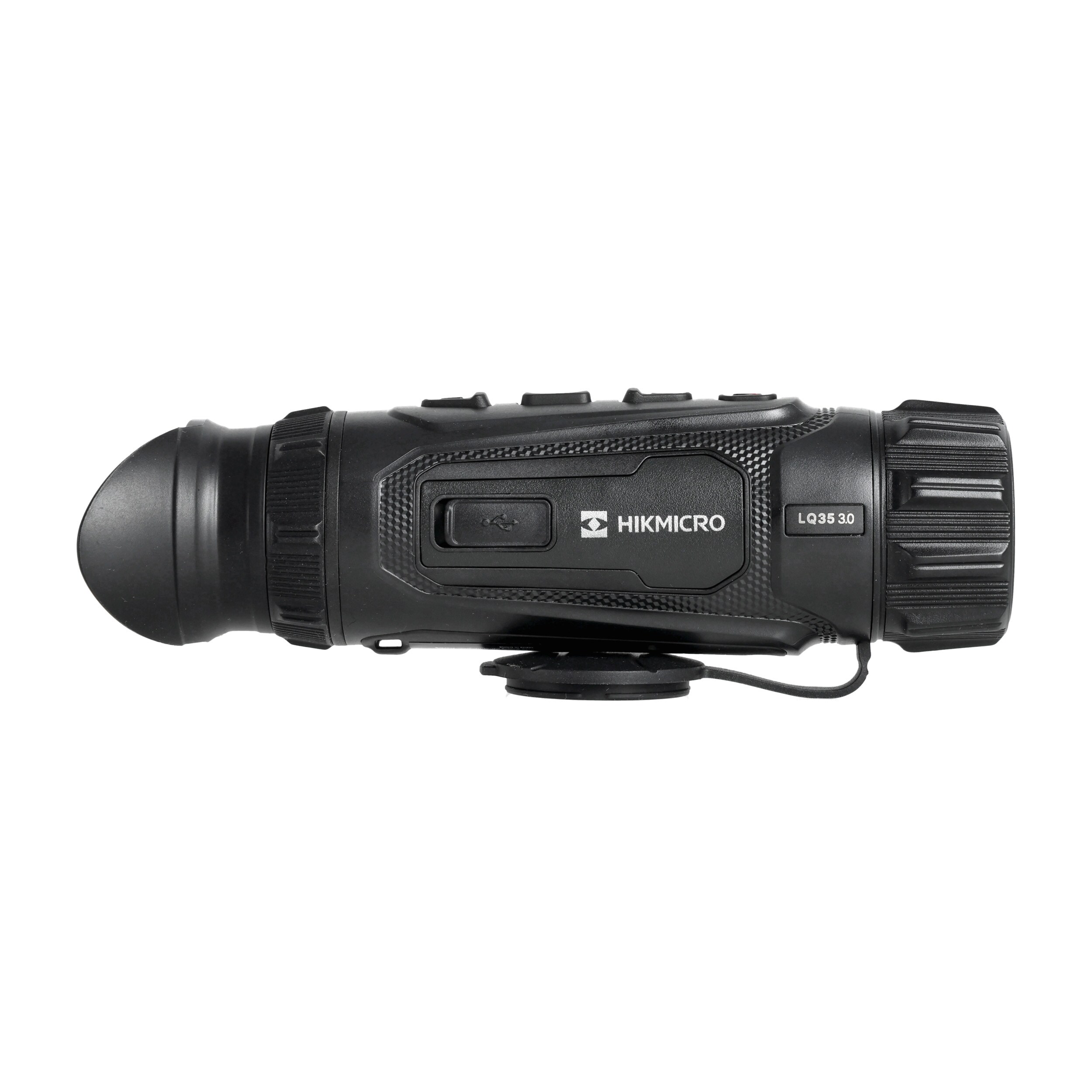

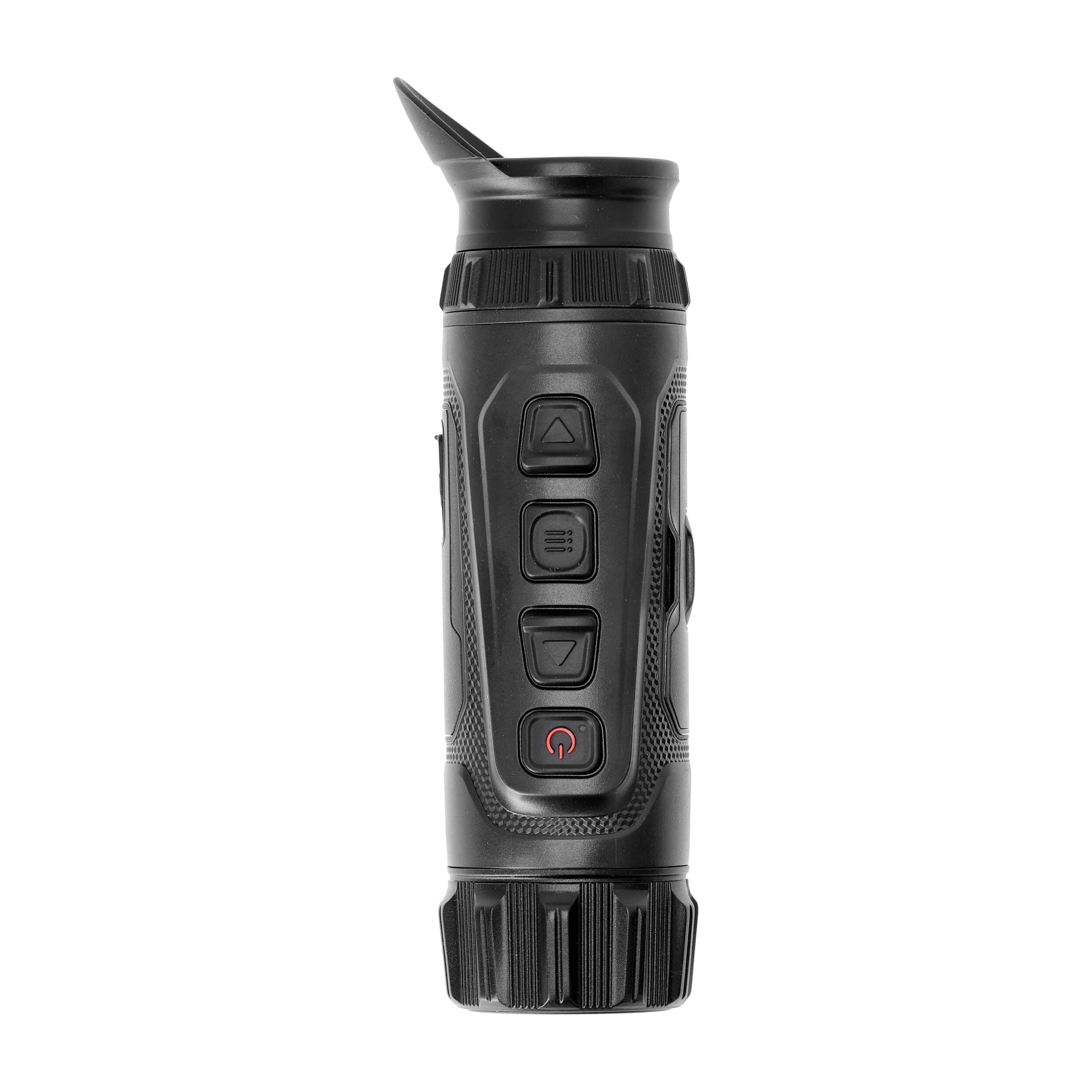

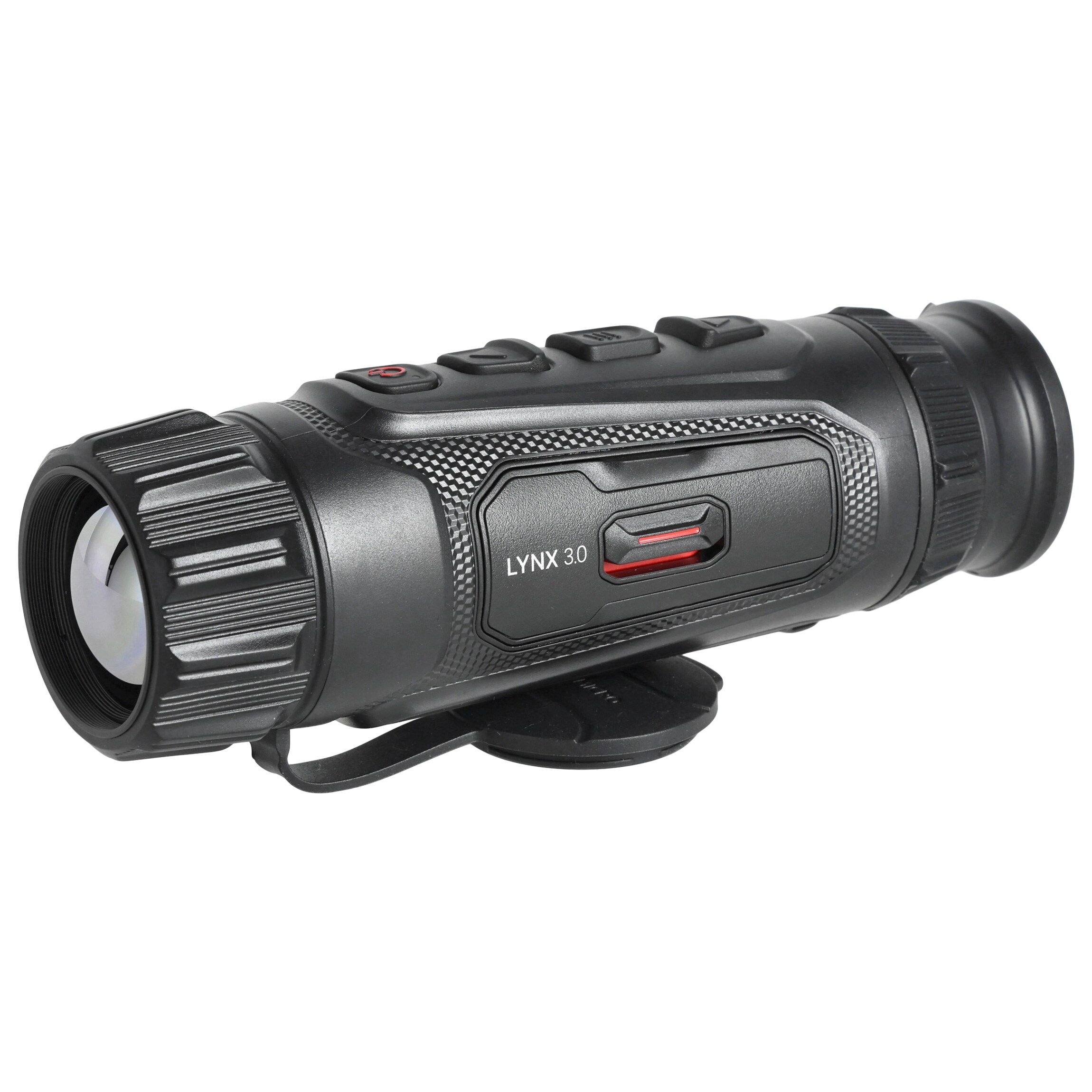

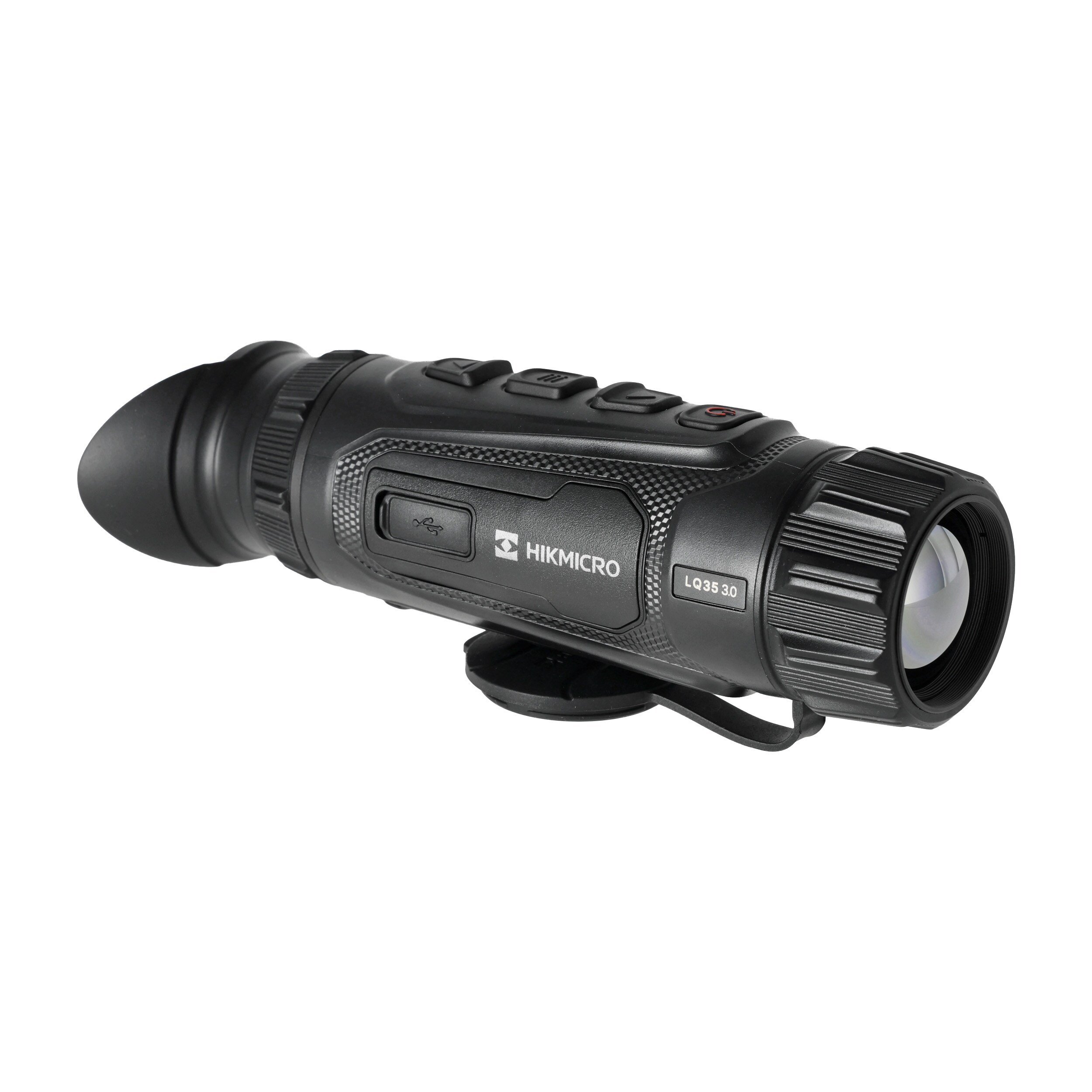

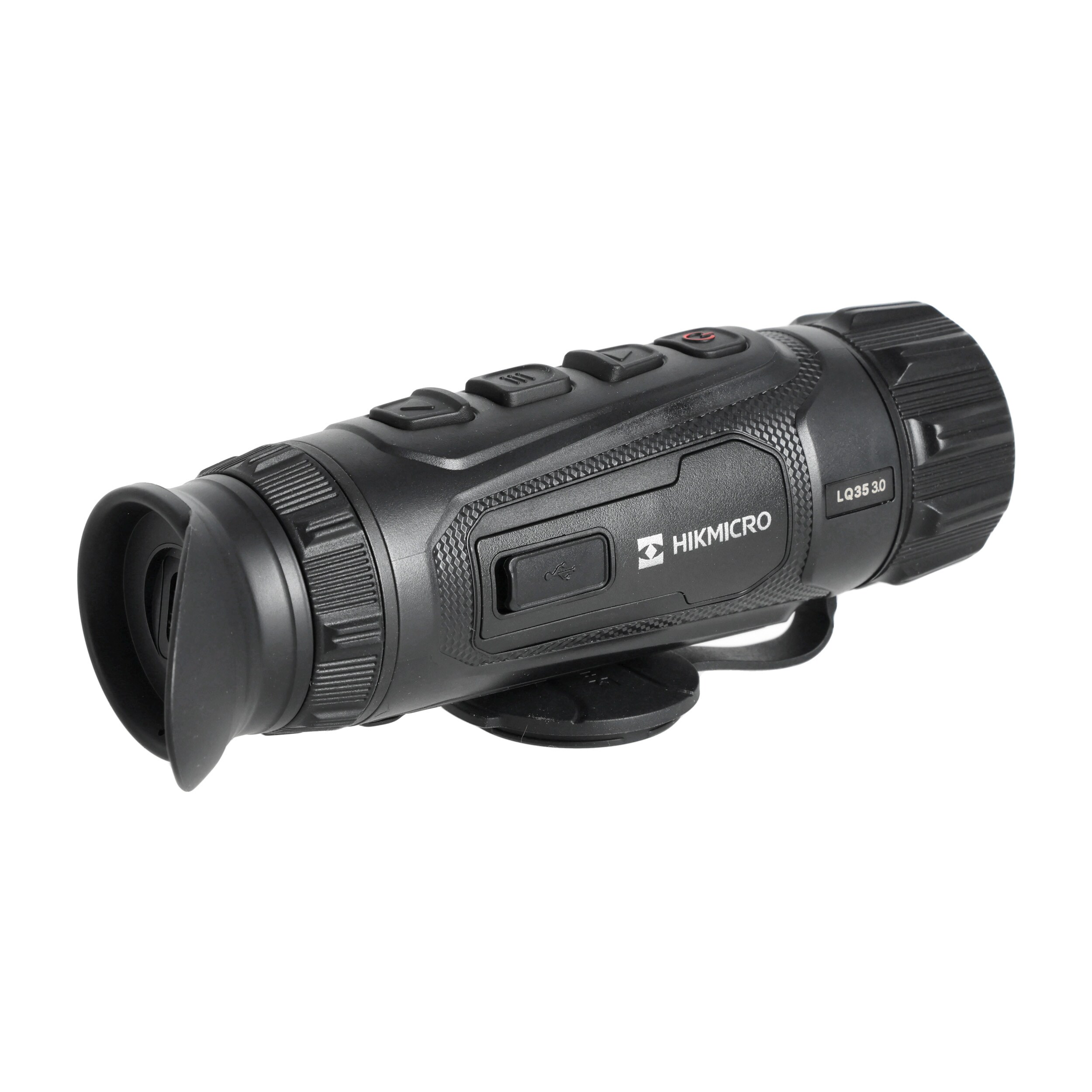

Hikvision Hikmicro Lynx LQ35 3.0 Thermal Imager

Thermal monocular equipped with a 35 mm diameter lens. Provides magnification from 1.9x to 15.2x (8x) and a wide field of view 21.9 x 13.2 m at 100 meters, making it suitable for both long-distance observation and medium-range object identification.

Model designed with users in mind who expect a fast and precise observational tool. Utilizes the latest Hikmicro technologies, ensuring high image quality in a compact form.

The device's body is made from material resistant to mechanical damage and shock. Its compact construction and the use of seals make the housing meet the IP67 waterproof rating, protecting against dust, dirt, and immersion in water up to 1 meter for 30 minutes.

Shortened design and lightweight for easier transport - the device fits in a pocket or small bag. Anti-slip external surface and a well-thought-out button layout allow for easy one-handed operation, even in gloves.

The thermal imager is equipped with a bright 35 mm diameter lens. VOx Uncooled Focal Plane Arrays (UFPA) thermal sensor with a resolution of 640 x 512 px and a pixel size of 12 µm ensures precise detail reproduction. Thermal sensitivity at the NETD level <15 mK allows for the detection of even small temperature differences - also in dense vegetation, low visibility, or challenging weather conditions.

The image is presented on a AMOLED screen with a resolution of 1920 x 1080 px. The display is designed to reduce eye strain during long-term observations, enhancing user comfort. A refresh rate of 50 Hz allows for comfortable tracking of moving objects. Built-in static rangefinder allows for distance estimation to target.

The device employs modern Hikmicro technologies that enhance performance, improve image quality, and facilitate observations in diverse terrain and light conditions:

• HSIS - Hikmicro Shutterless Image System - eliminates the need for traditional calibration, providing smooth observations without image "freezes," allowing focus on the target regardless of conditions.
• Image Pro 3.0 - a dynamic image processing system. Automatically adjusts contrast and sharpness, improving detail visibility in changing conditions.
• Zoom Pro - an algorithm optimizing digital magnification. Maintains image detail and contrast at all zoom levels, enabling effective observation even at maximum zoom.

The thermal imager allows use of 6 image display modes, facilitating recognition and identification of observed objects:

• White Hot - higher temperature means brighter tones.
• Black Hot - higher temperature means darker tones.
• Red Hot - image as in "White Hot" with red highlighting of the hottest elements.
• Fusion - from high to low temperature, the image is presented in colors from white, through yellow, red, pink, to purple.
• Red Monochrome - red monochrome palette, allows long-term observation without eye strain.
• Green Monochrome - green monochrome palette, allows for long observation without eye strain.

The model allows for saving photos or videos on the built-in 64 GB internal memory. With the Wi-Fi 2.4/5 GHz module, it enables connection to the Hikmicro Sight app on a smartphone, allowing for remote viewing, saving, and sharing of images.

The device is powered by a replaceable Li-ion 18650 battery, allowing for up to 4.5 hours of continuous operation. The built-in USB-C port allows for easy battery charging from a car charger, computer, or power bank.

A short startup time of only 2 seconds allows for quick observation start. Auto screen-off function automatically dims the screen, saving energy and extending operating time.

• thermal imager

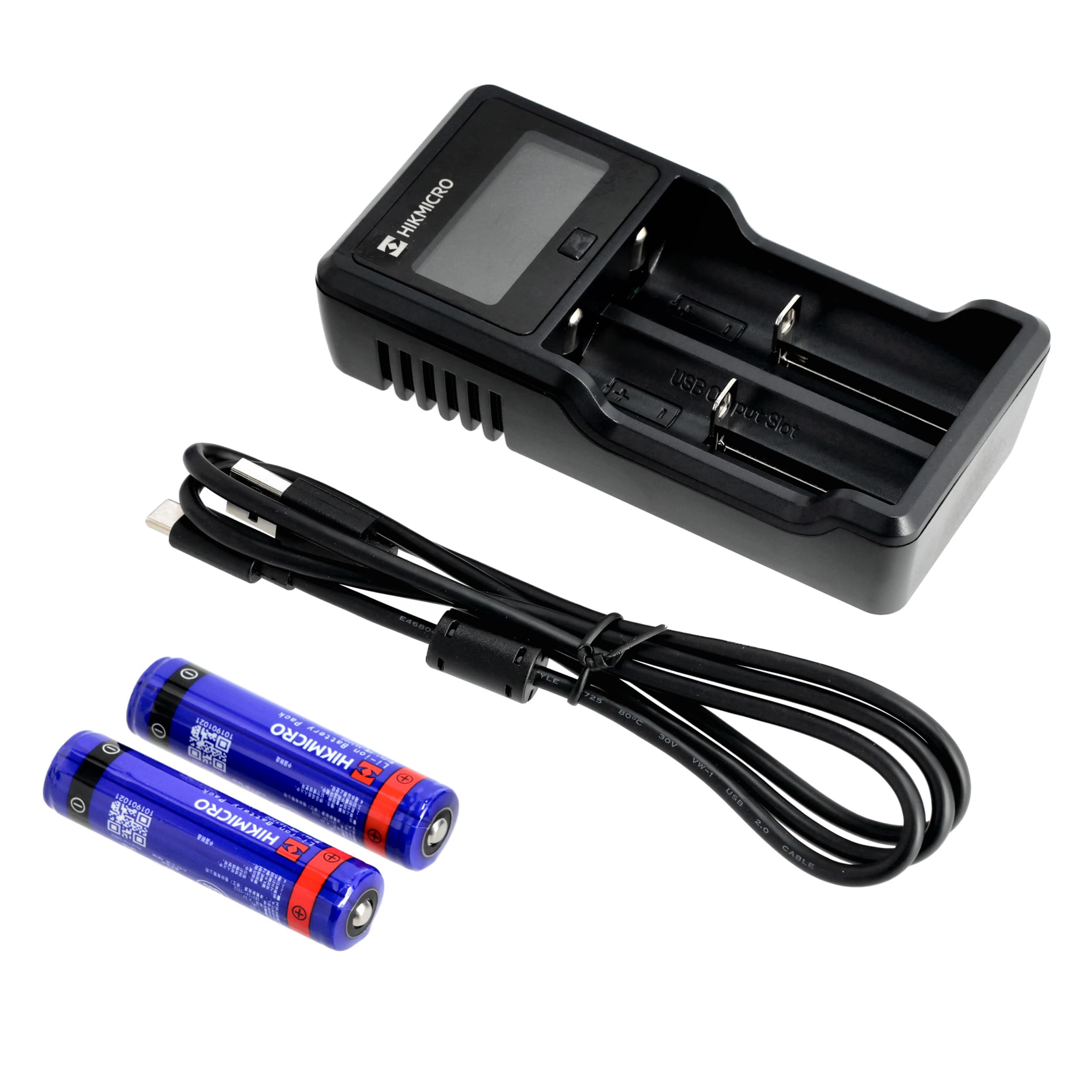

• 2x 18650 battery
• USB-C cable
• battery charger
• user manual
• cleaning cloth

• thermal sensor with a resolution of 640 x 512 px
• magnification 1.9x - 15.2x (8x)
• 35 mm diameter lens (f1.0)
• AMOLED screen with a resolution of 1920 x 1080 px
• NETD sensitivity <15 mK
• field of view 21.9 x 13.2 m at 100 m
• detection range 1800 meters
• refresh rate 50Hz
• fast start - ready to work in 2 seconds
• Image Pro 3.0 and Zoom Pro algorithms
• modern HSIS technology
• 6 color palettes
• built-in 64 GB memory
• shock-resistant housing
• IP67 waterproof rating
• battery-powered
• auto screen-off function
• Wi-Fi 2.4/5 GHz connectivity
• operating temperature from -30 to +45 deg. C.
