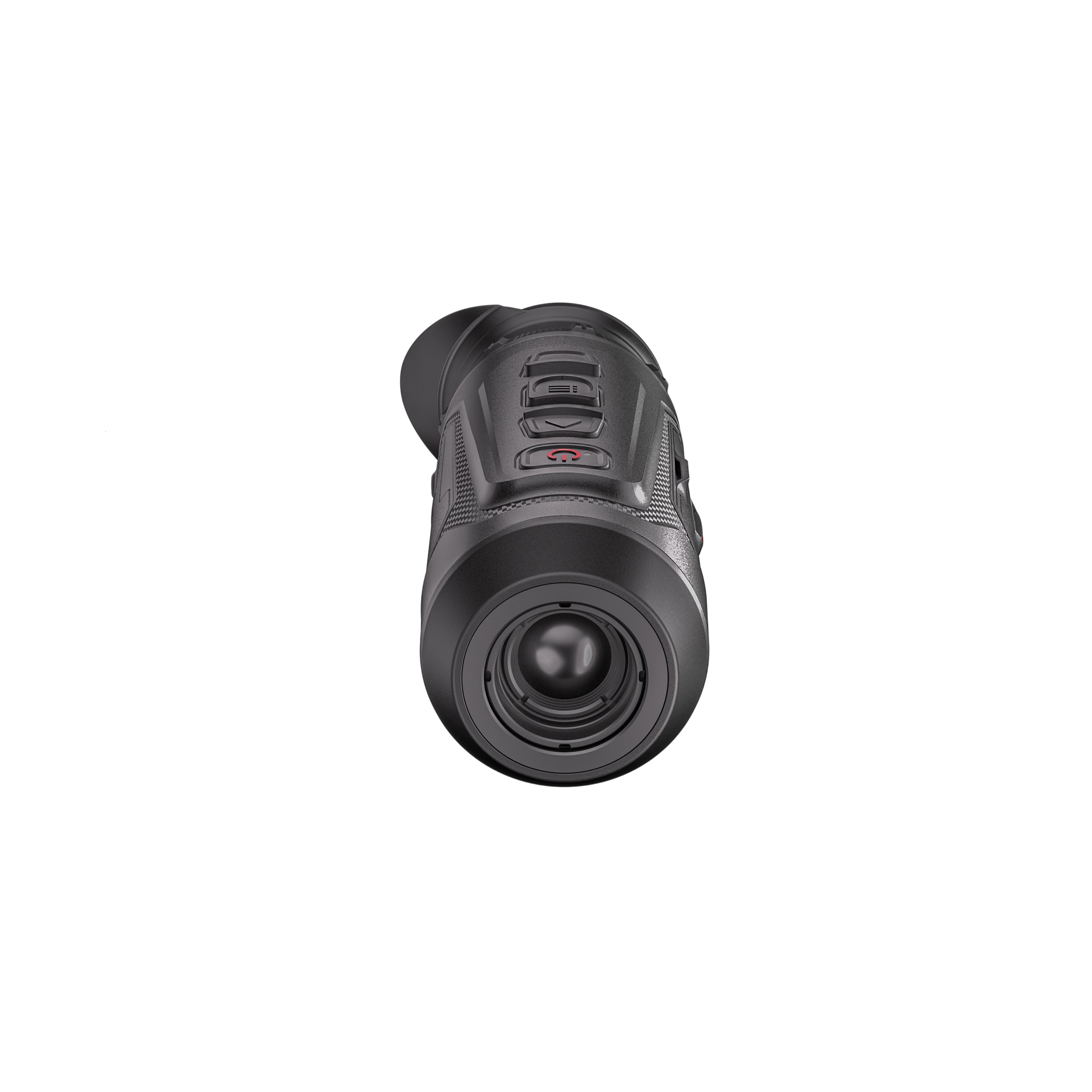

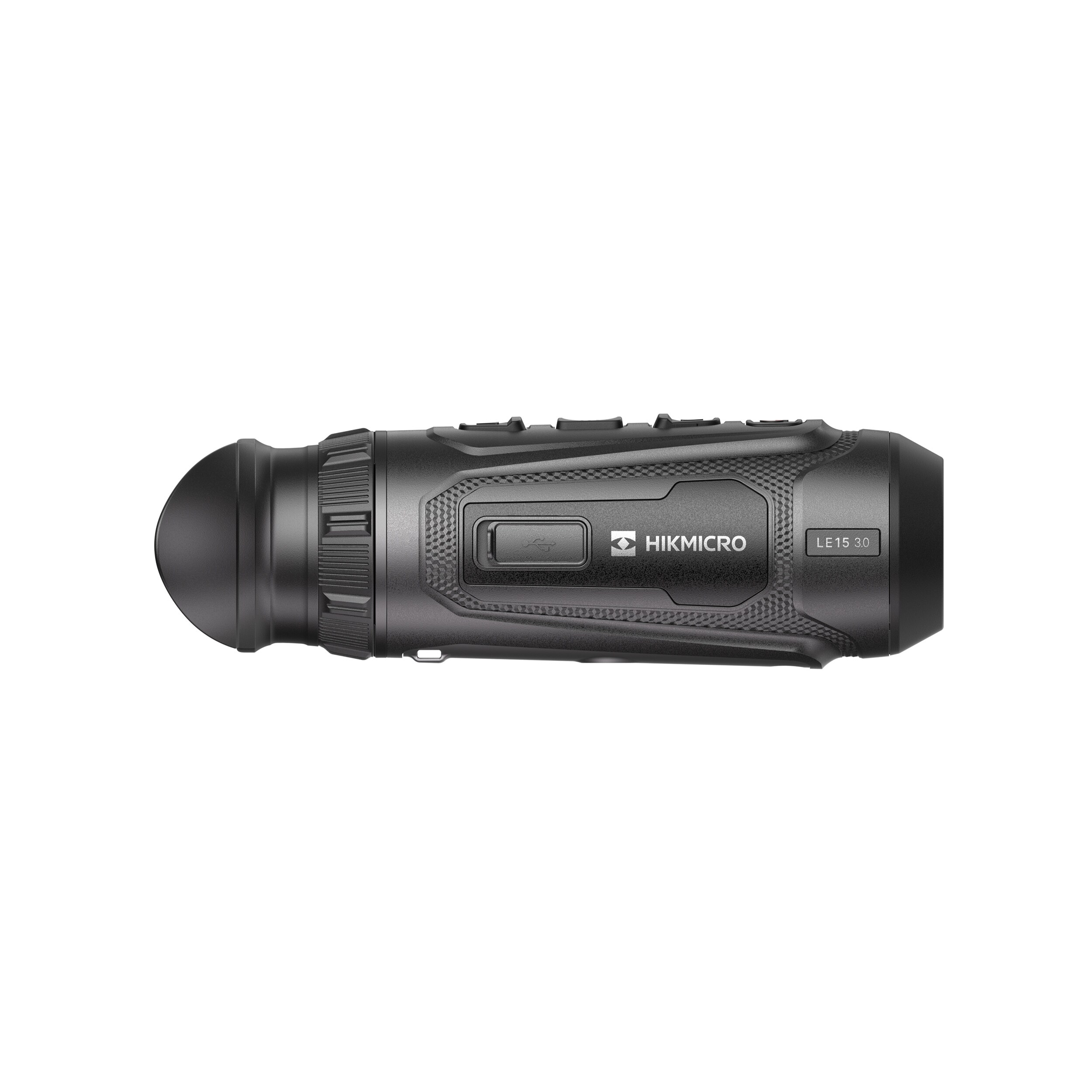

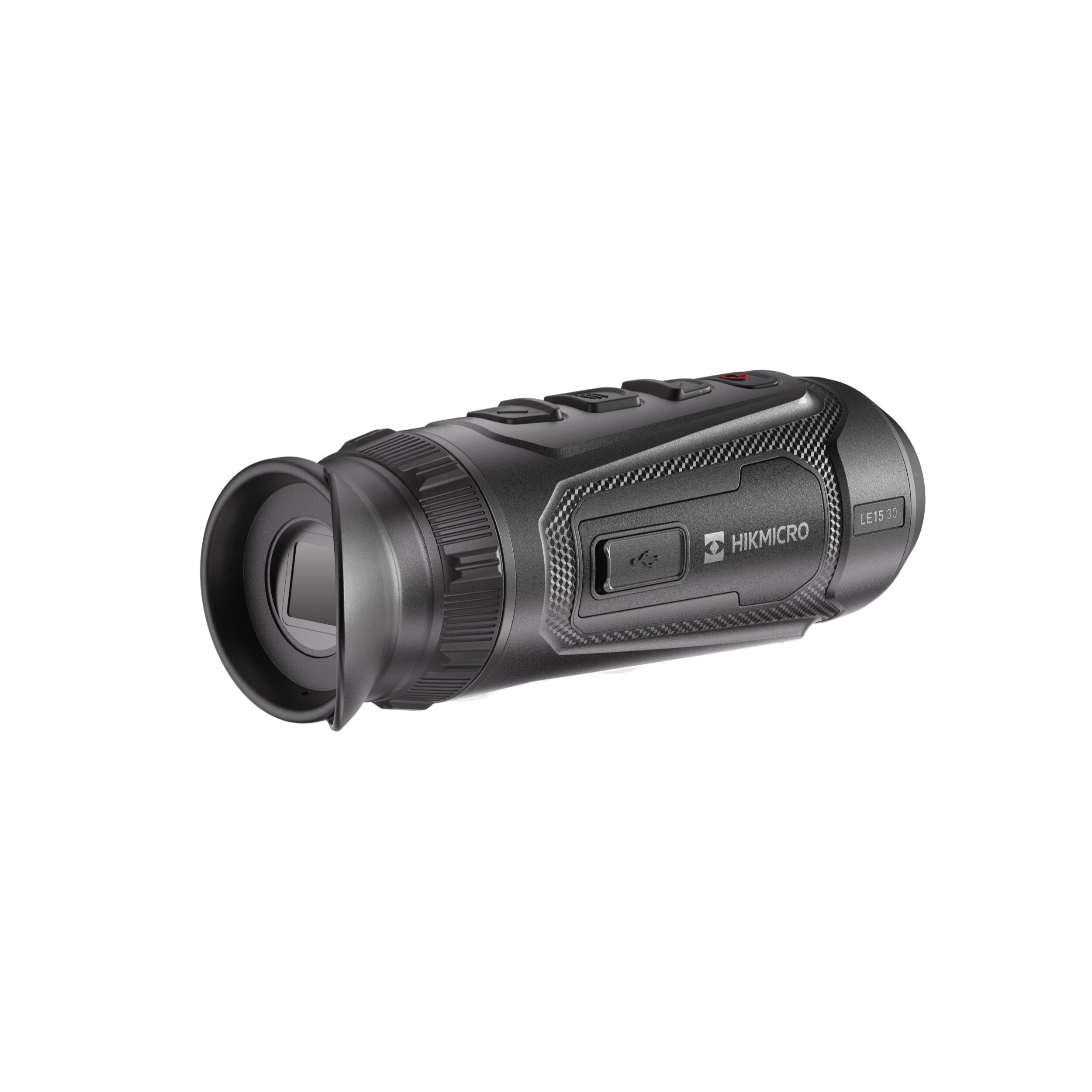

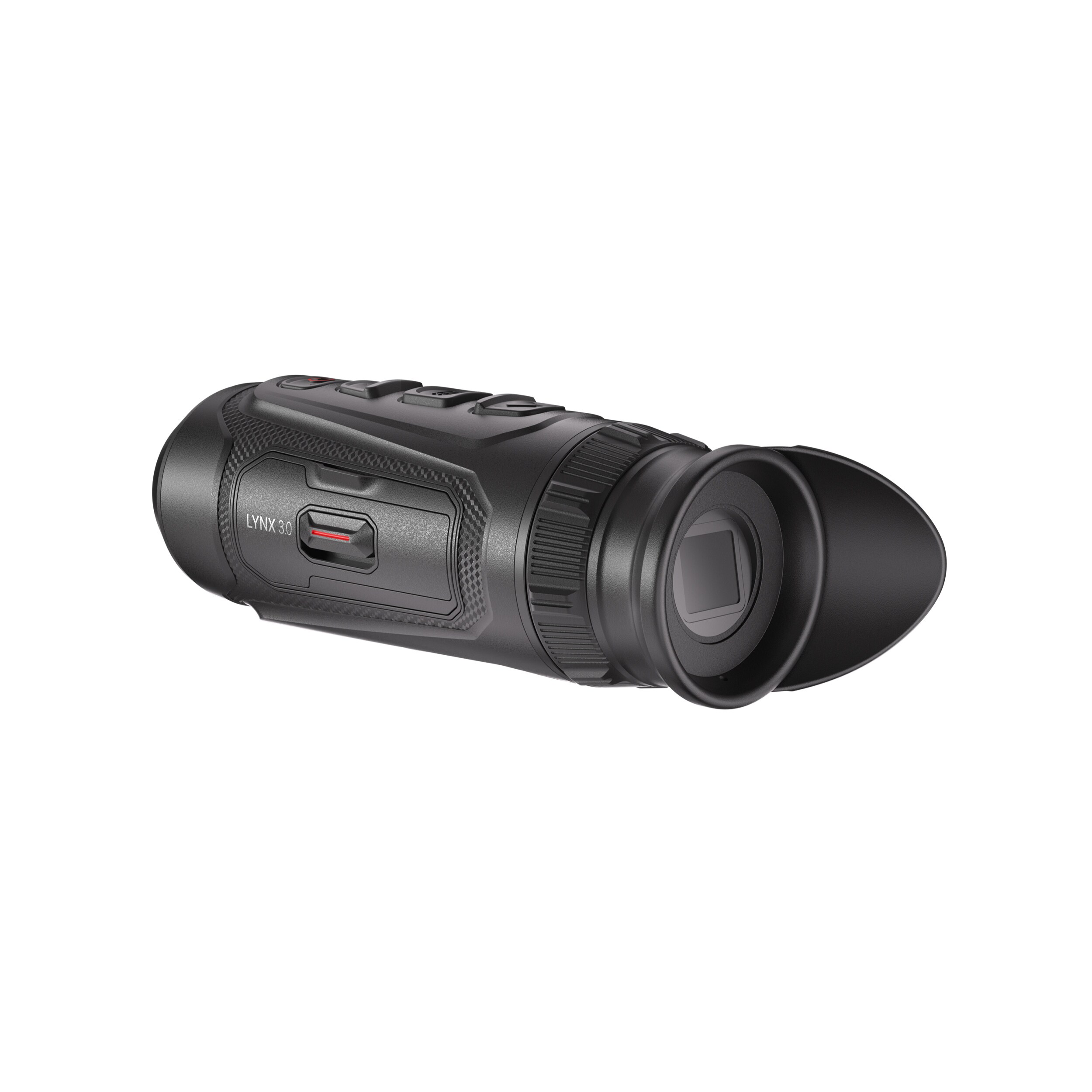

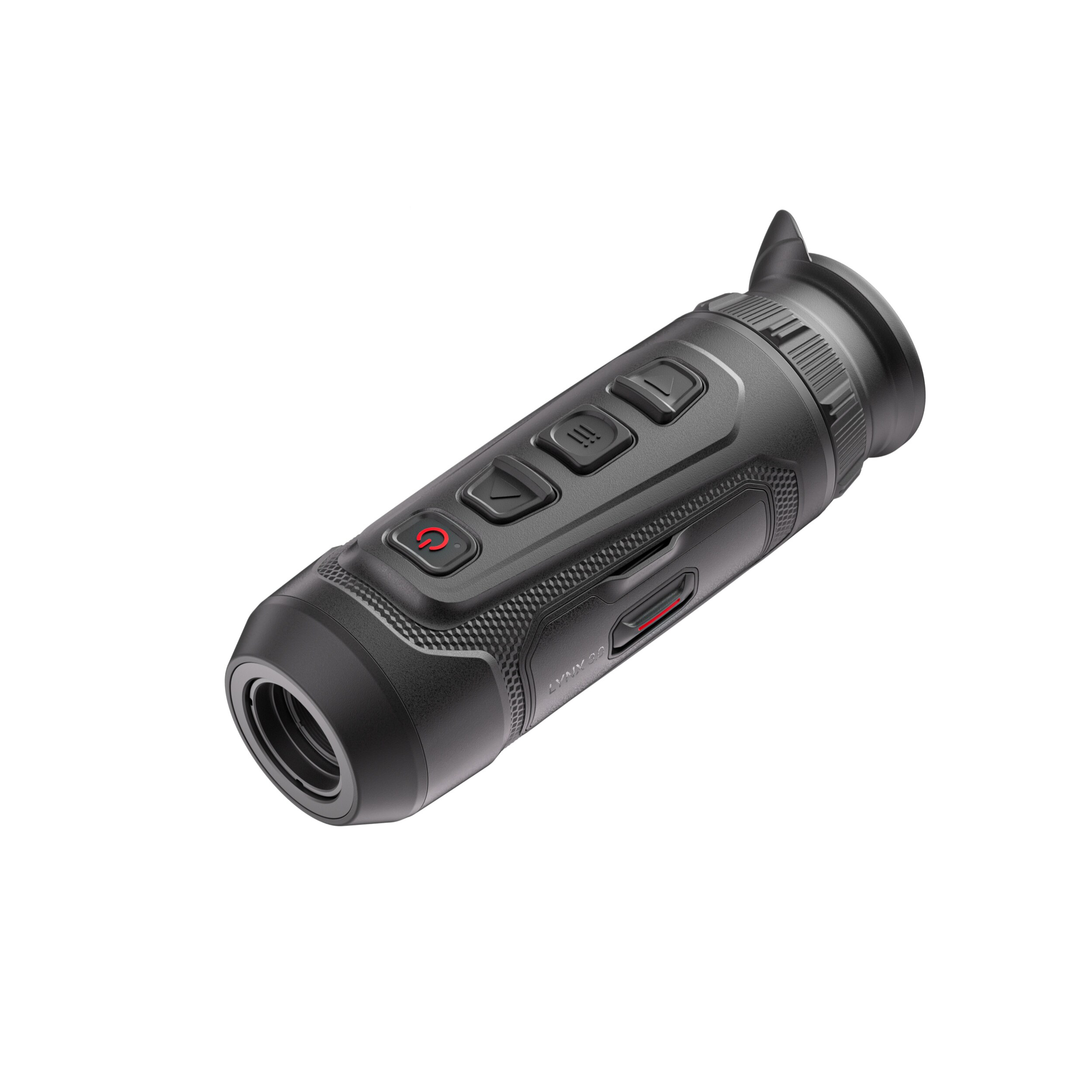

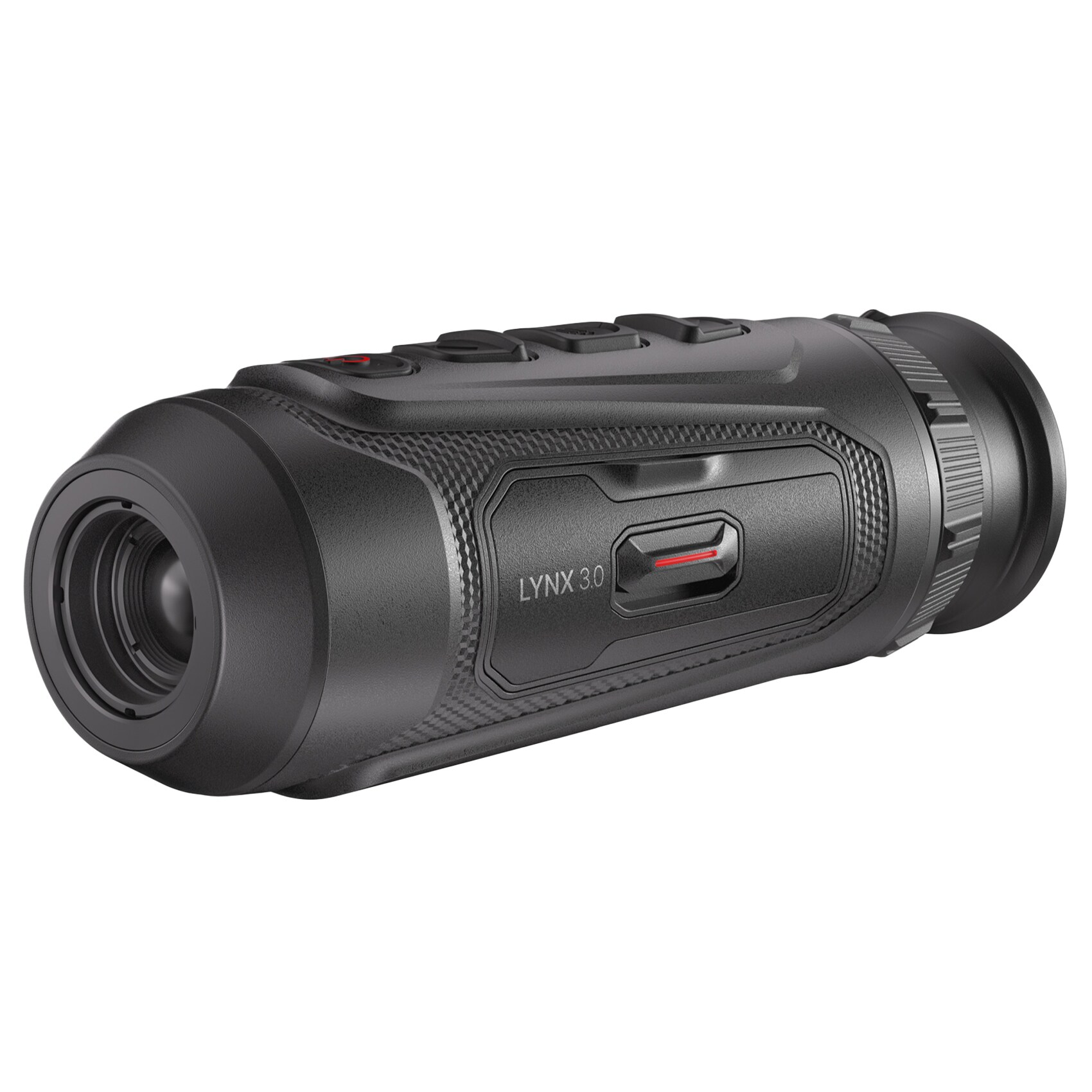

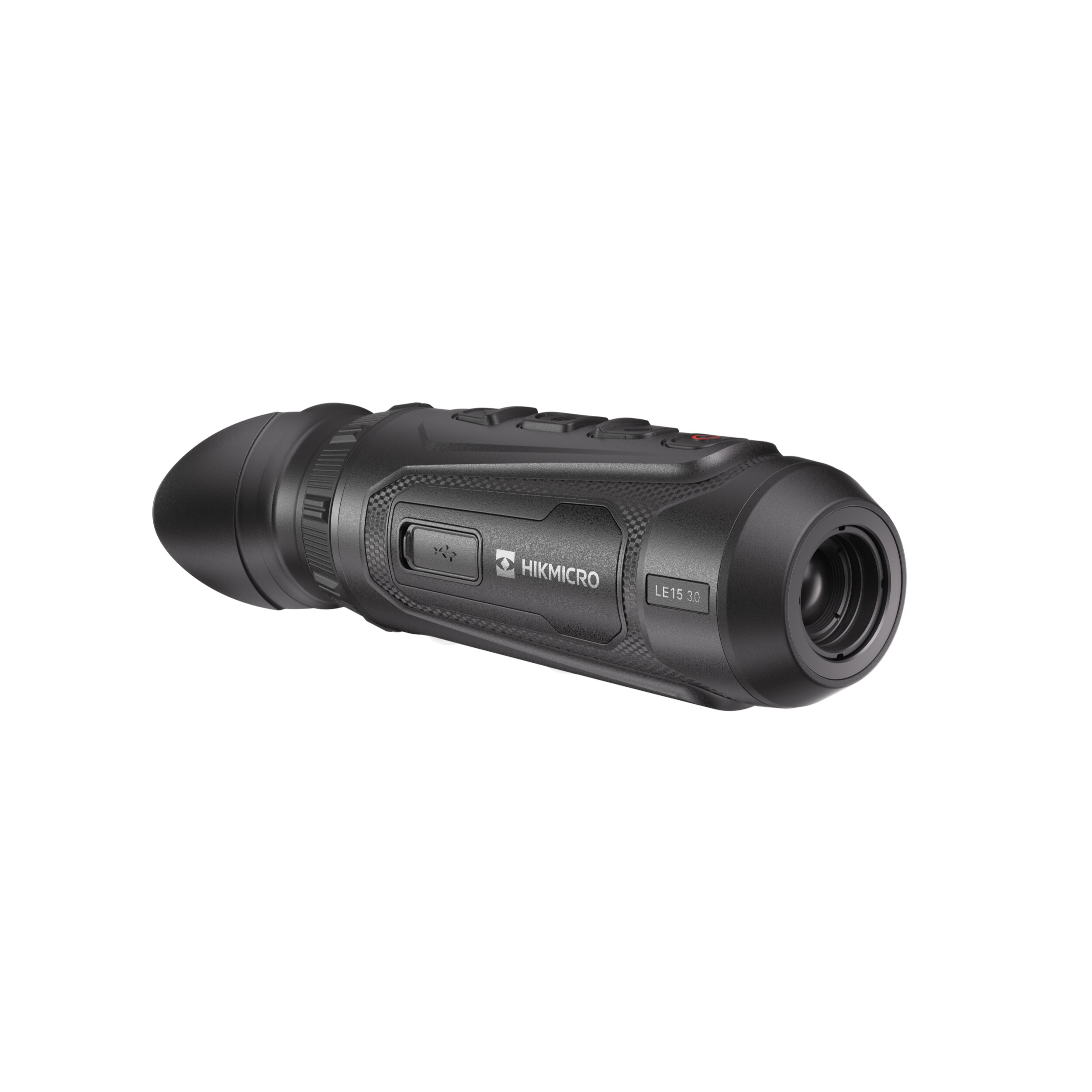

Hikvision Hikmicro Lynx LE15 3.0 Thermal Imager

Thermal imaging monocular with a 15 mm diameter lens, offering magnification from 2.2x to 17.6x (8x) and a wide field of view of 20.5 x 15.4 m at 100 meters. It is suitable for both close-range observation and medium-distance object identification.

The model is aimed at users looking for a fast-acting and precise observational tool. The device is based on the latest Hikmicro technologies, providing high-quality imaging in a compact form.

The model's body is made of material resistant to mechanical damage and shocks, and its compact design and seals allow its housing to meet the IP67 waterproof rating, providing protection against dust, dirt, and immersion in water up to 1 meter deep for 30 minutes.

The shortened design and low weight make it easy to carry; the thermal imager fits in a pocket or small bag. The non-slip outer surface and thoughtfully laid out buttons enable easy one-handed operation, even when wearing gloves.

Equipped with a clear 15 mm diameter lens. The high-quality VOx thermal sensor with a resolution of 256 × 192 px and 12 µm pixel size ensures precise detail reproduction. Thermal sensitivity at NETD <20 mK allows detecting even small temperature differences - even in dense vegetation, low visibility, or adverse weather conditions.

The image is presented on an 0.39" AMOLED display with a resolution of 1024 x 768 px. The display is designed to minimize eye fatigue during prolonged observations, providing high user comfort. 50 Hz refresh rate allows for convenient observation of moving objects.

The built-in static rangefinder in the thermal imager allows for easy preliminary measurement of the distance to the observed target.

The device uses modern Hikmicro technologies to enhance operation smoothness, improve image quality, and facilitate observation in diverse terrain and lighting conditions:

• HSIS - Hikmicro Shutterless Image System eliminates the need for traditional calibration, providing continuous and smooth observation without image "freezes." This allows the user to maintain full focus on the target regardless of the prevailing conditions.
• Image Pro 3.0 - dynamic image processing system. Automatically adjusts contrast and sharpness, improving detail visibility in varying conditions.

The thermal imager allows the use of 6 image display modes, facilitating recognition and identification of observed objects:

• White Hot - the higher the temperature, the brighter the tone.
• Black Hot - the higher the temperature, the darker the tone.
• Red Hot - image similar to "White Hot" with red highlighting of the hottest elements.
• Fusion - from high to low temperature, the image is colored from white, yellow, red, pink to purple.
• Red Monochrome - red monochrome palette allows prolonged observation without eye fatigue.
• Green Monochrome - green monochrome palette allows prolonged observation without eye fatigue.

The model features the ability to save photos or videos on built-in 64 GB internal memory. The Wi-Fi 2.4/5 GHz module allows connecting the thermal imager with the Hikmicro Sight app on a smartphone, enabling remote viewing, saving, and sharing of images.

Powered by a replaceable Li-ion 18650 battery, allowing for up to 5.5 hours of continuous operation. The built-in USB-C port allows for convenient charging from a car charger, computer, or power bank.

A short start-up time of just 2 seconds allows for almost immediate commencement of observation. The auto screen-off function automatically dims the screen, conserving energy and extending operation time.

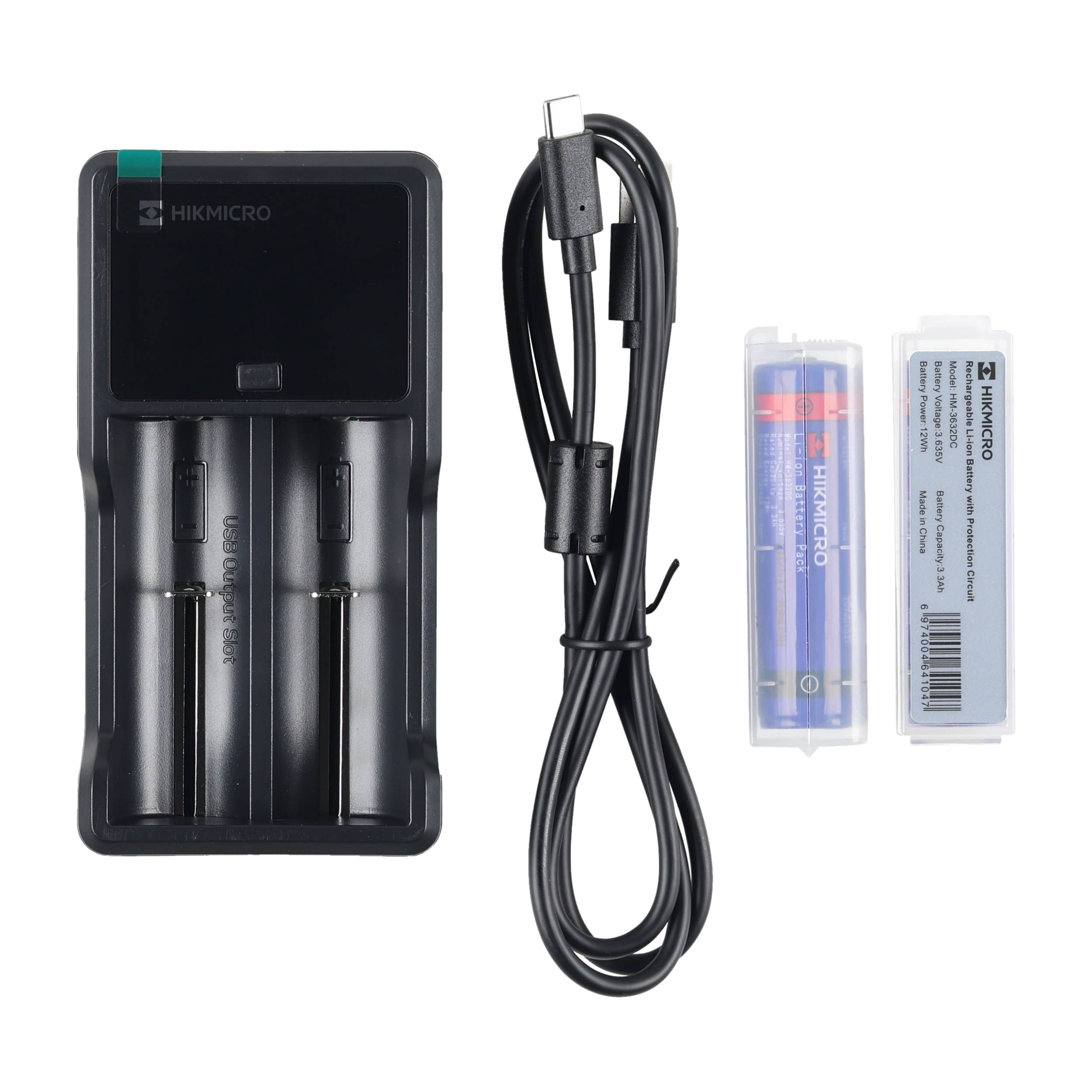

• thermal imager
• 2x 18650 battery
• USB-C cable
• battery charger
• user manual
• cleaning cloth

• thermal sensor with a resolution of 256 x 192 px
• magnification 2.2x-17.6x (8x)
• 15 mm diameter lens (f1.0)
• AMOLED display with a resolution of 1024 x 768 px
• NETD sensitivity <20 mK
• field of view 20.5 x 15.4 m at 100 m
• detection range of 750 meters
• 50Hz refresh rate
• fast start - ready for operation after 2 seconds
• Image Pro 3.0 algorithm
• modern HSIS technology
• 6 color palettes
• built-in 64 GB memory
• shock-resistant housing
• IP67 waterproof rating
• battery-powered
• auto screen-off function
• Wi-Fi connectivity 2.4/5 GHz
• operating temperature from -30 to +45 deg. C.
