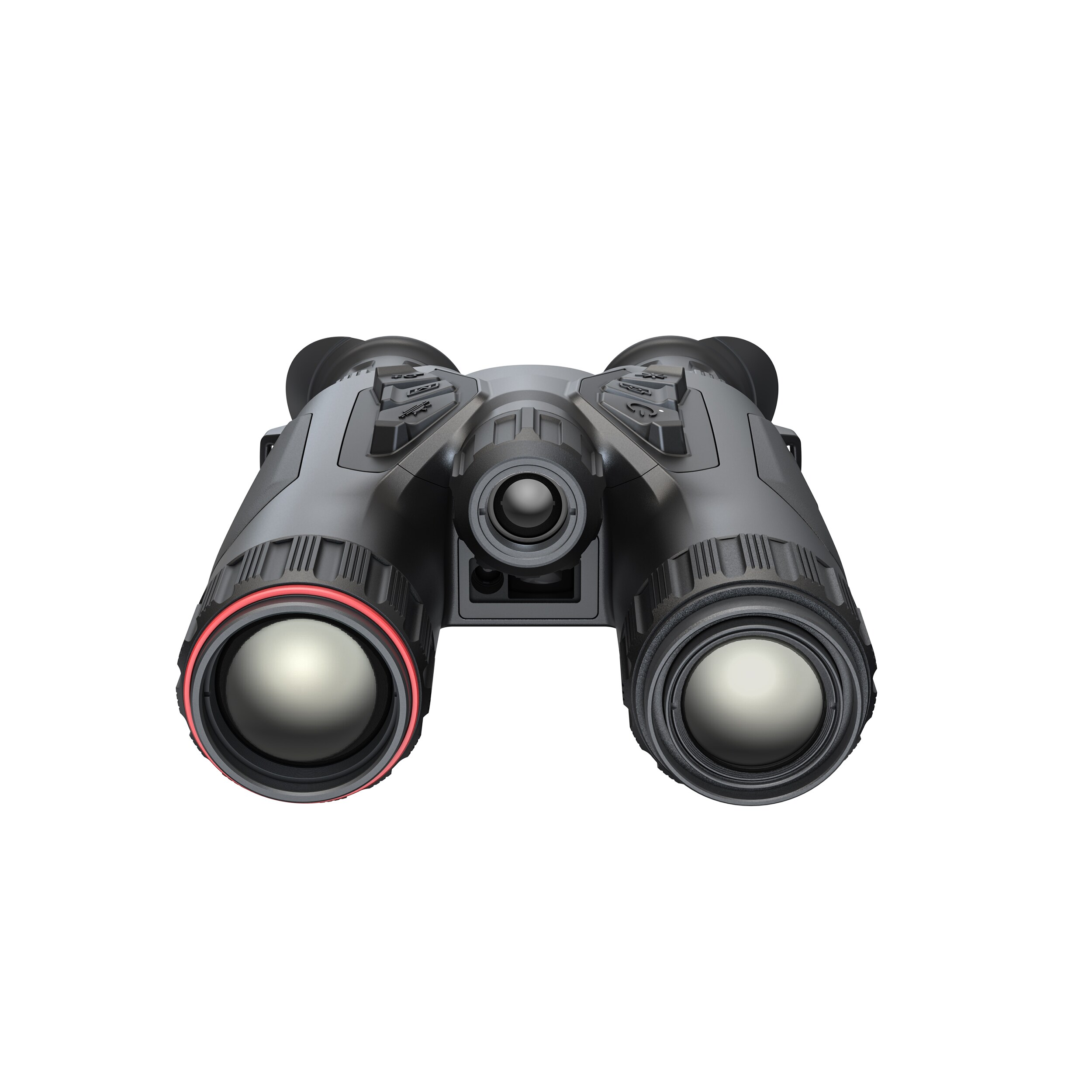

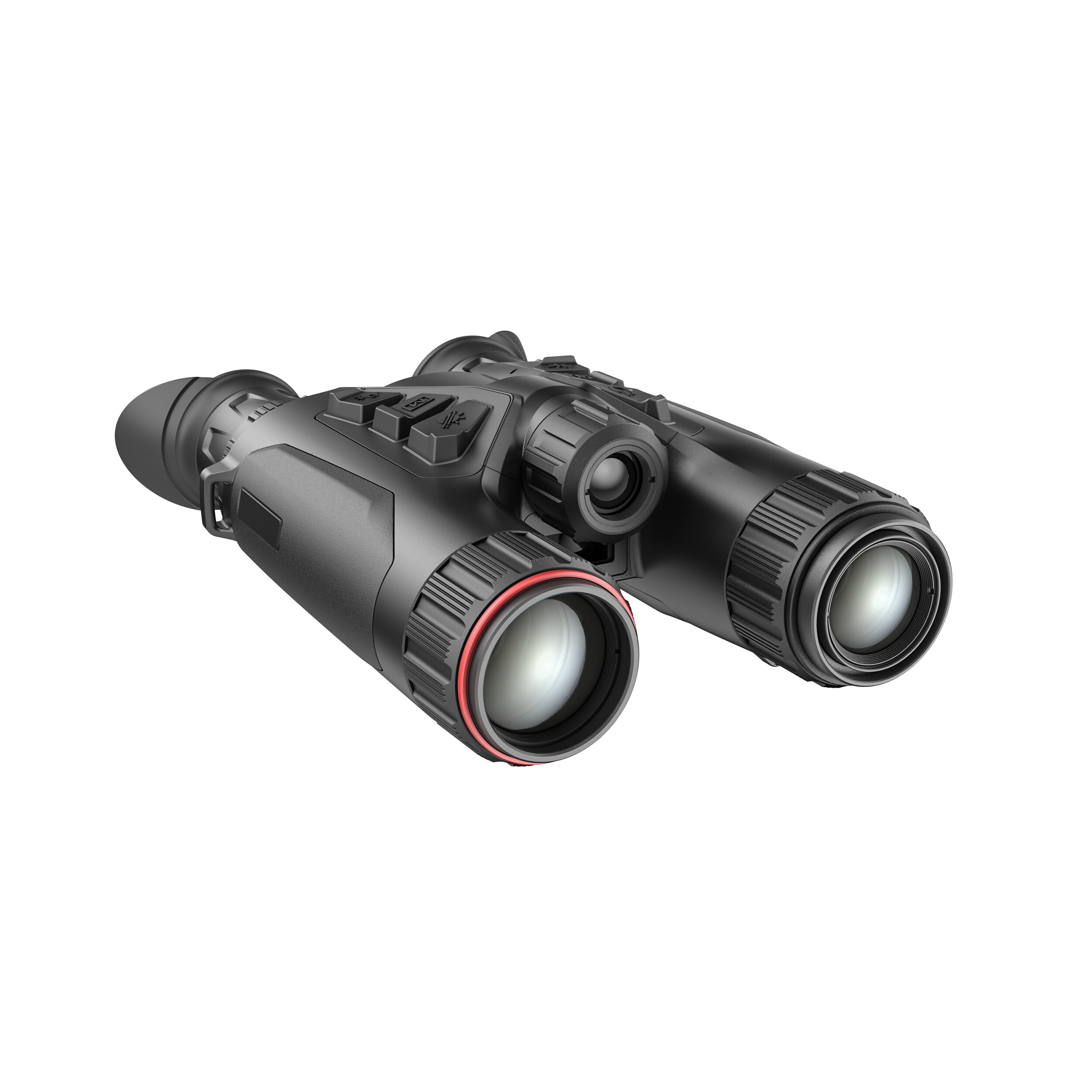

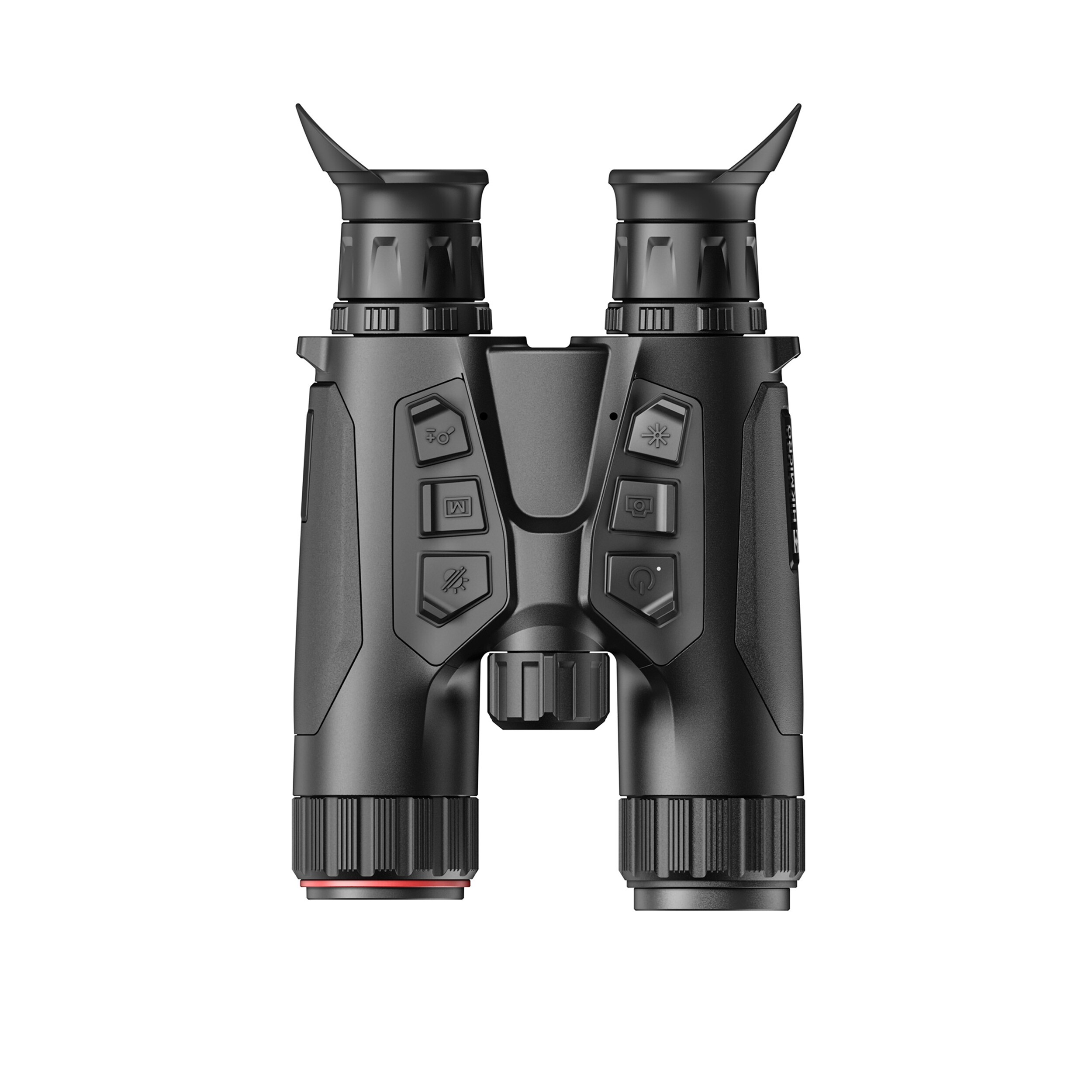

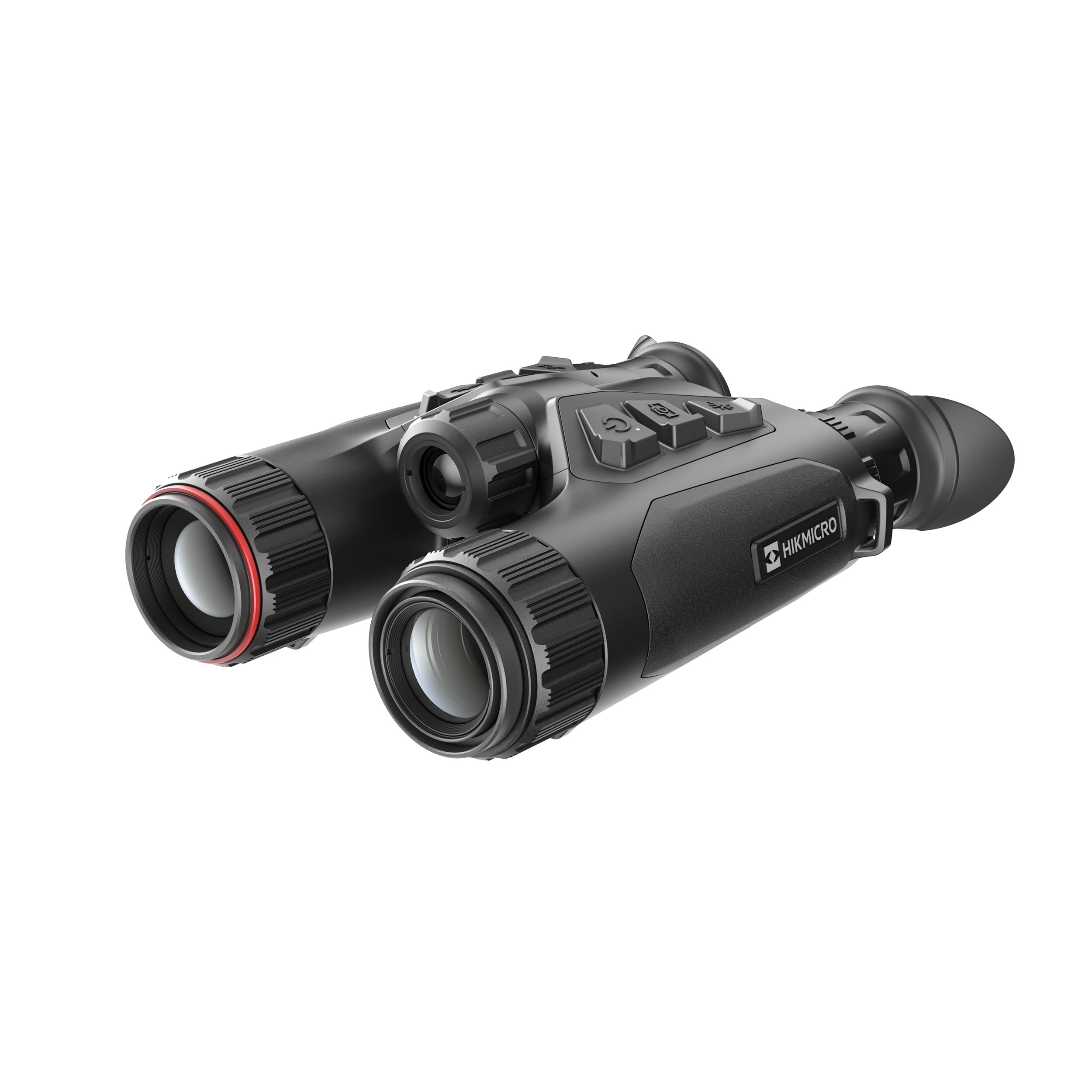

Hikvision Hikmicro Habrok 4K HQ35L LRF Multispectral Binoculars

Multispectral binocular that combines thermal imaging with digital daytime and 4K UHD night vision. The thermal channel features a detection range of up to 1800 meters, while the night vision channel allows observation within a range of up to 400 m. It's also equipped with a laser rangefinder, enabling simple distance measurement up to 1000 m.

The binocular's body is made of durable and mechanically impact-resistant magnesium alloy. Thanks to its solid build and sealing, the model meets the IP67 waterproofing class requirements, ensuring full protection against dust and immersion in water up to a depth of 1 m for 30 minutes. The device can be used at temperatures from -30 to +55 degrees Celsius. The 1/4"-20-UNC thread allows mounting on a tripod.

The model features a thermal sensor with a resolution of 640×512 pixels, with a pixel pitch of 12 µm. The sensor's high sensitivity allows for the detection of temperature differences below 20 mK. The night vision mode is based on a 1/1.8 Progressive Scan CMOS sensor with a resolution of 4K UHD 3840 x 2160. The device is equipped with a Full HD OLED display with a resolution of 1920 x 1080 pixels. The high-contrast display enhances color reproduction, energy efficiency, response time, and image smoothness, even in winter conditions. Refresh rate at 50 Hz allows comfortable observation of moving objects. The binocular features digital magnification from 3x to 22x in the thermal channel and from 5.5x to 22x in the daytime and night vision channels.

The set includes two interchangeable infrared illuminators with wavelengths of 850 nm and 940 nm, allowing users to adjust the observation method based on conditions and needs. The 850 nm illuminator increases range, while the 940 nm operates almost invisibly to observed objects.

The Picture in Picture mode allows enlargement of the central part of the image in a specially displayed window. This feature enables simultaneous display of images from both optical channels: night vision and thermal. To ensure user comfort, the binocular is equipped with diopter adjustment in the range of -5 to +3.

The Habrok 4K 2.0 model is equipped with a laser rangefinder, enabling easy determination of the approximate distance to a target up to 1000 m away. Zoom Pro technology, using a special algorithm, optimizes digital magnification, enhancing detail and contrast at each zoom level, facilitating observation at high magnification. The Hot Track feature automatically identifies and marks the hottest point in the tracked thermal image, aiding in locating heat sources.

The Defog mode enhances visibility under conditions of limited air transparency. The algorithm increases contrast and image clarity in challenging conditions such as fog, rain, smoke, or high humidity, simplifying detection and identification of objects at long distances.

The Habrok 4K model allows for use during day and night, providing several display modes and thermal palettes to aid in detecting and identifying objects in various terrain conditions.

• Day Mode - provides a color image from the 4K UHD sensor with high detail and natural color reproduction under good lighting conditions.
• Night Mode - designed for night observations. It works with the infrared illuminator, effectively identifying objects after dark and in low light.
• Auto Mode - automatically adjusts the image display to current lighting conditions, ensuring optimal visibility without the need for manual setting changes.

Thermal Modes

• White Hot - higher temperature correlates with a brighter tone.
• Black Hot - higher temperature results in a darker tone.
• Red Hot - image appears like in "White Hot" with red highlighting of the hottest parts.
• Fusion - from high to low temperature, the image has colors ranging from white, yellow, red, pink to purple.

The device is equipped with an advanced electronic image stabilization (EIS) algorithm that minimizes the influence of hand tremors and user movements on the image. This technology analyzes image changes in real-time and automatically eliminates minor shakes, affecting smoothness during 22x magnification.

The device features a photo or video recording function on the built-in 64 GB memory. A Wi-Fi 2.4/5 GHz module allows the thermal imager to connect with the Hikmicro Sight app on a smartphone, enabling remote viewing, saving, and sharing of images.

The binocular is powered by two interchangeable Li-Ion 18650 batteries, which provide up to 8 h of continuous operation. The USB-C port facilitates charging the cells from a car charger, computer, or power bank. The intelligent standby mode's energy-saving function reduces power consumption when the binocular is set aside.

• Habrok 4K multispectral binocular
• 18650 battery - 4 pcs.
• Polish-language user manual
• USB-C cable
• charger
• optics cleaning material
• neck strap
• tripod adapter
• illuminators 850 nm and 940 nm

• durable magnesium alloy construction
• IP67 waterproofing standard
• night vision and thermal channels
• magnification in thermal channel: 3x to 22x
• magnification in daytime and night vision channel: 5.5x to 22x
• laser rangefinder with a range of up to 1000m
• OLED display
• Picture in Picture mode
• various image display modes
• internal memory 64 GB
• interchangeable battery
• 1/4"-20-UNC mounting thread
• image refresh rate: 50 Hz
• thermal lens: 35 mm f/1.0
• night vision lens: 60 mm f/2.2
• field of view thermal mode: 22 m x 17.6 m/100m
• field of view night vision mode: 12.6 m x 7.2 m/100m
• operating temperature: -30 to +55 deg. C
• operating time: 8 h
• diopter correction: from -5 to +3
• interpupillary distance adjustment range: 60-74 mm
