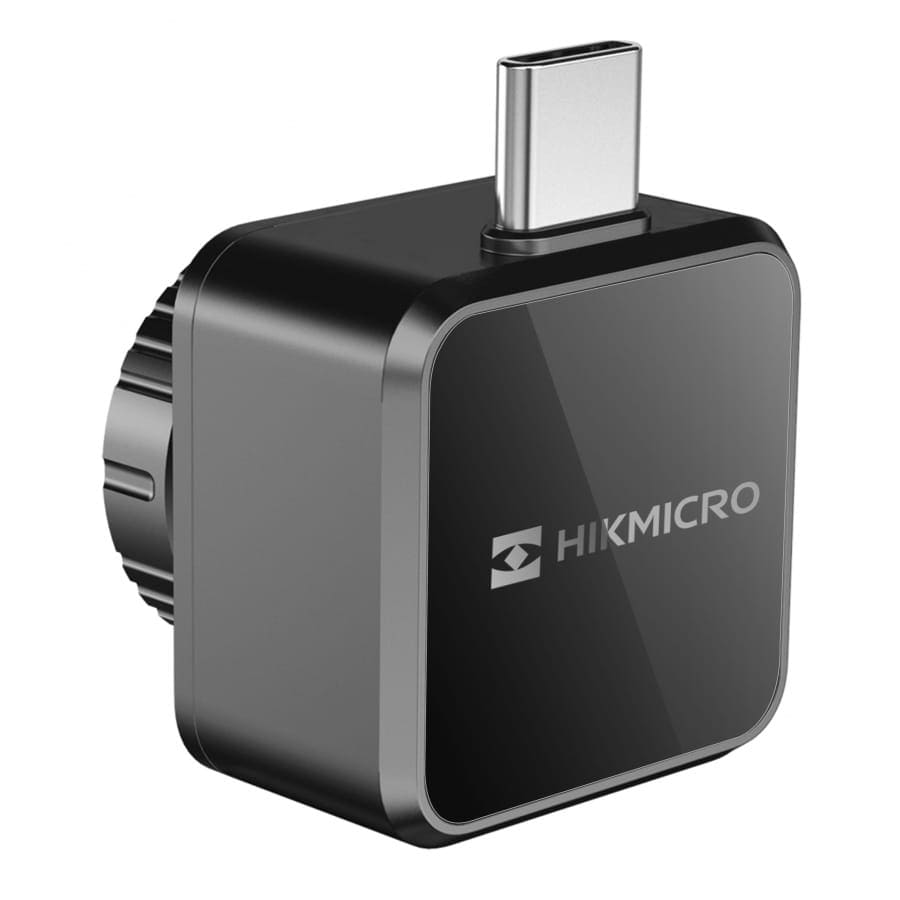

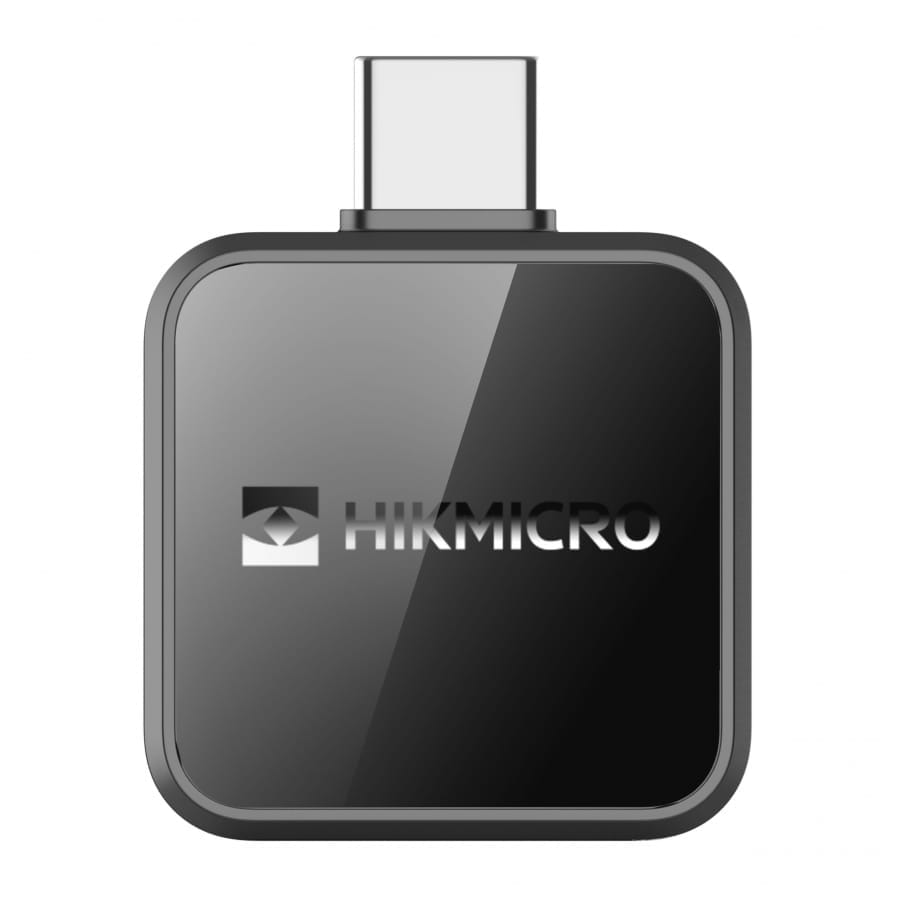

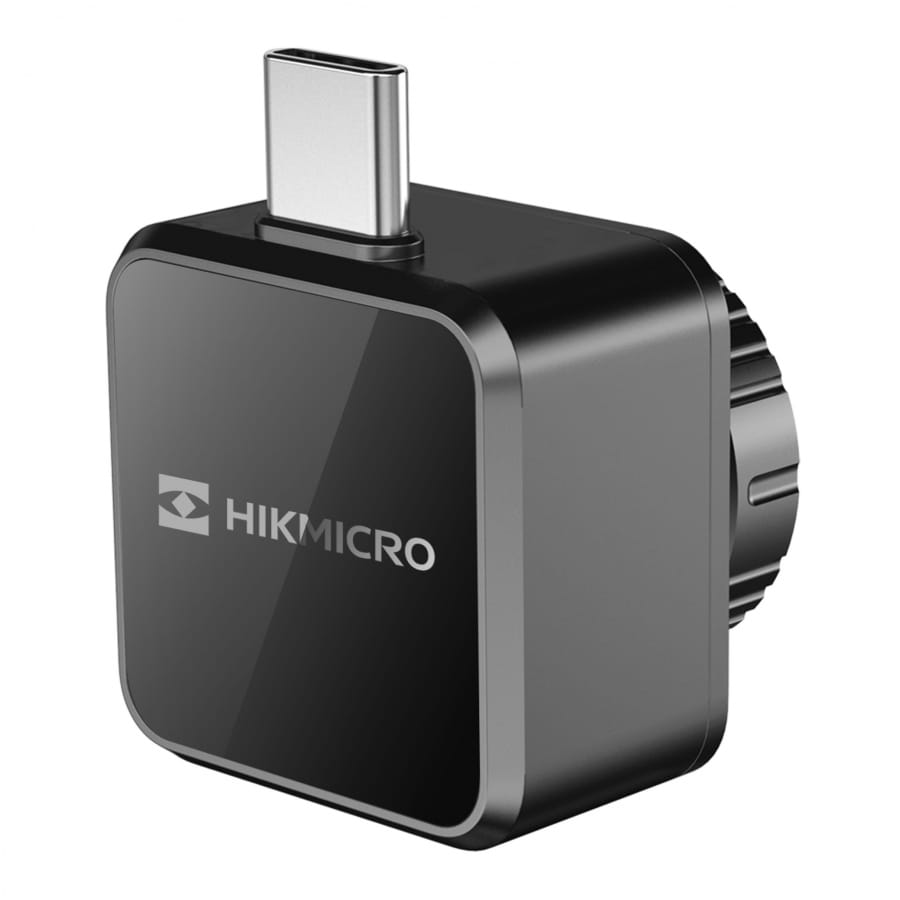

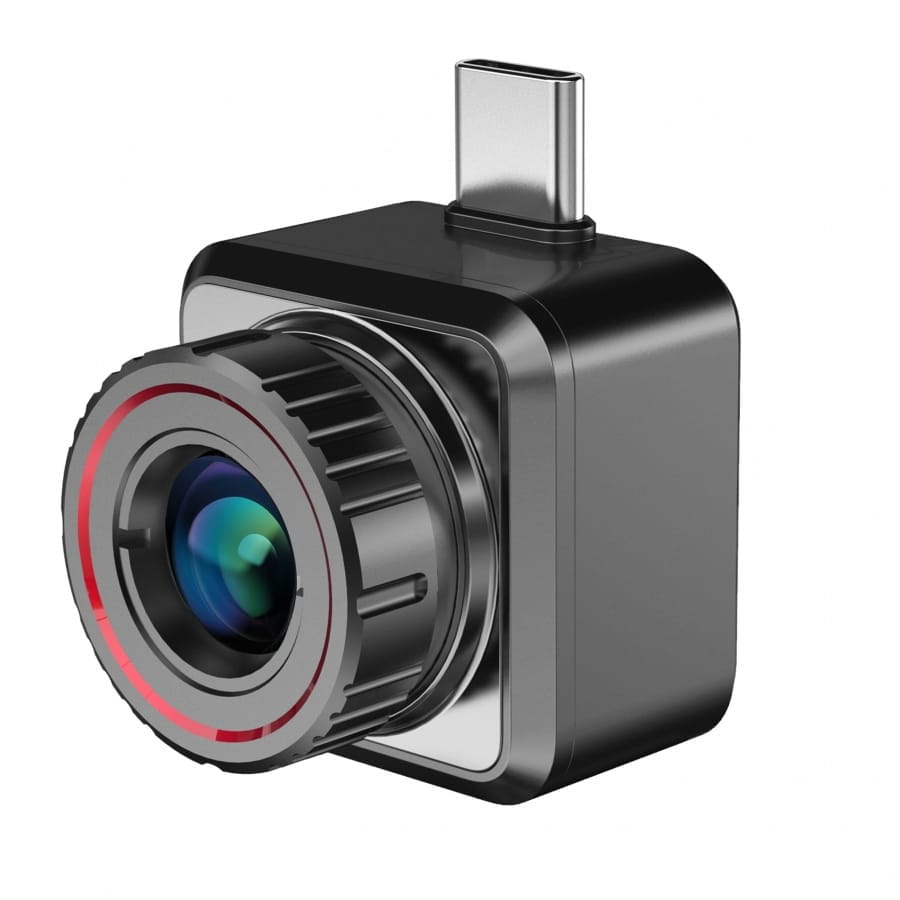

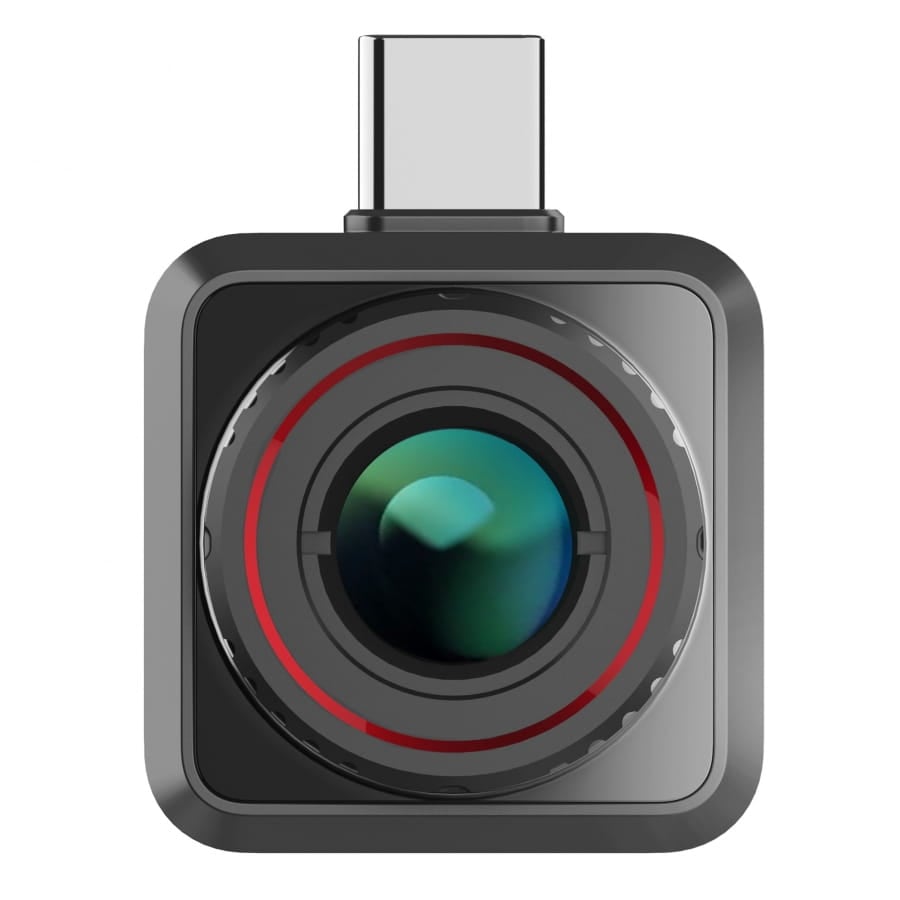

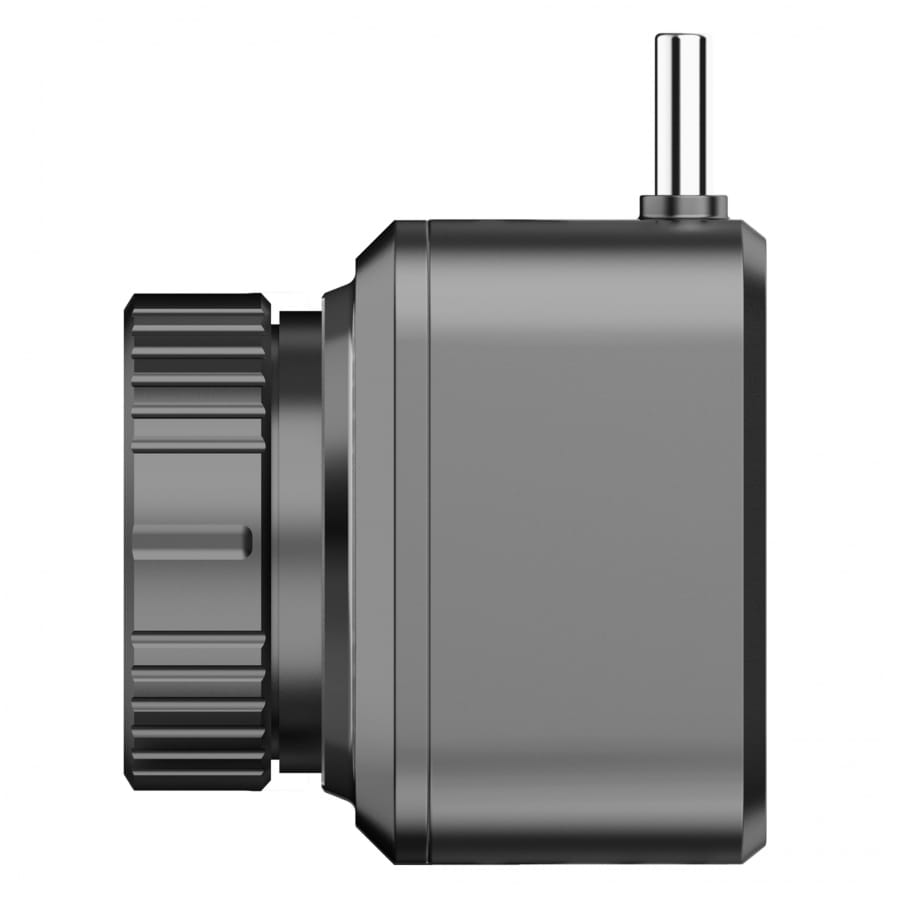

Lightweight and compact thermal imaging camera Explorer E20 Plus. It will transform your Android smartphone into a measurement thermal imaging camera with high thermal and geometric resolution, as well as a thermal observation camera for day and night vision.
With high sensor resolution 256 × 192 the camera can detect a target in total darkness up to a distance of 1000 meters. Once the camera is connected, the phone serves as a touch screen for displaying, recording and sharing thermographic images. It will be great for any surveillance, security, property protection or wildlife observation activities.
High frame rate of 50Hz ensures high comfort of observation. Lightweight design of 26g makes it possible to carry the thermal imager with us in practically any situation. The device guarantees observation of the surroundings in realistic proportions thanks to the used optics with one-time magnification.
The camera is compatible with most smartphones on the market thanks to the use of USB-C port. The model also uses the function of saving photos or videos, the recorded files are saved on the phone's built-in memory.
Six observation modes allow you to perfectly adjust the image to the conditions. The camera is also equipped with special mode designed for maximum birdwatching efficiency.
Technical specifications
Frame rate: 50Hz
Angular field of view: 18.1 st. × 13.6 st.
Sensor resolution: 256 × 192 px.
Lens size: 9.7 mm
Optical zoom: 1x
IP rating: IP40
Dimensions: 26.6 x 26.6 x 27.2 mm
Manufacturer: Hikvision, PRC
MILITARY is a premium dealer of Hikmicro.
Hikmicro belongs to the dynamically developing Hikvision group and specializes in thermal imaging technologies and optoelectronics. The brand's product range includes thermal imaging cameras, monoculars, and diagnostic devices used in industry, property protection, rescue operations, and nature observation, among other areas. Hikmicro solutions are used in over 100 countries around the world. Thanks to advanced technologies such as DDE, 3D DNR, and AGC, they provide high image quality even in adverse weather conditions and low light. The brand draws on Hikvision's technological resources while developing its own product lines for both professional and civilian users. Hikmicro's image analysis system, which uses artificial intelligence algorithms, enables faster object detection and more precise detail recognition. Thanks to its innovative approach, the company has quickly gained a strong position in the thermal imaging technology market.
| Optics ready | No |
|---|---|
| Thermal imager type | Monocular |
| Display modes | 6 |
| Reticle | No |
| Field of view | 31,8 m/ 100 m |
| Sensor resolution | 256 × 192 |
| Vehicle detection | 1000 m |
| Human detection | 1000 m |
| Waterproof class | IP40 |
| Power type | Smartfon |
| Weight | 26 g |
| Objective lens diameter (mm) | 9,7 |
| Dimensions | 26,6 x 26,6 x 27,2 mm |
| Battery type | smartfon |
| Maximum detection depth | 1000 m |
| Built-in memory | No |
| EAN | 6974004642402 |
| Manufacturer code | 14709 |
| Brand | Hikvision |
