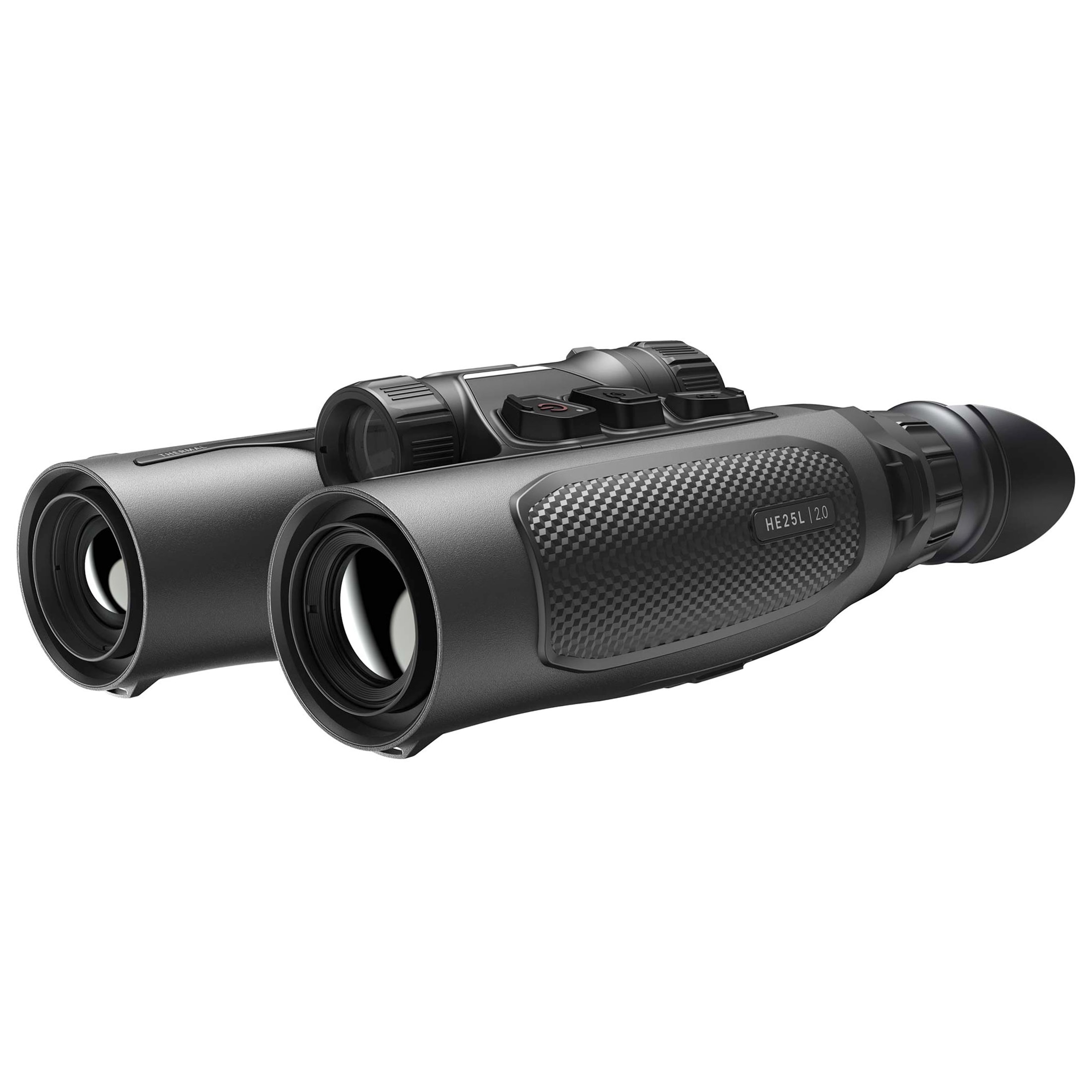

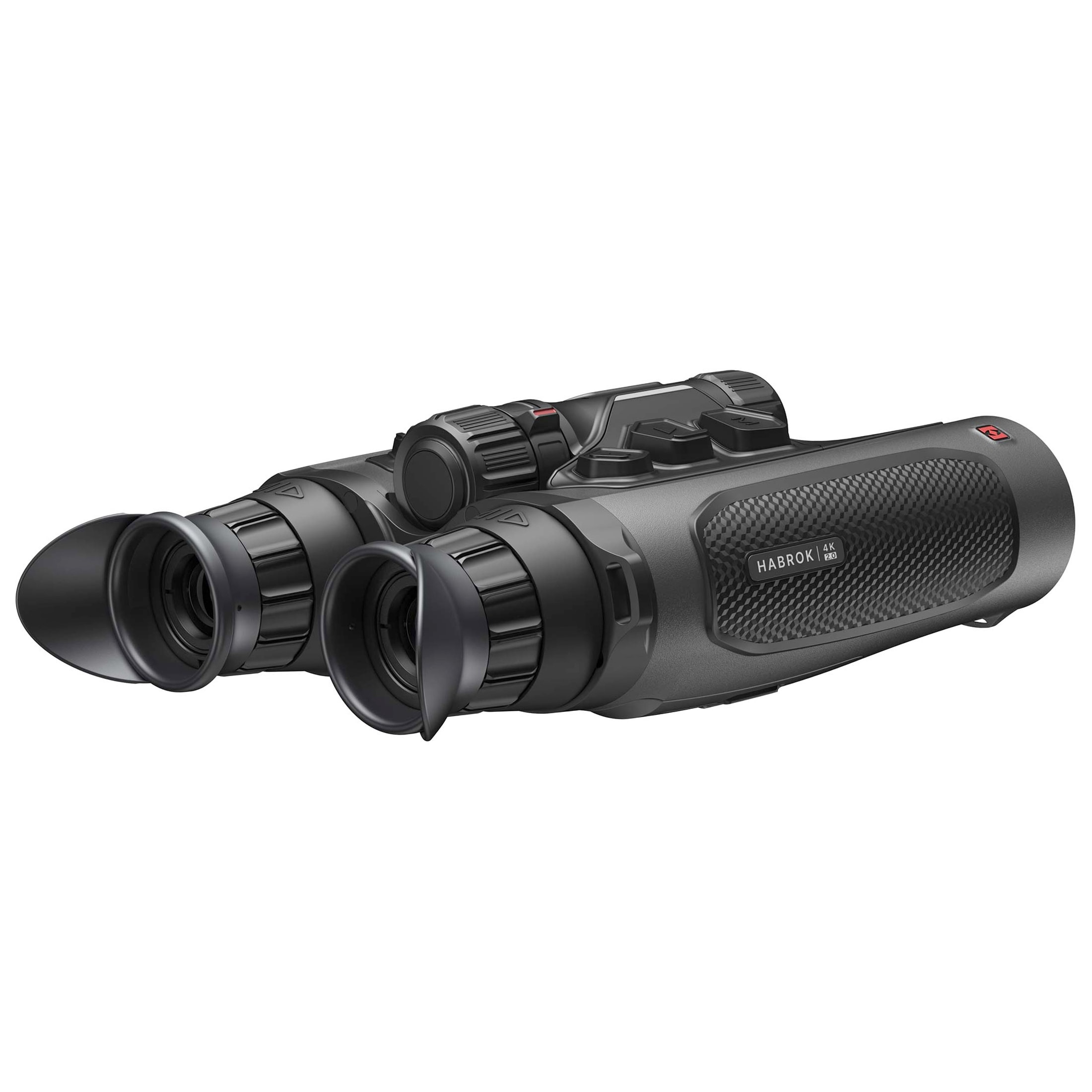

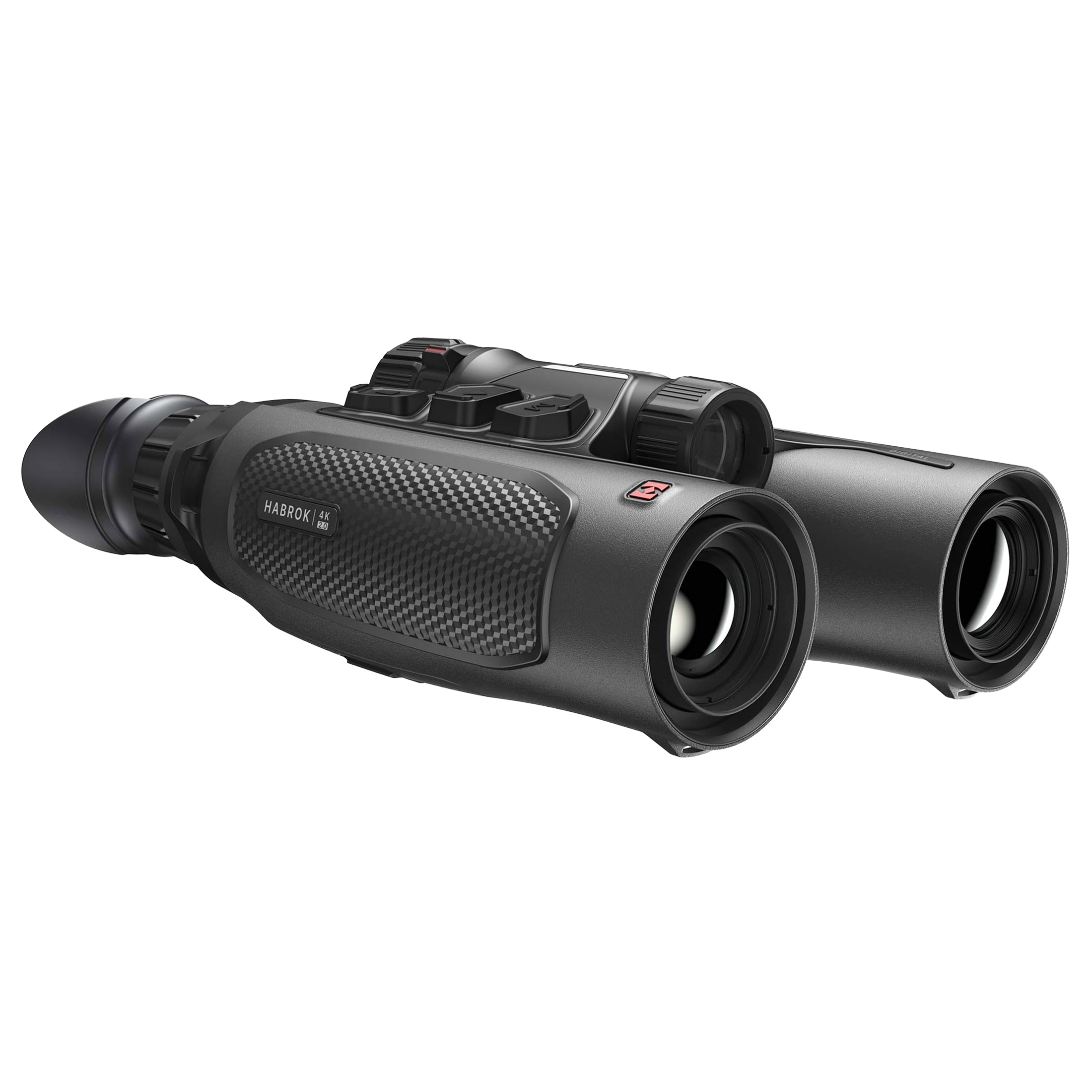

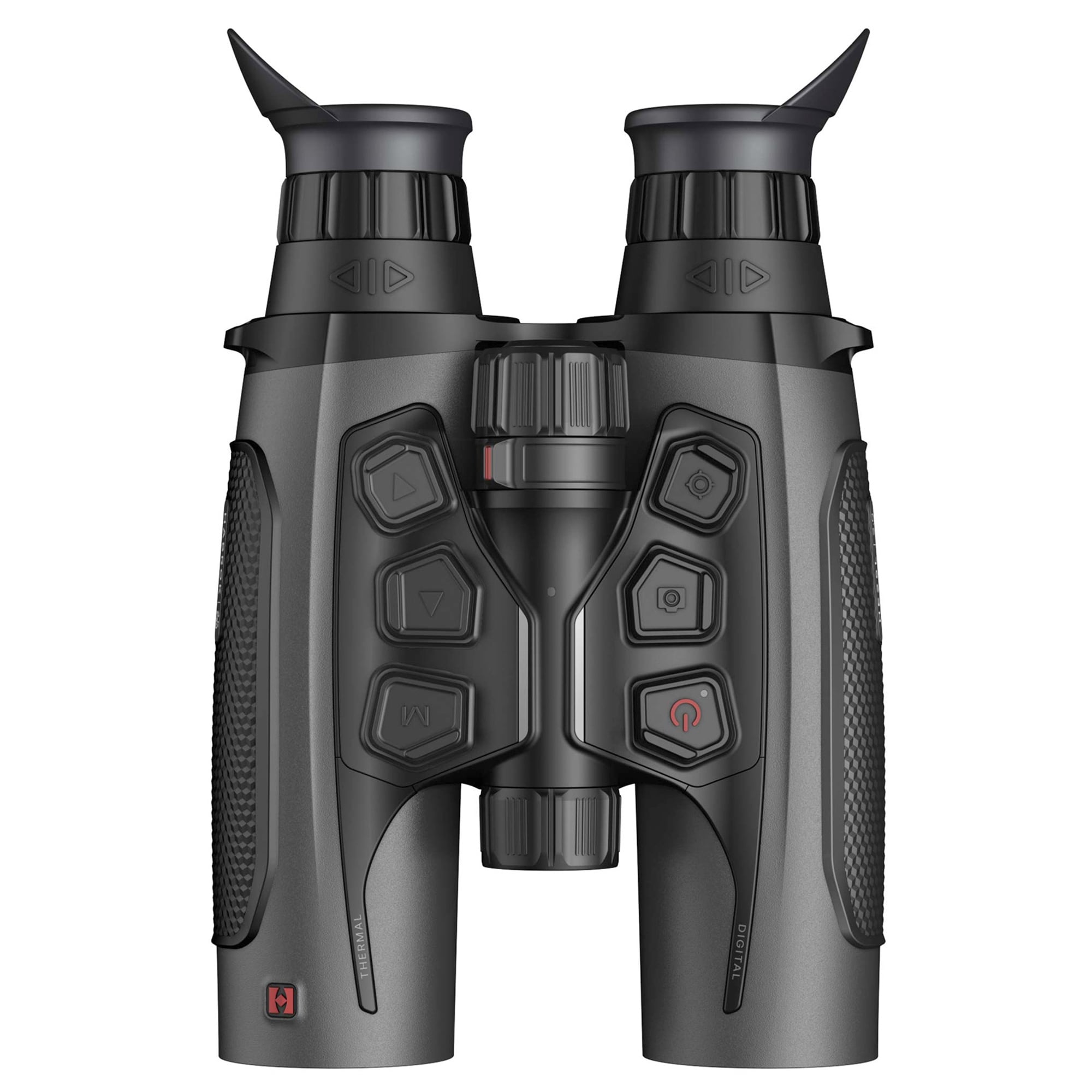

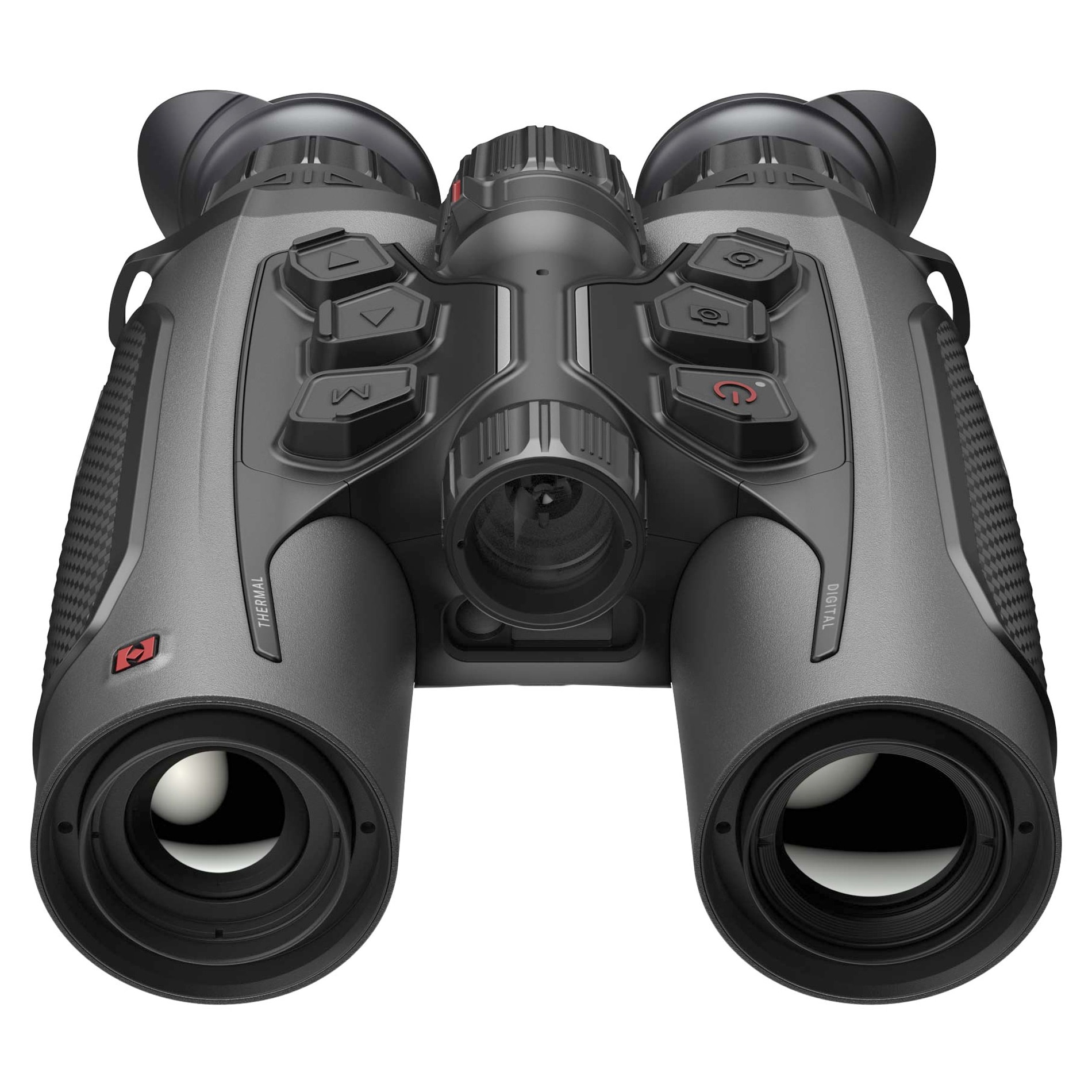

Hikmicro Habrok 4K HE25L 2.0 Multispectral Binoculars

Multispectral binoculars combining thermal imaging with digital day and night vision in 4K UHD resolution. The thermal imaging channel allows detection of heat objects with a human silhouette from distances up to 1200 meters, while the night vision channel allows observation of surroundings within a range of up to 400 meters. The binoculars are equipped with a laser rangefinder that easily determines the approximate distance to the target up to 1000 meters.

The binoculars' body is made from magnesium alloy resistant to mechanical damage and shocks. The compact design and use of seals ensure the model meets the IP67 waterproof class, providing full protection against dust and water immersion to a depth of 1 meter for 30 minutes. The temperature range in which the binoculars can be used is from -30 to +55 deg. The mounting thread with a 1/4“-20-UNC adapter allows it to be mounted on a tripod.

The model is equipped with a thermal sensor with a resolution of 256 x 192 pixels and a pixel pitch of 12 µm. The sensor sensitivity allows detection of temperature differences below 18 mK. The night vision mode is based on a 1/1.8 Progressive Scan CMOS sensor with a 4K UHD 3840 x 2160 resolution. A Full HD OLED display with a resolution of 1920 x 1080 pixels is used. The high-contrast display ensures better color reproduction, energy efficiency, quick response time, and smooth image during observation even at low temperatures. A refresh rate of 50 Hz allows comfortable observation of moving objects. The binoculars provide digital magnification from 4.3x to 17.2x in the thermal imaging channel and from 5.5x to 22x in the day and night vision channels. One of the two interchangeable infrared illuminators (with wavelengths of 940 nm and 850 nm) in the set keeps the image clear even in complete darkness, while keeping the user undetectable to animals and people.

The Picture in Picture mode allows enlargement of the central part of the image in a specially displayed window. The additional window occupies only 10% of the display, allowing simultaneous display of images from both optical channels, night and thermal vision. For increased comfort of use, the binoculars are equipped with diopter adjustment in the range of -5 to +3.

The Habrok 4K 2.0 model features a laser rangefinder, enabling simple determination of the approximate target distance reaching 1000 meters. The built-in ballistic calculator calculates the drop compensation.

The device features 11 image display modes to assist in identifying observed objects:

Day Mode - mode allowing observation in good lighting with image display in 4K UHD resolution.
Auto Mode - automatic mode adjustment to lighting conditions and activation of day or night mode.

Night Modes

• Night Mode - black and white image in 4K UHD resolution allowing observation at night and in low light.
• Green Mode - night mode with green shades, enabling prolonged observations without eye strain.
• Yellow Mode - night mode with yellow shades, ensuring prolonged observations without eye strain.

Thermal Imaging Modes

• White Hot - higher temperatures result in a brighter tone.
• Black Hot - temperature increase results in a darker tone.
• Red Hot - image similar to “White Hot” with red highlighting for the hottest elements.
• Fusion - color image from white, through yellow, red, pink to purple, from hottest to coolest areas.
• Red Monochrome - red monochromatic palette for prolonged observation without eye strain.
• Green Monochrome - green monochromatic palette for prolonged observation without eye strain.

The device features a rear focus adjustment knob, near which there is an intuitive switch between thermal and digital mode.

The model allows saving photos and videos on the built-in internal memory with a capacity of 64 GB. With the Wi-Fi 2.4/5 GHz module, the thermal imager can connect to the Hikmicro Sight app on a smartphone, enabling remote viewing, saving, and sharing of images.

The binoculars are powered by 4 interchangeable 18650 batteries with a capacity of 3200 mAh (included), providing up to 6.5 hours of continuous operation. The built-in USB-C port allows convenient battery charging from a car charger, computer, or power bank. The energy-saving function in intelligent standby mode reduces power consumption when the binoculars are put down.

• Habrok multispectral binoculars
• 18650 batteries - 4 pcs.
• user manual in Polish
• USB-C cable
• battery charger
• optics cleaning material
• neck strap
• tripod adapter
• 850 nm illuminator

• durable construction
• IP67 waterproof standard
• night vision and thermal imaging channels
• magnification in the thermal imaging channel: 4.3x to 17.2x
• magnification in the day and night vision channel: 5.5x to 22x
• laser rangefinder
• OLED display
• Picture in Picture mode
• 11 image display modes
• 64 GB internal memory
• interchangeable battery
• 1/4“-20-UNC mounting thread
• Image refresh rate: 50 Hz
• Thermal imaging lens: 25 mm f/1.0
• Night vision lens: 60 mm f/2.2
• Field of view in thermal imaging mode: 12.2 m x 9.3 m/100m
• Field of view in night vision mode: 12.8 m x 7.2 m/100m
• Magnification in the thermal imaging channel: 4.3x to 17.2x
• Magnification in the day and night vision channel: 5.5x to 22x
• Operating temperature: -30 to +55 deg. C
• Operating time: 6.5 h
• Diopter correction: from -5 to +3
