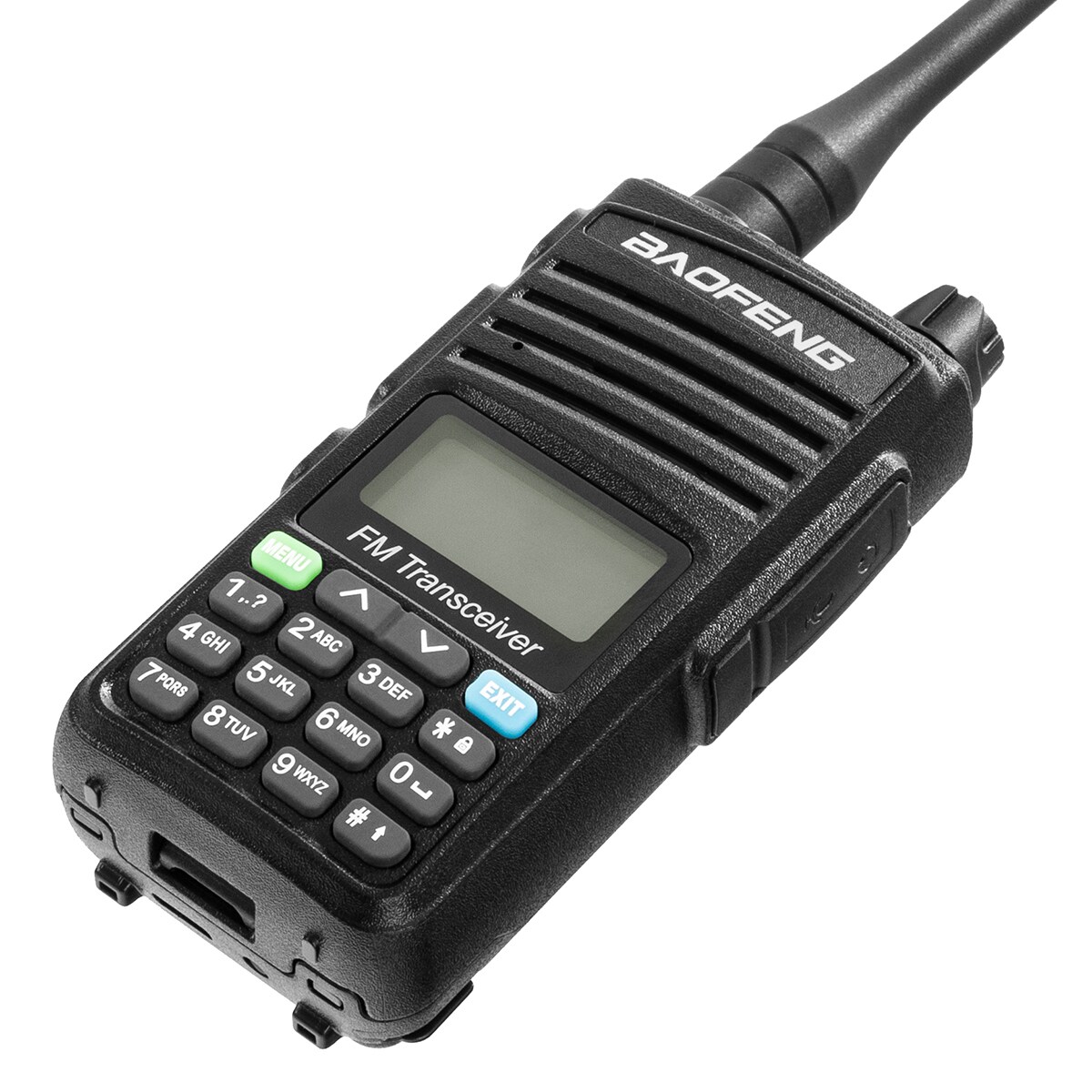

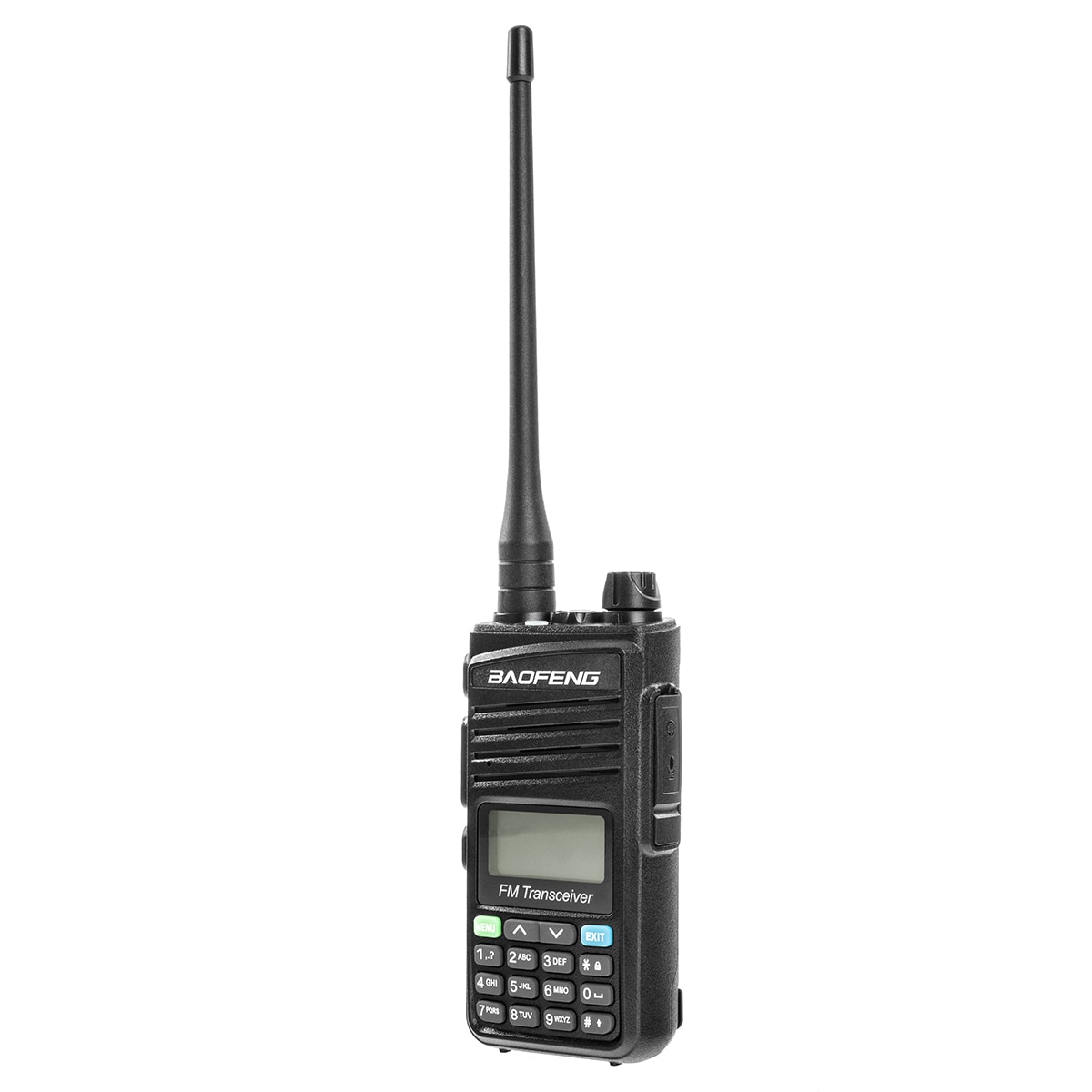

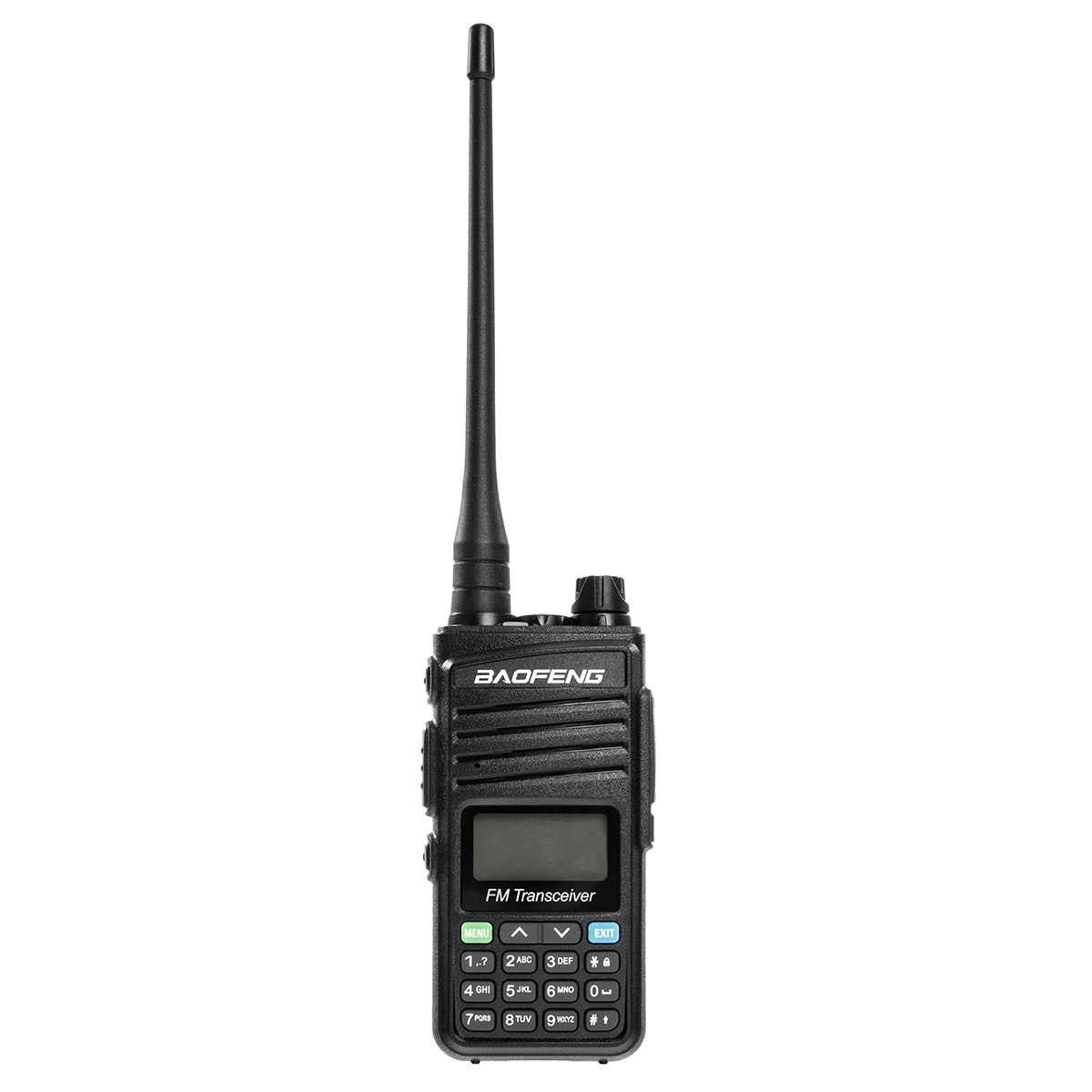

Baofeng P15UV Pro EU 5 W Radio
The P15UV Pro radio offers a maximum output power of 5 watts and dual-mode operation (duobander). It enables long-distance communication with its wide range and clear signal. The device operates on two frequency bands: VHF (144-146 MHz) and UHF (430-440 MHz).
VOX function, Kenwood connector
The Baofeng P15UV model is equipped with a PTT (push-to-talk) button and an automatic transmission activation function VOX. It also features a Kenwood-type connector for connecting accessories such as headphones with a microphone or hearing protectors for shooters.
Backlit screen, keyboard or computer programming
A clear backlit screen displays information about selected frequencies and active functions. The radio has 200 memory channels and can be programmed using the device's keyboard or a computer with a dedicated USB cable.
Frequency scanner, Dual Watch function, bandwidth selection
The P15UV model features a frequency scanner that allows the user to select the range. The Dual Watch listening function allows monitoring of two different frequencies, prioritizing the one with an incoming signal. The radio offers bandwidth selection - WFM 25 kHz and NFM 12.5 kHz. Additionally, the walkie-talkie supports DTMF with stun/kill/revive options, voice scrambling, and CTCSS and DSC privacy codes.
Radio listening capability
The P15UV allows listening to FM radio stations (65 - 108 MHz) without interrupting the monitoring of selected frequencies. When an incoming signal is detected, the radio automatically switches from the FM function. The versatility of this device is further enhanced by the integrated LED flashlight.

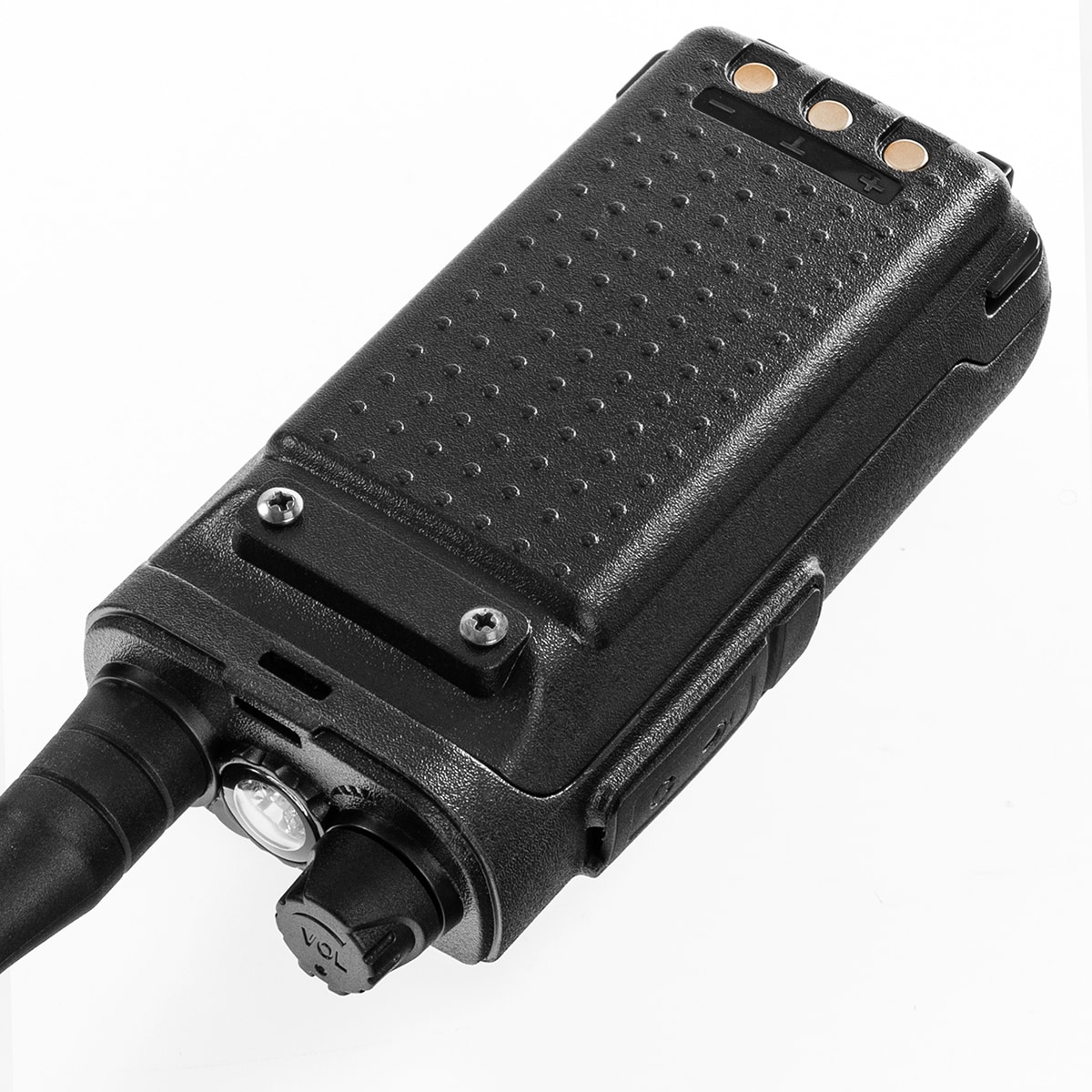

Battery power, power adjustment
The P15UV radio is powered by a lithium-ion battery with a capacity of 1800 mAh. The backlit LCD screen shows icons indicating function status. A USB-C port allows battery charging, for example, via a power bank. The device has a three-level power adjustment (5 W/2 W/0.5 W). The P15UV Pro can be programmed via the built-in keyboard or when connected to a computer.

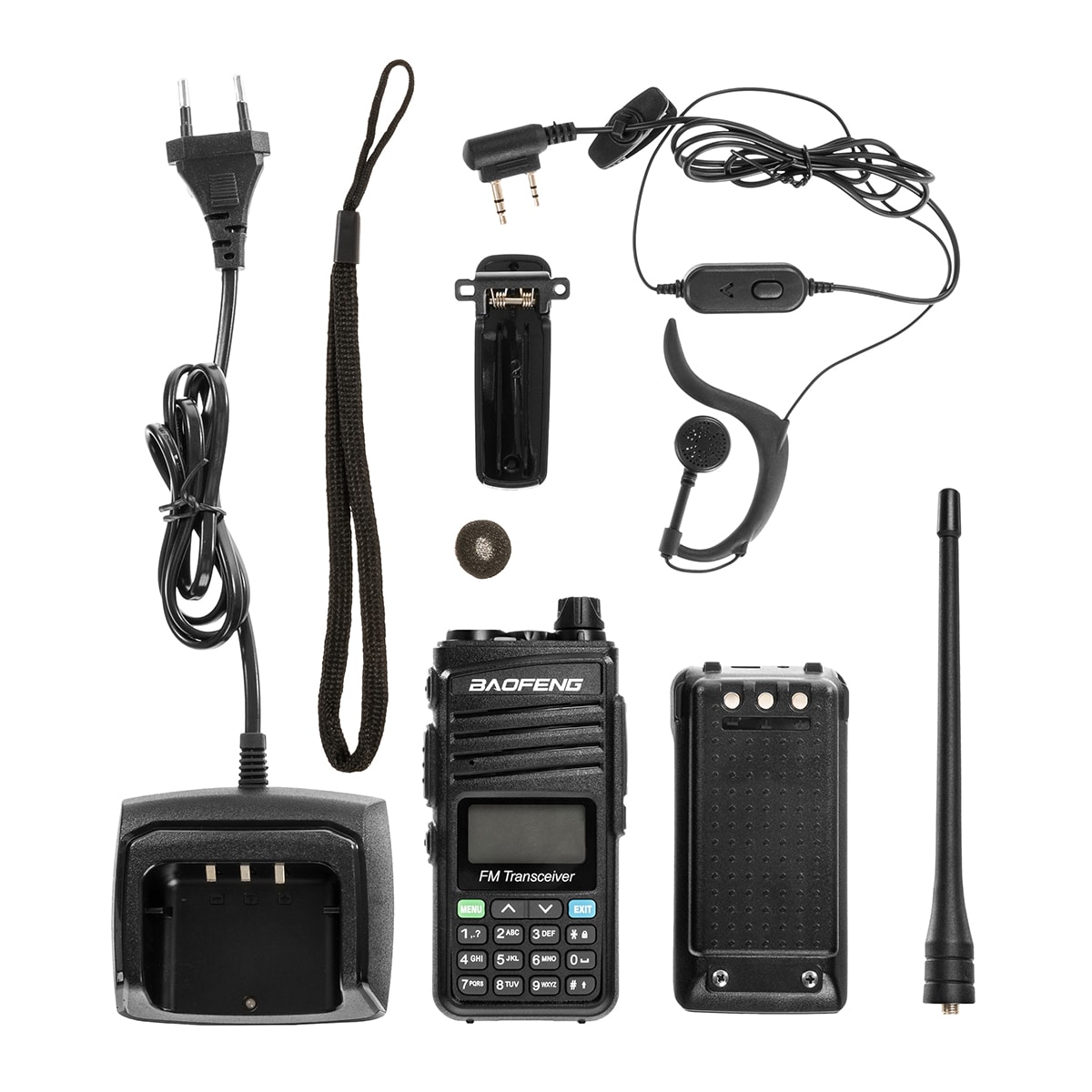

Set elements
- radio
- battery
- VHF/UHF antenna
- AC charger
- microphone-headphone
- lanyard
- belt clip
Main features
- maximum power 5 W
- VOX function
- Kenwood connector
- clear screen
- 200 memory channels
- Dual Watch function
- DTMF support
- FM radio support
- LED flashlight
- USB-C port
- voice encryption
- power adjustment
| Maximum transmitting power | 5 W |
|---|---|
| VHF frequency range | 144-146 MHz |
| UHF frequency range | 430-440 MHz |
| Number of channels | 200 |
| Antenna | Unscrewable |
| Channel programming option | Yes |
| Channel scanning | Yes |
| PTT button | Yes |
| Dual Watch | Yes |
| VOX function | Yes |
| CTCSS/DCS (tone coding) | Yes |
| Flashlight | Yes |
| Power type | Integrated rechargeable battery |
| Display | LCD |
| Keyboard | Yes |
| PTT headset included in the set | No |
| FM radio | Yes |
| Body material | Synthetic |
| Accumulator/battery type | 1 x Li-Ion |
| Dimensions | 130 x 65 x 34 mm |
| Additional accessories included | Yes |
| Charging port | base station |
| Weight | 260 |
| Charger in the set | Mains charger |
| EAN | 5904921481380 |
| Manufacturer code | P15UV PRO EU 5W USB-C |
| Brand | BaoFeng |
