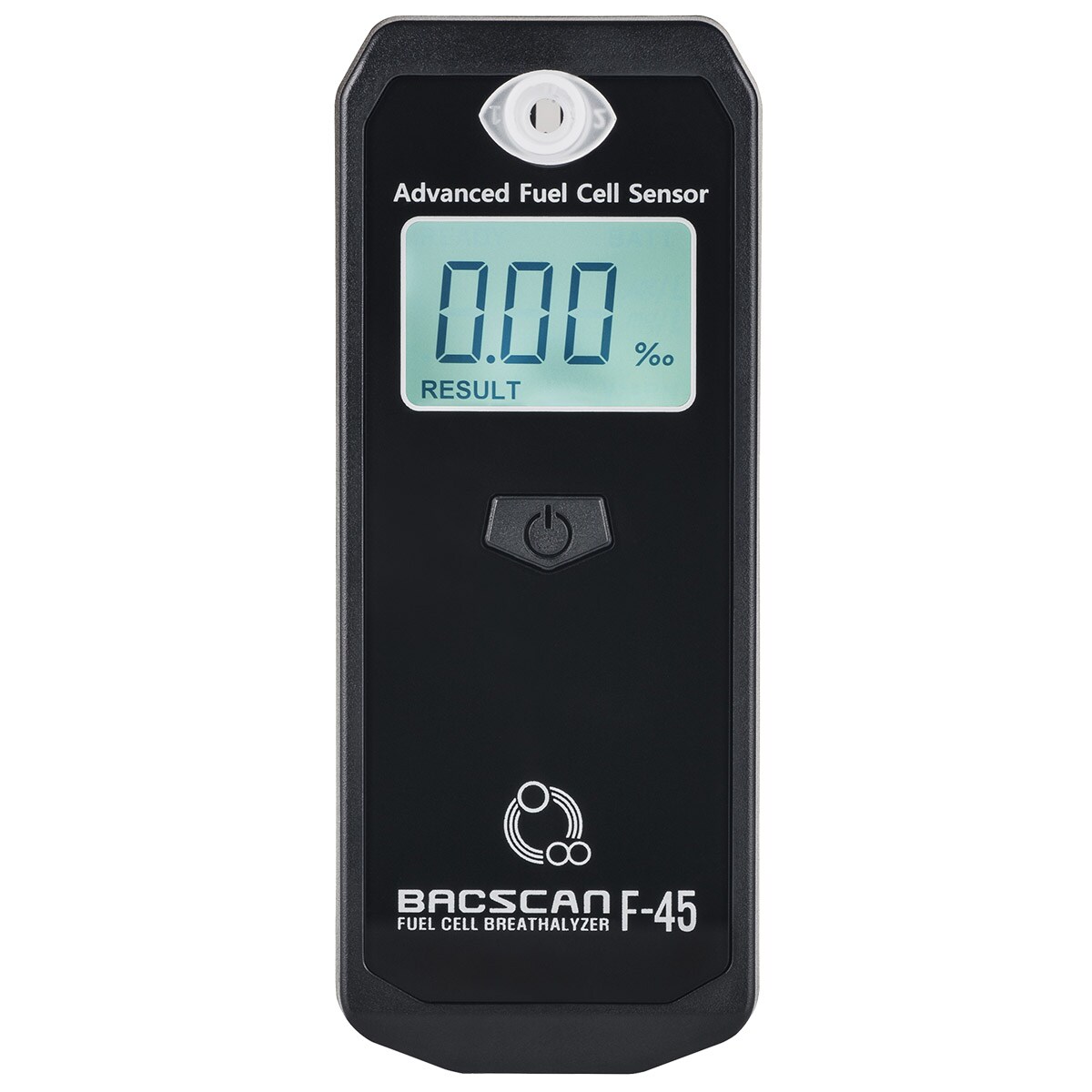

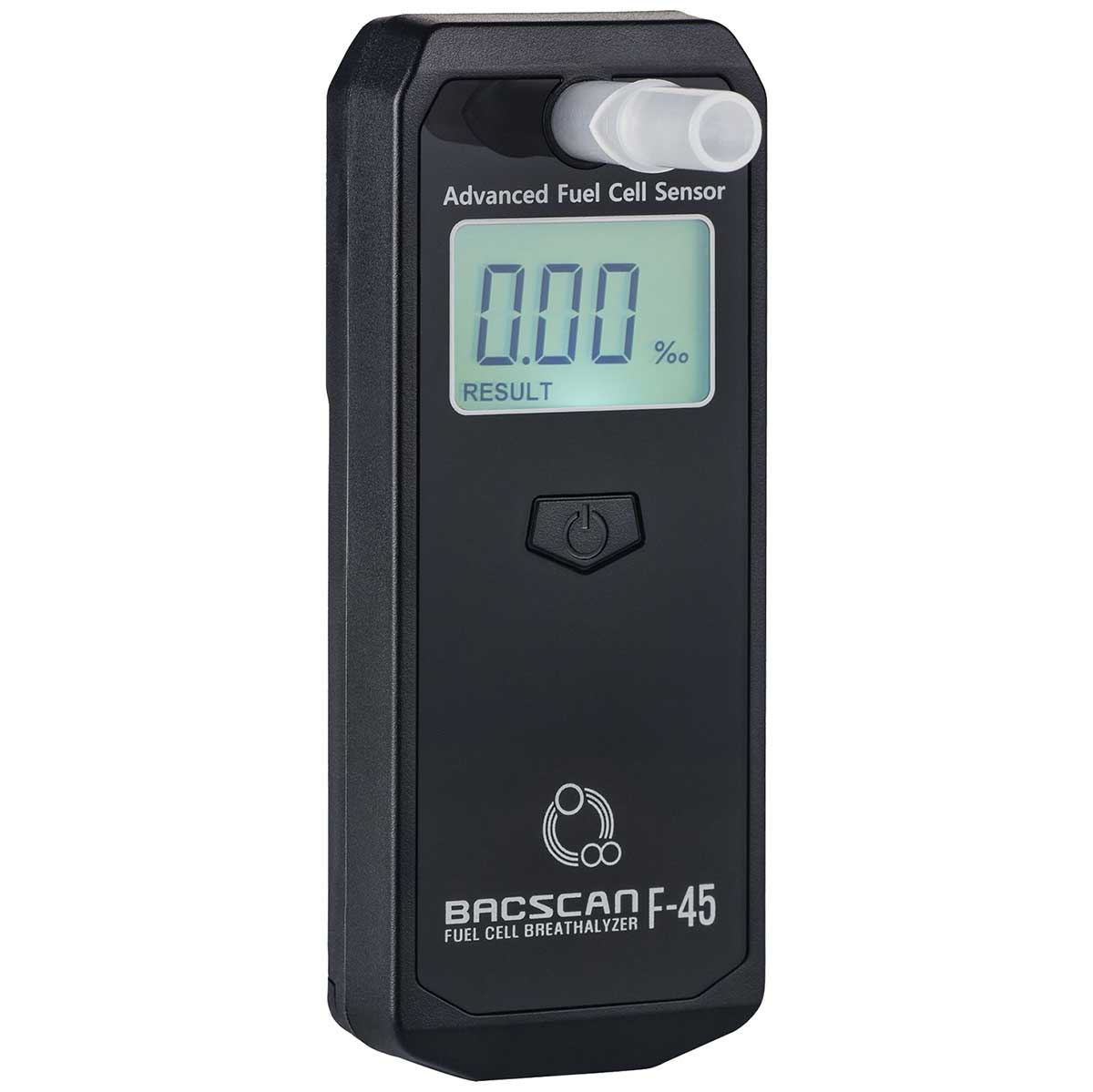

BACscan F-45 Breathalyzer

F-45 breathalyzer features a precision electrochemical sensor with a platinum element that exclusively reacts to ethyl alcohol, preventing any false results from other substances or conditions. The measurement capability spans 0.00 ‰ to 4.00 ‰, maintaining accuracy within +/- 0.05 ‰ at 1.00 ‰ when tested at 25°C.

To ensure optimal function, calibration is advised every 6-12 months or after 500 tests. It stores the last 10 measurement outcomes.

This breathalyzer includes a built-in alarm function which activates upon exceeding the 0.20 ‰ alcohol limit. The LCD screen, which is illuminated and features dual colors, facilitates measurements in low-light settings and displays results to two decimal points.

It is powered by two 1.5 V AAA batteries. An automatic power-off feature will deactivate the device after 20 seconds of inactivity or 30 seconds post-measurement. It also shuts off automatically to prevent damage from overheating, thanks to the temperature control module.

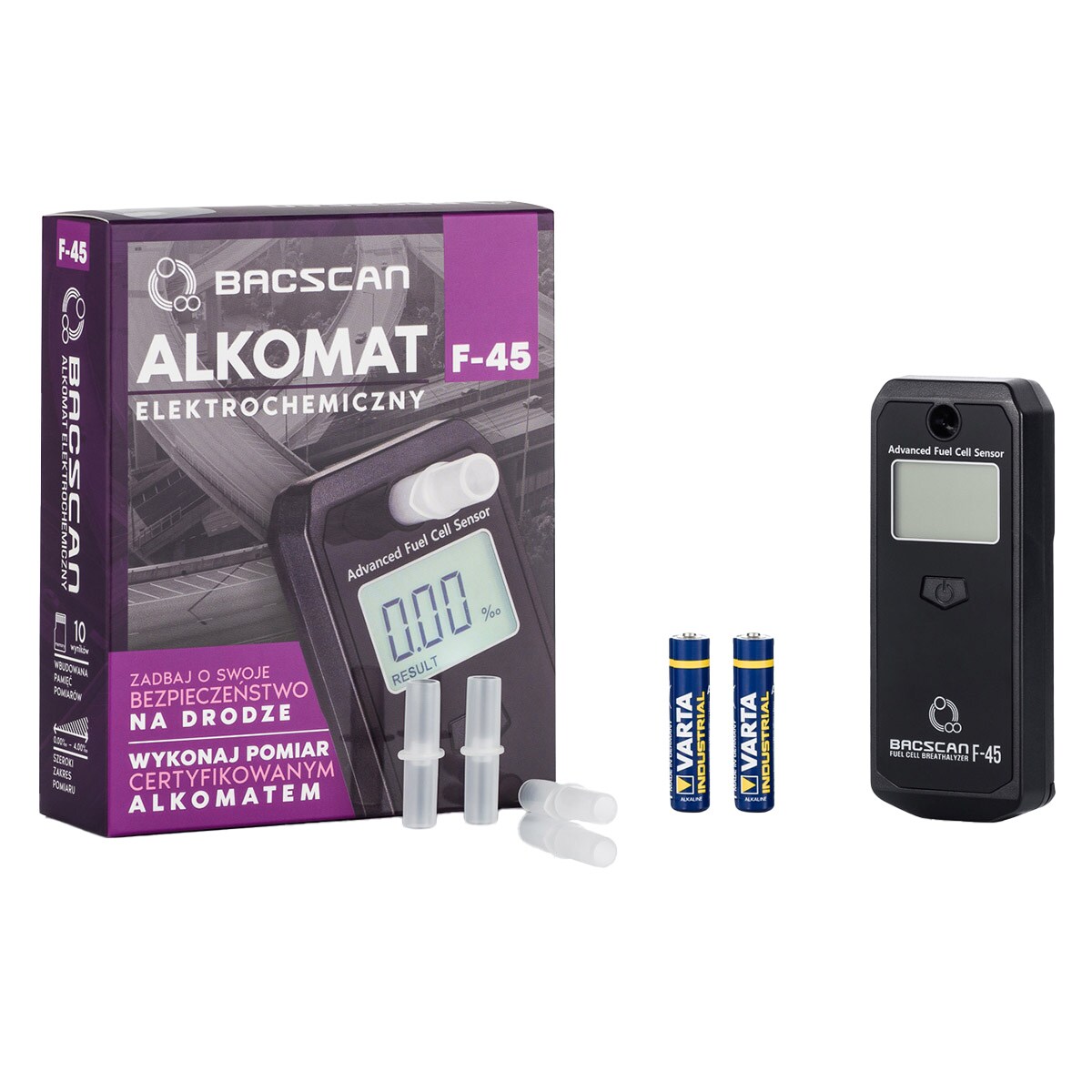

The set comprises:
- 3 x mouthpiece,
- 2 x AAA battery,
- warranty card,
- instruction manual in Polish.

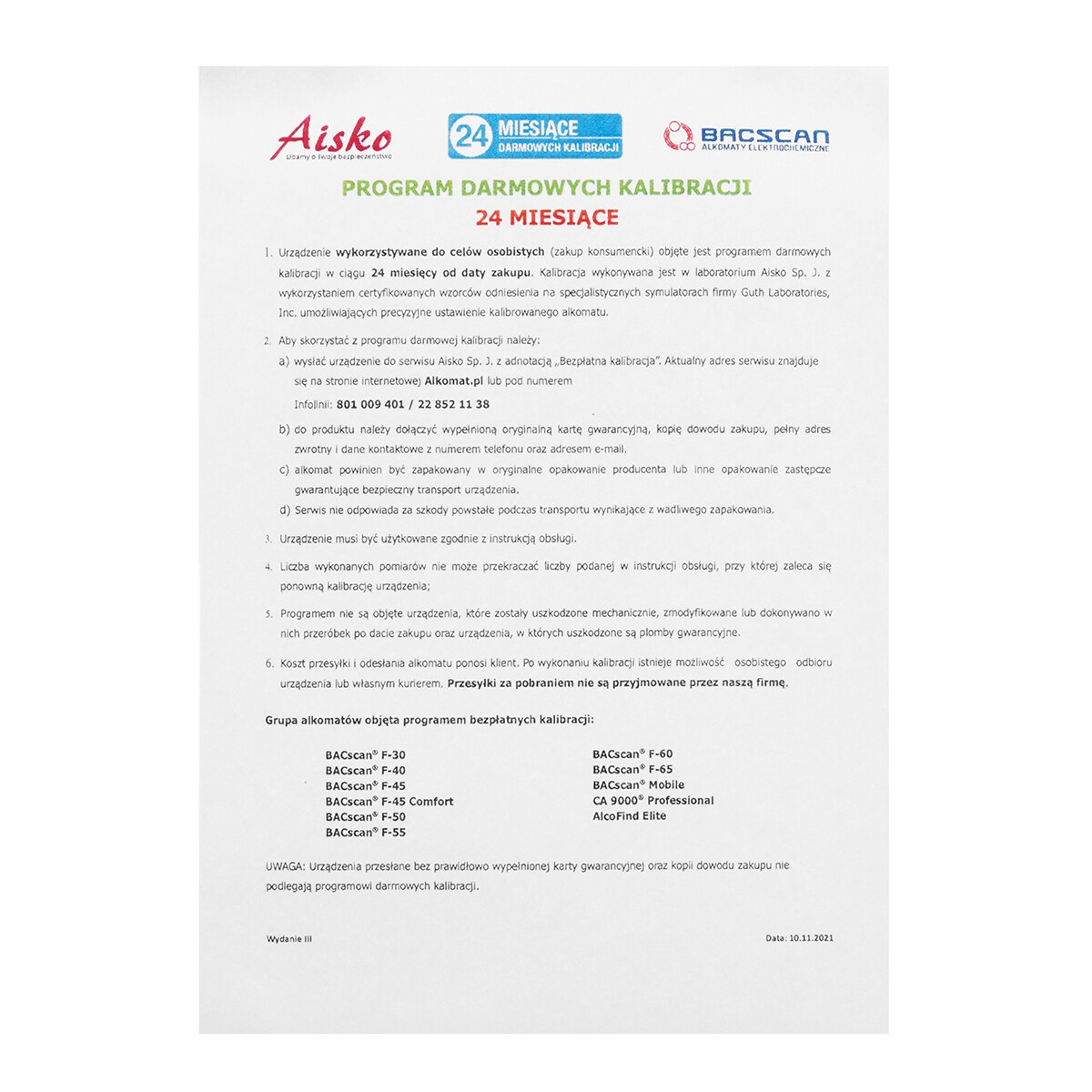

The product is covered by a 10-year manufacturer's warranty along with 24 months of free calibrations provided by the manufacturer.

Technical data
Sensor type: platinum, electrochemical
Range of presented measurement: 0,00 ‰ - 4,00 ‰
Measurement precision: +/- 0.05 % at 1.0 ‰ BAC at 25 deg. C.
Exhalation time: 4s
Power supply: 2 x AAA 1.5 V battery
Housing: ABS plastic
Operating conditions: 0 - 40 deg. C
Dimensions: 112 x 45 x 22 mm
Weight: 82 g
Manufacturer: BACscan, Poland
