Armytek Elf C2 Max WR USB-C PCB White Headlamp and Angle Flashlight 2500 Lumens

This black headlamp and angled torch is equipped with a LED diode capable of producing two types of light—white and red. It’s an essential part of everyday carry (EDC) gear, designed for both daily use and field tasks. Its compact construction and lightweight design make it easy to carry—clip it to your belt, attach it to your backpack, transport it in the included holster, or wear it on your head as a headlamp.

The battery, integrated with a PCB protection circuit, ensures safe power supply. A digital brightness stabilization system maintains a steady beam, eliminating flickering even as battery voltage drops. With two types of light, the lamp handles everything from standard area illumination to night use where maintaining night vision is critical.

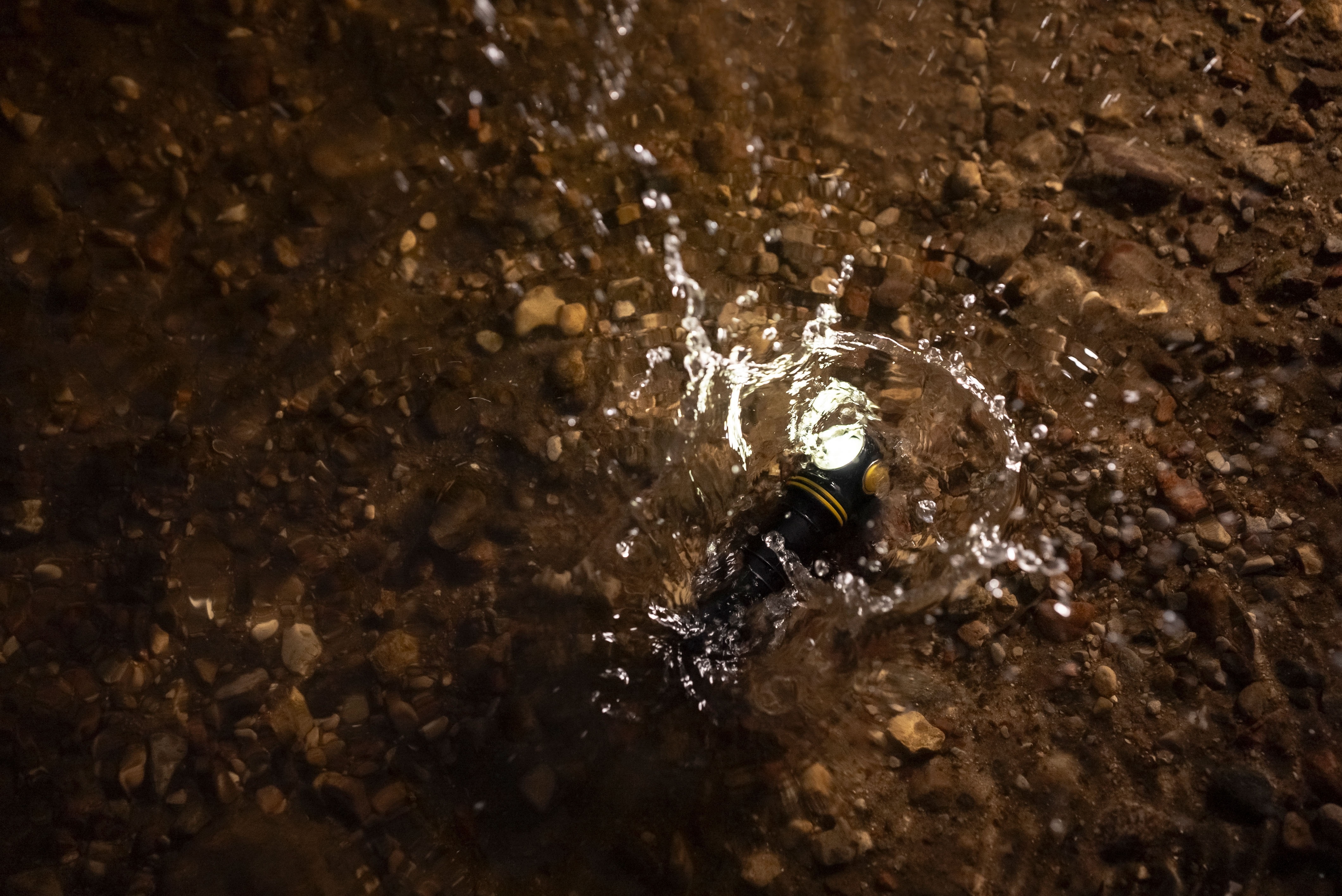

The housing is made from aerospace-grade aluminium with a matte anodized finish. An ergonomically shaped body improves grip and handling— even when wearing gloves. The device meets the IP68 waterproof standard (protected during submersion up to 10 meters for 5 hours) and resists drops from heights of up to 10 meters.

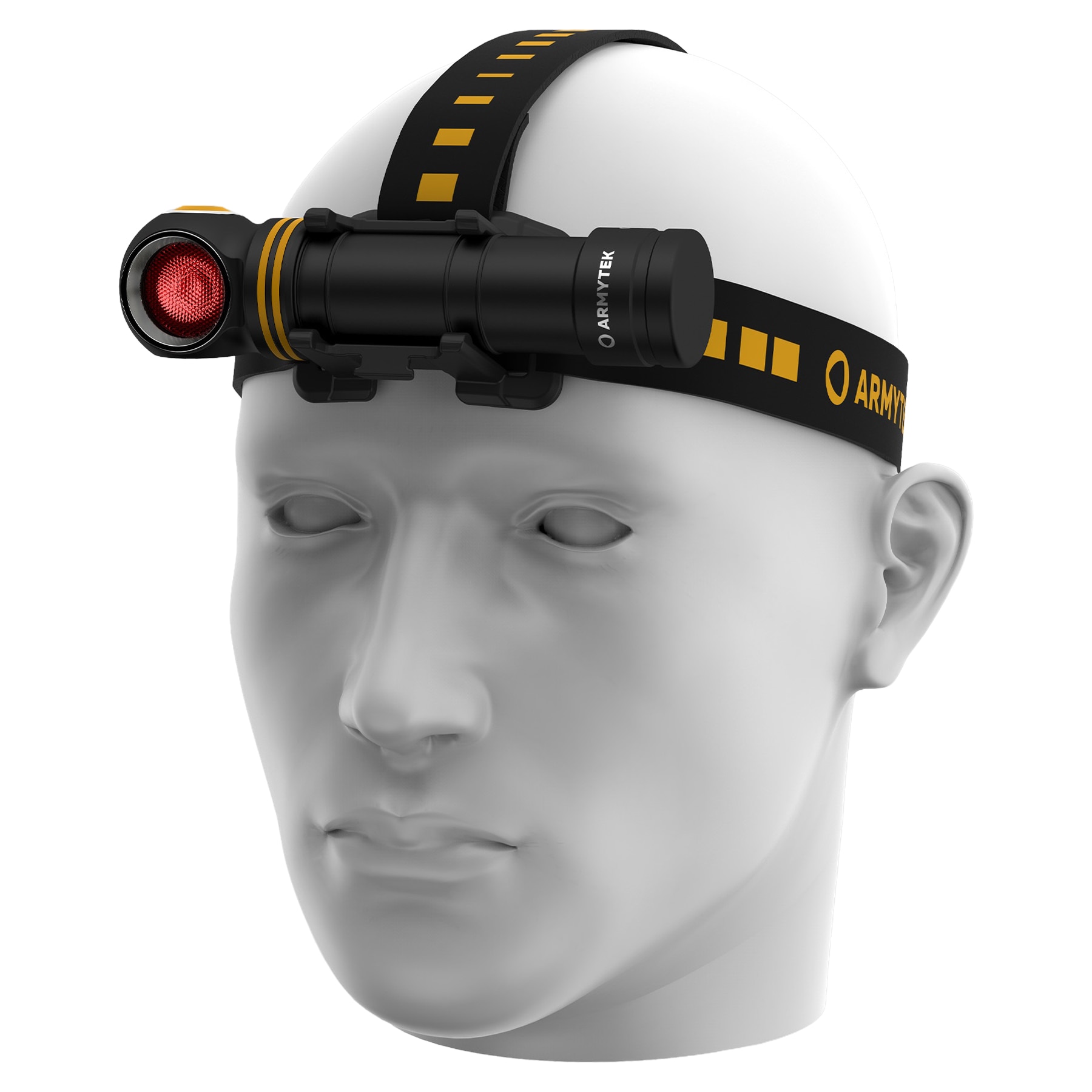

This lamp can be used as a headlamp with the included headband. The holder allows for quick attachment and removal with one hand, no extra tools needed. The lamp mounts in a bracket that rotates up to 180 degrees.

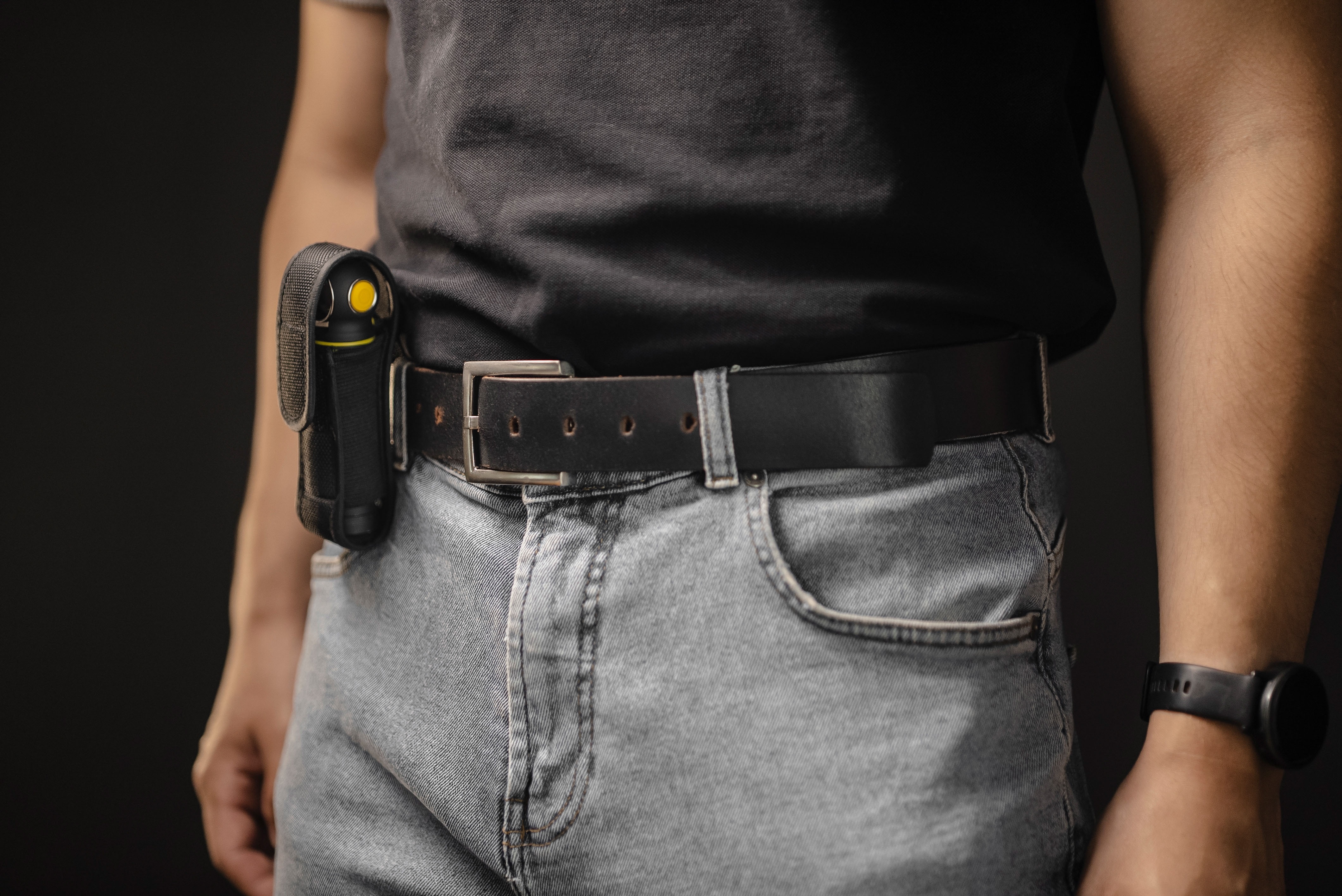

A durable, removable clip lets you securely attach the lamp to your belt, backpack, or other gear. At its base, there’s a strong magnet for attaching to metal surfaces. The lamp can also be stored in the included holster. It’s compatible with the AHM-04 helmet mount and ABM-01 bicycle mount.

An optical system with a high-efficiency LED diode and TIR lens produces both white and red light. The broad beam angle for white light, spanning 110 to 150 degrees, ensures uniform lighting over large areas at short distances.

White light—beam angle of 110–150 degrees:

• Turbo – 2500 lm / 3 hours / 120 m (1275 lm after 1 minute)
• Main3 – 1000 lm / 3 hours 50 minutes
• Main2 – 400 lm / 9 hours 10 minutes
• Main1 – 110 lm / 31 hours
• Firefly – 1.3 lm / 20 days
• Strobe – 2500 lm / 10 Hz / 5 hours 30 minutes (1000 lm after 3 minutes)
• Beacon – 1000 lm / 1 Hz / 14 hours 35 minutes

Red light:

• Main3 – 200 lm / 5 hours 5 minutes / 40 m
• Main2 – 100 lm / 8 hours 45 minutes
• Main1 – 45 lm / 20 hours 30 minutes
• Firefly – 2 lm / 10 days
• Beacon – 200 lm / 1 Hz / 15 hours 20 minutes

This device remembers the last mode used, so when you turn it on, it automatically returns to your previous setting, allowing for faster operation without needing to set modes again.

Mode selection is managed with a convenient button for smooth, one-handed control. The design also allows direct access to key functions, including turbo and signal modes.

If the lamp reaches a high temperature (about +58°C), the device automatically reduces brightness to prevent component overheating.

This system protects the LED diode and battery from overload, extending their life and ensuring stable operation. The lamp head is optimized for efficient heat dissipation, so you can run high-brightness modes for extended periods.

The lamp is compatible with both Li-Ion 21700 and 18650 cells, giving you flexibility in your power source. The package includes an adapter for using 18650 batteries, so you can adjust configurations based on what you have available. The power system is engineered for safety—PCB protection guards against short circuits, even with the charging port open.

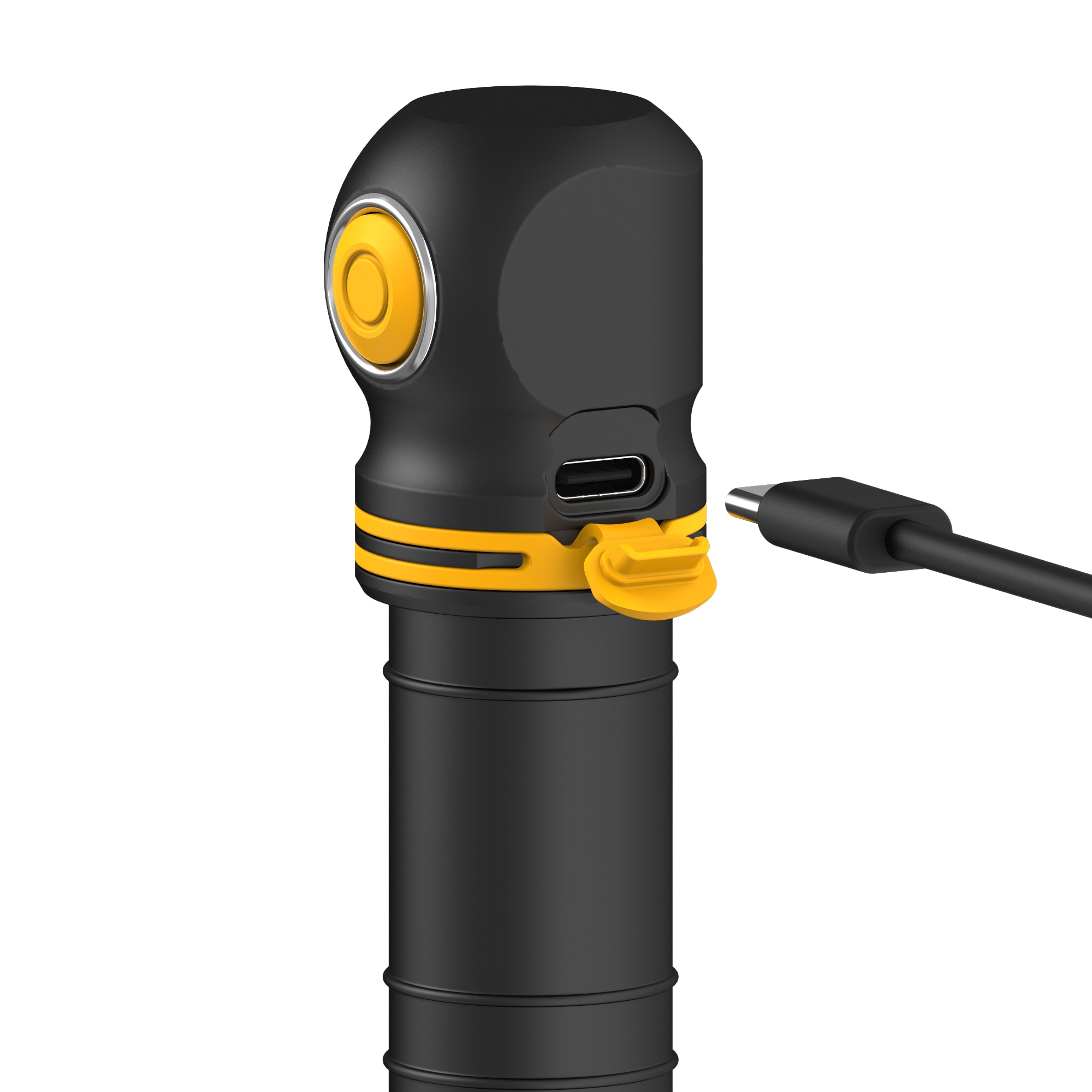

A USB‑C port lets you charge with common power sources like wall chargers, car chargers, or power banks. Charging the 5000 mAh battery takes around 2 hours and 35 minutes for a full charge.

This model features a charging indicator system built into the switch, displaying the lamp’s exact charging status.

• Red light means charging is in progress.
• Green light means the battery is fully charged.
• Flashing red means charging is not occurring (for example: low voltage, damaged cable, or poor contact).

• Lamp
• Li-Ion 5000 mAh battery
• USB‑C cable
• 18650 battery adapter
• Headband
• Steel clip
• Nylon holster
• 2x O-ring
• User manual

• Headlamp and angled torch with both white and red light
• LED diode + TIR optics for a wide-angle beam
• Maximum output 2500 lm, range up to 120 m
• Last-used mode memory function
• Digital brightness stabilization
• Active temperature control system
• Aerospace-grade aluminium body with anodized finish
• IP68 waterproof rated (submersible up to 10 m for max. 5 h)
• Drop resistant from heights up to 10 m
• Removable clip for attaching to your gear
• Magnet built into the lamp base
• Power: Li-Ion 21700 / 18650 rechargeable batteries
• Battery with PCB protection
• USB‑C charging
• Charging status indicator on the button
• Compact design, one-handed operation
• Set includes accessories
