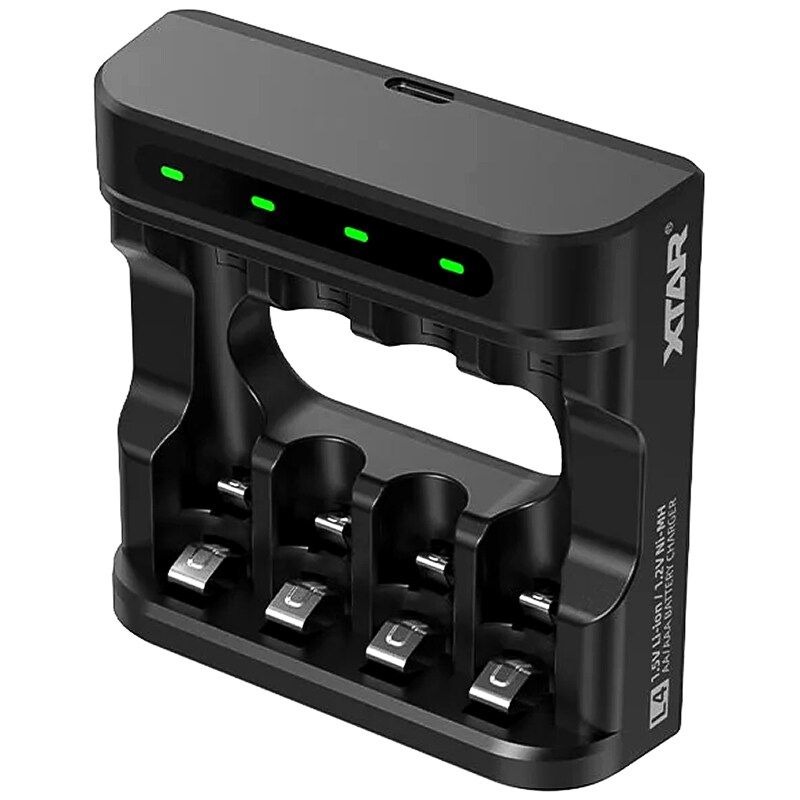

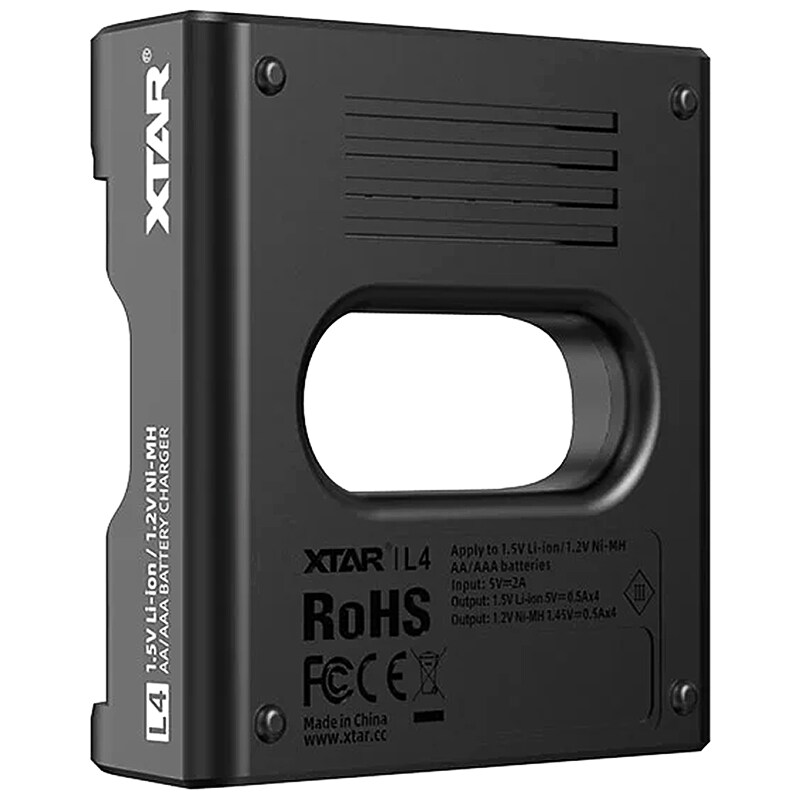

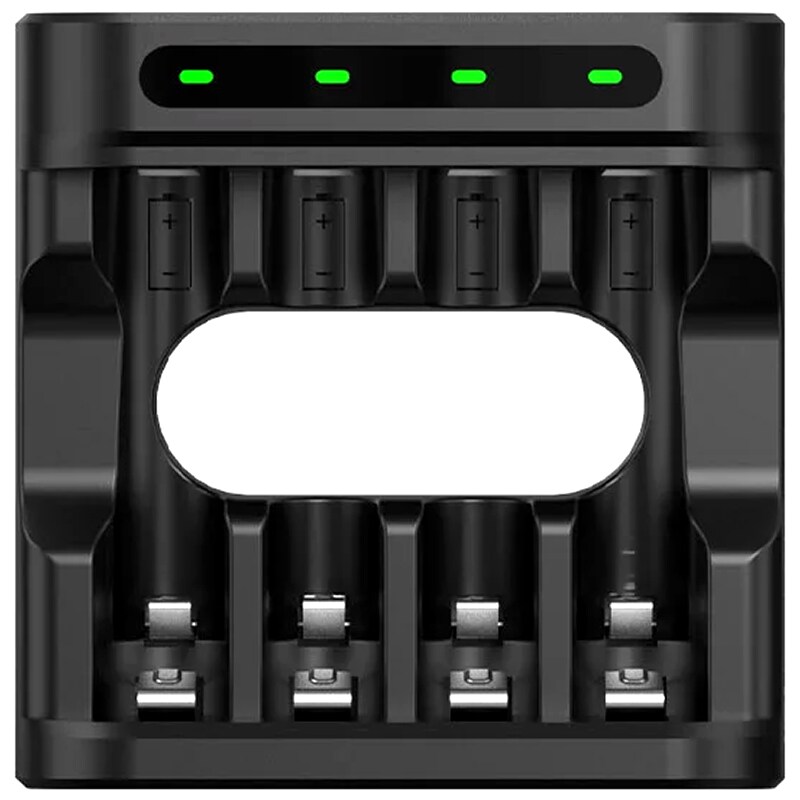

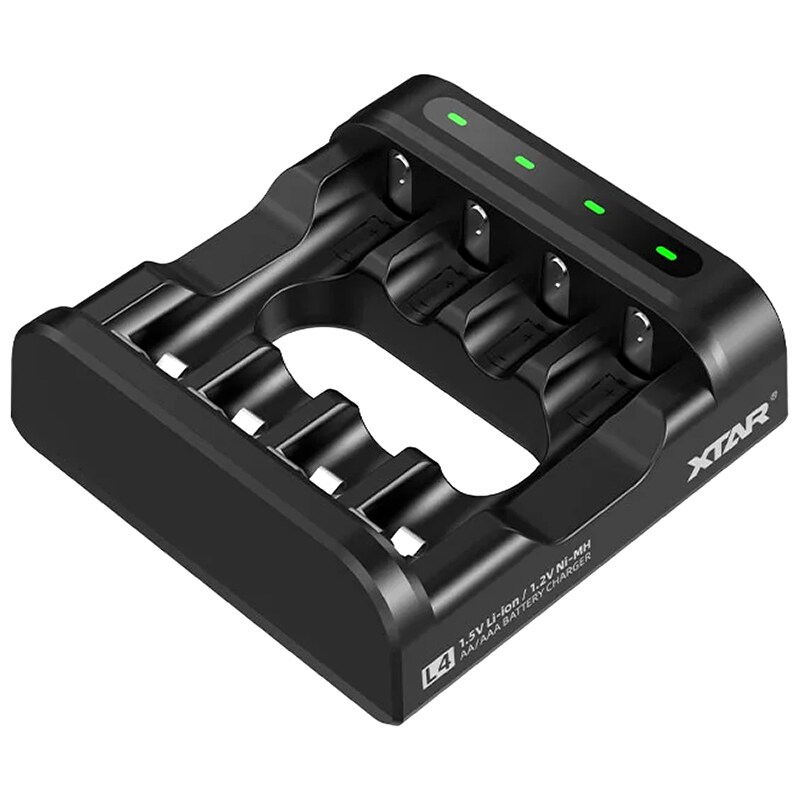

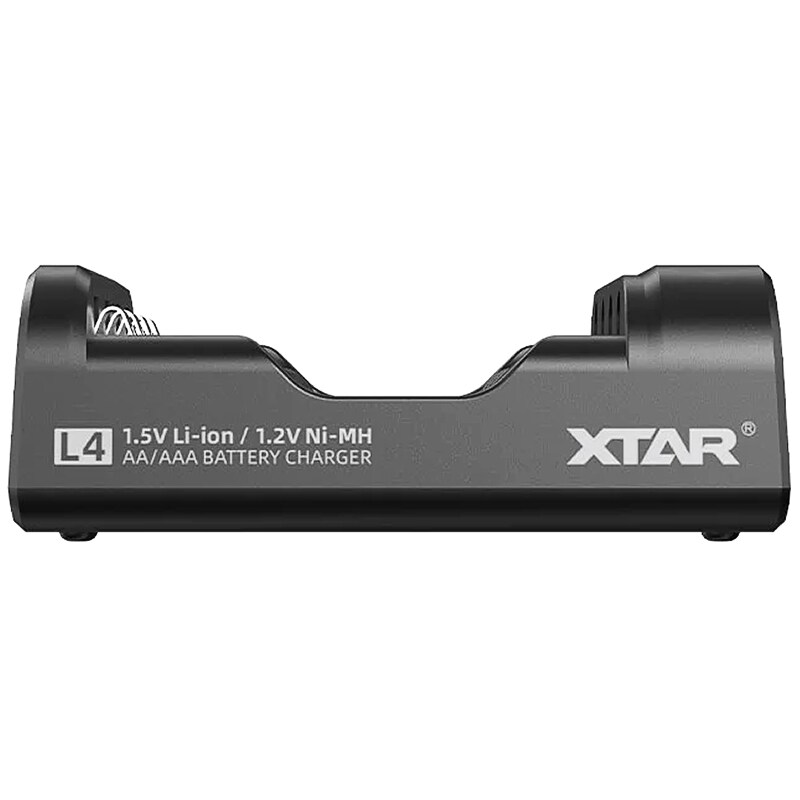

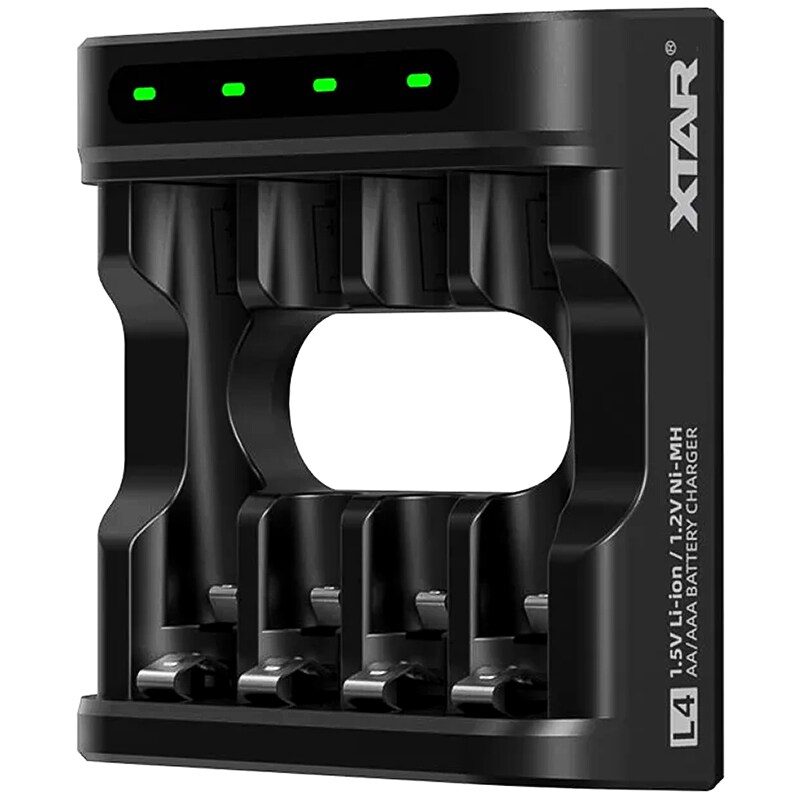

Xtar L4 Battery Charger

Compact charger featuring four independent channels, capable of delivering a maximum charging power of up to 0.5 A for both Li-Ion and Ni-MH batteries. It incorporates a three-stage TC/CC/CV charging process and includes a reactivation function for deeply discharged and 0V cells. An LED light provides indicators of the battery's charging status. The open design ensures better heat dissipation and makes battery removal easier.

The TC/CC/CV charging method represents a three-stage process that maintains battery health by applying the correct current at each stage and ensuring the charging process concludes at the optimal time. The charger is equipped with special safety features to guard against overheating, incorrect battery insertion, and short circuits.

The device is compatible with Li-ion 1.5V and Ni-MH batteries in sizes: R6, AA R03, AAA.

The charger operates via a USB-C cable, allowing charging from a wall outlet, computer, or power bank.

Technical data
Input voltage: 5V 2100 mAh
Charging current: 0.5A
Dimensions: 76 x 76.5 x 27.6 mm
Weight: 51 g
Manufacturer: Xtar, PRC
