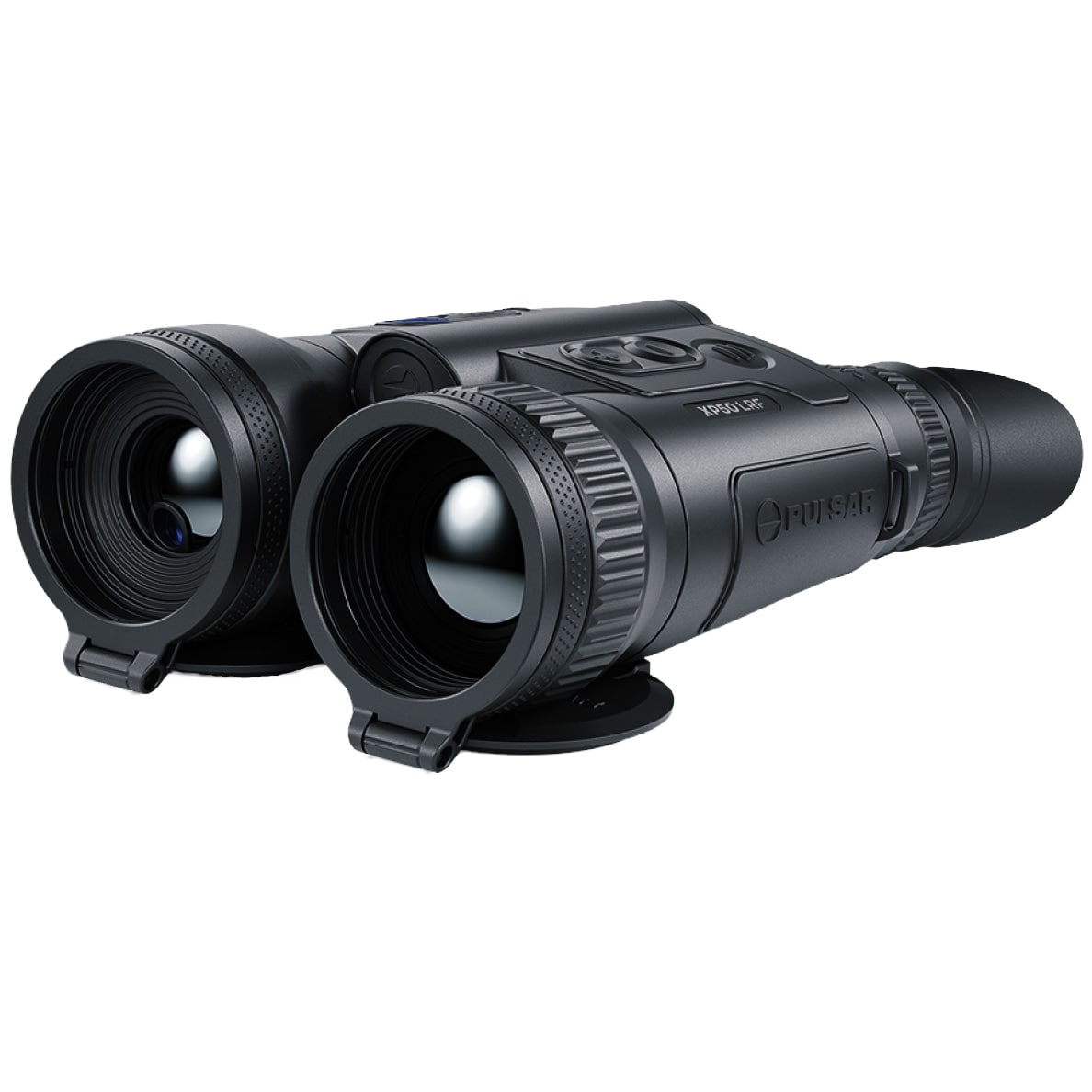

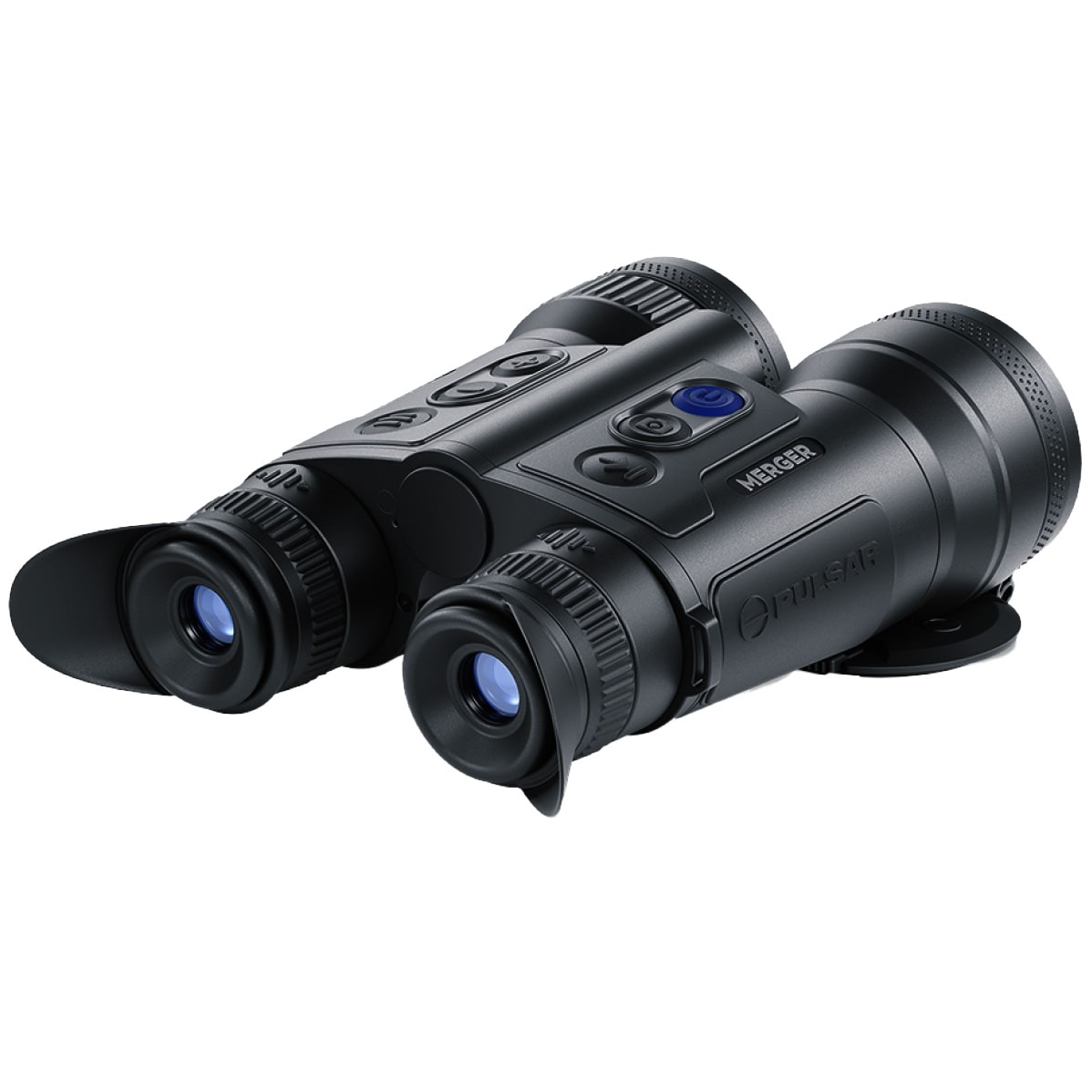

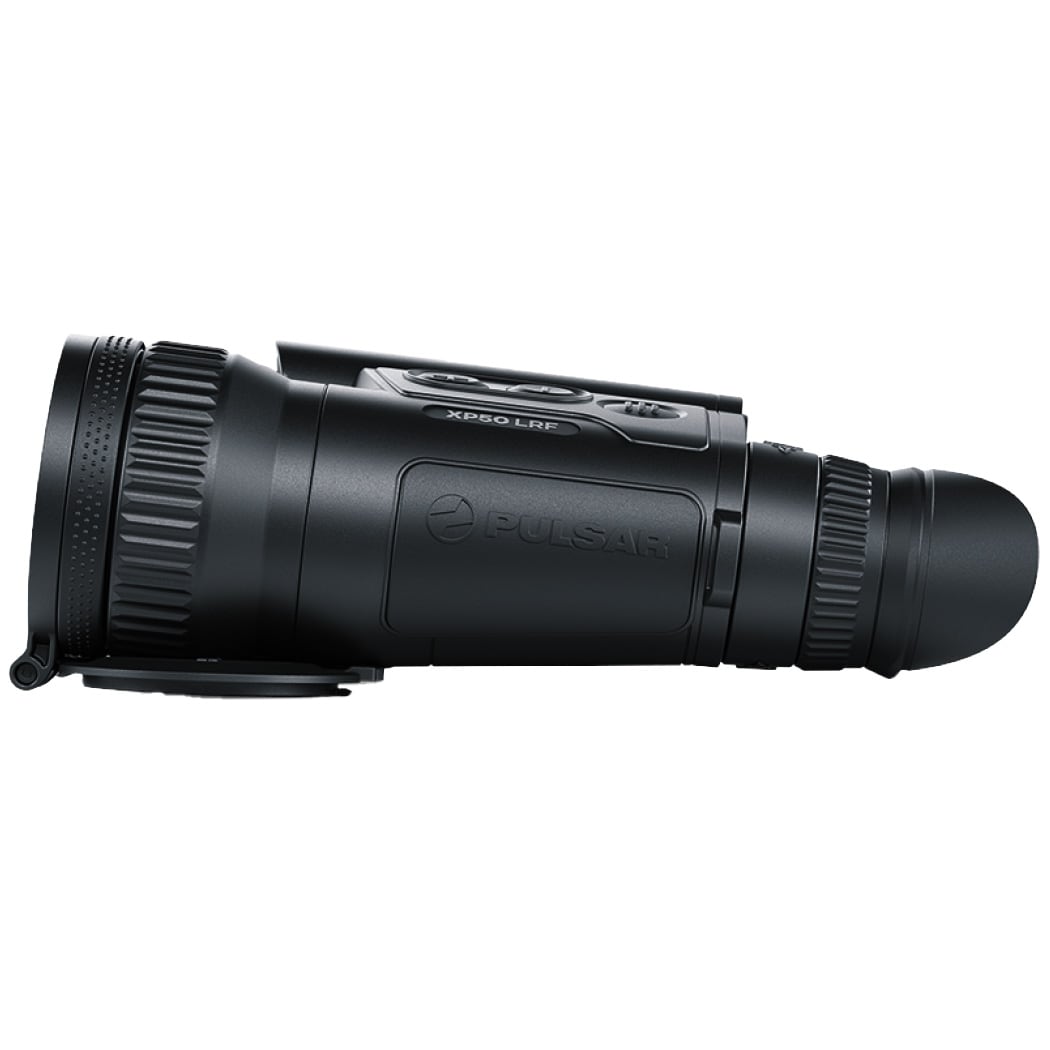

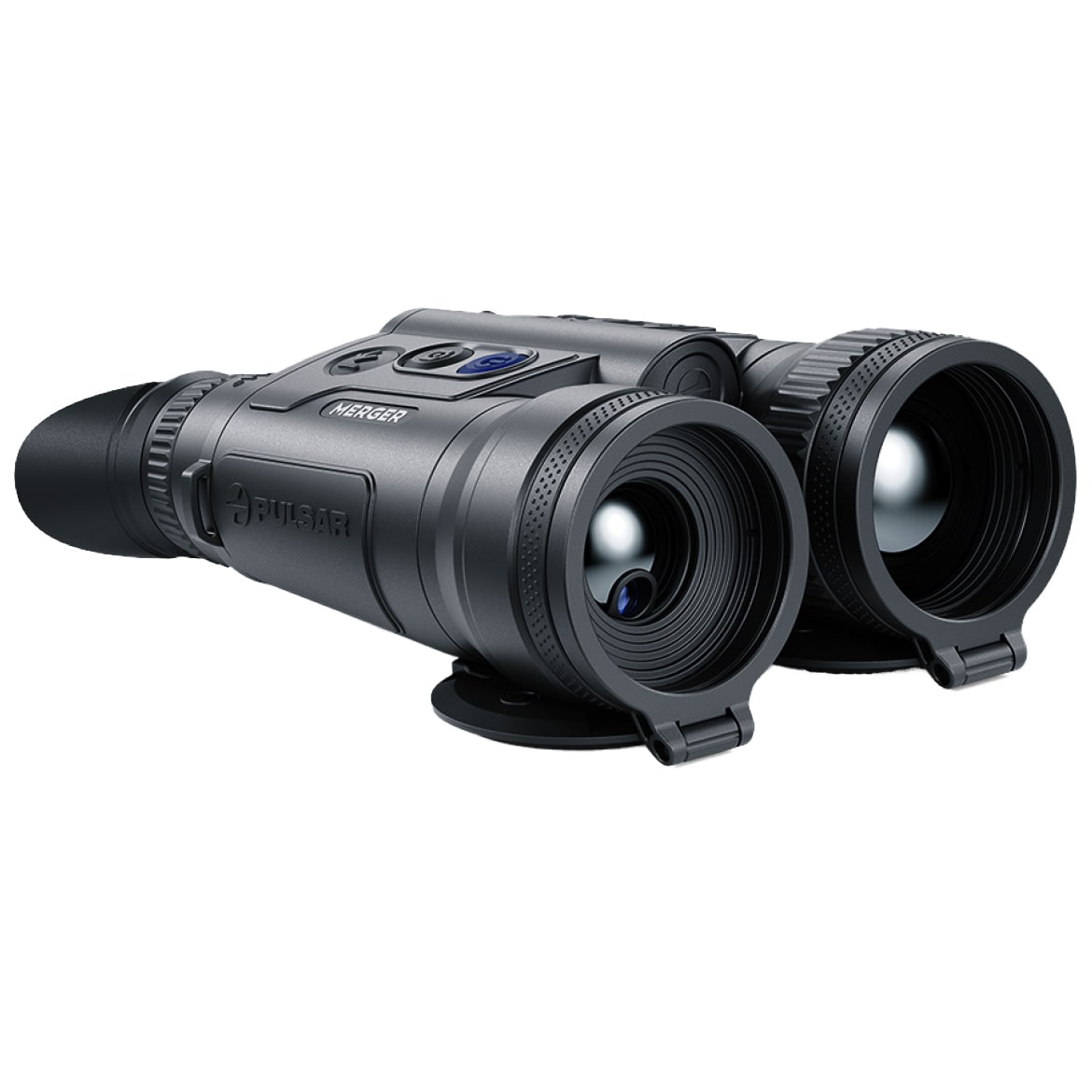

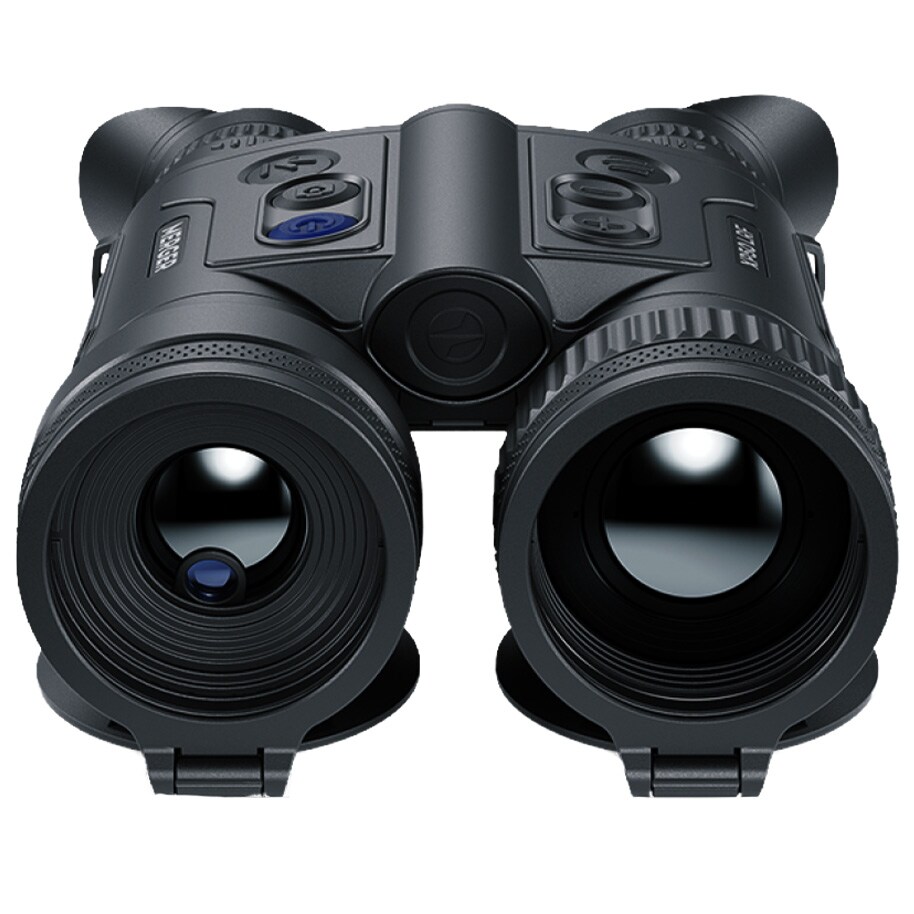

Pulsar Merger LRF XP50 Thermal Imaging Binoculars with a Laser Rangefinder
or sign up for availability notification
- description
- technical data
- Reviews
- Goes well with
Thermal binoculars that combine a thermal imaging camera and a digital day camera. In addition, the model is equipped with a fixed optical magnification of 2.5x and a digital magnification of 2.5-20x, allowing objects up to 1800 metres away to be seen. The built-in laser rangefinder with a range of up to 1,000m, enables the distance to the observed target to be determined with an accuracy of +/- 1m.
The thermal imager is equipped with a thermal sensor with a resolution of 640 x 480 pixels, with a pixel spacing of just 17 µm. The sensitivity of the sensor allows temperature differences of less than 25 mK to be picked up.
The large lens with a diameter of 50 mm, provides a bright and vivid image during the day. The resulting image is smooth and does not blur even when using the maximum digital magnification of 20x. The thermal lens system has a high specification F1.0 aperture, so that all available thermal signal reaches the sensor. This, combined with a highly accurate thermal sensor, ensures high thermal performance.
The external display used is made with AMOLED HD technology and has a resolution of 1024 x 768 pixels.
The device provides 8 display modes:
- White Hot,
- Black Hot
- Hot Red
- RedMonochrome,
- Rainbow
- Ultramarine,
- Violet,
- Sepia.
The Merger LRF XP50 is additionally equipped with a video recording and photo-taking function. Recordings and photos are stored on the built-in 16 GB internal memory. The USB-C connector allows for easy and fast data transfer. The device supports a WIFI connection, allowing you to share photos and videos in real time. In addition, control is possible via the StreamVision 2 mobile app available for Android/IOS.
The body of the binoculars is made of magnesium alloy, which improves grip stability and provides impact and drop resistance. The IPX7 waterproof rating ensures full waterproofing, so it can be used in snow, rain and freezing temperatures down to -25 degrees C. The control buttons are positioned within fingertip reach for easy and intuitive operation.
The width of the binoculars, which is the inter-ocular distance, is adjustable from 62 - 74 mm to suit the user. The model is also equipped with diopter correction from -5 D to +5 D.
The binoculars are powered by a replaceable APS3 3200 mAh battery (included) and a built-in 4.0 Ah battery, which provide up to 10 h of continuous use. The USB Type C port also allows the device to be used with the powerbank plugged in to extend the operating time. Thanks to a power-saving function, the display is automatically switched off when the device is momentarily out of sight.
The Merger LRF XP50 is equipped with a mounting thread that allows an adapter to be fitted to a tripod.
The set includes:
- Merger LRF XP50 thermal imaging binoculars,
- battery APS3,
- user manual in Polish
- USB cable,
- USB/230V charger,
- cleaning cloth for optics
- neck strap,
- lens cap,
- warranty card with hologram,
- APS battery docking station,
- carrying case.
Technical data
Thermal sensor resolution: 640 x 480, 17 μm
NETD: 25 mK
Display resolution: 1024 x 768
Image refresh rate: 50 Hz
Lens: 50 mm F/1.0
Field of view: 12.4 - 9.3 st, 21.8 - 16.3 m/100 m
Digital zoom: 2.5 - 20x
Optical zoom: 2.5x
Maximum range: 1800 m
Internal memory: 16 GB
Dimensions: 196 x 143 x 76 mm
Water resistance: IPX7
Operating temperature: -25 to +50 deg C
Power supply: built-in 4 Ah battery, replaceable APS3 3200 mAh battery
Operating time: 10 h
Start-up time: less than 3 s
Display: AMOLED HD
Dioptric correction: -5 to +5
Weight: 800 g
Manufacturer: Pulsar, Lithuania
MILITARY is a premium dealer of Pulsar.
Pulsar is a European brand specializing in thermal imaging technology and digital day/night optics, owned by the Yukon Group and based in Lithuania. Its origins date back to 1991, when a group of enthusiasts began building their first devices at home. Today, the company employs over 1200 people and operates in more than 70 countries. All production takes place in Europe, and the brand has gained recognition for its innovative solutions, such as Dual-Purpose systems, which allow the device to be used as both a monocular and a rifle scope. The modern nature of the offer is emphasized by the Stream Vision 2 application, which allows wireless connection of devices to a phone via Wi-Fi, offering remote control, image transfer, and software updates. In 2005, the Yukon Group was the first to introduce digital night vision devices to the civilian market, marking in a new stage in the development of applied optoelectronics. In 2012, the Quantum model was unveiled – the first mass-produced thermal imaging monocular for civilians, and in 2019, the compact Axion XM30, capable of detecting a human silhouette from a distance of 1350 meters in complete darkness.
| Optics ready | No |
|---|---|
| Thermal imager type | Binoculars |
| Display modes | 8 |
| Reticle | No |
| Field of view | 21,8 - 16,3 m/ 100 m |
| Sensor resolution | 640 x 480 |
| Screen resolution | 1024 x 768 |
| Vehicle detection | 1800 m |
| Human detection | 1800 m |
| Waterproof class | IPX 7 |
| Power type | Built-in battery + replaceable battery |
| Accumulator/battery type | 1x Li-Ion APS 3 |
| Transport cover | Yes |
| Weight | 800 g |
| Objective lens diameter (mm) | 50 |
| Dimensions | 196 x 143 x 76 mm |
| Additional accessories included | Yes |
| Battery type | APS3 3200 mAh battery |
| Maximum detection depth | 1800 m |
| Built-in memory | Yes |
| EAN | 4779022925078 |
| Manufacturer code | 77465 |
| Brand | Pulsar |
| EAN |
