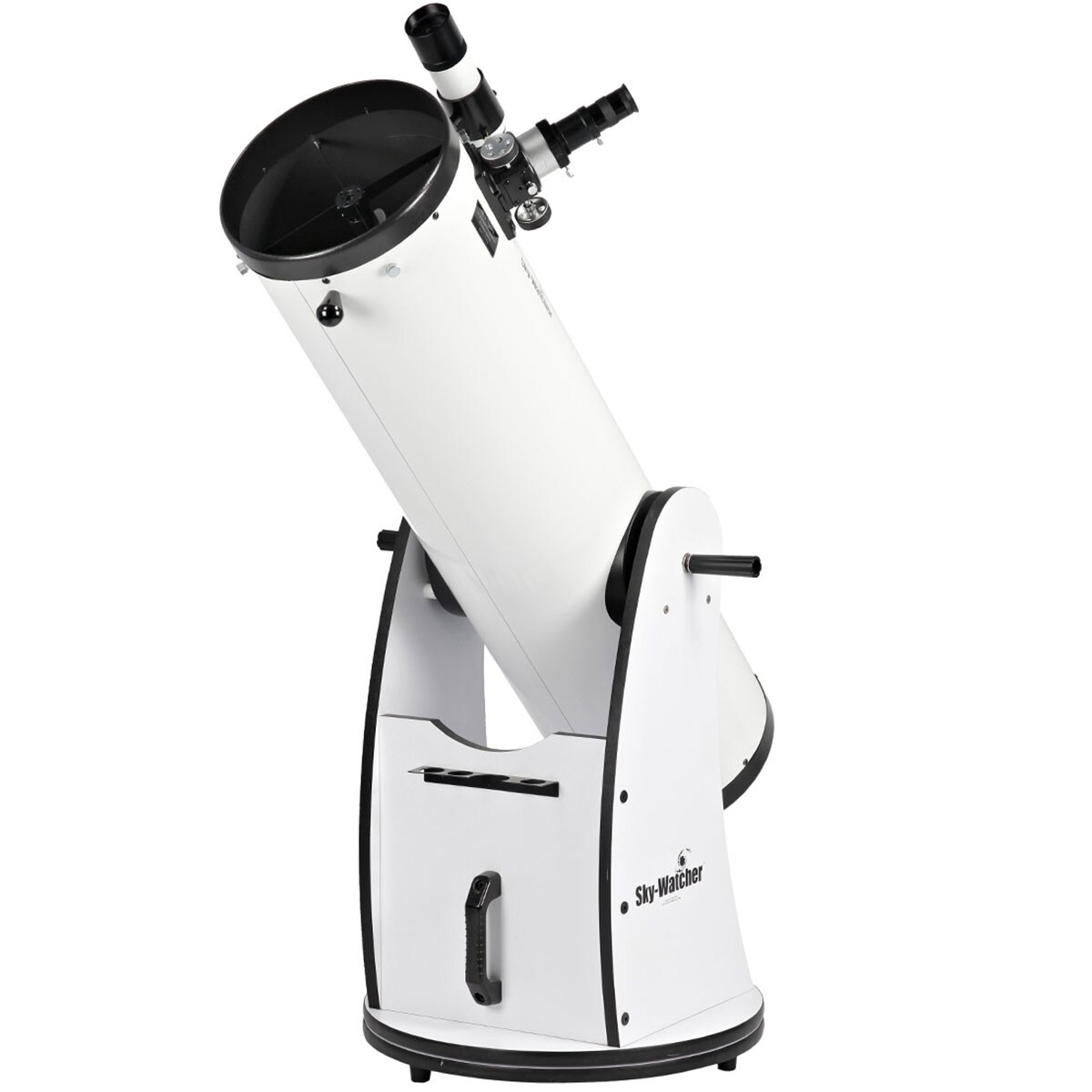

Sky-Watcher (Synta) SK Dobson 10" Pyrex telescope
- description
- technical data
- Reviews
- Goes well with

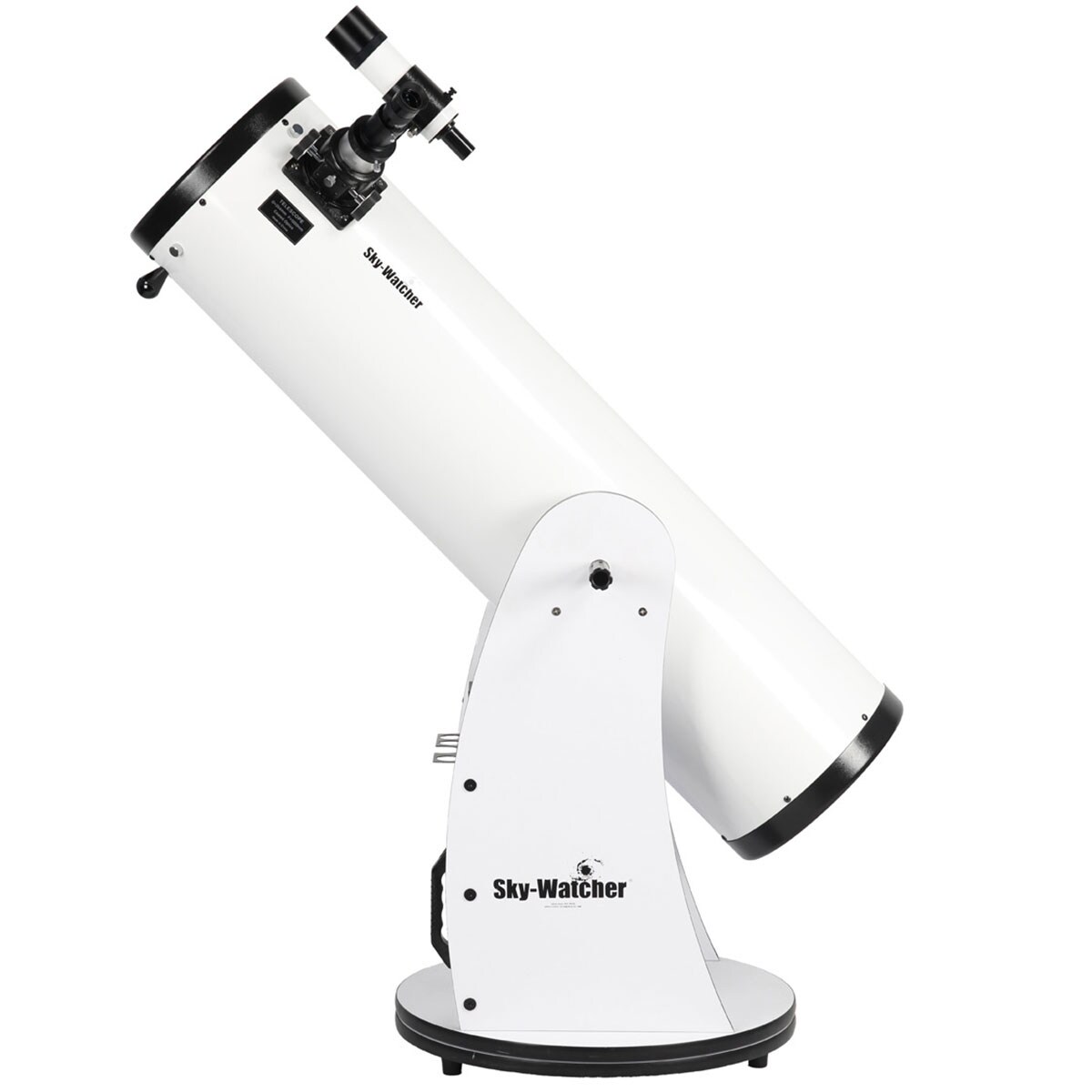

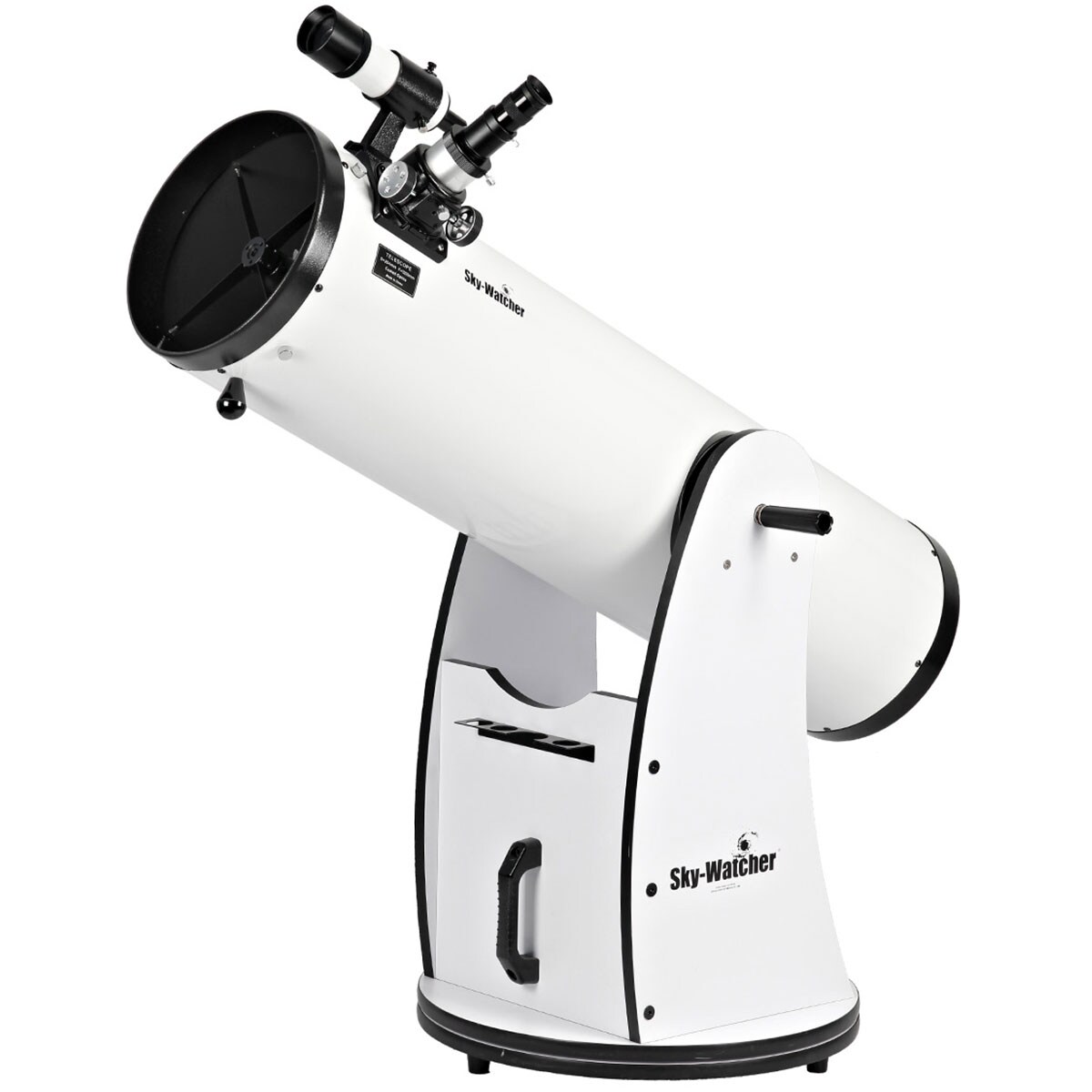

A large Newtonian system telescope suspended on a Dobson mount with a diameter of 25cm. It is a typical light-weight Newtonian telescope ideal for observing nebular objects under dark skies. At the same time, it is a telescope that, with a very large aperture, will enable detailed observations of the planets of the Solar System and the Moon.
Despite its powerful capabilities, it is a fairly inexpensive telescope, recommended for beginners yet discerning astronomy enthusiasts.
Pyrex mirror
All Sky-Watcher Dobson 8" and larger telescopes feature a mirror made of PYREX, a glass with low thermal expansion, so the image quality given by a telescope with such a mirror is higher than that of telescopes with a mirror made of ordinary glass.
Optical system

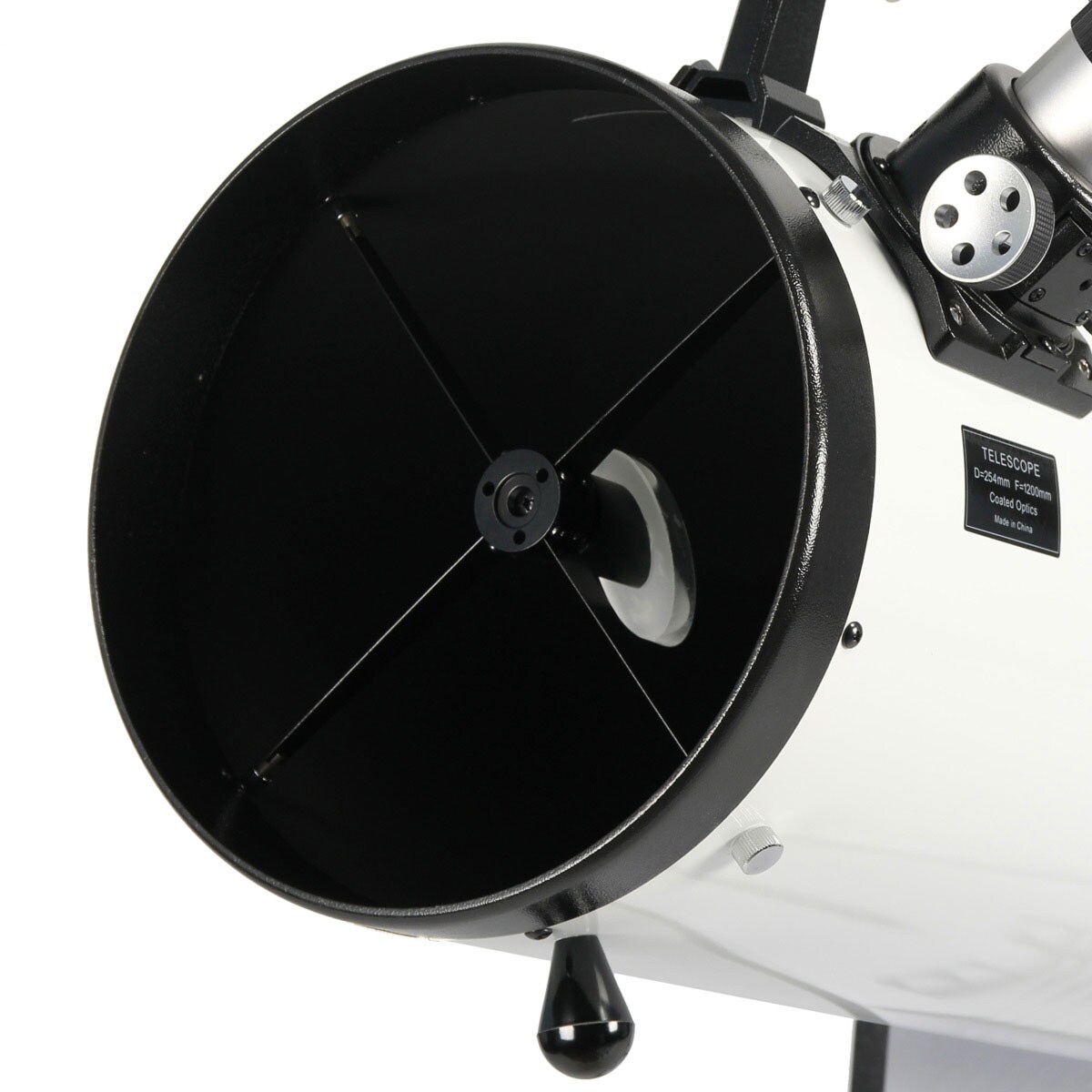

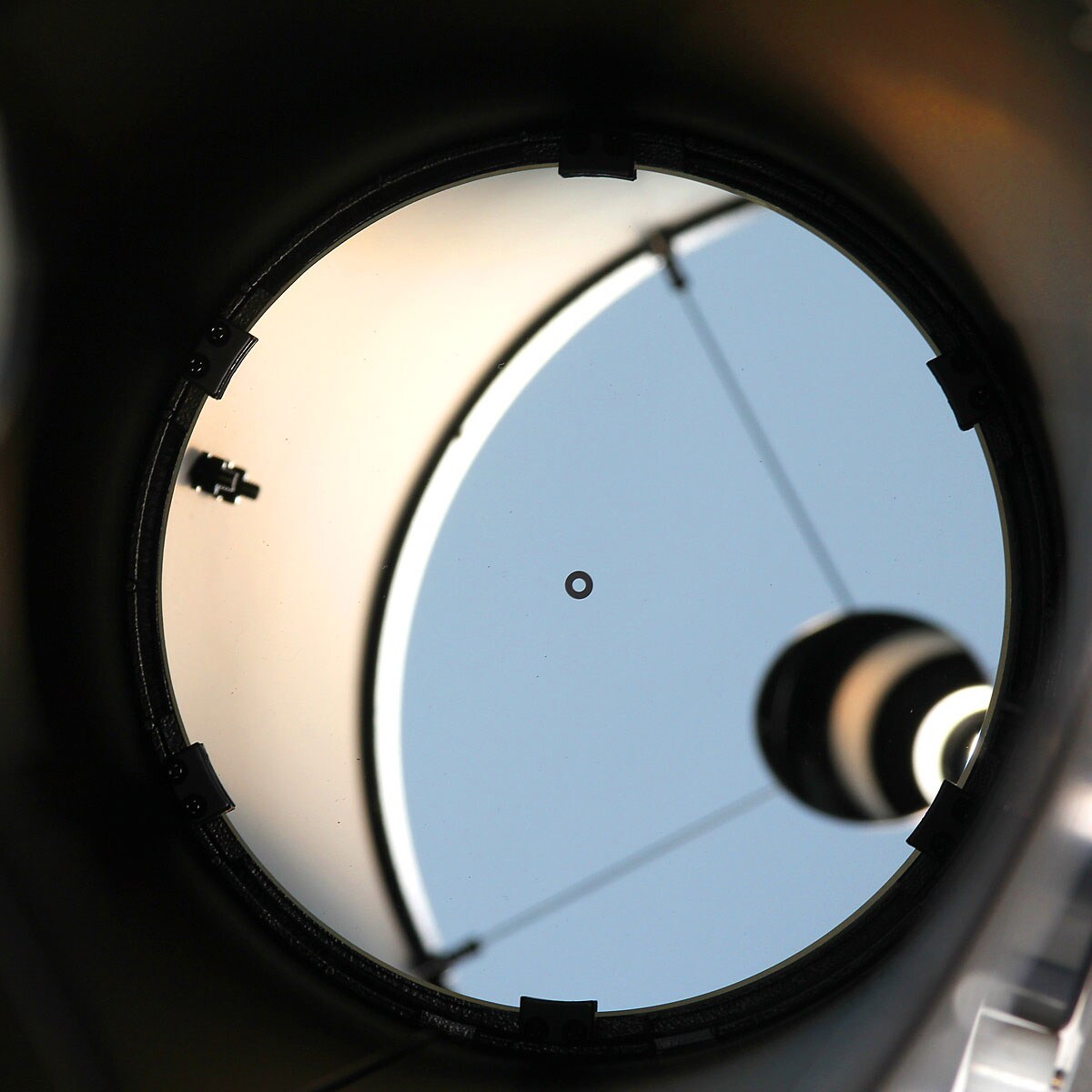

The telescope was made with the classical Newtonian system. The main parabolic mirror has a diameter of 250 mm and a focal length of 1200 mm. It is a mirror with a large aperture of f/4,8. Thanks to such parameters, the telescope, despite its large diameter, is a useful length device. The moderate focal length makes it possible to obtain small magnifications that allow comfortable observations of subtle and faint nebular objects.
Mount

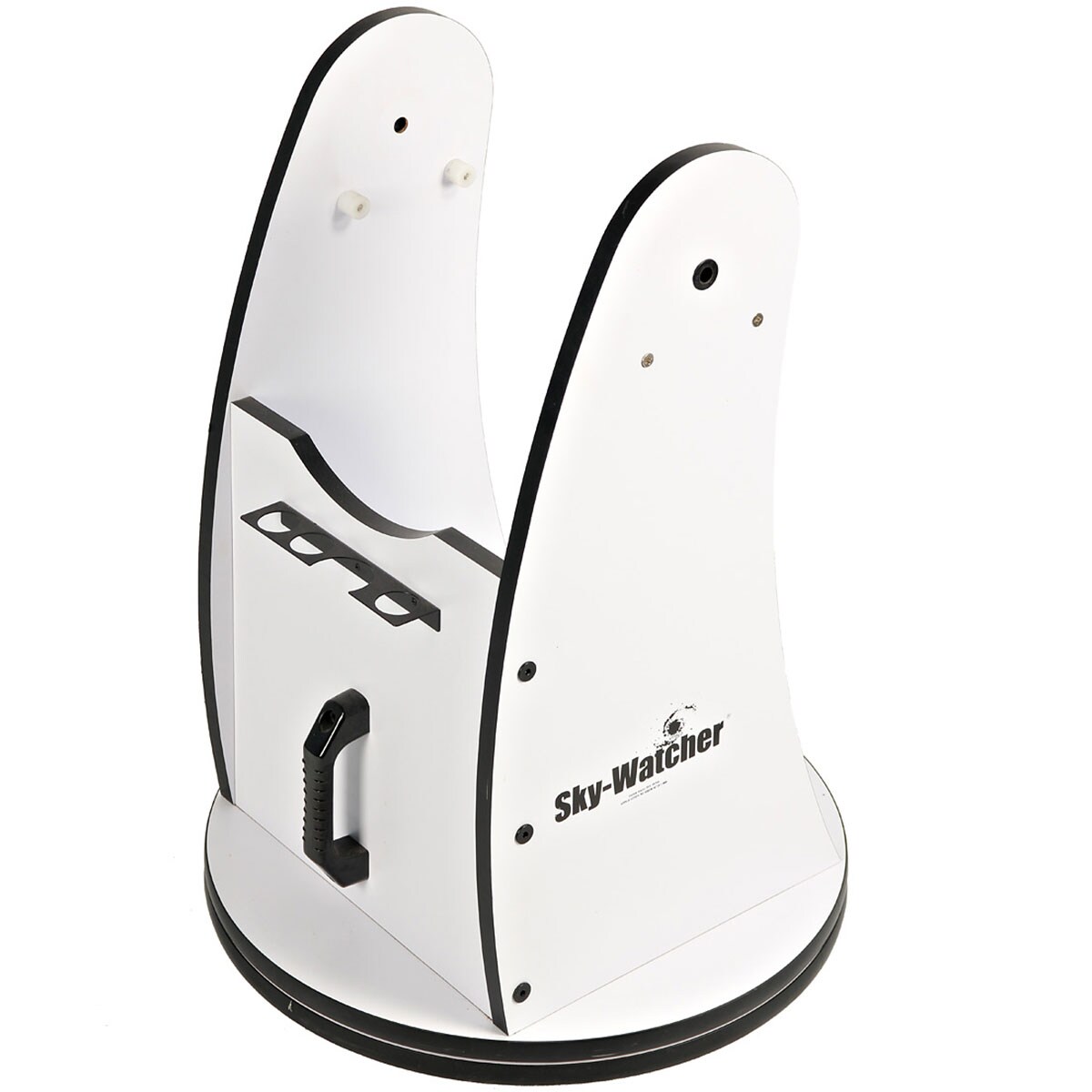

The Dobson mount is a simple and very stable design that allows the telescope to be easily rotated in the azimuth and elevation axis. The telescope is mounted on two sides in a forked mount, while the entire top of the mount rotates at the base. With a very low center of gravity and made of fairly rigid materials, the telescope is suspended in a much more stable manner than with parallactic mounts.
Extractor

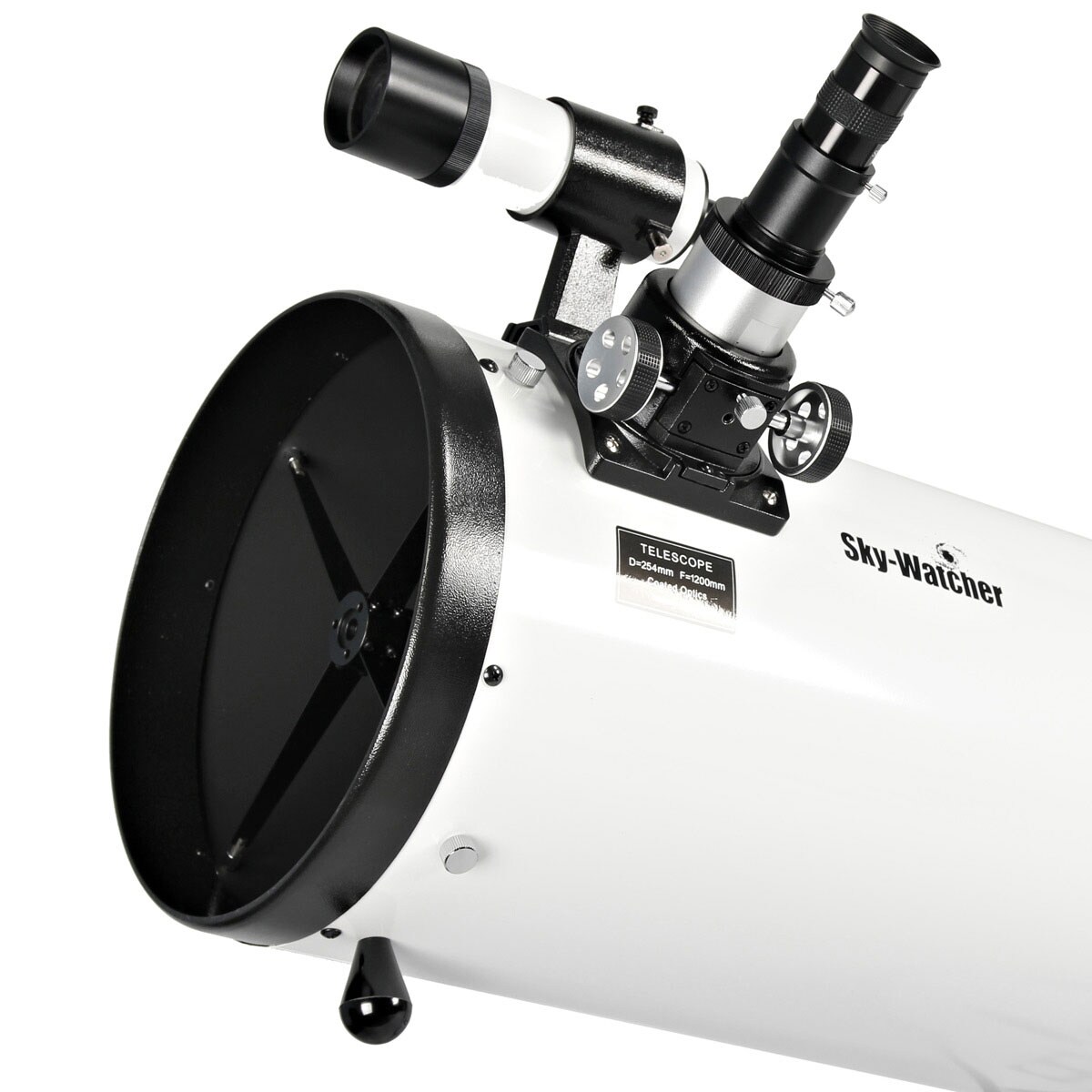

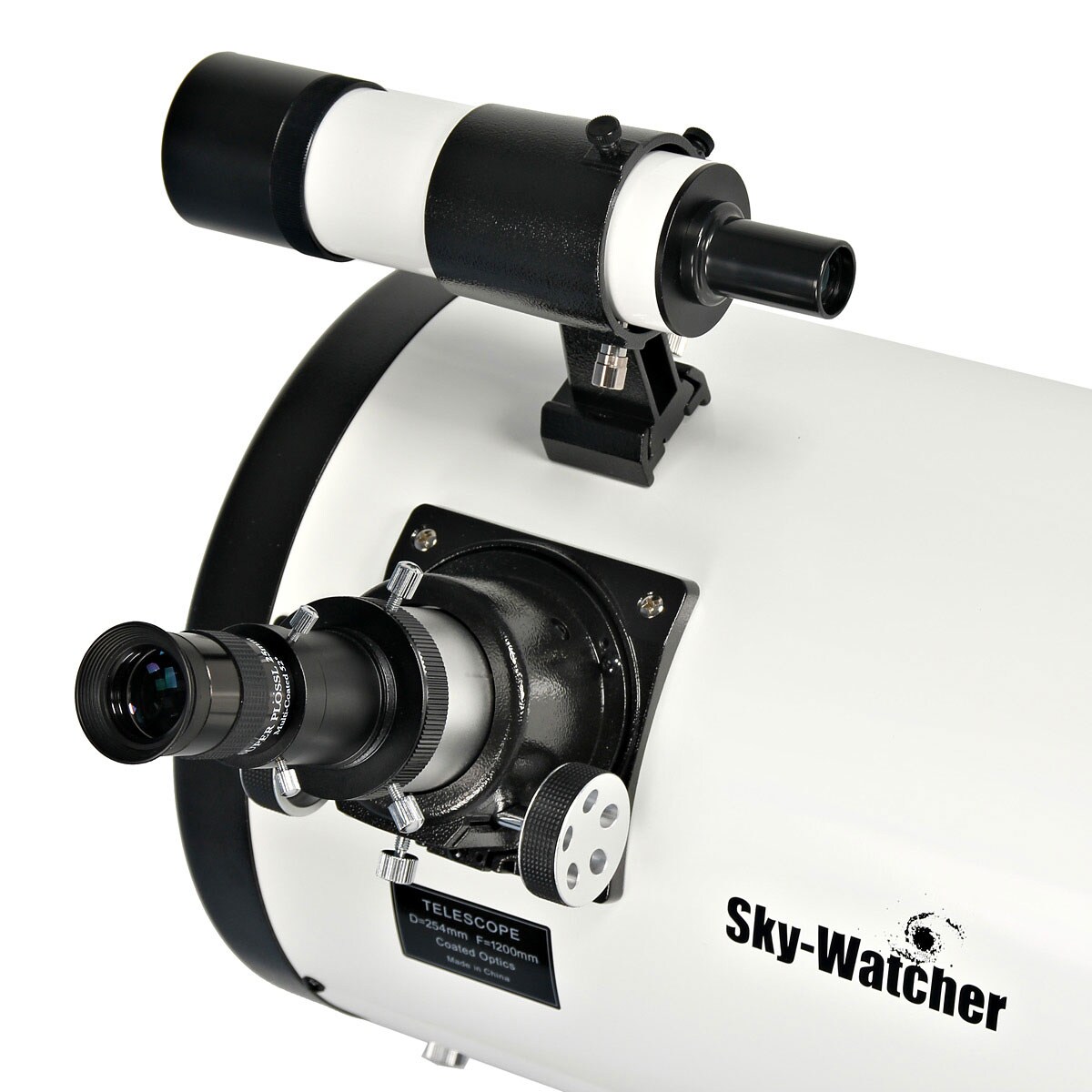

The telescope is equipped with a 2" eyepiece focuser with a reduction to 1.25". It is a Crayford focuser, operating smoothly and without backlash. It comes with an extension for 2", extension/reduction for 1.25". Use the extensions interchangeably without combining them into one set.
Technical specifications:
Optical system: Newtonian (reflector)
Main mirror diameter: 254 mm
Main mirror material: Pyrex
Focal length: 1200 mm
Focal length: f/4.8
Secondary mirror diameter: 58 mm
Highest useful magnification: 508x
Range: 14.6 mag
Resolution: 0.45"
Mount: Dobsonian, azimuthal
2" Crayford focuser with reduction to 1.25"
Weight of optical tube: 12.5 kg
Mount weight: 12.5 kg
Optical tube length and width: 113 cm / 28 cm
Diameter and height of the base: 52 / 74 cm
Manufacturer: Sky Watcher (Synta), Taiwan
MILITARY is a premium dealer of Sky Watcher.
Sky-Watcher is a brand established in 1999 on the initiative of the Taiwanese company Synta Technology Corporation, currently recognized as the world's largest manufacturer of amateur astronomical equipment. The range includes telescopes suitable for various levels of expertise, from simple models for beginners to advanced solutions such as ED refractors, Esprit series astrographs, and Maksutov designs. Dobsonian telescopes are also highly regarded, including flagship models with mirrors up to 16 inches in diameter, as well as precision EQ8 equatorial mounts, which are popular with astrophotography enthusiasts. Since 2008, the company has been developing unique Flex Tube Dobsonian telescopes with a telescopically extendable tube, which have become one of the most recognizable elements of Sky-Watcher's offer in the world of amateur astronomy.
| Weight | 25 kg |
|---|---|
| Objective lens diameter (mm) | 254 |
| Telescope type | Newtonian reflector |
| Focal length | 1200 mm |
| Lens speed (f/x) | f/4,8 |
| Maximum magnification | 508x |
| Telescope mount | Dobson |

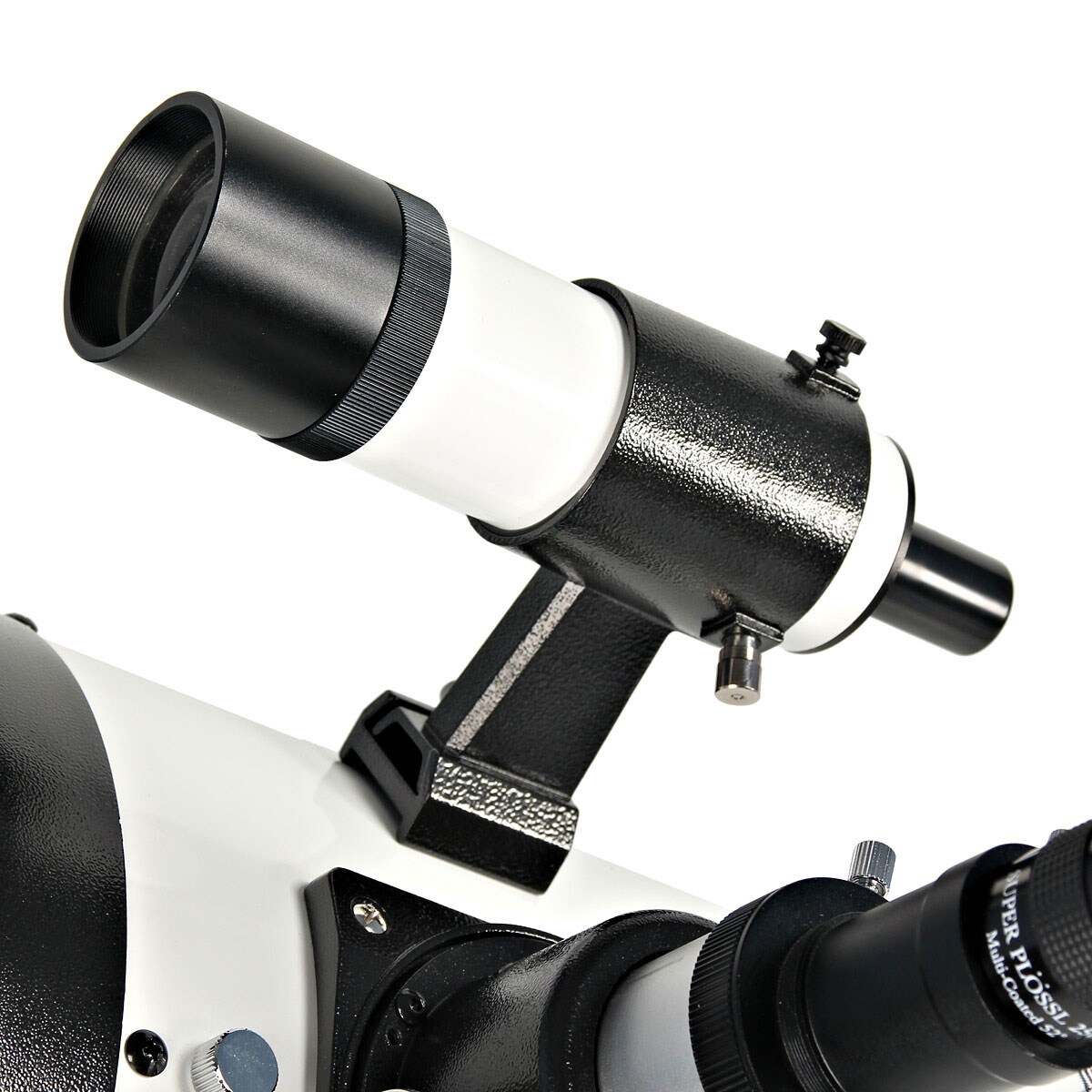

| Finderscope in the set | Yes, optical |
| Limiting magnitude (magnitudo) | 14,6 mag |
| Replacement glasses in the set | Yes |
| Tube length | 1130 mm |
| EAN | 5901691600133 |
| Manufacturer code | SW-1303 |
| Brand | Sky Watcher |
