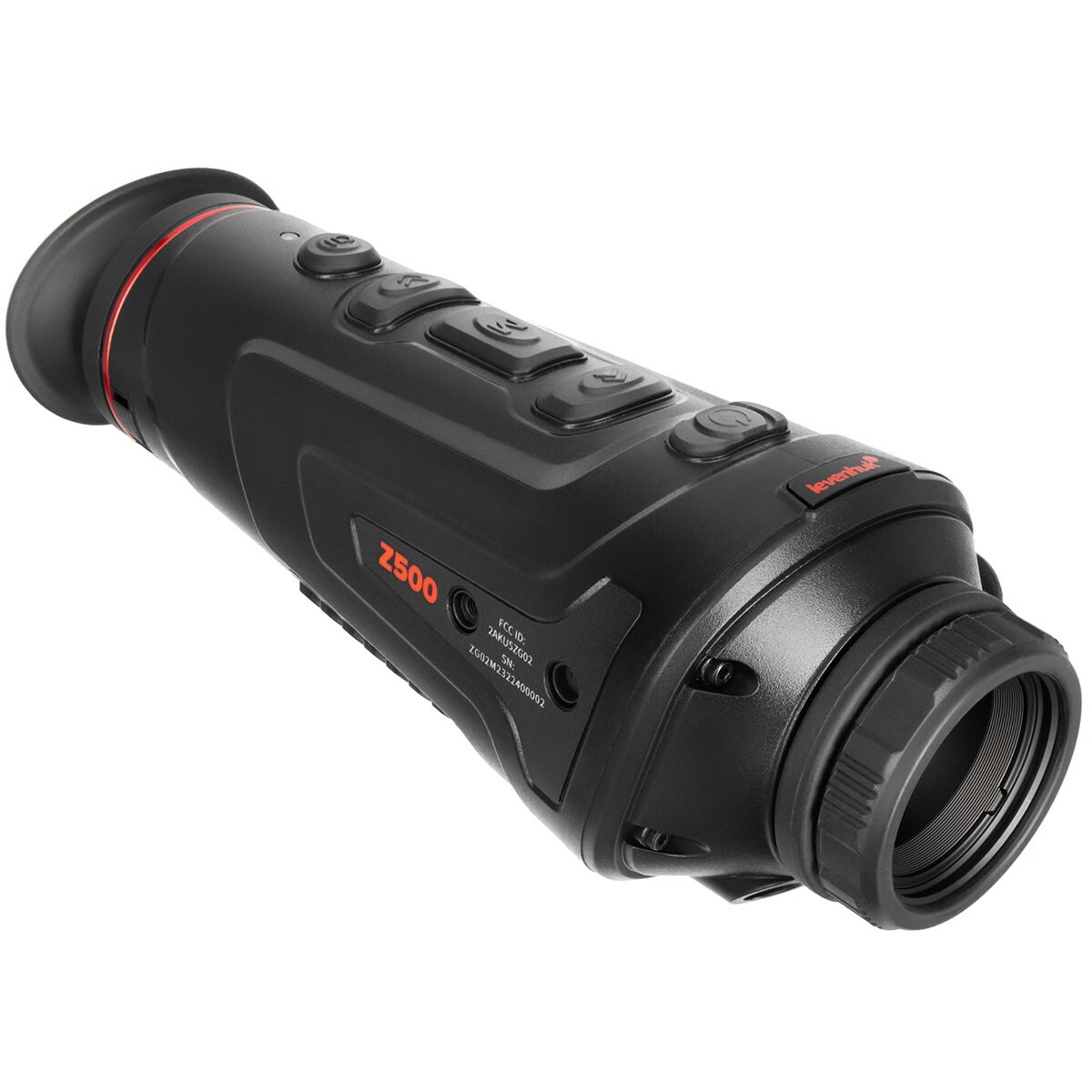

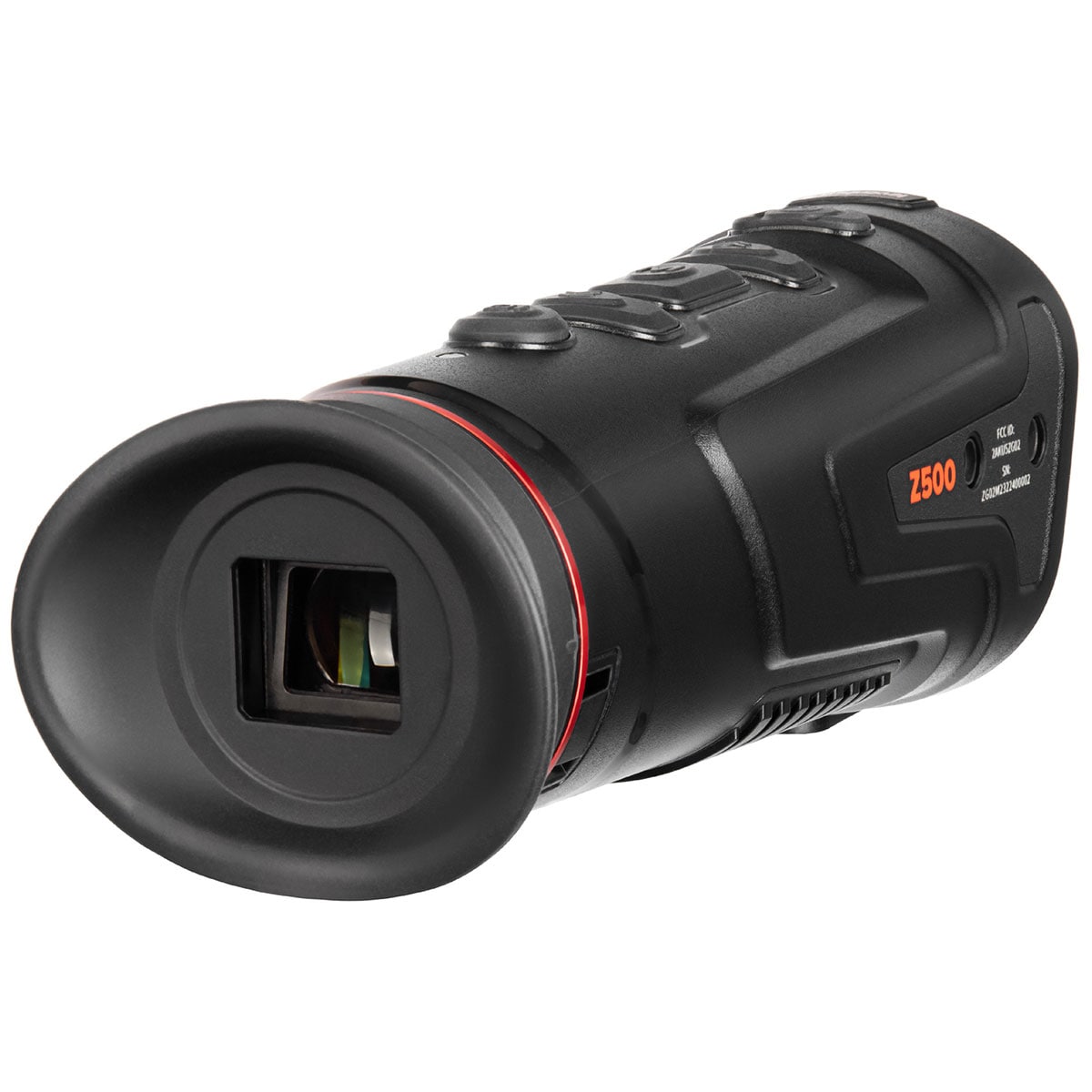

Levenhuk Fatum Z500 Thermovision Monocular

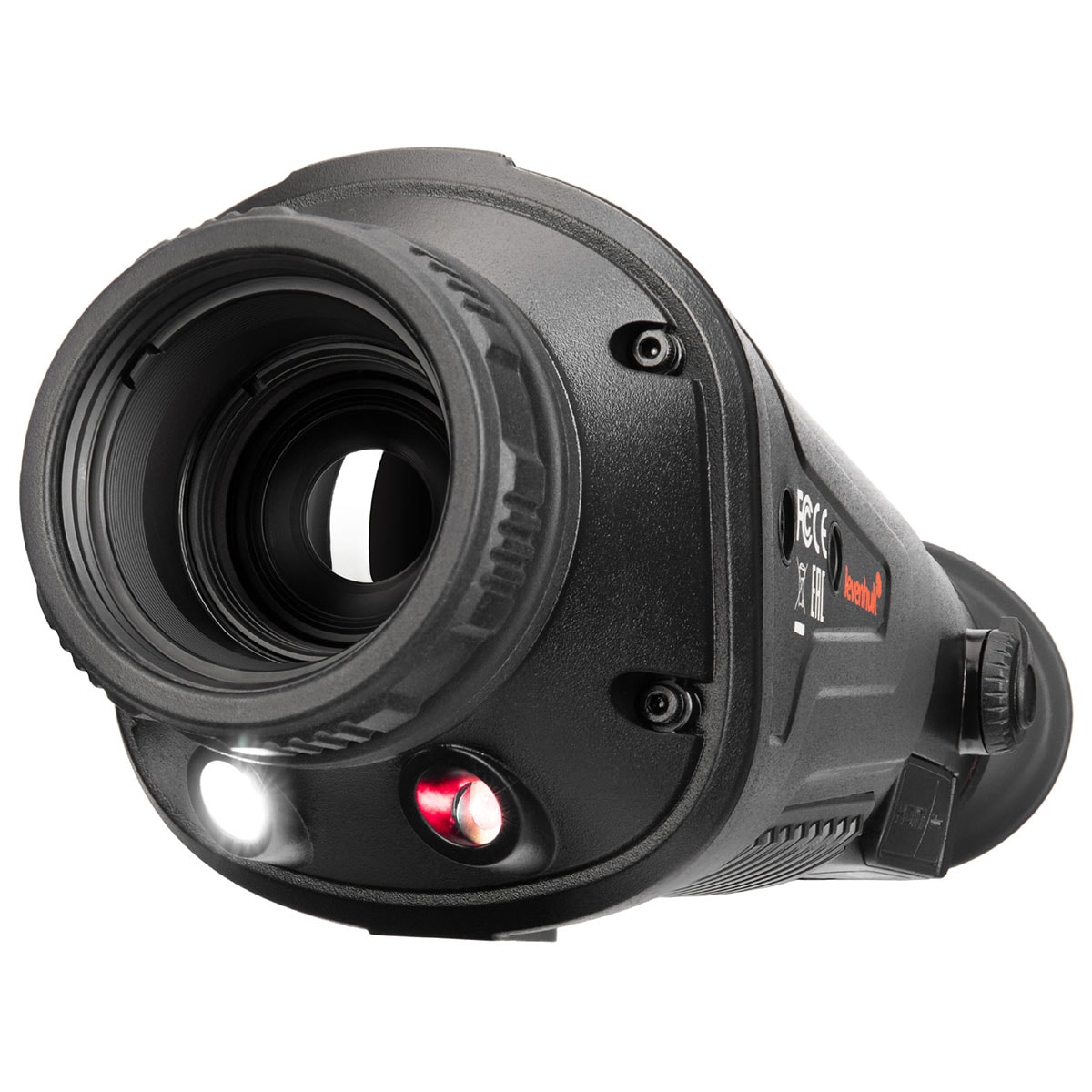

A compact thermal imaging monocular, it features a fixed optical magnification of 1.7x and an additional digital zoom of 1x-4x for greater observation accuracy. The Fatum Z250 features a laser pointer with a range of 200m with the ability to change its color (red, yellow, green). A flashlight is built into the device.

The thermal imager is equipped with a static rangefinder, which allows quick measurement of the distance to the observed target. The rangefinder calculates the distance based on the data entered, marking the estimated size with a line of the top and base.

The measurement distance depends on the size of the object to which the distance is measured:
- human recognition: 350 m,
- human detection: 700 m,
- vehicle recognition: 700 m,
- vehicle detection: 1700 m.

With a 25mm aperture lens, the monocular transmits a clear image of the target even in total darkness. A color display with a resolution of 1280x960 pixels displays the image at 50 Hz. The thermal imaging device uses digital image enhancement.

The thermal imager offers five color palettes for image display:
- white warm,
- black warm,
- green warm,
- red warm (customizable),
- blue warm.

The device's built-in memory is 16 GB. The Fatum Z100 features Wi-Fi and Bluetooth connectivity . Remote operation, e.g. from a smartphone, is enabled by the TargetIR app (available for Android and iOS).

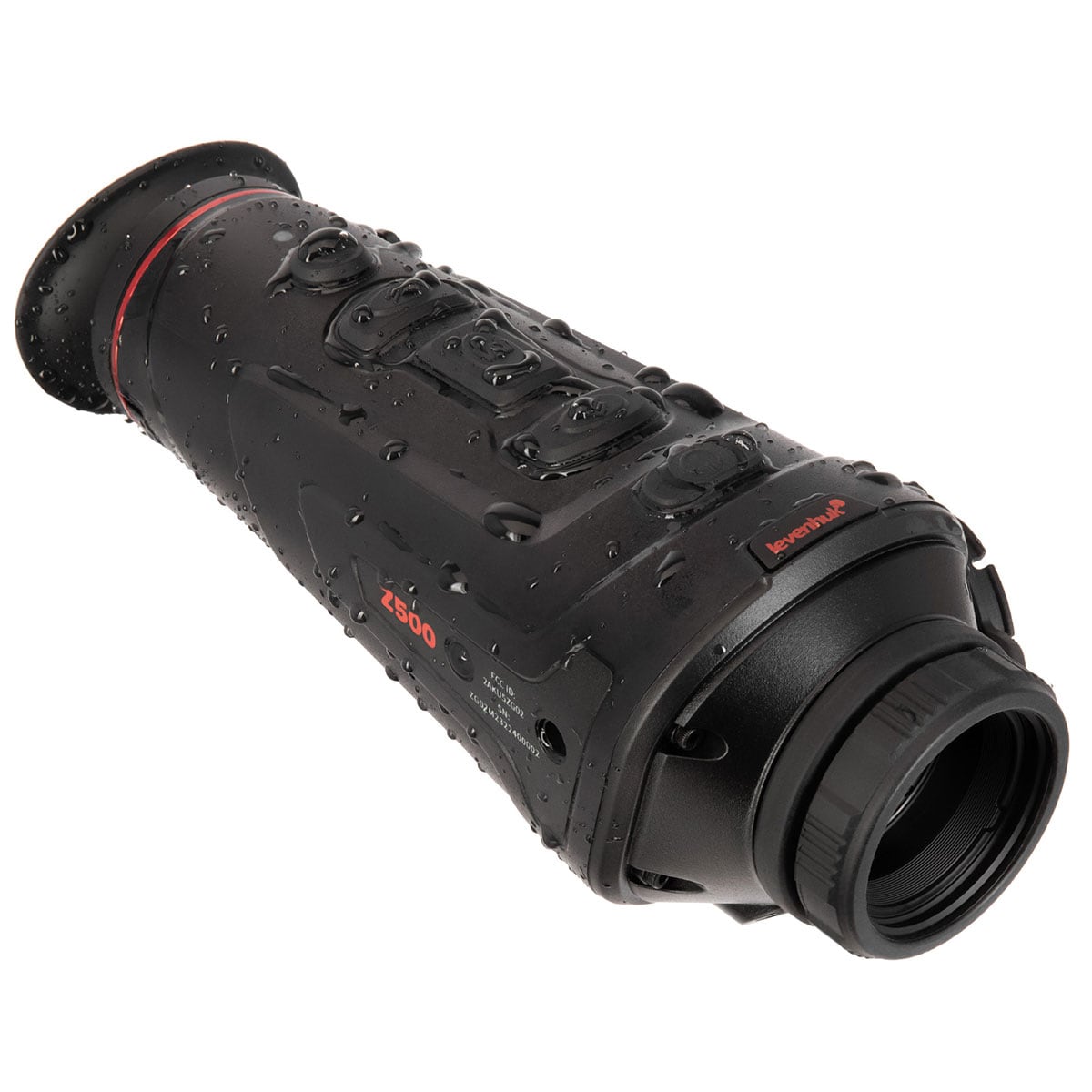

The compact body of the thermal imager is made of polymer that is resistant to mechanical damage and shock. Thanks to its compact design and the use of seals, the device meets the IP66 waterproof class, which provides protection against dust and water.

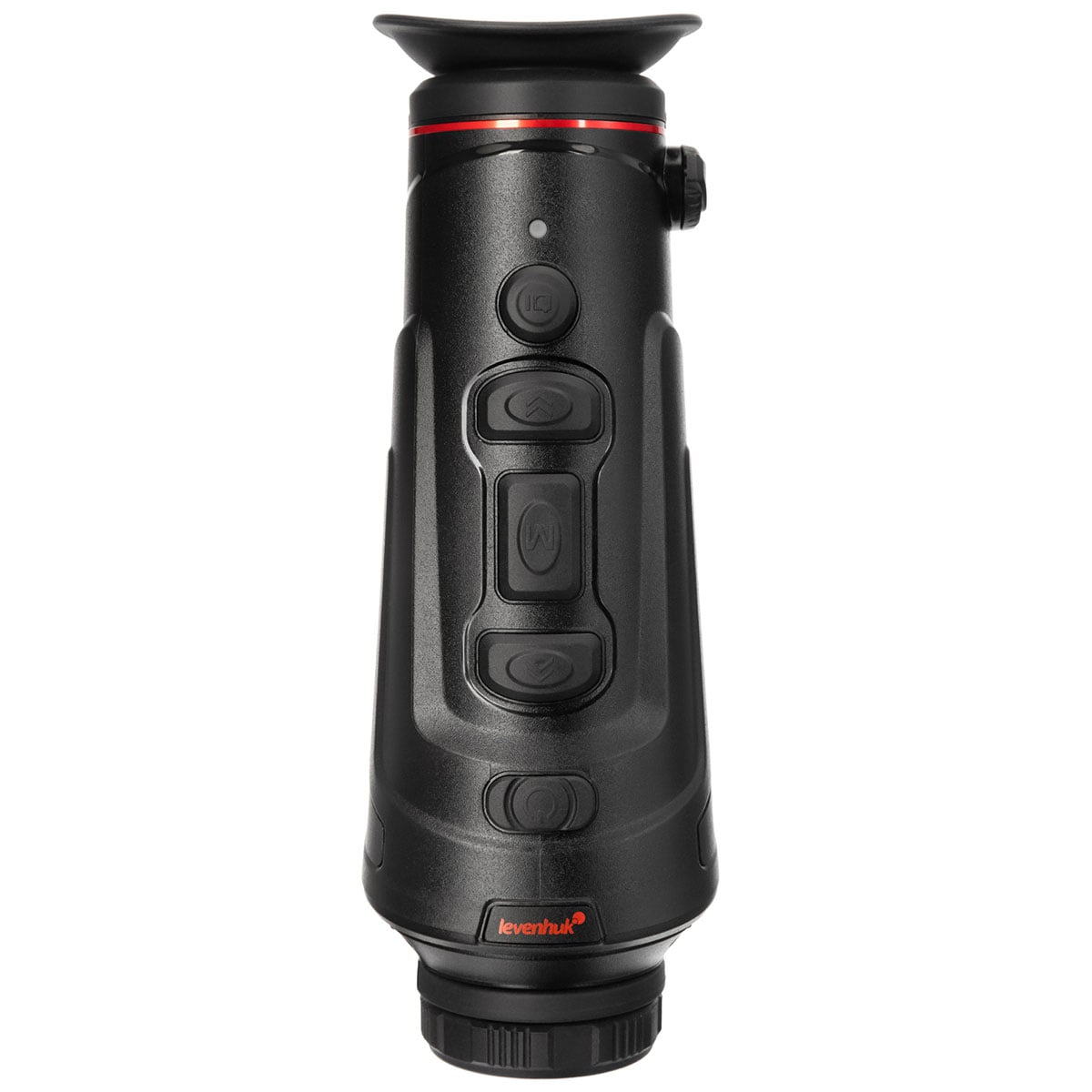

The thermal imager is powered by a built-in dual 18650 battery, the device is charged directly with a special charger directly from a power source. The Fatum Z100 can operate for up to 5 h on a single charge. The built-in power saving mode automatically extinguishes the display after a certain period of time, which is restarted by clicking any button on the control panel. The Fatum Z100 is equipped with an automatic shut-off function after 15, 30 or 60 minutes.

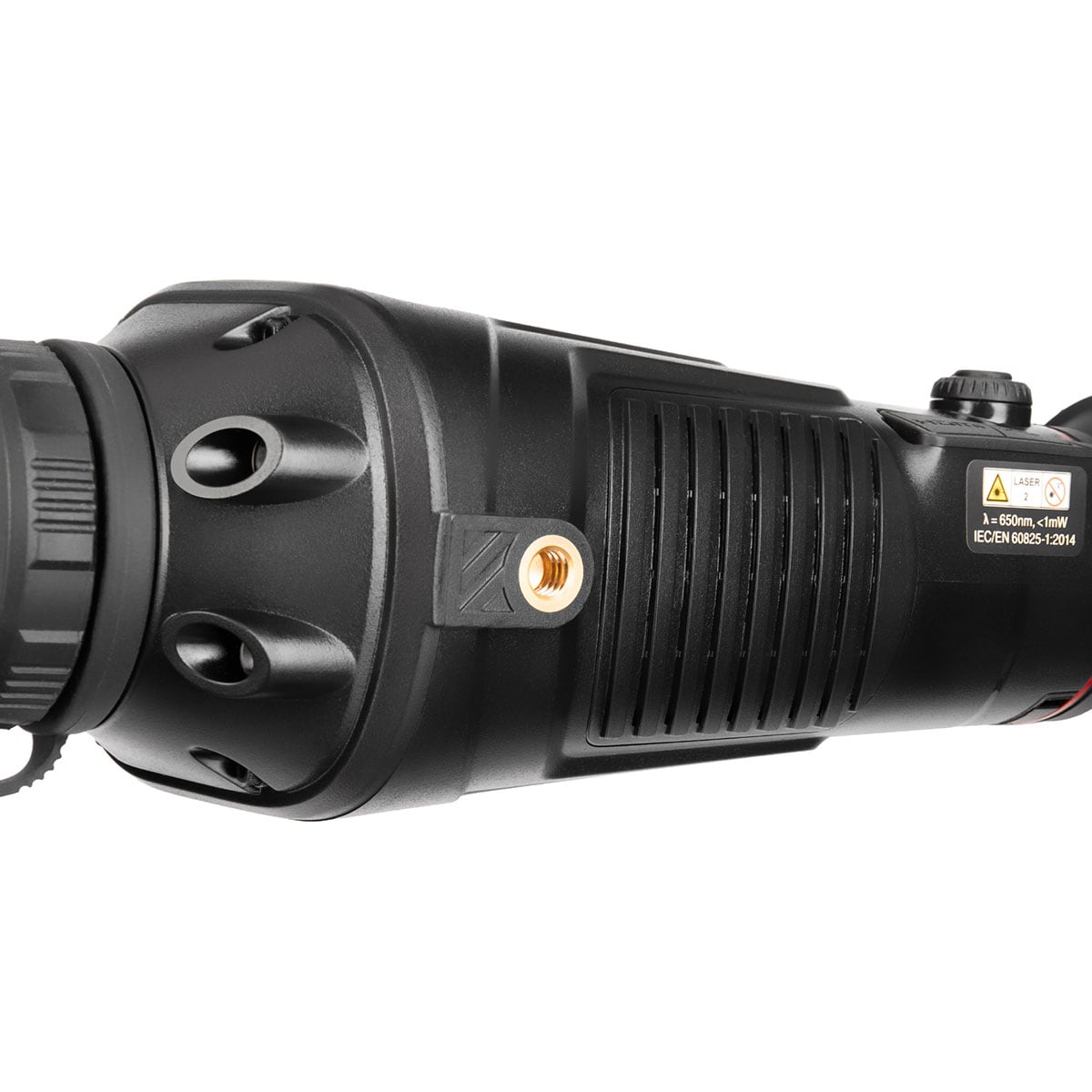

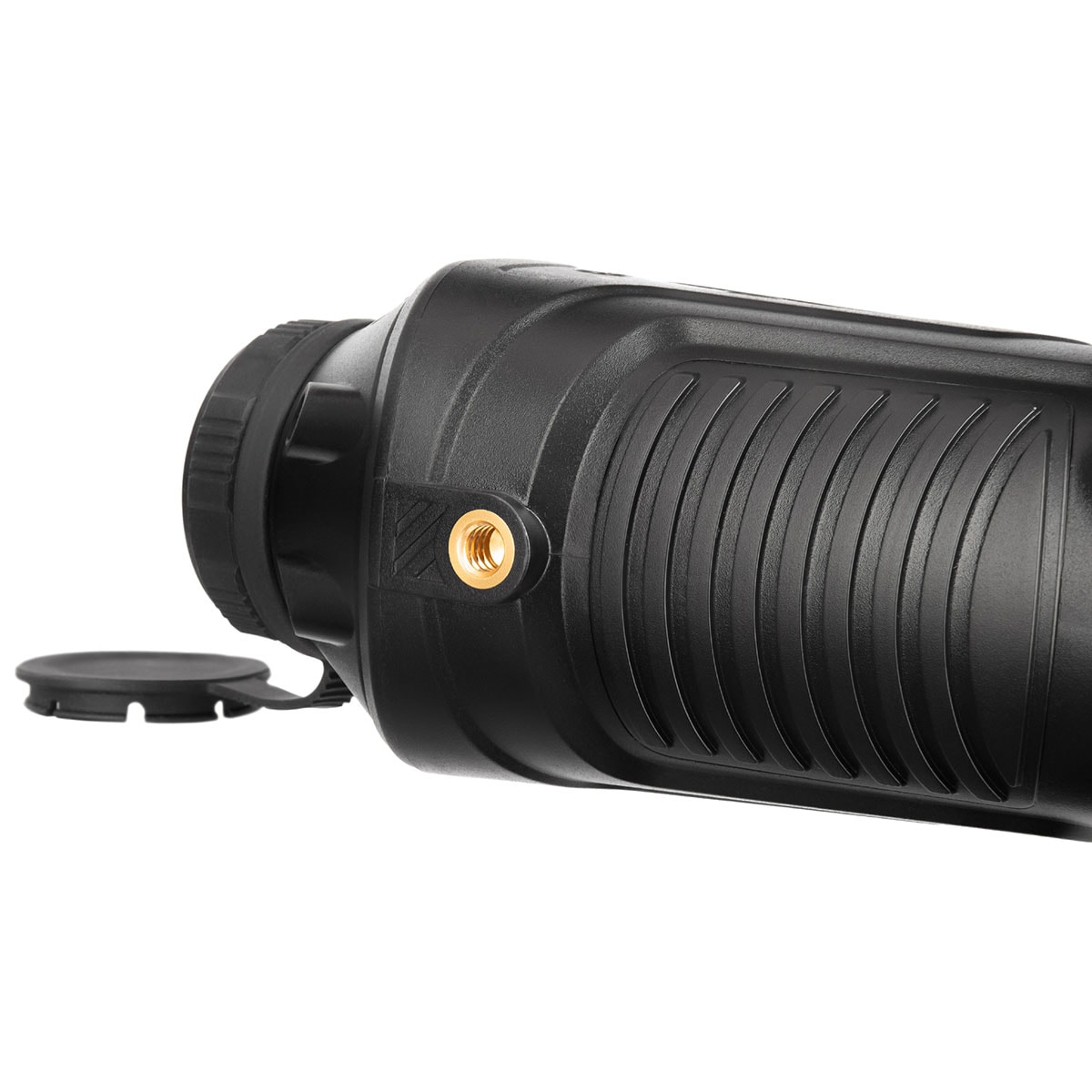

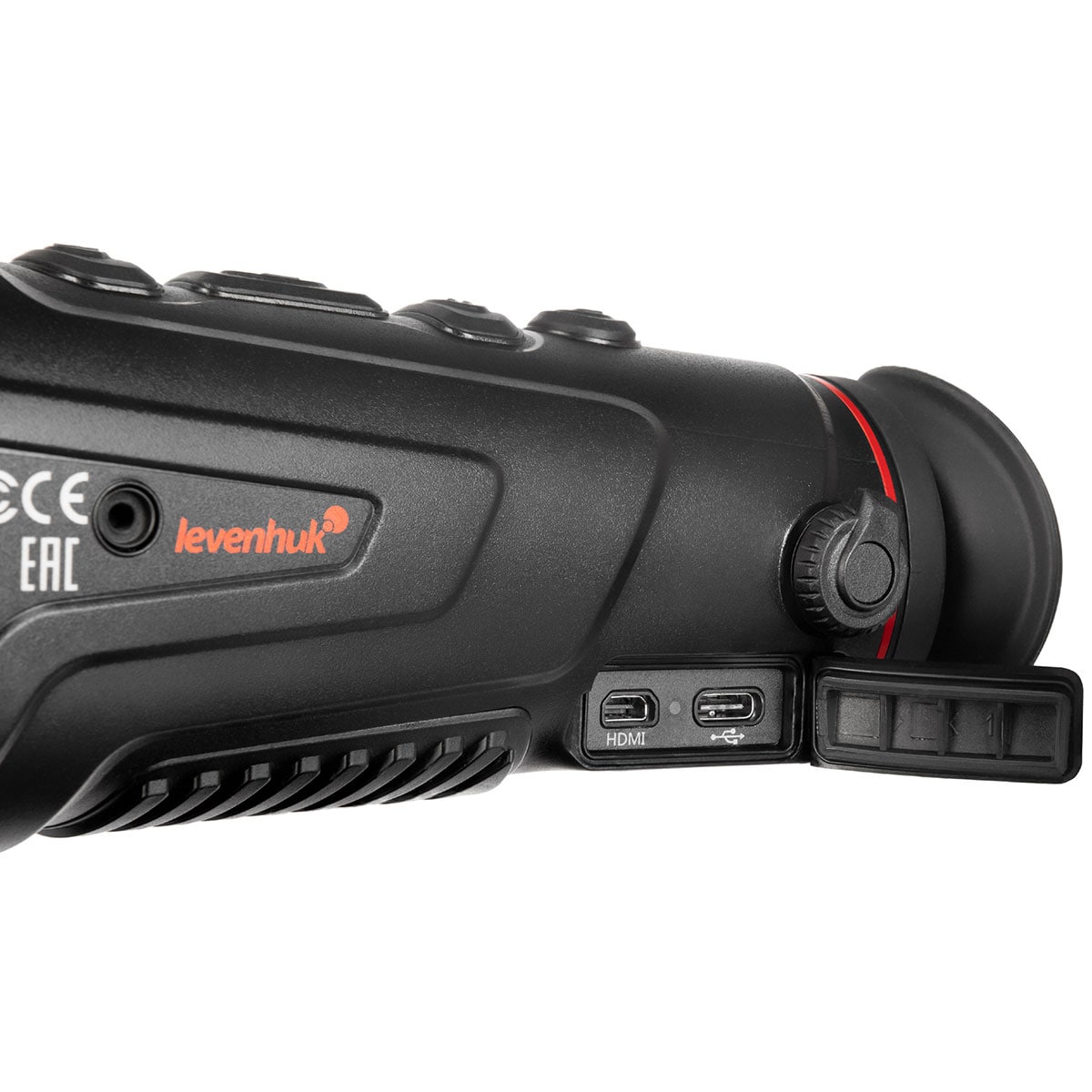

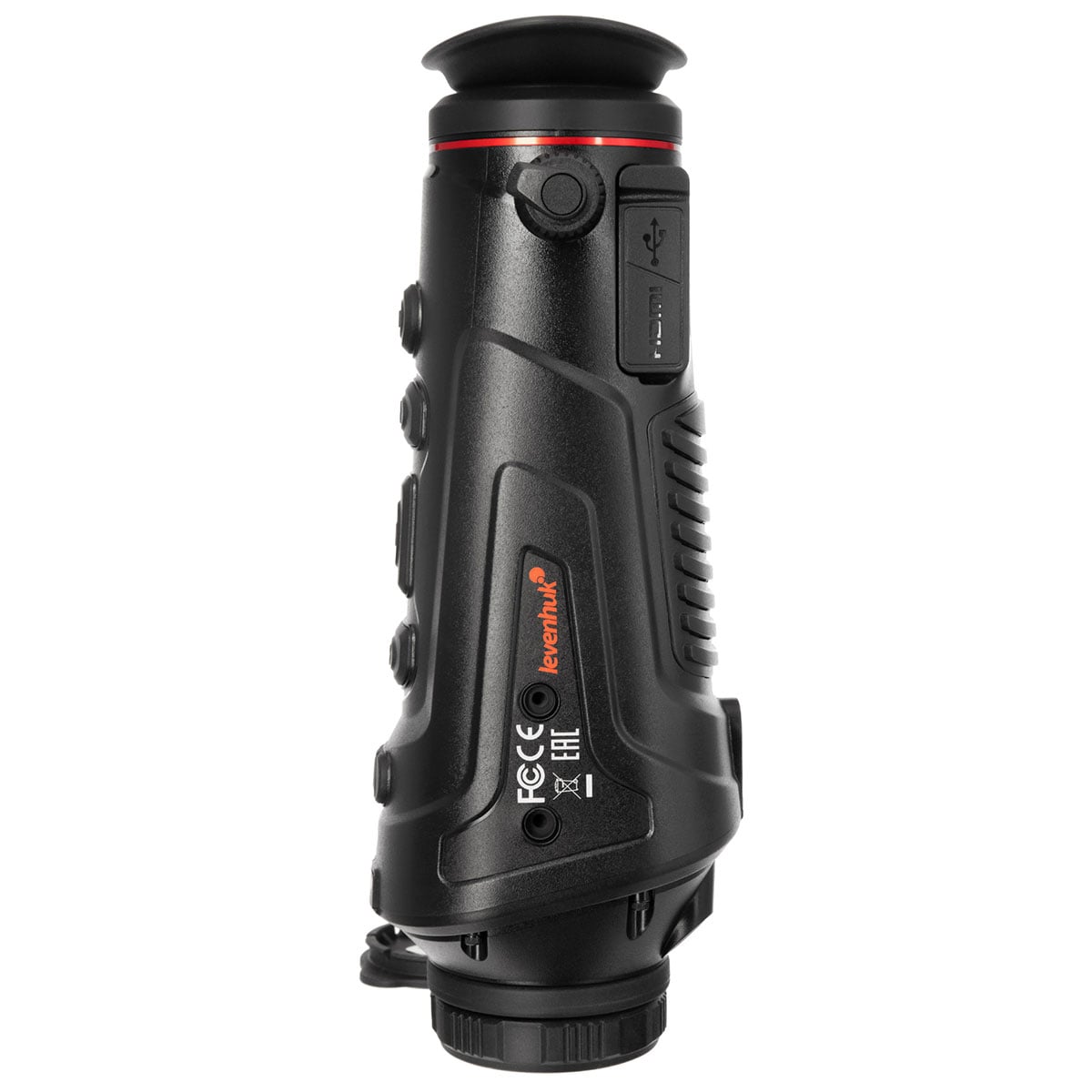

The thermal imager is equipped with a USB-C port and an HDMI port for transferring the image to an external monitor. standard 1/4'' tripod thread.

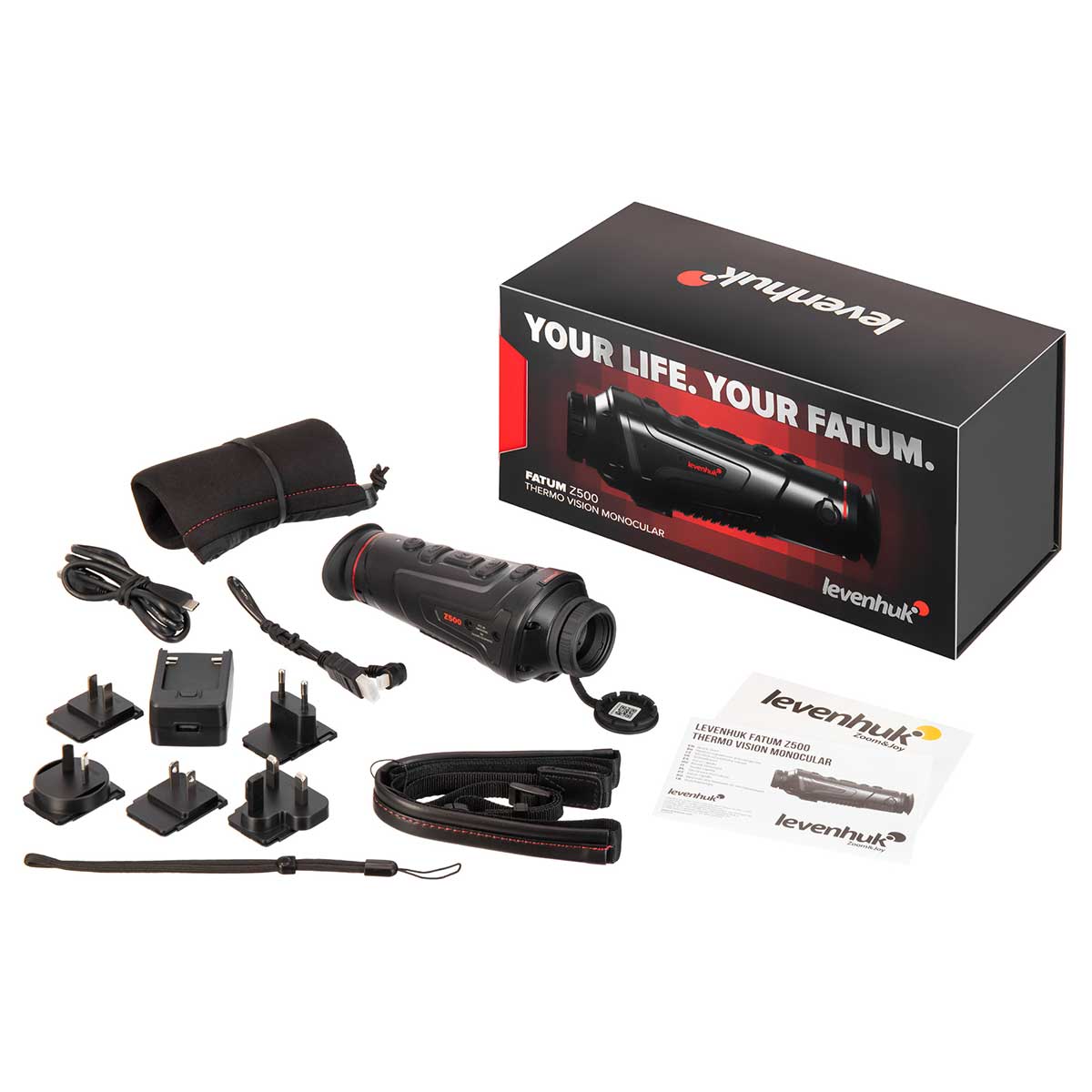

The kit includes:
- thermal imager,

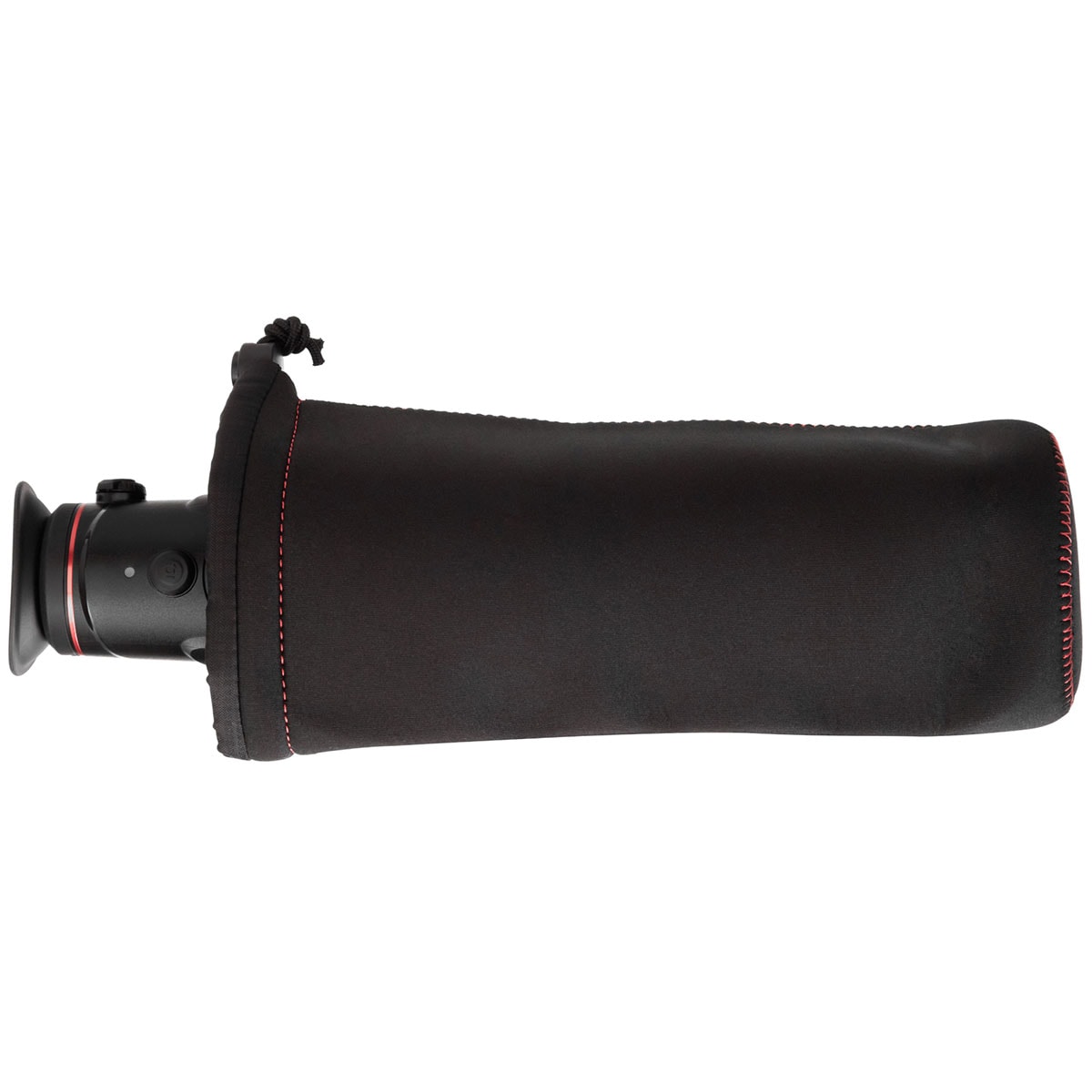

- cover,
- USB cable,
- HDMI cable,
- dedicated rechargeable battery charger,
- wrist strap.

Technical specifications
Color: black
Lens: 25 mm
Sensor resolution: 400 × 300
Screen resolution: 1280x960
Image refresh rate: 50 Hz
Digital zoom: 1-4x
Optical zoom: 1.7x
Maximum range: 1700m
Waterproof: IP66
Diopter correction of eyepiece: yes, -4/+2
Weight: 300 g
Manufacturer: Levenhuk, USA
