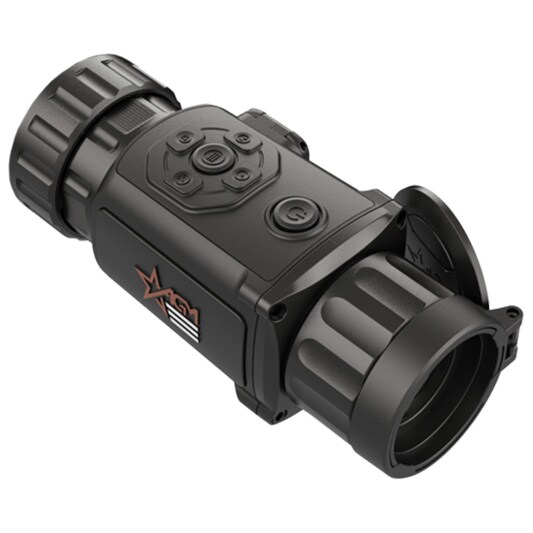

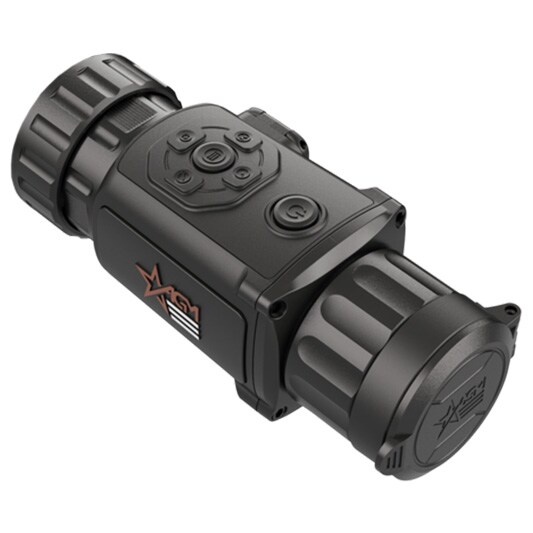

AGM Rattler TC19-256 Thermal Imaging Cap

A thermal imaging targeting cap designed for use with optical scopes. Thanks to its universal mounting system, it is possible to use it with scopes with different external lens diameters and magnifications in the 1-8x range. The TC19-256 offers a digital 8x magnification, making it possible to detect targets up to 950 meters away from the user.

The TC19-256 Rattler uses a sensor with a resolution of 256 x 192 pixels and a pixel spacing of 12 µm. The image is displayed on an OLED screen with a resolution of 1024 x 768, which ensures smooth image reproduction, energy efficiency and good visibility even in harsh weather conditions.

Various imaging modes (White Hot, Black Hot, Fusion, Red Hot) and color palettes (Jungle, Recognition) are available to choose from, allowing you to customize the view according to the field situation. A built-in stadiameter rangefinder allows precise estimation of the distance to the observed object.

The device allows you to save photos and video recordings on the built-in 16GB memory. A USB-C port allows you to transfer files to a computer or power the device from an external source, such as a powerbank, using the included cable.

A Wi-Fi module allows wireless connection to a mobile device, enabling remote control, recording or real-time video streaming via a dedicated app.

Power is supplied by two CR123A batteries, which provide up to 4.5 hours of continuous operation.

The IP67-compliant design guarantees full dust and water resistance (immersion up to 1 meter for 30 minutes). The rugged housing effectively protects against vibrations and shocks of up to 750 g/ms.

Convenient buttons located at the top of the case allow comfortable operation for both right- and left-handed users. Intuitive menus facilitate quick access to all device functions.

Contents of the set:
- thermal imaging cap,

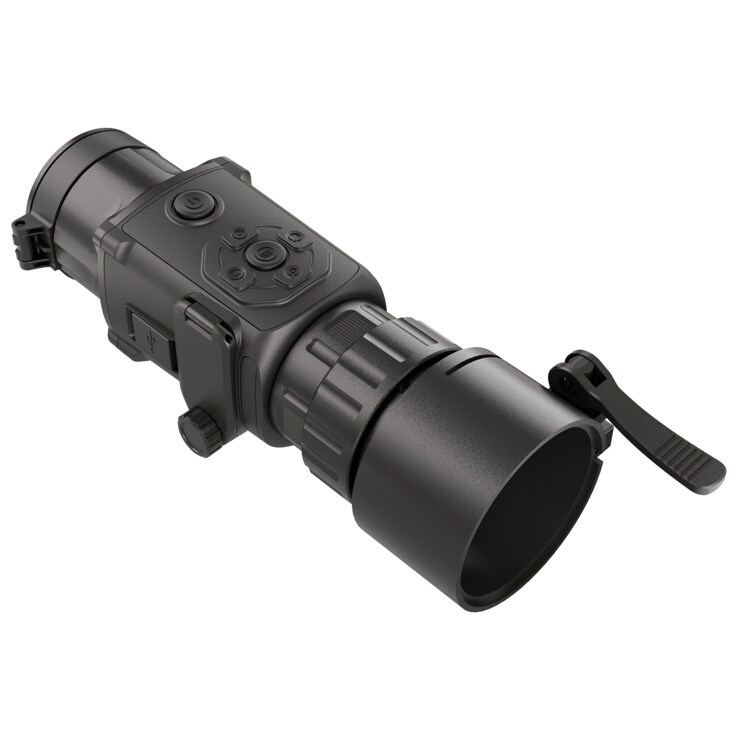

- universal mounting adapter,
- USB-C cable,
- optics cloth,
- user manual,
- protective case,
- two CR123A batteries.

Technical data
Color: Black
Optical zoom: 1x
Digital zoom: 8x
Sensor resolution: 256 x 192
Image refresh rate: 50 Hz
Lens: 19 mm
Field of view: 9.2 x 6.9 deg.
Dioptric correction: -5 to +3
Operating temperature range: -20 to + 55 deg. C
Screen: 1024 x 768 OLED
Dimensions: 153 x 62 x 59 mm
Weight: 410 g
Manufacturer: AGM Global Vision, USA
