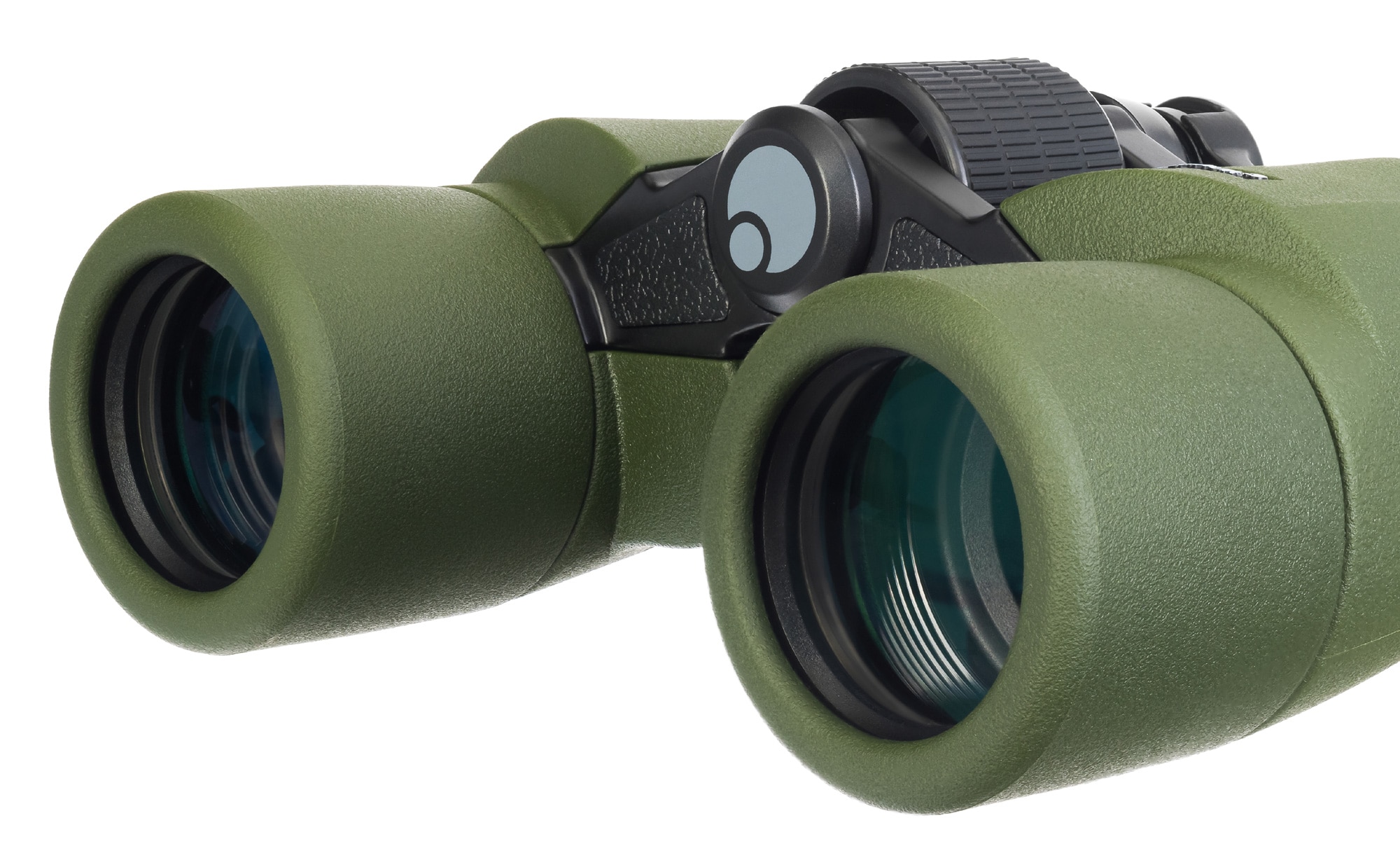

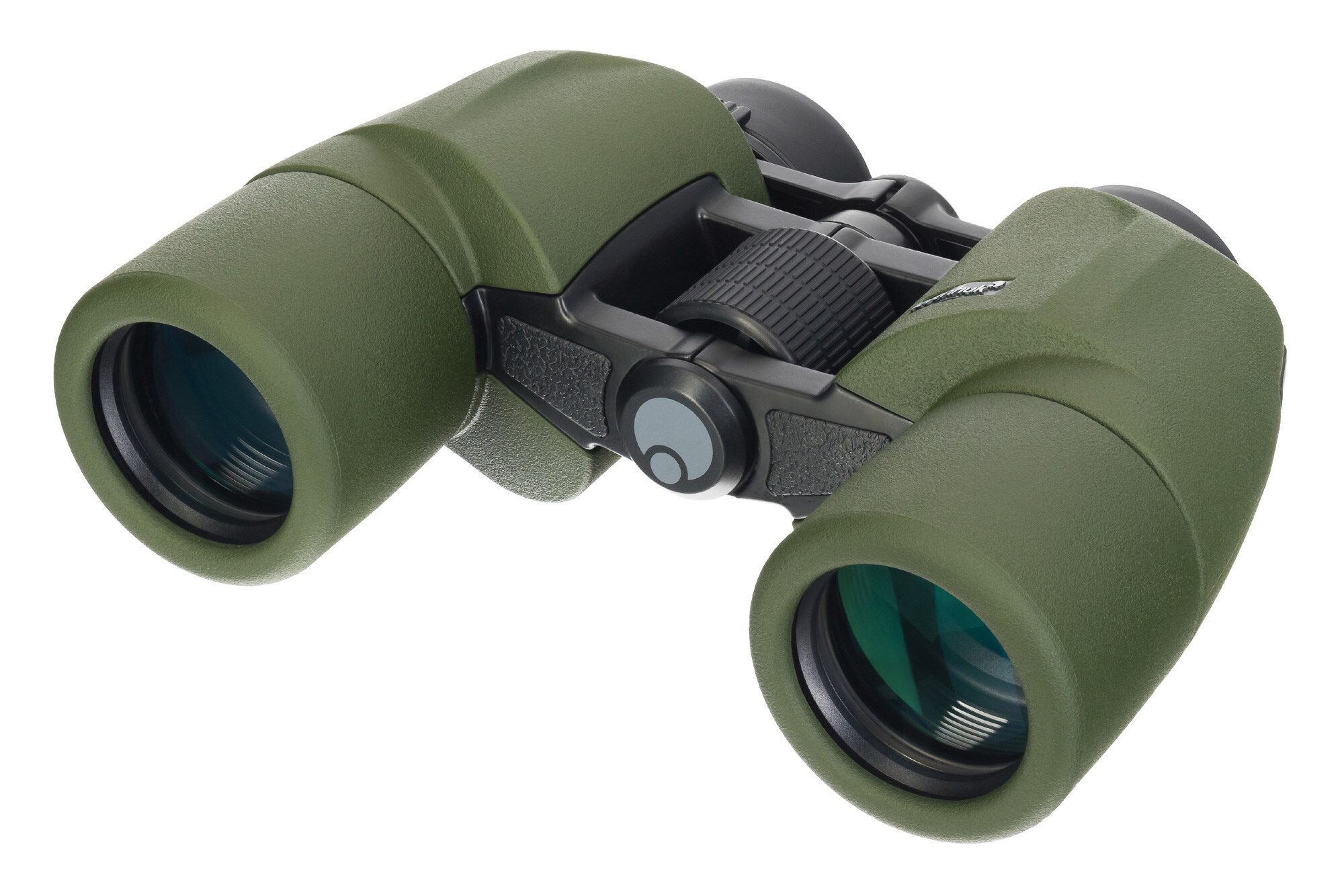

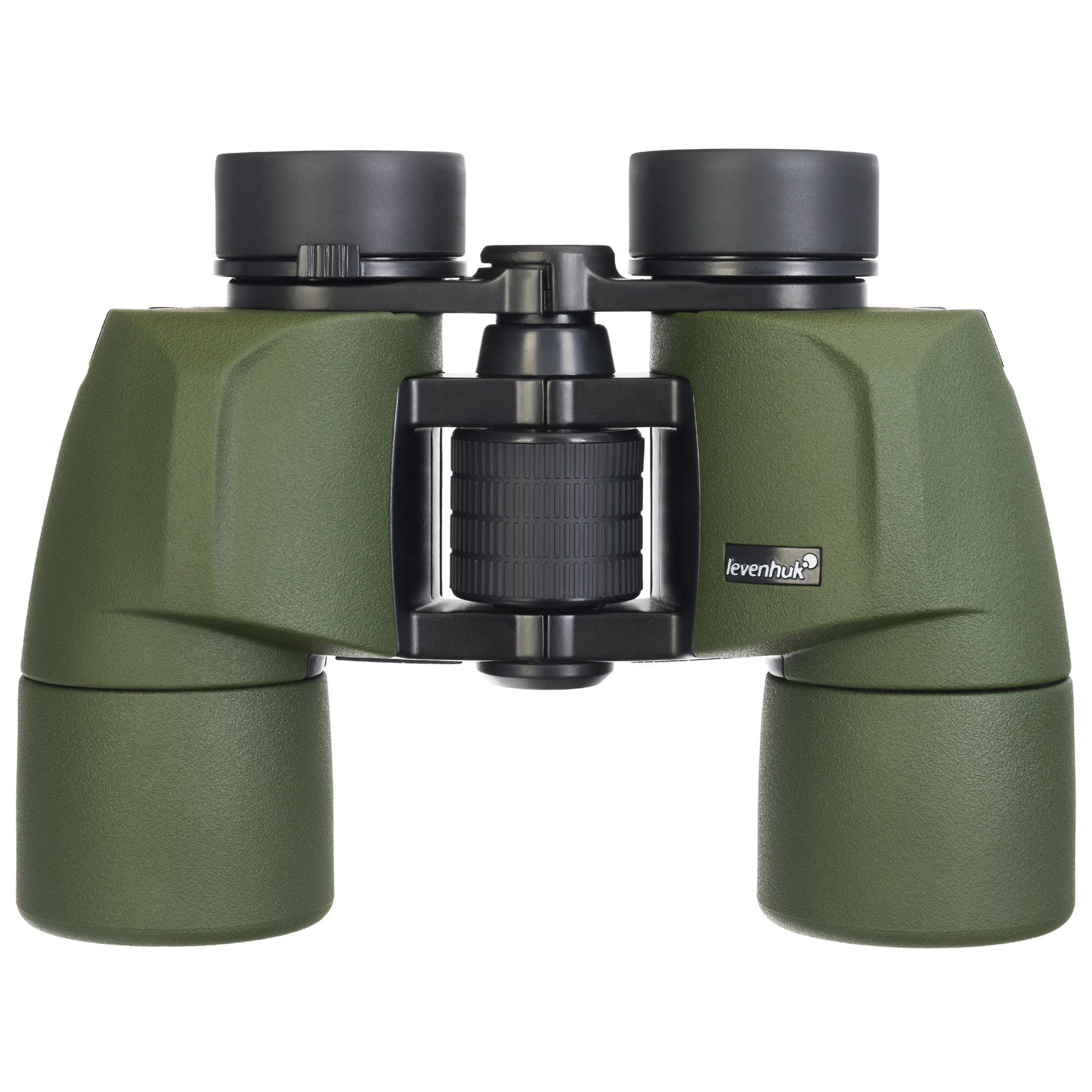

Levenhuk Army 8x40 Binoculars with Reticle

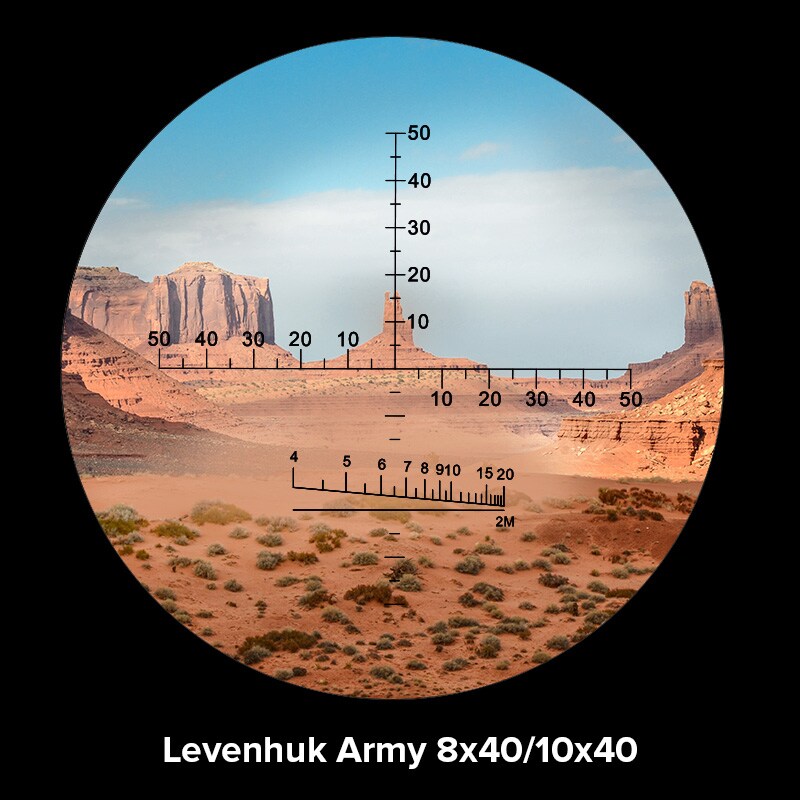

The binoculars feature a 40 mm objective lens and a fixed magnification of 8x. One of the lenses has a targeting reticle and rangefinder scale, which allow determining the distance to the target, its height and measuring horizontal and vertical angles.
Porro type optics, Bak-4 glass with anti-reflective coating
The Porro prism system used in the design provides a wide field of view and high quality stereoscopic image. The prisms are made of durable BaK-4 glass, which ensures the brightness and clarity of the image. In addition, the multi-layer anti-reflective coating minimizes glare, improving viewing quality.

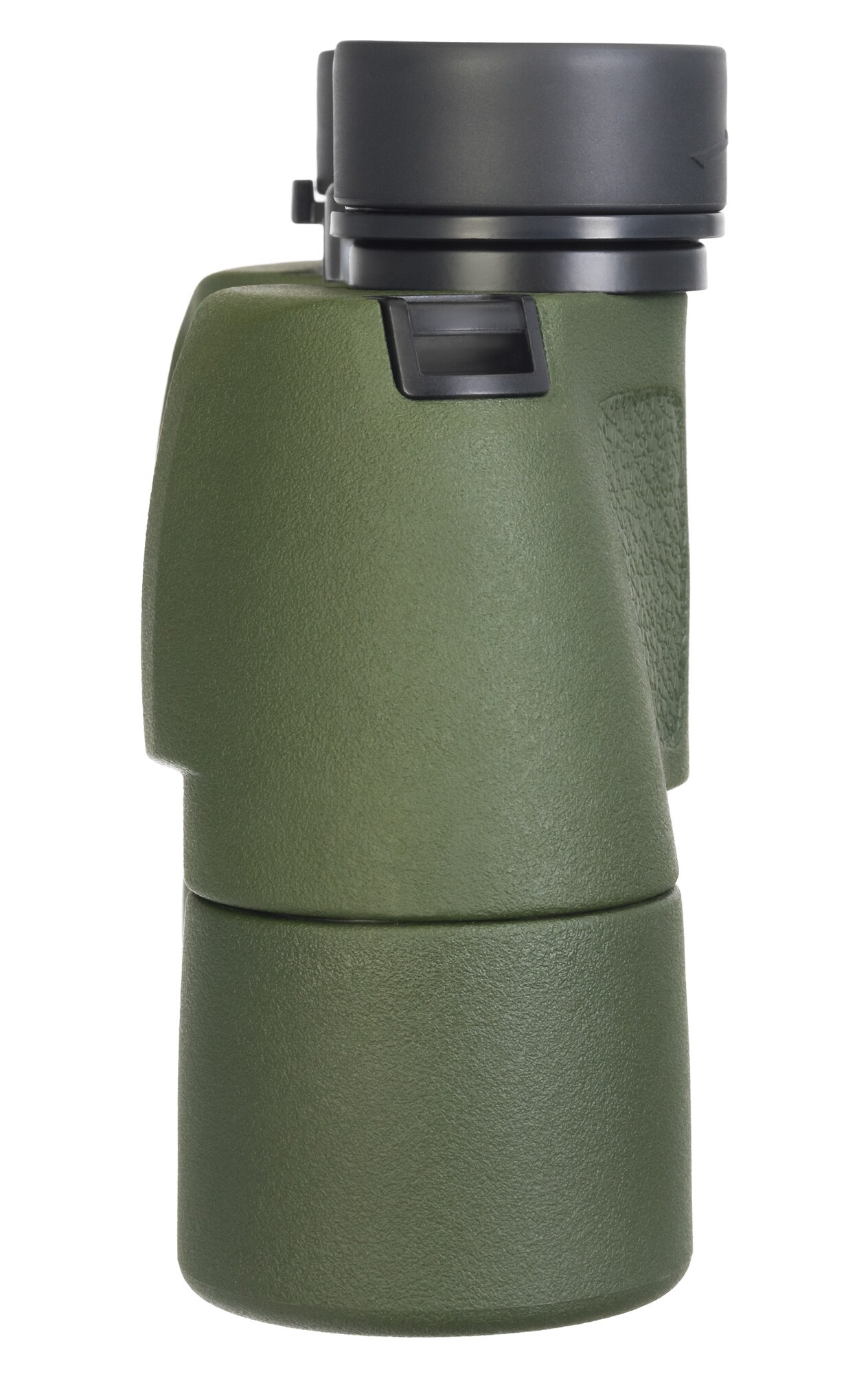

durable aluminum body, rubber coating
The body of the binoculars is made of lightweight and durable aluminum. The non-slip rubber coating provides a secure grip, even in harsh weather conditions. The tubes have been filled with dry nitrogen and sealed using O-rings, which prevents the lenses from fogging up on the inside.

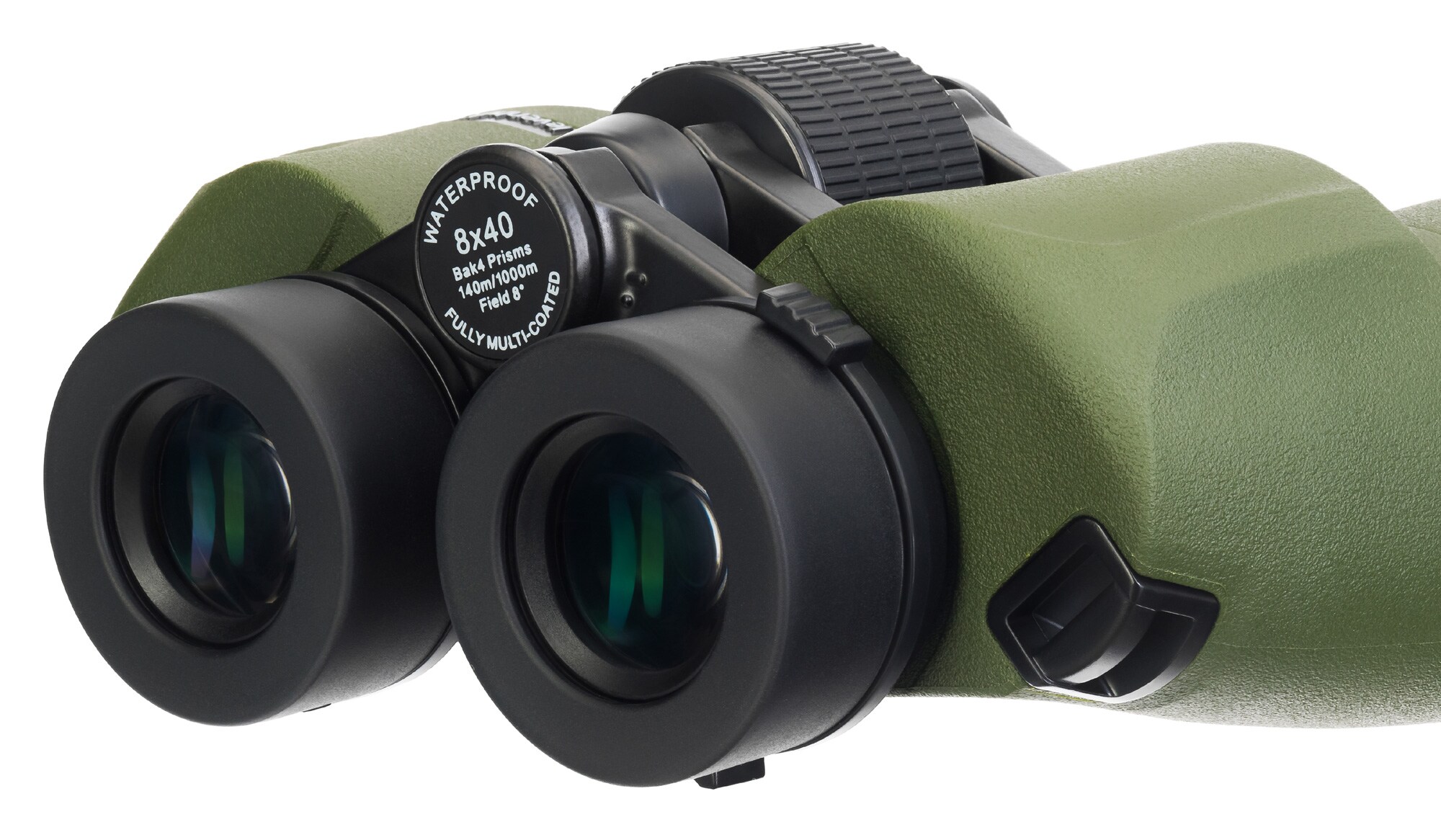

adjustable eyepiece spacing, dioptric correction

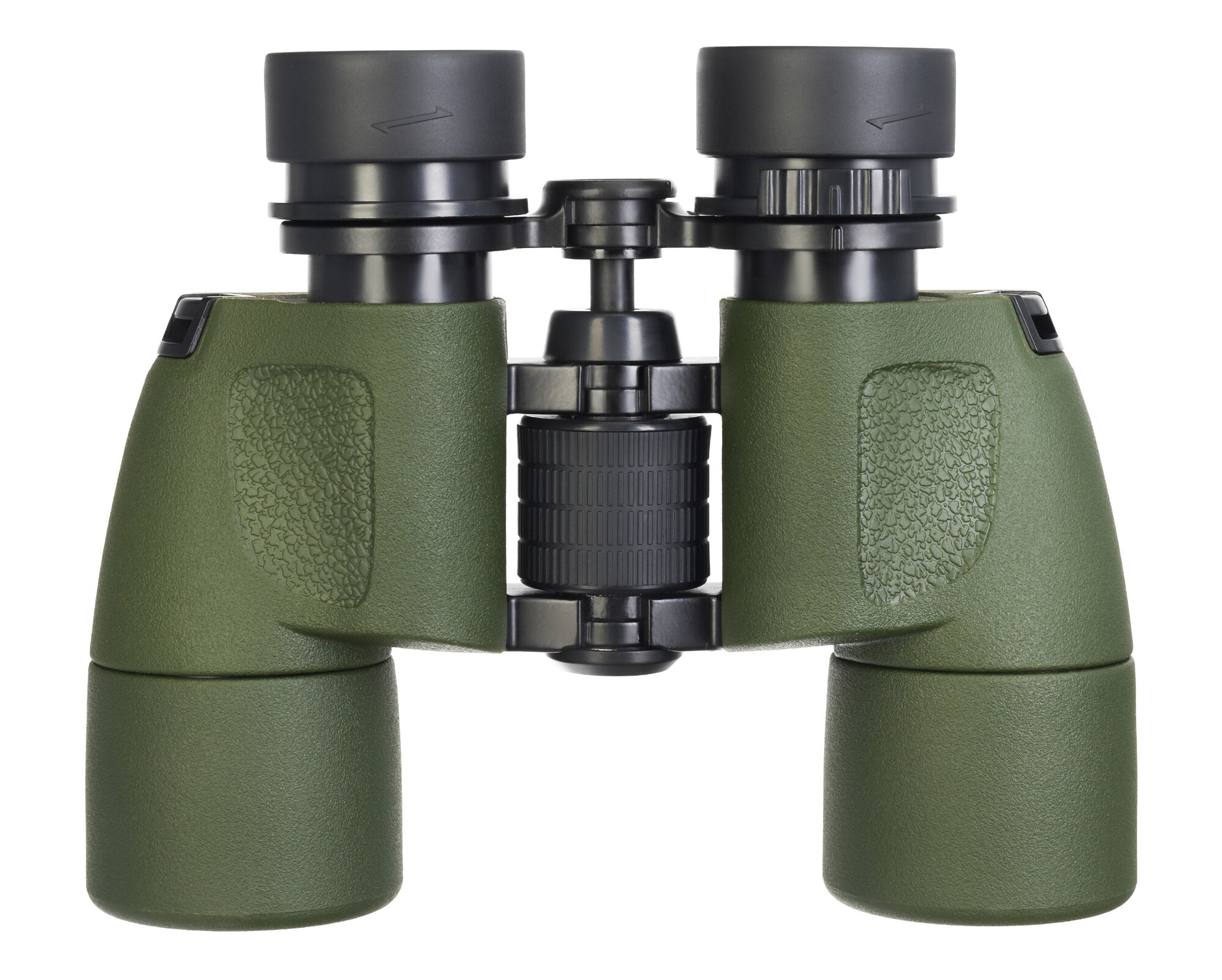

Focus is adjusted using a central dial. In addition, dioptric correction in the range of ±4 allows the user to adjust the image to individual needs. The eyepiece spacing can be adjusted from 56 to 73 mm for a comfortable fit.
IP67 waterproof rating, tripod mountable

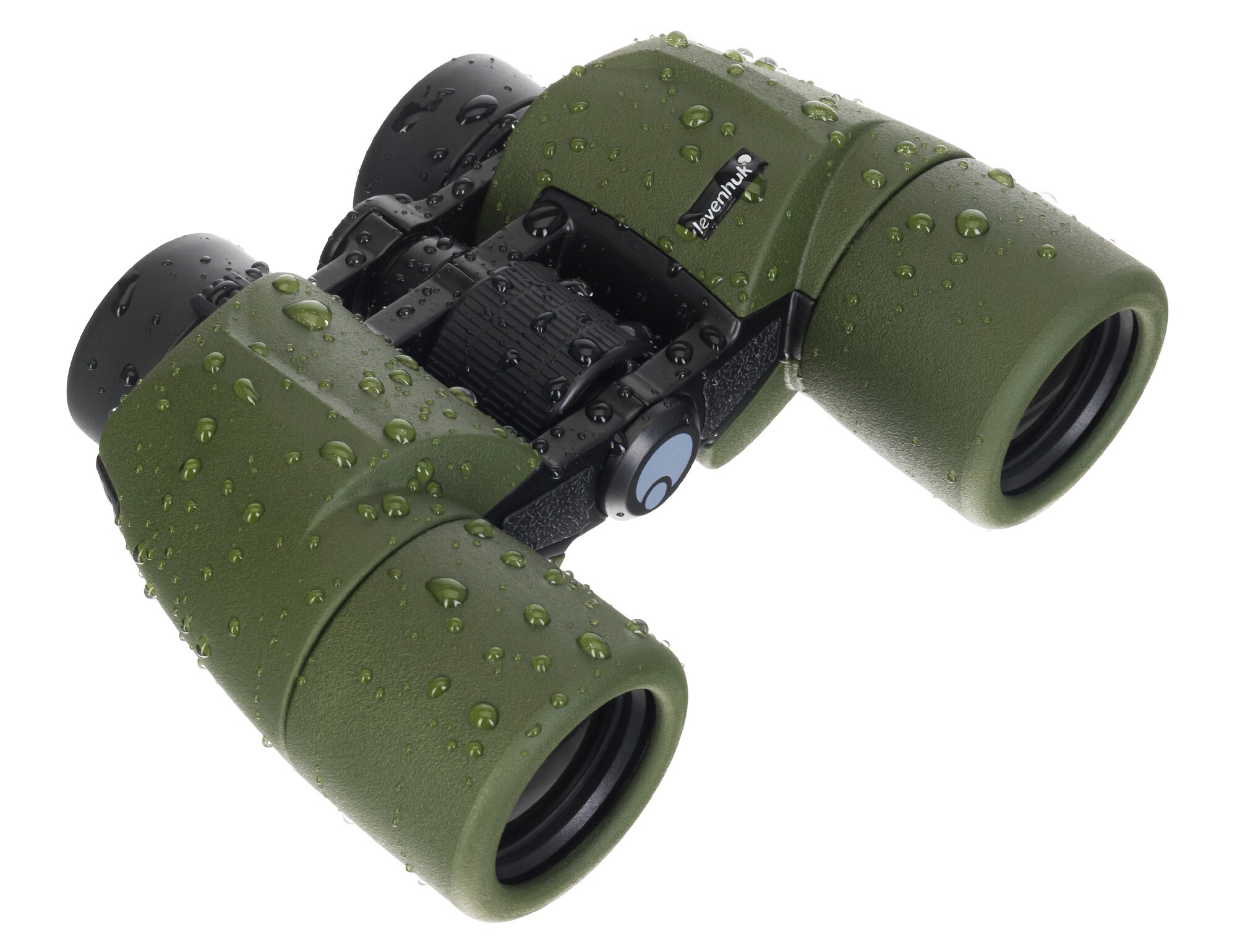

The binoculars are IP67-rated, which means full protection against dust and resistance to immersion in water up to 1 meter deep for up to 30 minutes. A standard 1/4 “ thread on the housing allows for tripod mounting.

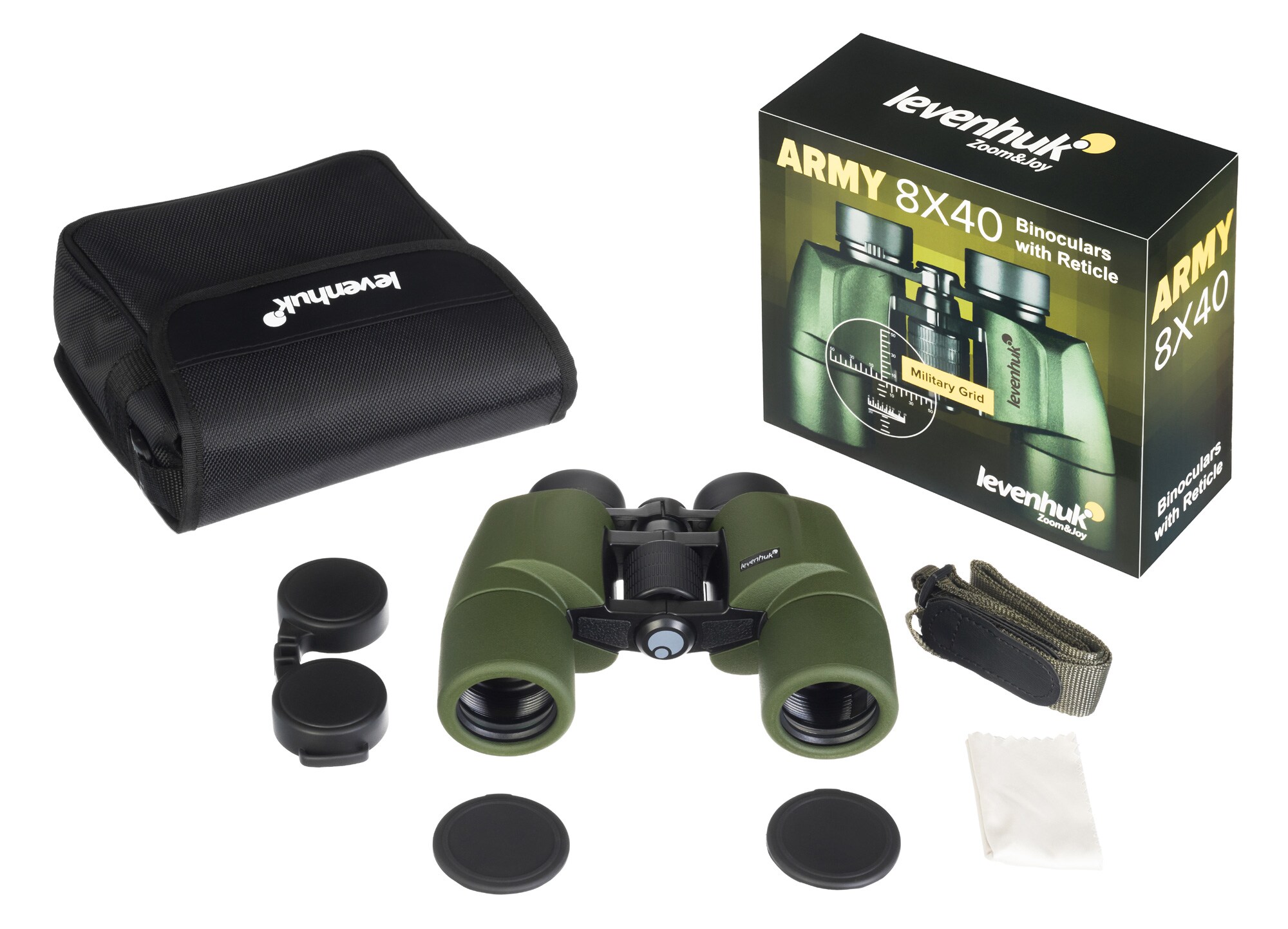

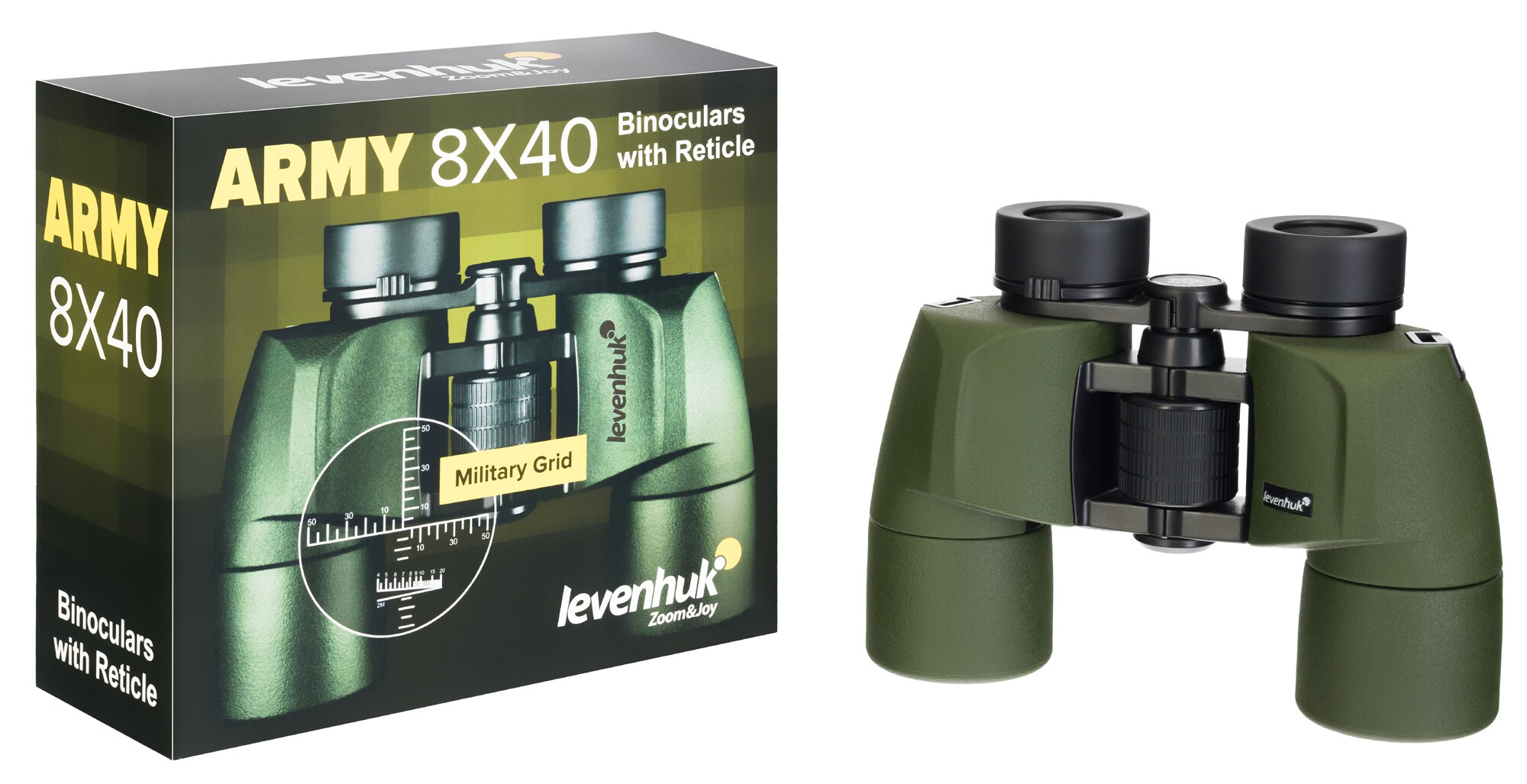

Set elements
- binoculars
- strap

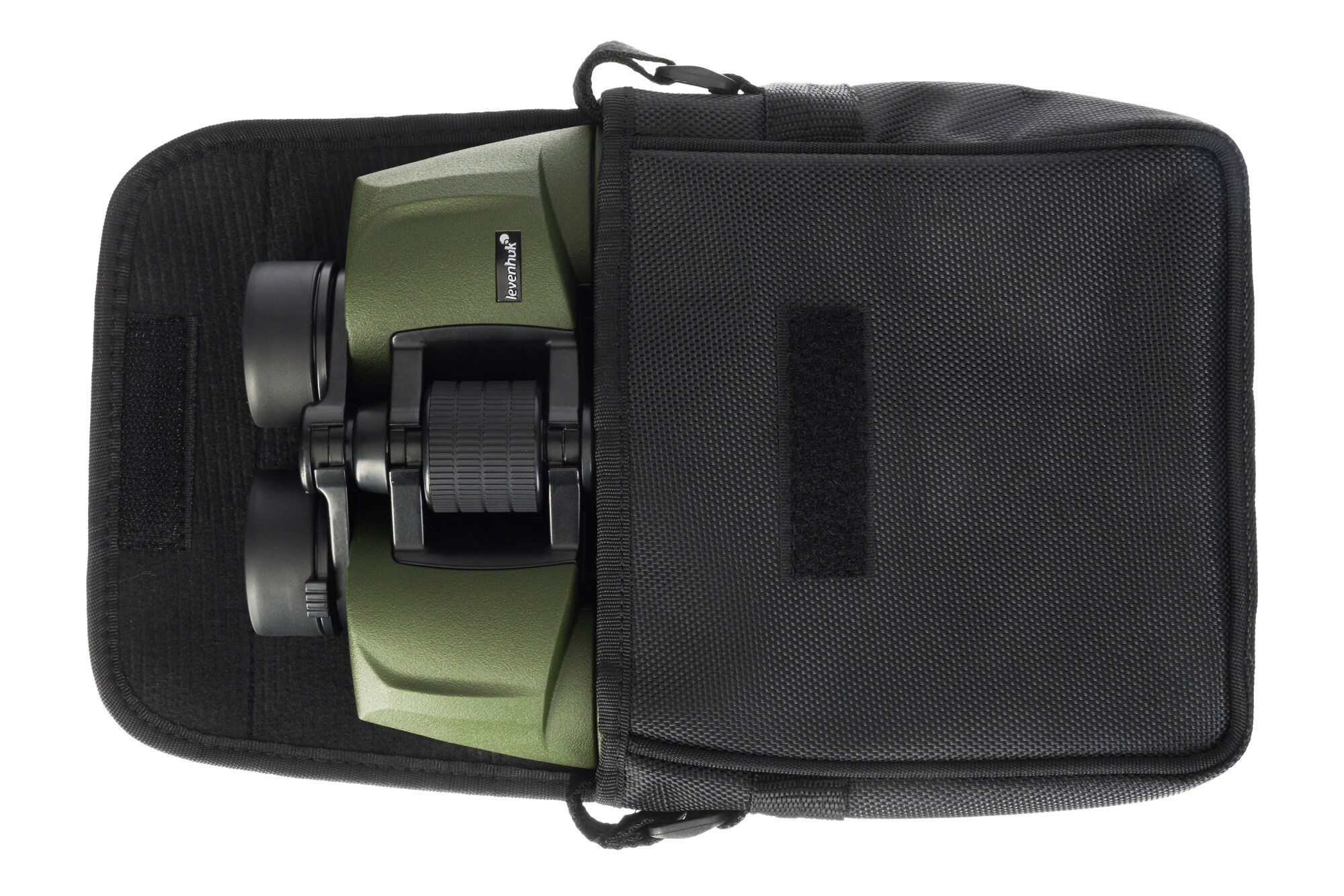

- cover
- protective eyepiece and lens caps
- cleaning cloth
- user's manual and warranty card
Main features
- magnification 8x
- reticle
- rangefinder scale
- Porro optics
- dry nitrogen filling
- dioptric correction
- adjustable eyepiece spacing
- BaK-4 glass with anti-reflective coating
- aluminum body
- waterproof class IP67
- tripod mounting thread
| Magnification (x) | 8 |
|---|---|
| Objective lens diameter (mm) | 40 |
| Minimal focus | 3 m |
| Eye distance | 18,5 mm mm |
| Optical glass | BAK-4 |
| Binoculars use | General-purpose |
| Field of view (m /100 m) | 92 m/ 1000 m |
| Exit pupil | 5 |
| Adjustable diopter | Yes |
| Cover / case / bag included in set | Cover |
| System | Porro |
| Anti-reflection coating | Multi-layer coating |
| Binoculars water resistance | Yes |
| EAN | 5905555000305 |
| Manufacturer code | 81931 |
| Brand | Levenhuk |
