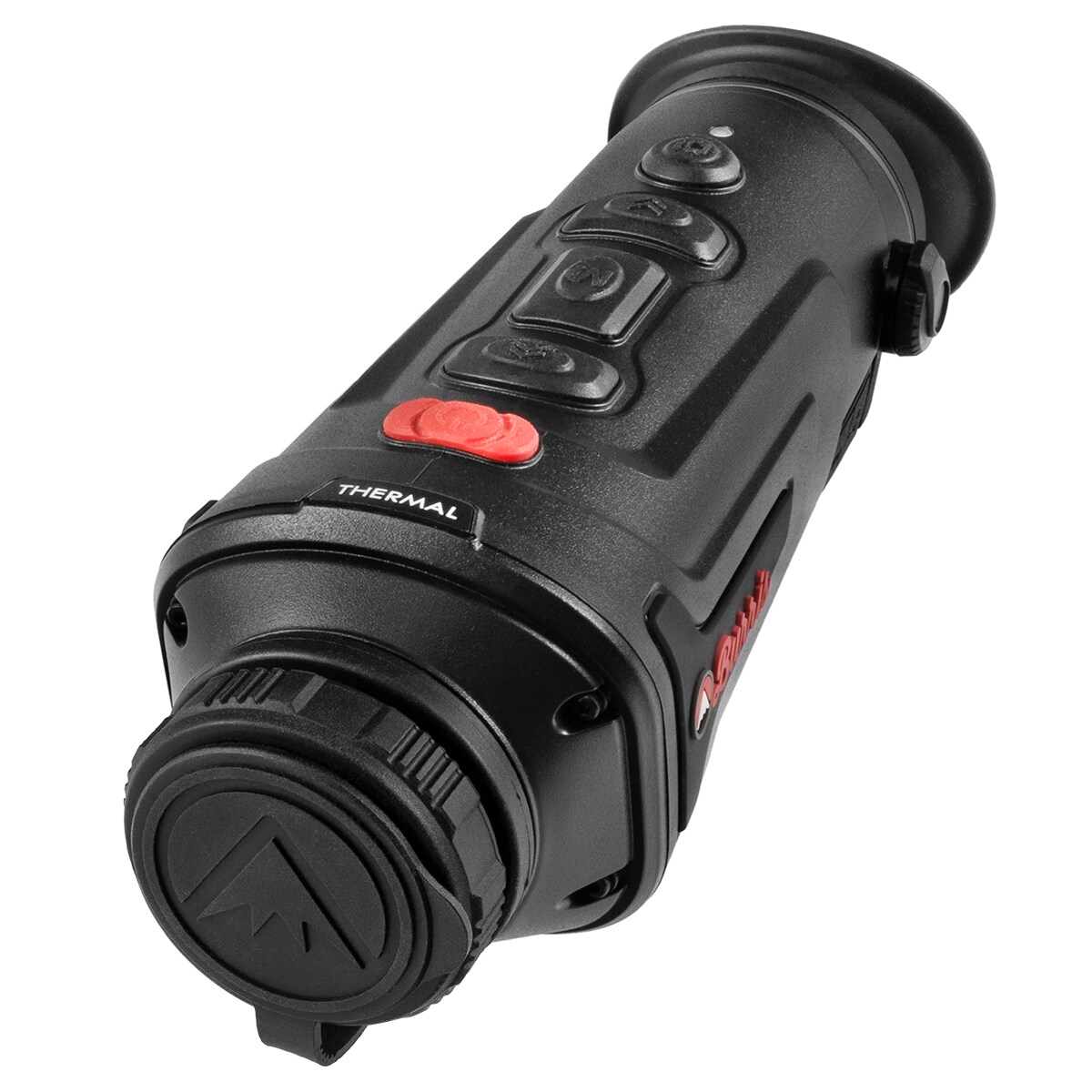

Burris BTH 25 Thermal Imager

A handy thermal imaging monocular from the renowned Burris company to facilitate night observation. The BTH 25 model is equipped with a variable optical magnification of 1.7-6.8x. For greater observation accuracy, the model also offers a digital zoom of 1-4x, which allows you to spot objects up to 1200 meters away (vehicle detection) .

The observation distance depends on the size of the object:
- human recognition: 100 m,
- human detection: 400 m,
- vehicle recognition: 310 m,
- vehicle detection: 1200 m.

The monocular is equipped with an LCOS color display with a resolution of 1280x960 pixels, which displays a 400x300 pixel image at 50 Hz. The user can adjust the brightness and contrast on a 10-level scale.

The thermal imaging monocular allows you to select one of five color palettes in which the image will be displayed:

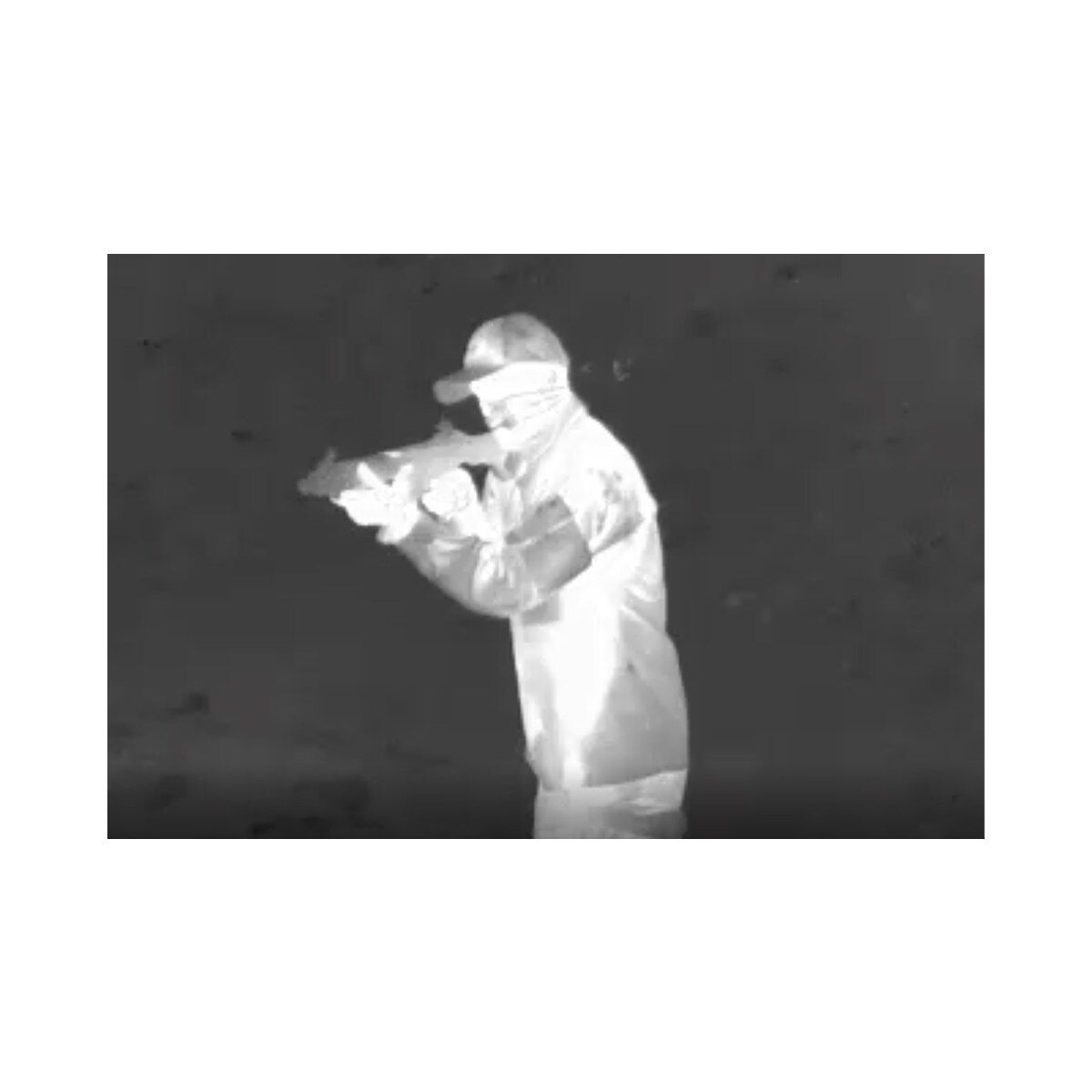

- White Hot,

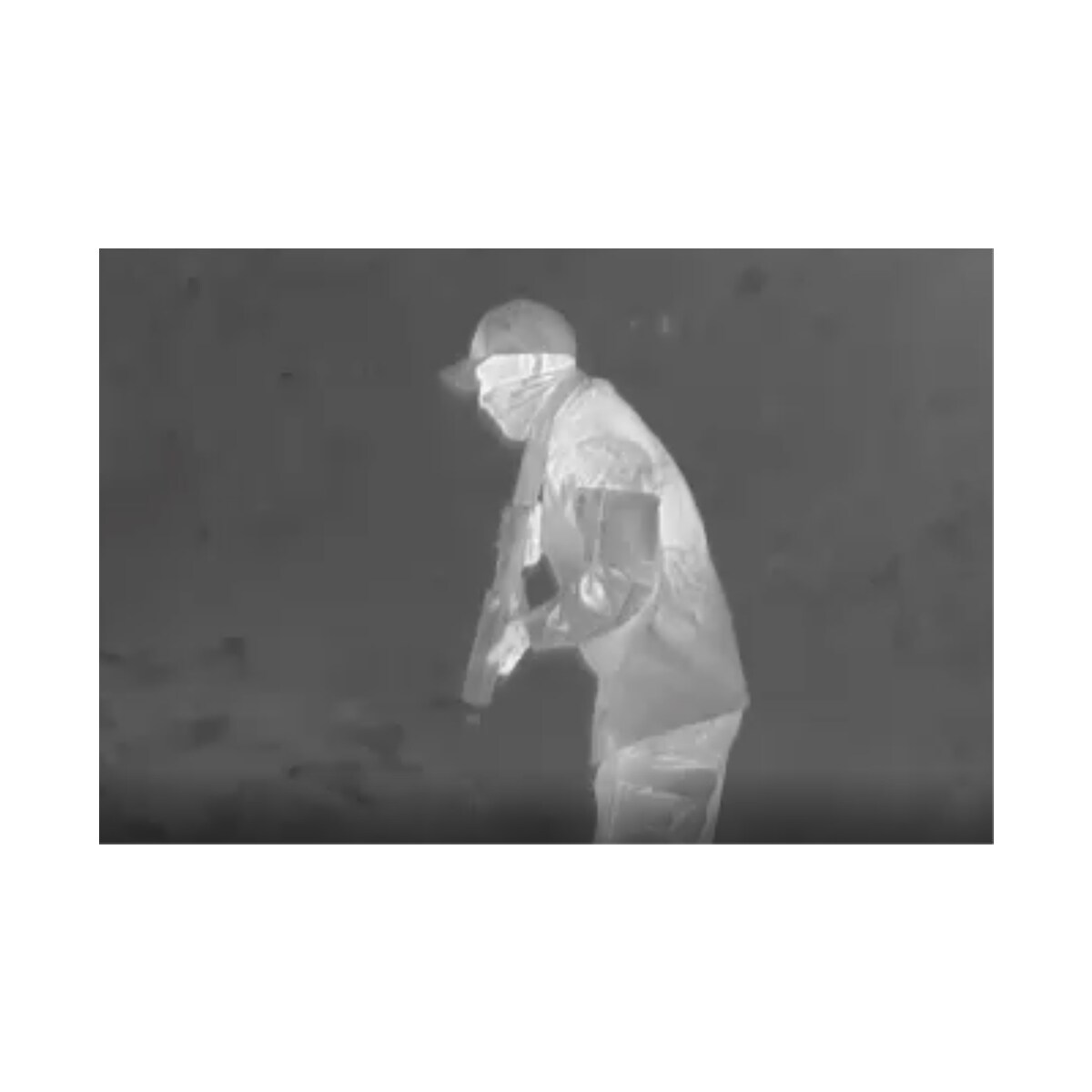

- Black Hot,

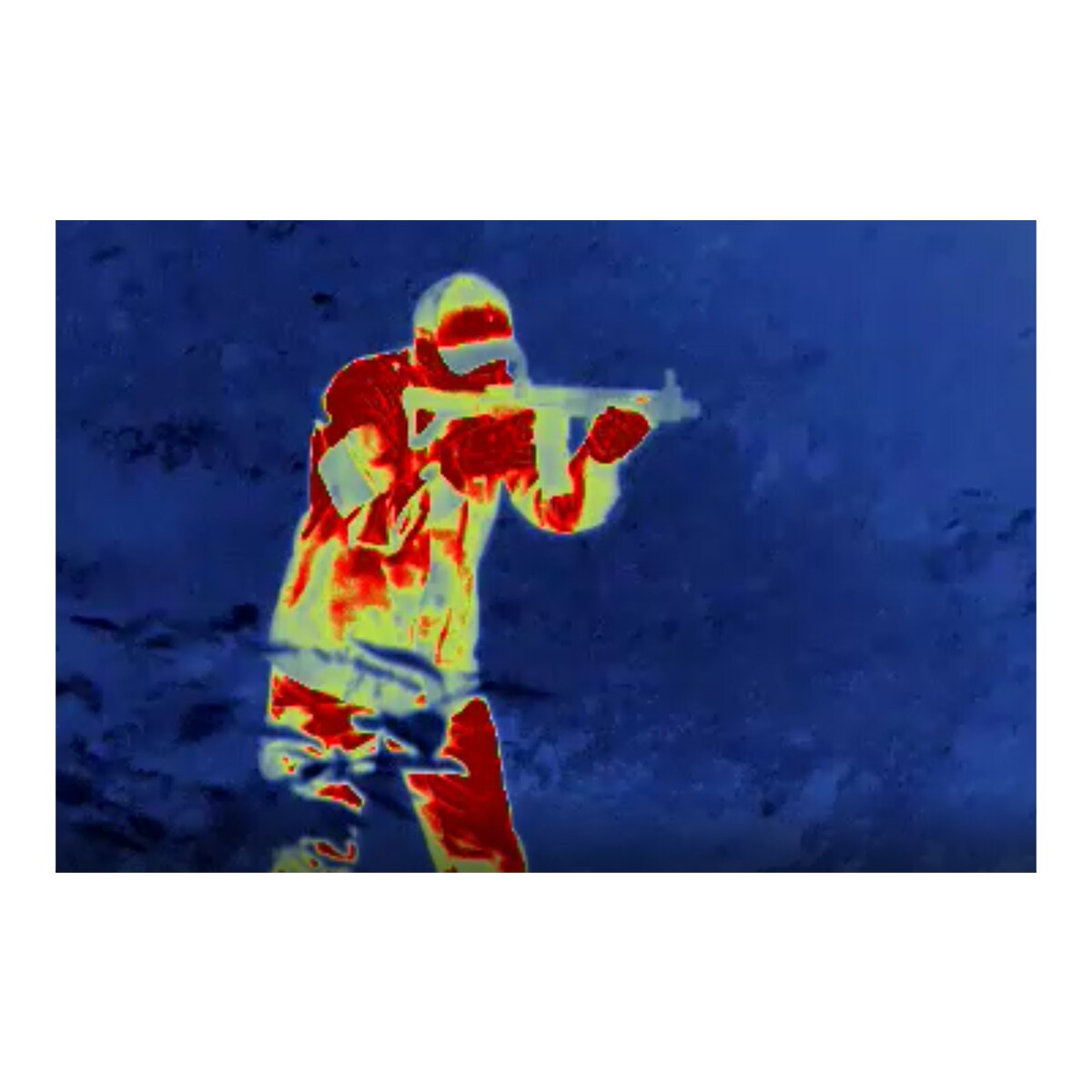

- Iron Red,

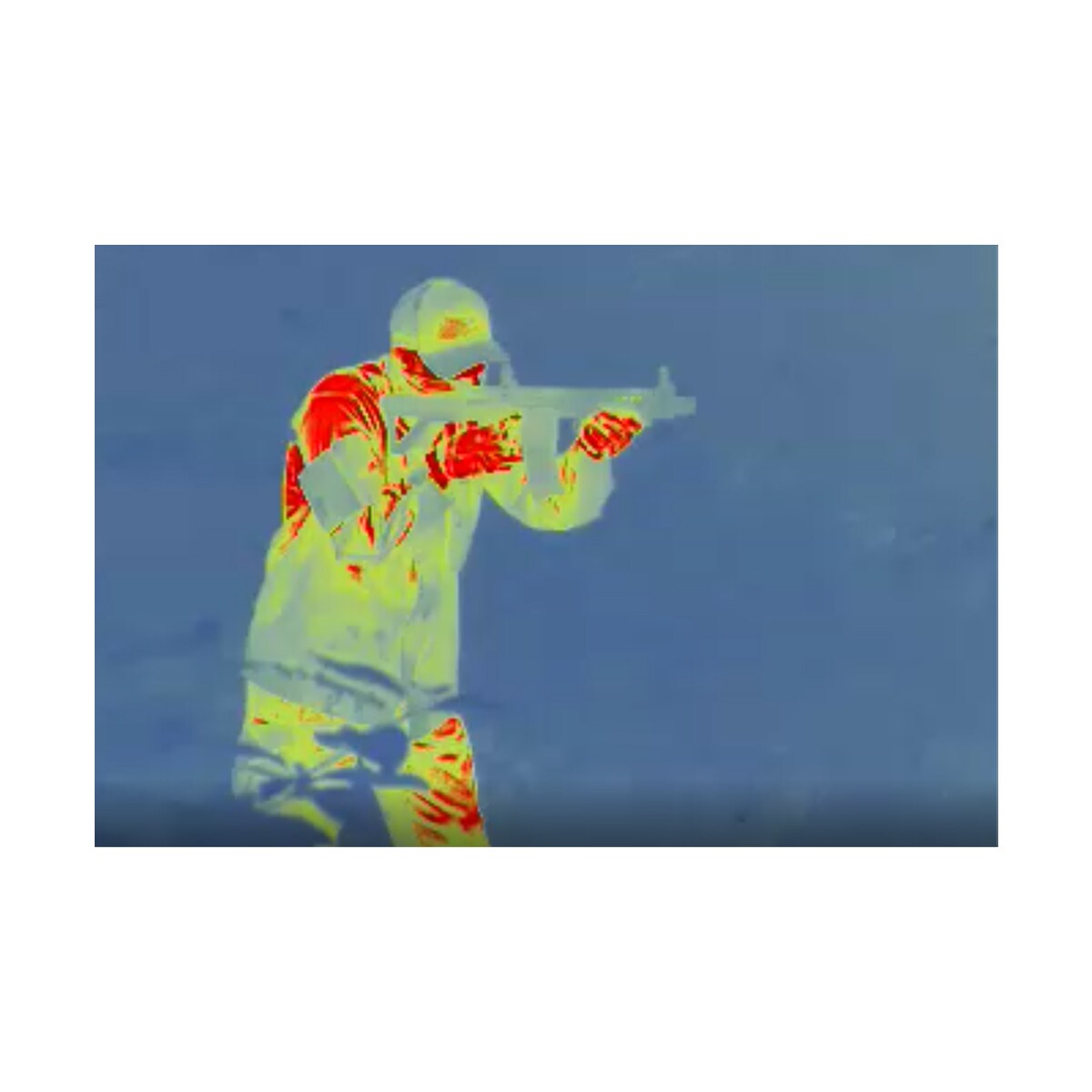

- Blue Hot,

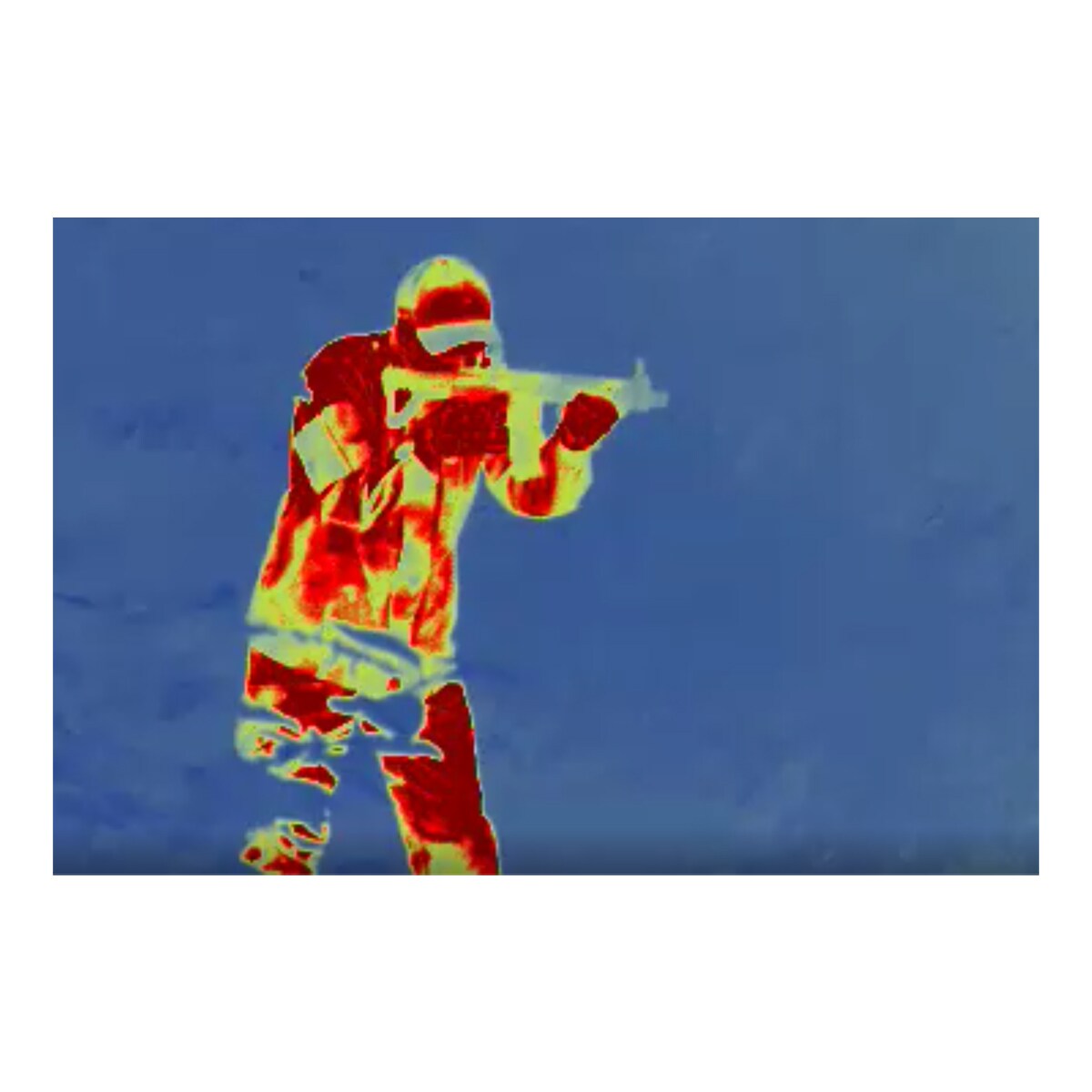

- Red Hot.

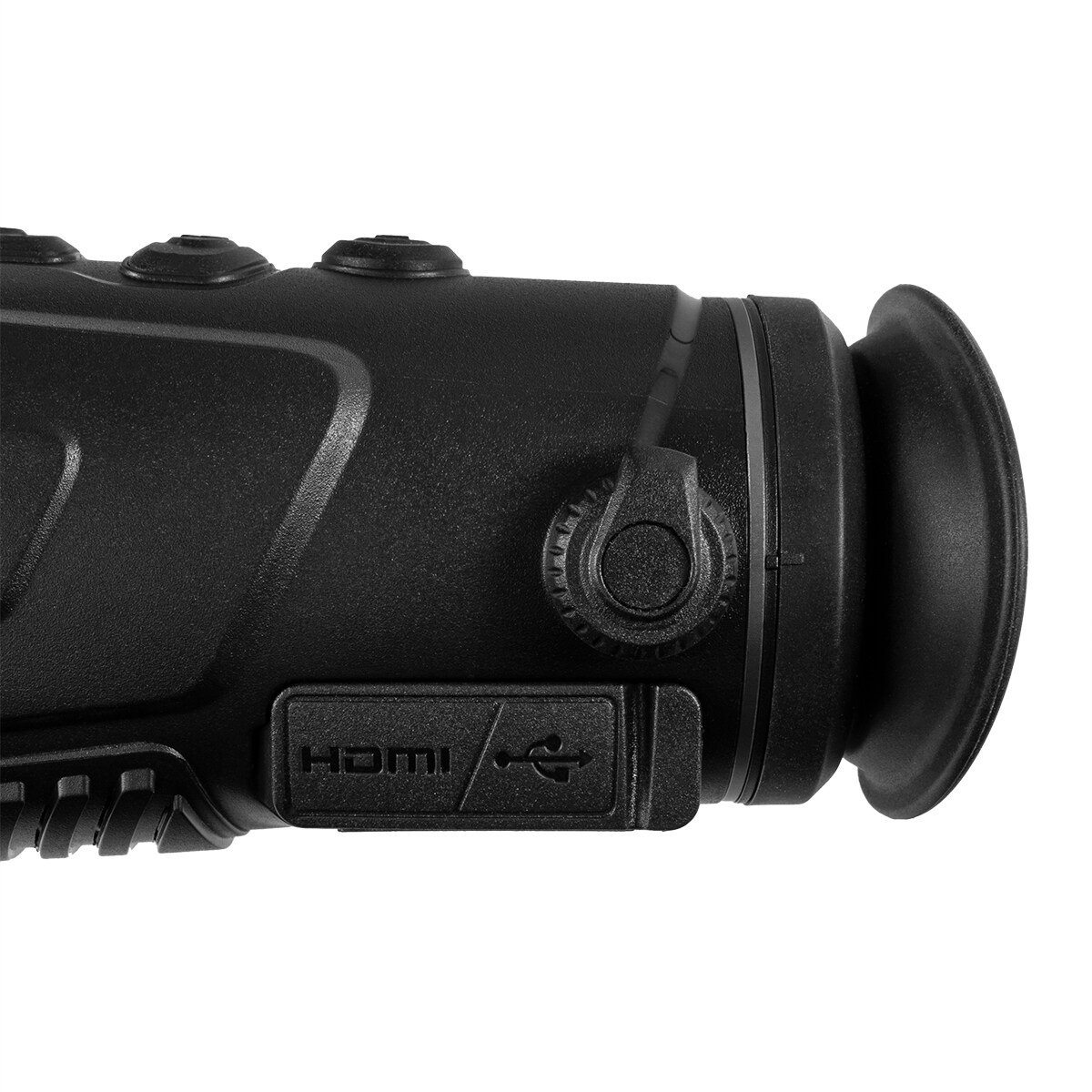

The thermal imager allows you to record the observed image and transfer it to your phone using the built-in WiFi module. Optionally, you can use the built-in micro HDMI or USB Type-C port, which is also used for charging the device. The thermal imager is powered by a built-in rechargeable battery, and the maximum operating time on a single charge is about 5 hours. In addition, the thermal imager can operate powered directly from an external power source plugged into the USB-C port - for example, from a Powerbank.

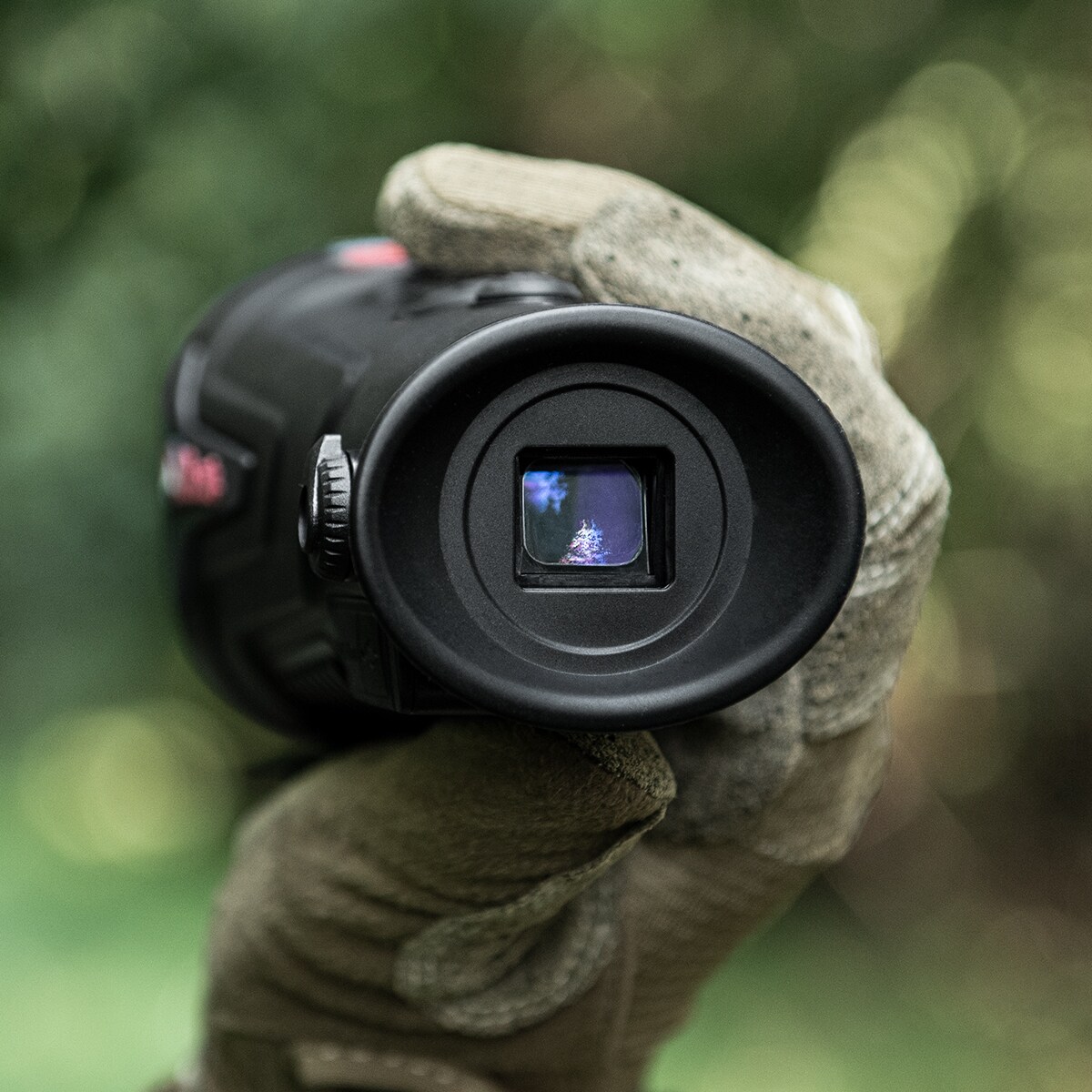

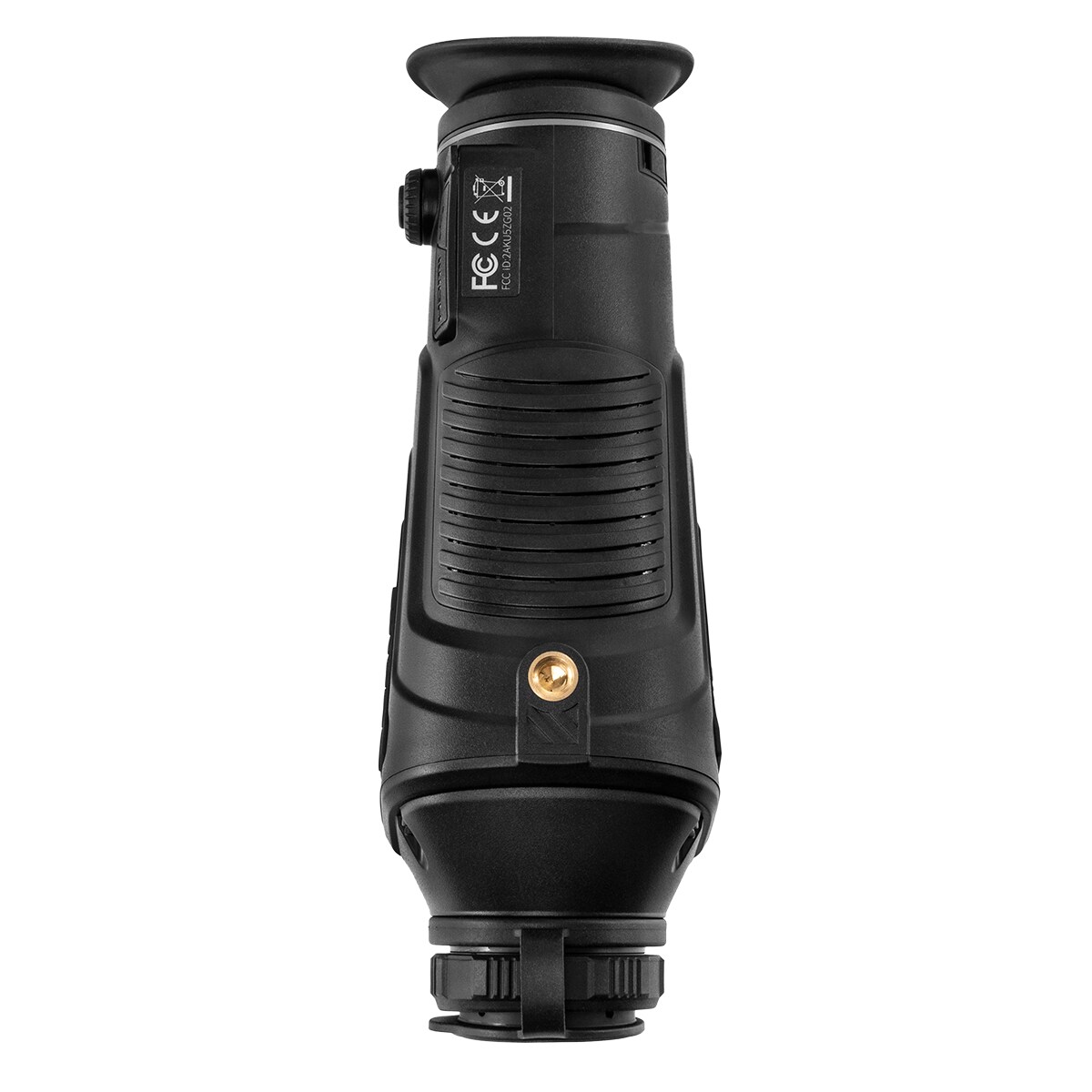

The BTH 25 model is equipped with diopter adjustment from -4 to +2 and a thread that allows the device to be mounted on a tripod for improved comfort.

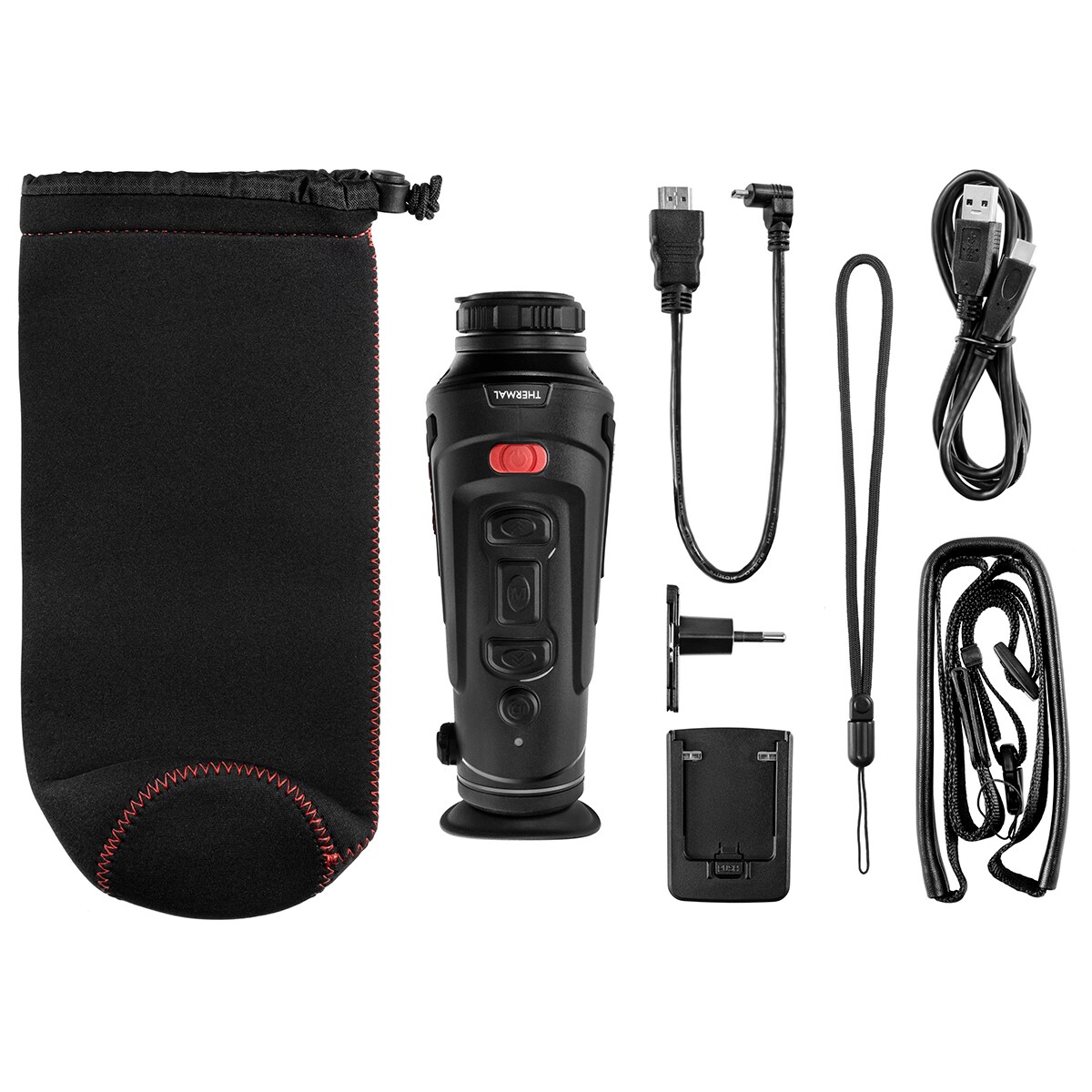

The kit includes:
- thermal imager,
- case,
- charger,
- HDMI / micro HDMI cable,
- wrist lanyard,
- transport strap.

Technical specifications
Color: black
Resolution: 400x300
Image refresh rate: 50 Hz
Lens: 25 mm
Field of view: 15,4°× 11,6°
Screen: 1280x960, LCOS
Maximum range (vehicle detection): 1200 m
Dimensions: 192 x 65 x 71 mm
Weight: 470 g
Manufacturer: Burris, USA
